OAuth / OpenID Connect Single Sign-On (SSO) into Joomla using LinkedIn | LinkedIn SSO Login




What is OAuth / OpenID?


OAuth Server / OpenID Connect Server (OAuth 2.0 Server) also known as Authorization Server, It is the modern standard for securing access to APIs & implements network protocol flows which allow a client (OAuth Client) to act on behalf of a user. OAuth Server allows clients to verify the identity of end-users based on the authentication performed by an Authorization Server and also to obtain basic profile (Scope) information about the end-users in an interoperable and REST-like manner.


How does OAuth / OpenID work?


OAuth 2.0 Server is used to set up any Application as Identity Server to allow users to Single Sign-On / Login into their client site/application with login using OAuth / OpenID Connect protocol flows. The primary goal of this OAuth 2.0 server/Oauth Provider is to allow users to interact with multiple apps without requiring them to store sensitive credentials. You can easily configure an OAuth 2.0/OpenID Connect server to protect your API with access tokens, or allow clients to request new access tokens and refresh them.


Joomla OAuth & OpenID Connect Single Sign-On (SSO) plugin enables secure login into Joomla using LinkedIn as OAuth and OpenID Connect provider. You can also configure the plugin using different Oauth providers such as Azure B2C, Office 365, and other custom providers. It supports advanced Single Sign-On (SSO) features such as user profile Attribute mapping, Role mapping, multi-tenant login, etc. Here we will go through a guide to configure SSO between Joomla and LinkedIn. By the end of this guide, users should be able to login to Joomla from LinkedIn.

click here to know more about other features we provide in Joomla OAuth Single Sign-On ( OAuth & OpenID Connect Client ) plugin

Step 1: Configure LinkedIn as an OAuth / OpenId Connect Server

  • Go to https://www.linkedin.com/secure/developer in order to create a new application. Click on Create Application button to create a new application.

    LinkedIn OAuth SSO OpenId Connect_sso_button to create a new application
  • Enter the required details and click on the Submit button to save your changes.

    LinkedIn OAuth SSO OpenId Connect_sso_button to save your changes
  • Copy the Client Id and the Client Secret and save it in your miniOrange OAuth Client plugin under Client Id and the Client Secret text fields respectively.
  • Copy the Redirect/ Callback URl from miniOrange OAuth Client plugin and enter it under OAuth 2.0 -> Authorized Redirect URLs textbox. Click on the Add button adjacent to the text box to save it. Finally, click on the Update button to save your configurations.

    LinkedIn OAuth SSO OpenId Connect_sso_button to save your configurations.

  • LinkedIn Endpoints and Scope:


    Client ID : from the step above
    Client Secret : from the step above
    Scope: r_emailaddress r_liteprofile w_member_social
    Authorize Endpoint: https://www.linkedin.com/oauth/v2/authorization
    Access Token Endpoint: https://www.linkedin.com/oauth/v2/accessToken
    Get User Info Endpoint: https://api.linkedin.com/v2/me
    Custom redirect URL after logout:[optional] https://YOUR_DOMAIN/v2/logout?client_id=YOUR_CLIENT_ID&returnTo=LOGOUT_URL

Step 2: Configure miniOrange Joomla OAuth Client plugin.

  • Download the zip file for the miniOrange OAuth Client plugin for Joomla from the link here.
  • oauth provider the zip for Joomla
  • Login into your Joomla site’s administrator console.

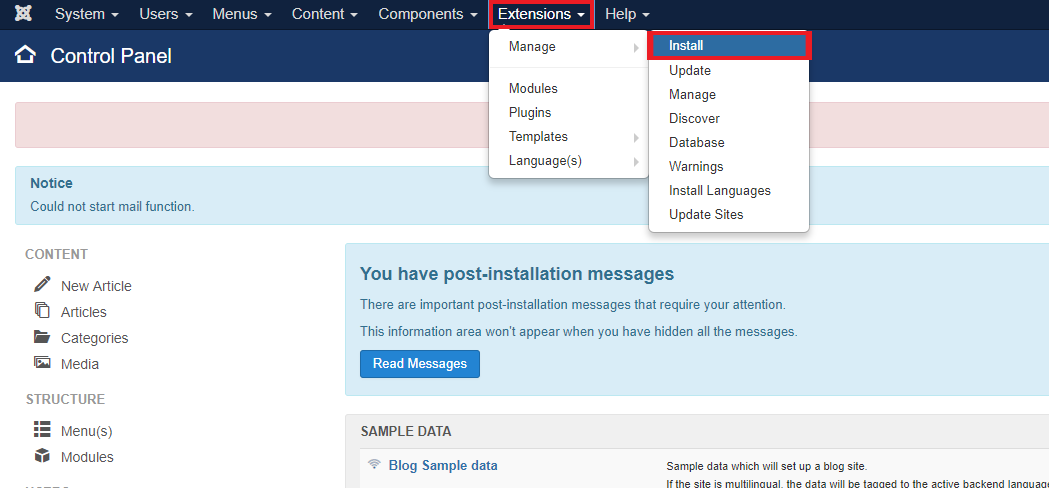

  • Go to Extension Manage Install in the top navigation bar to install the plugin.
  • joomla oauth provider plugin

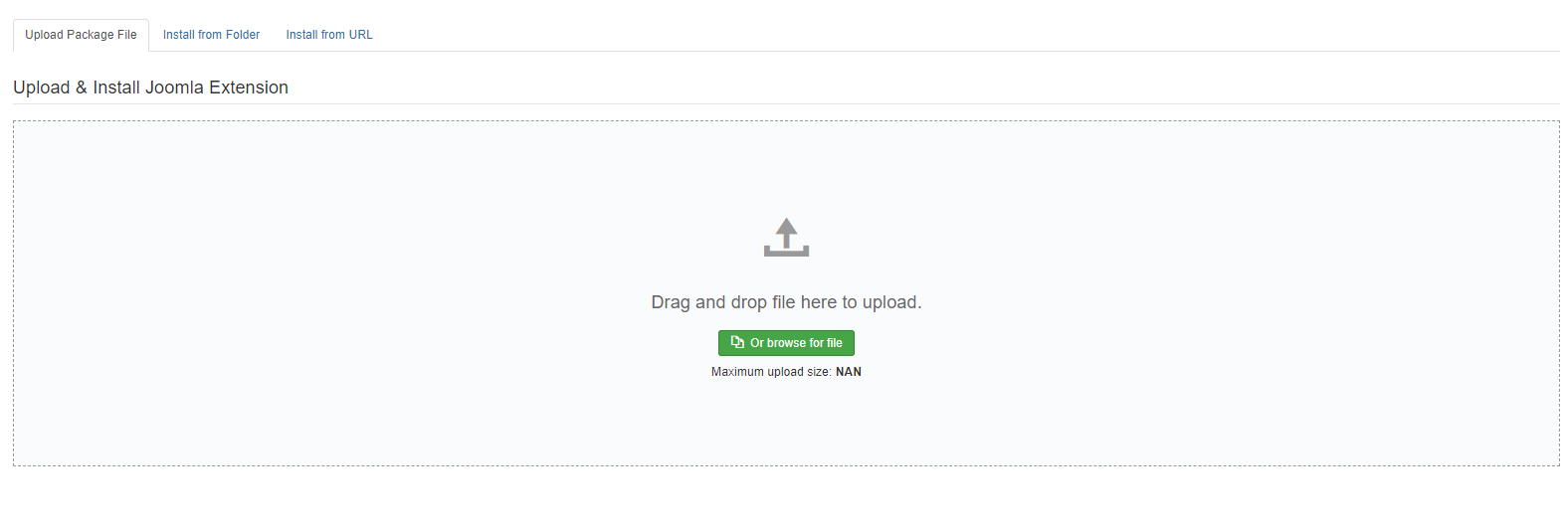

  • Upload the downloaded zip file to install the OAuth Client plugin.
  • joomla oauth provider zip
  • Navigate to Extensions Manage Manage and search for miniorange in the Search bar provided to see the list of the components.

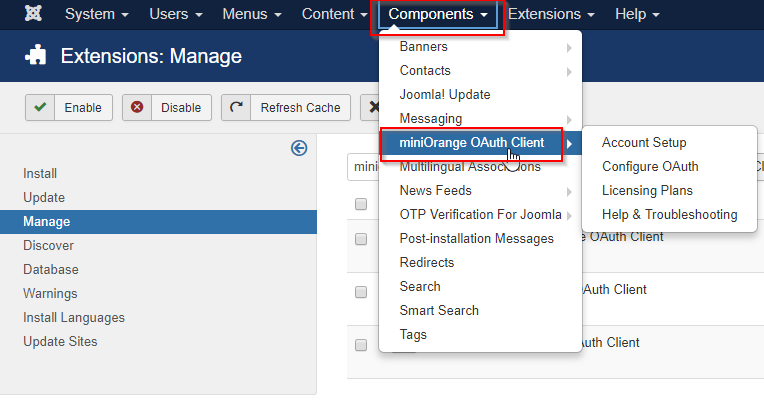

  • Go to Components MiniOrange OAuth Client in the top navigation bar to go to the configuration page of the plugin.
  • joomla oauth provider OAuth Client
  • Register/ Login with miniOrange.

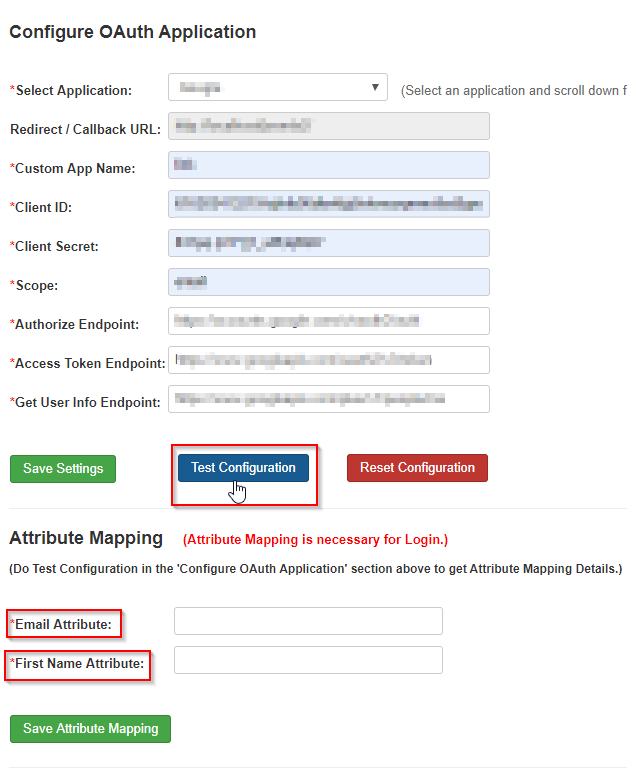

  • Go to the Configure OAuth tab in the plugin. FIll in the details you received from your OAuth Provider and click on the Save Settings button.
  • joomla oauth provider OAuth tab

    Select your OAuth Provider from the Select Application dropdown. In case your OAuth Provider is not listed in the drop down, please select Custom OAuth Provider to continue.

  • Copy the Redirect/Callback URL given in the plugin and save it in your OAuth Provider.
  • Click on the Test Configuration button and copy the email and name attributes and save these attributes in Email Attribute and Name Attribute text field respectively. Now click on the Save Attribute Mapping button to save your configurations.
  • joomla oauth provider Application joomla oauth provider Attribute Mapping
  • Add a button on your site login page with the following URL:your_home_page/base_url/?morequest=oauthredirect&app_name=xxxxxxxxx
  • You would find appropriate URL in Instructions to configure in the bellow section of Attribute Mapping (After completing test configuration please choose URL and Add a button on your site login page).

  • Now logout and go to your site. You will see a login link where you placed that button.
  • Click on the Licensing Plans Tab to check out our complete list of features and various licensing plans.

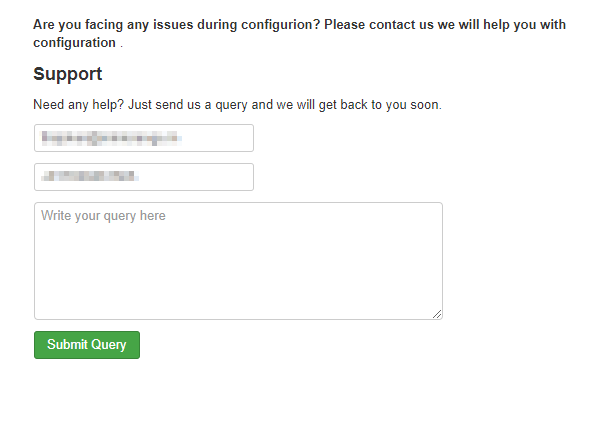

  • In case, you are facing some issue or have any question in mind, you can reach out to us by sending us your query through the Support dialog box in the Account Setup and Configure OAuth tabs.
  • joomla oauth provider server sso submit query

    Congratulations, you have successfully configured the miniOrange OAuth Client plugin with your desired OAuth Provider. In case you have any questions in mind, you can always mail us at joomlasupport@xecurify.com .
