REST API Authentication On Atlassian using Github Enterprise as OAuth Provider

Atlassian provides REST APIs to perform a number of operations such as Create Page, Delete Page, Add Comment, Create Space, etc. However, it supports only two authentication methods for REST APIs:

  1. Basic Authentication
  2. Using OAuth 1.0

The REST API Authentication plugin allows you to use any third party OAuth 2.0 provider/ OpenID connect to authenticate REST APIs. Here we will go through a guide to configure Github Enterprise as Provider.

Download And Installation

  • Log into your atlassian instance as admin.
  • Navigate to the settings menu and Click Manage Apps.
  • Click Find new apps or Find new add-ons from the left-hand side of the page.
  • Locate Api Token/OAuth Authentication app.
  • Click Try free to begin a new trial or Buy now to purchase a license.
  • Enter your information and click Generate license when redirected to MyAtlassian.
  • Click Apply license.

Step 1: Configure Github Enterprise server:

  • Login to GitHub Enterprise : Go to Github Enterprise and login with your account. Click on settings.
Github as OAuth Provider
  • Create Organization: Select Organizations from Personal Settings.'
  • Click on New organization and create organization by entering organization name, Billing email, choose your plan, terms and conditions - enter a business name.
  • click on create organization.
  • Create OAuth app: Click on Settings. Select your Organization.
Github as OAUth Provider
  • Click on Settings. Select OAuth Apps from Developer settings.
  • Click on New OAuth App. Enter app name, plugin homepage URL. Copy callback URL from the plugin and paste it under Authorized callback URLfield.
Github as OAuth Provider   Note: Copy the ClientID and Client Secret.

Step 2: Fetch Access token through POSTMAN

  • Open the Postman Application (Here is the link to download Postman Application).
  • Go to Authorization tab.
  • From the dropdown select type as OAuth 2.0 and  click on Get access token.
  • Add the following information from the table below.
  • Postman starts the authentication flow and prompts you to use the access token.
  • Select Add token to the header.
Field Value
Grant type Authorization Code or Client Credentials
Callback URL Enter your application's base URL if you dont have a callback URL
Auth URL https://github.com/login/oauth/authorize
Access token URL https://github.com/login/oauth/access_token
Client ID Enter the Github Enterprise Client ID
Client secret Enter the  Github Enterprise  Client secret
Scope Blank
Client Authentication Send as Basic Auth Header
Github as OAuth Provider
  • Copy the Access Token or click on Use Token.
A sample access token from Github Enterprise Provider looks like this.
A834c0606ba71336423013699db8e971

Step 3: Fetch Username through Github Enterprise:

  • Choose the method type as "GET".
  • Enter the interoception Endpoint from the plugin to fetch the username in the Request URL. For Github Enterprise it is "https://api.github.com/user".
  • Go to the Authorization tab select the Bearer Token and enter the access token here.
  • Add the header "content-type: application/json" and click on Send.
Github as OAuth Provider Request:
     curl
     -X GET
     -H "Authorization: Bearer <Access Token>"
     -H "Content-type: application/json"
     https://api.github.com/user
Copy the attribute value against the username, you will need to configure it in plugin. In this example, the value is "login".

Configure the Rest API plugin:

Step 1: Enable Rest API Authentication:

  • After installing the app, navigate to the Global Settings tab.
  • Here you will have to Enable the Authentication through Enable REST API Authentication and click on Save.

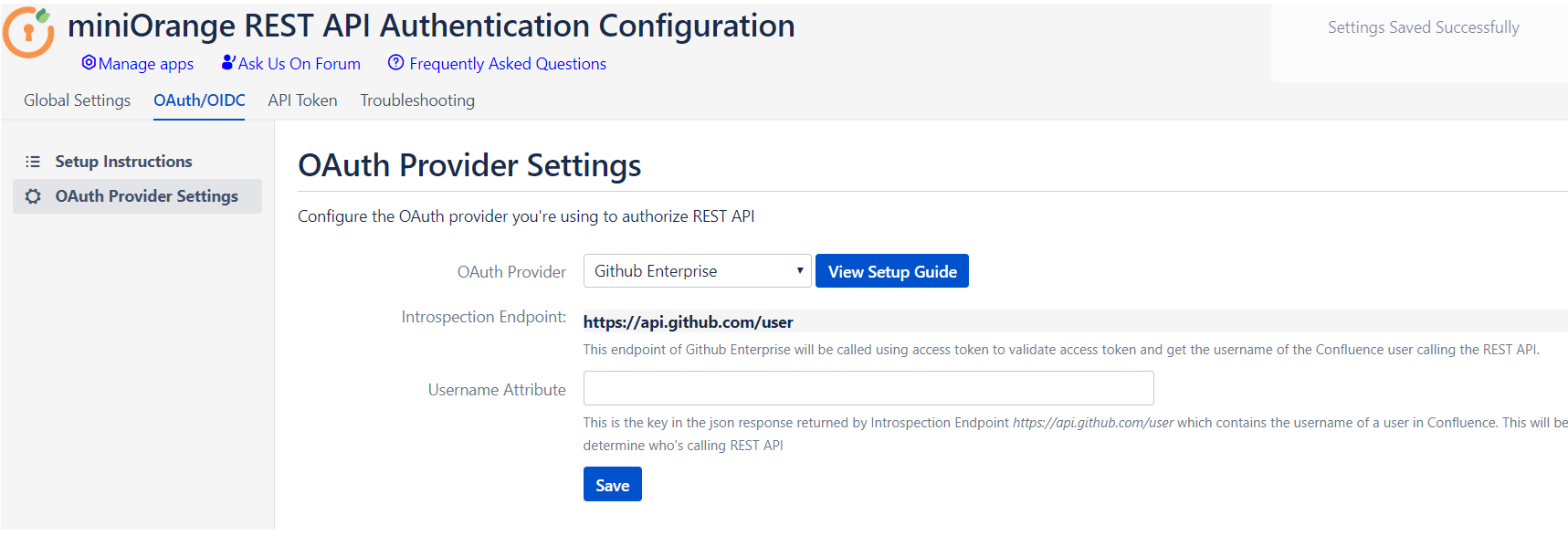

  • Go to the OAuth/OIDC tab and in the dropdown provided select GitHub as the OAuth provider.
  • Enter the attribute value against which we received the username in the Postman response.
  • Save the settings.

Github as OAuth Provider



Step 2: Disable Basic Authentication:

  • Disabling this will restrict all the REST API call made using Basic Authentication.

Test REST API using access token:

  • Call any REST API. Include the access token in the Authorization header. Here’s an example of fetching content from Confluence.
  • Go to the Postman application select method type as GET and enter the Request URL. For eg. http://{Confluence_Base_URL}/confluence/rest/api/content/
  • In the Authorization tab select type as Bearer Token.
Confluence-Rest-API-Github
  • In the Header tab add the header “content-type: application/json and send the request.
Confluence-Rest-API-Github Request:
     curl
     -X GET
     -H "Authorization: Bearer <Access Token>"
     -H "Content-type: application/json"
     http://{confluence_base_url}/confluence/rest/api/content/
  • This will show the content in Confluence and will return the status 200.
  • If the token is invalid or missing, the call will return a 401 Unauthorized response
