SAML Single Sign On (SSO) into Confluence using ADFS as IDP

Confluence SAML app gives the ability to enable SAML Single Sign On for Confluence Software. Confluence Software is compatible with all SAML Identity Providers. Here we will go through a guide to configure SSO between Confluence and your Identity Provider. By the end of this guide, users from your Identity Provider should be able to login and register to Confluence Software.

Pre-requisites

To integrate your Identity Provider(IDP) with Confluence, you need the following items:

  • Confluence should be installed and configured.
  • Admin credentials are set up in Confluence.
  • Confluence server is https enabled (optional).
  • Valid Confluence Server and Data center Licence.

Download And Installation

  • Log into your Confluence instance as an admin.
  • Navigate to the settings menu and Click Manage Apps.
  • Click Find new apps or Find new add-ons from the left-hand side of the page.
  • Locate Confluence SSO/ Single Sign On, SAML SSO via search.
  • Click Try free to begin a new trial or Buy now to purchase a license for Confluence SSO/ Single Sign On, SAML SSO.
  • Enter your information and click Generate license when redirected to MyAtlassian.
  • Click Apply license.
  • Confluence saml sso

Step 1: Setup ADFS as Identity Provider

  • On ADFS, search for ADFS Management application.
  • SAML Single Sign On (SSO) using ADFS Identity Provider, Management Application
  • After opening the AD FS Management, select Relying Party Trust & then click on Add Relying Party Trust.
  • SAML Single Sign On (SSO) using ADFS Identity Provider,Add Relying Party Trust
  • Click the Start button from the Relying Party Trust Wizard pop up. But before that please make sure Claims Aware is selected.
  • SAML Single Sign On (SSO) using ADFS Identity Provider,Claims Aware
  • Select the options for adding a relying party trust.
    • SAML Single Sign On (SSO) using ADFS Identity Provider Using Metadata URL

      • In Select Data Source: Import data about the relying party published online or on the local network option & then add URL in Federation metadata address.
      • SAML Single Sign On (SSO) using ADFS Identity Provider, Import metadata through URL
      • Skip step-5 to step-8 & start configuring from step-9. Navigate to Service Provider Info tab from the plugin for getting SP Meatadata URL.

      SAML Single Sign On (SSO) using ADFS Identity Provider Using Metadata XML file

      • In Select Data Source: Import data about the relying party from a file option & then browse the metadata file.
      • SAML Single Sign On (SSO) using ADFS Identity Provider, Import Metadata through XML file
      • Skip step-5 to step-8 & start configuring from step-9.

      SAML Single Sign On (SSO) using ADFS Identity Provider Using Manual configuration

      • In Select Data Source: Enter Data about the relying party manually & Click on Next.
      • SAML Single Sign On (SSO) using ADFS Identity Provider, Manual configuration of metadata
  • Enter Display Name & Click Next.
  • Upload the certificate & click next. Download the certificate from plugin & use the same certificate to upload on ADFS.
  • Select Enable support for the SAML 2.0 WebSSO protocol & Enter ACS URL from the plugins Service Provider Info Tab. Click Next.
  • SAML Single Sign On (SSO) using ADFS Identity Provider,support for the SAML 2.0 WebSSO protocol
  • Add Entity ID from plugins Service Provider Info Tab as Relying party trust identifier then click Add button & then click Next.
  • SAML Single Sign On (SSO) using ADFS Identity Provider, Relying party trust identifier
  • Also download the Signing certificate from Service Provider Info Tab from the plugin.
  • Select Permit everyone as an Access Control Policy & click on Next.
  • SAML Single Sign On (SSO) using ADFS Identity Provider, Access Control Policy
  • Click the Next button from Ready to Add Trust & click Close.
  • It will show you the list of Relying Party Trusts. Select the respective application & click on Edit Claim Issuance Policy.
  • SAML Single Sign On (SSO) using ADFS Identity Provider, Edit Claim Issuance Policy
  • Click on Add Rule button.
  • SAML Single Sign On (SSO) using ADFS Identity Provider, add rule

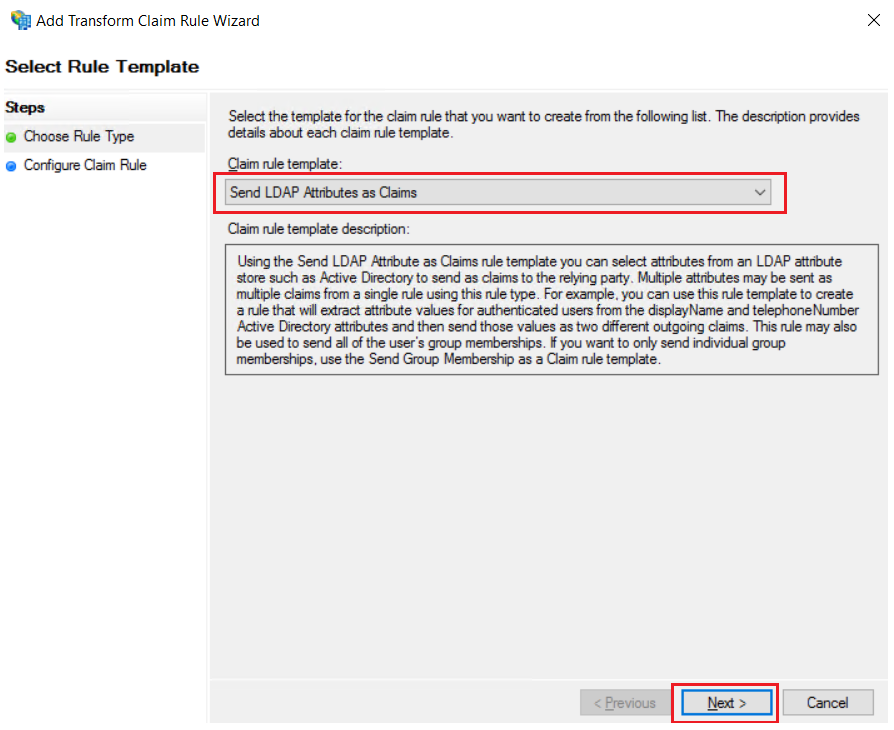

  • Select Send LDAP Attributes as Claims & click on Next.
  • SAML Single Sign On (SSO) using ADFS Identity Provider, Send LDAP Attributes as Claims
  • Enter the following details & click on Finish.
  • Claim rule name: Attributes
    Attribute Store: Active Directory
    LDAP Attribute: E-Mail-Addresses
    Outgoing Claim Type: Name ID
    SAML Single Sign On (SSO) using ADFS Identity Provider, Add Transform claim rule wizard
  • Click Apply Ok.

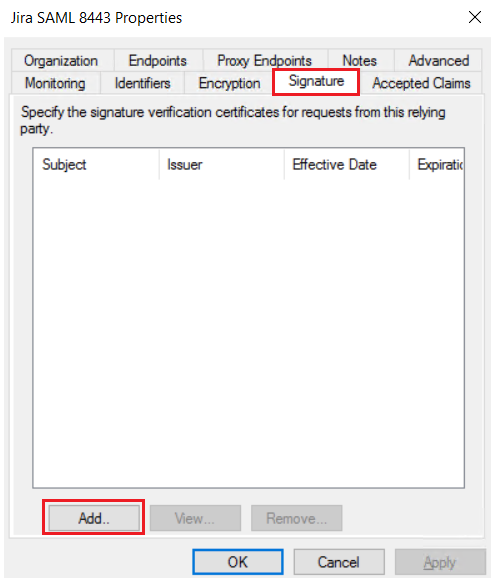

  • Select property of the application & add the certificate downloaded from the add-on.
  • SAML Single Sign On (SSO) using ADFS Identity Provider, Add certificate

Step 2: Setup Confluence as Service Provider

Now we will go through the steps to setup Confluence as a Service Provider using miniOrange add-on:

Configure Identity Provider

Step 1. Adding IDP settings in add-on


    miniorange img By Metadata URL:

    • Click on Import from Metadata in Configure IDP tab.
    • Select IDP: Import From Metadata URL.
    • Enter your metadata URL.
    • If your IDP changes certificates at intervals(Eg. Azure AD), you can select Refresh metadata periodically. Select 5 minutes for the best results.
    • Click Import.
    • SAML Single Sign On (SSO) into Confluence, Configure IDP using Metadata URL

    miniorange img By uploading Metadata XML file:

    • Click on Import from Metadata in Configure IDP tab.
    • Select IDP: Import from Metadata File.
    • Upload metadata file.
    • Click Import.
    • SAML Single Sign ON (SSO) into Confluence, Configure IDP through uploading metadata IDP

    miniorange img Manual Configuration:

    • Go to Configure IDP tab and enter the following details.
    • IDP Name

      IDP Entity ID

      Single Sign On URL

      Single Logout URL

      X.509 Certificate

      SAML Single Sign ON (SSO) into Confluence, Manual IDP Configuration

Configure Multiple Identity Providers

Step 1: Add New IdP

  • Click on Add New IdP button given in the right topmost corner. You can configure IdP using one of these 3 methods.
  • SAML Single Sign On (SSO) into Confluence, Add new IDP

Step 2: List of IdPs

  • Once the IdP endpoints are configured successfully, you will get to see list of all the IdPs.
  • You can edit Metadata endpoints using Edit option.
  • Click on Test to check your IdP response. It shows Test successful with set of attributes you configured in your IdP. You can perform Single Sign-On once the test is successful.
  • You can remove IdP from the list using Delete option.
  • SAML Single Sign On (SSO) into Confluence, Multiple IDP List

Step 3: Single Sign On

  • Select your IdP from the list. It will redirect you to selected IdP login page.
  • SAML Single Sign ON (SSO) into Confluence, Login form with multiple IDP configured

Step 4 : Domain Mapping

  • Enable Domain mapping using Use Domain Mapping option.
  • Enter IdP domain name.
  • Note: For this feature you have to configure domain name for each and every IDP from the list.

    SAML Single Sign On (SSO) into Confluence, Domain Mapping

Step 5: Single Sign On using Domain mapping

  • Enter user email address. It will check your domain name with the configured domain if it match then it will redirect you to the respective Identity Provider Login page.
  • SAML Single Sign On (SSO) into Confluence, Login form while domain mapping is on

Step 3: Setting up Confluence user profile attributes

    We will be setting up user profile attributes for Confluence. If your users are stored in a directory that is Read Only, please check Disable User Profile Mapping in User Profile tab and follow steps given in Matching a User.

    SAML Single Sign On (SSO) into Confluence, User profile attribute mapping
    a. Finding correct attributes
    • Go to Configure IDP tab. Scroll down and click on Test Configuration.
    • You will see all the values returned by your IDP to Confluence in a table. If you don’t see value for First Name, Last Name, Email or Username, make the required settings in your IDP to return this information.
    • Once you see all the values in Test Configuration, keep the window open and go to User Profile tab.
    b. Setting profile attributes
    • In this tab, fill the values by matching the name of the attribute. For instance, if the Attribute Name in the Test Configuration window is NameID, enter NameID against Username
    • Setting up both Username and Email is required if you want to let users register. If you want existing users to only login, configure the attribute using which you will match user in Confluence.
    c. Matching a User

    When user logs into Confluence, one of the user’s data/attribute coming in from the IDP is used to search the user in Confluence. This is used to detect the user in Confluence and login the user to the same account.

    • Go to User Profile tab
    • Select Username or Email for Login/Search Confluence user account by
    • Enter the attribute name from IDP which corresponds to Username or Email using Finding Correct Attributes

Step 4: Assigning groups to users

    We will be setting up user group attributes for Confluence. If your users are stored in a directory that is Read Only, please check Disable Group Mapping in User Groups tab and skip to Setting default group.

    a. Setting default group
  • Select the users' Default Group in the tab User Groups. If no group is mapped, users are added by default to this group.
  • You can enable default groups for All Users or New Users using the option.Select None if you don't want to assign any default group to SSO users. Using the option Enable Default Groups for.
  • SAML Single Sign On (SSO) into Confluence, Default groups configuration
    b. Finding Group Attribute
  • Just like we found Attribute Name for User Profile attributes, we find group attribute.
  • Go to Configure IDP tab. Scroll down and click on Test Configuration.
  • You will see all the values returned by your IDP to Confluence in a table. If you don't see value with groups, make the required settings in your IDP to return group names.
  • Once you see all the values in Test Configuration, keep the window open and go to User Groups tab.
  • Enter the Attribute Name of group against Group Attribute.
  • Check Disable Group Mapping option if you don't want to update groups of existing users.

  • c. Group Mapping
    Group Mapping can be done in two ways:
  • Manual group mapping: If the names of groups in Confluence are different than the corresponding groups in IDP, then you should use Manual group mapping.
  • On-The-Fly group mapping: If the names of groups in Confluence and IDP are same, you should use On-The-Fly group mapping.

  • I. Manual Group Mapping
    • Check Restrict User Creation Based on Group Mapping option if you want new users to be created only if at least one of the user's IDP groups is mapped to a group in the application.
    • For mapping, first select a Confluence group from the dropdown which lists all groups present in Confluence and then enter the name of the IDP group to be mapped in the textbox beside
    • For example, if you want all users in 'dev' group in IDP to be added to confluence-users, you will need to select confluence-users from the dropdown and enter 'dev' against confluence-users.
    • Use '+1' and '+10' buttons to add extra mapping fields.
    • Use '-' button next to each mapping to delete that mapping.
    SAML Single Sign On (SSO) into Confluence, Manual group mapping
  • II. On-The Fly Group Mapping
    • Check Create New Groups option if you want new groups from IDP to be created if not found in Confluence.
    • If the user is part of some group in Confluence and that group is not present in the SAML response returned by IDP, then the user will be removed from that group in Confluence.
    • If you don't want On-The-Fly group mapping to affect Confluence groups which are managed locally then add those groups in Exclude Groups field.
    SAML Single Sign On (SSO) into Confluence, On the fly group mapping

Step 5: SSO Settings

    The settings in Sign In Settings tab define the user experience for Single Sign On
    a. Sign In Settings
      SAML Single Sign On (SSO) into Confluence, Sign In Settings
    • Set button text for button on login page using Login Button Text
    • Set redirect URL after login using Relay State. Keep this empty for coming back to the same page user started from
    • Enable Auto-redirect to IDP if you want to allow users to login only using IDP. Enable backdoor for emergency
    • SAML Single Sign On (SSO) into Confluence, Auto redirect to IDP
    b. Custom Login Template
    • Set custom login template to redirect users to a custom login page instead of Confluence default login page. This won't work if you have Auto-redirect to IDP enabled.
    • Don't forget to copy default login page URL in case of emergency.
    • SAML Single Sign On (SSO) into Confluence, Custom Login template settings
    c. Sign Out Settings
    • Enter a custom logout URL to redirect your users to a pre-defined logout page
    • Set a custom logout template to show custom logout page to users on logout
    • SAML Single Sign On (SSO) into Confluence, Sign Out settings
    d. SSO Error Settings
    • Set error template to redirect users to a custom error page instead of login page. Use this if you have Auto-redirect to IDP enabled.
    • SAML Single Sign On (SSO) into Confluence, Custom Error Template Settings
    e. Advanced Settings
    • Remember Me: If enabled, user stays logged in until user explicitly logs out.
    • You can extend Confluence default session timeout using these steps. By default it is set to 60 minutes.
    • Validate IDP's SAML Response: Configure time difference(in minute) here In case Confluence server time is not in sync with your IDP's time.
    • SAML Single Sign On (SSO) into Confluence, Advanced SSO Settings
