SAML Single Sign On (SSO) Into Fisheye/Crucible Using Ping Federate

Download

Fisheye/Crucible SAML app gives the ability to enable SAML Single Sign On for Fisheye/Crucible Software. Fisheye/Crucible Software is compatible with all SAML Identity Providers. Here we will go through a guide to configure SSO between Fisheye/Crucible and your Identity Provider. By the end of this guide, users from your Identity Provider should be able to login and register to Fisheye/Crucible Software.

Pre-requisites

To integrate your Identity Provider(IDP) with Fisheye/Crucible, you need the following items:

  • Fisheye/Crucible should be installed and configured.
  • Fisheye/Crucible Server is https enabled (optional).
  • Admin credentials are set up in Fisheye/Crucible.
  • Valid Fisheye/Crucible Server Licence.

Download And Installation

  • Log into your Fisheye/Crucible instance as an admin.
  • Navigate to the settings menu and Click Add-ons.
  • Click on Find new add-ons from the left-hand side of the page.
  • Locate Fisheye/Crucible SAML Single Sign On/SSO via search.
  • Click Try free to begin a new trial or Buy now to purchase a license for Fisheye/Crucible SAML Single Sign On/SSO.
  • Enter your information and click Generate license when redirected to MyAtlassian.
  • Click Apply license.
    • SAML Single Sign On(SSO) into Fisheye and Crucible using Identity Provider

Step 1:Setup PingFederate as Identity Provider

All the information required to configure the Ping Federate as SAML IDP i.e. plugin’s metadata is given in the Service Provider Info tab of the miniOrange plugin.


  • Login to your Ping Federate user admin dashboard.
  • Click on the Identity Provider in the left navigation menu.
  • Under SP CONNECTION, click on Create New button.

    SAML Single Sign On (SSO) using PingFederate Identity Provider, Add New SP Connection
  • Select the Browser SSO Profiles connection template on the Connection Type tab and click Next.

    SAML Single Sign On (SSO) using PingFederate Identity Provider, SSO Connection type
  • Select Browser SSO on the Connection Options tab and click Next.

    SAML Single Sign On (SSO) using PingFederate Identity Provider, SSO Connection Options
  • Select File as the method for importing metadata and click Choose file to choose the miniOrange SSO plugin’s metadata on the Import Metadata tab. Click Next.

    SAML Single Sign On (SSO) using PingFederate Identity Provider, Import Metadata
  • Review the information on the Metadata Summary tab and click Next.
  • In the General Info tab ensure that the Service Provider’s Entity ID, Connection Name, and Base URL fields pre-populate based on the metadata. Click Next.
  • Navigate to the Browser SSO tab and click on the Configure Browser SSO. You will be redirected to Browser SSO Setup wizard.

      1) Select the IdP-Initiated SSO and SP-Initiated SSO options on the SAML Profiles tab and click     Next.

      SAML Single Sign On (SSO) using PingFederate Identity Provider, Browser SSO Profile 2) Enter your desired assertion validity time from on the Assertion Lifetime tab and click Next.     By default, it is configured 5 minutes for both.

      3) Navigate to the Assertion Creation and click on the Configure Assertion Creation. You will be redirected to the assertion creation setup wizard.

        I. In the Identity Mapping tab select STANDARD and click Next.

        II. Select a Subject Name Format for the SAML_SUBJECT on the Attribute Contract tab and click Next.

        III. Click Map New Adapter Instance on the Authentication Source Mapping.

        SAML Single Sign On (SSO) using PingFederate Identity Provider, Assertion Creation IV. Select an Adapter Instance and click Next. The adapter must include the user’s email     address.

        SAML Single Sign On (SSO) using PingFederate Identity Provider, Select Adapter Instance V. Select the Use only the adapter contract values in the SAML assertion option on the     Mapping Method tab and click Next.

        VI. Select your adapter instance as the Source and the email as the Value on the Attribute     Contract Fulfilment tab and click Next.

        SAML Single Sign On (SSO) using PingFederate Identity Provider, Attribute Contract Settings VII. (Optional) Select any authorization conditions you would like on the Issuance Criteria        tab and click Next.

        VIII. Click Done on the Summary.

        IX. Click Next on the Authentication Source Mapping tab.

        X. Click Done on the Summary tab.

        XI. Click Next on the Assertion Creation

    1. Navigate to the Protocol Settings tab of the Browser SSO wizard and click on the Configure Protocol settings.

        1) Select POST for Binding and specify the single sign-on endpoint URL in the Endpoint     URL field on the Assertion Consumer Service URL. Click Next.

        SAML Single Sign On (SSO) using PingFederate Identity Provider, SSO Protocol Settings 2) Select POST on the Allowable SAML Bindings tab and click Next.

        3) Select your desired signature policies for assertions on the Signature Policy tab and     click Next.

        SAML Single Sign On (SSO) using PingFederate Identity Provider, Signature Policy for Assertion 4) Select your desired encryption policy for assertions on the Encryption Policy tab and     click Next.

        5) Click Done on the Protocol Settings Summary tab.

        6) Click Done on the Browser SSO Summary.

  • Navigate to the Credentials and click on the Configure Credentials. You will be redirected to the Credentials setup wizard.
      1) Select the Signing Certificate to use with the Single Sign-On service and select Include the certificate in the signature element in the Digital Signature Settings tab. Click Done.

      SAML Single Sign On (SSO) using PingFederate Identity Provider, Digital Signature Settings 2) Click Done on the Summary.

      3) Click Next on the Credentials.

  • Select Active for the Connection Status on the Activation & Summary tab and click Save.
  • Now, navigate to the Ping Federate User Admin dashboard Identity Provider.
  • Click Manage All under SP Connections.
  • Click Export Metadata for the desired service provider connection.
  • Click Export on the Export & Summary tab and click Done.

Step 2: Setup Fisheye/Crucible as Service Provider

Configure Single Identity Provider Setup

Configuring Single IDP

With the information you have been given by Your IDP team, you can configure IDP settings in 3 ways:

A. By Metadata URL

  • Click on Import from Metadata in Configure IDP tab.
  • Select IDP: Import From Metadata URL.
  • Enter IDP metadata URL: Enter your metadata URL.
  • If your IDP changes certificates at intervals(Eg.Azure AD), you can select Refresh metadata periodically. Select 5 minutes for the best results.
  • Click Import.

SAML Single Sign On (SSO) into Fisheye/Crucible, Configure IDP using Metadata URL

B. By Uploading Metadata XML File

  • Click on Import from Metadata in Configure IDP tab.
  • Select IDP: Import from Metadata File
  • Upload metadata file.
  • Click Import.

SAML Single Sign On (SSO) into Fisheye/Crucible, Configure IDP using XML metadata file

C. Manual Configuration

Go to Configure IDP tab and enter the following details

  • IDP Entity ID
  • Single Sign On URL
  • Single Logout URL
  • X.509 Certificate
SAML Single Sign On (SSO) into Fisheye/Crucible, Configure IDP manually

Configure Multiple Identity Provider(IdP) Setup

Configure New IDP

If you already have one IDP & you are looking to add Second IDP then you can do it by performing the following steps.

  • Navigate to Configure IDP tab.
  • Click on Add new IDP.
  • It will present a blank form & you can configure new IDP using steps from Single IdP Setup.
SAML Single Sign On (SSO) into Fisheye/Crucible, Add new IDP

Configure multiple IDPs

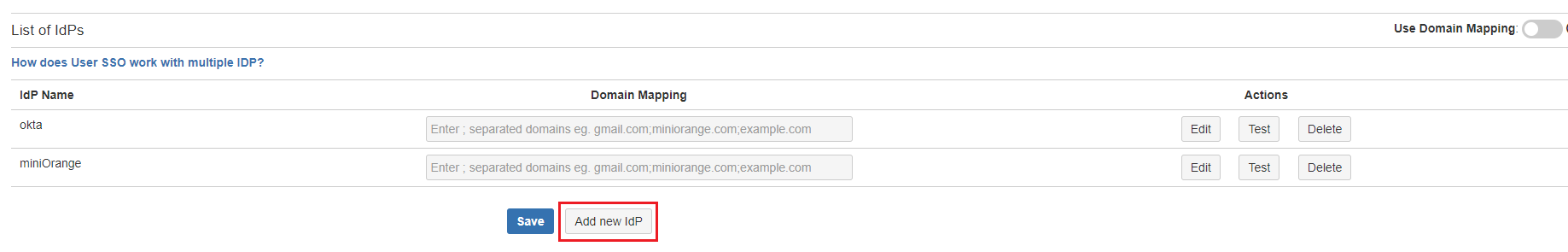

If you have configured more than two IDPs then it will show you the list of IDP that you have configured with Fisheye/Crucible.

Click on Add new IdP button for adding new IDP on Fisheye/Crucible. The steps for adding new IDP will remain the same.

SAML Single Sign On (SSO) into Fisheye/Crucible, List of multiple IDP configured
An operation that you can perform with List of IdPs page.

  • Add / delete Identity Provider.
  • Test Connection between Fisheye/Crucible & IdP by click on Test button for respective IDP.
  • Edit the IdP configuration by clicking on the Edit button.
  • You can allow an only specific set of users to access Fisheye/Crucible by using Domain Mapping.

    Single Sign-On with Multiple Identity Provider(IDP)

  • Select your IdP from the list. It will redirect you to selected IdP login page.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, Login form for Multiple IDP configuration
    Configure Domain Mapping

  • You can enable domain mapping using Use Domain Mapping option.
  • Once enable it, you need add domain name against each IDP.
  • After enabling Domain Mapping it allows SSO only for those users whose domain matches with the specified one.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, Domain Mapping
    Single Sign-On using Domain mapping

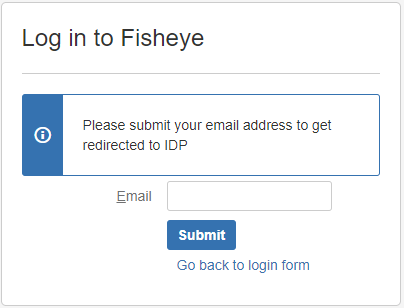

  • Enter the user email address. It will check your domain name with the configured domain if it matches then it will redirect you to the respective Identity Provider Login page.
    • SAML Single Sign ON (SSO) into Fisheye/Crucible, Login form for domain mapping
  • This is how the login screen would appear after enabling domain mapping.

Step 3: Setting up Fisheye/Crucible user profile attributes

    We will be setting up user profile attributes for Fisheye/Crucible. If your users are stored in a directory that is Read Only, please check Disable Attribute Mapping in User Profile tab and follow steps given in Matching a User.

    SAML Single Sign On (SSO) into Fisheye/Crucible, Attribute mapping

    a. Finding correct attributes
  • Go to Configure IDP tab. Scroll down and click on Test Configuration.
  • You will see all the values returned by your IDP to Fisheye/Crucible in a table. If you don't see value for First Name, Last Name, Email or Username, make the required settings in your IDP to return this information.
  • Once you see all the values in Test Configuration, keep the window open and go to User Profile tab.
    • b. Setting profile attributes
  • In this tab, fill the values by matching the name of the attribute. For instance, if the attribute name in the Test Configuration window is NameID, enter NameID against Username.
  • Setting up both Username and Email is required if you want to let users register. If you want existing users to the only login, configure the attribute using which you will match the user in Fisheye/Crucible.
    • c. Matching a User
    When the user logs into Fisheye/Crucible, one of the user's data/attribute coming in from the IDP is used to search the user in Fisheye/Crucible. This is used to detect the user in Fisheye/Crucible and log in the user to the same account.
  • Go to User Profile tab.
  • Select Username or Email for Login/Search Fisheye/Crucible user account by.
  • Enter the attribute name from IDP which corresponds to Username or Email using Finding Correct Attributes.

Step 4: Assigning groups to users

    We will be setting up user group attributes for Fisheye/Crucible. If your users are stored in a directory that is Read Only, please check Disable Group Mapping in User Groups tab and skip to set default group.

    a. Setting default group
  • Select the users' Default Group in the tab User Groups. If no group is mapped, users are added by default to this group.
  • You can enable default groups for All Users or New Users using the option.Select None if you don't want to assign any default group to SSO users. Using the option Enable Default Groups for.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, Default group configuration
    b. Finding Group Attribute
  • Just like we found attribute name for user profile attributes, we find group attribute.
  • Go to Configure IDP tab. Scroll down and click on Test Configuration.
  • You will see all the values returned by your IDP to Fisheye/Crucible in a table. If you don't see value with groups, make the required settings in your IDP to return group names.
  • Once you see all the values in Test Configuration, keep the window open and go to User Groups tab.
  • Enter the attribute name of group against Group Attribute.
  • Check Disable Group Mapping option if you don't want to update groups of existing users.

    • c. Group Mapping
    Group Mapping can be done in two ways:
  • Manual group mapping: If the names of groups in Fisheye/Crucible are different than the corresponding groups in IDP, then you should use Manual group mapping.
  • On-The-Fly group mapping: If the names of groups in Fisheye/Crucible and IDP are same, you should use On-The-Fly group mapping.

  • I. Manual Group Mapping
    • Check Restrict User Creation Based on Group Mapping option if you want new users to be created only if at least one of the user's IDP groups is mapped to a group in the application.
    • For mapping, first select a Fisheye/Crucible group from the dropdown which lists all groups present in Fisheye/Crucible and then enter the name of the IDP group to be mapped in the textbox beside
    • For example, if you want all users in 'dev' group in IDP to be added to fisheye-software-users, you will need to select fisheye-software-users from the dropdown and enter 'dev' against fisheye-software-users.
    • Use '+1' and '+10' buttons to add extra mapping fields.
    • Use '-' button next to each mapping to delete that mapping.
    SAML Single Sign On (SSO) into Fisheye/Crucible, SSO - Manual group mapping
  • II. On-The Fly Group Mapping
    • Check Create New Groups option if you want new groups from IDP to be created if not found in Fisheye/Crucible.
    • If the user is part of some group in Fisheye/Crucible and that group is not present in the SAML response returned by IDP, then the user will be removed from that group in Fisheye/Crucible.
    • If you don't want On-The-Fly group mapping to affect Fisheye/Crucible groups which are managed locally then add those groups in Exclude Groups field.
    SAML Single Sign On (SSO) Fisheye/Crucible SAML Single Sign On - SSO - On the fly group mapping

Step 5: SSO Settings

    The settings in SSO Settings tab define the user experience for Single Sign On.
    a. Sign In Settings
  • Set Enable SSO for Fisheye/Crucible Software to allow SSO for Fisheye/Crucible Software users.
  • Set button text for button on login page using Login Button Text.
  • Set redirect URL after login using Relay State. Keep this empty for coming back to the same page user started from.
  • Enable Auto-redirect to IDP if you want to allow users to login only using IDP. Enable backdoor for emergency.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, SSO Sign In Settings
    b. Custom Login Template
  • Design your own login template that will be used to intitate SSO.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, Custom Login template settings
    c. Sign Out Settings
  • Set Logout URL or Logout Template to redirect users after logout action.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, SSO Sign Out Settings
    d. SSO Error Settings
  • Set error template to redirect users to a custom error page instead of login page. Use this if you have Auto-redirect to IDP enabled.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, SSO error template settings
    e. Advanced settings
  • Validate IDP's SAML Response: Configure time difference(in minute) here In case Fisheye/Crucible server time is not in sync with your IDP's time.
    • SAML Single Sign On (SSO) into Fisheye/Crucible, Advance SSO settings
