ClicData SAML Single Sign-On (SSO) Login Using Drupal as IDP


Drupal ClicData SSO Integration will allow you to configure Single Sign On ( SSO ) login between your Drupal site and ClicData. ClicData SAML SSO integrate with your Drupal site will help your users to login into ClicData using their Drupal credentials.
We provide Drupal SAML Identity Provider - SAML IDP Single Sign On (SSO) module which is compatible with Drupal 7, Drupal 8 (D7,D8) and Drupal 9 (D9). Here we will go through a step-by-step guide to configure SAML IDP SSO login between Drupal site and ClicData considering SP and Drupal as IDP.

If you have any queries or if you need any sort of assistance in configuring the module, you can contact us at drupalsupport@xecurify.com. If you want, we can also schedule an online meeting to help you configure the Drupal SAML IDP 2.0 Single Sign On (SSO) - SAML Identity Provider module.

Features and Pricing

Know more about Drupal SAML Identity Provider (IDP) module from here.

Pre-requisites: Download

You can download the Drupal SAML Identity Provider (IDP) module from here.

1. Install Drupal SAML IDP module

    1.1. Using Composer:

    • Composer require drupal/miniorange_saml_idp
    • Navigate to Extend menu on your Drupal admin console and search for miniOrange SAML Identity Provider using the search box.
    • Enable the module by checking the checkbox and click on install button.
    • Configure the module at
      {BaseURL}/admin/config/people/miniorange_saml_idp/idp_setup

    1.2. Using Drush:

    • Download the module:
      drush dl miniorange_saml_idp
    • Install the module:
      drush en miniorange_saml_idp
    • Clear the cache:
       drush cr
    • Configure the module at
      {BaseURL}/admin/config/people/miniorange_saml_idp/idp_setup

    1.3. Manual installation:

    • Navigate to Extend menu on your Drupal admin console and click on Install new module button.
    • Install the Drupal SAML IDP 2.0 Single Sign On (SSO) - SAML Identity Provider module either by downloading the zip or from the URL of the package (tar/zip).
    • Click on Enable newly added modules.
    • Enable this module by checking the checkbox and click on install button.
    • Configure the module at
      {BaseURL}/admin/config/people/miniorange_saml_idp/idp_setup

Steps to configure ClicData SAML Single Sign-on ( SSO ) Login into Drupal website

2. Configure Drupal as Identity Provider

  • Navigate to the Configuration tab and Select Drupal SAML IDP Configuration.
  • drupal saml idp go to configuration tab
  • In the IDP Metadata, Copy the IDP Entity ID/Issuer, SAML Login URL and Certificate (Optional) and Keep it handy.
  • drupal saml idp - idp metadata tab
  • In the miniOrage SAML Identity Provider module, go to Service Provider Setup tab of the module. There are two way to configure Drupal SAML IDP Configuration SSO module:
    • A. By Uploading SP Metadata
    • Click on UPLOAD SP METADATA link.
    • Click on Upload Metadata File and click on Upload to fetch your information.
    • You can either Upload Metadata URL and click on Fetch Metadata button.
    • Drupal SAML Identity Provider - upload idp metadata
      B. Manual Configuration
    • Provide the required settings (i.e. Service Provider Name, SP Entity ID/Issuer, ACS URL and X.509 Certificate) find to your Service Provider ClicData and click on Save Configuration button to save your configuration.
    • Service Provider Name ClicData (Enter SP name as your choice)
      SP Entity ID or Issuer Copy and Paste SAML Entity ID from ClicData
      ACS URL Copy and Paste the ACS (Consumer) URL from ClicData
      Assertion Signed Checked

3. Configure ClicData as Service Provider

  • Login into Your ClicData Admin Console.
  • Click on Settings in left side menu bar.
  • ClicData SAML SSO - Click on Settings

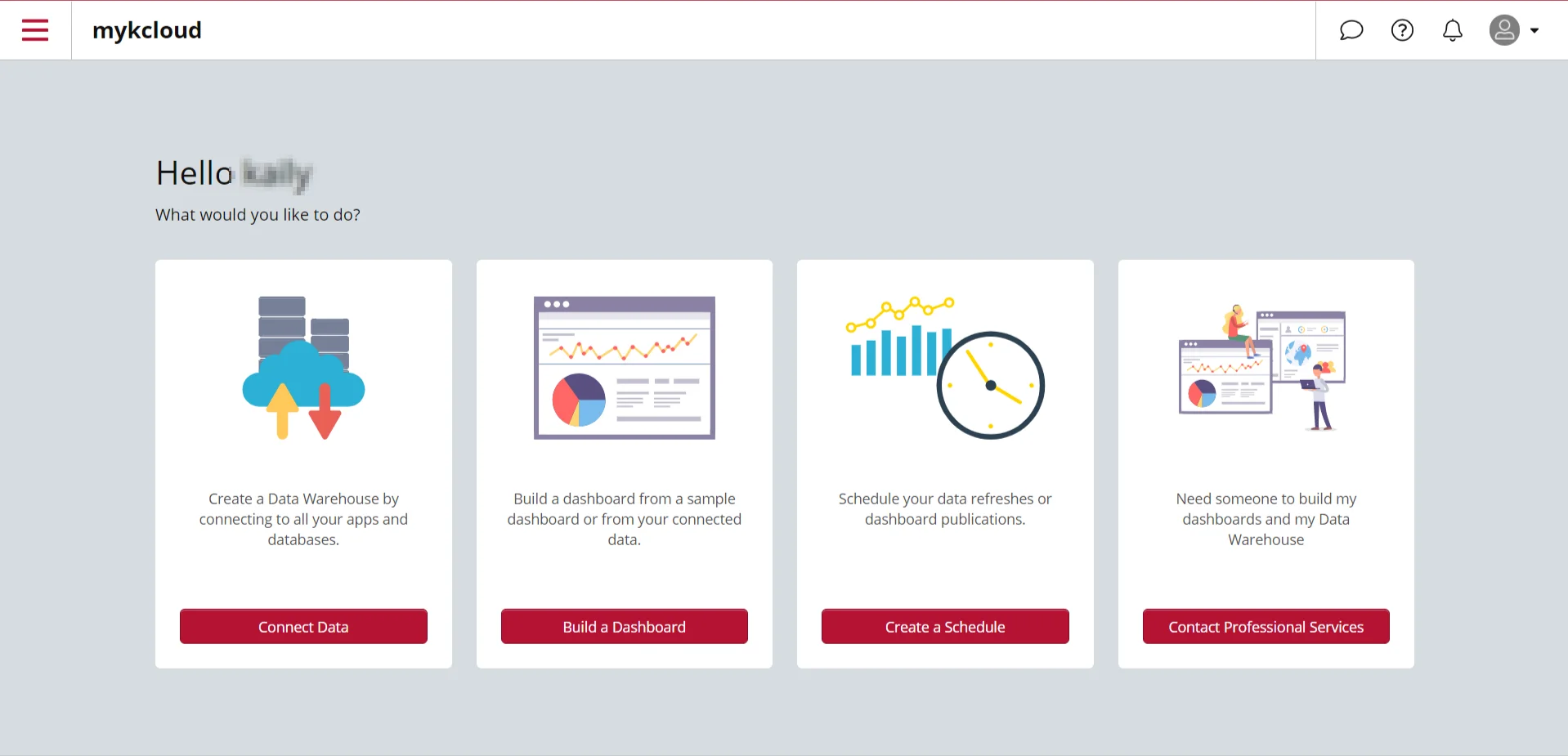

  • You will be represented with the Home screen of ClicData.
  • In the left-top corner, click on the menu button.
  • Navigate the Account section, and select Account Settings option.
  • ClicData SAML SSO - click on Menu ClicData
  • In the Account Settings tab, click on Single Sign-On.
  • ClicData SAML SSO - In Account tab under Account Settings option
  • Enable Single Sign-On by sliding a button and select SAML 2.0 as the Identity Provider type.
  • ClicData SAML SSO - Single Sign-On
    miniorange img Upload IDP Metadata
    • In the SAML Configuration section, enter the required endpoints from the IDP Metadata tab of the module .
    • Entity Identifier Enter IDP Entity ID/Issuer from IDP Metadata tab Of Drupal SAML IDP Configuration module.
      SignOn URL Enter SAML Login URL from IDP Metadata tab Of Drupal SAML IDP Configuration module.
      Logout URL Enter SAML Logout URI from IDP Metadata tab Of Drupal SAML IDP Configuration module.
    • You can Download XML Metadata file and then upload in the ClicData as Service Provider (SP) side by clicking on the Import Identity Provider Metadata option.
    • ClicData SAML Single Sign On - SAML Configuration
    • In the User Attributes section, fill in the fields as you configured them in the module section.
    • ClicData SAML Single Sign On  - User Attribute section
      E-mail mail
      First Name givenName
      Last Name sn
      Can Sign In? yes
    • Keep the Default role of new users to Viewers.
    • You have Successfully configure ClicData as Service Provider (SP).

4. Testing SSO

  • Click on validate at the bottom, it will redirect you to the Drupal page where user have to enter the credentials and then it will redirect back to the ClicData.
  • Note:For the validation to work, the current user logged in ClicData must be present in the Drupal user directory of people or in one of their integrations with the exact same email address.

  • On authentication, the Validation should turn to green.
  • ClicData SAML Single Sign On - validation
