Configure ADFS Single Sign-On (SSO) with OAuth for WordPress

Overview

OAuth & OpenID Connect Single Sign-On (SSO) plugin for WordPress enables secure login into WordPress using ADFS as an OAuth and OpenID Connect provider. You can also configure the plugin using different custom providers and standard IdPs. It supports advanced Single Sign-On (SSO) features such as user profile Attribute mapping, Role mapping, etc. Here we will go through a guide to configure SSO between WordPress and ADFS. By the end of this guide, users should be able to login to WordPress from ADFS. To know more about other features we provide in the OAuth Single Sign-On (OAuth & OpenID Connect Client) plugin, you can click here.

Download Plugin Pricing Plans Free Trial

Pre-requisites : Download And Installation

• Log into your WordPress instance as an admin.
• Go to the WordPress Dashboard -> Plugins and click on Add New.
• Search for a OAuth Single Sign On (SSO) Plugin for WordPress and click on Install Now.
• Once installed click on Activate.

Steps to configure ADFS Single Sign-On (SSO) Login into WordPress

1. Setup ADFS as OAuth Provider

• To perform SSO with ADFS as Provider, your application must be https enabled.
• Navigate to Server Manager Dashboard -> Tools -> ADFS Management.

• Navigate to ADFS -> Application Groups. Right click on Application Groups & click on Add Application group then enter Application Name. Select Server Application & click on next.

• Copy Client Identifier. This is your Client ID. Add Callback URL in Redirect URL. You can get this callback URL from the miniOrange OAuth Client Single Sign-On (SSO) plugin. Click on next.

• Click on Generate shared secret. Copy the Secret value. This is your Client Secret. Click on Next.

• On the Summary screen, click Next. On the Complete screen, click Close.
• Now, right-click on the newly added Application Group and select Properties.
• Click on Add application from App Properties.
• Click on the Add application. Then select Web API and click Next.

• On the Configure Web API screen, enter the domain name address into the Identifier section. Click Add. Click Next.

• On the Choose Access Control Policy screen, select Permit everyone and click Next.

• On the Configure Application Permission, by default openid is selected as a scope. You can select email and profile as well, then click on next.

• On the Summary screen, click Next. On the Complete screen, click Close.
• On the Sample Application Properties click OK.

You have successfully configured ADFS as OAuth Provider for achieving ADFS login into your WordPress Site.

Step 2: Setup WordPress as OAuth Client

• Free
• Premium

• Go to Configure OAuth tab and click Add New Application to add a new client application into your website.

• Choose your Application from the list of OAuth / OpenID Connect Providers, here ADFS

• Copy the Callback URL to be used in OAuth Provider Configuration. Click Next.

• You need to enter the App name and Endpoints here, for that please refer the below table and click on Next.


Note: Once you create the ADFS account, you'll find the Domain URL, and you will need to add the same in the below endpoints.




Authorize Endpoint:	https://{Domain URL}/adfs/oauth2/authorize
Access Token Endpoint:	https://{Domain URL}/adfs/oauth2/token
Get User Info Endpoint:	https://{Domain URL}/adfs/oauth2/userinfo

• Enter the Client Credentials like Client ID & Client Secret as shown in the setup dialogue box, openid is already filled. Click Next.

• Click on Finish to save the configuration.

You have successfully configured WordPress as OAuth Client for achieving user authentication with ADFS Single Sign-On (SSO) login into your WordPress Site.

• Go to Configure OAuth tab and search your application name to add a new client application into your website, here ADFS.

• Insert your ADFS domain here and configure Client ID and Client Secret received from ADFS' Configuration and click Save Settings.
• Please refer the below table for configuring the scope & endpoints for ADFS in the plugin.


Note: Once you create the ADFS account, you'll find the Domain URL, and you will need to add the same in the below endpoints.




Scope:	openid
Authorize Endpoint:	https://{yourADFSDomain}/adfs/oauth2/authorize/
Access Token Endpoint:	https://{yourADFSDomain}/adfs/oauth2/token/

• Choose your Grant Type from the list of options & Click on Save Settings to save the configuration.

You have successfully configured WordPress as OAuth Client for achieving user authentication with ADFS Single Sign-On (SSO) login into your WordPress Site.

Step 3: User Attribute Mapping

• User Attribute Mapping is mandatory for enabling users to successfully login into WordPress. We will be setting up user profile attributes for WordPress using below settings.

Finding user attributes:

• Go to Configure OAuth tab. Scroll down and click on Test Configuration.

• You will see all the values returned by your OAuth Provider to WordPress in a table. If you don't see value for First Name, Last Name, Email or Username, make the required settings in your OAuth Provider to return this information.

• Once you see all the values in Test Configuration, go to Attribute / Role Mapping tab, you will get the list of attributes in the dropdowns.

4: Role Mapping [Premium]

• Click on "Test Configuration" and you will get the list of Attribute Names and Attribute Values that are sent by your OAuth provider.
• From the Test Configuration window, map the Attribute Names in the Attribute Mapping section of the plugin. Refer to the screenshot for more details.

• Enable Role Mapping: To enable Role Mapping, you need to map Group Name Attribute. Select the attribute name from the list of attributes which returns the roles from your provider application.
  Eg: Role

• Assign WordPress role to the Provider role: Based on your provider application, you can allocate the WordPress role to your provider roles. It can be a student, teacher, administrator or any other role depending on your application. Add the provider roles under Group Attribute Value and assign the required WordPress role in front of it under WordPress Role.

  For example, in the below image, Teacher has been assigned the role of Administrator & Student is assigned the role of Subscriber.

• Once you save the mapping, the provider role will be assigned the WordPress administrator role after SSO.
  Example: As per the given example, Users with role 'teacher' will be added as Administrator in WordPress and 'student' will be added as Subscriber.

5. Steps to fetch User Groups as Claims

• Fetch User groups as claims
• Fetch specific User groups as claims

• Open the ADFS Management tool located under the Tools menu at the top right of the Server Manager.
• Select the Application Groups folder item in the left sidebar.

• Double click on the group added earlier, then double click on the Web API application.

• Select the tab named Issuance Transform Rules. Click the Add Rule button at the bottom.

• Select Send LDAP Attributes as Claims and click next.

• Give the rule a name, for example Roles and select "Active Directory" as the "Attribute Store".

• In the table below, select Token-Groups Unqualified Names in the first column and type roles into the second column.

• Open the ADFS Management tool located under the Tools menu at the top right of the Server Manager.
• Select the Application Groups folder item in the left sidebar.

• Double click on the group added earlier, then double click on the Web API application.

• Select the tab named Issuance Transform Rules. Remove any rules you may have already added and click on the Add Rule button at the bottom.

• Select Send Claims Using a Custom Rule and click next.

• Give the rule the name StoreRoles and paste the following into the Custom rule field:
c:[Type == "http://schemas.microsoft.com/ws/2008/06/identity/claims/windowsaccountname", Issuer == "AD AUTHORITY"] => add(store = "Active Directory", types = ("roles"), query = ";tokenGroups;{0}", param = c.Value);

• Click finish and add yet another rule.
• Again, select Send Claims Using a Custom Rule and click next.
• Give this rule the name IssueRoles and paste the following into the Custom rule field:
c:[Type == "roles", Value =~ "^Prefix.+"] => issue(claim = c);

• The part containing //"^Prefix.+"// is a regex expression used to filter the windows groups sent as part of the claims. In this case we only accept the windows groups starting with "Prefix". Adjust this to meet your needs.
• Click finish.

6. Sign In Settings

• The settings in the Single Sign-On (SSO) Settings tab define the user experience for Single Sign-On (SSO). To add a Okta login widget on your WordPress page, you need to follow the below steps.

• WordPress 5.7 and below
• WordPress 5.8
• WordPress 5.9 and above

• Go to WordPress Left Panel > Appearances > Widgets.
• Select miniOrange OAuth. Drag and drop to your favourite location and save.

• Go to WordPress Left Panel > Appearances > Widgets.
• Select miniOrange OAuth. Drag and drop to your favourite location and save.

• Open your WordPress page and you can see the ADFS SSO login button there. You can test the ADFS Single Sign-On (SSO) now.

• Make sure the "Show on login page" option is enabled for your application. (Refer to the below image)

• Now, go to your WordPress Login page. (Eg. https://< your-wordpress-domain >/wp-login.php)

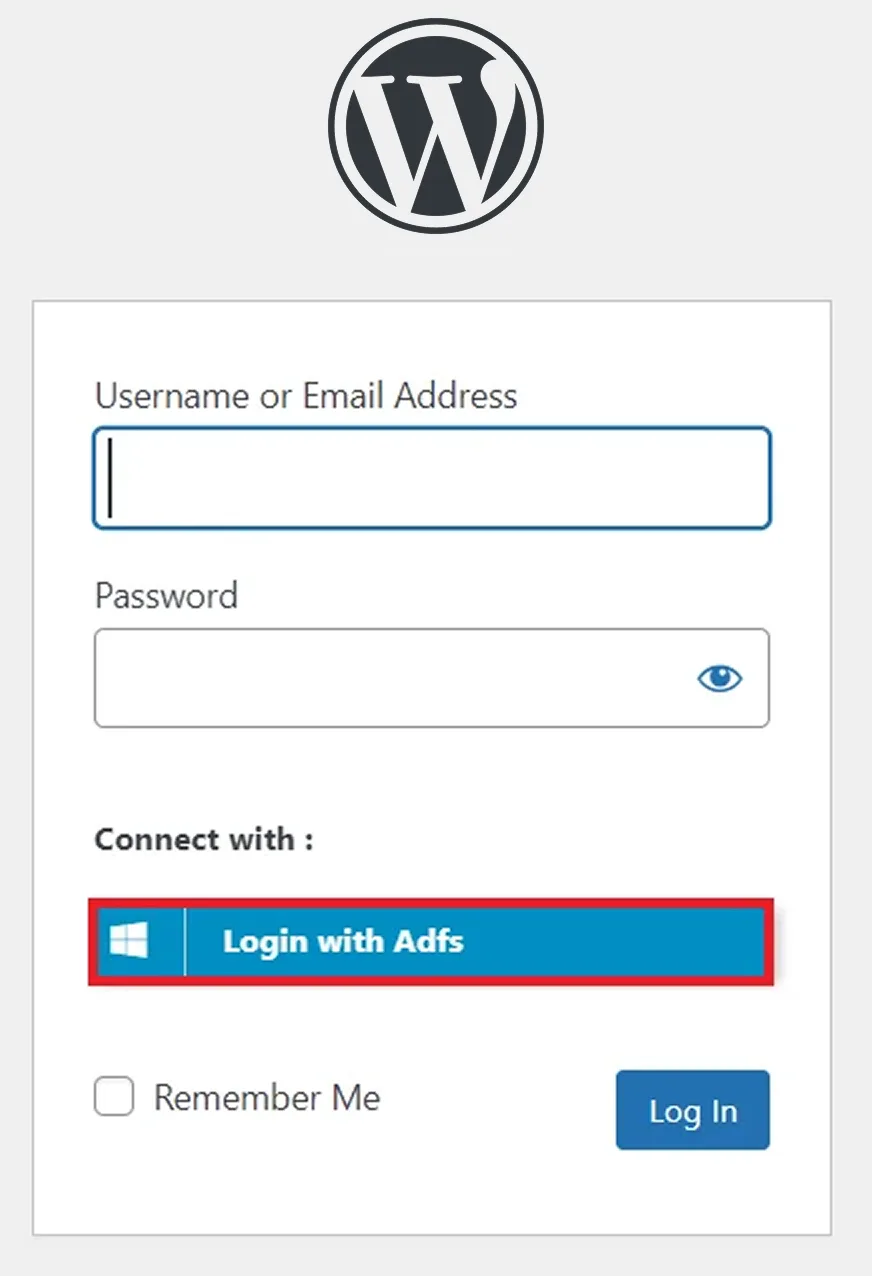

• You will see an ADFS SSO login button there. Once you click the login button, you will be able to test the ADFS Single Sign-On (SSO).

In this Guide, you have successfully configured ADFS Single Sign-On (SSO) by configuring ADFS as OAuth Provider and WordPress as OAuth Client using our OAuth Single Sign-On (OAuth / OpenID Connect Client) plugin. This solution ensures that you are ready to roll out secure access to your WordPress site using ADFS login credentials within minutes.
