ASP.NET Core SAML Single Sign-On (SSO) with PingFederate as IDP

ASP.NET Core SAML Single Sign-On (SSO) module gives the ability to enable SAML Single Sign-On for your ASP.NET core applications. Using Single Sign-On you can use only one password to access your ASP.NET core application and services. Our module is compatible with all the SAML compliant Identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between ASP.NET Core and PingFederate considering PingFederate as IdP. To know more about the features we provide for ASP.NET Core SSO, click here.

Platform Support: The ASP.NET Core SAML middleware supports ASP.NET Core 2.1 and above. It supports all the ASP.NET Core platforms, including Windows, Linux and macOS.

Pre-requisites: Download And Installation

Install from NuGet store
Manual Installation

NuGet Package
.NET CLI

PM> NuGet\Install-Package miniOrange.SAML.SSO

Note: To integrate the miniOrange ASP.NET SAML SSO middleware in your application, you will be required to add the below namespaces, services and middleware in your project (marked in green), below here is a sample example





     using miniOrange.saml;
     using System.Reflection;

     public class Startup
     {
       public Startup(IConfiguration configuration)
       {
         Configuration = configuration;
       }
       public IConfiguration Configuration {get;}
       // This method gets called by the runtime. Use this method to add services to the container.
       public void ConfigureServices(IServiceCollection services)
       {
         services.AddRazorPages();
         services.AddminiOrangeServices(Assembly.GetExecutingAssembly());
      }

     // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
       public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
       {
        if (env.IsDevelopment())
        {
         app.UseDeveloperExceptionPage();
        }
        else
        {
         app.UseExceptionHandler("/Error");
      // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.
         app.UseHsts();
        }

      app.UseHttpsRedirection();

      app.UseCookiePolicy();
      app.UseAuthentication();
      app.UseStaticFiles();
      app.UseminiOrangeSAMLSSOMiddleware();

      app.UseRouting();
      app.UseAuthorization();
      app.UseEndpoints(endpoints =>
      {
        endpoints.MapRazorPages();
      });
     }
   }




    using miniOrange.saml;
    using System.Reflection;

    var builder=WebApplication.CreateBuilder(args);


    // Add services to the container.
    builder.Services.AddRazorPages();
    builder.Services.AddminiOrangeServices(Assembly.GetExecutingAssembly());

    var app = builder.Build();
    if(!app.Environment.IsDevelopment())
    {
      app.UseExceptionHandler("/Error");
      app.UseHsts();
    }
    app.UseHttpsRedirection();
    app.UseRouting();
    app.UseAuthorization();
    app.MapRazorPages();

    app.UseCookiePolicy();
    app.UseAuthentication();
    app.UseStaticFiles();
    app.UseminiOrangeSAMLSSOMiddleware();

    app.Run();

Steps to configure ASP.NET Core Single Sign-On (SSO) using PingFederate as IDP

1. Add module on ASP.NET Core application

After integration, open your browser and browse the connector dashboard with the URL below:
https://<your-application-base-url>/?ssoaction=config

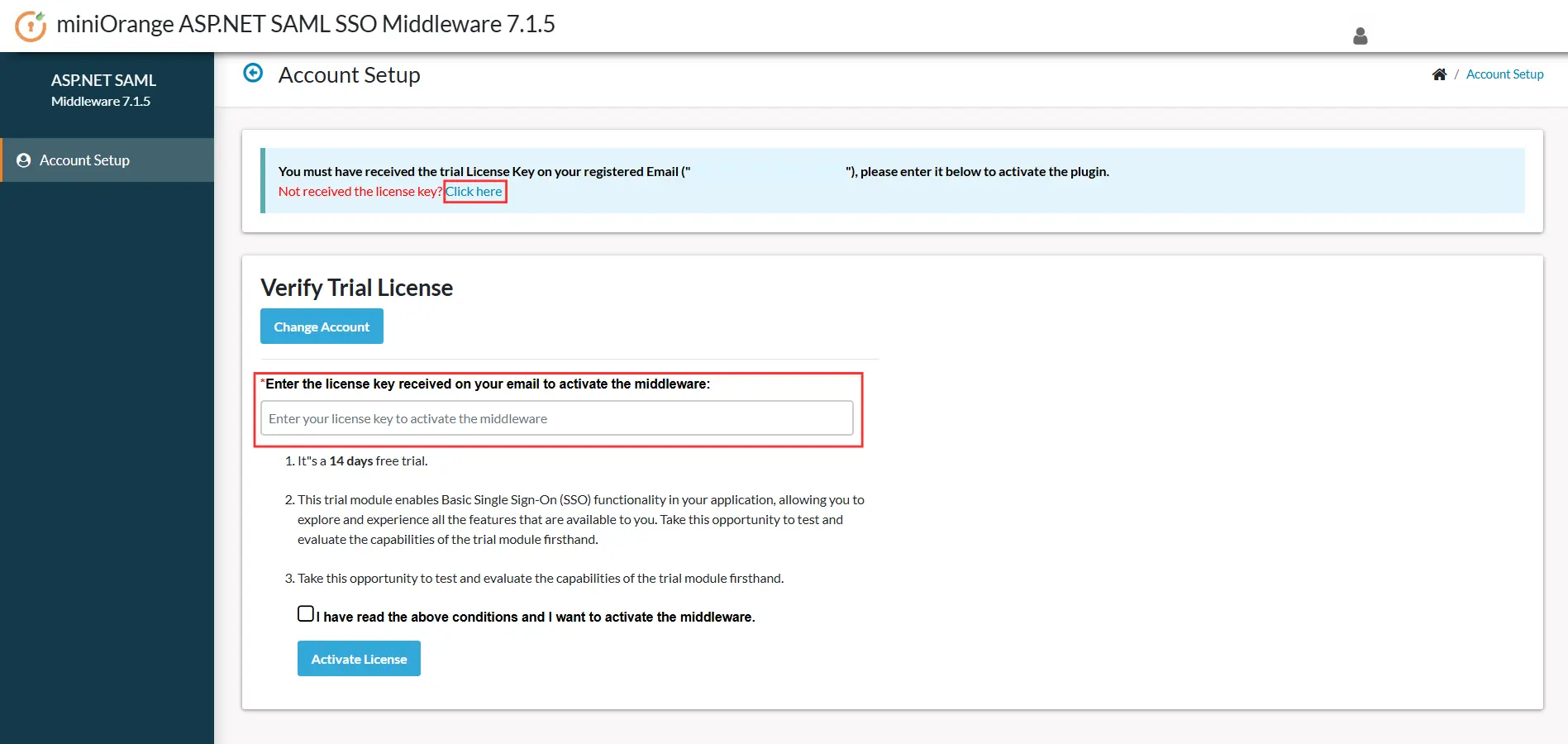

If the registration page or login page pops up, you have successfully added the miniOrange ASP.NET middleware authentication SAML SSO connector to your application.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - saml dll register

2. Configure PingFederate as Identity Provider

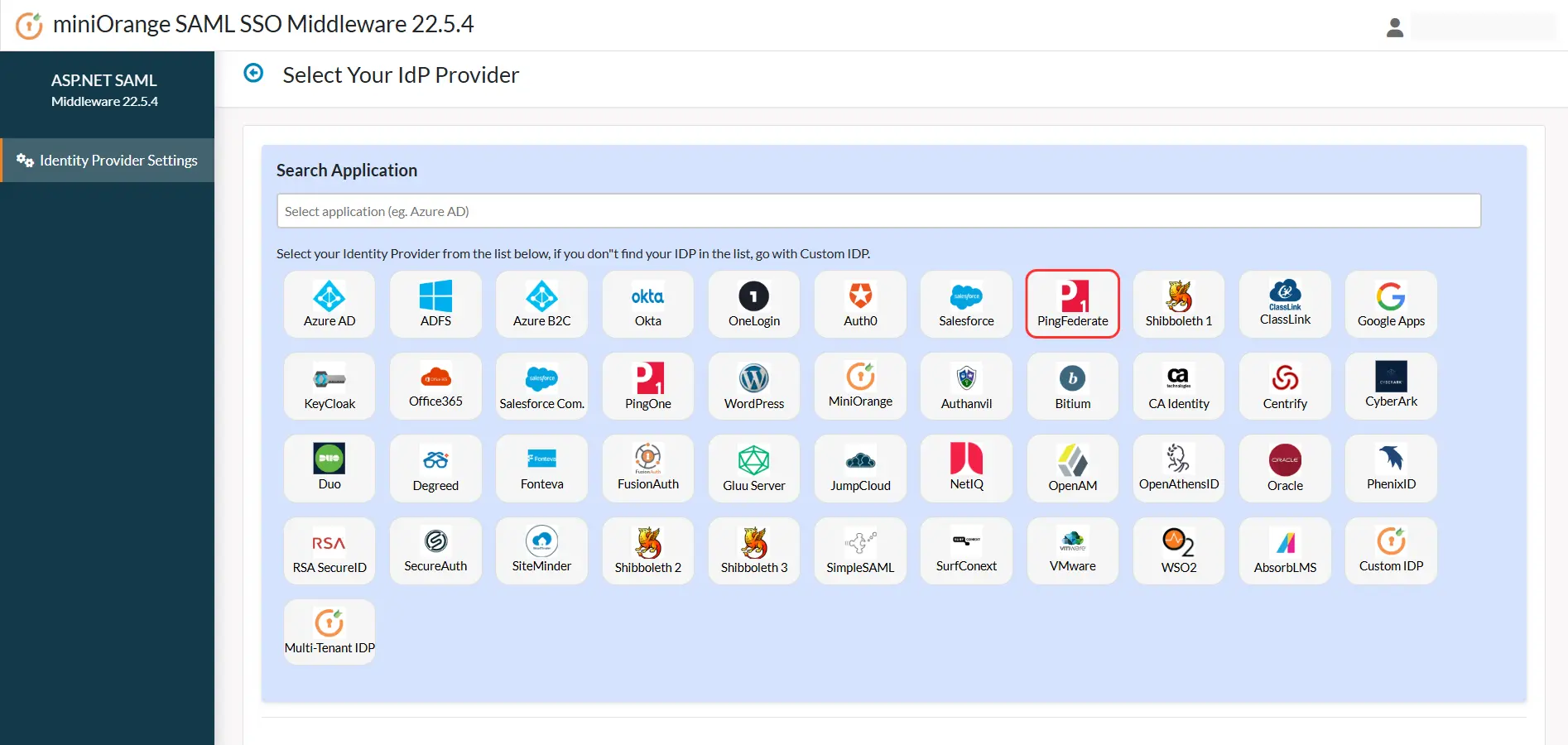

Under the Plugin Settings tab, select PingFederate as your identity provider from the list shown.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Select PingFederate as identity provider

There are two ways detailed below with which you can get the SAML SP metadata to configure onto your identity provider end.

A] Using SAML metadata URL or metadata file:

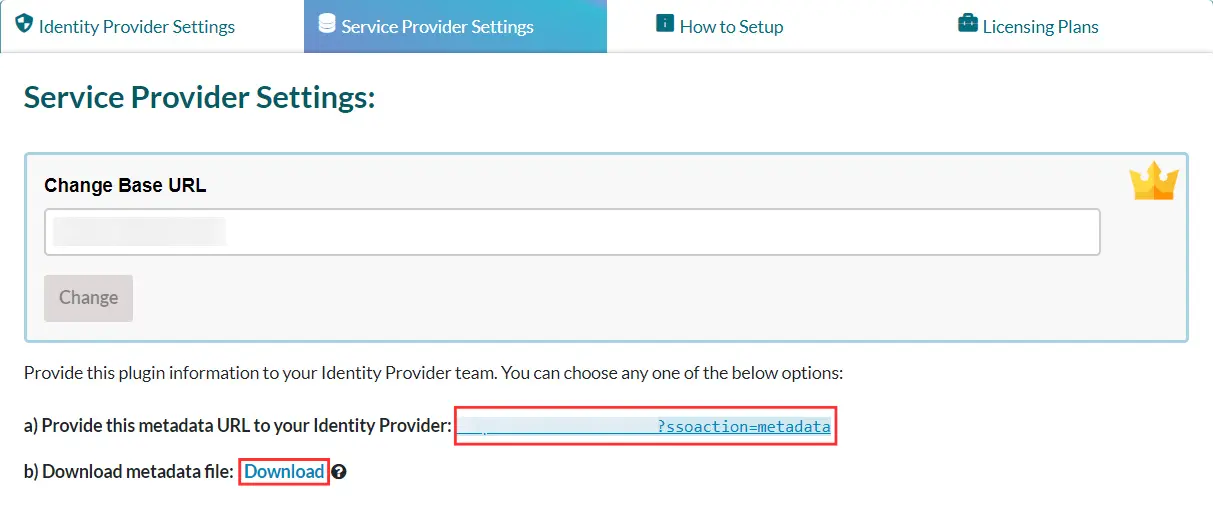

In the Plugin Settings menu, look for Service Provider Settings. Under that, you can find the metadata URL as well as the option to download the SAML metadata.
Copy metadata URL or download the metadata file to configure the same on your identity provider end.
You may refer to the screenshot below:

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Copy Downloaded Metadata

B] Uploading metadata manually:

From the Service Provider Settings section, you can manually copy the service provider metadata like SP Entity ID, ACS URL, Single Logout URL and share it with your identity provider for configuration.
You may refer to the screenshot below:

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Manual Metadata

Login to your Ping Federate User Admin dashboard.
Click on the Identity Provider in the left navigation menu.

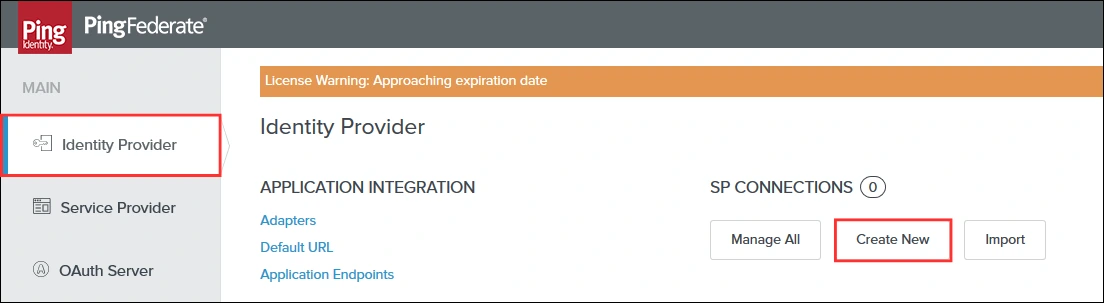

Under SP CONNECTION, click on Create New button.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - SP CONNECTION

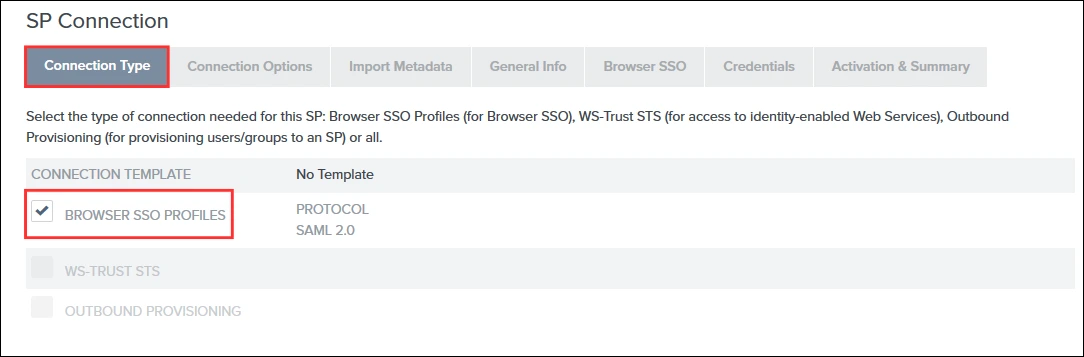

Select the Browser SSO Profiles connection template on the Connection Type tab and click Next.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Browser SSO Profiles

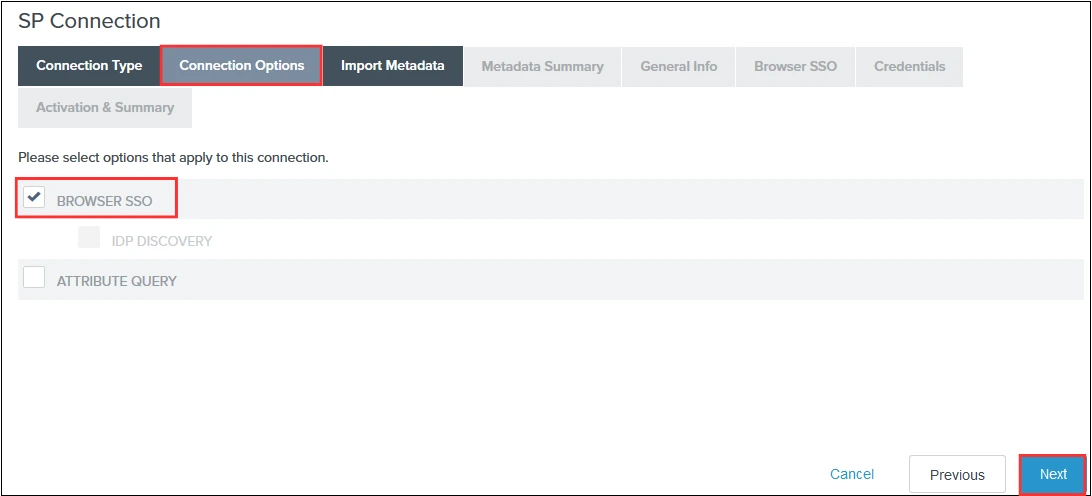

Select Browser SSO on the Connection Options tab and click Next.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Connection Options

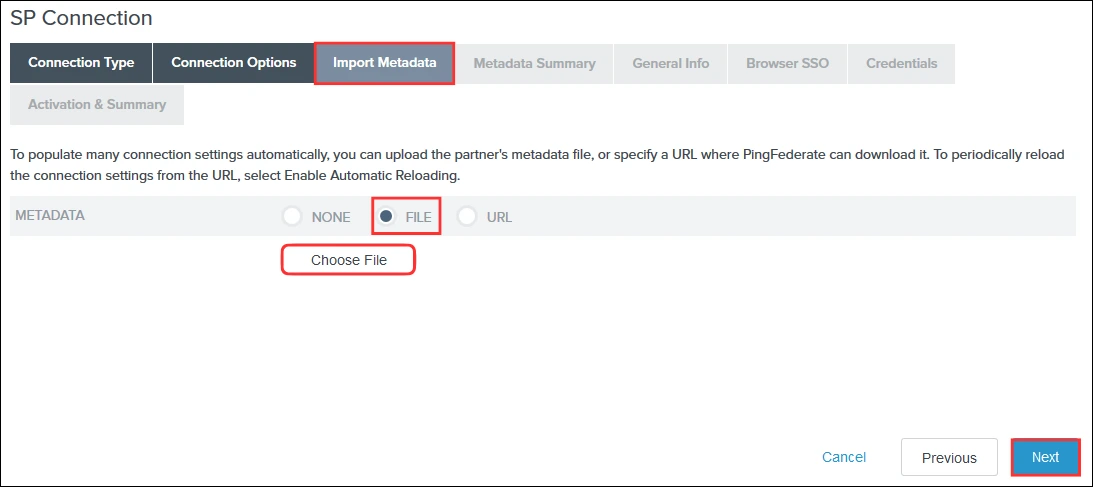

Select File as the method for importing metadata and click Choose file to choose the miniOrange SSO plugin’s metadata on the Import Metadata tab. Click Next.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Import Metadata

Review the information on the Metadata Summary tab and click Next.
In the General Info tab ensure that the Service Provider’s Entity ID, Connection Name, and Base URL fields pre-populate based on the metadata. Click Next.
Navigate to the Browser SSO tab and click on the Configure Browser SSO. You will be redirected to Browser SSO Setup wizard.

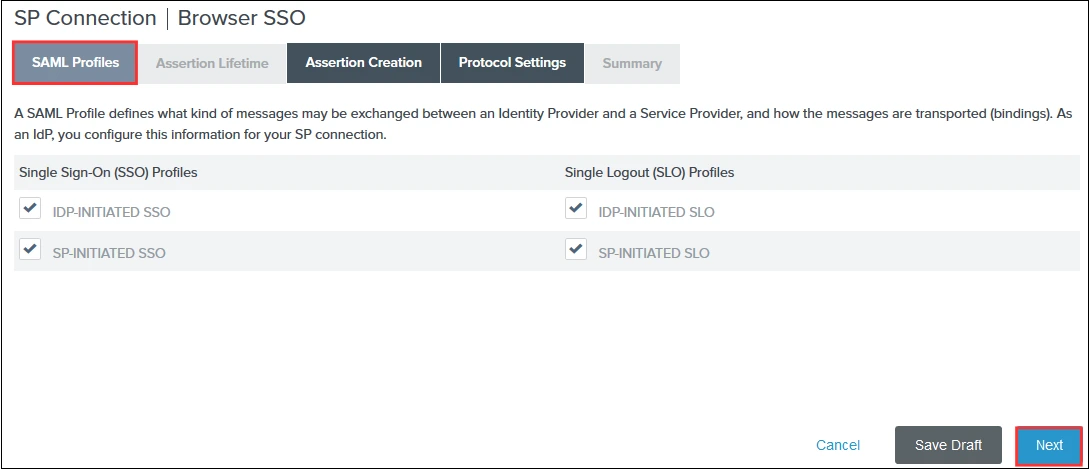

Select the IdP-Initiated SSO and SP-Initiated SSO options on the SAML Profiles tab and click Next.

Enter your desired assertion validity time from on the Assertion Lifetime tab and click Next. By default, it is configured 5 minutes for both.
Navigate to the Assertion Creation and click on the Configure Assertion Creation. You will be redirected to the assertion creation setup wizard.

In the Identity Mapping tab select STANDARD and click Next.
Select a Subject Name Format for the SAML_SUBJECT on the Attribute Contract tab and click Next.

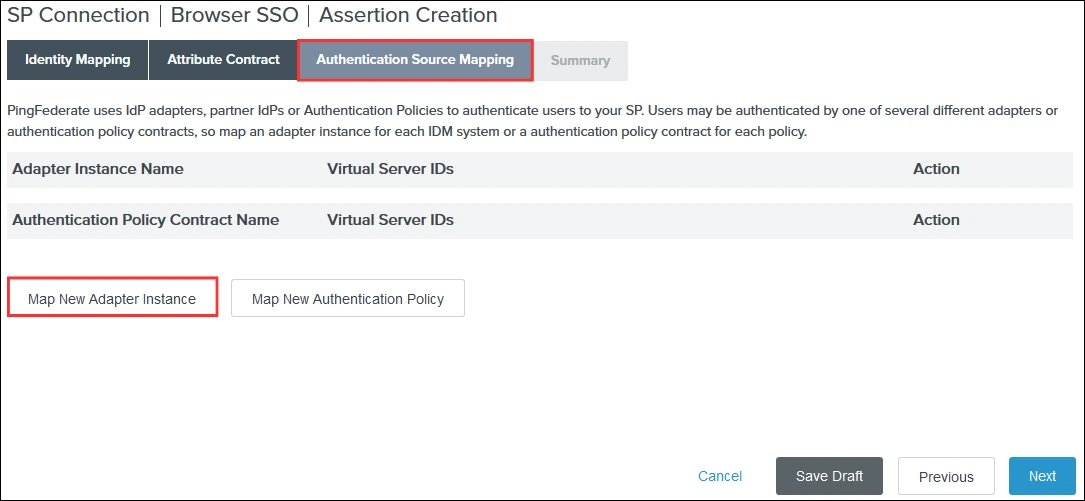

Click Map New Adapter Instance on the Authentication Source Mapping.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Authentication Source Mapping

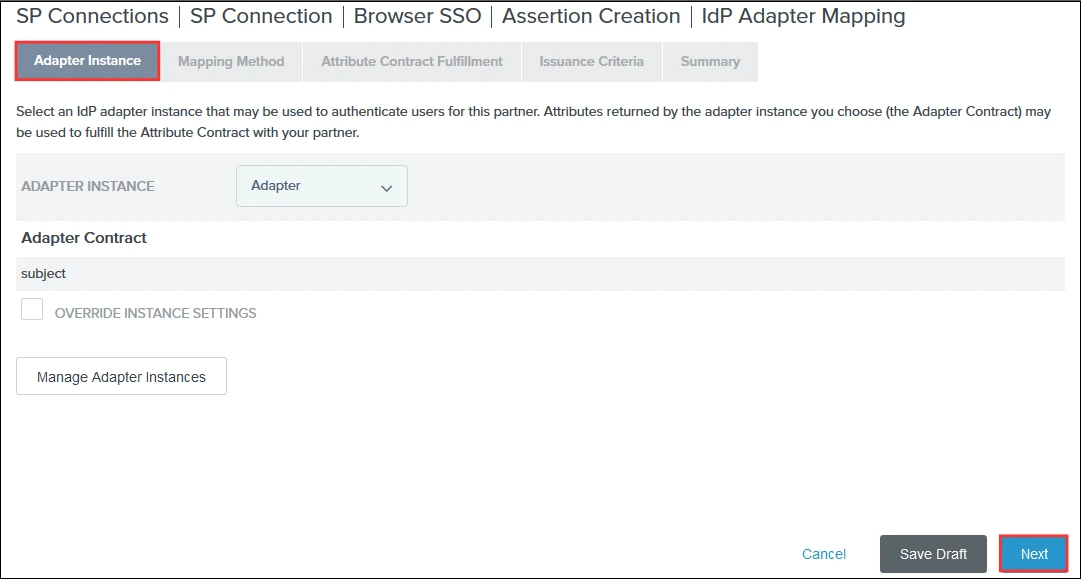

Select an Adapter Instance and click Next. The adapter must include the user’s email address.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Adapter Instance

Select the Use only the adapter contract values in the SAML assertion option on the Mapping Method tab and click Next.

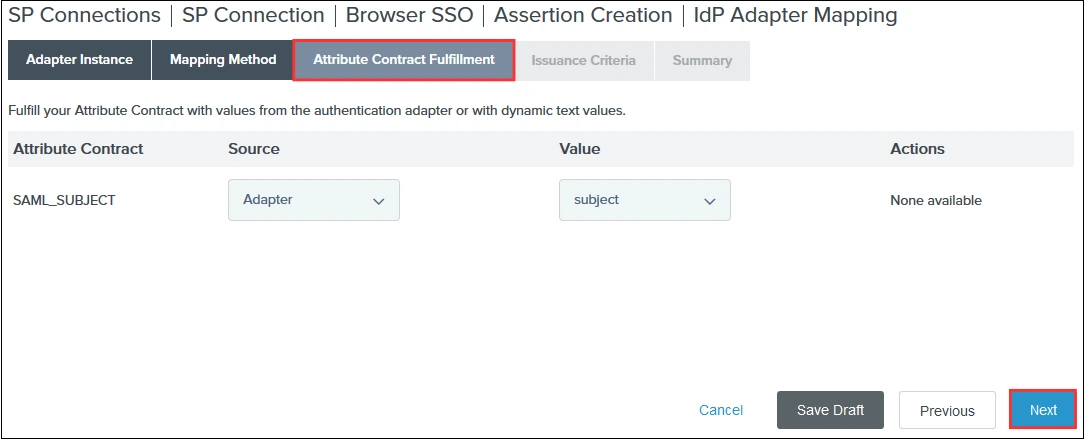

Select your adapter instance as the Source and the email as the Value on the Attribute Contract Fulfilment tab and click Next.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Mapping Method

(Optional) Select any authorization conditions you would like on the Issuance Criteria tab and click Next.
Click Done on the Summary.
Click Next on the Authentication Source Mapping tab.
Click Done on the Summary tab.
Click Next on the Assertion Creation

Navigate to the Protocol Settings tab of the Browser SSO wizard and click on the Configure Protocol settings.

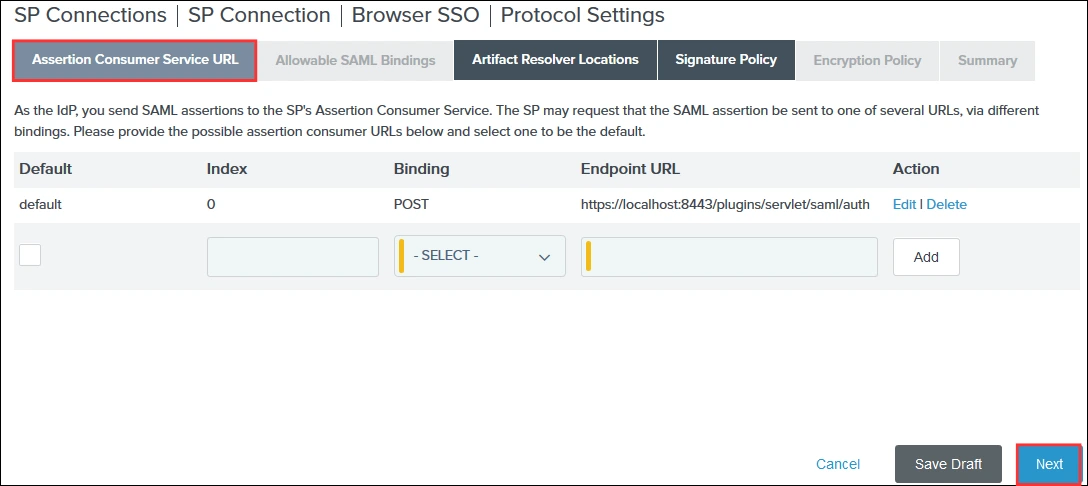

Select POST for Binding and specify the single sign-on endpoint URL in the Endpoint URL field on the Assertion Consumer Service URL Click Next.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Browser SSO wizard

Select POST on the Allowable SAML Bindings tab and click Next.

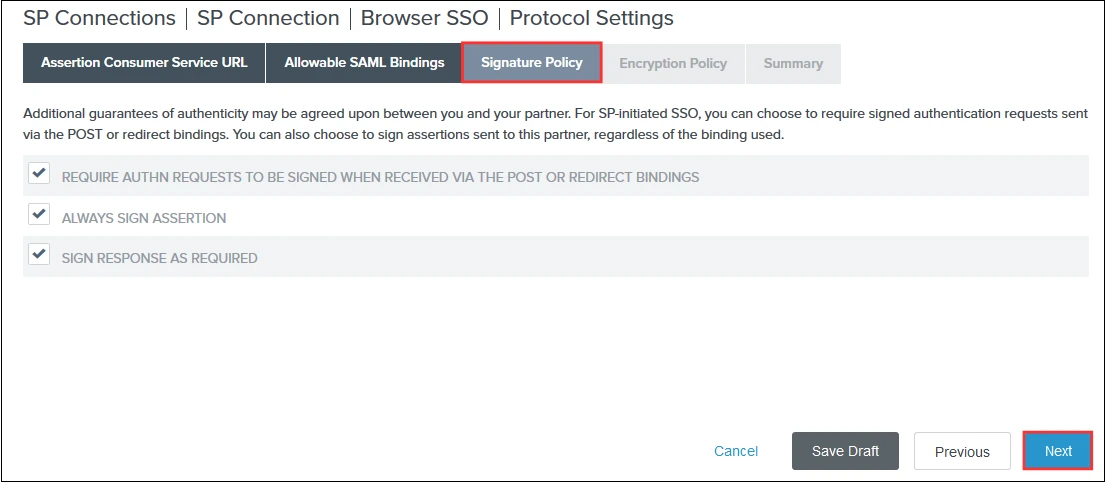

Select your desired signature policies for assertions on the Signature Policy tab and click Next.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - signature policies

Select your desired encryption policy for assertions on the Encryption Policy tab and click Next.
Click Done on the Protocol Settings Summary tab.

Navigate to the Credentials and click on the Configure Credentials. You will be redirected to the Credentials setup wizard.

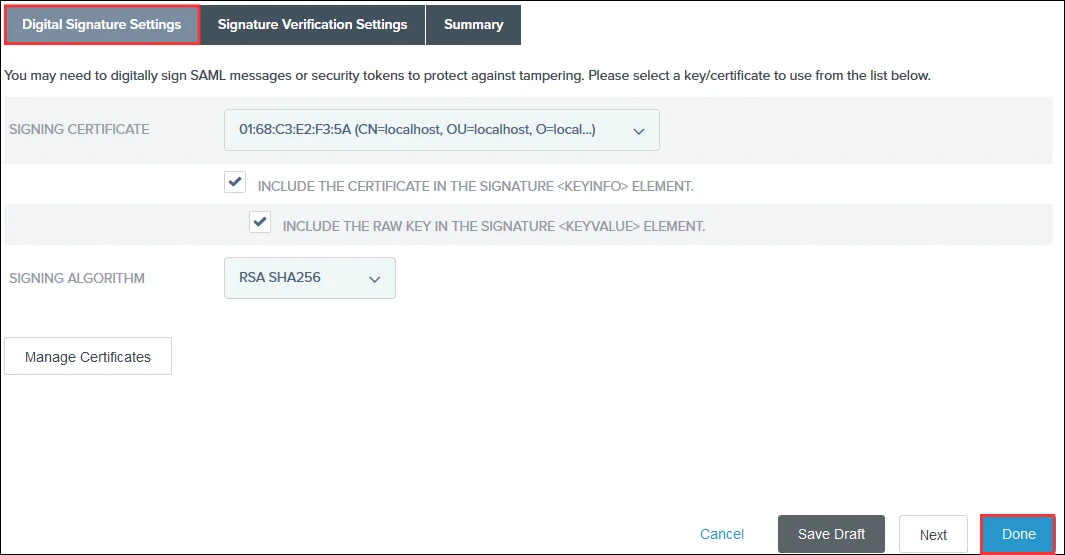

Select the Signing Certificate to use with the Single Sign-On service and select Include the certificate in the signature element in the Digital Signature Settings tab. Click Done.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Signing Certificate

Click Done on the Summary.
Click Next on the Credentials.

Select Active for the Connection Status on the Activation & Summary tab and click Save.
Now, navigate to the Ping Federate User Admin dashboardè Identity Provide.
Click Manage All under SP Connections.
Click Export Metadata for the desired service provider connection.
Click Export on the Export & Summary tab and click Done.

3. Configure ASP.NET SAML Module as Service Provider

There are two ways detailed below with which you can configure your SAML identity provider metadata in the module.

A] Upload metadata using the Upload IDP Metadata button:

If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the module using the Upload IDP Metadata option.
You may refer to the screenshot below:

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Upload Metadata

You can choose any one of the options according to the metadata format you have available.

B] Configure the identity provider metadata manually:

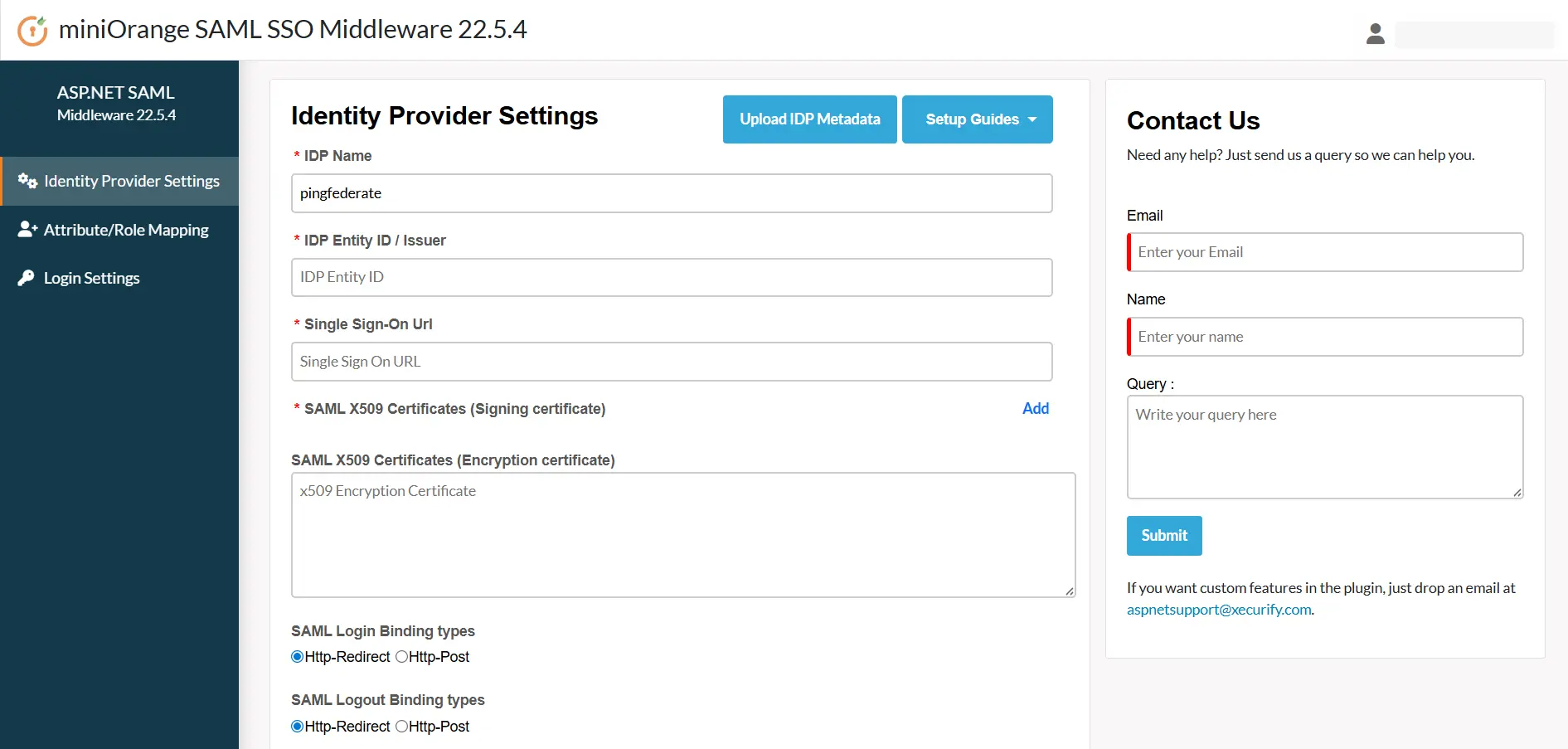

After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.
Click Save to save your IDP details.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - SAML dll config

4. Testing SAML SSO

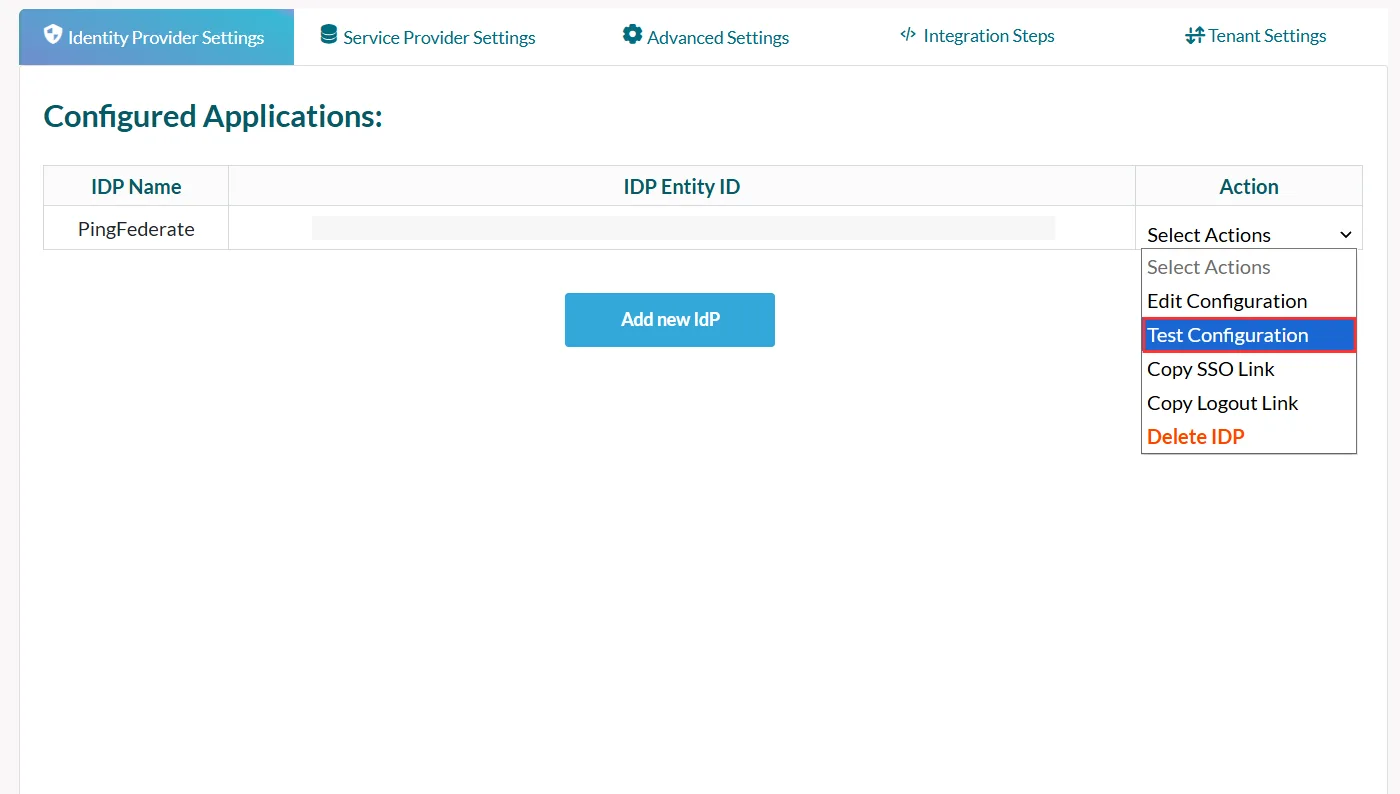

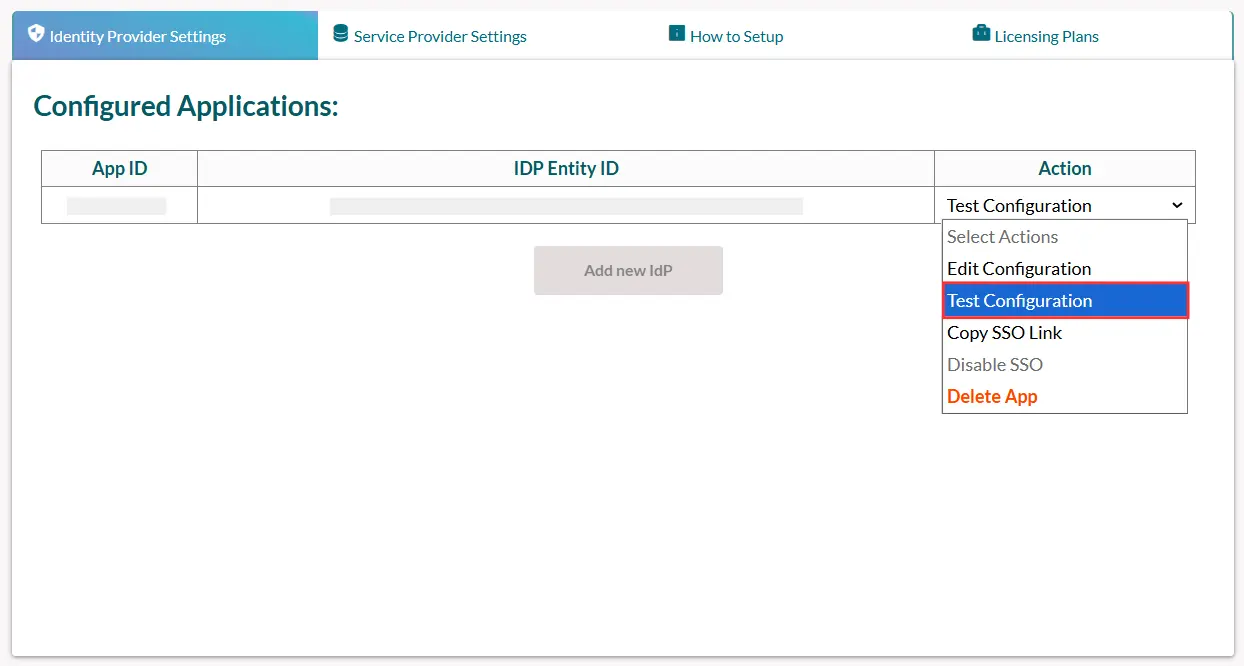

Click on the Test Configuration button to test whether the SAML Configuration you’ve done is correct.
The screenshot below shows a successful result. Click on SSO Integration to further continue with the SSO Integration.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - SAML dll Test configuration

If you are experiencing any error on the module end you’ll be shown with the window similar to below.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - Enable debug logs

To troubleshoot the error you can follow the below steps:

Under Troubleshoot tab, enable the toggle to receive the plugin logs.

Once enabled, you will be able to retrieve plugin logs by navigating to Plugin Settings tab and clicking on Test Configuration.
Download the log file from the Troubleshoot tab to see what went wrong.
You can share the log file with us at aspnetsupport@xecurify.com and our team will reach out to you to resolve your issue.

5. Attribute Mapping

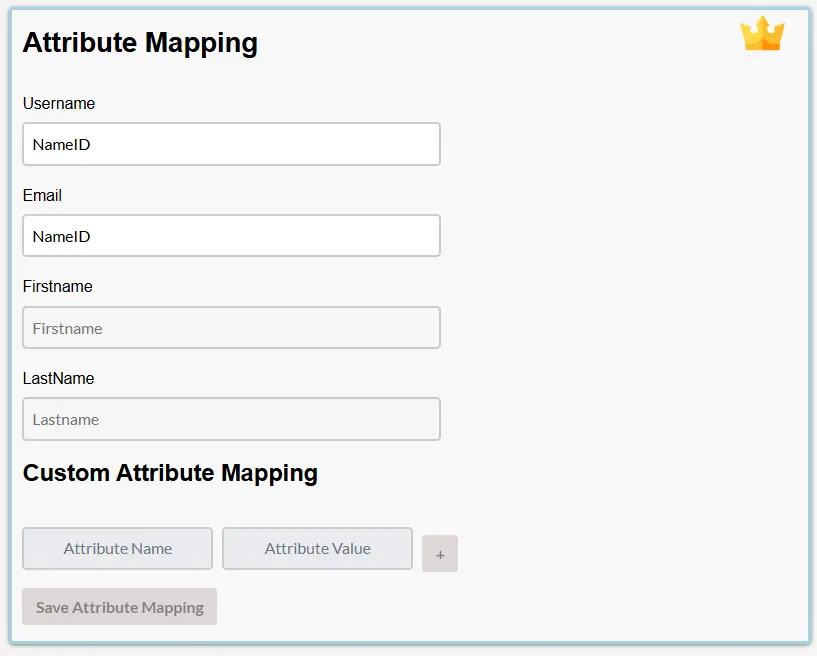

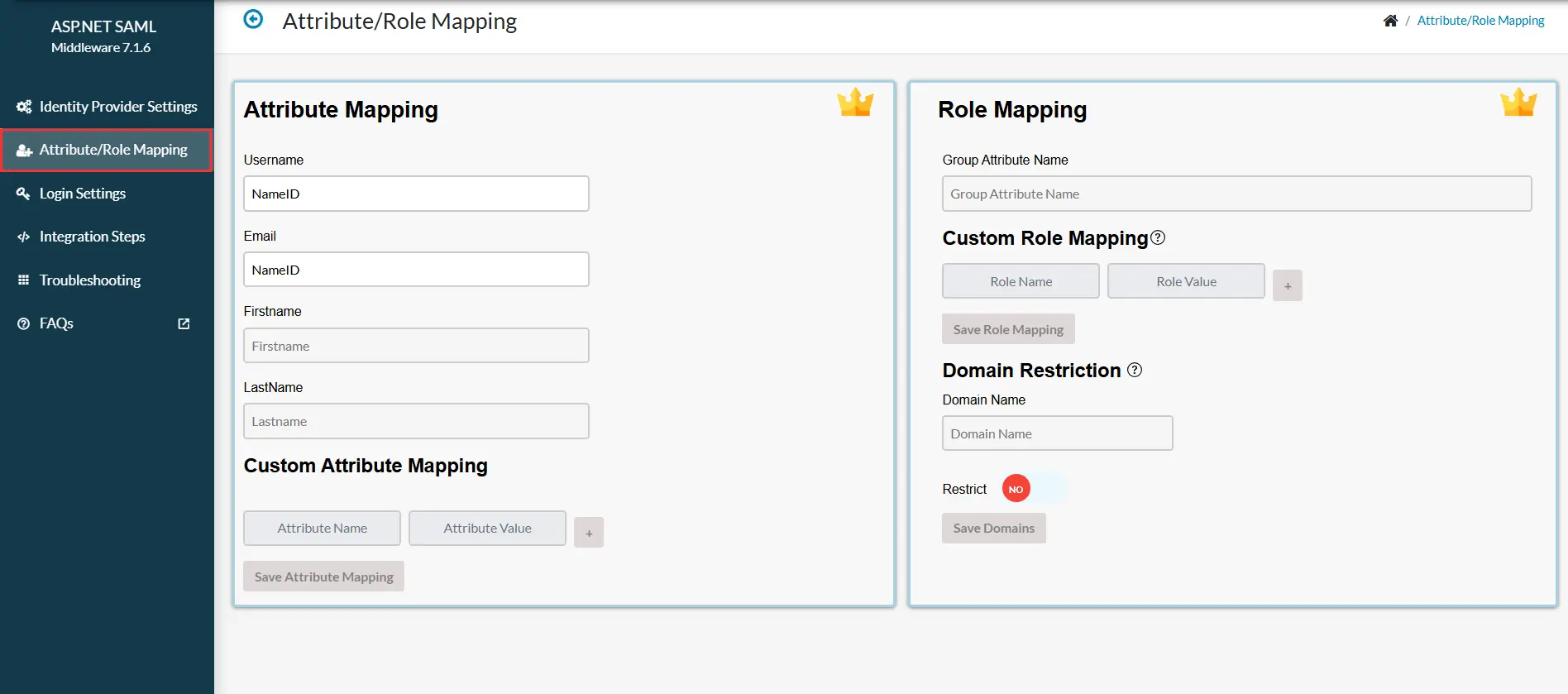

After testing the configuration, Map your application attributes with the Identity Provider (IdP) attributes.
Note: All the mapped attributes will be stored in the session so that you can access them in your application.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - attribute mapping

6. Integration Code

This steps allow you to retrieve the SSO user information in your application in the form of user claims.
You can also look the setup tour to understand how the SSO integration would work in your asp.net middleware application.
Just copy-paste that code snippet wherever you want to access the user attributes.

ASP.NET Core SAML Single Sign-On (SSO) | ASP.NET Core Authentication | ASP.NET Core SAML SSO - integration code

Note:This trial middleware only supports user information in claims, retrieving user information in session and headers is available in the premium plugin
You can also copy the integration code from below:




  string name="";
  string claimtype="";
  string claimvalue="";

   if(User.Identity.IsAuthenticated)
   {
     foreach( var claim  in User.Claims)
     {
       claimtype = claim.Type;
       claimvalue = claim.Value;
     }
     //retrive custom attributes(for eg. Retrieve Mapped 'mobileNumber' attribute of your IDP)
     var identity = (ClaimsIdentity)User.Identity;
     IEnumerable claims = identity.Claims;
     string mobileNumber = identity.FindFirst("mobileNumber")?.Value;
   }

Note: All the mapped attributes will be stored in the claims to be accessed in your application.
If you want some assistance regarding the integration code, get in touch with us at aspnetsupport@xecurify.com

7. Login Settings

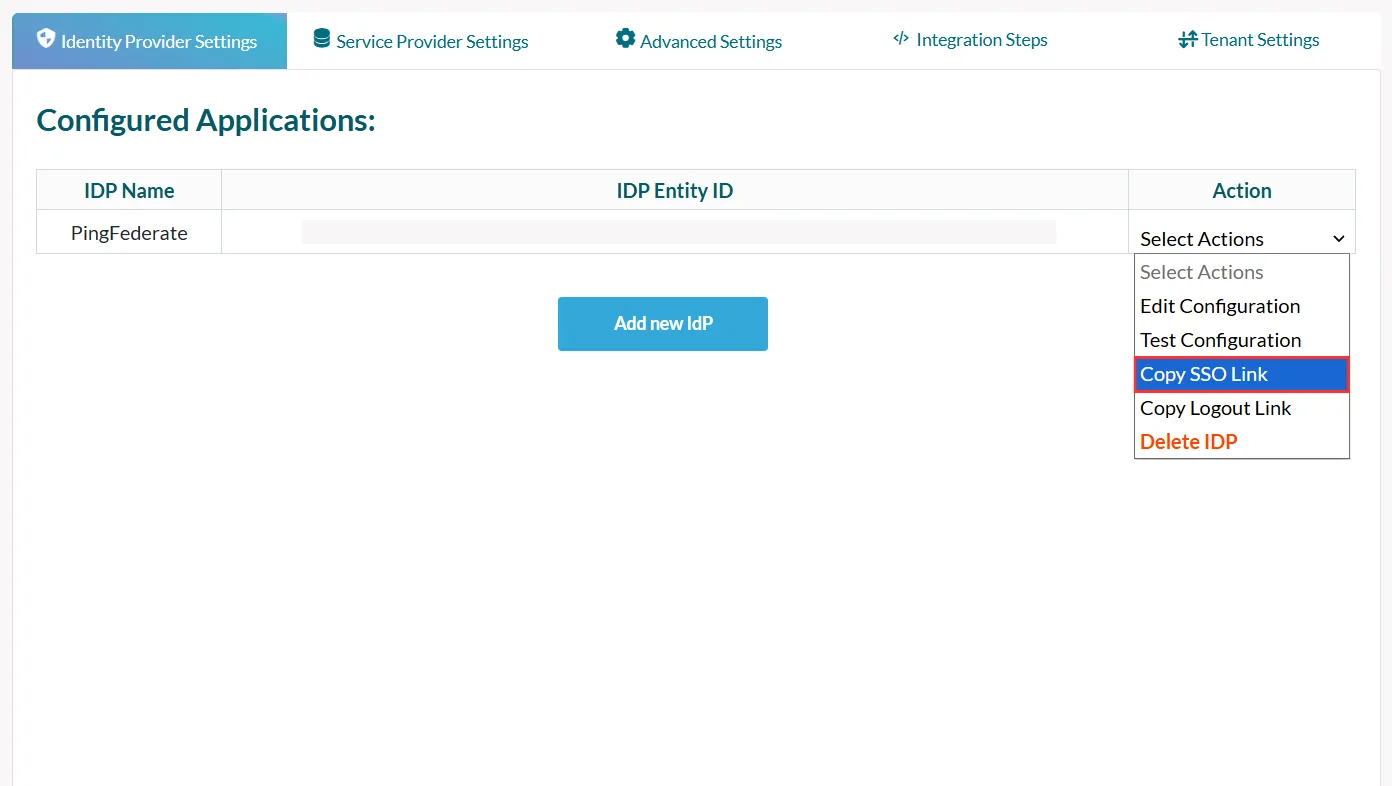

Hover on Select Actions and click on Copy SSO Link.

ASP.NET Core SAML Single Sign-On (SSO) using ADFS as IDP - Copy SSO Link

Use the following URL as a link in the application from where you want to perform SSO:
https://asp.net-middleware-base-url/?ssoaction=login
For example, you can use it as:
<a href=”https://asp.net-middleware-base-url/?ssoaction=login”>Log in</a>

7. Login Settings

Hover on Select Actions and click on Copy SSO Link.

Use the following URL as a link in the application from where you want to perform SSO:
https://base-url/?ssoaction=login
For example, you can use it as:
<a href=”https://asp-net-middlewarebase-url/?ssoaction=login”>Log in</a>

8. Logout Settings

Use the following URL as a link to your application from where you want to perform SLO:
https://asp-net-middleware-base-url/?ssoaction=logout
For example, you can use it as:
<a href=”https://asp-net-middleware-base-url/?ssoaction=logout”>Log out</a>

To configure your IDP, you can find the service provider's metadata in appsetting.json file. For SP metadata, you can refer to the screenshot below:

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - SP Metadata

From miniOrange section, copy spentityid, acsurl and provide it to your identity provider's team.

Once the service provider's metadata is configured on the IdP end, you'll be provided with the IdP metadata file or metadata URL or metadata URLs like IdP Entity Id, IdP SSO URL etc.
To configure your IDP metadata, navigate to appsettings.json file. You will find the following settings in the miniorange's JSON section
To configure your IDP directly, navigate to appsettings.json file.

ASP.NET Core SAML Single Sign-On (SSO) using PingFederate as IDP - IDP Metadata

Configure the appropriate provided metadata and save the settings.

idp_cert	Enter the IDP certificate against this field
ssourl	Enter the SSO URL against this field
idp_issuer	Enter the IDP Issuer against this field

Attribute Mapping

Map your application attributes with the identity provider (IDP) attributes.
Note: All the mapped attributes will be stored in the session so that you can access them in your application.

Integration Code

Just copy-paste the code snippet wherever you want to access the user attributes.
Note: All the mapped attributes will be stored in the session so that you can access them in your application.

string name="";

        string claimtype="";

        string claimvalue="";

        if(User.Identity.IsAuthenticated) {

          name= User.Identity.Name;

          foreach( var claim in User.Claims) {

    claimtype = claim.Type;

    claimValue = claim.Value;

  }
}

You can configure the ASP.NET Core SAML 2.0 Single Sign-On (SSO) module with any Identity Provider such as ADFS, Azure AD, Bitium, centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. Check the list of identity providers here.
