ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP


ASP.NET SAML Single Sign-On (SSO) module gives the ability to enable SAML Single Sign-On for your ASP.NET applications. Using Single Sign-On you need only one password to access your ASP.NET application and services. Our module is compatible with all SAML compliant identity providers. Here, we will go through a step-by-step guide to configure Single Sign-On (SSO) between ASP.NET and JumpCloud, considering JumpCloud as IdP. To know more about the other features we provide, click here.

Platform Support: The ASP.NET SAML SSO module supports ASP.NET 3.5 and above frameworks.

Pre-requisites: Download and Installation


PM> Install-Package miniOrange.SAML.SSO -Version 5.3.3
  • After integration, open your browser and browse the connector dashboard with the URL below:
    https://<your-application-base-url>/?ssoaction=config
  • If the registration page or login page pops up, you have successfully added the miniOrange SAML SSO connector to your application.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - saml dll register
  • Register or log in with your account by clicking the Register button to configure the module.

Steps to configure ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP

1. Configure JumpCloud as Identity Provider

  • You need to send your SP metadata to identity provider, JumpCloud. For SP metadata, use the SP metadata URL or download the SP metadata as a .xml file and upload it at your IdP end. You can find both these options under the Service Provider Settings tab.
  • There are two ways detailed below with which you can get the SAML SP metadata to configure onto your identity provider end.
  • A] Using SAML metadata URL or metadata file:
    • Under Service Provider Settings you can find the metadata URL as well as the option to download the SAML metadata.
    • Copy metadata URL or download the metadata file to configure the same on your identity provider end.
    • You may refer to the screenshot below:
    • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - Copy Downloaded Metadata
    B] Uploading metadata manually:
    • From the Service Provider Settings section, you can manually copy the service provider metadata like SP Entity ID, ACS URL, Single Logout URL and share it with your identity provider for configuration.
    • You may refer to the screenshot below:
    • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - Manual Metadata
  • Log in to your JumpCloud Administrator Console at https://console.jumpcloud.com
  • Click on Administrator Login.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login administator login
  • Log in with your JumpCloud Administrator Login credentials.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login login page
  • Go to User Authentication > SSO.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login user authentication sso
  • Select the + on the top left.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login add new sso
  • Click the Custom SAML App at the bottom.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login add new sso
  • In General Info, enter the following:
  • Display Label Name Enter a label for Service Provider.
    Description Enter description for your application.
    ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login add new sso
  • In Single Sign-On Configuration, enter the following:
  • Idp Entity ID Enter SP Entity ID / Issuer from the Service Provider Metadata tab of the module.
    SP Entity ID Enter SP Entity ID / Issuer from the Service Provider Metadata tab of the module.
    ACS URL Enter ACS URL from the Service Provider Metadata tab of the module.
    IDP URL Create custom url where users will be redirected for authentication.
    ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login add new sso

    ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - miniorange img Attribute Mapping

    • Now, Scroll down to the user Attribute Mapping and configure the following:
    • Service Provider Attribute Name JumpCloud Attribute Name
      First Name firstname
      Last Name lastname
    • To add more attributes click on add attributes.
    • Then click on activate to save your application
    • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login Attributes ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login application
    • To get the IDP metadata tick the application check box and click on Export Metadata .
    • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - JumpCloud SSO Login export metadata

2. Configure ASP.NET application as service provider

Note: After installation of the plugin, we need to setup the trust between your ASP.NET application and your JumpCloud account. SAML metadata is shared with JumpCloud so they can update their inbuilt configuration to support Single Sign-On.

Import JumpCloud SAML metadata

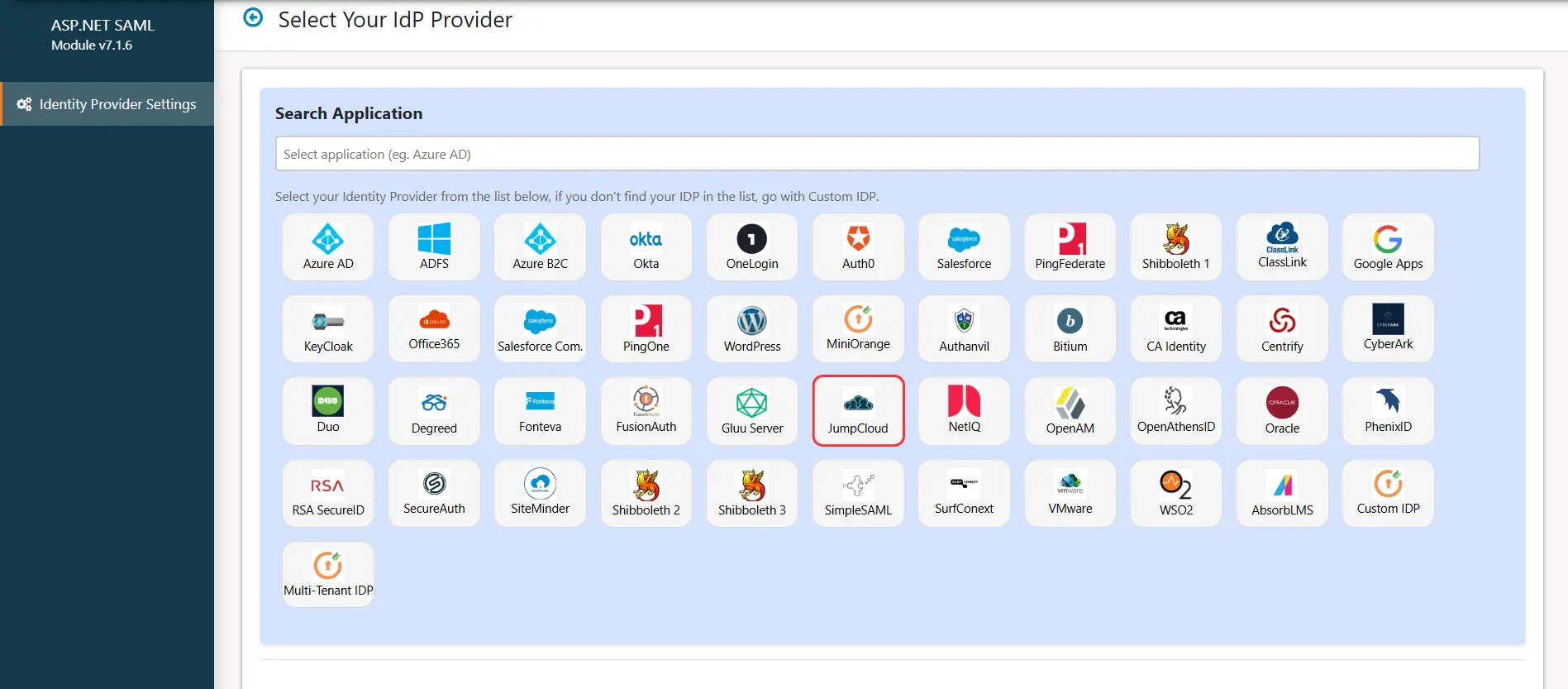

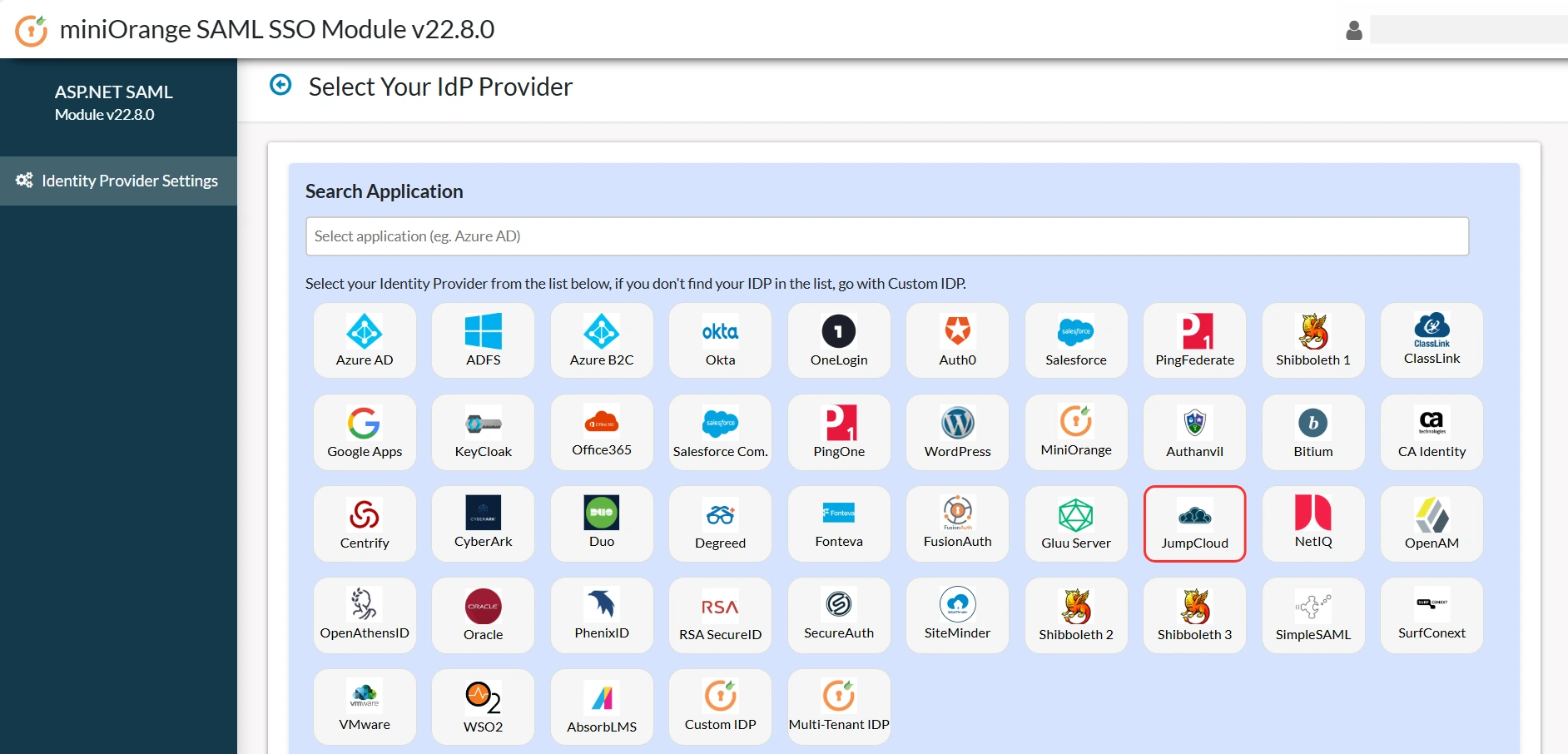

  • Select JumpCloud from the list of identity providers shown below.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - search idp
  • There are two methods for configuring ASP.NET as service provider:
  • A] Upload metadata using the Upload IDP Metadata button:
    • If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the module using the Upload IDP Metadata option.
    • You may refer to the screenshot below:
    • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - Upload Metadata
    • You can choose any one of the options according to the metadata format you have available.
    B] Configure the identity provider metadata manually:
    • After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.
    • Click Save to save your IDP details.
    • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - SAML dll config

3. Testing SAML SSO

  • Click on the Test Configuration button to test whether the SAML Configuration you’ve done is correct.
  • The screenshot below shows a successful result. Click on SSO Integration where you will be redirected to Attribute Mapping section.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - SAML dll Test configuration
  • If you are experiencing any error on the module end you’ll be shown with the window similar to below.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - Enable debug logs
  • To troubleshoot the error you can follow the below steps:
    • Under Troubleshoot tab, enable the toggle to receive the plugin logs.
    • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - Enable debug logs
    • Once enabled, you will be able to retrieve plugin logs by navigating to Identity Provider Settings tab and clicking on Test Configuration.
    • Download the log file from the Troubleshoot tab to see what went wrong.
    • You can share the log file with us at aspnetsupport@xecurify.com and our team will reach out to you to resolve your issue.

4. Integration Code

  • You can find the Integration code in the Login Settings tab in the module. Just copy-paste that code snippet wherever you want to access the user attributes.
  • Note: All the mapped attributes will be stored in the session so that you can access them in your application.
  • ASP.NET SAML Single Sign-On (SSO) using JumpCloud as IDP - integration code
  • If you want some assistance regarding the integration code, get in touch with us aspnetsupport@xecurify.com

5. Login Settings

  • Use the following URL as a link in your application from where you want to perform SSO:
  • https://<your-application-base-url>/?ssoaction=login
  • For example you can use it as:
  • <a href="https://<your-application-base-url>/?ssoaction=login">Login</a>

6. Logout Settings

  • Use the following URL as a link in your application from where you want to perform SLO:
  • https://<your-application-base-url>/?ssoaction=logout
  • For example you can use it as:
  • <a href="https://<your-application-base-url>/?ssoaction=logout">Logout</a>

You can even configure the DNN SAML Single Sign-On (SSO) module with any Identity Provider such as ADFS, Azure AD, Bitium, centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. To check other identity providers, click here.
