Steps to configure the Classic ASP Single Sign-On (SSO) module

Step 1: Setup Connector for application on IIS

  • Extract the downloaded asp-net-saml-sso-connector zip file to get ASP.NET SAML 2.0 Connector.
  • Add the connector as separate application on IIS
  • To Add Application in IIS Manager, copy the extracted folder to the following path: C:\inetpub\wwwroot.

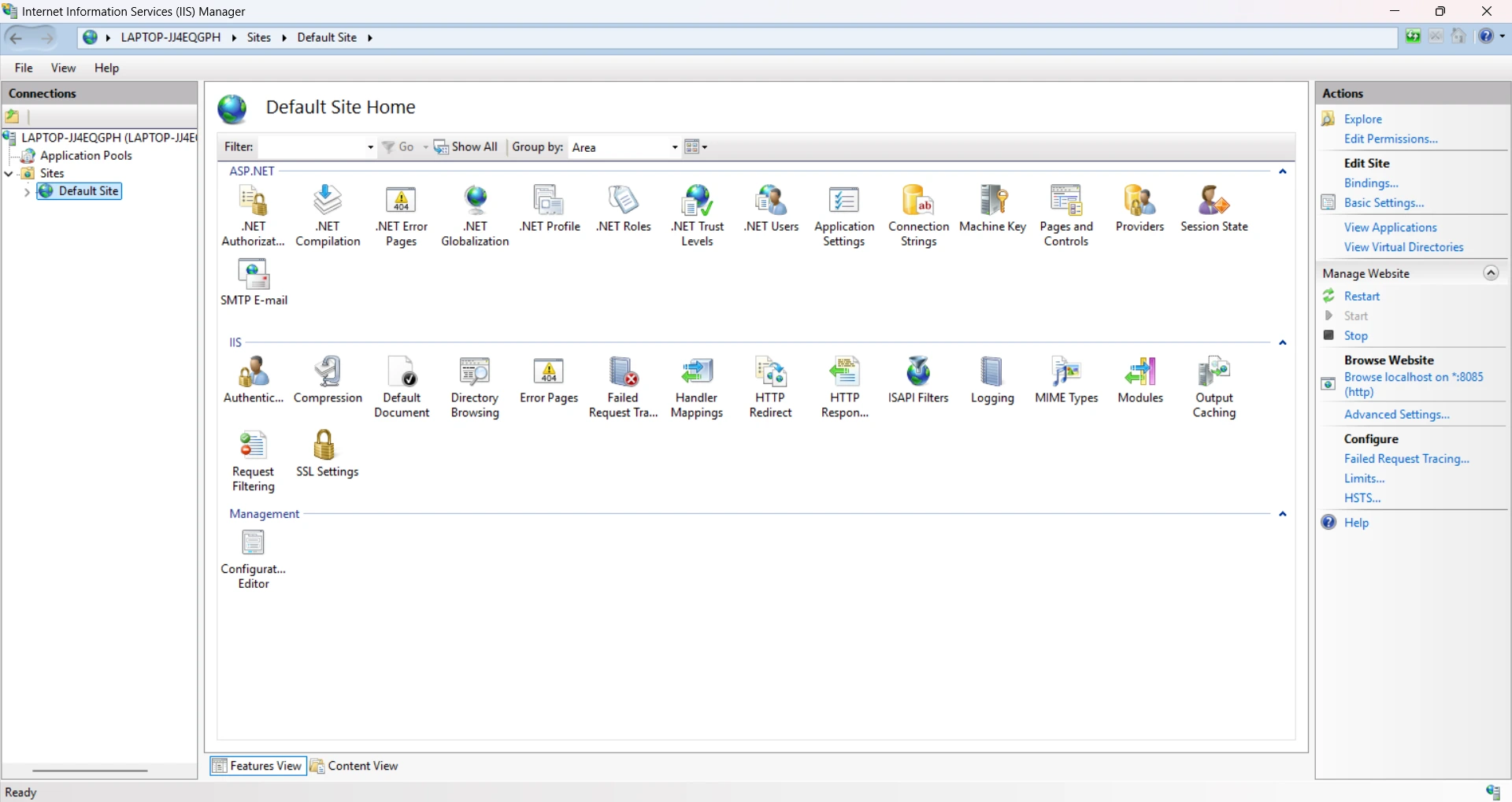

  • Open IIS manager.In left panel right click on your site and click Add Application.
    • Classic ASP Single Sign-On - iis manager

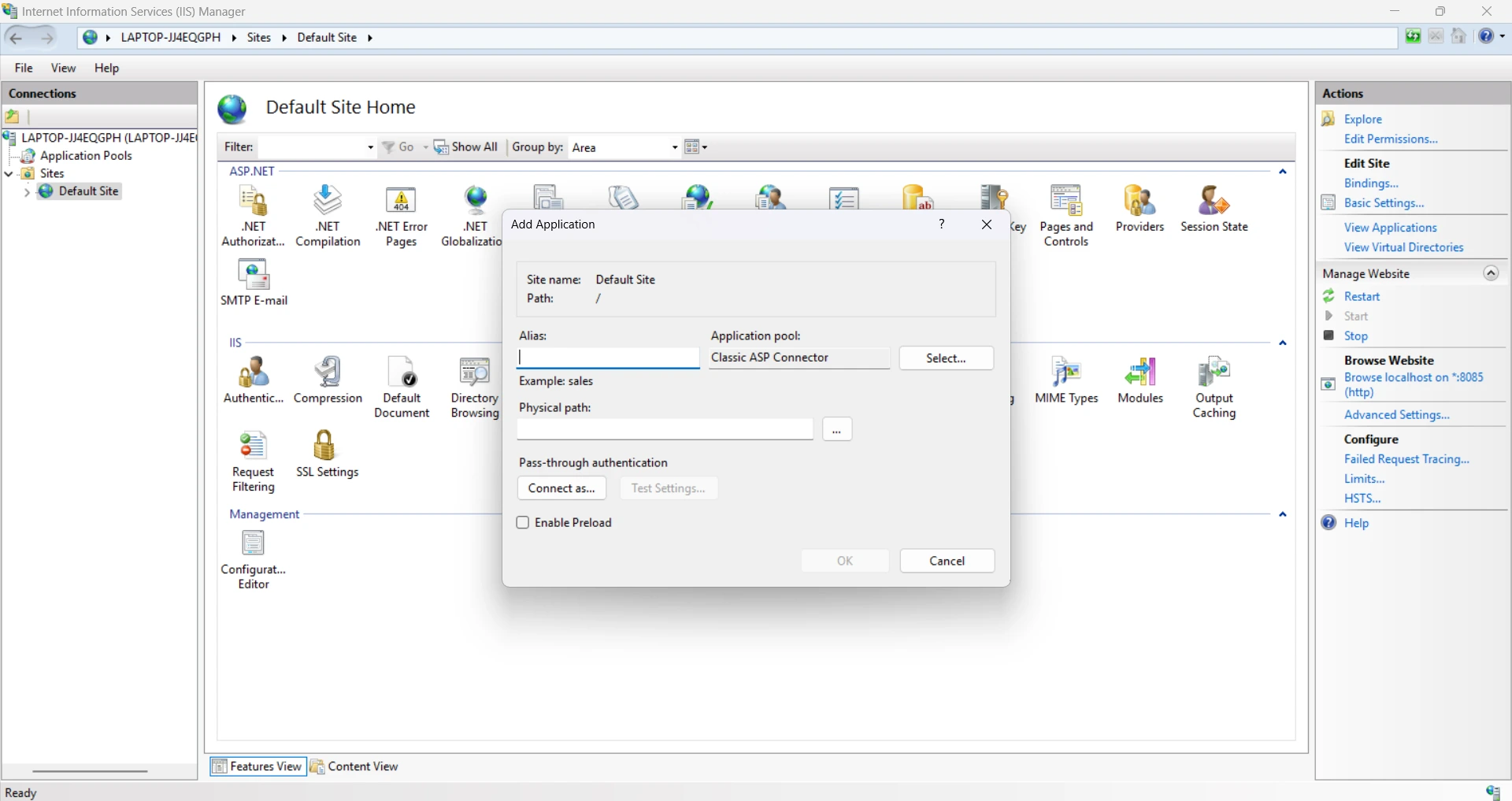

  • Add Alias Name for your application. For example: ssoapp
  • Give the Physical path where you have copied the Application: C:\inetpub\wwwroot\asp-net-saml-sso-connector-xxx.
    • Classic ASP Single Sign-On - add app

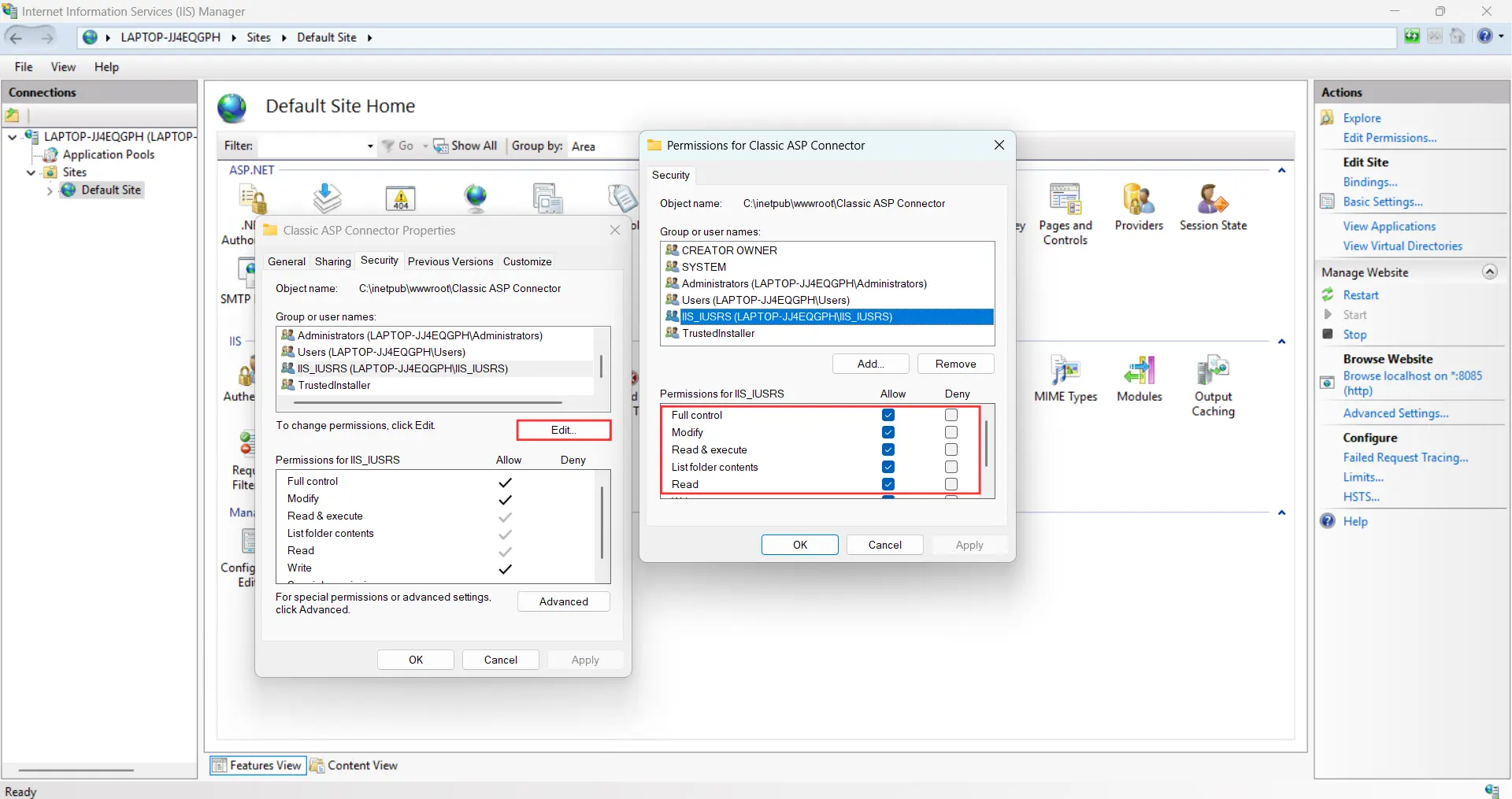

Step 2: Steps to give authority/permission to users to use SAML Connector

  • Go to this path C:\inetpub\wwwroot\
  • Right click the asp-net-saml-sso-connector-xxx and select Properties
  • Select the Security tab and click the Edit button.
  • Select IIS_IUSRS in under Group or Usernames option.
  • Give Full Control permission for IIS_IUSRS container as shown in the figure below:
    • Classic ASP Single Sign-On - permission

Step 3: Open miniOrange SAML ASP.NET Connector on Browser

  • Open any browser and go to the following link: https://<new-application-base-url>.

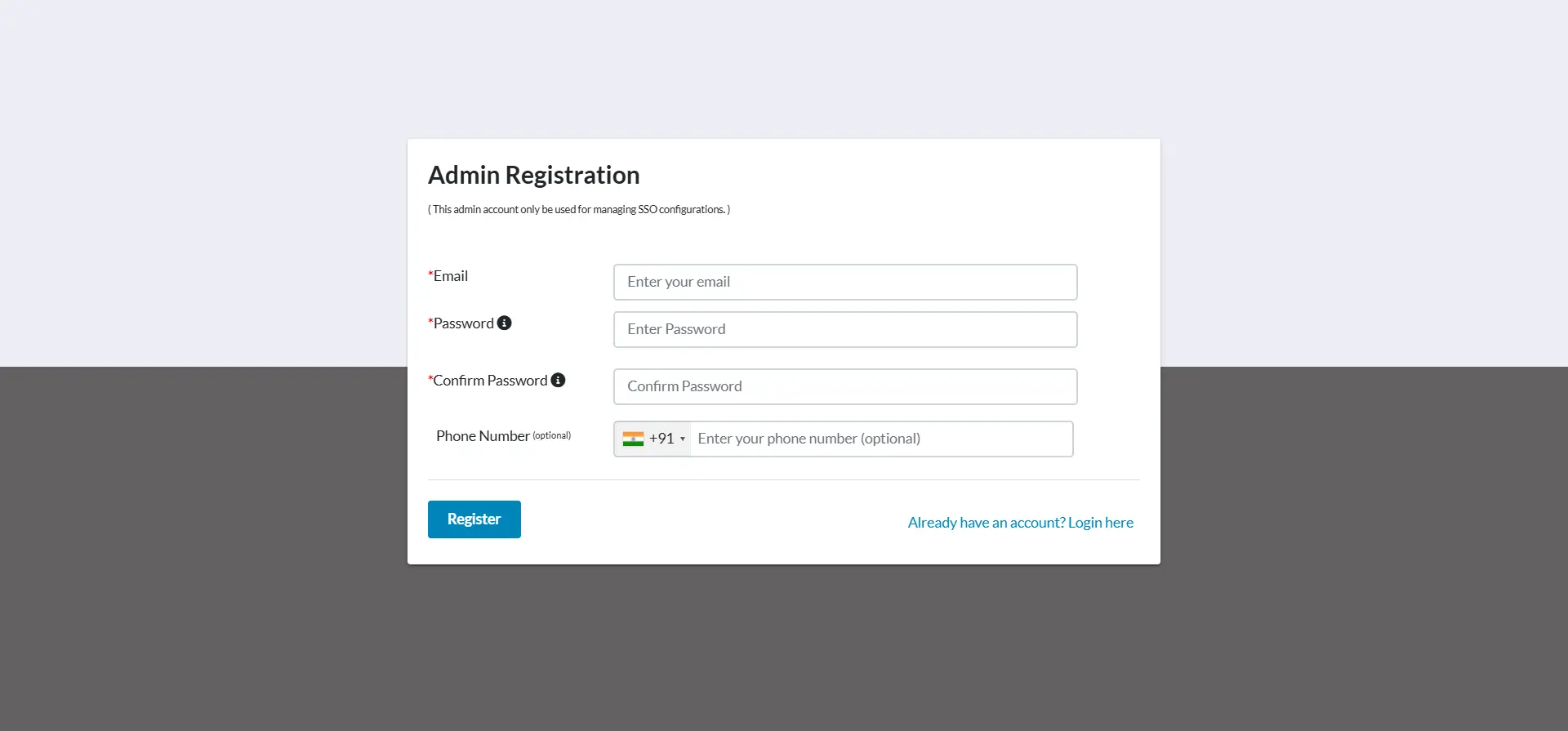

  • Login or Register to SAML connector in order to access the connector's admin dashboard.
    • Classic ASP Single Sign-On - mo saml dll register

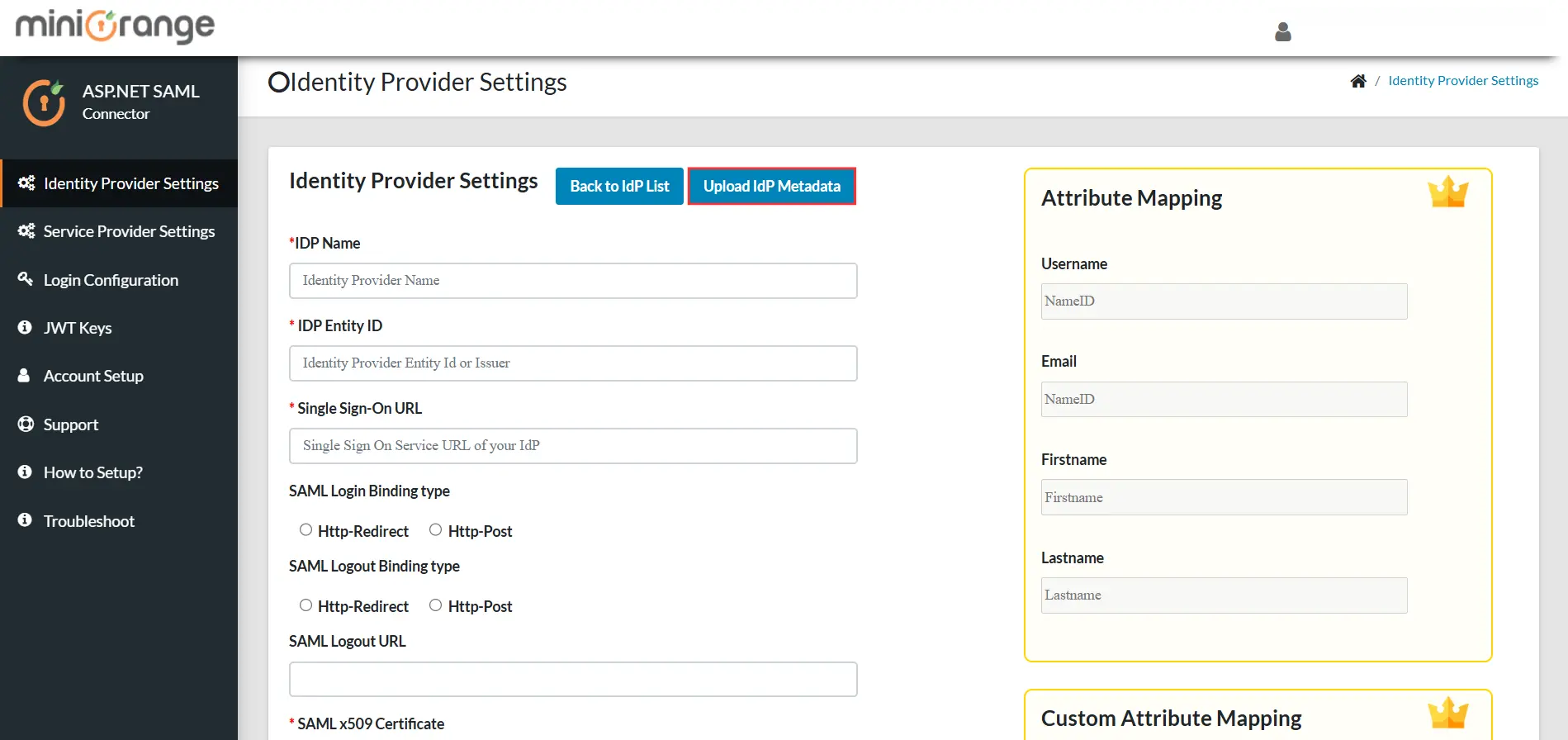

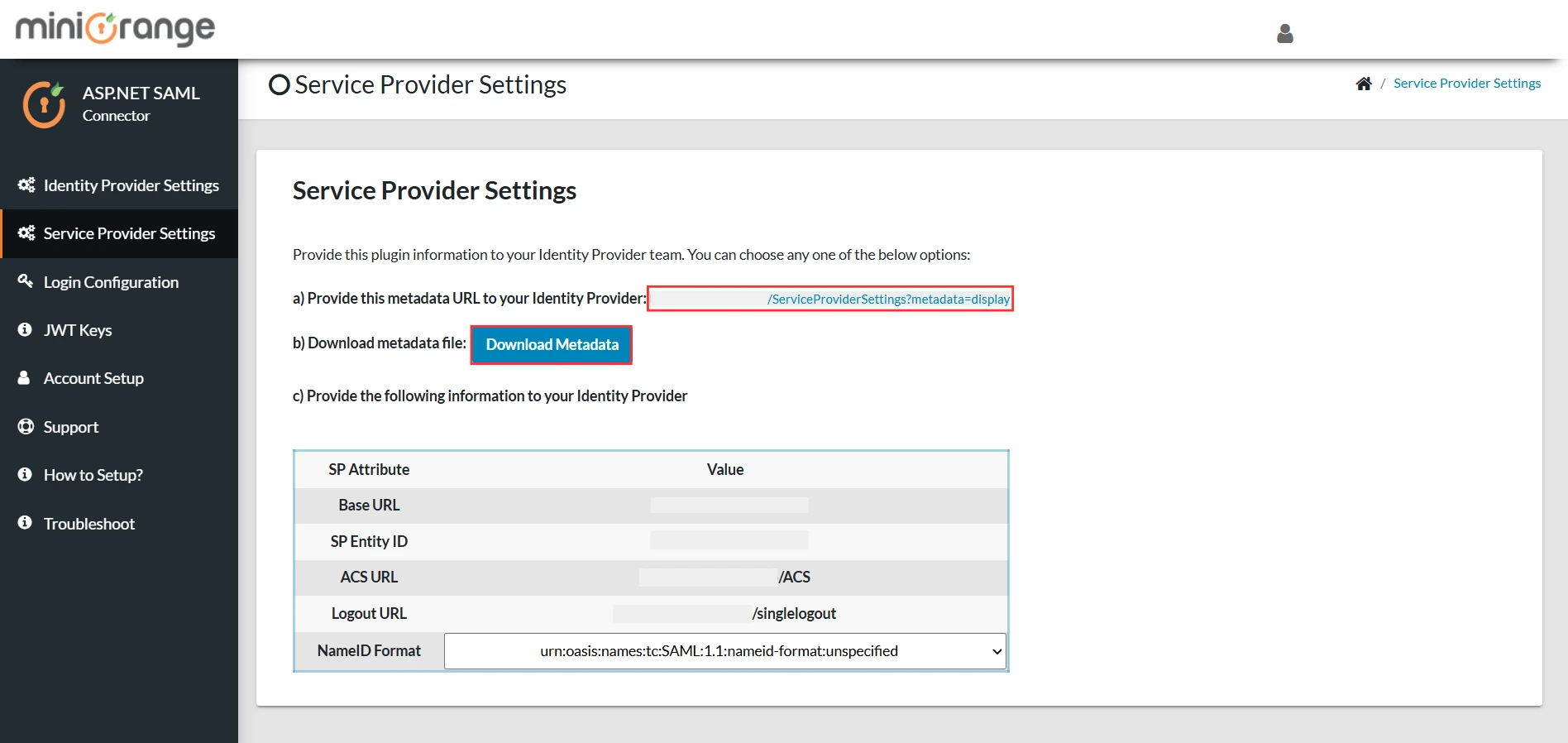

Step 4: Configure ASP.NET SAML Connector as Service Provider

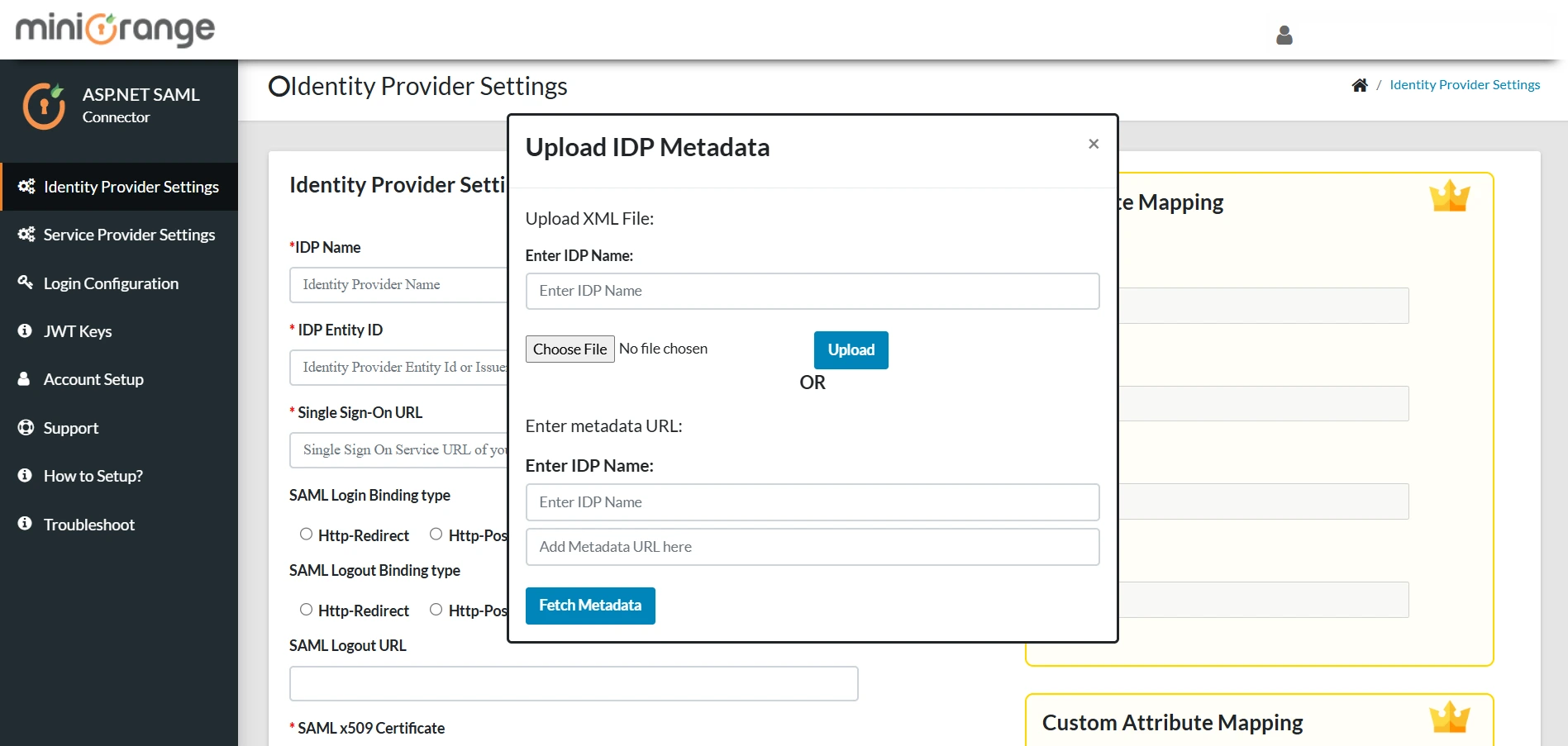

  • After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and x.509 Certificate. Configure these values under IDP Entity ID, Single Sign-On Url and SAML X509 Certificate fields respectively.
  • Click Save to Save your IDP details.
    • Classic ASP Single Sign-On - idp settings

Step 5: Test SAML SSO

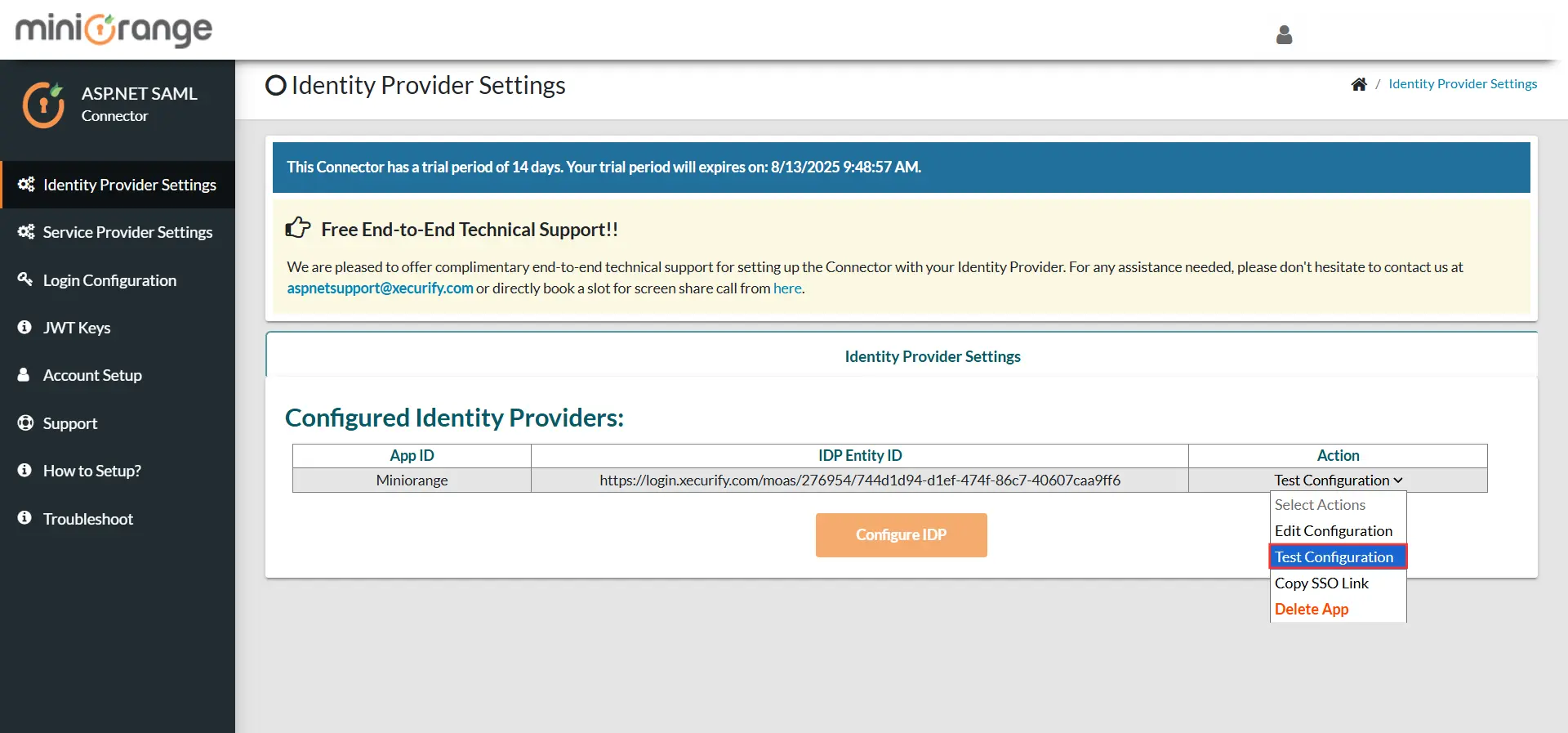

  • Click on Test Configuration button to test whether the connector is configured correctly or not.
  • The below Screenshot shows a successful result.
    • Classic ASP Single Sign-On - Test Configuration

Step 6: Attribute Mapping

  • Attribute Mapping helps you to get attributes in your ASP.NET application received from your IdP and map them to your user attributes in application.
  • Attributes received in successful test configuration are used for attribute mapping.
  • You can refer to the below image for attribute mapping:
    • Classic ASP Single Sign-On - attribute mapping

Step 7: Integration Code

  • miniOrange SSO connector will POST a signed JWT token on this endpoint which will contain the authenticated user's info. So, first create a POST endpoint in your application.

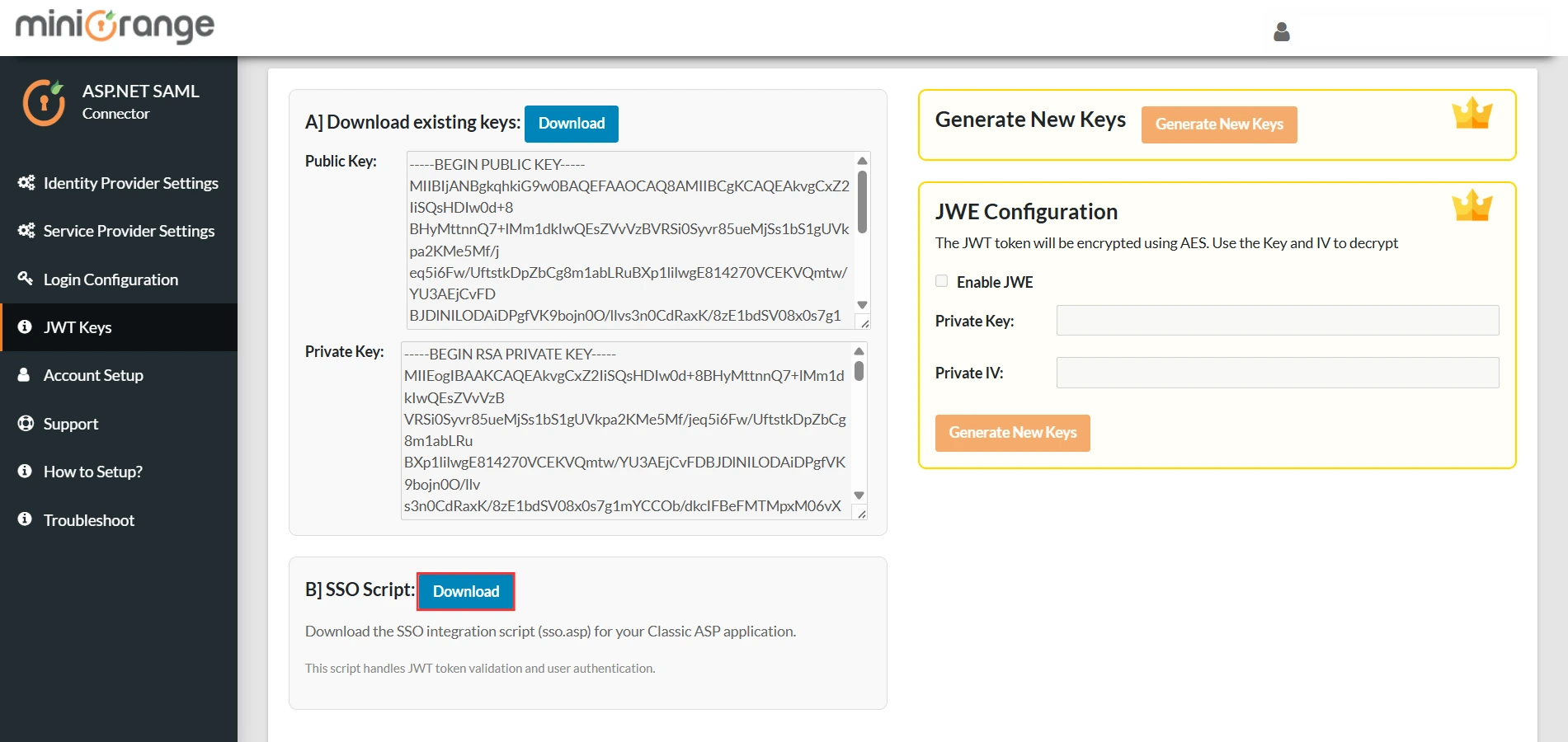

  • Download the integration library (.dll file ) using the download option in the integration tab and add it to your project. This library contains the classes and methods with which you can verify the JWT token signature and also retrieve the user attributes from the token.
  • Use string token, string public_key function to verify the token signature.It takes token (string) and public_key (string) as parameters and returns a bool value after verification.
  • Once the verification returns true, then use getUserAttr(string token, string attr_name) function to retrieve user attributes from the token. It takes token (string) and attr_name (string) as parameters and returns attribute value (string) on success otherwise it returns an empty string.
  • Add the namespace as "Miniorange.SSO.SAML.Integrate"
  • You can refer to the example below for the integration part: Integrate intgtr= new Integrate(); // create instance for Integrate class string public_key = "1wEaPr7h34Ts+DbgPytEqwkcJlybYwOTyBVD4GryebjSIF....................";
    //Your public key displayed above.
    string token = Request.Form["token"];
    string username ="";
    if (!String.IsNullOrEmpty(token)) {
    // Verifying if the token is received from the trusted source.
    if ( intgtr.Verify(token, public_key))
    { username = intgtr.getUserAttr(token, "userid"); // retrieve the attribute value using getUserAttr method }
    } // using the received attributes from token you can create the session for that user.

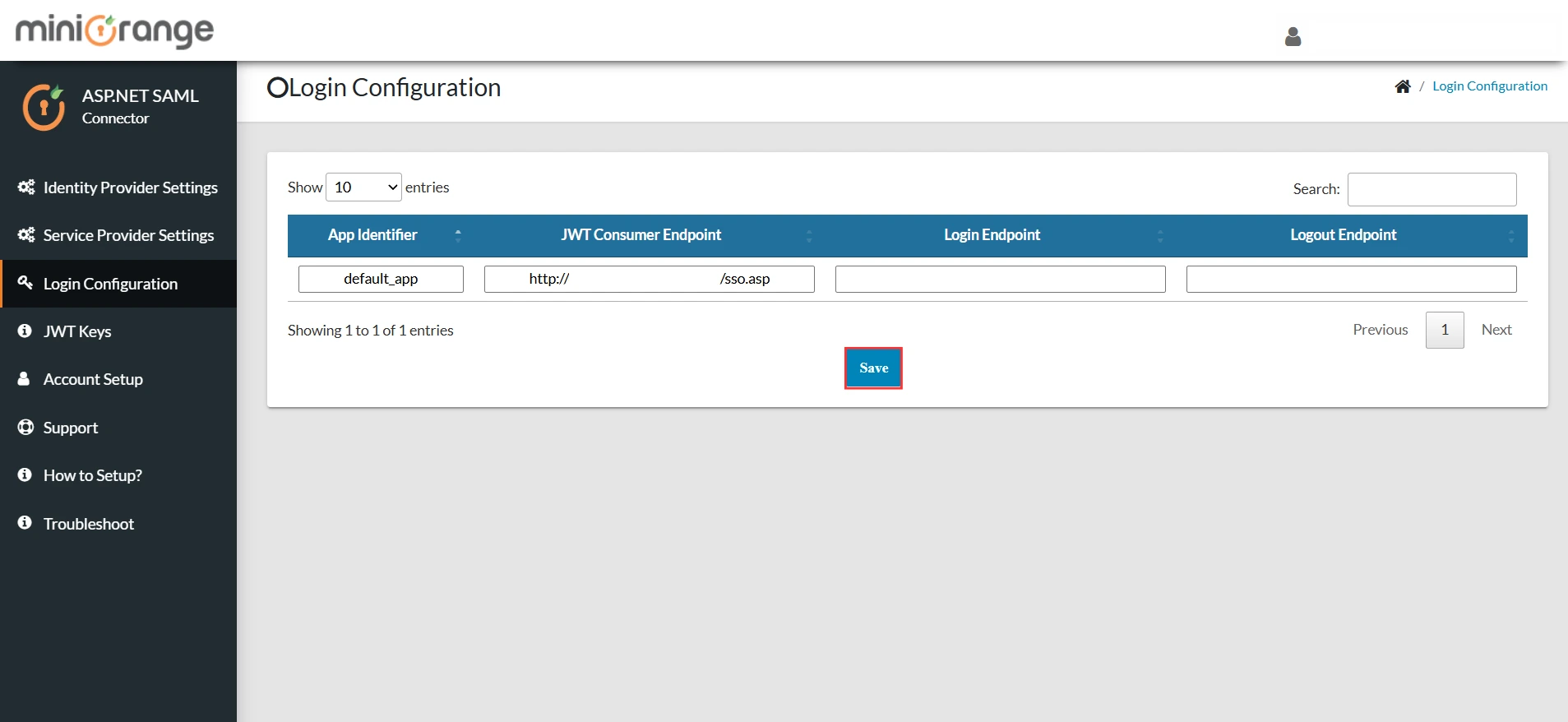

Step 8: Login Setup

  • Provide the created endpoint URL for your ASP.NET application in Login Setup where you will read the JWT Token with the user attributes.
  • Click on the Save button.
    • Classic ASP Single Sign-On - login Setup

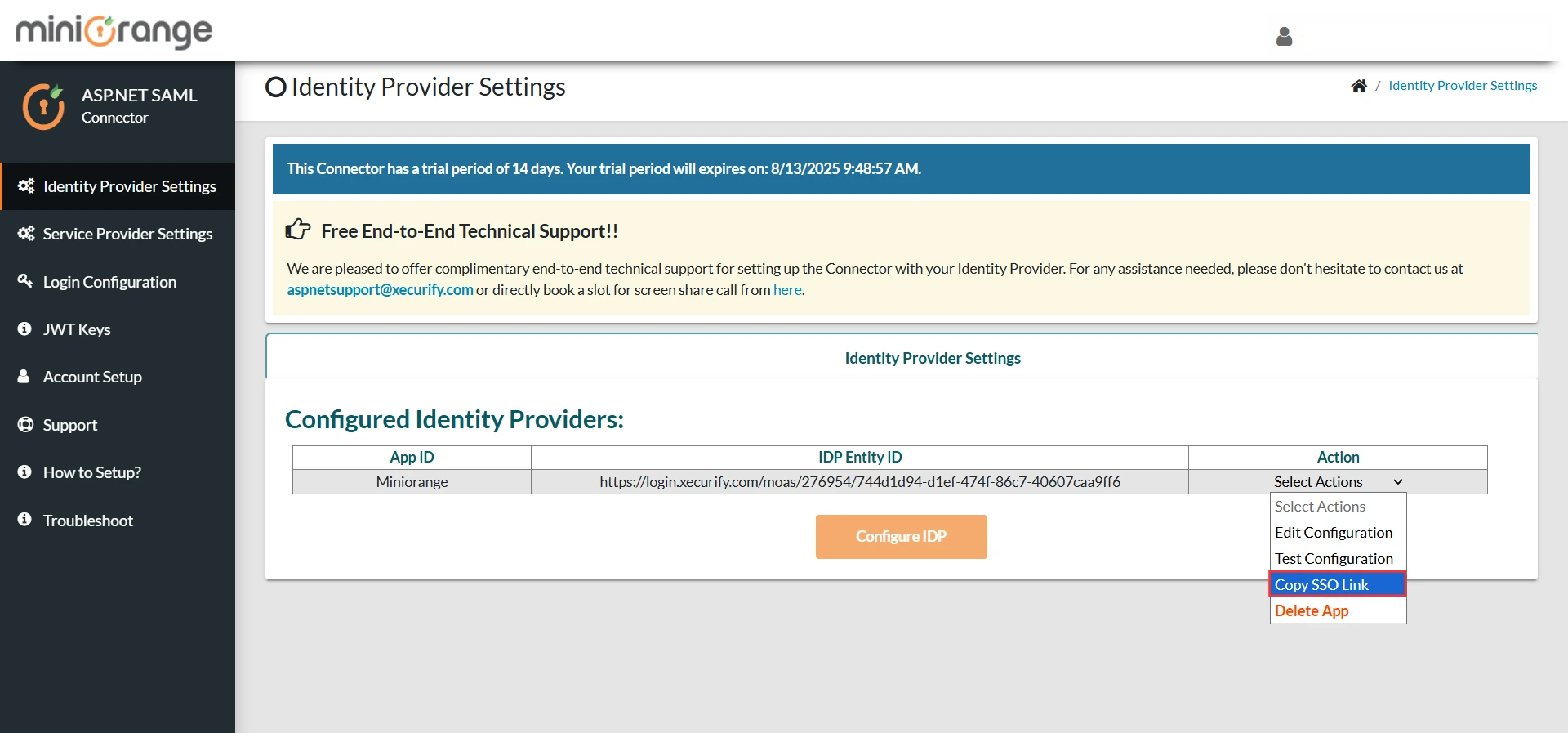

Step 9: Add SSO Link

  • Use the following URL as a link in your application from where you want to perform SSO:
    https://<application-base-url>/request.aspx
  • For example you can use it as:
    <a href="https://<application-base-url>/request.aspx”>Log in</a>"

Step 10: Add SLO Link

  • Use the following URL as a link in your application from where you want to perform SLO:
    https://<application-base-url>/singlelogout.aspx
  • For example you can use it as:
    <a href="https://<application-base-url>/singlelogout.aspx”>Logout</a>"

You can configure the ASP.NET SAML Single Sign-On (SSO) module with any identity provider such as ADFS, Azure AD, Bitium, Centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. The miniOrange ASP.NET SAML 2.0 Connector supports C# and Visual Basic languages.

We also provide ASP.NET SAML Single Sign-On module for setting up Single Sign-On to your ASP.NET Custom Applications. Click Here to know more.

miniOrange also provides you modules for integration with legacy apps such as Active Directory, SiteMinder, Radius, Unix and so on. Using SAML, OAuth, OpenID, ADFS, and WSFED protocols, we can also help you add login/authentication to your Umbraco site.
