Setup LinkedIn Single Sign-on with Drupal OAuth Client

Drupal LinkedIn SSO integration will allow you to configure Single Sign-On ( SSO ) login between your Drupal site and LinkedIn using OAuth/OpenID protocol. Drupal OAuth 2.0/OpenID connect module gives the ability to enable login using OAuth 2.0/OIDC Single Sign-On to Drupal Site. We provide the Drupal OAuth/OpenID Client module for Drupal 7, Drupal 8, Drupal 9 and Drupal 10, Drupal 11.

  • Download the module:
    composer require 'drupal/miniorange_oauth_client'
  • Navigate to Extend menu on your Drupal admin console and search for miniOrange OAuth Client Configuration using the search box.
  • Enable the module by checking the checkbox and click on the Install button.
  • You can configure the module at:
    {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
  • Install the module:
    drush en drupal/miniorange_oauth_client
  • Clear the cache:
     drush cr
  • You can configure the module at:
    {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
  • Navigate to Extend menu on your Drupal admin console and click on Install new module.
  • Install the Drupal OAuth & OpenID Connect Login - OAuth2 Client SSO Login module either by downloading the zip or from the URL of the package (tar/zip).
  • Click on Enable newly added modules.
  • Enable this module by checking the checkbox and click on install button.
  • You can configure the module at:
    {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
  • After installing the module, navigate to the Configuration -> miniOrange OAuth Client Configuration -> Configure OAuth tab and select LinkedIn from the Select Application dropdown list.
  • Copy the Callback/Redirect URL and keep it handy.
  • Note and Contact Us - SSO between two WordPress sites

    Note: If your provider only supports HTTPS Callback/Redirect URLs and you have an HTTP site, please make sure to enable the 'Enforce HTTPS Callback URL' checkbox at the bottom of the tab.

  • Enter the application name in the Display Name text field. For example, LinkedIn.
Drupal oauth client configure oauth tab
  • Go to LinkedIn Admin console and sign up/log into your account.

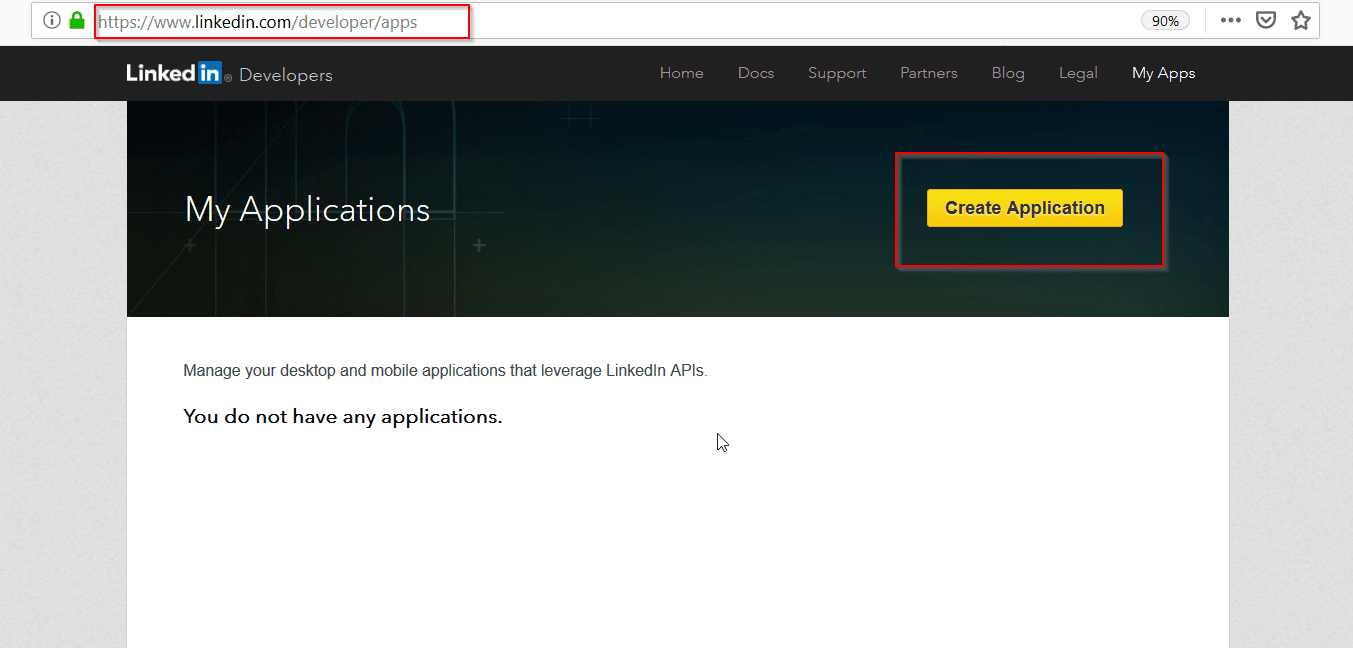

  • Click on Create app button.
LinkedIn SSO - Login My Applications Create Application
  • In the Create an app panel, enter the required information:
    • Enter the prefered application name in App name text field.
    • LinkedIn Page: Enter your company's name or the URL of your linkedIn company page.
    • App logo: Add your company logo.
    • Check the legal terms and conditions checkbox, then click the Create app button.
LinkedIn SSO - Create app

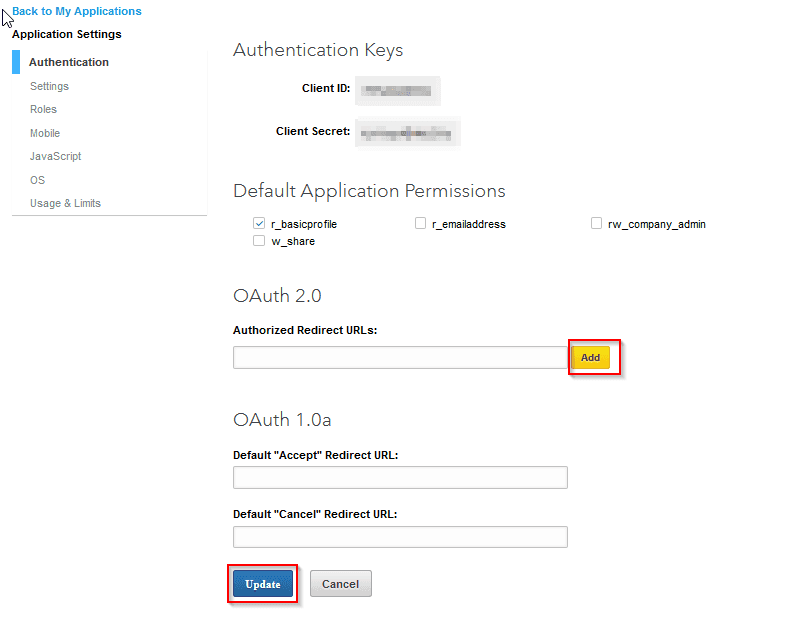

  • Navigate to the Auth tab and, under the OAuth 2.0 settings section, click the Pencil icon.
  • Click on + Add redirect URL link and paste the copied Callback URL into the Authorized redirect URLs for your app text field. Then, click on Update button.
LinkedIn SSO - callback url paste it here
  • LinkedIn assigns a unique Application ID to your application. Copy the Client ID from the Application credentials section.
LinkedIn SSO Copy Client ID and Client Secret
  • In Drupal’s Configure OAuth tab and paste the copied Client ID into the Client ID text field.
LinkedIn - Client Credentials
  • In the Application credentials section, click the Eye icon. Then copy Client Secret.
LinkedIn - Copy client secret
  • In Drupal’s Configure OAuth tab and paste the copied Client Secret into the Client Secret text field.
Drupal OAuth client - Paste client secret value
  • Navigate to the LinkedIn page. Go to the Products tab.
Linkedin - go to product tab
  • Under the Sign In with LinkedIn card, click on the Request access button.
Click on Request Access button
  • Click on checkbox to accept the legal terms and conditions, then click the Request access button.
Accept legal terms and condition
  • You have successfully completed your LinkedIn App OAuth Server side configurations.
  • Scope r_emailaddress r_liteprofile
    Authorize Endpoint https://www.linkedin.com/oauth/v2/authorization
    Access Token Endpoint https://www.linkedin.com/oauth/v2/accessToken
    Get User Info Endpoint https://api.linkedin.com/v2/me
  • After successfully saving the configurations, click on the Perform Test Configuration button to test the connection between Drupal and LinkedIn.
LinkedIn sso login with drupal OAuth OpenID Single Single On test Configuration
  • This Test Configuration window will provide you with a list of the attributes that are coming from the LinkedIn.
  • Select the Email Attribute from the dropdown menu in which the user's email ID is obtained and click on the Done button.
LinkedIn sso login with drupal OAuth OpenID Single Single On - Select Email Attribute
  • Now, in the Attribute & Role Mapping tab, you can also choose the Username Attribute from the dropdown and click on the Save Configuration button.
LinkedIn sso login with drupal OAuth OpenID Single Single On Select username Attribute

Note: Mapping the Email Attribute is mandatory for your login to work.

  • Open a new browser/private window and navigate to the Drupal site login page.
  • Click on the Login using LinkdIn link to initiate the SSO from Drupal.
  • If you want to add the SSO link on other pages, please follow the steps given in the image below:
Add login link other page of your Drupal site follow these steps

If you face any issues during the configuration or if you want some additional features, please contact us at drupalsupport@xecurify.com.

More FAQs ➔

Follow the steps mentioned HERE

Follow the steps mentioned HERE

The logout functionality you've mentioned here is the default behavior of a module. It's logging you out of Drupal but not from your Application/Provider. To allow the module to logout from your provider/application account (what you are looking for), you need to make the below configurations: [know more]

As you have upgraded to one of our paid versions of the Drupal module and replaced the free module with the paid one, you must first activate the paid module. Please refer to the below steps. [Know more]
