DNN OAuth Single Sign-On (SSO) with Okta as OAuth Provider

DNN OAuth Single Sign-On (SSO) module gives the ability to enable OAuth Single Sign-On for your DotNetNuke site. Using Single Sign-On you can use only one password to access your DNN site and services. Our module is compatible with all the OAuth-compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between DNN and Okta considering Okta as OAuth Provider. To check other features we provide, click here.

Pre-requisites : Download And Installation

• Download the DNN OAuth Single Sign On module with above link.
• Extract the package and upload the extension dnn-oauth-single-sign-on_xxx_Install by going to Settings > Extension > Install Extension

1. Adding module on DNN page

• Open any of the page on your DNN site (Edit mode) and Click on Add Module.

• Search for oauthclientsso and click on the oauthclientsso. Drag and drop the module on the page where you want.

• You have finished with the Installation of the module on your DNN site.
• If you want to add module on every page of your dnn site, go to Module Settings >> Advanced Settings.

• Check the box for Display Module on All Pages and click on Update.
• Under oauthclientsso settings tab, select Okta as identity provider (IDP).

• Copy the Redirect/Callback URL and provide the same to your OAuth Provider.

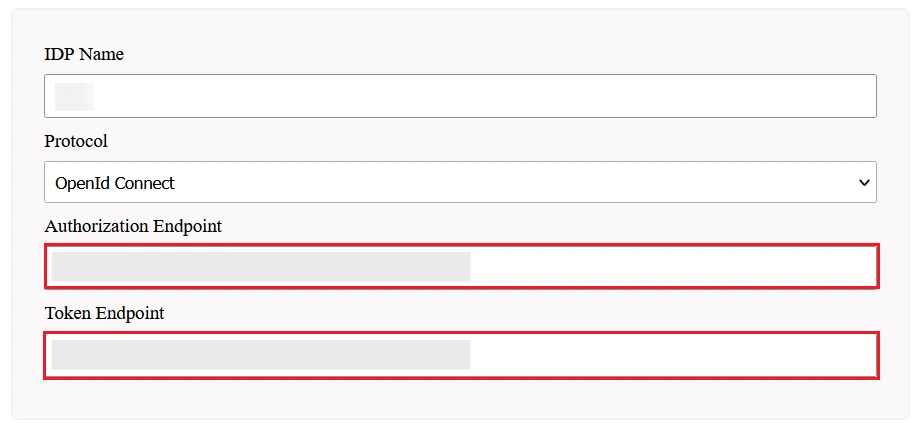

• To configure DNN as a OAuth Client, you will now need to complete the DNN Configuration by configuring the Client ID and Client secret and the endpoints.
• You can refer to the table below for the endpoint and you will get Client ID & Client Secret from your Okta admin dashboard configuration as in step 2.

Scope:	openid email profile
Authorize Endpoint:	https://{yourOktaDomain}.com/oauth2/default/v1/authorize
Access Token Endpoint:	https://{yourOktaDomain}.com/oauth2/default/v1/token
Get User Info Endpoint:	https://{yourOktaDomain}.com/oauth2/default/v1/userinfo
Custom redirect URL after logout:[optional]	https://{yourOktaDomain}.com/login/signout?fromURI= <your url>




Authorize Endpoint:	https://{yourOktaDomain}.com/oauth2/v1/authorize
Get User Info Endpoint:	https://{yourOktaDomain}.com/oauth2/v1/userinfo

Note: Please try the above endpoints if you receive a 404 Server error from Okta at the time of SSO.

2. Configure Okta as OAuth Provider

• First of all, login into your okta account using https://www.okta.com/login

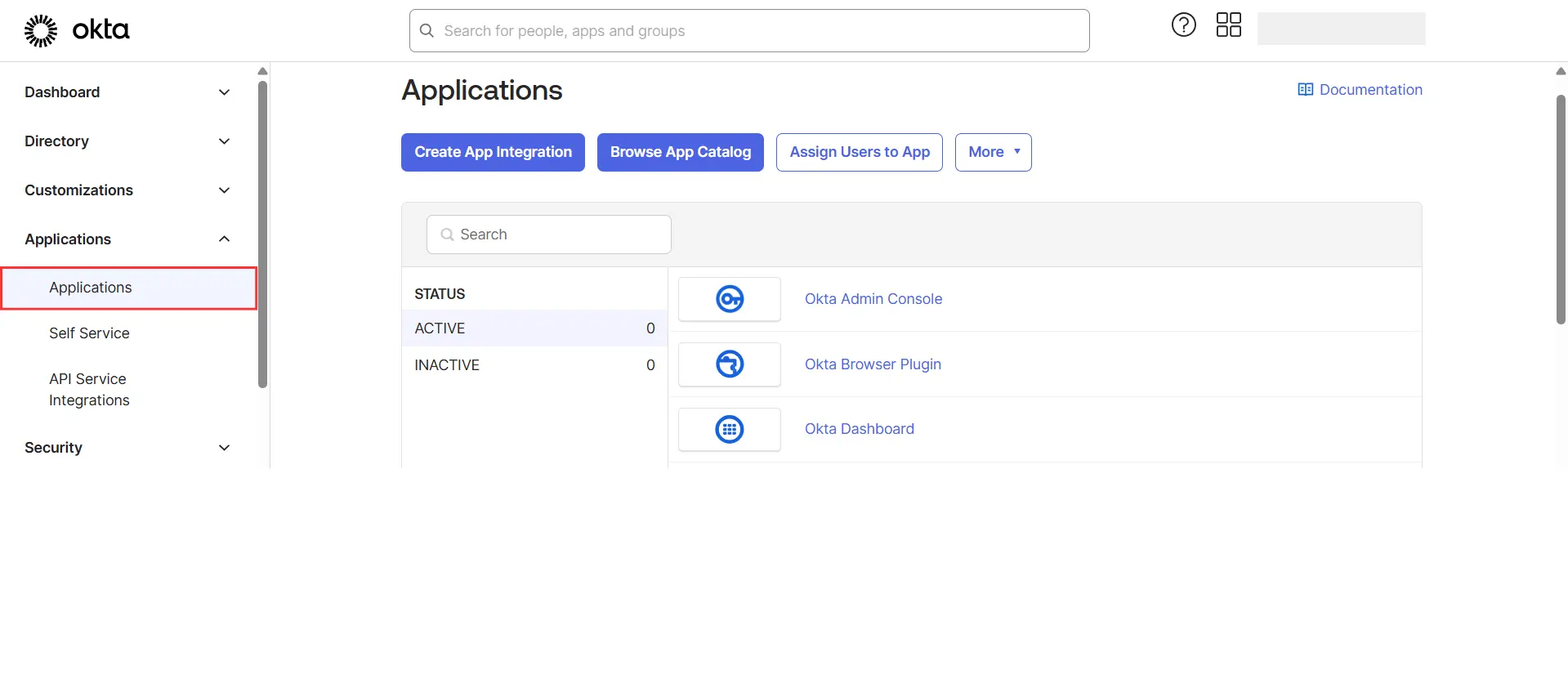

• Go to the Okta Admin panel. Go to Applications -> Applications.

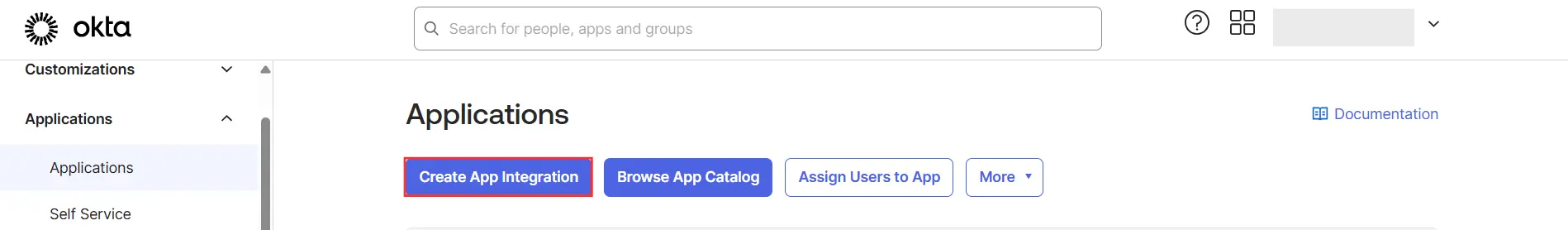

• You will get the following screen. Click on Create App Integration button.

• Select sign in method as the OIDC - OpenID Connect option and select Application type as web application, click on Next button.

• You will be redirected to the app details page. Enter App integration name and Sign-in redirect URIs. you will get that from miniOrange DNN OAuth plugin.

• Scroll down and you will see the Assignments section. Choose a controlled access option and uncheck the Enable immediate access with Federation Broker Mode option. Click on Save button.

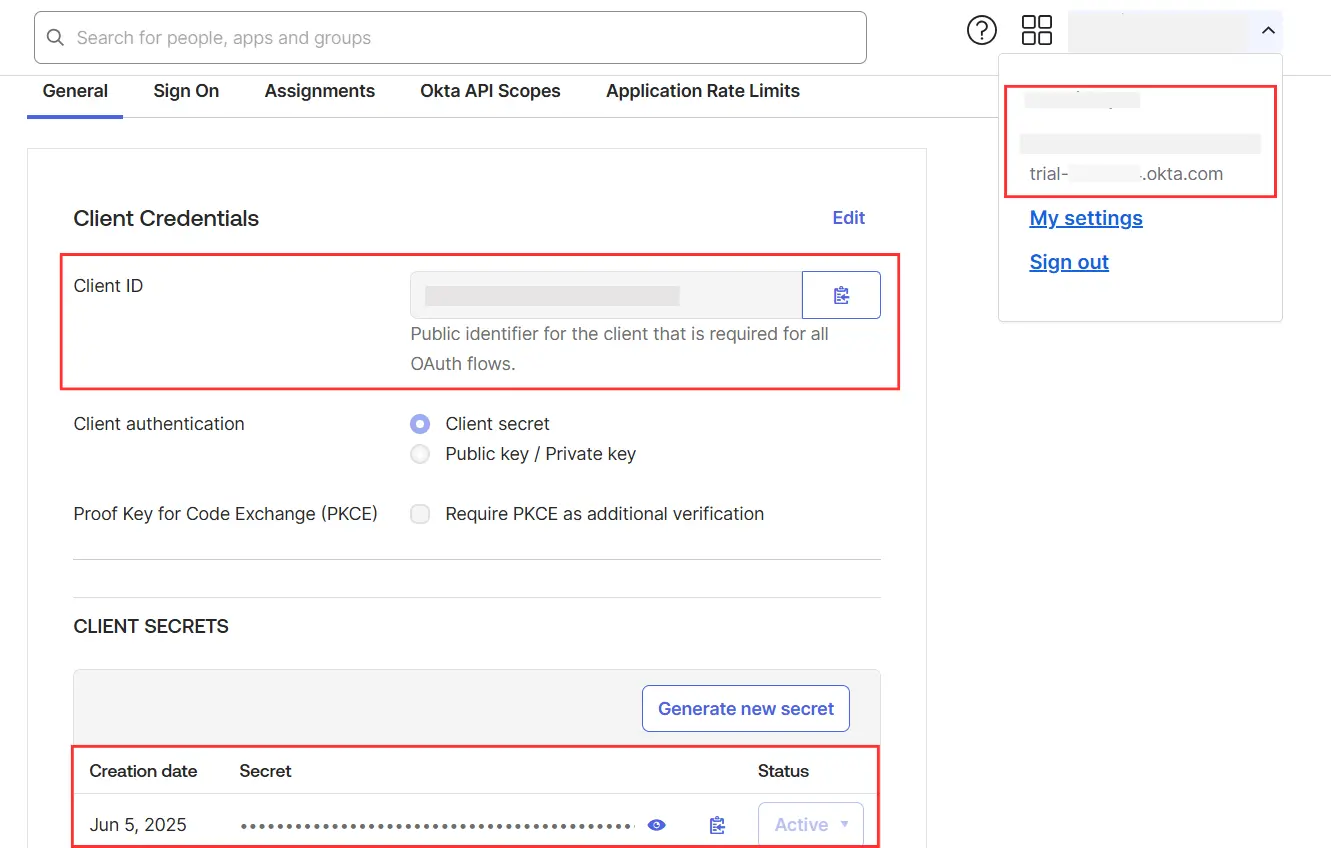

• Now you will get the Client credentials and okta domain. Copy these credentials in miniorange DNN OAuth Plugin configuration on corresponding fields.

• Go to Applications tab and Click on your application.

• Select the Assignments tab.

• Click Assign and select Assign to People.
• If you want to assign the application to multiple users at the same time then select Assign to Groups [If an app is assigned to a group then, the app will be assigned to all the people in that group]

• Click Assign next to a user name.

• Click Save and Go Back.

• Click Done.

• In your Okta admin dashboard, navigate to Security -> API.

• Select your SSO application and click on the edit icon.

• Go to claims tab and select the ID token option.

• click on Add claim button.

• Give a Name to your claim/attribute and Select ID Token from the token type dropdown. Now, enter the value user.$attribute in the Value field based on the attribute you want to receive. Keep other settings as default and click on Create button.

• Follow the similar steps for all the attributes you want to see. You will have a list similar to the below one.

3. Test Configuration

• After saving settings, you can see the list of applications you have configured.
• Click on Edit to update the configuration.

• Click on Test Configuration to check if the configuration is correct.

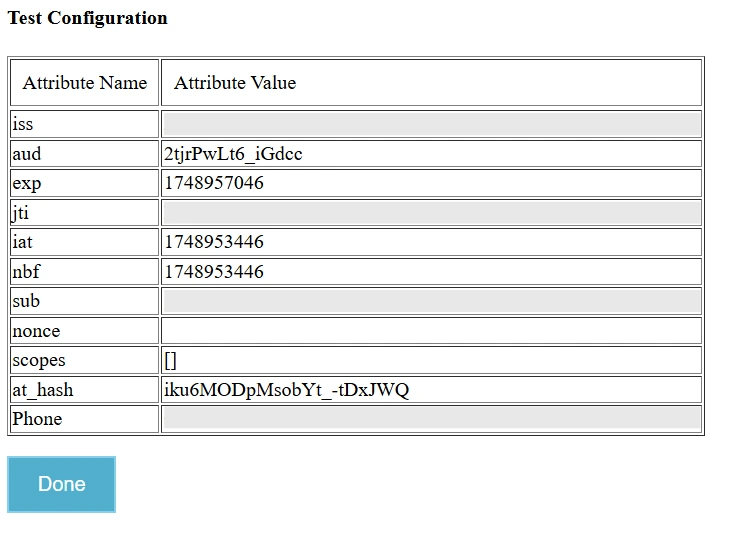

• On successful configuration, you will get Attributes Name and Attribute Values on Test Configuration window.

4. Attribute Mapping

• Go to the oauthclientsso settings >> Advanced Settings >> Attribute Mapping.

• Map email and username with Attribute Name you can see in Test Configuration window.

5. Adding Widget

• For adding the widget go to Add Widget.

• Click on Add Widget button. A button will be added on the DNN page.

You can even configure the ASP.NET OAuth Single Sign-On (SSO) module with any identity provider such as ADFS, Azure AD, Bitium, Centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider.
