DNN SAML Single Sign-On (SSO) using Auth0 as IDP | Auth0 SSO


DotNetNuke SAML SP Single Sign-On (SSO) module gives the ability to enable SAML Single Sign-On for your DotNetNuke applications. Using Single Sign-On you can use only one password to access your DotNetNuke application and services. Our module is compatible with all the SAML compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between DotNetNuke and Auth0 considering Auth0 as IdP.

Pre-requisites : Download And Installation

  • Download the package for DNN SAML Single Sign-On (SSO) module.

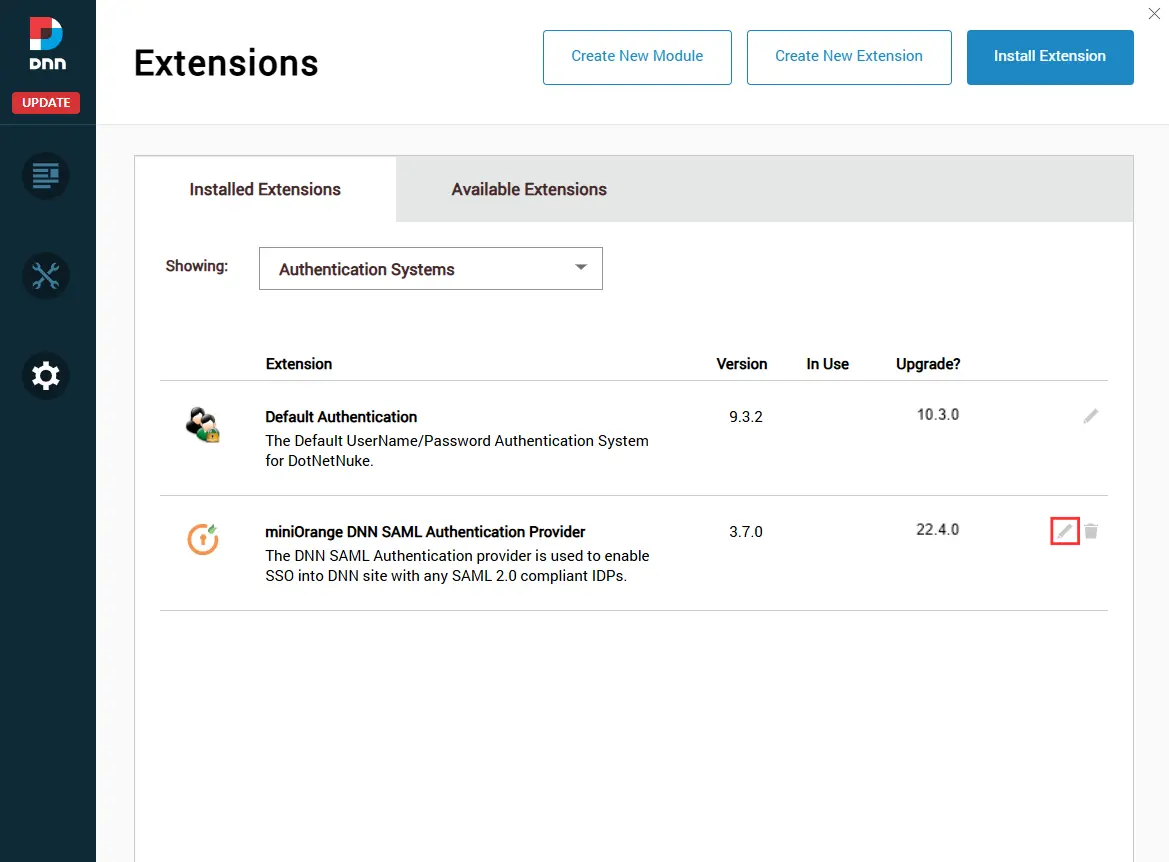

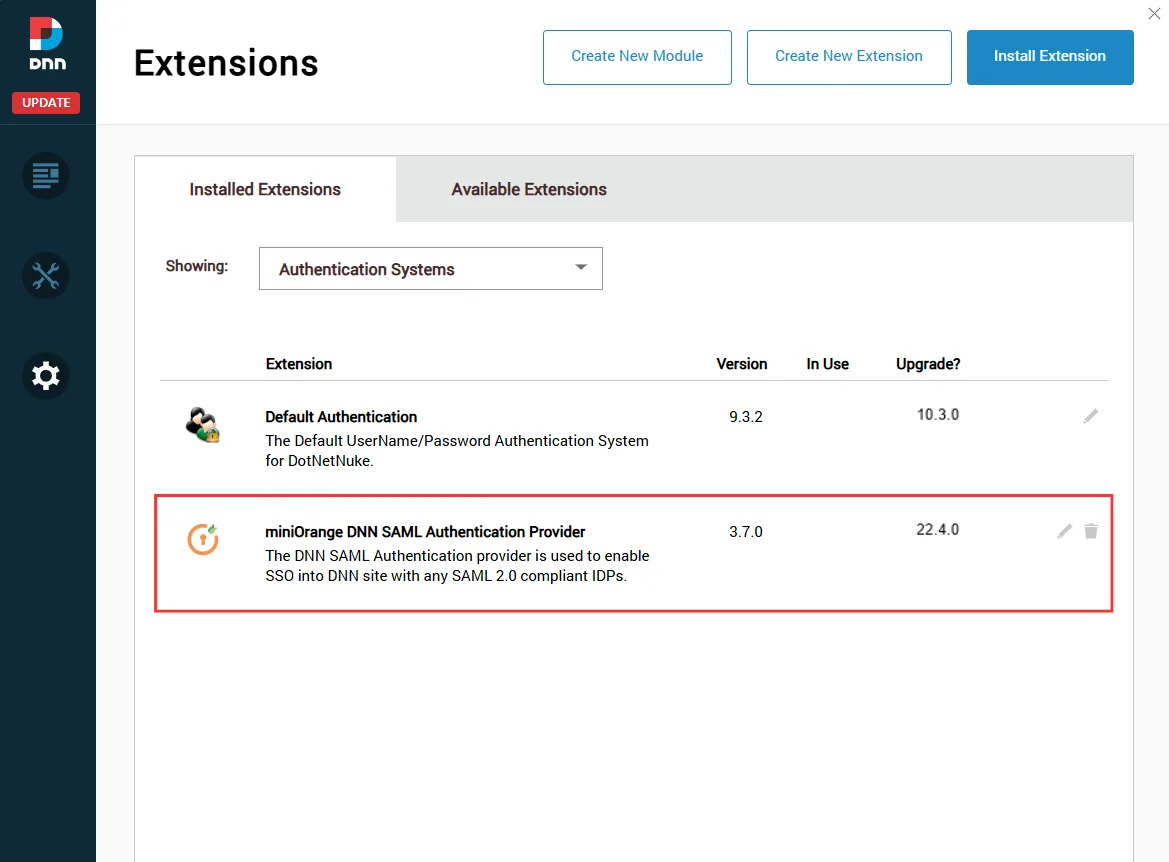

  • Upload the installation package dnn-saml-single-sign-on_xxx_Install by going in Settings > Extension > Install Extension.

Steps to configure DNN Single Sign-On (SSO) using Auth0 as IDP

1. Add module on DNN page

  • Open any of the page on your DNN site (Edit mode) and Click on Add Module.

  • DNN SAML SSO - Add Module
  • Search for DNNSAMLSSO and click on the DNNSAMLSSO. Drag and drop the module on the page where you want.

  • DNN SAML SSO - Search Module
  • You have finished with the Installation of the module on your DNN site.
  • 2. Setup Auth0 as Identity Provider

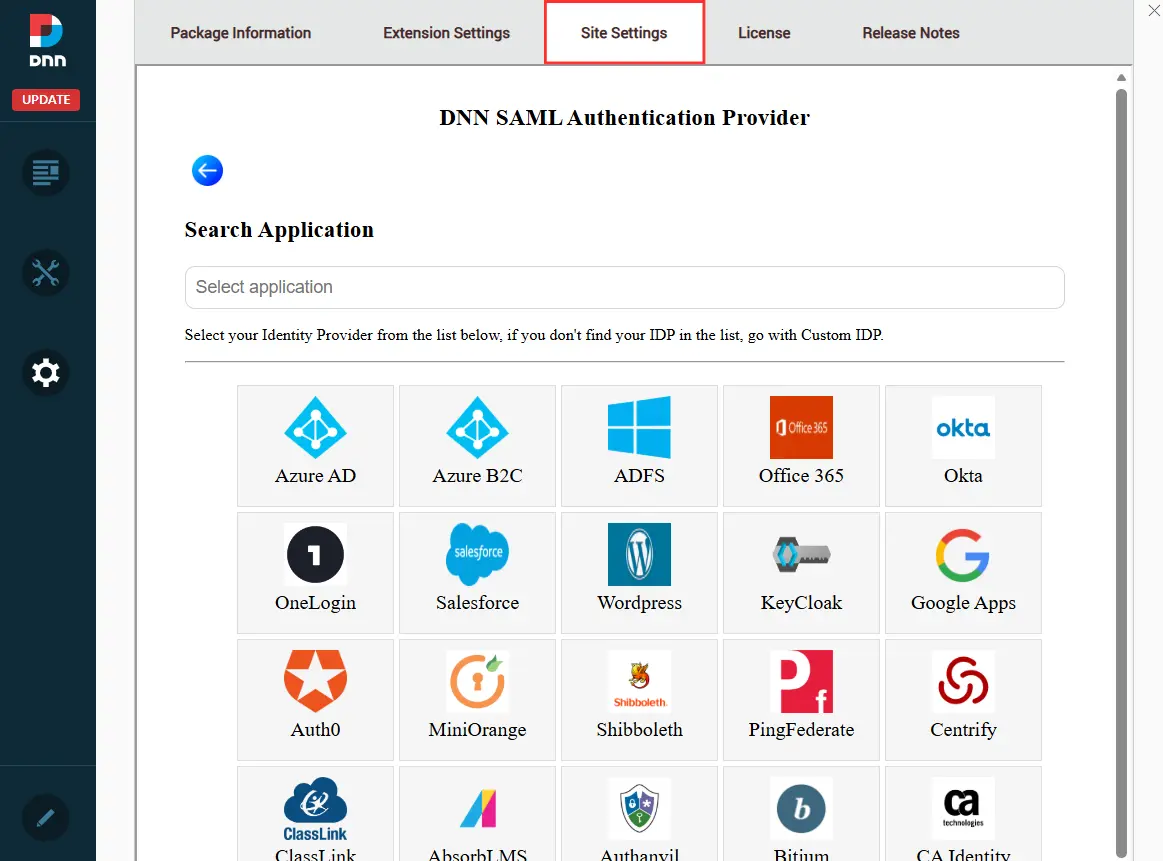

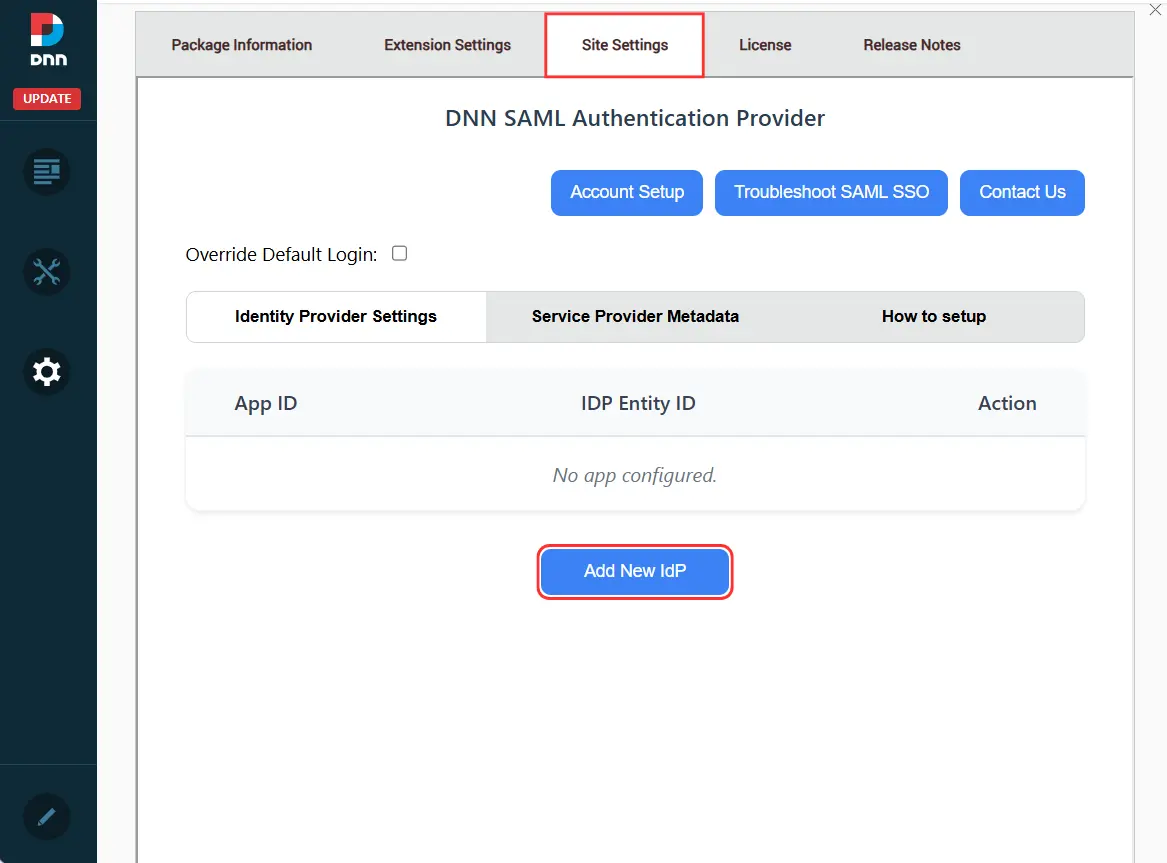

    • Select your identity provider Auth0 from the list shown below.
    • DNN SAML SSO - Search Module
    • There are two ways detailed below with which you can get the SAML SP metadata to configure onto your identity provider end.
    • A] Using SAML metadata URL or metadata file:

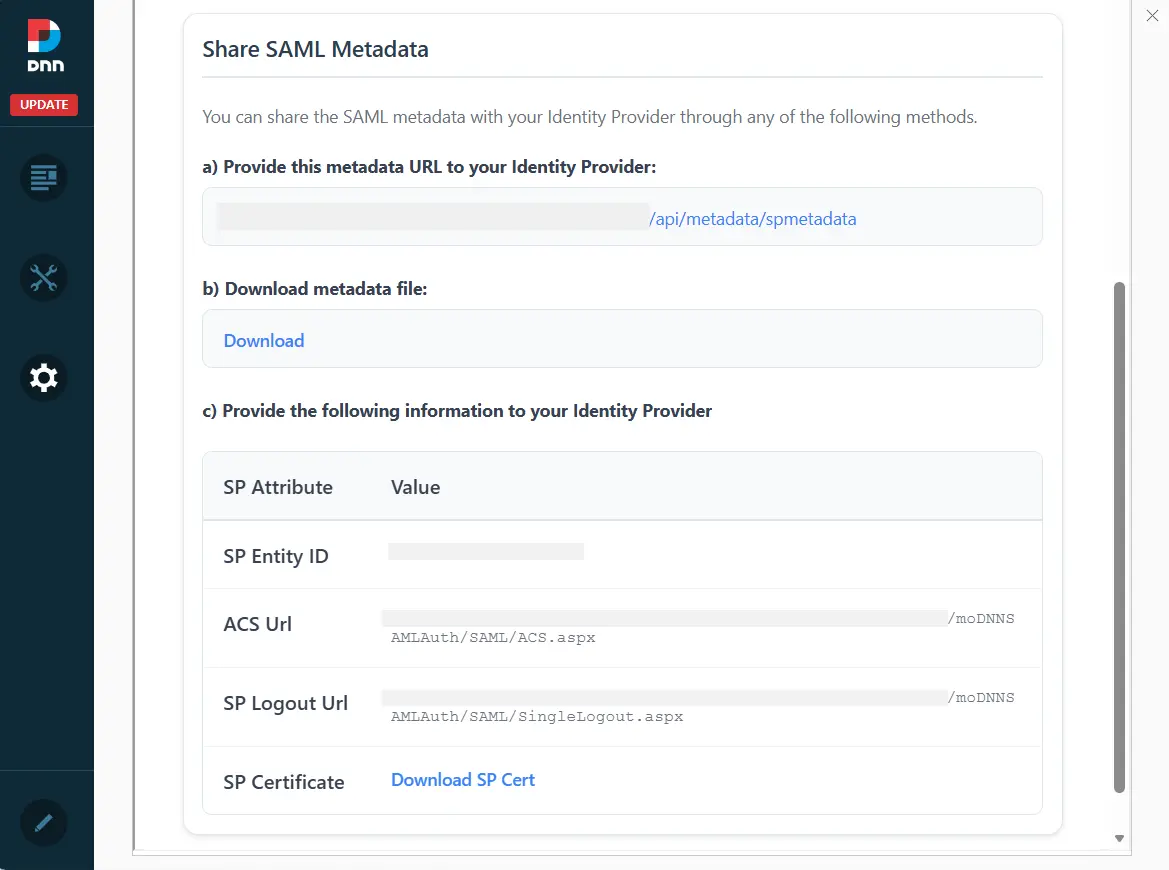

      • Under Service Provider Settings, you can find the metadata URL as well as the option to download the SAML metadata.
      • Copy metadata URL or download the metadata file to configure the same on your identity provider end.
      • You may refer to the screenshot below:
      • DNN SAML SSO - Copy Downloaded Metadata
      B] Uploading metadata manually:

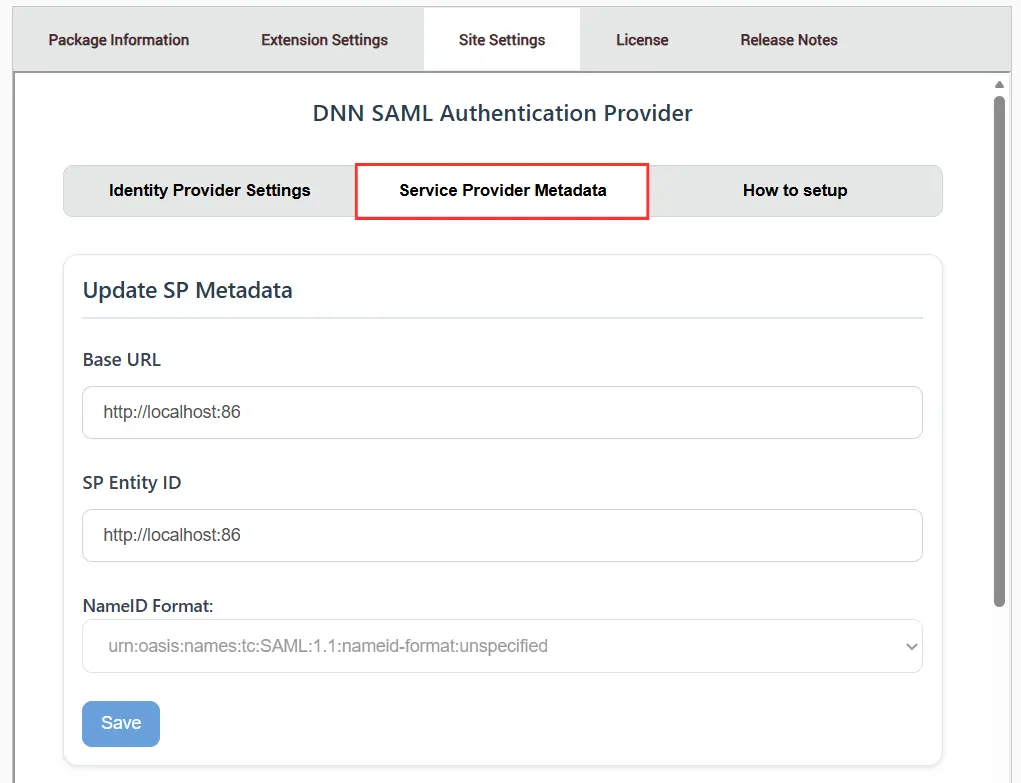

      • Under the Service Provider Settings section, you can manually copy the service provider metadata like Base URL, SP Entity ID, ACS URL and share it with your identity provider for configuration.
      • You may refer to the screenshot below:
      • DNN SAML SSO - Manual Metadata

      miniorange img Prerequisites:

      Copy these values from the Service Provider Info tab of the SAML plugin.

      • SP Entity ID
      • ACS URL
      • Single Logout URL

      miniorange img Instructions:

    • Click on Create Application.
    • DNN SAML SSO - Add or create application
    • A new window will pop-up. Enter a name for the application and select Regular Web App. Click on CREATE button.
    • DNN SAML SSO - Choose regular Web app
    • Select the Addons tab.
    • DNN SAML SSO - Select SAML SSO Add-ons
    • Enable SAML2 option in the addons. It will open up a Configuration window.
    • DNN SAML SSO - Enable SAML 2.0 Add-on webapp
    • Enter Application Callback URL, Audience, Recipient and other settings using SP entity ID and ACS URL copied from the plugin as shown below:
    • DNN SAML SSO - Add SP entity ID and URL from Plugin
    • Scroll down and click on Save.
    • DNN SAML SSO - Save entity ID
    • Go to the Usage tab and click on the Identity Provider Metadata download link. It will download the metadata XML file which you'll need for setting up the SAML plugin.
    • DNN SAML SSO - IDP metadata download

      You have successfully configured Auth0 as SAML IdP (Identity Provider) for achieving Auth0 SSO login into your DNN Site.

    3. Configure DotNetNuke SAML Module as Service Provider

    There are two ways detailed below with which you can configure your SAML identity provider metadata in the module.

    A] Upload metadata using the Upload IDP Metadata button:

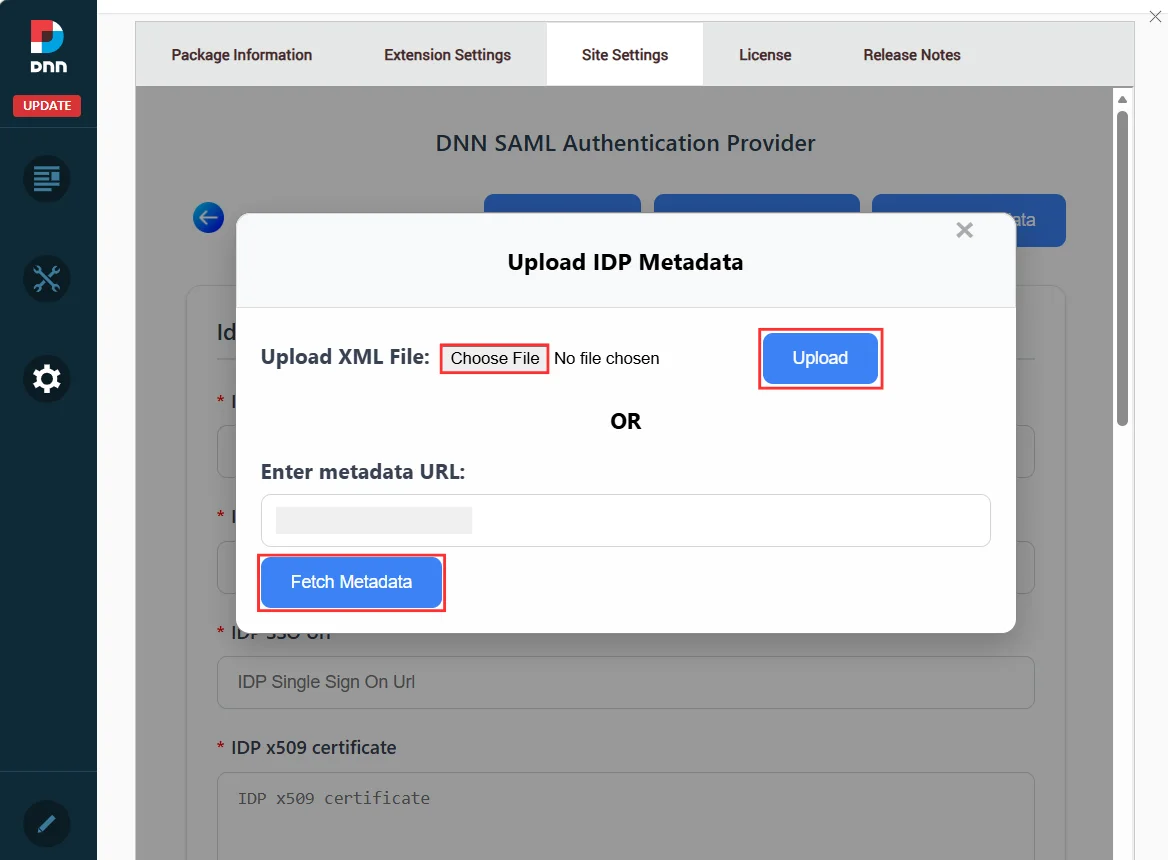

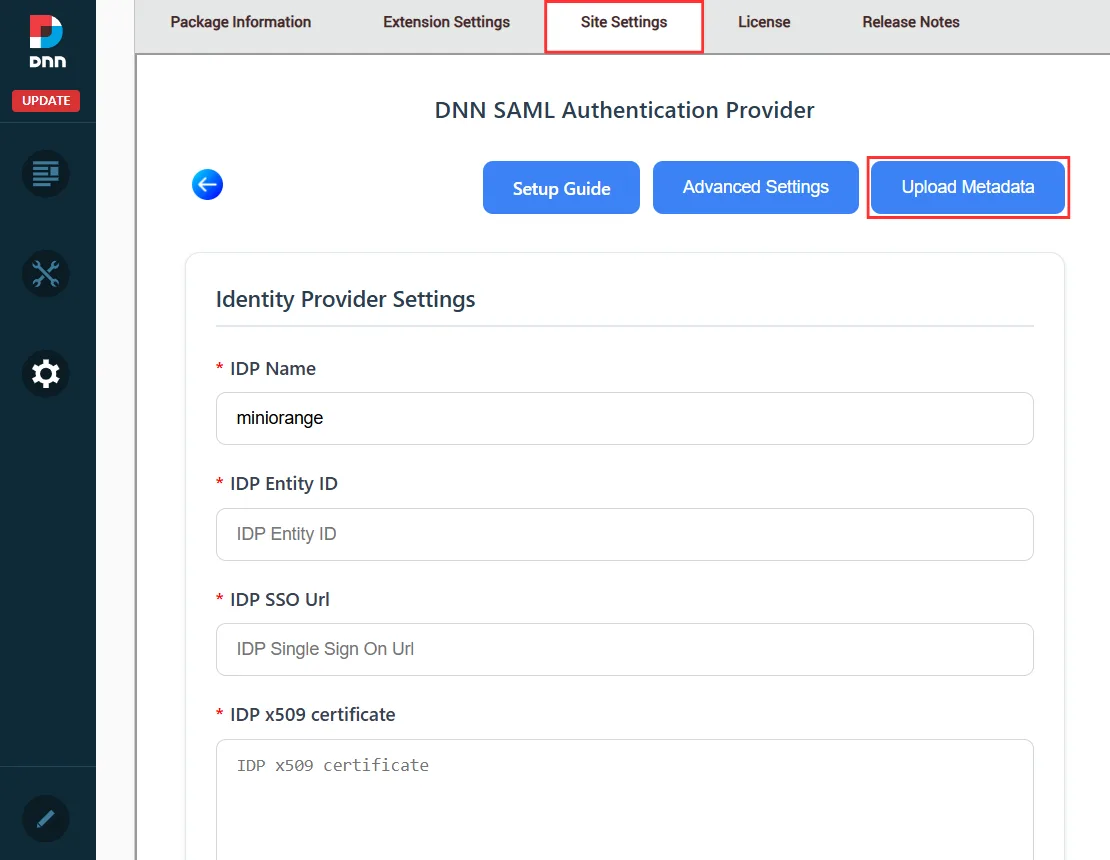

    • If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the module using the Upload IDP Metadata option.
    • You may refer to the screenshot below:
    • DNN SAML SSO - Upload Metadata Manually
    • You can choose any one of the options according to the metadata format you have available.
    B] Configure the identity provider metadata manually:

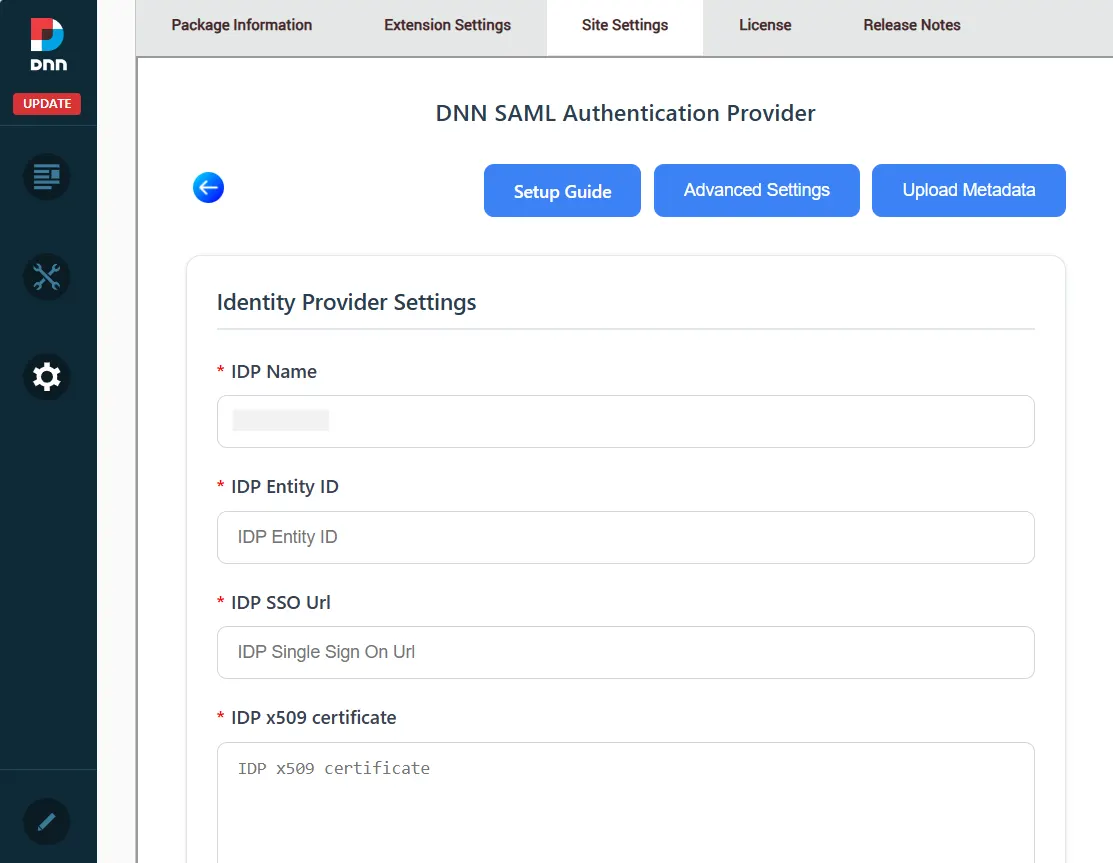

    • After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.

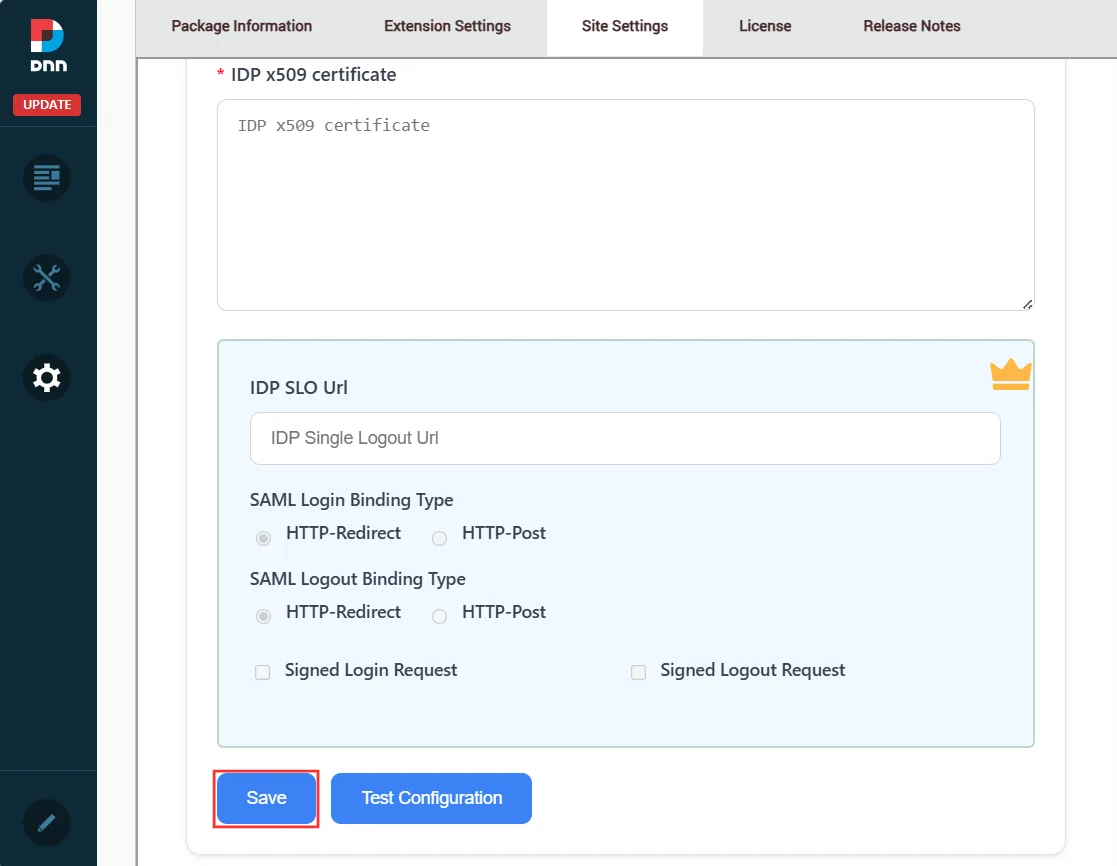

    • Click Update to save your IDP details.
    • DNN SAML SSO - Upload Metadata

    4. Test Configuration

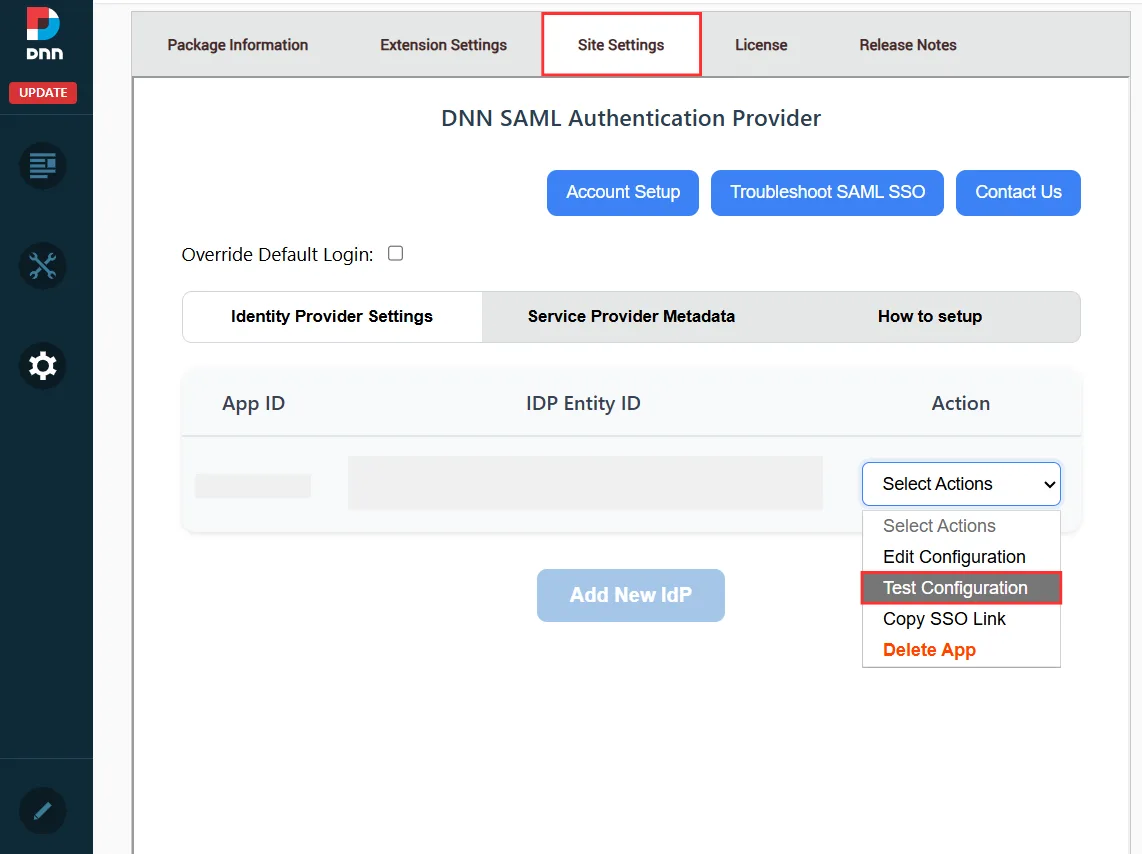

    • Click the Test Configuration button to verify if you have configured the plugin correctly.

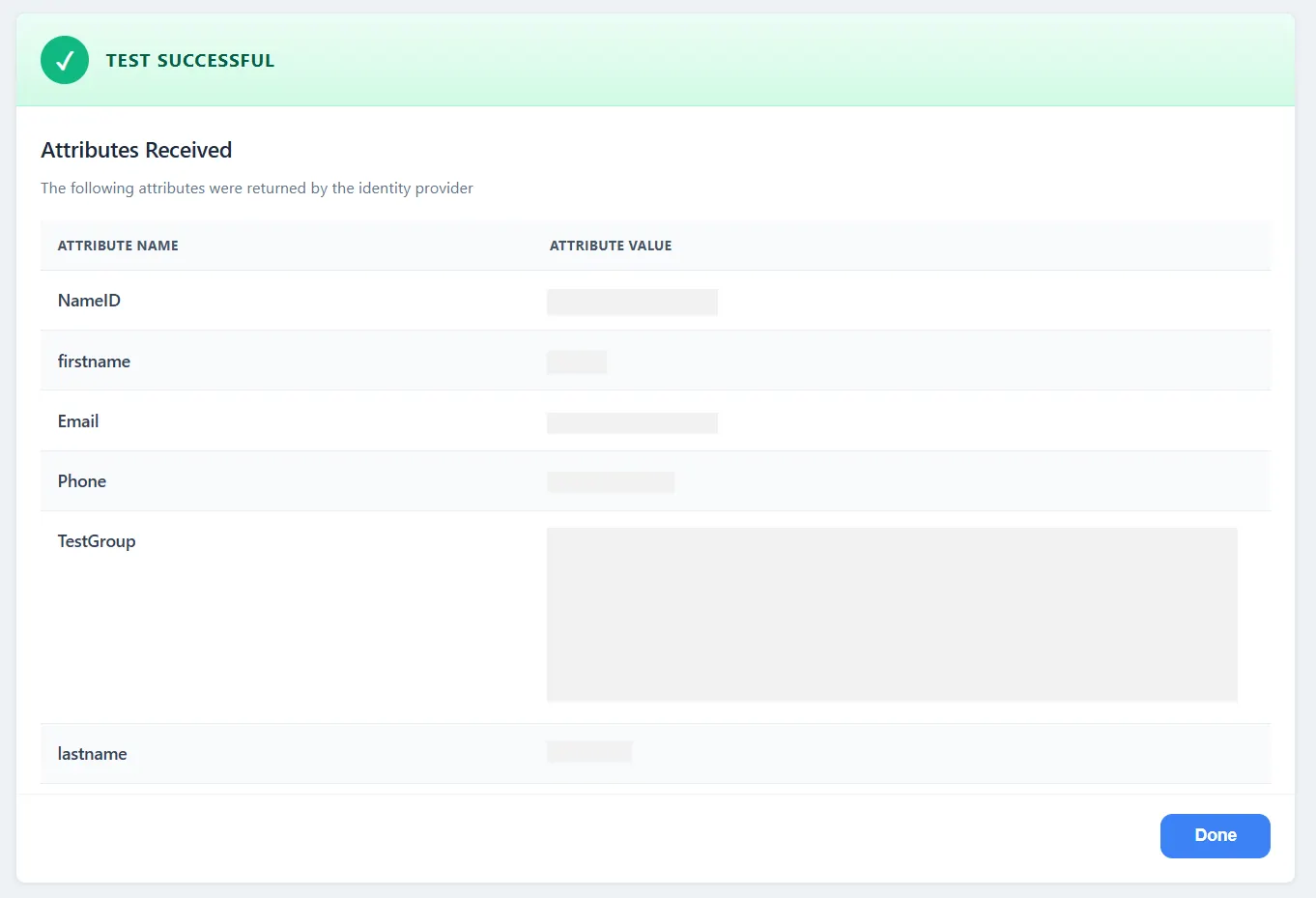

    • On successful configuration, you will get Attribute Name and Attribute Values in the Test Configuration window.
    • DNN SAML SSO - Auth0 test result

    5. Attribute Mapping

    • Attributes are user details that are stored in your Identity Provider.
    • Attribute Mapping helps you to get user attributes from your IdP and map them to DotNetNuke user attributes like firstname, lastname etc.
    • While auto registering the users in your DotNetNuke site these attributes will automatically get mapped to your DotNetNuke user details.
    • Go to DNNSAMLSSO Settings >> Advanced settings >> Attribute Mapping.

    • DNN SAML SSO - Attribute Mapping

    6. Adding Login/SSO Widget on DNN Page

    • For Adding Button on the DNN page on beside the module settings click on the Add Item (Pencil Icon).

    • DNN SAML SSO -  Add Login Button
    • Add Button name and click on Save.

    • DNN SAML SSO -  Save Login Button
    • You can see login button on the page after saving item. (If you are already logged in your site, you will see a "Logout" link).
    • Note: If you want to Enable this button on every page of the DNN site follow below steps:
    • Go to the Settings >> Module Settings >> Advanced Settings and Enable option for Display Module On All Page.

    • DNN SAML SSO - Module Settings
      DNN SAML SSO - Display Module on Multipages
    • Warning: You will lose all your configuration for the module after enabling this option. You can re-configure the module or it is better to enable this option before configuring the module.

    7. Role mapping (It is Optional to fill this)

    • DotNetNuke uses a concept of Roles, designed to give the site owner the ability to control what users can and cannot do within the site.
    • DotNetNuke has five pre-defined roles: Administrators, Subscribers, Registered Users, Translator (en-US) and Unverified Users.
    • Role mapping helps you to assign specific roles to users of a certain group in your IdP.
    • While auto registering, the users are assigned roles based on the group they are mapped to.
    • DNN SAML SSO - Role Mapping

    You can configure the DotNetNuke SAML 2.0 Single Sign-On (SSO) module with any Identity Provider such as ADFS, Azure AD, Bitium, centrify, G Suite, JBoss, Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider .
