Setup API Key Authentication in Drupal

API Key Authentication offers a simple and effective way to secure Drupal APIs. After generating API keys for users, these keys act as unique identifiers that help manage and safeguard access to your Drupal APIs. For authentication, the client must send the user’s Drupal username along with their API key in the Authorization header of each request. The Drupal API Authentication module verifies this combination before granting access. The module supports Drupal 8, 9, 10, and 11.

Configuration Steps

1. Setup API Key Authentication Method:

• In this step, we will generate an API Key. To do this, navigate to the API Authentication tab of the module (/admin/config/people/rest_api_authentication/auth_settings).

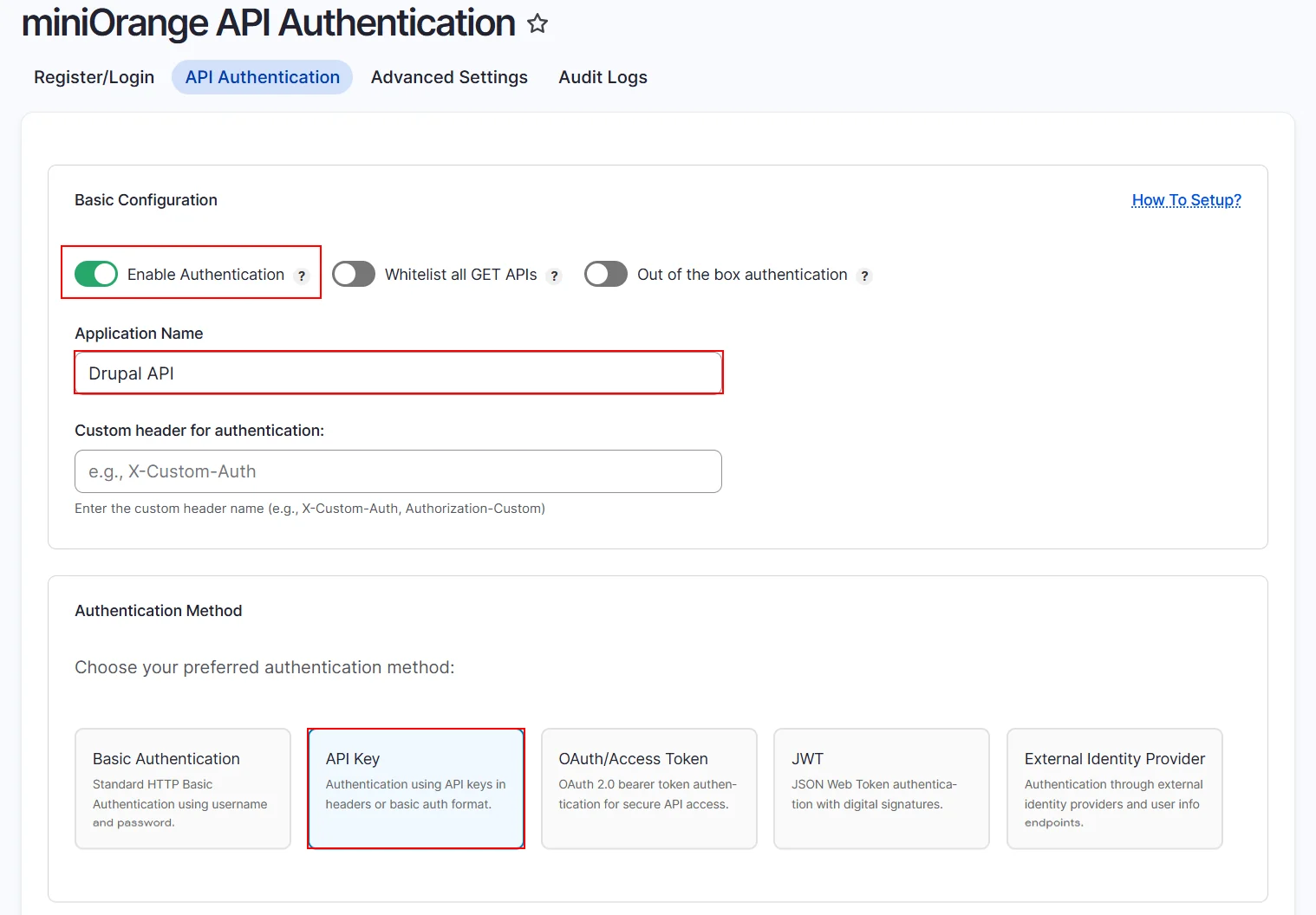

• Under Basic Configuration, enable the Enable Authentication toggle.
• Enter the Application Name and select API Key from the Authentication Method section.

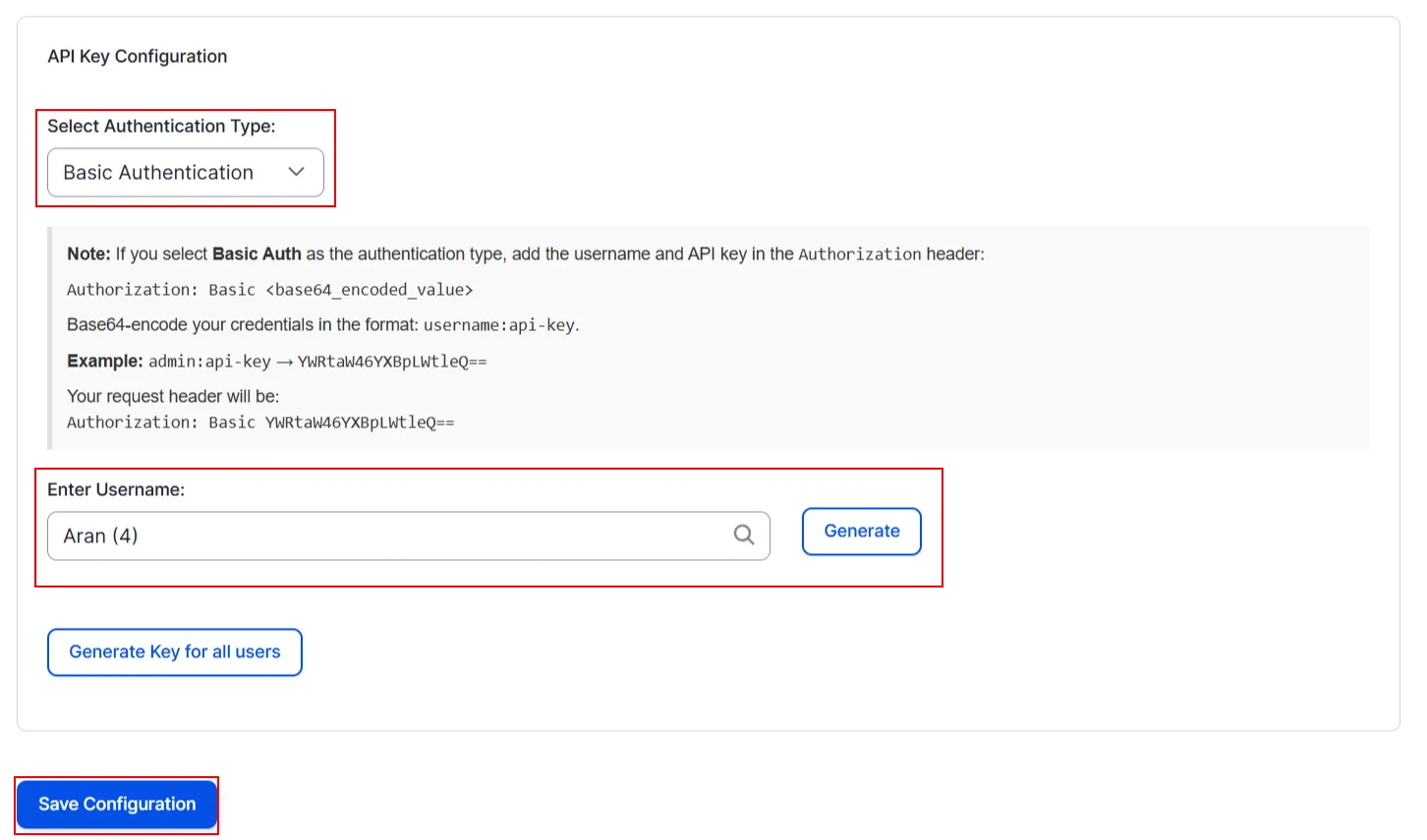

• Scroll down to the API Key Configuration section on the same tab.
• Select the Authentication Type from the dropdown.
• In the Enter Username text field, type the username for which you want to generate the API key, then click the Generate button.
• Once the API Key is generated, click the Save Configuration button at the bottom of the page.
• Click the Save Configuration button.


Note: This is a premium feature. In the free version of the module, authentication is handled using a universal key.



• If you want to generate key for all users, click the Generate Key for All Users button.

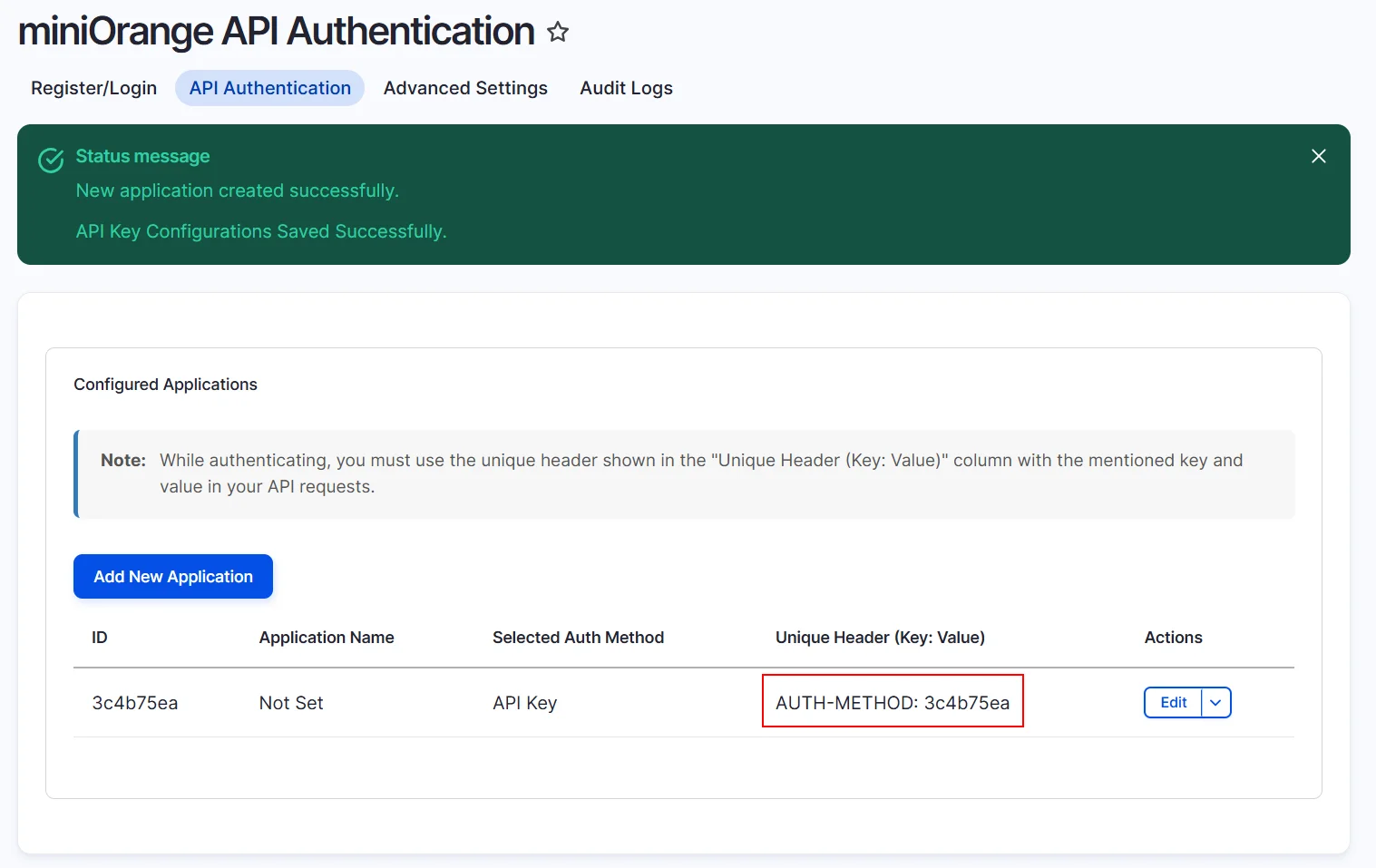

• You have successfully configured the API Key Authentication method.


Note: Use the application-specific unique header when authenticating the API.

• You can now view the generated API key in the API Key field of your user profile.

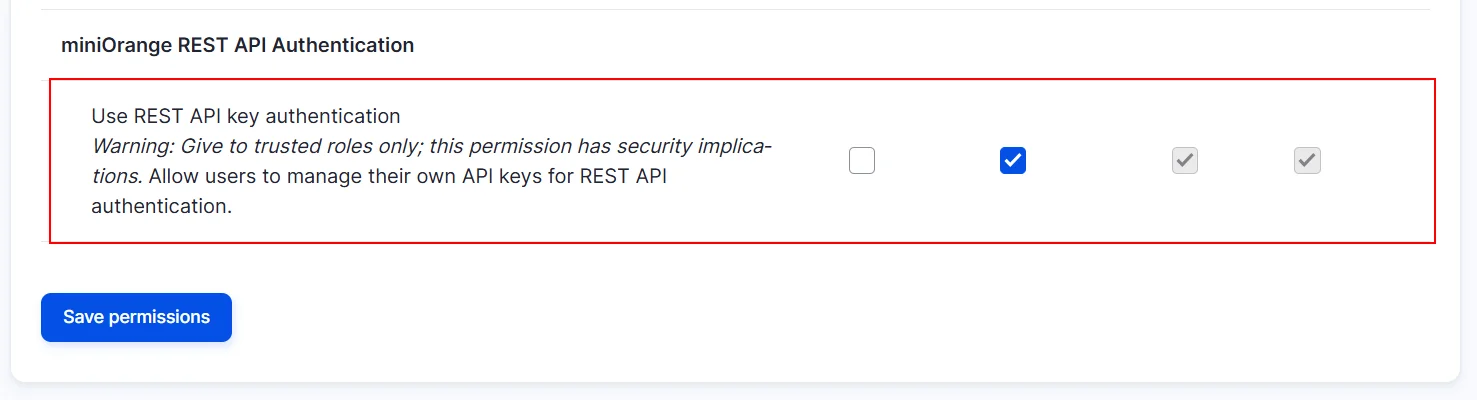

• If you want end users to also generate their API key, the API key management will be available to them if you enable the permission as shown in the image.

Grant Role Permissions to Create Users

• If needed, you can allow non-admin Drupal roles to create users. To do this, assign the Administer users permission to the desired roles from the Permissions page (/admin/people/permissions) of your Drupal site.

2. Example:

• For better understanding, let’s take an example of using API Key-based authentication with the create user API in Drupal.


Note: The /entity/user API in Drupal is used to create a new user.



• To create a user in Drupal, you need to make a POST request with the user’s Drupal username and the API key issued by the miniOrange REST API Authentication module. The username and API key must be encoded in Base64 format. Refer to the example below to make the call.

HTML Request Format-

Request: POST  <your_drupal_base_url>/entity/user?_format=json

Header:
             AUTH-METHOD: application_id
             Accept: application/json
             Content-Type: application/json
             API-KEY: base64_encoded<username:api-key>
             (The value should be Base64-encoded in the format: username:api-key.)

Body:

                {
                "name": {
                    "value": "<username>"
                },
                "mail": {
                    "value": "<email>"
                },
                "pass": {
                    "value": "<password>"
                },
                "status": {
                    "value": "1"
                }
                }

CURL Request Format-

curl --location --request POST  ‘<your_drupal_base_url>/entity/user?_format=json' \
                --header 'AUTH-METHOD: application_id' \
                --header 'Accept: application/json' \
                --header 'Content-Type: application/json' \
                --header 'Authorization: Basic base64encoded<username:API key>’ \
                --data-raw '

                {
                "name": [
                    { "value": "Username" }
                ],
                "mail": [
                    { "value": "email" }
                ],
                "pass": [
                    { "value": "Password" }
                ],
                "status": [
                    { "value": "1" }
                ]
                }

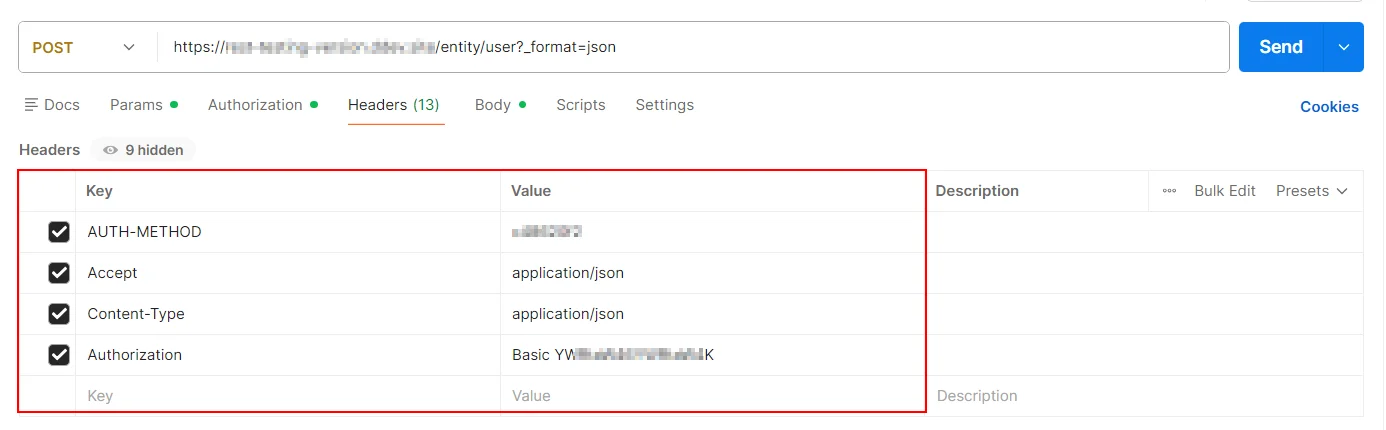

• You can also refer to the Postman request image shown below

• A successful response will return the details of the user you created (see the image below).

Congratulations! You have successfully set up the API Key Authentication method using the Drupal API Authentication module.

If the configuration was not successful, please contact us at drupalsupport@xecurify.com. Kindly include a screenshot of the error window, and we will assist you in resolving the issue and guide you through the setup.
