Setup Guide to configure User Provisioning ( SCIM ) into Drupal with JumpCloud

Setup Guide to configure User Provisioning ( SCIM ) into Drupal with JumpCloud


The System for Cross-domain Identity Management (SCIM) is an open standard HTTP based protocol for automating the exchange of user identity information between identity domains, or IT systems. SCIM aims to simplify user provisioning and management in the cloud. For example, as an Identity Provider add, update and delete the user, they are added, updated and removed from the Drupal User Profile. To achieve this functionality JumpCloud provides the User Provisioner with SCIM standard.

If your users are using both JumpCloud and Drupal website, it is preferred to have all users updated in Drupal site without login each time to update user list. miniOrange provides a solution which allows user provisioning into Drupal website using SCIM standard.

miniOrange provides a solution by introducing a Drupal module to support JumpCloud User Provisioning and allows user to access your website by using their JumpCloud account credential to login into Drupal. SCIM User Provisioner module also allows provisioning with custom Providers. SCIM User Provisioner module works with any IDP that conforms to the SCIM standard.



Pre-requisite: Download and Installation


  • For Window:
    composer require drupal/user_provisioning
  • For Linux:
    composer require 'drupal/user_provisioning'
  • Navigate to Extend menu on your Drupal admin console and search for miniOrange User Provisioning using the search box.
  • Enable the module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Download the module:
    drush dl user_provisioning
  • Install the module:
    drush en user_provisioning
  • Clear the cache:
     drush cr
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Navigate to Extend menu on your Drupal admin console and click on Install new module button.
  • Install the Drupal User Provisioning and Sync module either by downloading the zip or from the URL of the package (tar/zip).
  • Click on Enable newly added modules.
  • Enable this module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview

Steps to configure Automatic User Provisioning with JumpCloud as SCIM Client and Drupal as SCIM Server

1. Configure Drupal as SCIM Server

  • Navigate to the SCIM Configuration tab to find the SCIM Base URL and SCIM Bearer Token, which you will keep handy.
  • Drupal User Provisioning and Sync - Copy the SCIM Base URL and SCIM Bearer Token

Note: These information are required to configure your application JumpCloud as IDP.

2. Automated User Provisioning with JumpCloud

  • Login into your JumpCloud Admin Console.
  • jumpcloud cross domain provisioning (scim) - login into jumpcloud
  • Navigate to the SSO in left hand side.
  • jumpcloud cross domain provisioning (scim) - select sso
  • Click on Plus (+) icon.
  • jumpcloud cross domain provisioning (scim) - click on (+) icon
  • In the Configure New SSO Application, search for Drupal and click on configure button.
  • jumpcloud cross domain provisioning (scim) - search for drupal then click on configure
  • Go to General Info tab and enter Display block name as per your choice.
  • jumpcloud cross domain provisioning (scim) - general info tab enter display name
  • Navigate to SSO tab, you can either upload the Service Provider Metadata or can enter manually SP Entity ID and ACS URL from the SAML SP 2.0 Single Sign On (SSO) - SAML Service Provider module.
  • jumpcloud cross domain provisioning (scim) - either you can copy entity id and acs url from drupal saml sp module
  • Click on Activate button.
  • Then redirect to home page and click on checbox to enable configured application. Then click on export metadata button to download xml file.
  • jumpcloud cross domain provisioning (scim) - enable checkbox and download export metadata

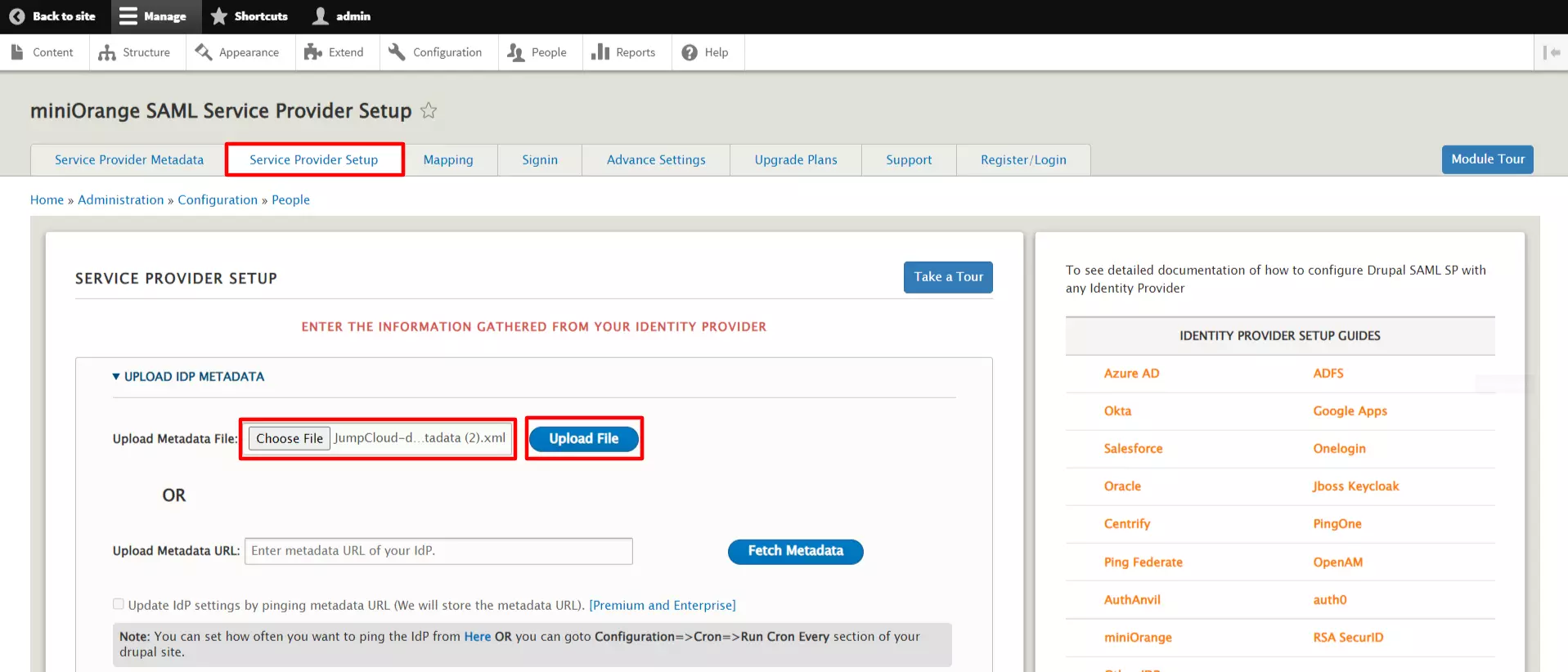

  • Navigate to miniOrange SAML Service Provider Metadata module. In the Service Provider Setup tab, enter the Identity Provider Name and Upload the Metadata file downloaded from the JumpCloud.
  • drupal saml service provider (scim) - upload metadata file from drupal saml sp module
    drupal saml service provider (scim) - your jumpcloud information successfully saved

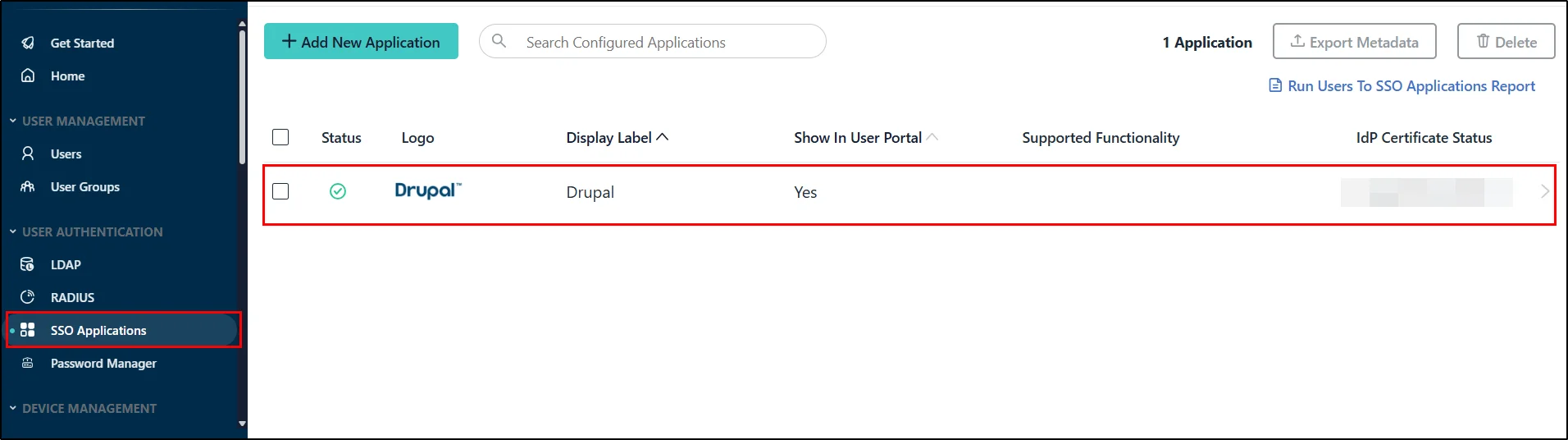

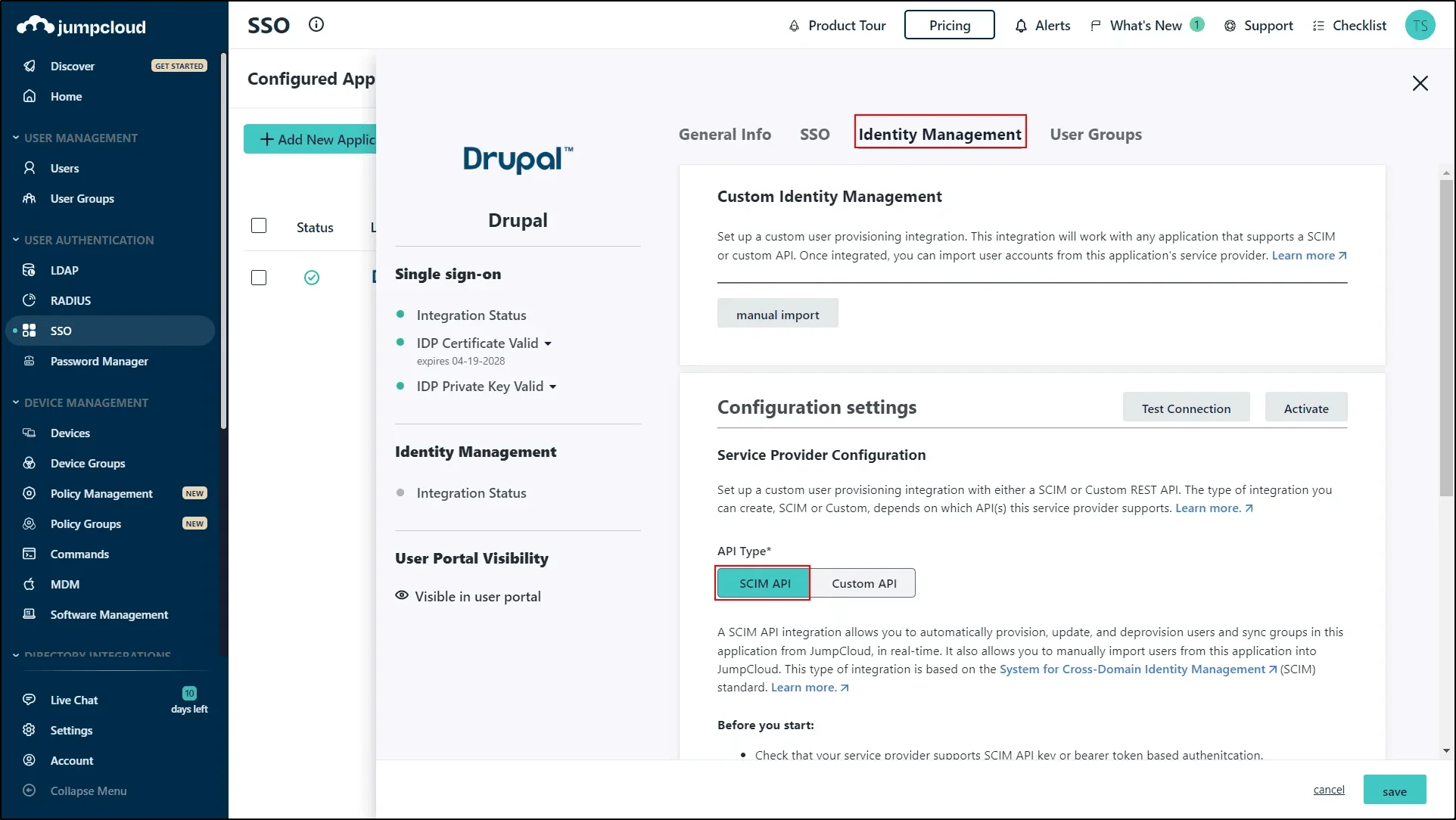

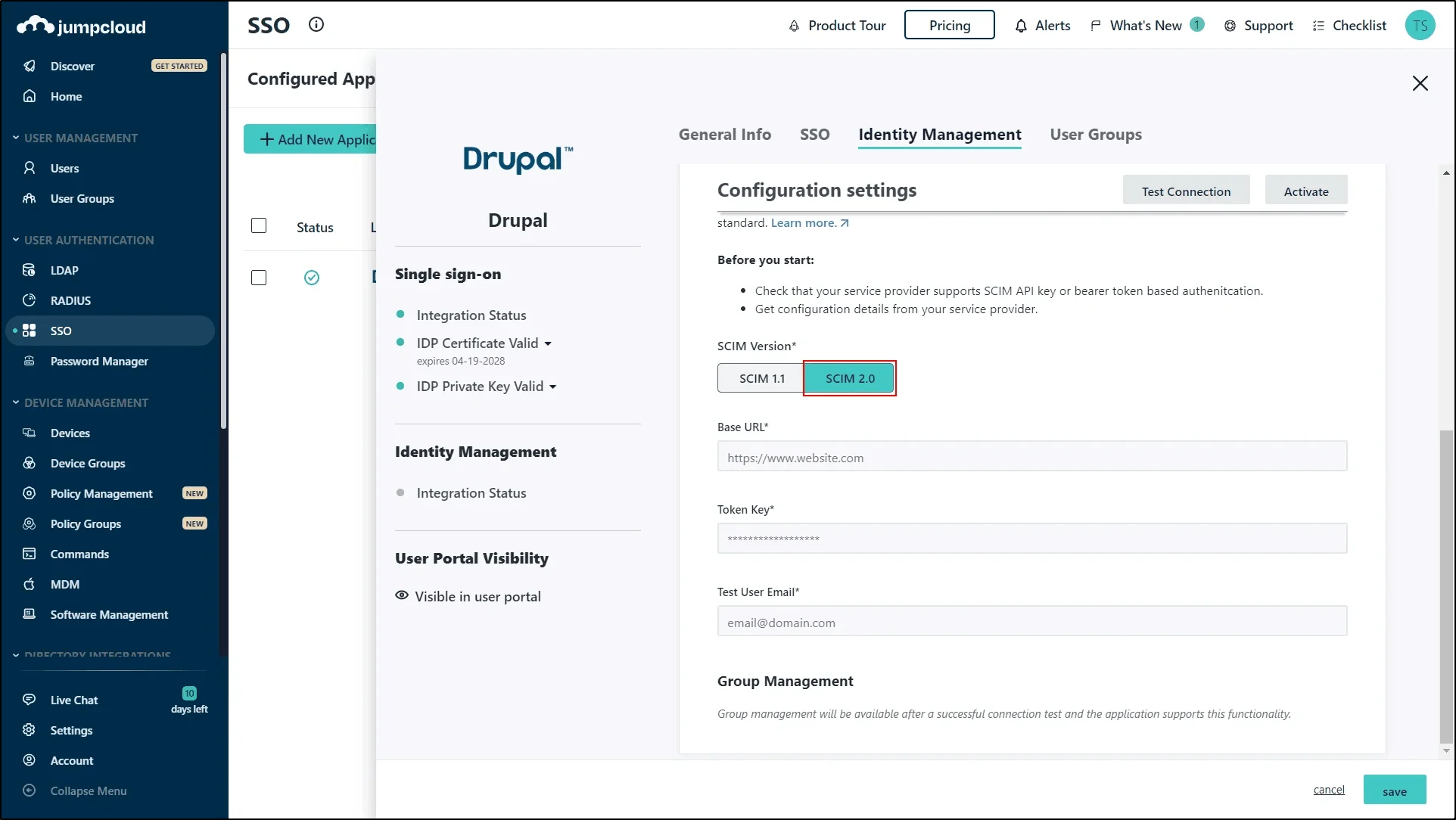

  • In the JumpCloud dashboard, inside your configured Drupal Applicattion, navigate to the Identity Management tab

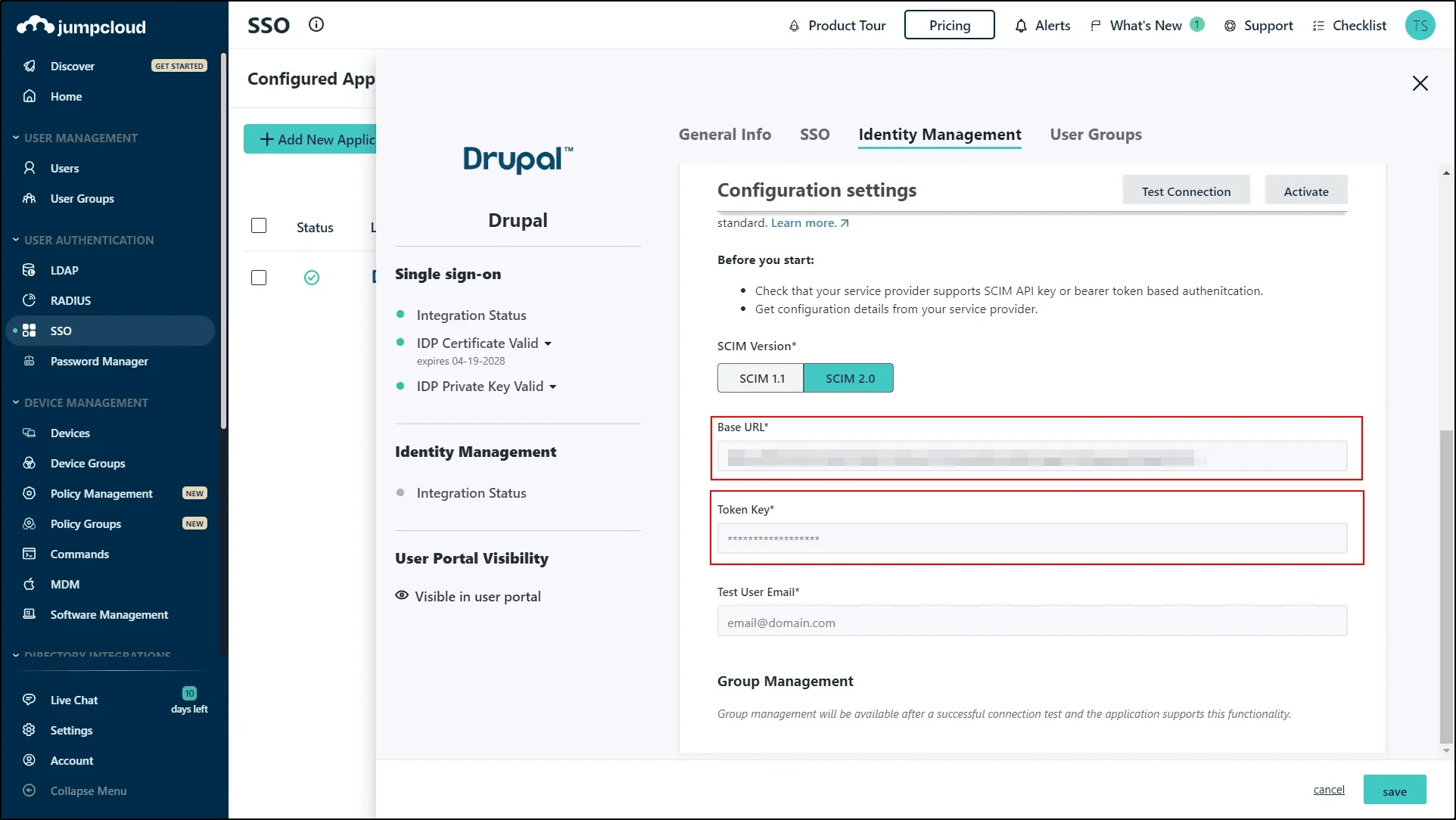

  • Scroll to the bottom and paste the SCIM Base URL in the Base URL field and the SCIM Bearer Token in the Token Key field from step 1.

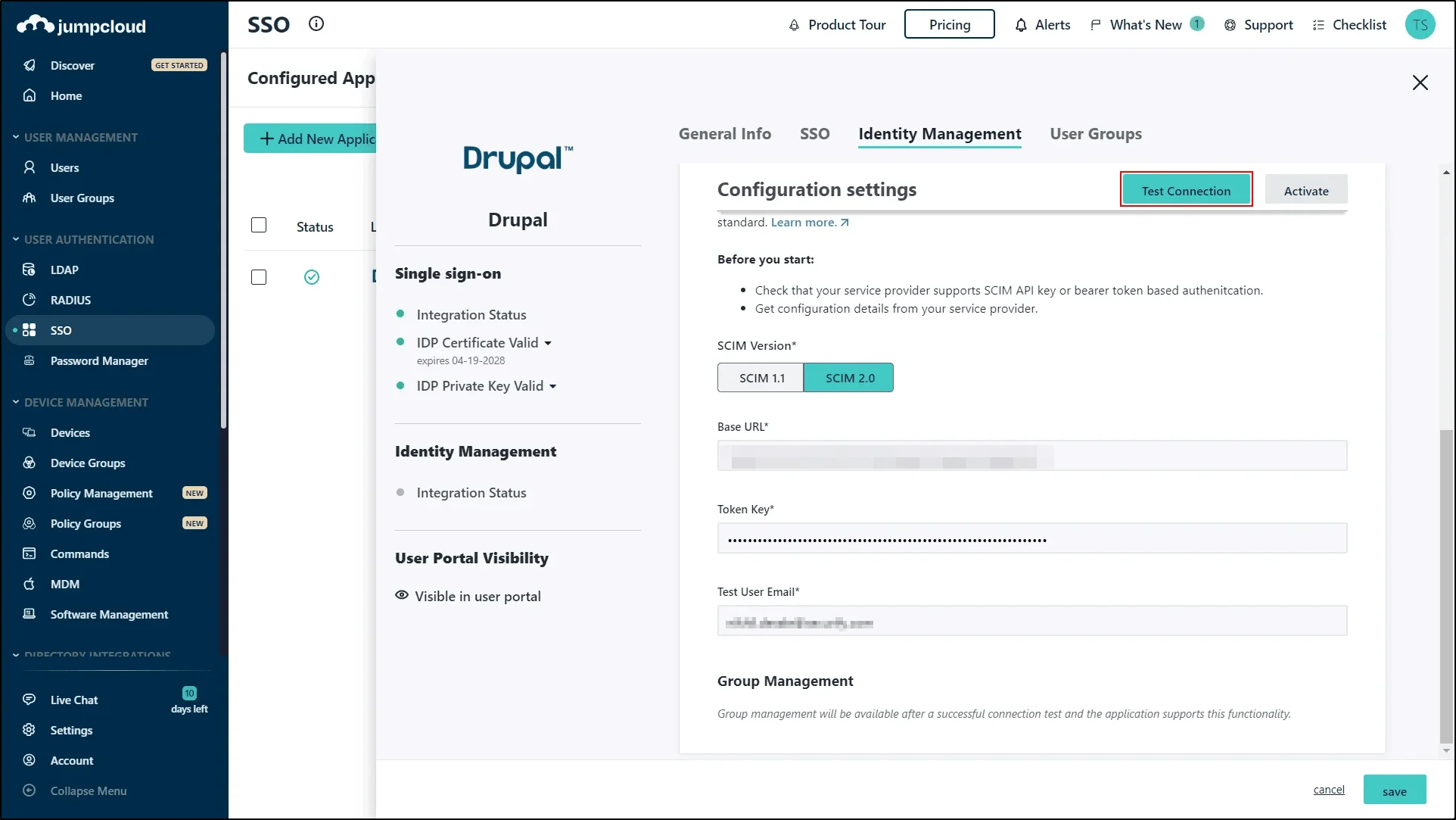

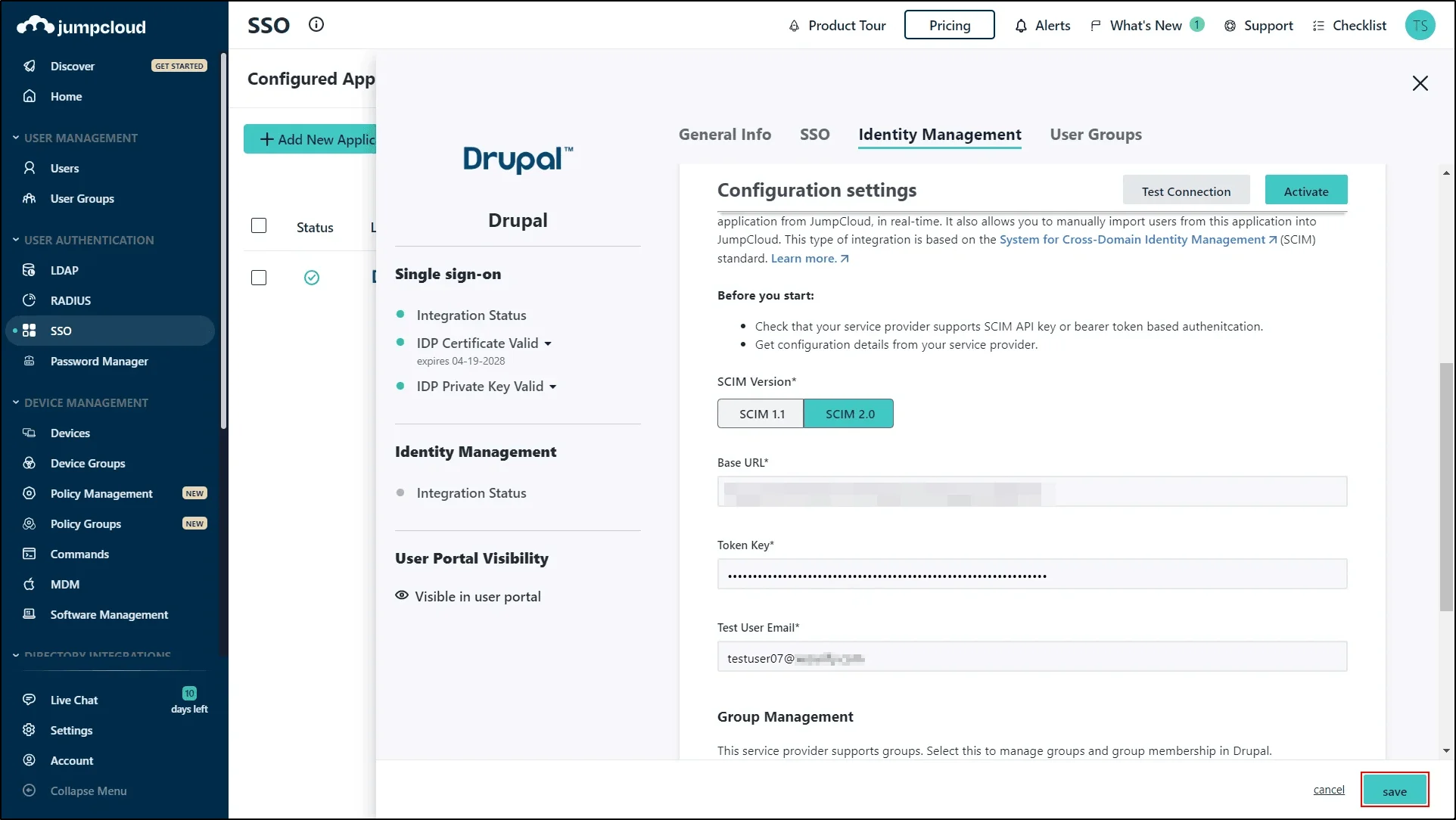

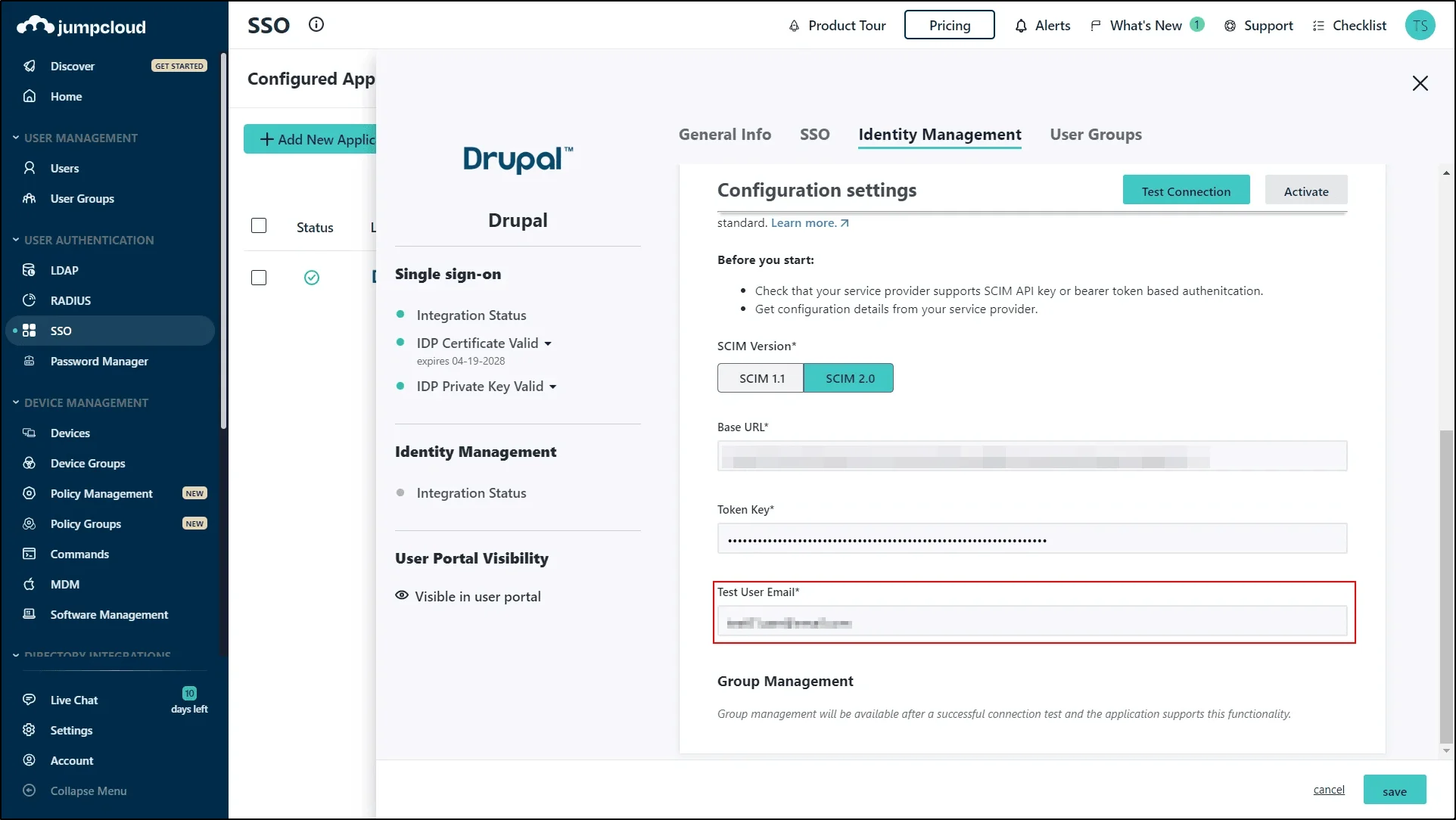

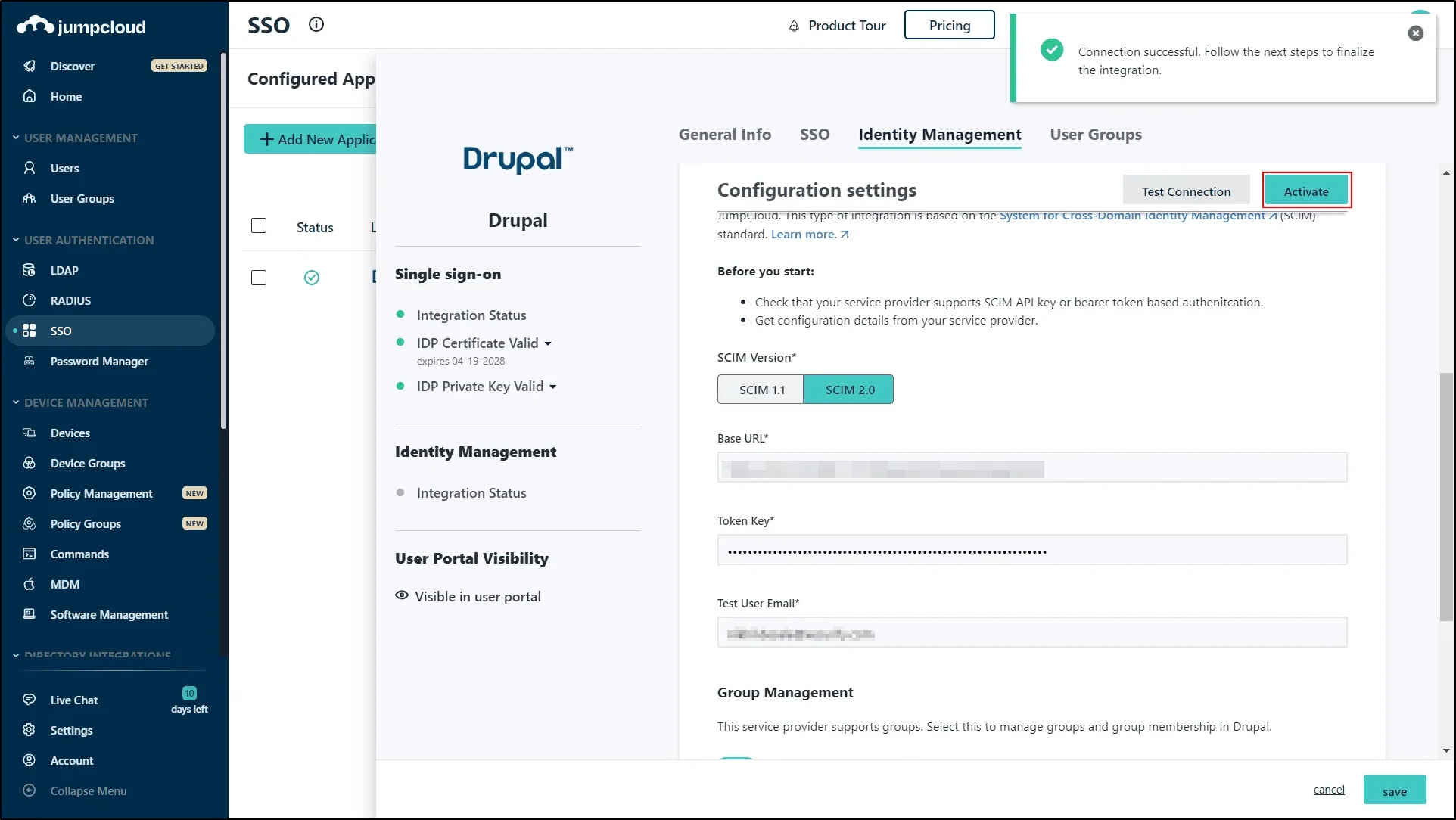

  • Click on the Test Connection button, if the configuration is successful then the success message will be displayed and then click on Activate button.
  • jumcloud scim user provisiong - go to identity managementtab and enter base url & token key

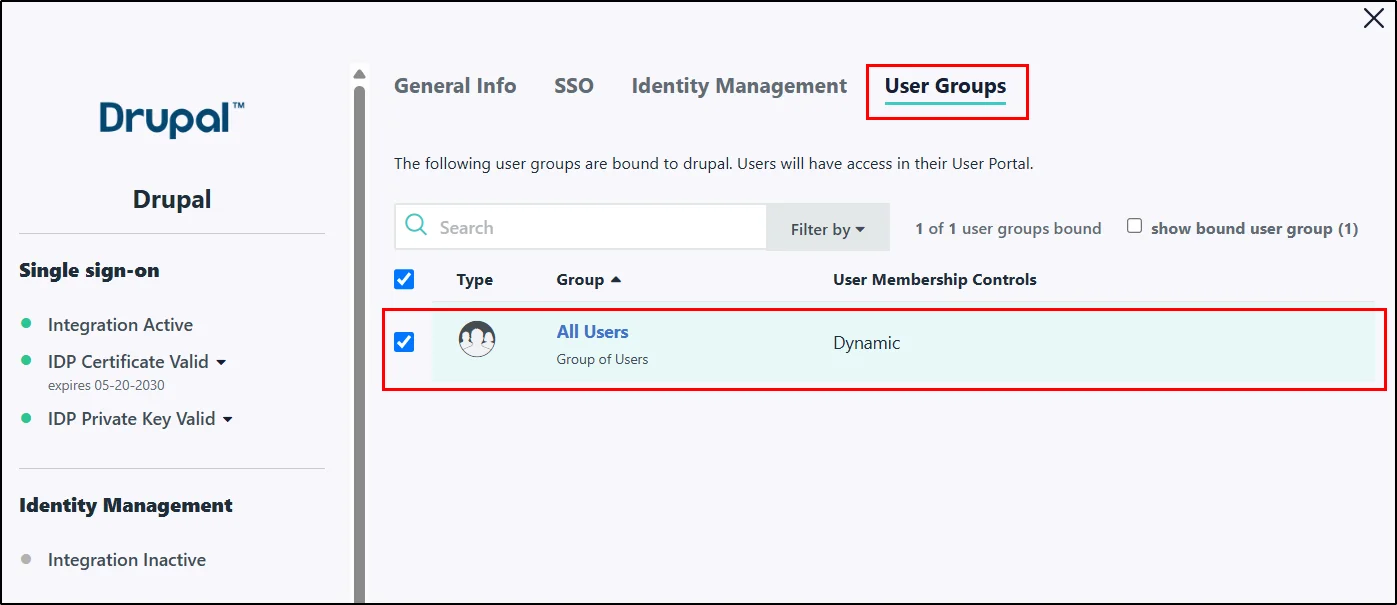

  • Navigate to User Groups tab and assign to users in the App.
  • Go to Users tab, assign the users to the application you created. Move to the Application tab and select the configured application and click on Save.

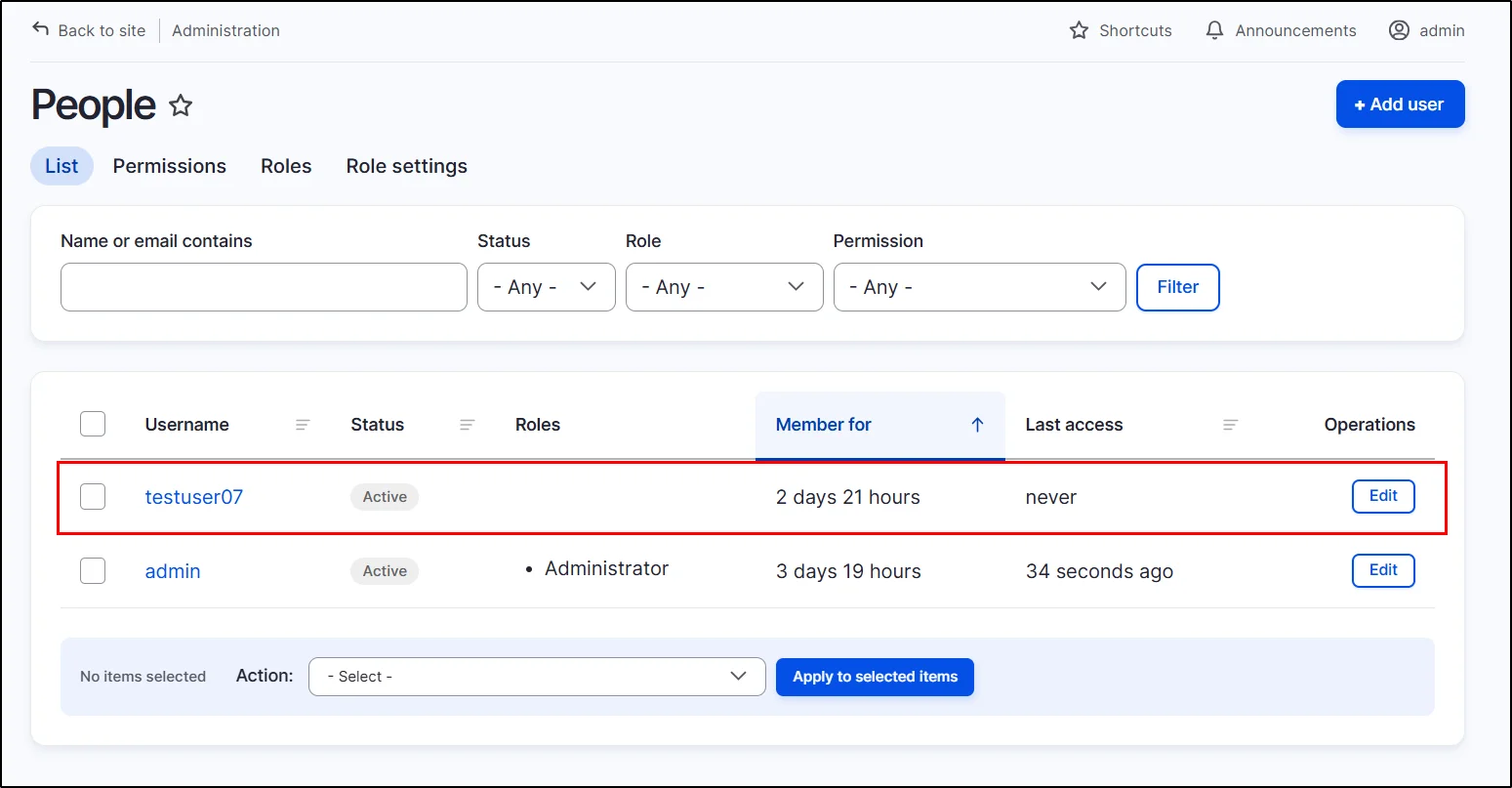

  • Drupal Jumpcloud SCIM User Provisioning | Users
