Setup Guide to configure User Provisioning ( SCIM ) into Drupal with OneLogin

Setup Guide to configure User Provisioning ( SCIM ) into Drupal with OneLogin


The System for Cross-domain Identity Management (SCIM) is an open standard HTTP based protocol for automating the exchange of user identity information between identity domains, or IT systems. SCIM aims to simplify user provisioning and management in the cloud. For example, as an Identity Provider add, update and delete the user, they are added, updated and removed from the Drupal User Profile. To achieve this functionality OneLogin provides the User Provisioner with SCIM standard.

If your users are using both OneLogin and Drupal website, it is preferred to have all users updated in Drupal site without login each time to update user list. miniOrange provides a solution which allows user provisioning into Drupal website using SCIM standard.

miniOrange provides a solution by introducing a Drupal module to support OneLogin User Provisioning and allows user to access your website by using their OneLogin account credential to login into Drupal. SCIM User Provisioner module also allows provisioning with custom Providers. SCIM User Provisioner module works with any IDP that conforms to the SCIM standard.



Pre-requisite: Download and Installation


  • For Window:
    composer require drupal/user_provisioning
  • For Linux:
    composer require 'drupal/user_provisioning'
  • Navigate to Extend menu on your Drupal admin console and search for miniOrange User Provisioning using the search box.
  • Enable the module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Download the module:
    drush dl user_provisioning
  • Install the module:
    drush en user_provisioning
  • Clear the cache:
     drush cr
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Navigate to Extend menu on your Drupal admin console and click on Install new module button.
  • Install the Drupal User Provisioning and Sync module either by downloading the zip or from the URL of the package (tar/zip).
  • Click on Enable newly added modules.
  • Enable this module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview

Steps to configure Automatic User Provisioning with Onelogin as SCIM Client and Drupal as SCIM Server

1. Configure Drupal as SCIM Server

  • Navigate to the SCIM Configuration tab to find the SCIM Base URL and SCIM Bearer Token, which you will keep handy.
  • Drupal User Provisioning and Sync - Copy the SCIM Base URL and SCIM Bearer Token

2. Setup OneLogin as SCIM Client

  • Login into the OneLogin Admin console.
  • Click on Application and select Application
  • Onelogin User Provisioning and Sync - Click on Application
  • Click on Add App button.
  • Onelogin User Provisioning and Sync - Select Add App button
  • Search for the SCIM under "Find Applications" and choose "SCIM Provisioner with SAML" (SCIM v2 Core).
  • Onelogin User Provisioning and Sync - Search SCIM in the search box and select SCIM Provisioner with SAML (SCIM v2 Core)
  • Enter Display name and click on Save button.
  • Onelogin User Provisioning and Sync - enter display name and click on save button
  • From the left menu bar, select the Configuration tab.

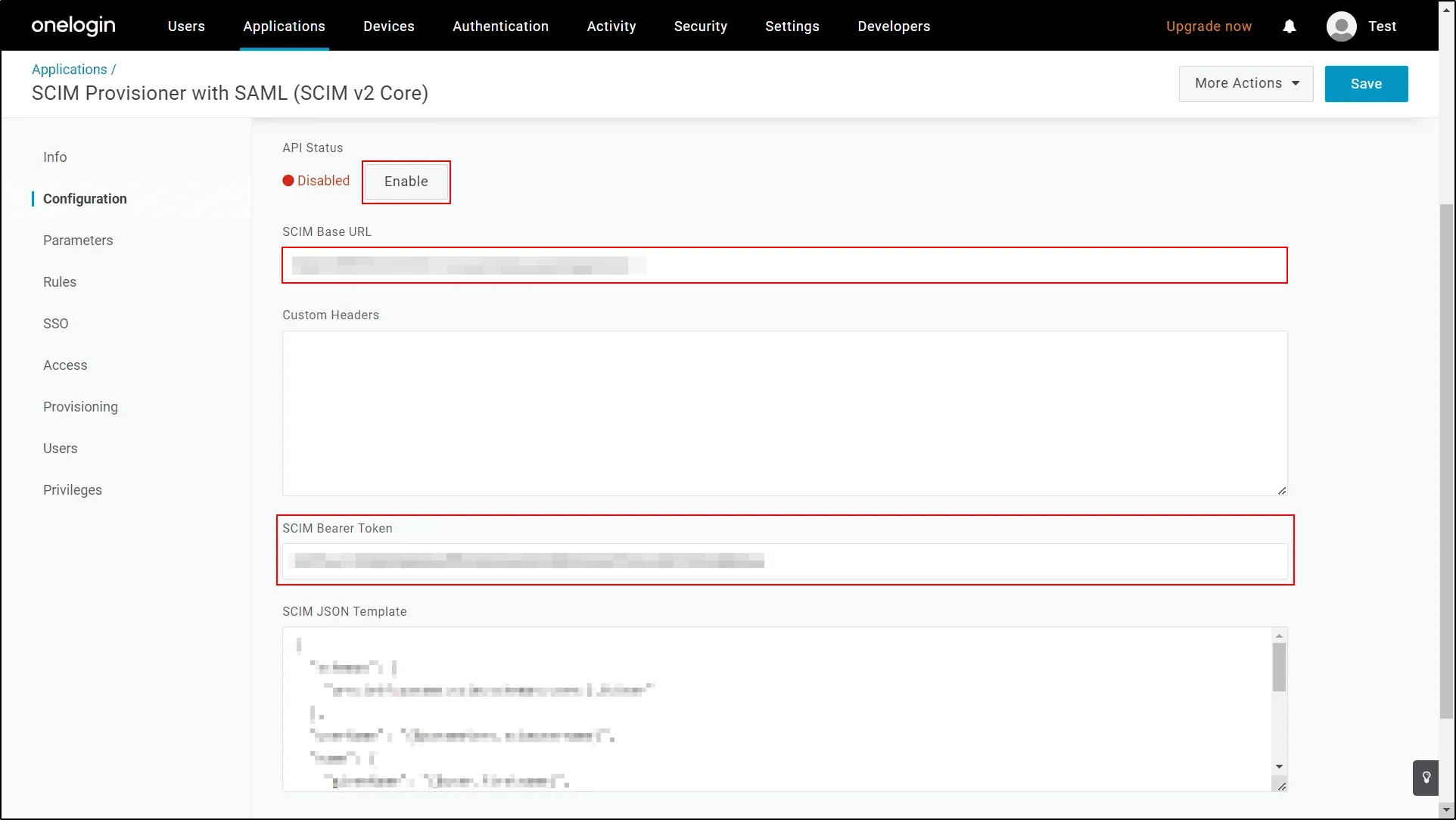

  • Paste the Base URL into the SCIM Base URL field and the Bearer token into the SCIM Bearer Token field from step 1.
  • Click on Save button.
  • Onelogin User Provisioning and Sync - paste the SCIM Base URL and SCIM Bearer Token copied from step 2
  • If the connection is established, it will show a success message.
  • Onelogin User Provisioning and Sync - paste the SCIM Base URL and SCIM Bearer Token copied from step 2

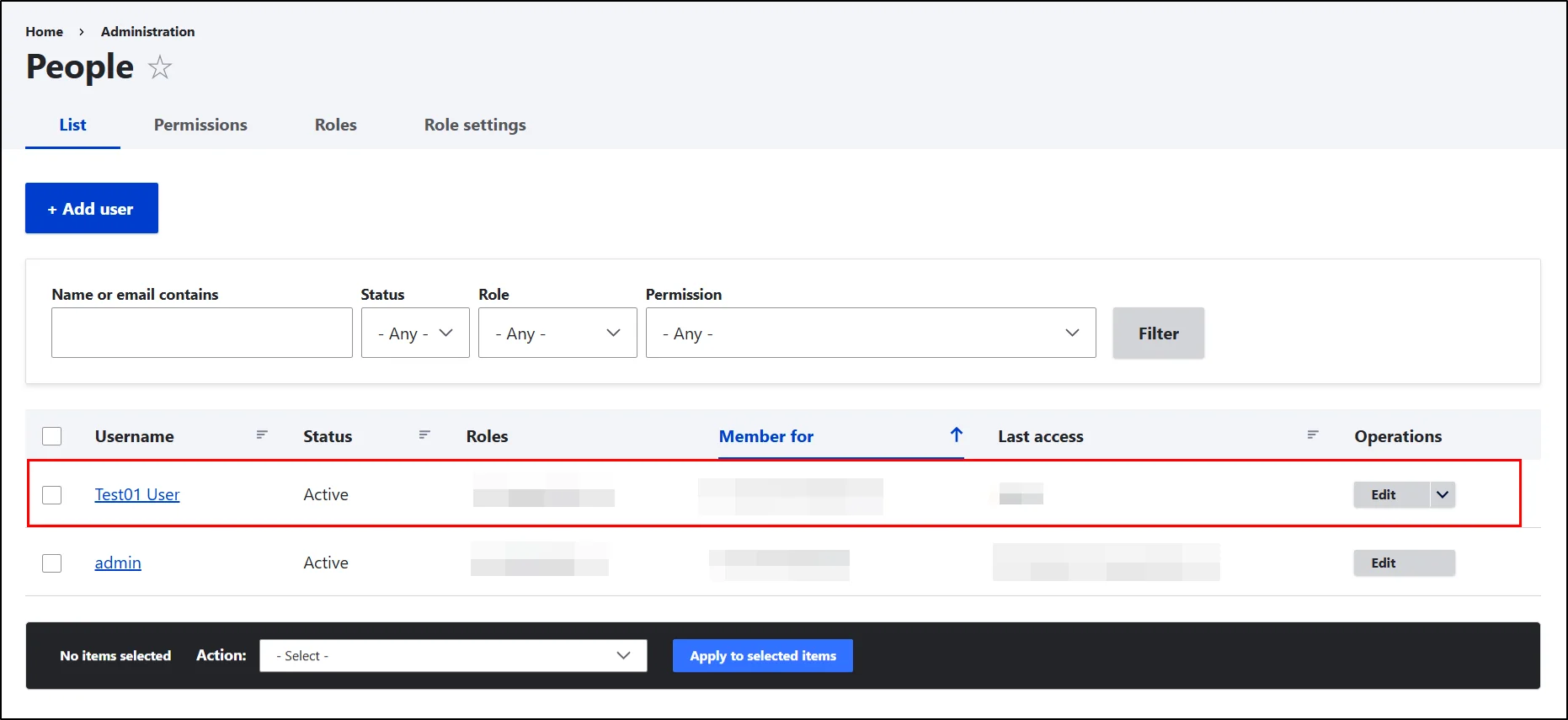

  • Once done with configuration, go to the Users from left menu-bar and add new user.
  • Change the Provisioning State to 'Provisioned'.
  • Onelogin User Provisioning and Sync - navigate to provisioned tab
  • Congratulations, you have successfully configured the miniOrange Drupal User Provisioning and Sync module with OneLogin.
