Setup Guide to configure User Provisioning ( SCIM ) into Drupal with PingOne

Setup Guide to configure User Provisioning ( SCIM ) into Drupal with PingOne


The System for Cross-domain Identity Management (SCIM) is an open standard HTTP based protocol for automating the exchange of user identity information between identity domains, or IT systems. SCIM aims to simplify user provisioning and management in the cloud. For example, as an Identity Provider add, update and delete the user, they are added, updated and removed from the Drupal User Profile. To achieve this functionality pingOne provides the User Provisioner with SCIM standard.

If your users are using both PingOne and Drupal website, it is preferred to have all users updated in Drupal site without login each time to update user list. miniOrange provides a solution which allows user provisioning into Drupal website using SCIM standard.

miniOrange provides a solution by introducing a Drupal module to support PingOne User Provisioning and allows user to access your website by using their PingOne account credential to login into Drupal. SCIM User Provisioner module also allows provisioning with custom Providers. SCIM User Provisioner module works with any IDP that conforms to the SCIM standard.



Pre-requisite: Download and Installation


  • Download the module:
    composer require 'drupal/user_provisioning'
  • Navigate to Extend menu on your Drupal admin console and search for miniOrange User Provisioning using the search box.
  • Enable the module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Install the module:
    drush en user_provisioning
  • Clear the cache:
     drush cr
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Navigate to Extend menu on your Drupal admin console and click on Install new module button.
  • Install the Drupal User Provisioning and Sync module either by downloading the zip or from the URL of the package (tar/zip).
  • Click on Enable newly added modules.
  • Enable this module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview

Steps to configure Automatic User Provisioning with PingOne as SCIM Client and Drupal as SCIM Server

1. Configure Drupal as SCIM Server

  • Navigate to the SCIM Configuration tab to find the SCIM Base URL and SCIM Bearer Token, which you will keep handy.
  • Drupal User Provisioning and Sync - Copy the SCIM Base URL and SCIM Bearer Token

Note: These information are required to configure your application PingOne as IDP.

Step 2: Configure PingOne for SCIM provisioning

  • Go to PingOne portal and login with the administrator account.
  • After logging in, you will need to add the environment for your application.
  • In the left tab, under the Connections section, select the Provisioning.

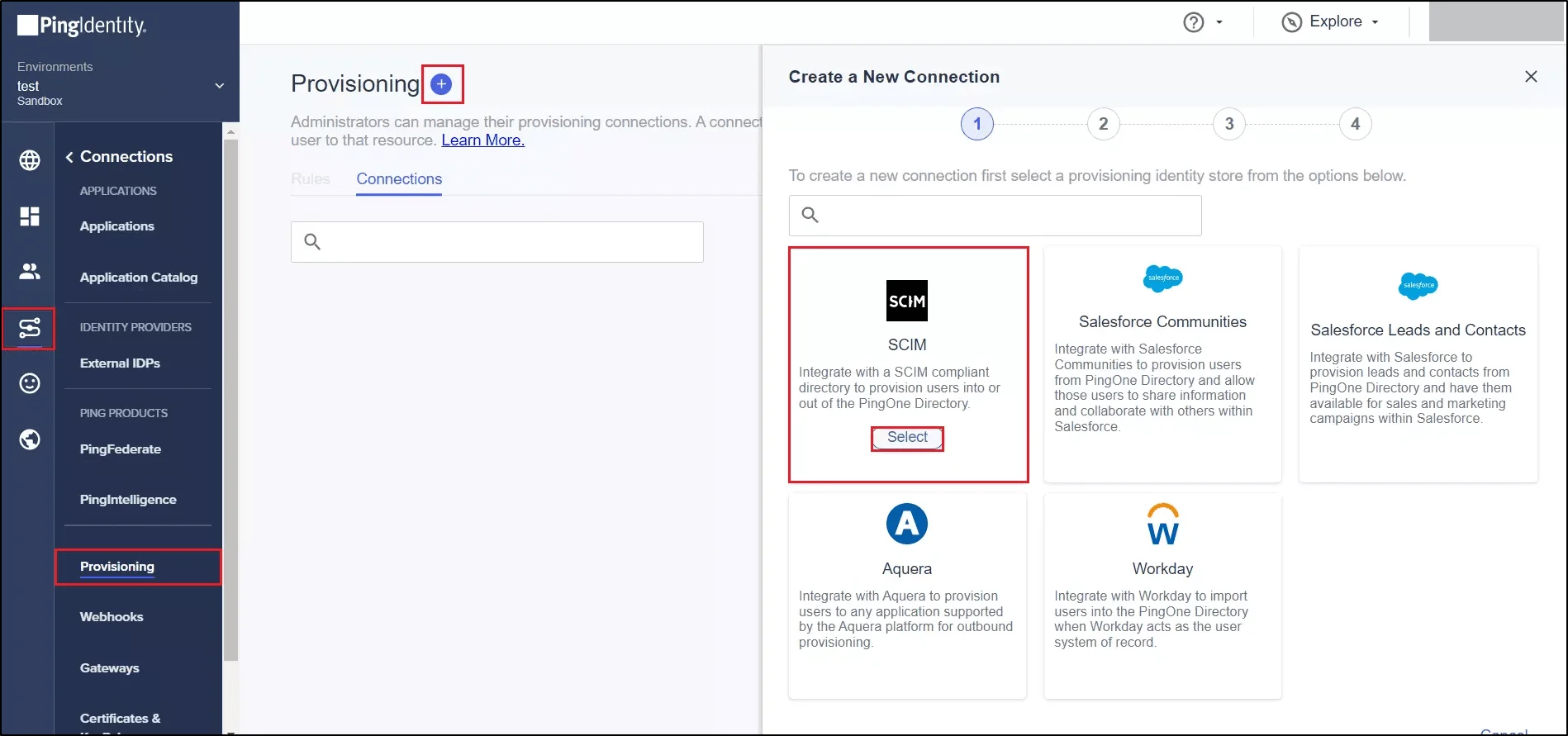

  • Click on + to add the new connection.
  • Select the SCIM based connection type and click on Next.
  • Scim User Provisioning - SCIM Configuration tab

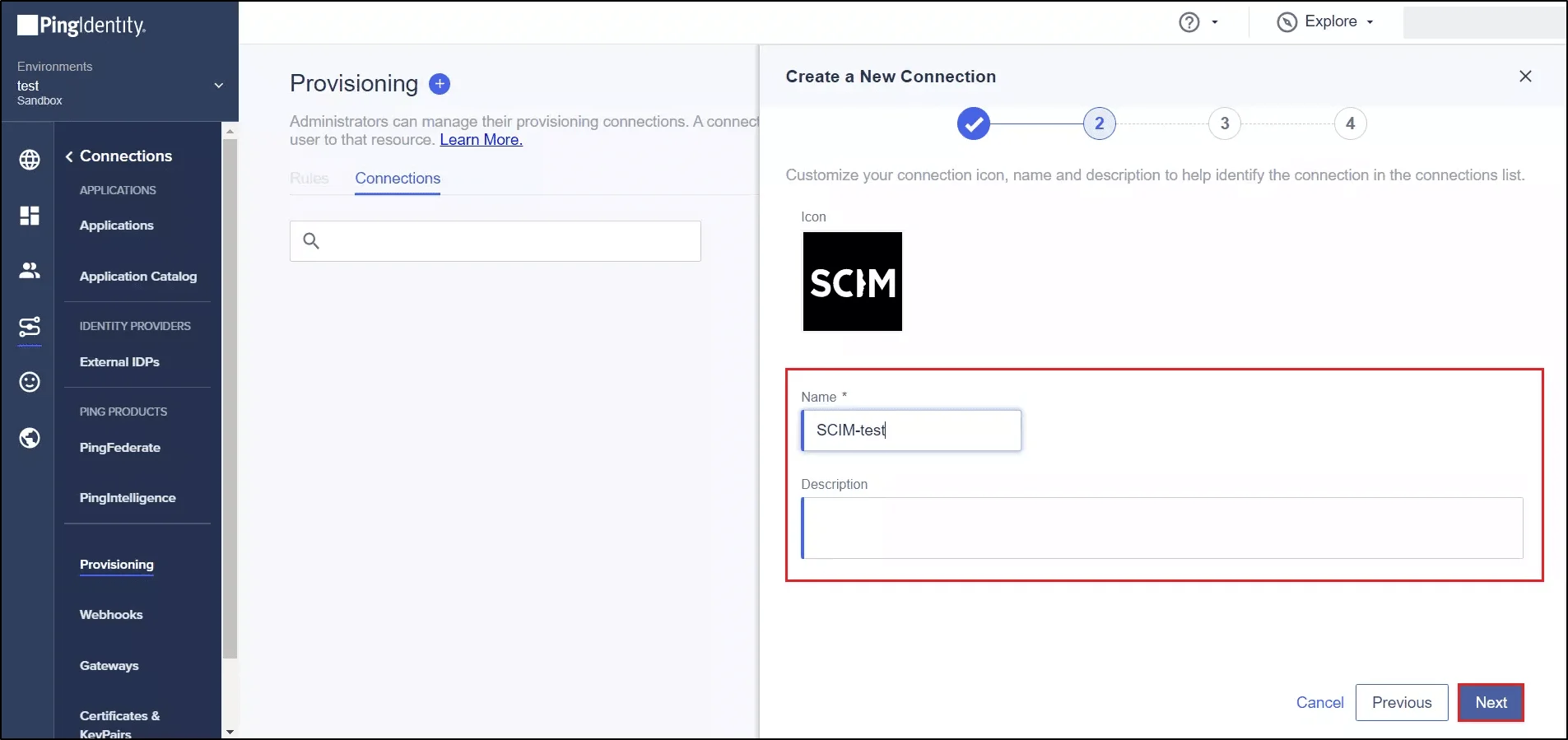

  • Under Create a New Connection, enter the Name and Description and click on Next.
  • Scim User Provisioning - SCIM Configuration tab

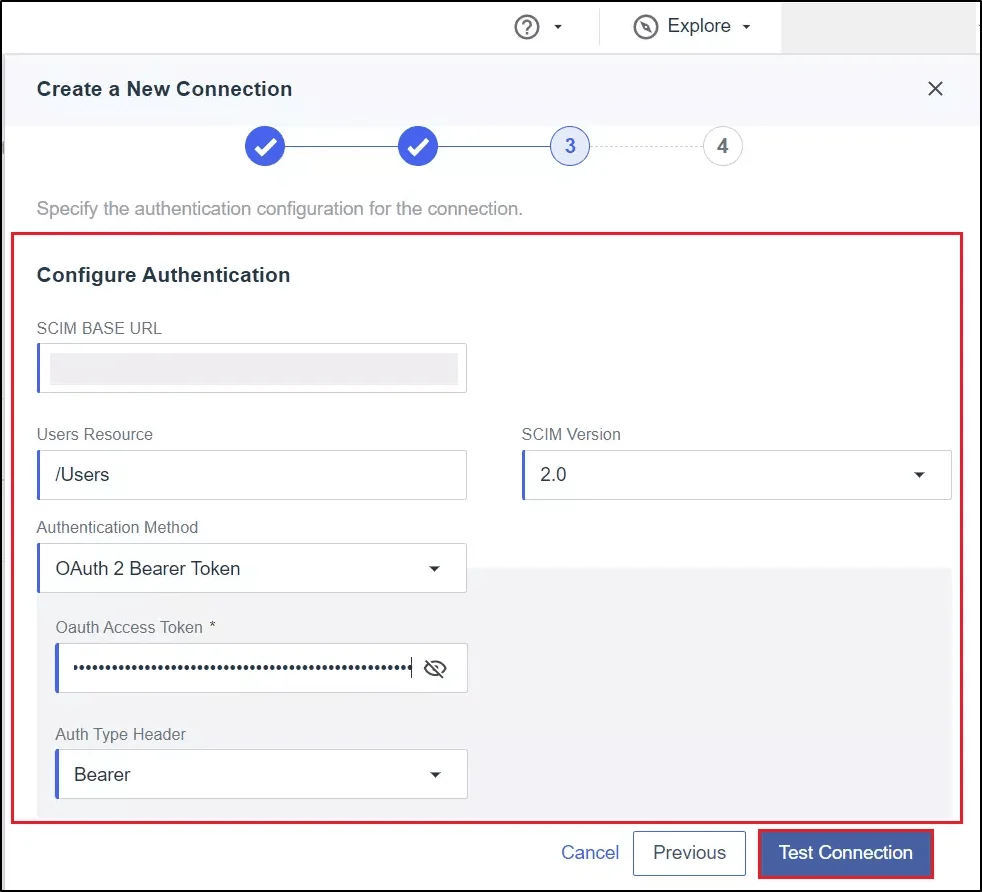

  • In the next step, under the Configure Authentication section, enter the SCIM BASE URL from the SCIM Configuration tab of the SCIM User Provisioning module.
  • In the Authentication method field, select the OAuth 2 Bearer Token from the dropdown.
  • Enter the SCIM Bearer Token in the OAuth Access Token field from the SCIM Configuration tab of the SCIM User Provisioning module and click on Test Connection button.
  • Scim User Provisioning - SCIM Configuration tab

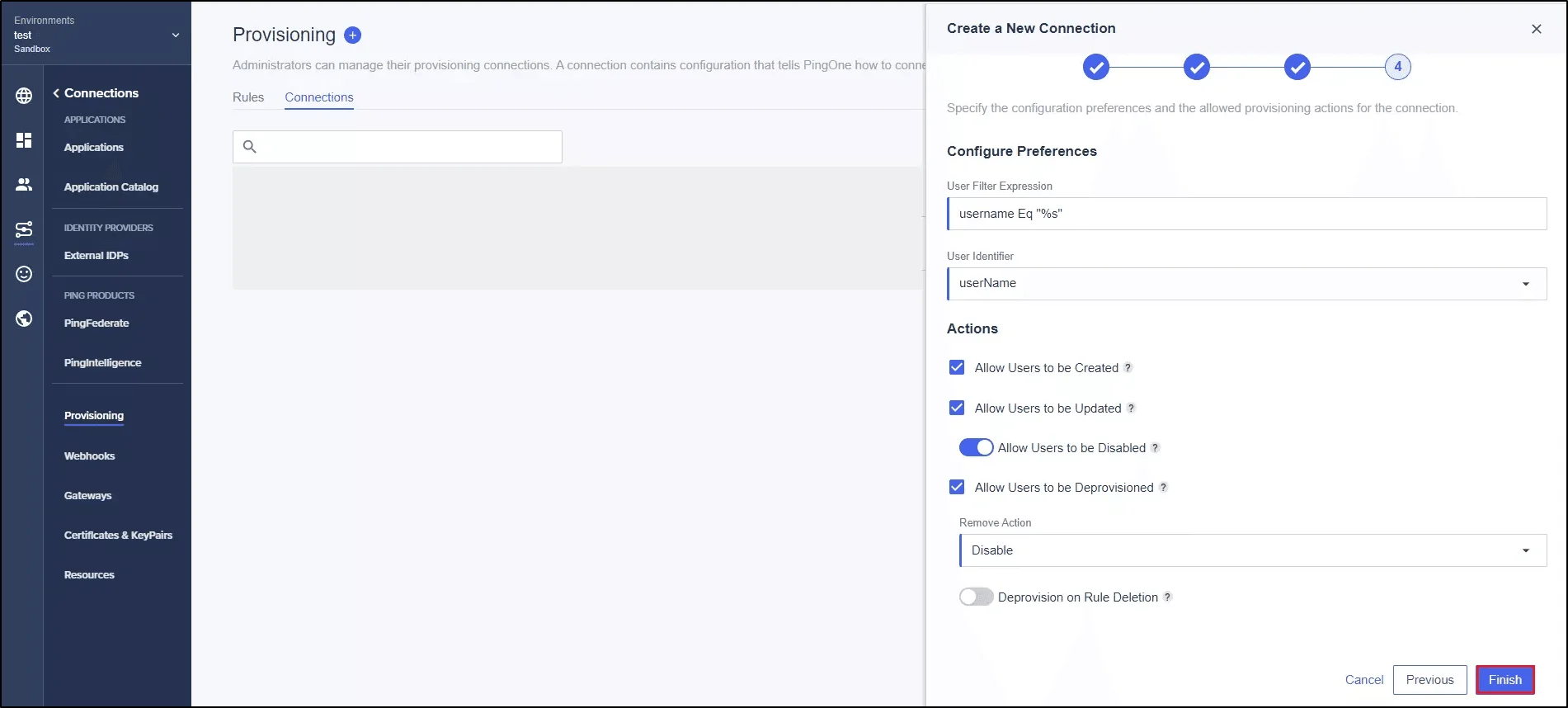

  • In the Configure Preferences, keep the field information as default and click on Finish.
  • Scim User Provisioning - SCIM Configuration tab

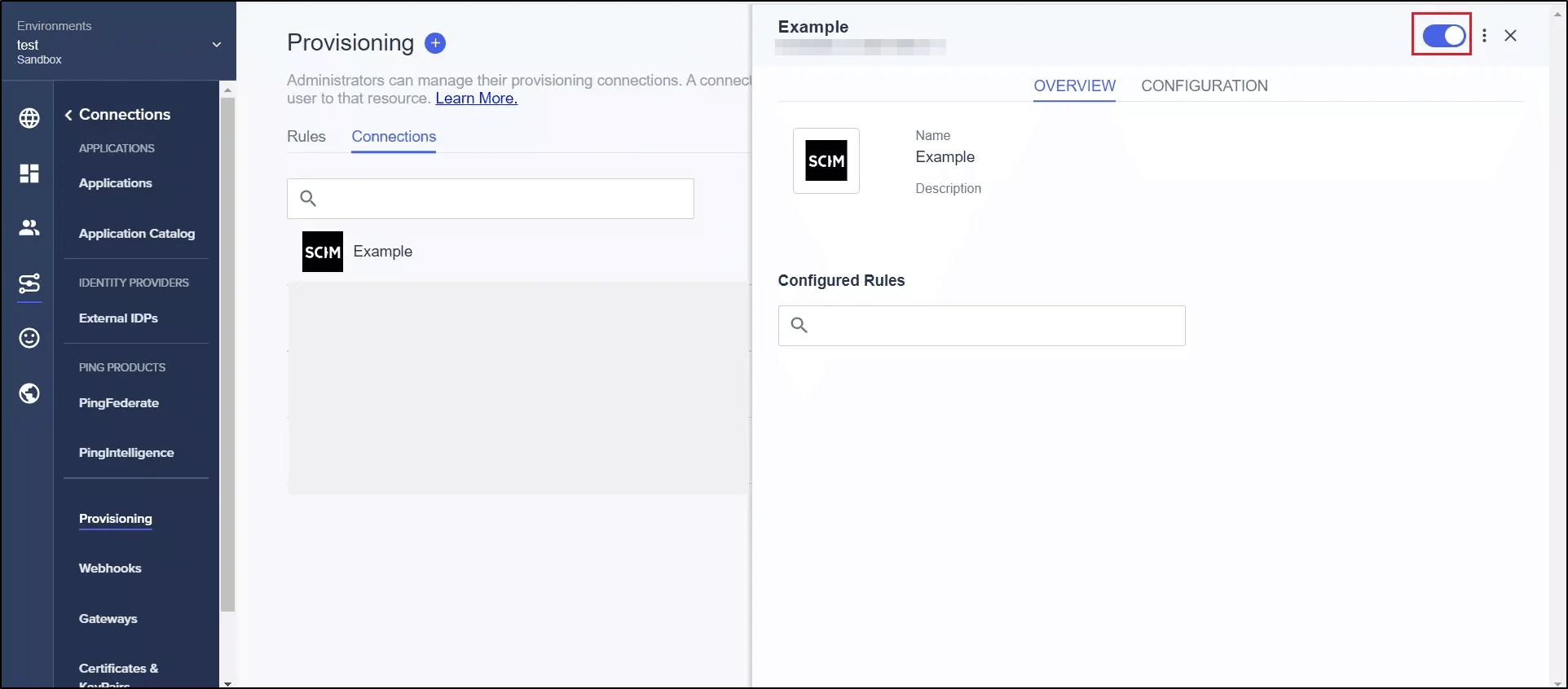

  • Under the Connections tab, select the application you have configured then enable the toggle button displayed on the right hand corner.
  • Scim User Provisioning - SCIM Configuration tab

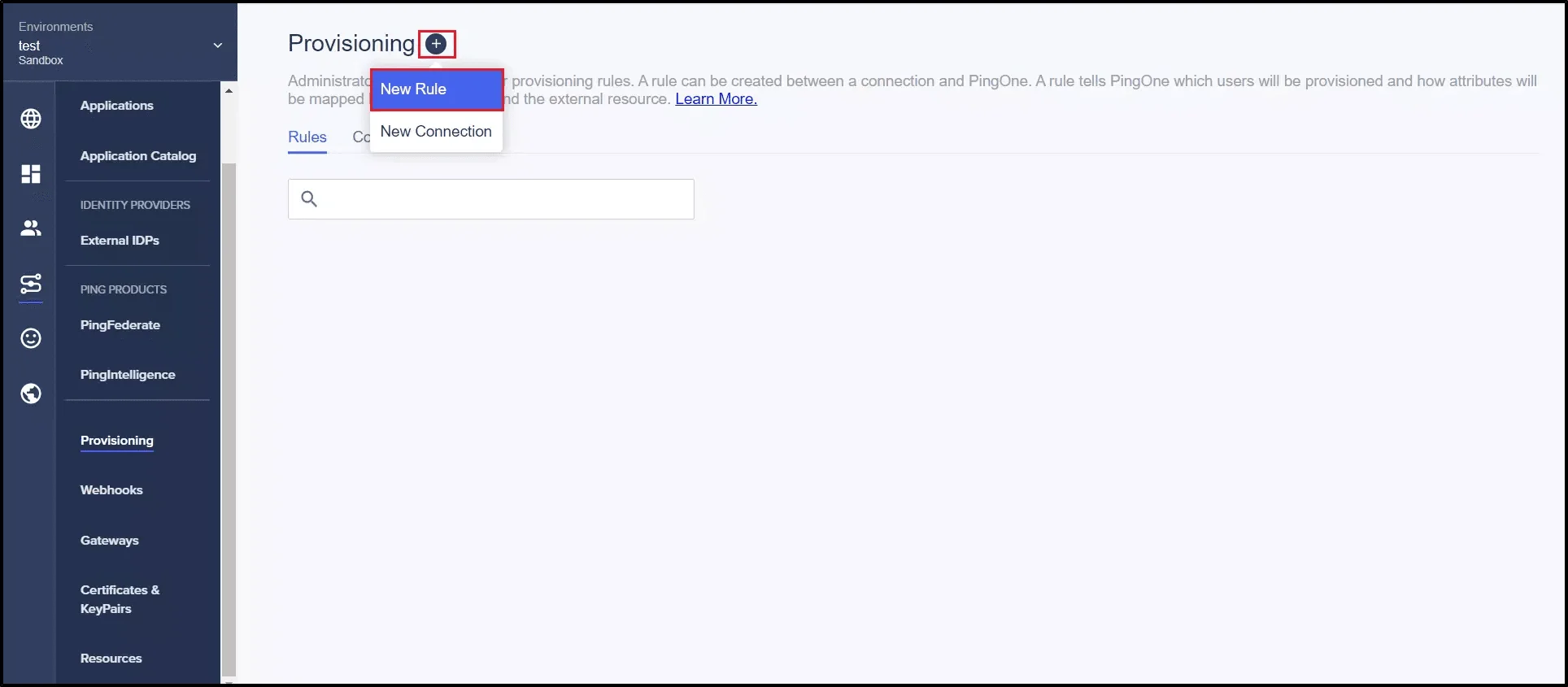

  • Navigate back to the Provisioning tab, click on New Rule button.
  • Scim User Provisioning - SCIM Configuration tab
  • Enter the name and description and click on Create Rule button.

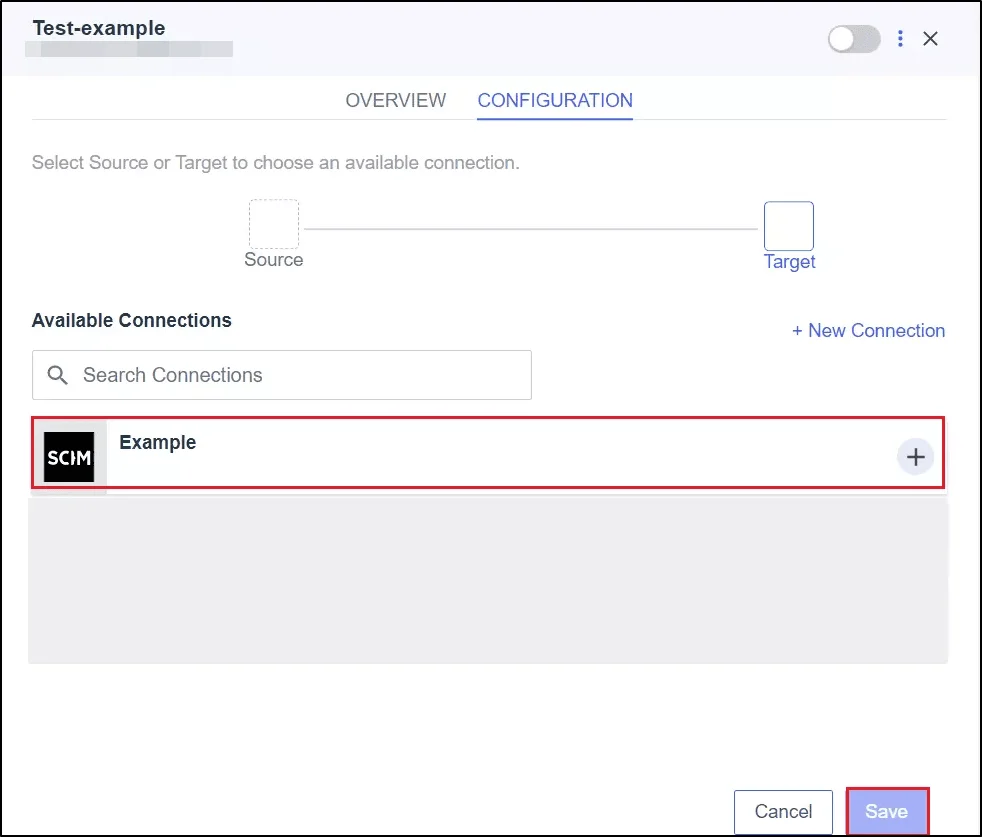

  • Under the Available Connection, select the configured application and click on Save.
  • Scim User Provisioning - SCIM Configuration tab

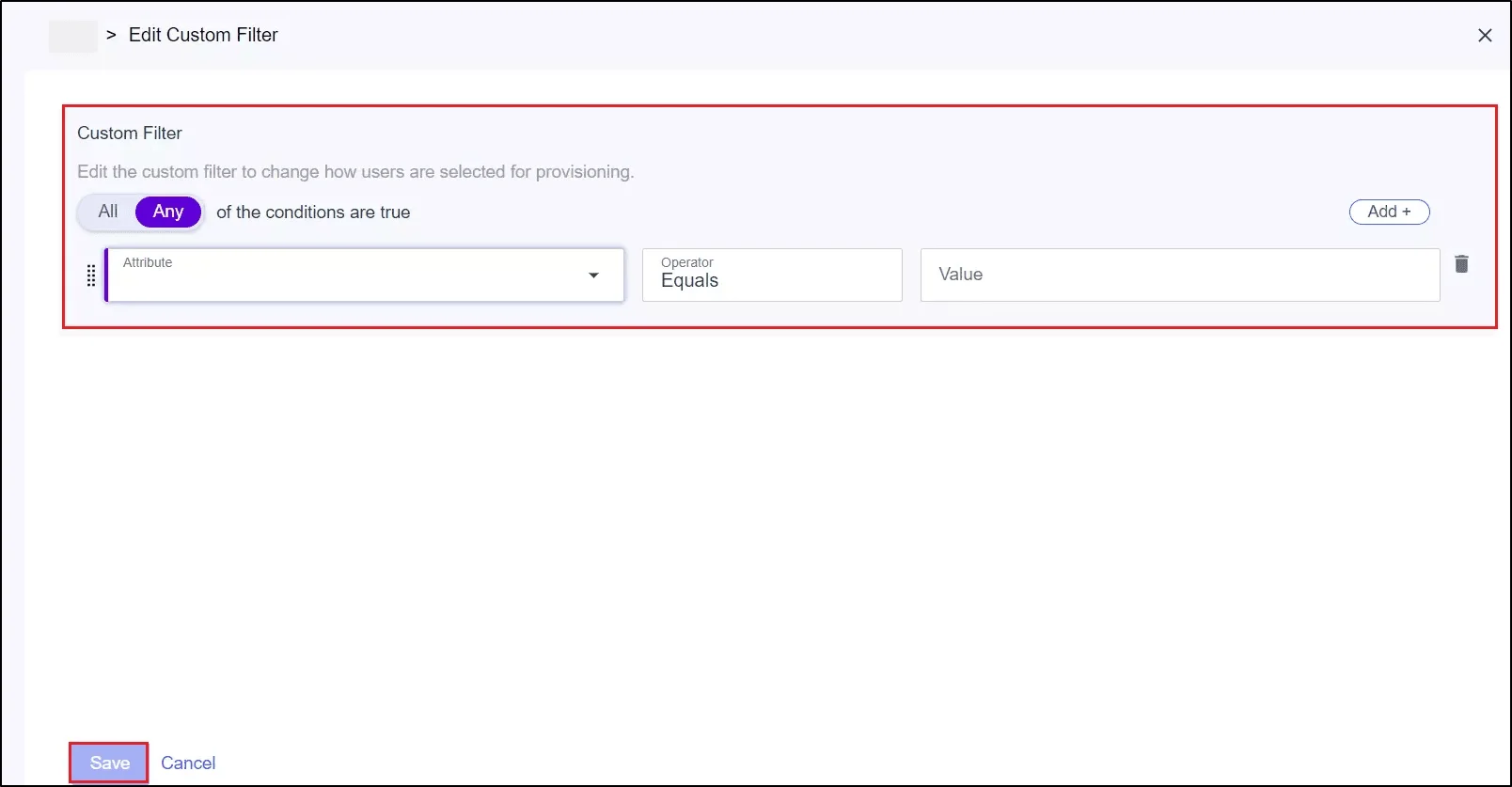

  • In the Custom Filter section, add the appropriate attributes in the Attribute field and its Value. Click on Save.
  • Scim User Provisioning - SCIM Configuration tab

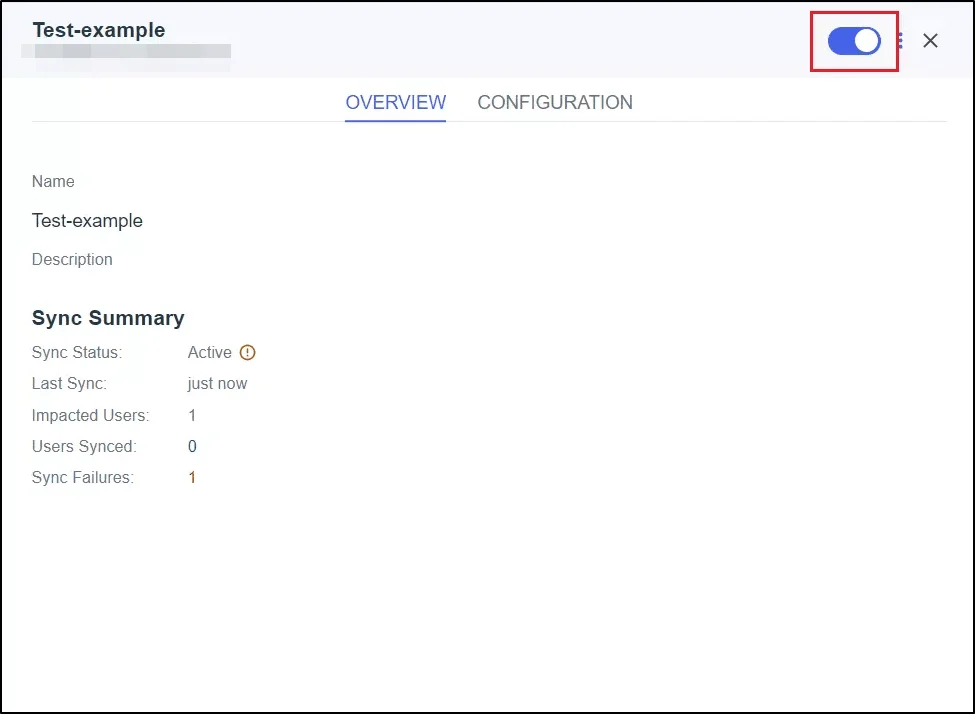

  • Enable the toggle, to enable the rules.
  • Scim User Provisioning - SCIM Configuration tab

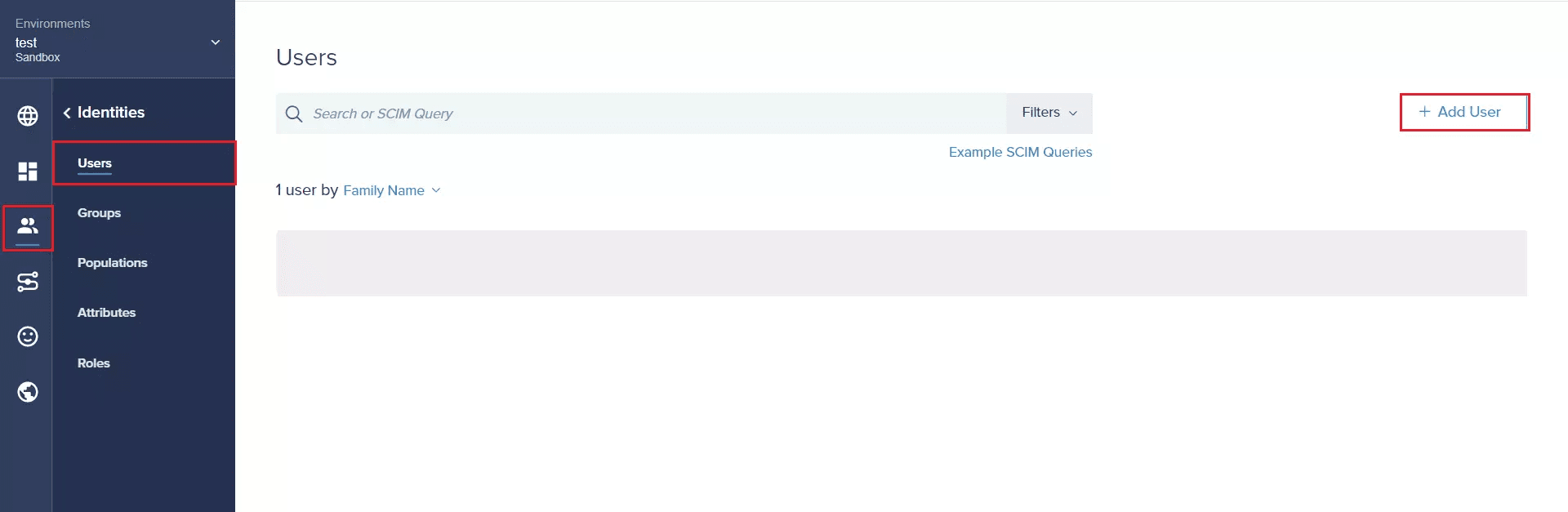

  • You can now assign the users by going to the Users tab under the Identities in the left pane.
  • Click on Add User button to add user for provisioning.
  • Scim User Provisioning - SCIM Configuration tab

You have successfully configured the miniOrange Drupal SCIM User Provisioning module with PingOne.
