SSO Login into Drupal using WordPress as OAuth / OpenID Connect Provider

Drupal OAuth/OpenID Connect SSO integration enables SSO between the Drupal site and WordPress. This setup guide helps in configuring Single Sign-On (SSO) between the Drupal site and WordPress using the OAuth/OpenID Connect module. When you incorporate the OAuth/OpenID Connect module with the Drupal site, you can log into the Drupal site seamlessly with WordPress credentials. This module is compatible with Drupal 7, Drupal 8, Drupal 9, Drupal 10, and Drupal 11.

free trial plugin Playground plugin pricing button schedule meeting button Schedule a Meeting
  • Download the module:
    composer require 'drupal/miniorange_oauth_client'
  • Navigate to Extend menu on your Drupal admin console and search for miniOrange OAuth Client Configuration using the search box.
  • Enable the module by checking the checkbox and click on the Install button.
  • You can configure the module at:
    {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
  • Install the module:
    drush en drupal/miniorange_oauth_client
  • Clear the cache:
     drush cr
  • You can configure the module at:
    {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
  • Navigate to Extend menu on your Drupal admin console and click on Install new module.
  • Install the Drupal OAuth & OpenID Connect Login - OAuth2 Client SSO Login module either by downloading the zip or from the URL of the package (tar/zip).
  • Click on Enable newly added modules.
  • Enable this module by checking the checkbox and click on install button.
  • You can configure the module at:
    {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
  • Go to Configuration → People → miniOrange OAuth Client Configuration in the Administration menu. (/admin/config/people/miniorange_oauth_client)
Drupal OAuth Client - select mimiorange OAuth Client Configuration
  • Under the Configure OAuth tab select desired OAuth Provider from the dropdown.
    • Note and Contact Us - SSO between two WordPress sites

    Note: If the desired OAuth Provider is not listed in the dropdown, please select Custom OAuth Provider / Custom OpenID Provider and continue.

Drupal OAuth Client - select OAuth Provider
  • Copy the Callback/Redirect URL and keep it handy. This will be required while configuring the OAuth Provider.
    • Note and Contact Us - SSO between two WordPress sites

    Note: If your provider only supports HTTPS Callback/Redirect URLs and you have an HTTP site, please make sure to enable the 'Enforce HTTPS Callback URL' checkbox at the bottom of the tab.


  • Enter the OAuth provider name in the Display Name text field.
Drupal OAuth Client - Copy Callback URL
  • Login to the WordPress Site.
  • Navigate to Plugins -> Add New and search for WP OAuth Server. Install the plugin and activate it.
  • Go to the miniorange OAuth Server plugin and navigate to the OAuth Clients tab.
  • Search for the Custom OAuth for configuring the WordPress OAuth Server and click on Custom OAuth2.0 Client.
WP OAuth OpenID Single Sign-on - Search for Custom OAuth and select Custom OAuth2.0 Client

  • Enter the Client Name for eg. Drupal.
  • Paste the previously copied Callback/Redirect URL from Drupal into the Redirect URI text field and click on the Save Client button.
WP OAuth OpenID Single Sign-on - Paste the copied Callback URL into respective field

  • Copy the Client ID and Client Secret from the OAuth Clients tab.
WP OAuth OpenID Single Sign-on - Copy the client ID and Client Secret

  • Navigate to the OAuth Clients tab of the WordPress Plugin. Scroll down the page to access the Scope & Endpoints section and copy the same.
WP OAuth OpenID Single Sign-on - Under OAuth Clients, copy the Endpoints URL

  • Go to miniOrange OAuth Client module.
  • In Drupal’s Configure OAuth tab and paste the copied Client ID and Client Secret from WordPress in the Client ID and Client Secret text-field.
Drupal OAuth 2.0 OIDC Single Sign-on - Paste client credentials

  • Now, paste the Scope and Endpoints into the respective text fields, and click on the Save Configuration button.
Drupal OAuth 2.0 OIDC Single Sign-on - Endpoints

  • After successfully saving the configurations, please click on the Perform Test Configuration button to test the connection between Drupal and OAuth Provider.
OAuth-OIDC-Client-Configuration-Check-Connection-with-OAuth-Provider

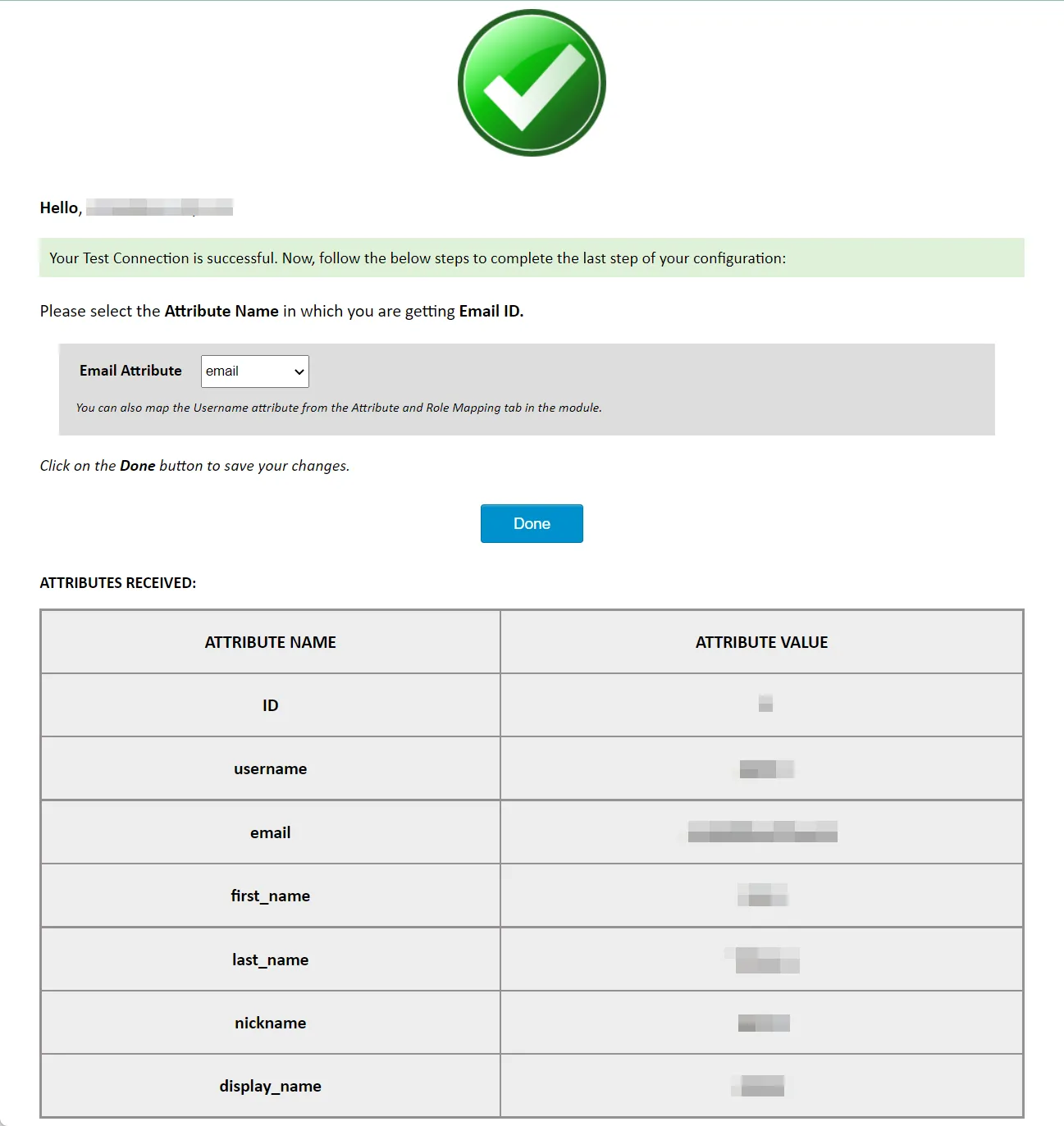

  • On a Test Configuration popup, if you don't have any active sessions on the same browser, you will be requested to login to the OAuth Provider. After successfully logging, you will be provided a list of attributes received from the OAuth Provider.
  • Select the Email Attribute from the dropdown menu in which the user's email ID is obtained and click on the Done button.
    • Note and Contact Us - SSO between two WordPress sites

    Note: Mapping the Email Attribute is mandatory for your login to OAuth Provider.

Drupal OAuth Client - select Email Attribute
  • On the Attribute & Role Mapping tab, please select the Username Attribute from the dropdown list and click on the Save Configuration button.
Drupal OAuth Client - select user attribute and click save configuration
  • Now log out and go to your Drupal site’s login page. You will automatically find a Login with OAuth Provider link there. If you want to add the SSO link to other pages as well, please follow the steps given in the image below:
Drupal OAuth Client - add link on other pages

If you face any issues during the configuration or if you want some additional features, please contact us at drupalsupport@xecurify.com.

More FAQs ➔

Follow the steps mentioned HERE

Follow the steps mentioned HERE

The logout functionality you've mentioned here is the default behavior of a module. It's logging you out of Drupal but not from your Application/Provider. To allow the module to logout from your provider/application account (what you are looking for), you need to make the below configurations: [know more]

As you have upgraded to one of our paid versions of the Drupal module and replaced the free module with the paid one, you must first activate the paid module. Please refer to the below steps. [Know more]
