WordPress OAuth & OpenID Connect Single Sign-On (SSO) plugin enables secure login into WordPress using Gluu as OAuth and OpenID Connect provider. You can also configure plugin using different custom providers and standard IDPs. It supports advanced Single Sign-On (SSO) features such as user profile Attribute mapping, Role mapping, etc. Here we will go through a guide to configure SSO between WordPress and Gluu . By the end of this guide, users should be able to login to WordPress from Gluu . To know more about other features we provide in WP OAuth Single Sign-On ( OAuth & OpenID Connect Client ) plugin, you can click here.

Pre-requisites : Download And Installation

  • Log into your WordPress instance as an admin.
  • Go to the WordPress Dashboard -> Plugins and click on Add New.
  • Search for a WordPress OAuth Single Sign-On (SSO) plugin and click on Install Now.
  • Once installed click on Activate.

Steps to configure Gluu Single Sign-On (SSO) Login into WordPress

1. Setup Gluu as OAuth Provider

  • First of all, log into your Gluu account.
  • Navigate to OpenID Connect > Client button.
  • Gluu-Login-sso-Add-client
  • click the Add Client button.
  • Gluu-Login-sso-Add-client
  • You will be shown a form, fill the form with appropriate information and click on Add button
  • Gluu-Login-sso-Add-client
  • Here you will find Client ID and Client Secret for your Gluu application. Copy and paste Client ID & Client Secret in miniOrange’s WP OAuth Single Sign On(OAuth Client) plugin.
  • Gluu-Login-sso-Add-client

You have successfully configured Gluu as OAuth Provider for achieving Gluu SSO login into your WordPress Site.


2. Setup WordPress as OAuth Client

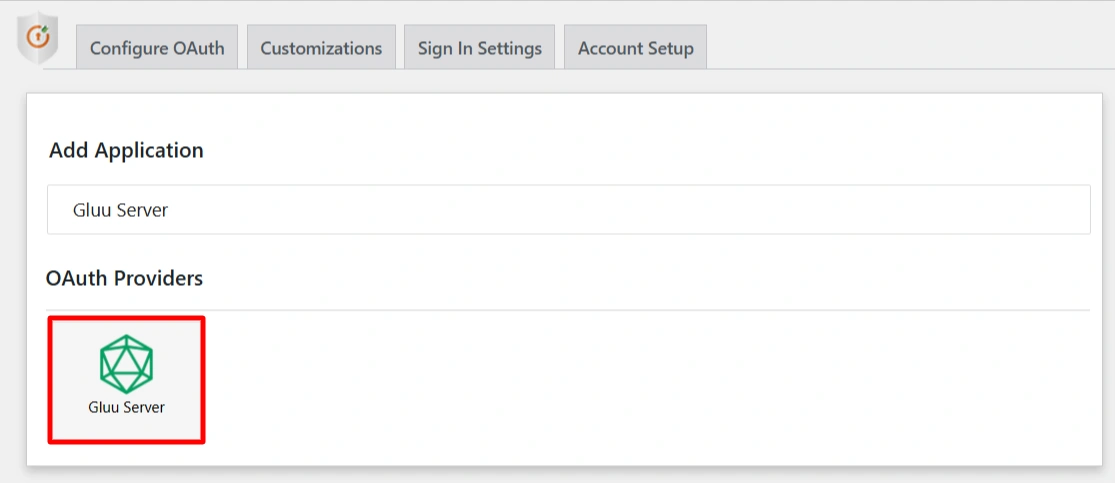

  • Go to the Configure OAuth tab in the Plugin and search for Gluu in the applications list, and select Gluu Server .
  • OAuth/OpenID miniorange Single Sign On SSO select miniOrage as OAuth Provider

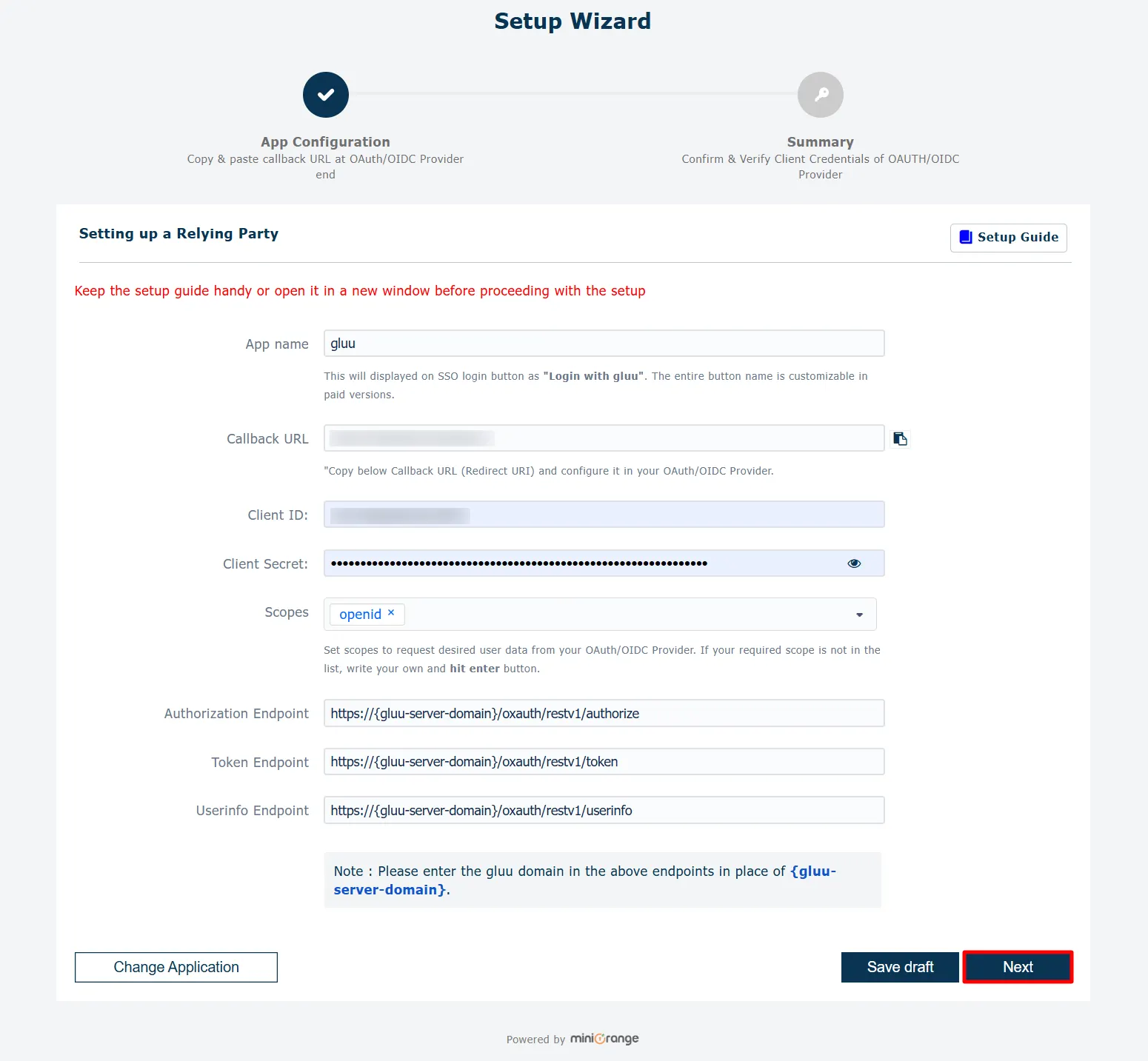

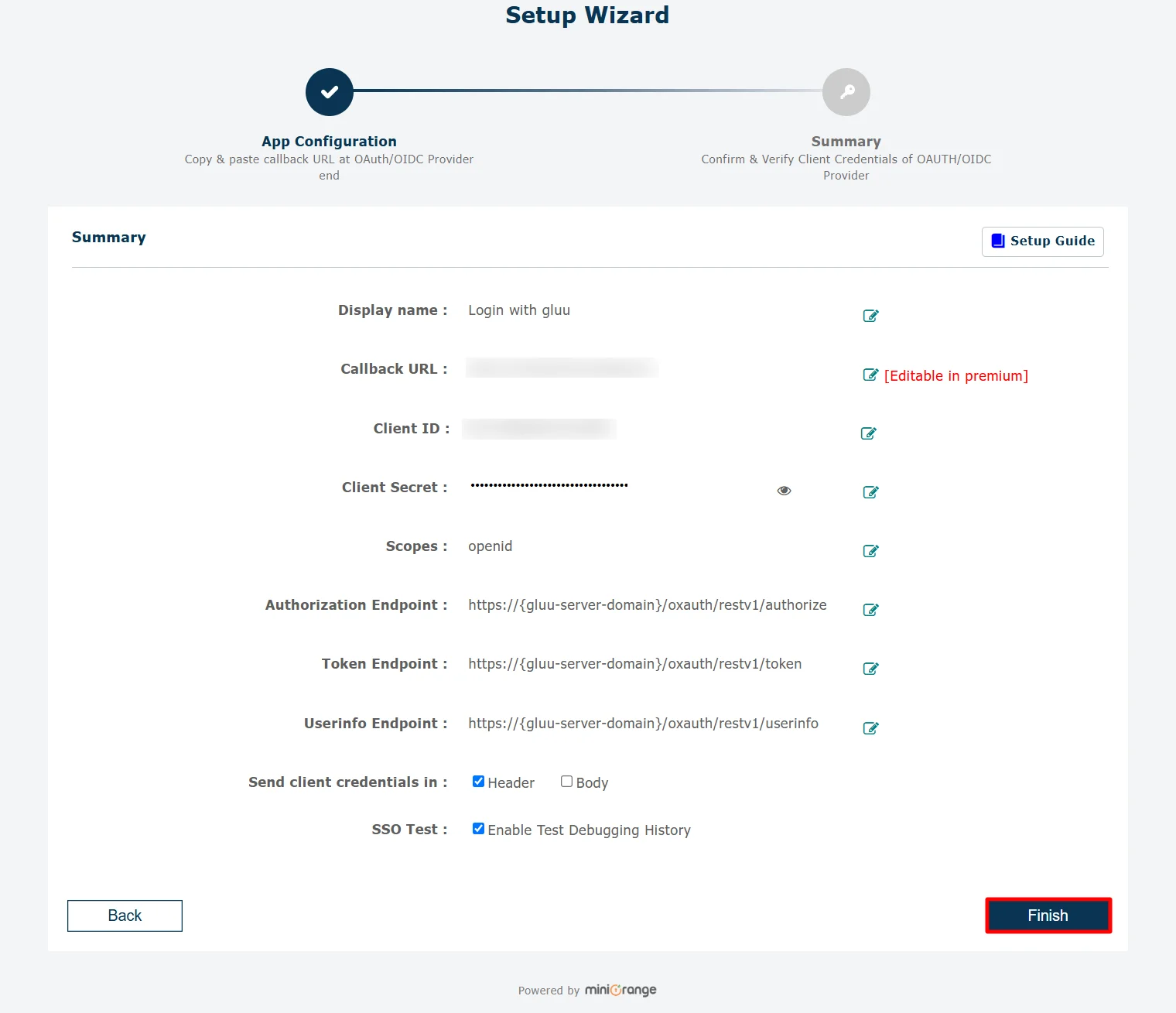

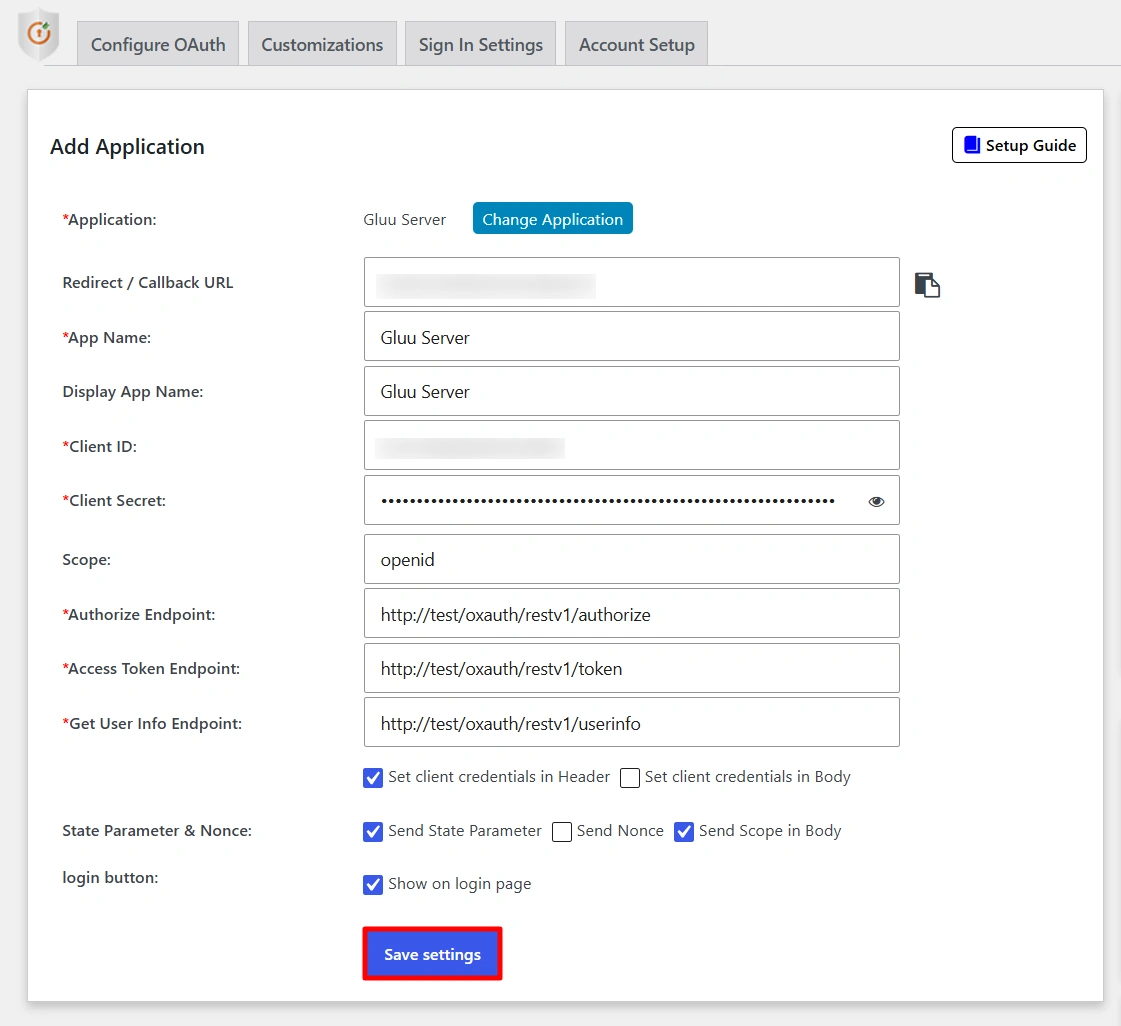

  • Go to Configure OAuth tab and configure App Name, Client ID, Client Secret from provided Endpoints.
  • Enter Scope value as openid profile.
  • Please refer the below table for configuring the scope & endpoints for Gluu in the plugin.
    Scope: openid
    Authorize Endpoint: https://<gluu-server-domain>/oxauth/restv1/authorize
    Access Token Endpoint: https://<gluu-server-domain>/oxauth/restv1/token
    Get User Info Endpoint: https:///<gluu-server-domain>/oxauth/restv1/userinfo
    Custom redirect URL after logout:[optional] https://[hostname]/idp/Authn/oxAuth/logout

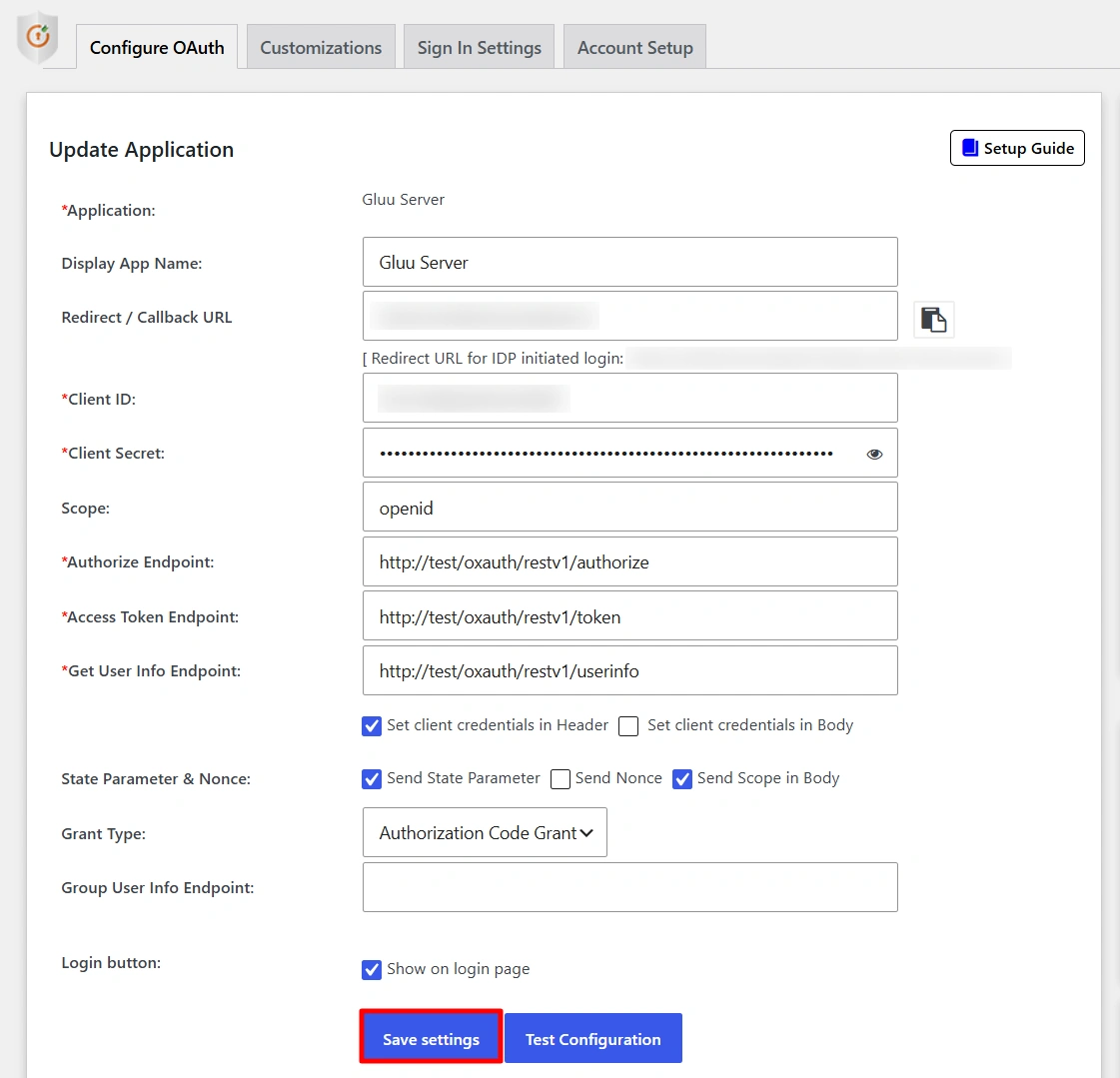

  • Click on Save Settings to save the configuration.
  • OAuth/OpenID miniorange Single Sign On SSO configuration of plugin

You have successfully configured WordPress as OAuth Client for achieving Gluu login into your WordPress Site.


3. User Attribute Mapping

  • User Attribute Mapping is mandatory for enabling users to successfully login into WordPress. We will be setting up user profile attributes for WordPress using below settings.
  • Finding user attributes

    • Go to Configure OAuth tab. Scroll down and click on Test Configuration.
    • OAuth/OpenID miniorange Single Sign On SSO test configuration
    • You will see all the values returned by your OAuth Provider to WordPress in a table. If you don't see value for First Name, Last Name, Email or Username, make the required settings in your OAuth Provider to return this information.
    • OAuth/OpenID miniorange Single Sign On SSO test result
    • Once you see all the values in Test Configuration, go to Attribute / Role Mapping tab, you will get the list of attributes in a Username dropdown.
    • OAuth/OpenID miniorange Single Sign On SSO attribute/role mapping

4. Role Mapping [Premium]

  • Click on “Test Configuration” and you will get the list of Attribute Names and Attribute Values that are sent by your OAuth provider.
  • From the Test Configuration window, map the Attribute Names in the Attribute Mapping section of the plugin. Refer to the screenshot for more details.
  • wordpress oauth client plugin sso : attribute mapping
  • Enable Role Mapping: To enable Role Mapping, you need to map Group Name Attribute. Select the attribute name from the list of attributes which returns the roles from your provider application.
    Eg: Role

  • wordpress oauth client plugin sso : test configuration - role mapping
  • Assign WordPress role to the Provider role: Based on your provider application, you can allocate the WordPress role to your provider roles. It can be a student, teacher, administrator or any other depending on your application. Add the provider roles under Group Attribute Value and assign the required WordPress role in front of it under WordPress Role.

    For example, in the below image. Teacher has been assigned the role of Administrator & Student is assigned the role of Subscriber.
  • wordpress oauth client plugin sso : test configuration - role mapping
  • Once you save the mapping, the provider role will be assigned the WordPress administrator role after SSO.
    Example: As per the given example, Users with role ‘teacher’ will be added as Administrator in WordPress and ‘student’ will be added as Subscriber.

5: Login Settings / Sign In Settings

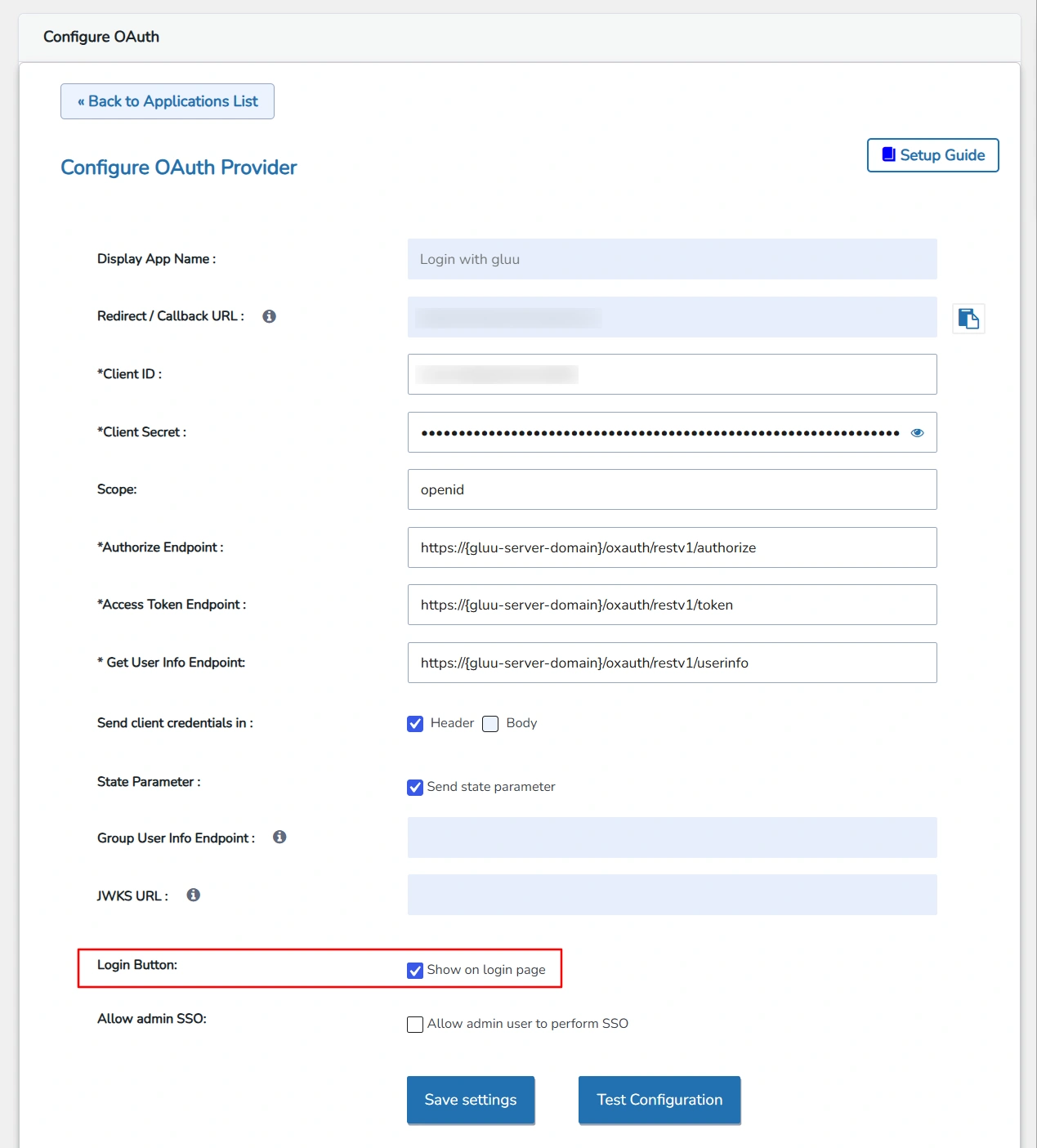

  • The settings in Single Sign-On (SSO) Settings tab define the user experience for Single Sign-On (SSO). To add a Gluu login widget on your WordPress page, you need to follow the below steps.
  • 1. Sign in settings for wordpress 5.7 and before :

    • Go to WordPress Left Panel > Appearances > Widgets.
    • Select miniOrange OAuth. Drag and drop to your favourite location and save.
    • Gluu Single Sign-On (SSO) WordPress create-newclient login button setting

    2. Sign in settings for wordpress 5.8 :

    • Go to WordPress Left Panel > Appearances > Widgets.
    • Select miniOrange OAuth. Drag and drop to your favourite location and save.
    • Gluu Single Sign-On (SSO) WordPress create-newclient login button setting

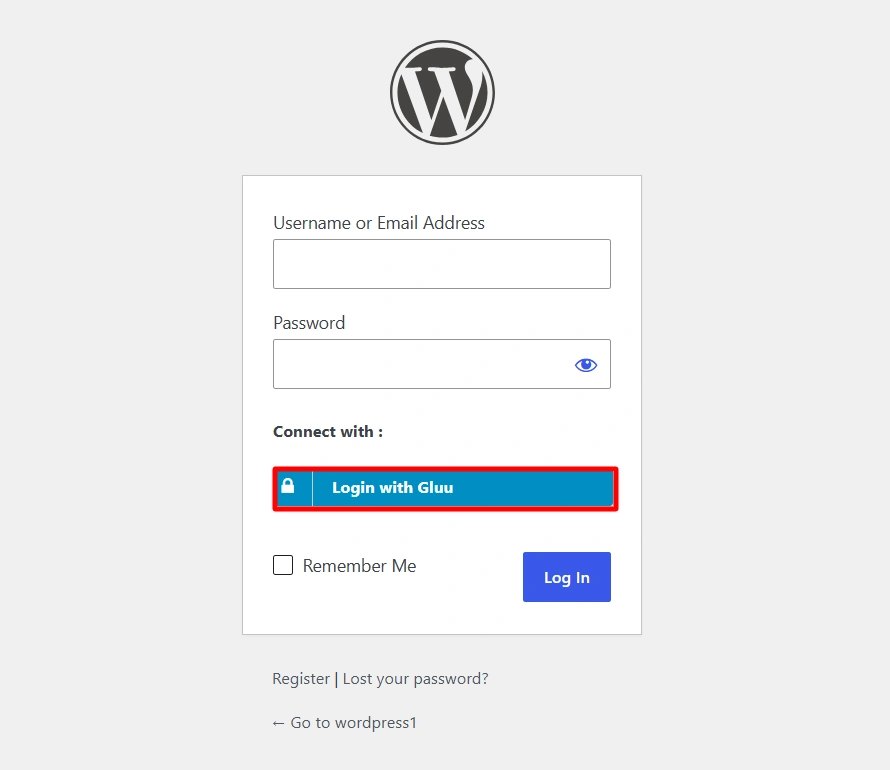

    • Open your WordPress page and you can see the Gluu SSO login button there. You can test the Gluu Single Sign-On (SSO) now.

In this Guide, you have successfully configured Gluu Single Sign-On (SSO) by configuring Gluu as OAuth Provider and WordPress as OAuth Client using our WP OAuth Single Sign-On ( OAuth & OpenID Connect Client ) plugin. This solution ensures that you are ready to roll out secure access to your WordPress site using Gluu SSO login credentials within minutes.
