Drupal OAuth/OpenID Connect SSO integration enables SSO between the Drupal site and Keycloak. This setup guide helps in configuring Single Sign-On (SSO) between the Drupal site and Keycloak using the OAuth/OpenID Connect module. When you incorporate the OAuth/OpenID Connect module with the Drupal site, you can log into the Drupal site seamlessly with Keycloak credentials. This module is compatible with Drupal 7, Drupal 8, Drupal 9, and Drupal 10.
Installation Steps:
- Download the module:
composer require 'drupal/miniorange_oauth_client'
- Navigate to Extend menu on your Drupal admin console and search for miniOrange OAuth Client Configuration using the search box.
- Enable the module by checking the checkbox and click on the Install button.
- You can configure the module at:
{BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
- Install the module:
drush en drupal/miniorange_oauth_client
- Clear the cache:
drush cr
- You can configure the module at:
{BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
- Navigate to Extend menu on your Drupal admin console and click on Install new module.
- Install the Drupal OAuth & OpenID Connect Login - OAuth2 Client SSO Login module either by downloading the zip or from the URL of the package (tar/zip).
- Click on Enable newly added modules.
- Enable this module by checking the checkbox and click on install button.
- You can configure the module at:
{BaseURL}/admin/config/people/miniorange_oauth_client/config_clc
Set up Drupal as OAuth Client:
- After installing the module, navigate to the Configuration -> miniOrange OAuth Client Configuration -> Configure OAuth tab.
- Select Keycloak from the Select Application dropdown.
- Copy the Callback/Redirect URL and keep it handy.
- Enter the Display Name as the Keycloak.
Create OAuth/OpenID Single Sign-On Application in Keycloak:
- Log into your Keycloak administrator console.
- Select Create Realm from the master dropdown menu.
- Enter the application name in the Realm name text field and click on the Create button to proceed.
- Navigate to the Clients -> Clients list -> Create client.
- In the General Settings, enter the Client ID and click on the Next button.
- In the Capability Config, enable the checkbox for Client authentication and click on the Next button.
- In the Login settings, paste the Callback/Redirect URL into the Valid redirect URIs text field and click on the Save button.
Integrating Drupal with Keycloak:
- Go to your Keycloak Application. On the Settings tab, copy the Client ID from the General Settings section. Keep it handy.

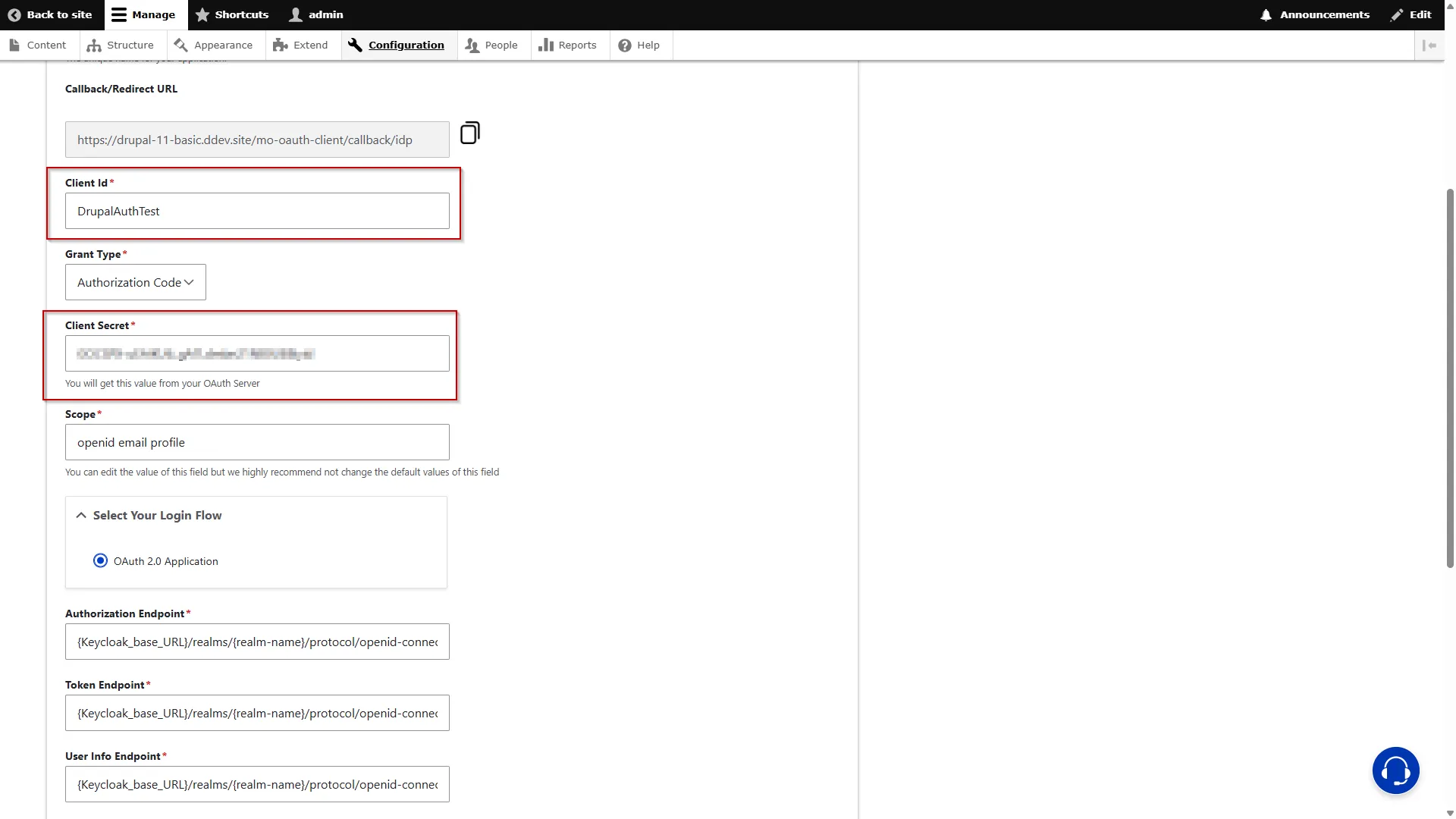

- In Drupal’s Configure OAuth tab paste the copied Client ID into the Client ID text field.
- Go to your Keycloak Application, navigate to the Credentials tab, and copy the Client secret by clicking on the Icon to copy it to the clipboard.
- In Drupal’s Configure OAuth tab, paste the copied Client secret into the Client Secret text field.
- Go to the Keycloak Administrator console.
- Navigate to Realm settings -> General and copy the Realm ID by clicking on copy Icon.
- In Drupal’s Configure OAuth tab, replace the previously copied Realm ID with "realm-name" in the Authorize Endpoint, Access Token Endpoint, and Get User Info Endpoint text fields, respectively.
- Navigate to the Keycloak Administrator console and copy the Keycloak domain URL. For example, if your Keycloak is running on localhost, then the domain would be "https://localhost:8080”. (refer to the below image)
- In Drupal’s Configure OAuth tab, replace "Keycloak_base_URL" with the copied Keycloak domain URL in the Authorize Endpoint, Access Token Endpoint, and Get User Info Endpoint text fields. Then, click on the Save Configuration button to proceed.
Enter the following information in the corresponding text fields of the Configure OAuth tab of the Drupal OAuth Client module.
| Scope | openid email profile |
| Authorize Endpoint | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/auth |
| Access Token Endpoint | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/token |
| Get User Info Endpoint | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/userinfo |
Steps to configure Keycloak as OAuth Provider:
- First of all, Download Keycloak and install it.
- Start Server: Start the keycloak server by running the _standalone.sh_ file Root Directory of keycloak/bin/standalone.sh
- Create Realm: Now login to keycloak administration console and navigate to your desired realm. You can add a new realm by selecting Create Realm option.
- Create Realm: Enter Realm Name and click on CREATE to add realm.
- Enter the Client ID and click on the Save button.
- Enable the Client authentication and click on the Save button.
- Paste the copied (in step1) callback url into the Valid Redirect URLs text area and click on the Save button.
Integrating Drupal with Keycloak
- Copy the Client ID from the Keycloak application, client ID will be your client name.
- Navigate to the Credentials tab and copy the Client Secret.
- In Drupal’s Configure OAuth tab paste the copied Client ID and Client Secret (copied from the Keycloak Portal) in the Client ID and Client Secret text-field.
- Copy the Keycloak Domain and Keycloak realm.
- Replace the copied Keycloak Domain & Keycloak realm with the {your Domain} and {realm-name} in the Authorize Endpoint, Access Token Endpoint, and Get User Info Endpoint respectively.

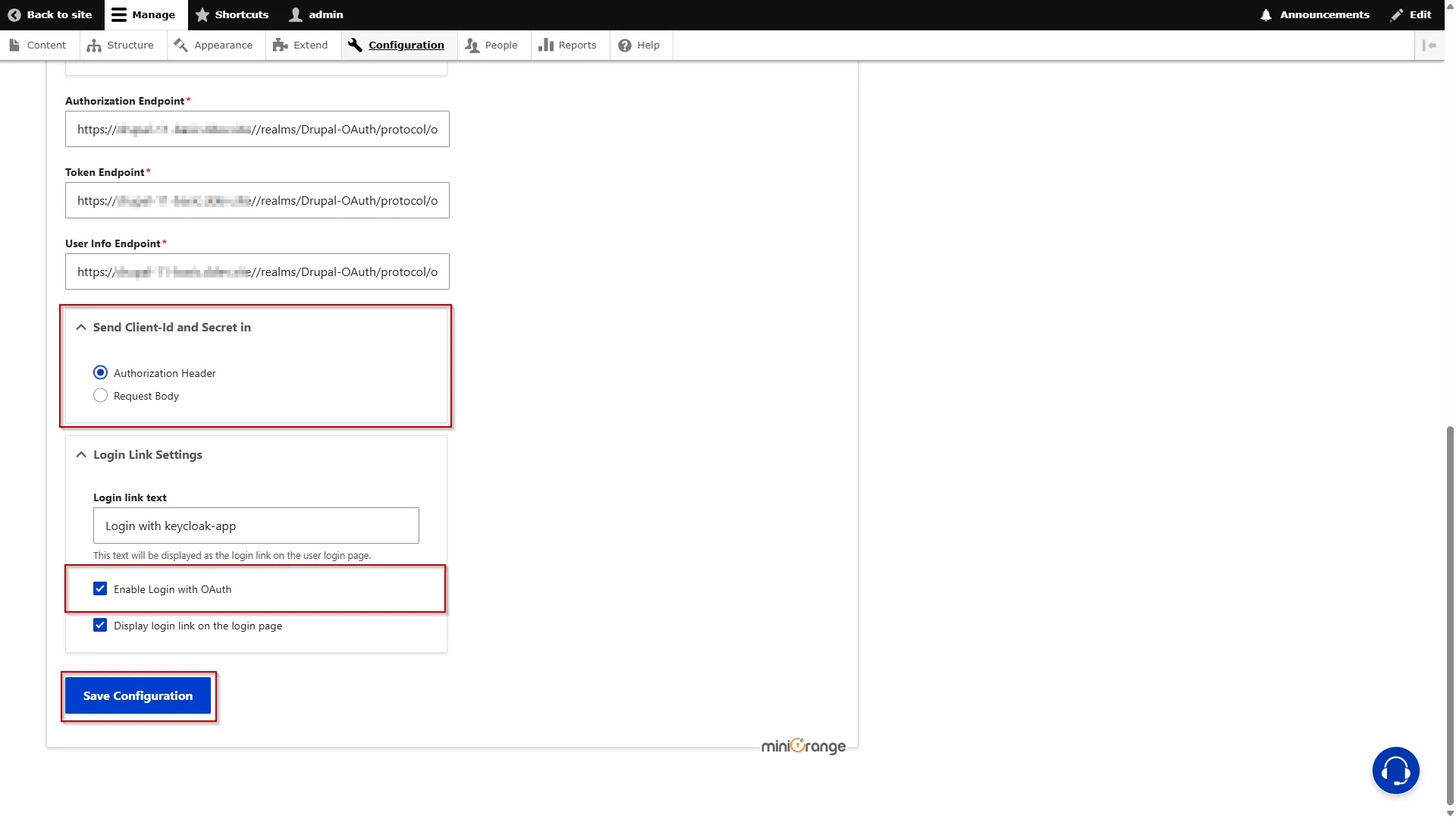

- Click on the Save Configuration button.
- Keycloak Scope and Endpoints:
| Scope: | openid email profile |
| Authorize Endpoint: | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/auth |
| Access Token Endpoint: | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/token |
| Get User Info Endpoint: | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/userinfo |
2. Configure SSO Application in Keycloak
- First of all, Download Keycloak and install it.
- Start Server: Start the keycloak server by running the _standalone.sh_ file Root Directory of keycloak/bin/standalone.sh
- Add Realm: Now login to keycloak administration console and navigate to your desired realm. You can add new realm by selecting Add Realm option.
- Create Realm: Enter Realm Name and click on CREATE to add realm.
- Now, enter the Display name and click on the Save button.
- Navigate to the Clients tab and click on Create button.
- Enter the Client ID and click on the Save button.
- Paste the previously copied Callback/Redirect URL into the Valid Redirect URLs text field and click on Save button.
3. Integrating Drupal with Keycloak
- Copy the Client ID from the Keycloak application, client ID will be your client name.
- Navigate to the Credentials tab and copy the Client Secret.
- In Drupal’s Configure OAuth tab paste the copied Client ID and Client Secret (copied from the Keycloak Portal) in the Client ID and Client Secret text-field.
- Copy the Keycloak Domain and Keycloak realm.
- Replace the copied Keycloak Domain & Keycloak realm with the {your Domain} and {realm-name} in the Authorize Endpoint, Access Token Endpoint, and Get User Info Endpoint respectively then click on the Save Configuration button.
- You have successfully completed your Keycloak App OAuth Server side configurations.
- Enter the following Keycloak Scope and Endpoints:
| Client ID : | from the above step |
| Client Secret : | from the above step |
| Scope | email profile |
| Authorize Endpoint | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/auth |
| Access Token Endpoint | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/token |
| Get User Info Endpoint | (Keycloak base URL)/realms/{realm-name}/protocol/openid-connect/userinfo |
Test connection between Drupal and Keycloak:
- After saving the configuration, click on the Perform Test Configuration button to test the connection between Drupal and Keycloak.
- On a Test Configuration popup, if you don't have an active session in keycloak on the same browser, you will be asked to sign in to your Keycloak administrator console. After successfully logging into Keycloak, you will be provided with a list of attributes that are received from the Keycloak.
- Select the Email Attribute from the dropdown menu in which the user's email ID is obtained and click on the Done button.

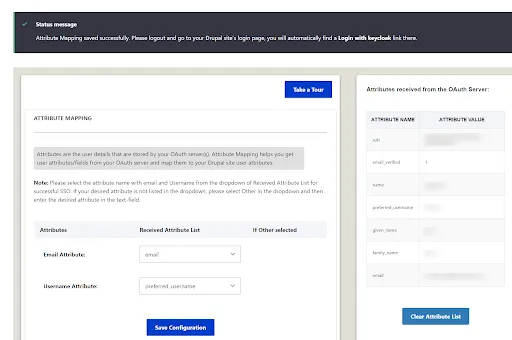

- Once you click on the Done button, you will be redirected to the Attribute & Role Mapping tab, in which you can select the Username Attribute from the dropdown and click on the Save Configuration button.
Note: Mapping the Email attribute is mandatory for Login.
Congratulations! You have successfully configured Keycloak as OAuth Provider and Drupal as OAuth Client.
How to perform the SSO?
- Now, open a new browser/private window and go to your Drupal site login page.
- Click on the Login using the Keycloak link to initiate the SSO from Drupal.
- If you want to add the SSO link to other pages as well, please follow the steps given in the image below:
Need Assistance?
If you face any issues during the configuration or if you want some additional features, please contact us at drupalsupport@xecurify.com.
Additional Features:
- Attribute Mapping - map user’s attributes received from OAuth Provider with Drupal fields
- Role mapping - assign a Drupal Role to users on the basis of their role/attribute on the OAuth provider
- Enable single logout - Logout user from the OAuth Provider (i.e. AWS Cognito, Azure AD B2C, Keycloak, Okta) when they logs out form Drupal
- Restrict anonymous access to the complete site or a particular section of the site
- Add Multiple OAuth Provides
- Explore All the features offered by the OAuth Client
Troubleshooting:
Getting error: ‘Username not received. Check your
Attribute Mapping configuration.’ OR Getting Error: ‘Email not received. Check your Attribute Mapping
configuration.’
Follow the steps mentioned HERE
I am getting “Client Credentials were not found in
the headers or body” when I try to perform test configuration
Follow the steps mentioned HERE
After I click on the logout in Drupal, it sends me back to
the Drupal homepage. However, when I try to login with other user, it doesn’t ask me to login but
automatically logs me in with same user
The logout functionality you’ve mentioned here is the default behavior of a module. It’s logging you out of Drupal but not from your Application/Provider. To allow the module to logout from your provider/application account (what you are looking for), you need to make the below configurations: [know more]
I purchased the paid Drupal module and replaced it with
the free module, but still I am not able to use paid features.
As you have upgraded to one of our paid versions of the Drupal module and replaced the free module with the paid one, you must first activate the paid module. Please refer to the below steps. [Know more]
