Magento Invision Community SSO | SSO into Invision Community using Magento as OAuth Server

Get Free Trial

Magento OAuth Server extenstion enables Single Sign-On (SSO) into the Invision Community using your Magento username and password. Once you configure the Invision Community with Magento OAuth Server extenstion, you can login to your Invision Community using Magento credentials. OAuth Server extenstion also allows you to send custom Magento user attributes to your Invision Community app as per your requirements. To know more about other features we provide in Magento OAuth Server extenstion, you can click here.

Pre-requisites : Download And Installation

Installation using Composer:

• Purchase the miniOrange OAuth Server extension.
• Go to My profile -> My Purchases
• Please ensure you are using correct access keys (My Profile - Access Keys)
• Paste the access keys in your auth.json file inside your project
• Use the below command to add the extension to your project.

  "composer require {module_name}:{version}"

• You can see the module name and list of versions in the selector below the extension module name.
• Run the following commands on command prompt to enable the extension.

php bin/magento setup:di:compile

php bin/magento setup:upgrade

Manual Installation:

• Download the miniOrange OAuth Server extension.
• Unzip all contents of the zip inside the MiniOrange/OAuth_Server directory.

{Root Directory of Magento} app code MiniOrange OAuth_server

• Run the following commands on command prompt to enable the extension.

php bin/magento setup:di:compile

php bin/magento setup:upgrade

Steps to configure Invision Community Single Sign-On (SSO) using Magento OAuth Server extenstion

1. Configure Invision Community as OAuth Client

• Go to https://invisioncommunity.com/login and sign in/login.
• In your Dashboard, go to Left Panel -> Settings and click on Login & Registration.

• A screen will appear where by default Methods tab will be opened. Click on Create New.

• Select Other OAuth 2.0 as handler and click on Continue.

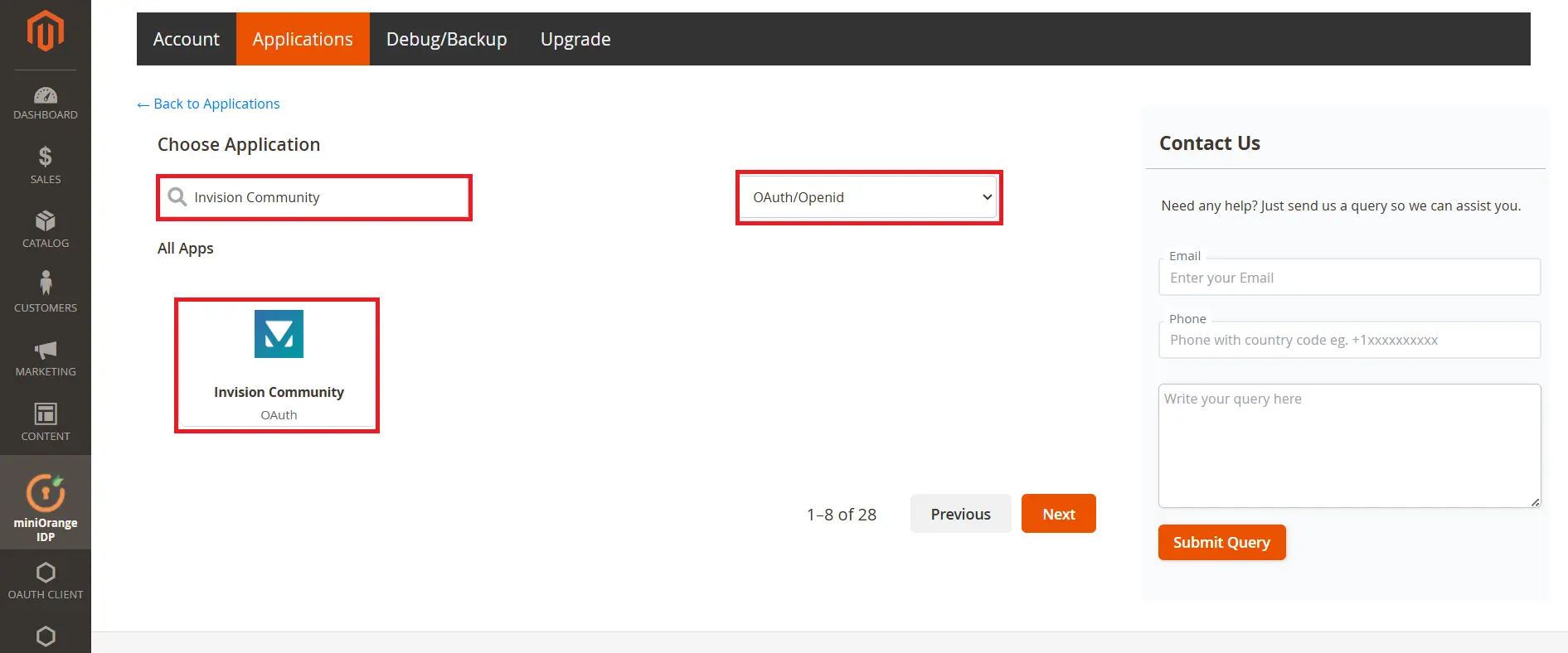

• In the Application Setting tab, copy the Callback URL (For example: https://your_domain/_oauth/id) and keep it handy to save it in the Magento OAuth Server SSO extenstion. You will find this URL from the highlighted section of your Invision Community Dashboard as shown in the below image

2. Configure Magento as OAuth Server

• In the OAuth Server Settings tab, Enter the OAuth Client name and then paste the Redirect URL that you copied earlier and save it under the Redirect URL.

• It will show you the Client ID, Client Secret and the Endpoints. Copy the Client ID, Client Secret, Scope and the Endpoints and keep it handy. You will be needing these values later to save them in your Invision Community client application.

• Go back to the Client application that you already created in your Invision Community console and save the information that you copied from the OAuth Server extenstion in Magento.
• Values to be entered in the Invision Community Application:

Client Identifier:	The Client ID from the OAuth Server extenstion in Magento
Client Secret:	The Client Secret from the OAuth Server extension in Magento
Scopes to request:	profile
Authorization Endpoint:	/authorize
Authorization Endpoint for AdminCP & Reauthorizations REQUIRED:	Use the same endpoint as normal logins
Token Endpoint :	/access_token
User Information Endpoint:	/user_info
User ID Parameter:	email
Display Name Parameter:	name
Login Button Text :	Enter Name



Congratulations, you have successfully configured the miniOrange Magento OAuth Server extenstion.

3. Attribute Mapping

• In the Magento OAuth Server extension, navigate to the Attribute Mapping tab.
• In the Attribute Mapping section, enter the information and click on Save .

Additional Resources

• Invision Community Administration Guide
• Magento OAuth Server Single sign-on (SSO).
• Magento OAuth Server extenstion
