Magento Keycloak Single Sign-On (SSO) login for Magento [Magento Keycloak SSO] can be achieved by using our Magento SAML SP Single Sign-On (SSO) plugin. Our SSO solution will make Magento SAML 2.0 compliant Service Provider establishing trust between the Magento site and Keycloak to securely authenticate and login users to the Magento site using Keycloak. Our Magento Single Sign-On (SSO) solution helps to secure Magento sites behind the SSO login so that users are authenticated using their Keycloak login credentials. Seamless support for advanced SSO features like Attribute / Custom Mapping, Role Mapping etc.

Here we will go through a guide to configure SAML Single Sign-On SSO login between Magento site and Keycloak by considering Keycloak as IdP (Identity Provider) and Magento as SP (Service Provider). Our Magento Keycloak SSO extension provides unlimited user authentications from Keycloak. To know more about other features we provide in you Magento Keycloak SAML Single Sign-On (SSO) plugin, you can click here.

Installation using Composer:

  • Purchase the miniOrange SAML Single Sign On – SAML SSO Login extension from magento marketplace.
  • Go to My profile -> My Purchases
  • Please ensure you are using correct access keys (My Profile - Access Keys)
  • Paste the access keys in your auth.json file inside your project
  • Use the below command to add the extension to your project.
    "composer require miniorange_inc/saml-sp-single-sign-on"
  • You can see the module name and list of versions in the selector below the extension module name.
  • Run the following commands on command prompt to enable the extension.
    • php bin/magento setup:di:compile
    php bin/magento setup:upgrade

Manual Installation:

  • Download the miniOrange SAML Single Sign On – SAML SSO Login extension zip from here.
  • Unzip all contents of the zip inside the MiniOrange/SP directory.
    • {Root Directory of Magento} app code MiniOrange SP
  • Run the following commands on command prompt to enable the extension
    • php bin/magento setup:di:compile
    php bin/magento setup:upgrade

Magento SSO SAML download plugin
SAML Single Sign On – SAML SSO Login
By miniOrange

Magento Single Sign On SSO login with Azure AD, Azure B2C, ADFS, Okta, Keycloak, Salesforce, Ping, Bitium, Gsuite, Shibboleth & many SAML IdPs [24/7 SUPPORT]

 Tested with 2.4.5
Get this plugin

Steps to configure Keycloak SAML Single Sign-On (SSO) Login into Magento SAML SP

Select Keycloak version:

1. Setup Keycloak as IdP (Identity Provider)

Follow the following steps to configure Keycloak as IdP to achieve Magento Keycloak SSO

Magento Keycloak Single Sign-On | miniorange img Configure Keycloak as IdP

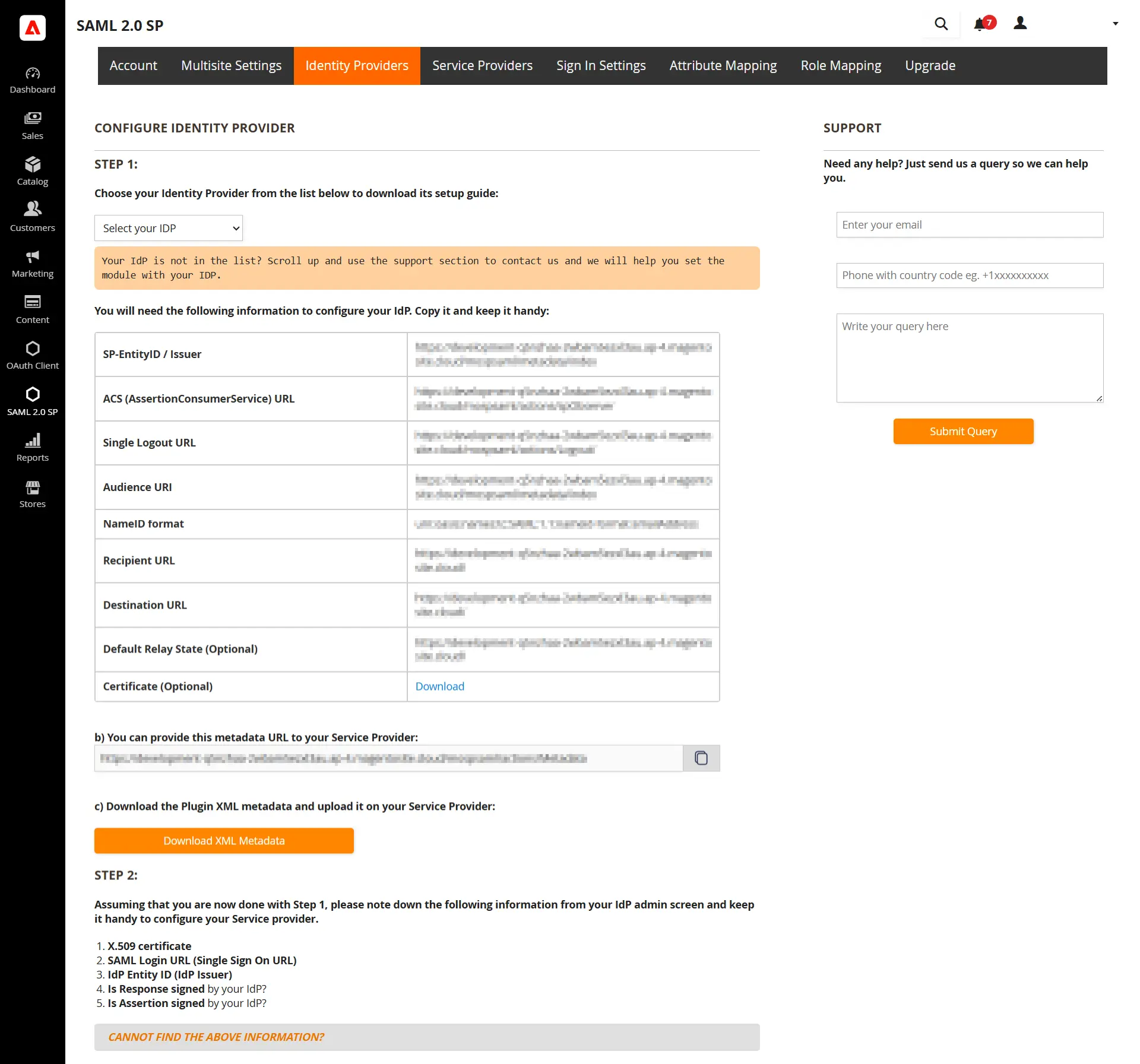

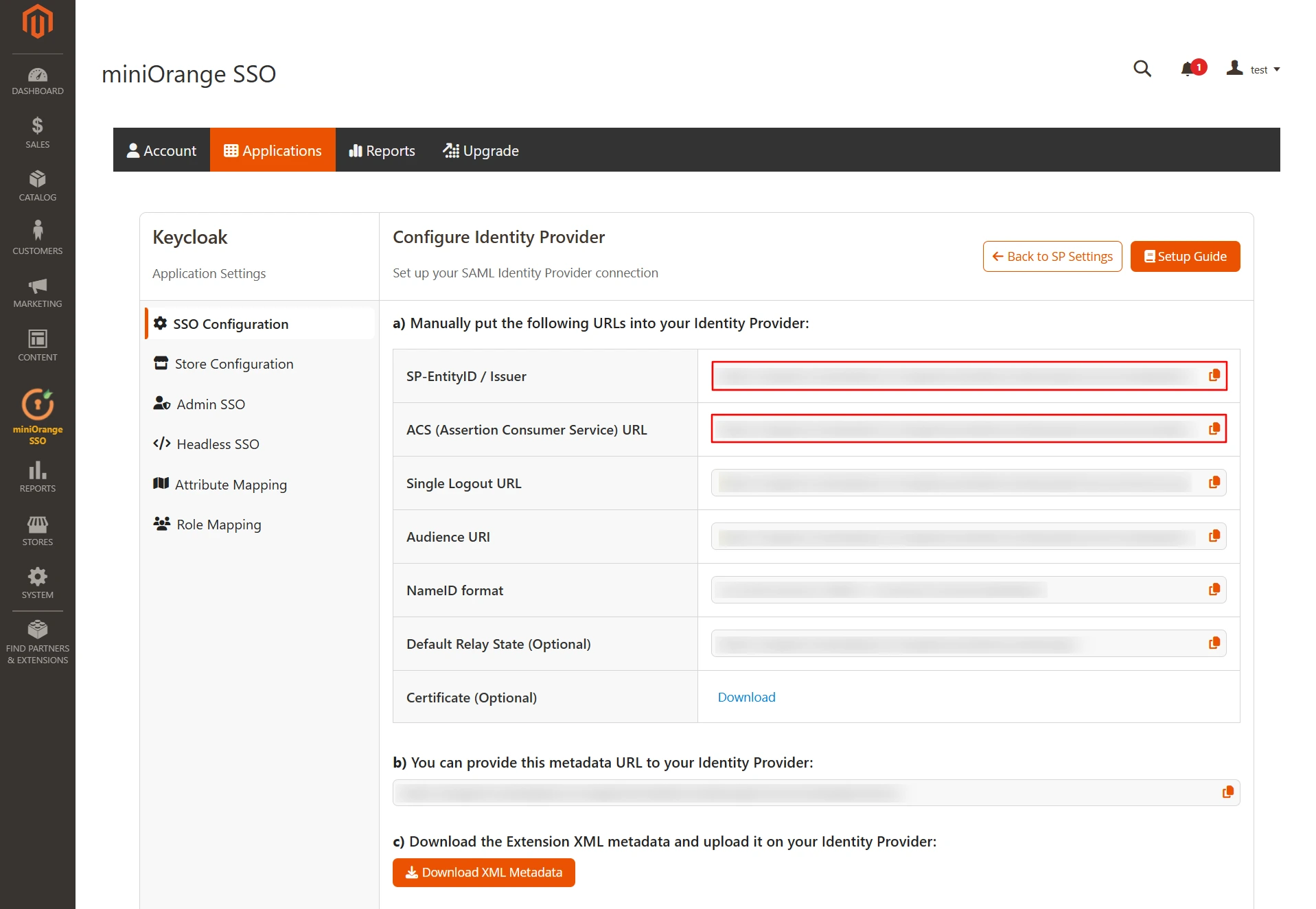

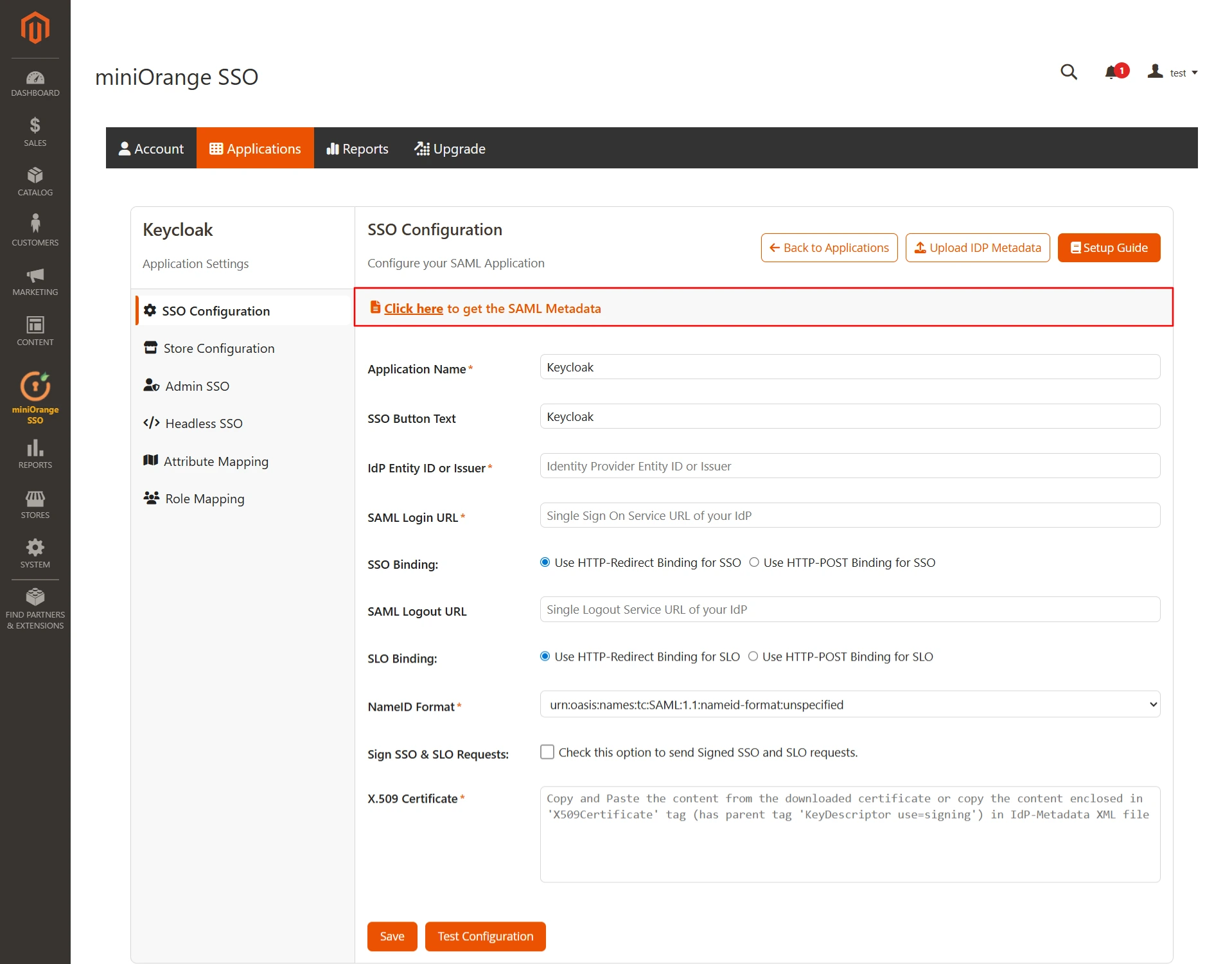

  • In the Magento SAML SP SSO plugin, navigate to Service Provider Metadata tab. In this tab you will find the SP metadata such as SP Entity ID and ACS (AssertionConsumerService) URL which are required to configure Keycloak as the Identity Provider.
    • Magento Keycloak SSO - Magento SSO - Keycloak SSO Login
  • In your Keycloak Admin console, select the realm that you want to use.
  • Click on Clients from the left menu and then click on Create button to create a new client/application.
    • Magento Keycloak Single Sign-On | Creating an APP | Keycloak SSO for Magento 2
  • Enter SP-EntityID / Issuer as the Client ID from the "Service Provider Metadata" Tab and select SAML as the Client Protocol.
    • Keycloak Magento SSO | Add Client
  • Now click on Save.
  • Configure Keycloak by providing the required details:
    • Client ID The SP-EntityID / Issuer from the plugin's Service Provider Metadata tab
    Name Provide a name for this client
    Description Provide a description
    Client Signature Required OFF
    Force POST Binding OFF
    Force Name ID Format OFF
    Name ID Format Email
    Root URL Leave empty or Provide Base URL from Service Provider Metadata tab
    Valid Redirect URIs The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Metadata tab
    Magento Keycloak Single Sign-On | Settings Magento Keycloak Login | Settings
  • Under Fine Grain SAML Endpoint Configuration, Enter the following details:
    • Assertion Consumer Service POST Binding URL The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Metadata tab
    Logout Service Redirect Binding URL (Optional) The Single Logout URL from the plugin's Service Provider Metadata tab
    Magento Keycloak Single Sign-On | SAML Endpoint Configuration
  • Click on Save.
  • In the Magento SAML SP SSO plugin, navigate to Service Provider Metadata tab. In this tab you will find the SP metadata such as SP Entity ID and ACS (AssertionConsumerService) URL which are required to configure Keycloak as the Identity Provider.
    • Magento Keycloak SSO - Magento SSO - Keycloak SSO Login
  • In your Keycloak Admin console, select the realm that you want to use.
  • Click on Clients from the left menu and then click on Create Client button to create a new client/application.
    • Keycloak Magento SSO | Creating an APP
  • Select SAML as Client type, Enter SP-EntityID / Issuer as the Client ID from the "Service Provider Metadata" Tab,Enter Name of your application and enter Description.
    • Keycloak Magento SSO | Add Client | Keycloak SSO for Magento 2
  • Now click on Save.
  • Configure Keycloak by providing the required details:
    • Client ID The SP-EntityID / Issuer from the plugin's Service Provider Metadata tab
    Name Provide a name for this client
    Description Provide a description
    Client Signature Required OFF
    Force POST Binding OFF
    Force Name ID Format OFF
    Name ID Format Email
    Root URL Leave empty or Provide Base URL from Service Provider Metadata tab
    Valid Redirect URIs The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Metadata tab
    Magento Keycloak Single Sign-On | Keycloak Login - Settings Keycloak Magento SSO | Keycloak Login - Settings Magento Keycloak Single Sign-On | Keycloak Login - Settings
  • Now click on Save.
  • In Advanced tab,under Fine Grain SAML Endpoint Configuration, Enter the following details:
    • Assertion Consumer Service POST Binding URL The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Metadata tab
    Logout Service Redirect Binding URL (Optional) The Single Logout URL from the plugin's Service Provider Metadata tab
    Magento Keycloak Login | Login SAML Endpoint Configuration
  • Click on Save.
  • In the Magento SAML SP SSO plugin, navigate to Service Provider Metadata tab. In this tab you will find the SP metadata such as SP Entity ID and ACS (AssertionConsumerService) URL which are required to configure Keycloak as the Identity Provider.
    • Magento Keycloak SSO - Magento SSO - Keycloak SSO Login
  • In your Keycloak Admin console, select the realm that you want to use.
  • Click on Clients from the left menu and then click on Create Client button to create a new client/application.
    • Keycloak Magento SSO | Creating an APP / Client | Keycloak SSO for Magento 2
  • Select SAML as Client type, Enter SP-EntityID / Issuer as the Client ID from the Service Provider Metadata tab, enter Name of your application and enter Description.
    • Keycloak Magento SSO | Add Client in Keycloak IDP
  • Click on the Next button.
  • Provide the details as mentioned below:
    • Root URL Leave empty or provide Base URL from Service Provider Metadata tab
    Valid Redirect URIs The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Metadata tab
  • Click on Save button.
    • Magento Keycloak Single Sign-On | Provide details in Keycloak IDP
  • In the Settings tab under SAML capabilities section, configure Keycloak by providing the required details:
    • Force POST Binding OFF
    Force Name ID Format OFF
    Name ID Format Email
    Keycloak Magento SSO | Keycloak Login - Settings tab configuration
  • In the Keys tab, disable the Client signature required toggle.
    • Keycloak Magento SSO | Disable Client signature required | Keycloak SSO for Magento 2
  • Click on the Save button.
  • In Advanced tab, under Fine Grain SAML Endpoint Configuration, enter the following details:
    • Assertion Consumer Service POST Binding URL The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Metadata tab
    Logout Service Redirect Binding URL (Optional) The Single Logout URL from the plugin's Service Provider Metadata tab
    Keycloak Magento SSO | Advanced tab configuration
  • Click on Save button.

miniorange img  Add Mappers

  • Navigate to Mappers tab and click on Add Builtin button.
    • Keycloak Magento SSO | Mappers Tab | Keycloak SSO for Magento 2
  • Select the checkboxes of X500 givenName, X500 surname and X500 email attributes.
    • Magento Keycloak Login | Add built-in protocol mapper
  • Click on Add Selected button. You will see the mappings that are added below.
    • Magento Keycloak Single Sign-On | Add Selected
  • In Client scopes tab,click on your application.
    • Keycloak Magento SSO | click on application
  • Click on Add predefined mapper. Magento Keycloak Single Sign-On | Add predefined mapper | Keycloak SSO for Magento 2
  • Select the checkboxes of X500 givenName, X500 surname and X500 email attributes.
    • Keycloak Magento SSO | select checkboxes
  • Click on Add button.
  • You will see the mappings that are added below.
    • Magento Keycloak Single Sign-On | mappings
  • In the Client scopes tab, click on your application.
    • Keycloak Magento SSO | Client scopes
  • Click on Add predefined mapper.
    • Keycloak Magento SSO | Add predefined mapper
  • Select the checkboxes of X500 givenName, X500 surname and X500 email attributes.
    • Keycloak Magento SSO | Select the checkboxes
  • Click on the Add button.
  • You will see the mappings that are added below.
    • Keycloak Magento SSO | See the mappings

miniorange img Download setup file

  • Navigate to Realm Settings, click on SAML 2.0 Identity Provider Metadata mentioned as Endpoints in the General Tab.
    • Keycloak Magento SSO | configure Settings
  • Note the URL and keep it handy. That will provide you with the Endpoints required to configure the plugin.

    • You have successfully configured Keycloak as SAML IdP ( Identity Provider) for achieving Magento Keycloak SSO, ensuring secure Login into Magento (WP) Site.

  • Navigate to Realm Settings, click on SAML 2.0 Identity Provider Metadata mentioned as Endpoints in the General Tab.
    • Magento Keycloak SSO Login | configure settings
  • Note the URL and keep it handy. That will provide you with the Endpoints required to configure the plugin.

    • You have successfully configured Keycloak as SAML IdP ( Identity Provider) for achieving Keycloak login / Keycloak SSO / Keycloak Single Sign-On (SSO), ensuring secure Login into Magento 2 Site.

  • Navigate to Realm Settings, click on SAML 2.0 Identity Provider Metadata mentioned as Endpoints in the General tab.
    • Magento Keycloak Login | Realm settings endpoints
  • Note the URL and keep it handy. That will provide you with the Endpoints required to configure the plugin.

    • You have successfully configured Keycloak as SAML IdP ( Identity Provider) for achieving Keycloak login / Keycloak SSO / Keycloak Single Sign-On (SSO), ensuring secure Login into Magento 2 Site.

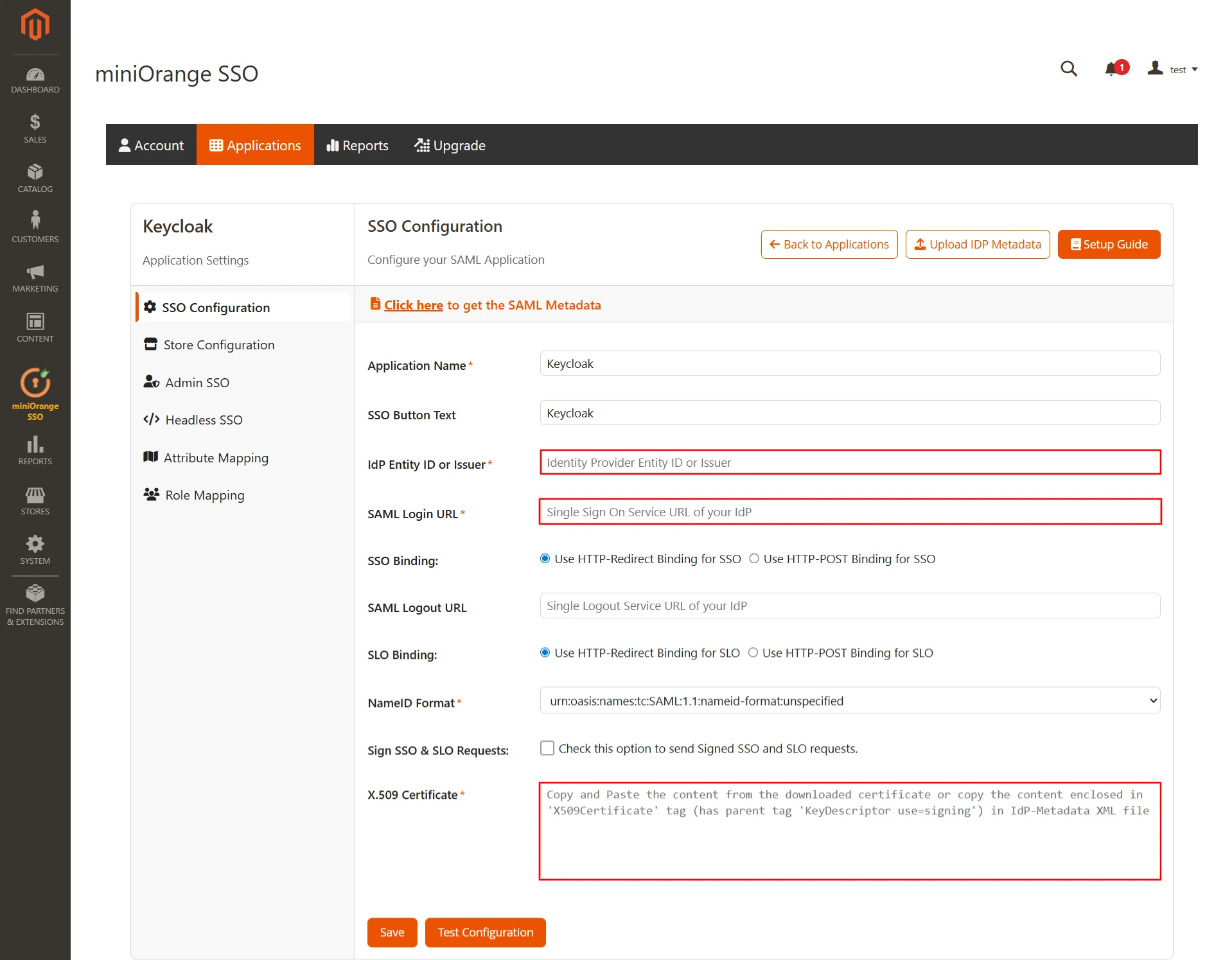

2. Configure Magento as SP (Service Provider)

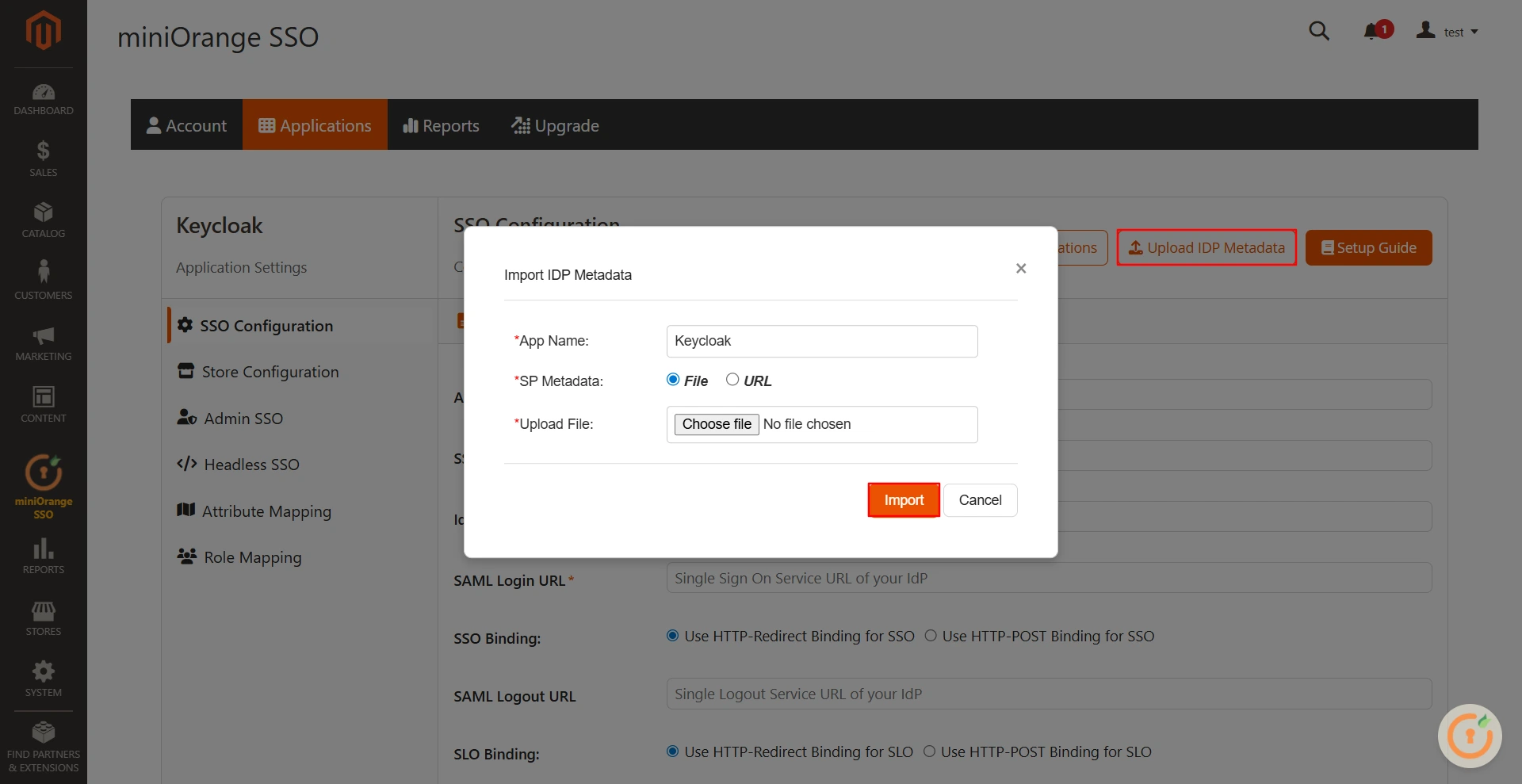

  • Copy SAML Entity ID, SAML Single-Sign-On Endpoint URL and x.509 certificate from Federation Metadata document and paste it in IdP Entity ID or Issuer, Single Sign-on Service URL, x.509 Certificate fields respectively in the plugin.
    • IdP Entity ID or Issuer SAML Entity ID in the Federation Metadata document
    Single Sign-On Service URL SAML Single-Sign-On Endpoint URL in the Federation Metadata document
    X.509 Certificate x.509 Certificate in the Federation Metadata document
  • Click on Save button to save all your settings.
    • Azure AD Magento SSO - Azure Single Sign-On(SSO) Login in Magento - federation metadata
  • To check if your Magento as SP is configured correctly, click the Test Configuration button.
    • Azure AD Magento SSO - Azure Single Sign-On(SSO) Login in Magento - federation metadata

3. Sign-In Settings

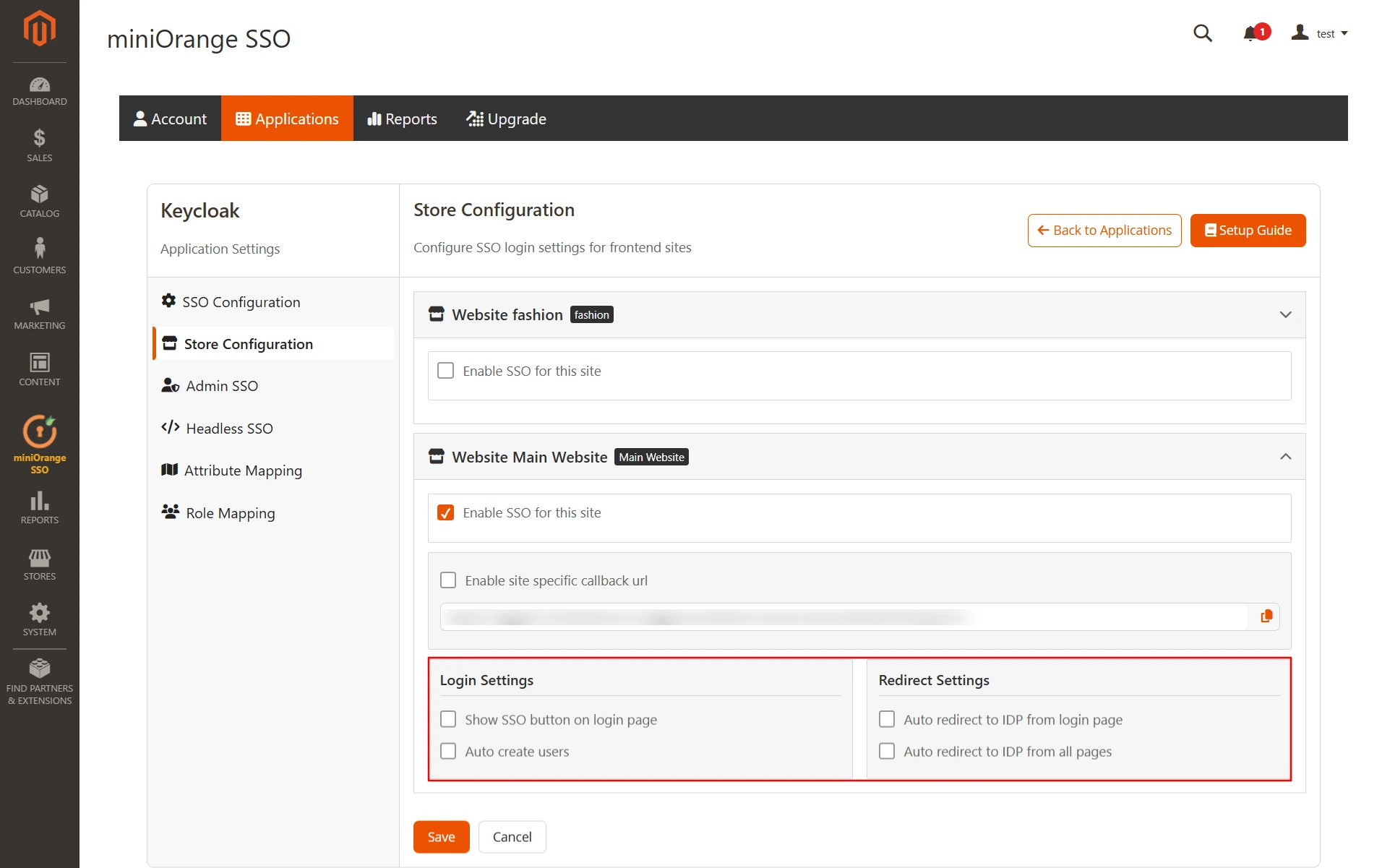

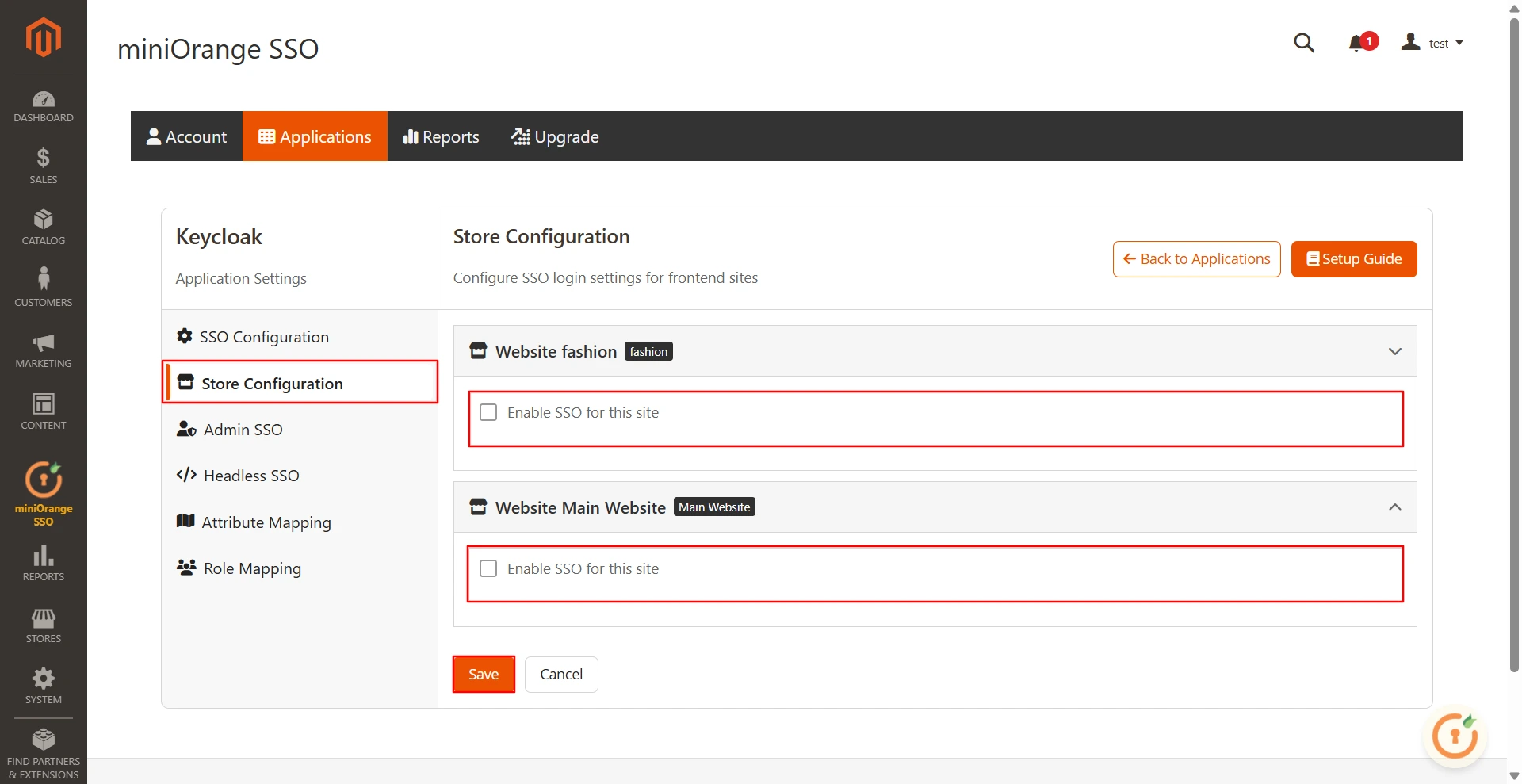

  • Navigate to Sign-in Settings tab. Here you find the option the enable the login link on Admin*/Customer Login Page (*Admin SSO is available in the premium versions)
    • Magento 2 SSO Azure AD Single Sign-on (SSO) Admin Customer SSO
  • If you want to initate SSO from any page you can also use the SSO link provided in the extension.
    • Magento SSO using SSO link Magento 2 SSO Azure AD
  • The Premium extension also provides you the the feature to auto redirect your user to the IdP Login Page if the user is not already logged in.
    • Magento 2 OAuth auto redirect to idp

4. Customer / Admin SSO

  • Customer Single Sign-On (Customer SSO)
  • Admin Single Sign-On (Admin SSO)


  • Go to customer login page and you will see the SSO button on your frontend. Click on the button and test the SSO.
    • Magento 2 OAuth SSO customer SSO
  • You will be sucessfully logged in into Magento.
    • magento SSO magento 2 OAuth client SSO Admin SSO

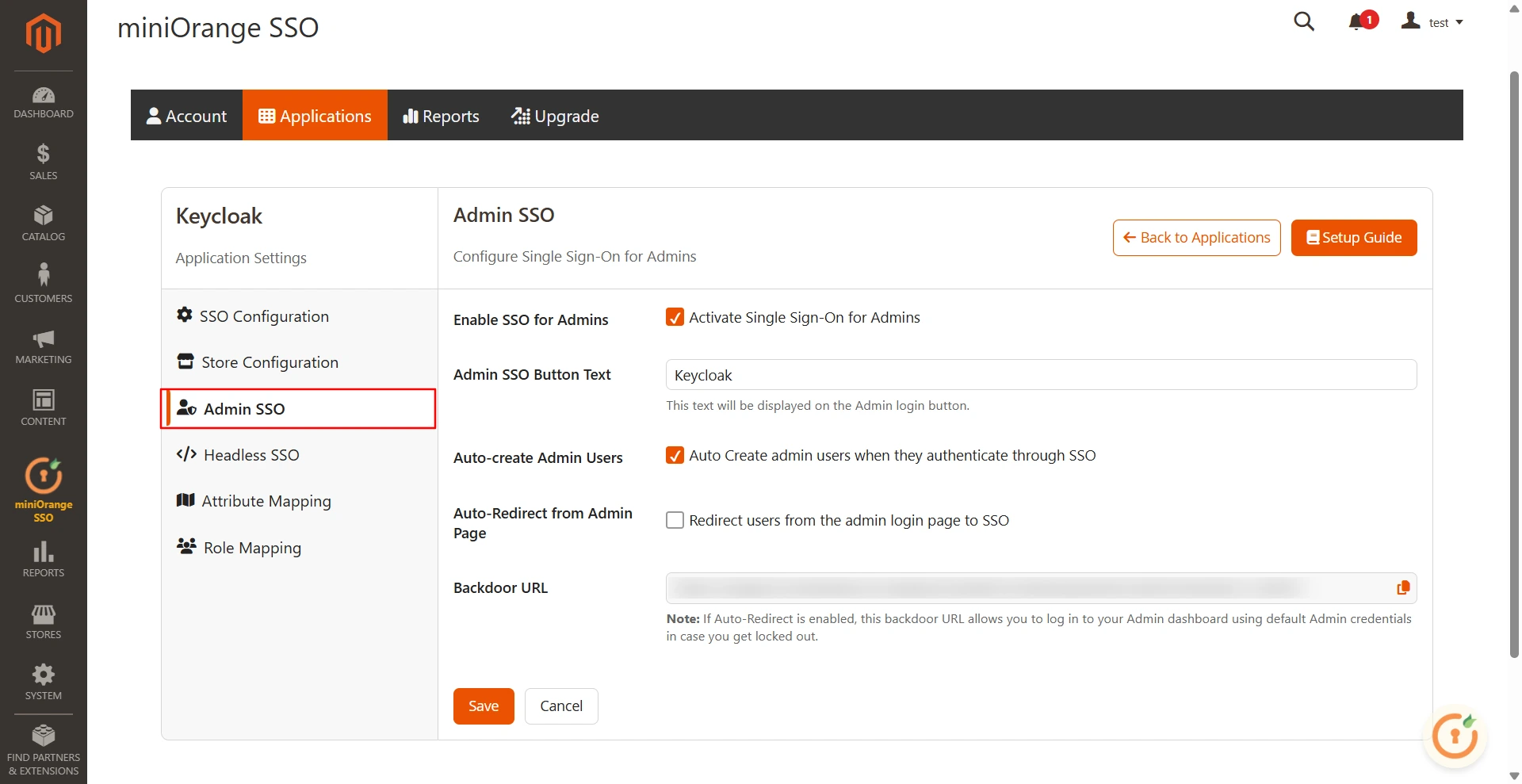

  • Visit your admin login page and you will see the SSO button on your admin page. Click on the button to initate SSO as an admin.
    • Magento 2 Admin SSO login button
  • After sucessfully logged into magento as admin you will be redirect to magento backend dashboard.
    • Magento 2 Admin SSO admin dashboard

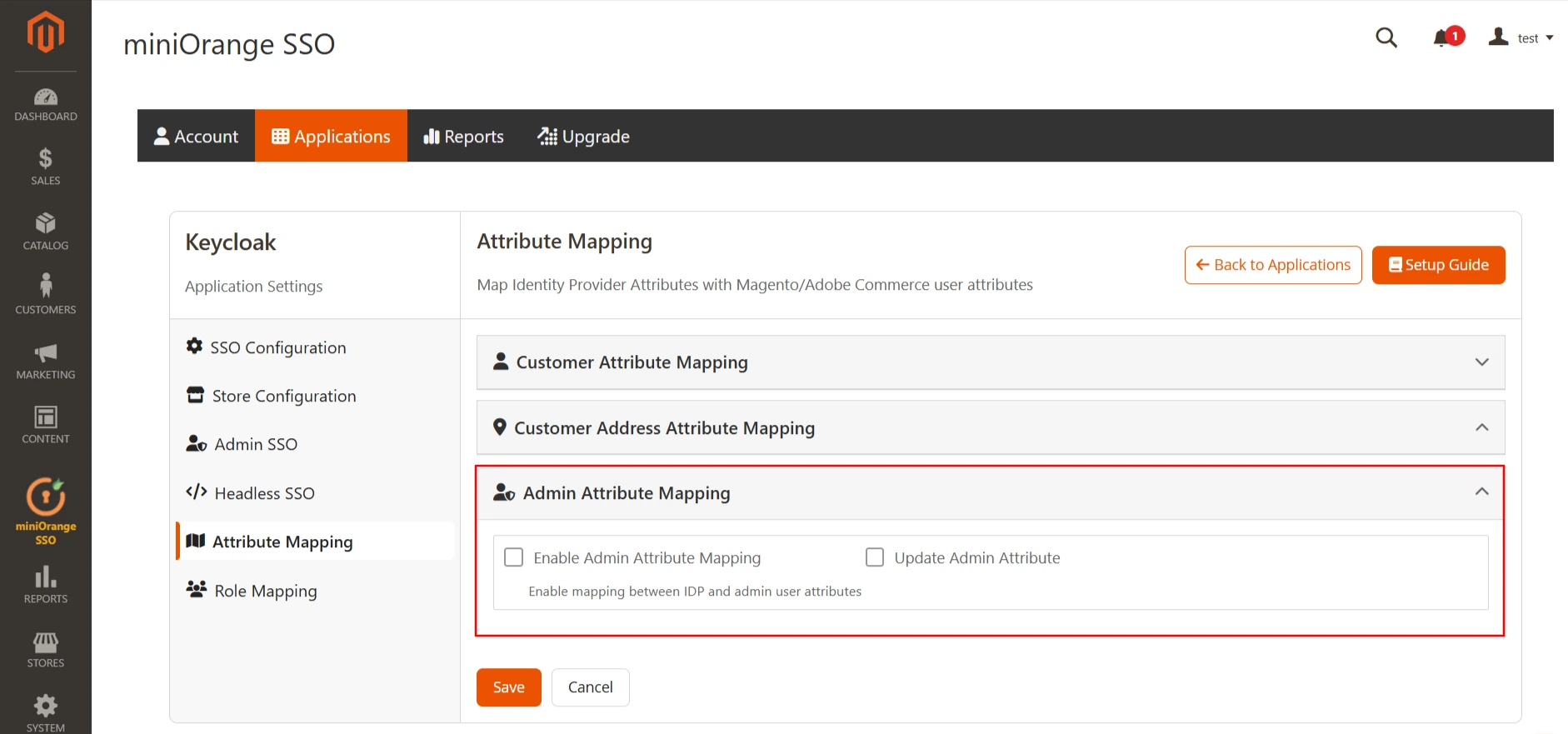

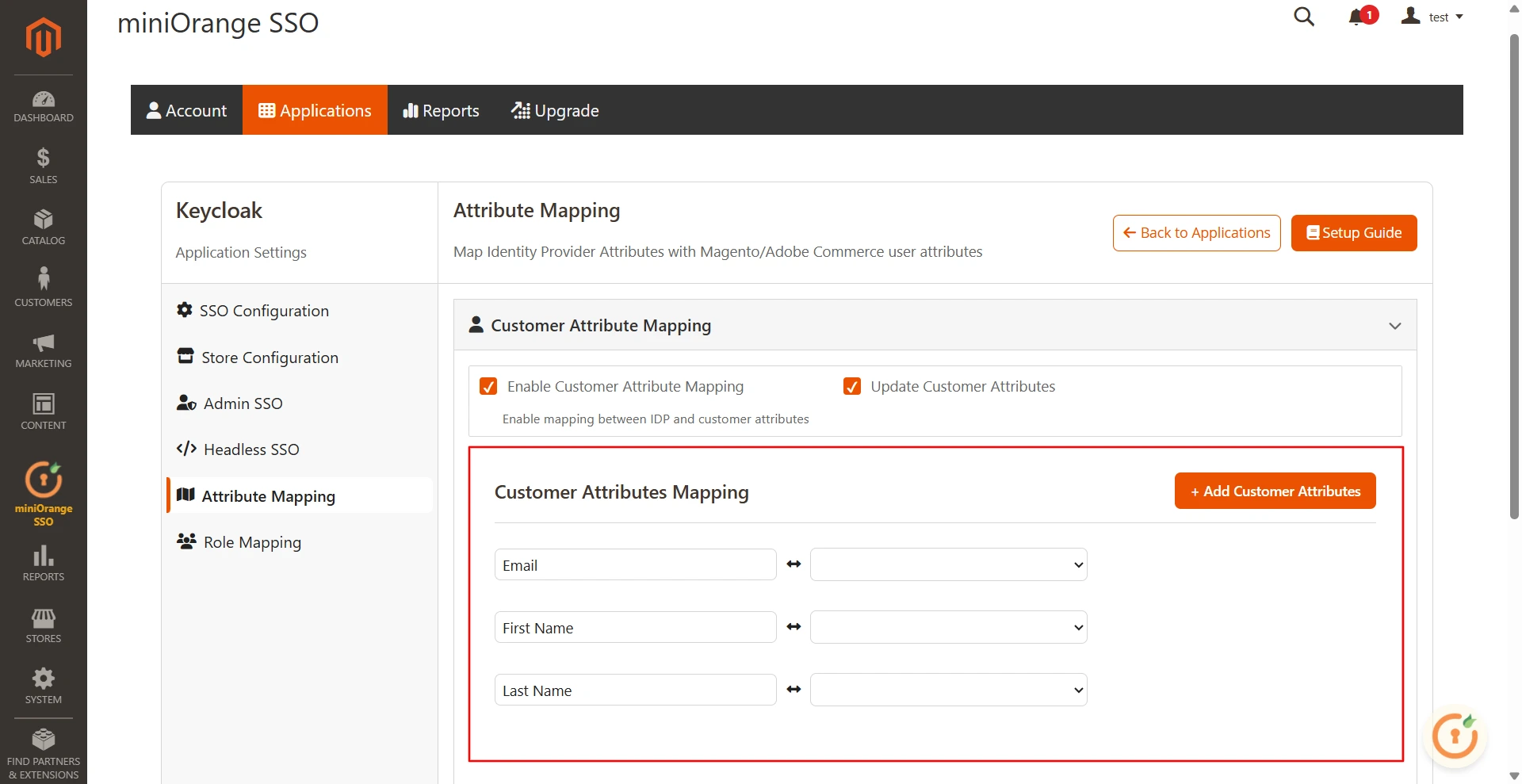

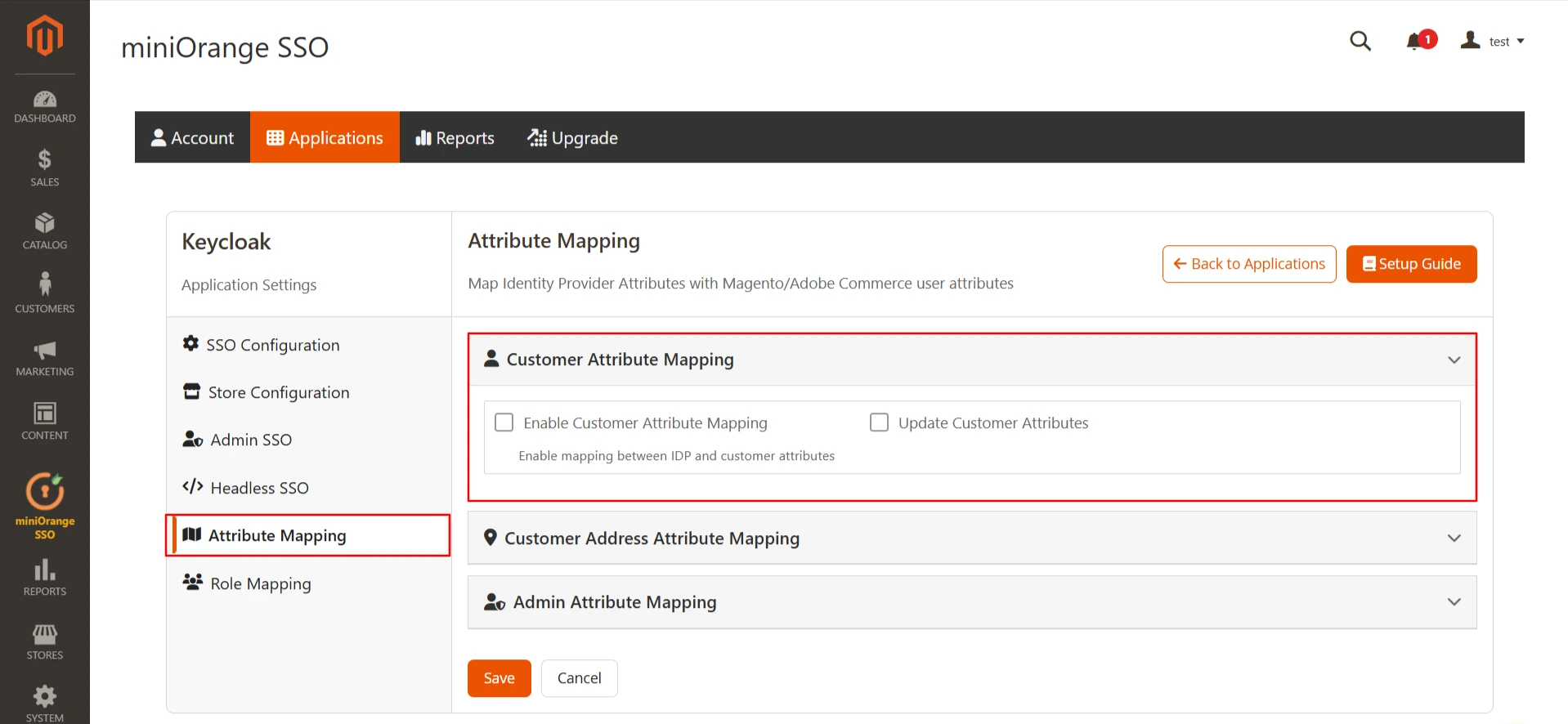

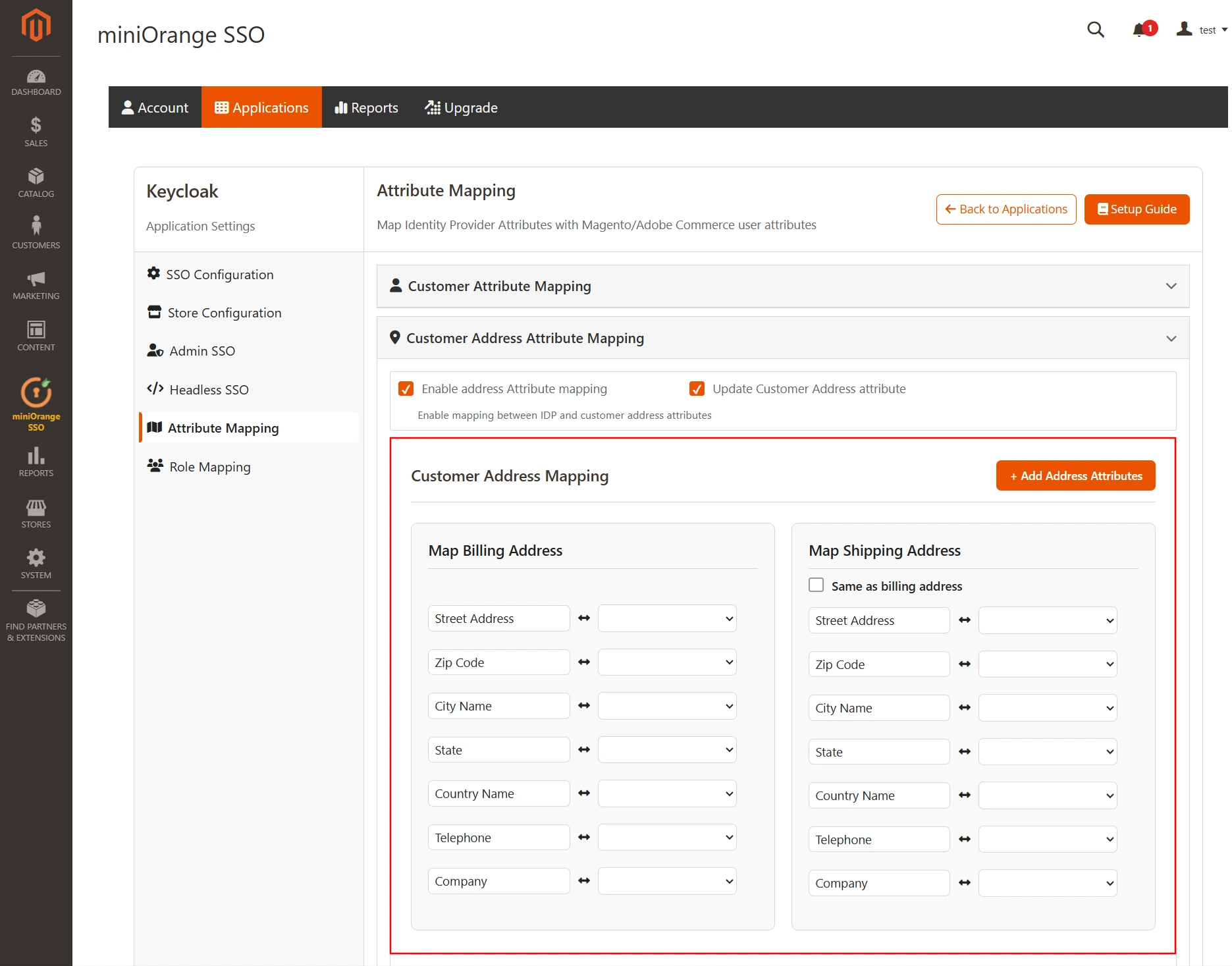

Attribute Mapping / Custom Attribute Mapping(Optional). *This is Premium feature.

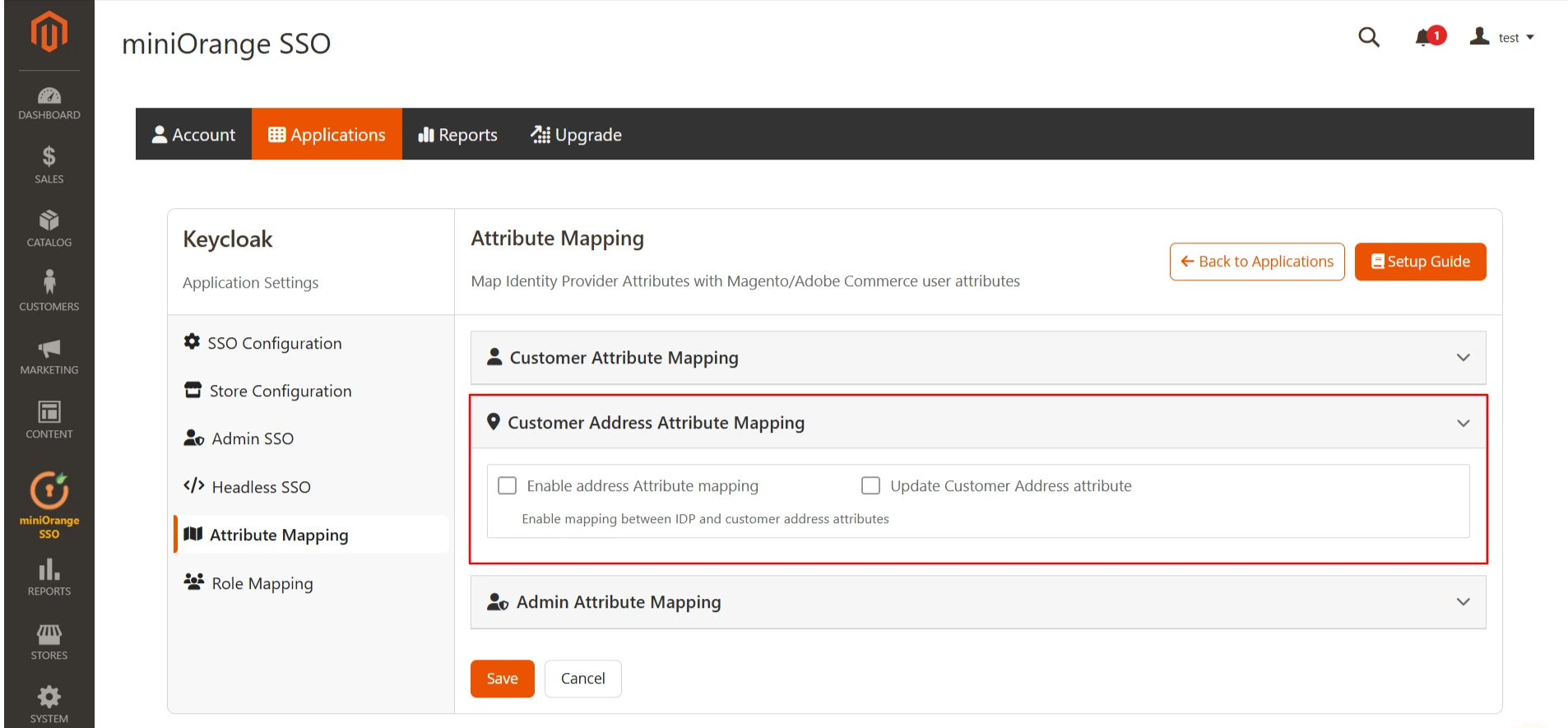

1.1: Attribute Mapping (Optional).

  • Attributes are user details that are stored in your Identity Provider.
  • Attribute Mapping helps you to get user attributes from your Identity Provider (IdP) and map them to Magento user attributes like firstname, lastname etc.
  • While auto registering the users in your Magento site these attributes will automatically get mapped to your Magento user details.
  • Only NameID can be mapped to Magento's Email and Username characteristics with the free plugin. Multiple user attributes from the IdP, on the other hand, can be mapped to Magento attributes in the premium version of the plugin. You can map custom attributes that you've added to your IdP in addition to the default attributes.
  • When a user performs SSO, the NameID value sent by the IdP will get mapped to the email and the username of the Magento user.
    • Azure AD Magento SSO - Azure Single Sign-On(SSO) Login in Magento - attribute mapping
    Username: Name of the username attribute from IdP (Keep NameID by default)
    Email: Name of the email attribute from IdP (Keep NameID by default)
    Group/Role: Name of the Role attribute from Identity Provider (IdP)
  • You can check the Test Configuration Results under Service Provider Setup tab to get a better idea of which values to map here.

1.2: Custom Attribute Mapping (Optional). *This is Premium feature.

  • Enter your table name in Table field.
  • Enter attribute name as your column name (in the respective table)
  • Click on Add button for adding custom magento attribute and map the respective field with the attribute receiving from your identity provider
  • Click on save button for saving the configuration.
  • You can also delete the configuration by entering the name in attribute name field and then click on delete button.
    • Magento 2 SAML SSO custom attribute mapping

Role Mapping (Optional). *This is Premium feature.

  • You can specify a default role in the free plugin that will be allocated to all non-admin users when they conduct SSO.
  • Go to Attribute/Role mapping tab and navigate to Role Mapping section.
  • Select the Default Role and click on the Save button.
    • Azure AD Magento SSO - Azure Single Sign-On(SSO) Login in Magento - role mapping

In this Guide, you have successfully configured Keycloak SAML Single Sign-On (Keycloak SSO Login) choosing Keycloak as IdP and Magento as SP using Magento SAML Sigle Sign-On (SSO) Login plugin .This solution ensures that you are ready to roll out secure access to your Magento site using Keycloak login credentials within minutes.


Additional Resources


Why Our Customers choose miniOrange Magento Single Sign-On (SSO) Solutions?


24/7 Support

We offer 24/7 support for all Magento solutions. We ensure high quality support to meet your needs.

Sign Up

Customer Reviews

See for yourself what satisfied customers have to say about our reliable Magento solutions.

Reviews

Extensive Setup Guides

Easy and precise step-by-step instructions and videos to help you configure within minutes.

Watch Demo


We offer Secure Identity Solutions for Single Sign-On, Two Factor Authentication, Provisioning, and much more. Please contact us at

 +1 978 658 9387 (US) | +91 97178 45846 (India)   magentosupport@xecurify.com

[MO_CONTACT_US]
Hello there!

Need Help? We are right here!
support
Contact miniOrange Support
success

Thanks for your inquiry.

If you dont hear from us within 24 hours, please feel free to send a follow up email to info@xecurify.com
