nopCommerce OAuth Single Sign-On (SSO) with Office365 as OAuth Provider

Overview

nopCommerce OAuth Single Sign-On (SSO) plugin gives the ability to enable OAuth Single Sign-On for your nopCommerce store or site using Office365 as the OAuth Provider. Using Single Sign-On you can use only one password to access your nopCommerce store or site and services. Our module is compatible with all the OAuth-compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between nopCommerce and Office365.

Pre-requisites : Download And Installation

• Download the nopCommerce OAuth Single Sign-On (SSO) module.

• To install the plugin, login as admin into your nopCommerce site or store. In the admin dashboard, navigate to Configuration Tab >> Local plugins.

• On the top right corner of the page select the Upload plugin or theme button to upload the downloaded plugin zip. Follow the instructions further to install the plugin.

Steps to configure nopCommerce OAuth Single Sign-On (SSO) using Office365 as Identity Provider

1. Configure Office365 as IDP

• Sign in to Azure portal

• Click on App Services and go to Manage Azure Active Directory.

• In the left-hand navigation pane, click the App registrations service, and click New registration.

• When the Create page appears, enter your application's registration information.(Refer to the below table)

Name :	Name of your application.
Application type :	Select "Web app / API" for client applications and resource/API applications that are installed on a secure server. This setting is used for OAuth confidential web clients and public user-agent-based clients. The same application can also expose both a client and resource/API.
Sign-on URL :	For "Web app / API" applications, provide the base URL of your app. eg, https://<domain-name> might be the URL for a web app running on your local machine. Users would use this URL to sign in to a web client application.

• When finished, click Register.

• A unique Application ID is assigned to your application by Azure AD. Keep the Application ID and the Directory ID handy, they will become your Client ID and Tenant ID, which will be needed later to configure the miniOrange nopCommerce OAuth plugin.

• Go to API permissions from the left navigaton pane and click on Add permissions. Then select Office 365.

• Select permissions and click on Add Permissions button.

• Go to Certificates and Secrets from the left navigaton pane and click on New Client Secret. Enter description and expiration time and click on ADD option.

• Copy the secret key "value" and keep the value handy it will be required later to configure Client Secret under the miniOrange nopCommerce OAuth Plugin.

You have successfully configured Office365 as OAuth Server (identity provider) for achieving SSO login into your nopCommerce application.

2. Configure nopCommerce as SP

• For configuring application in the plugin, click on the Add New IDP button in the Identity Provider Settings tab.

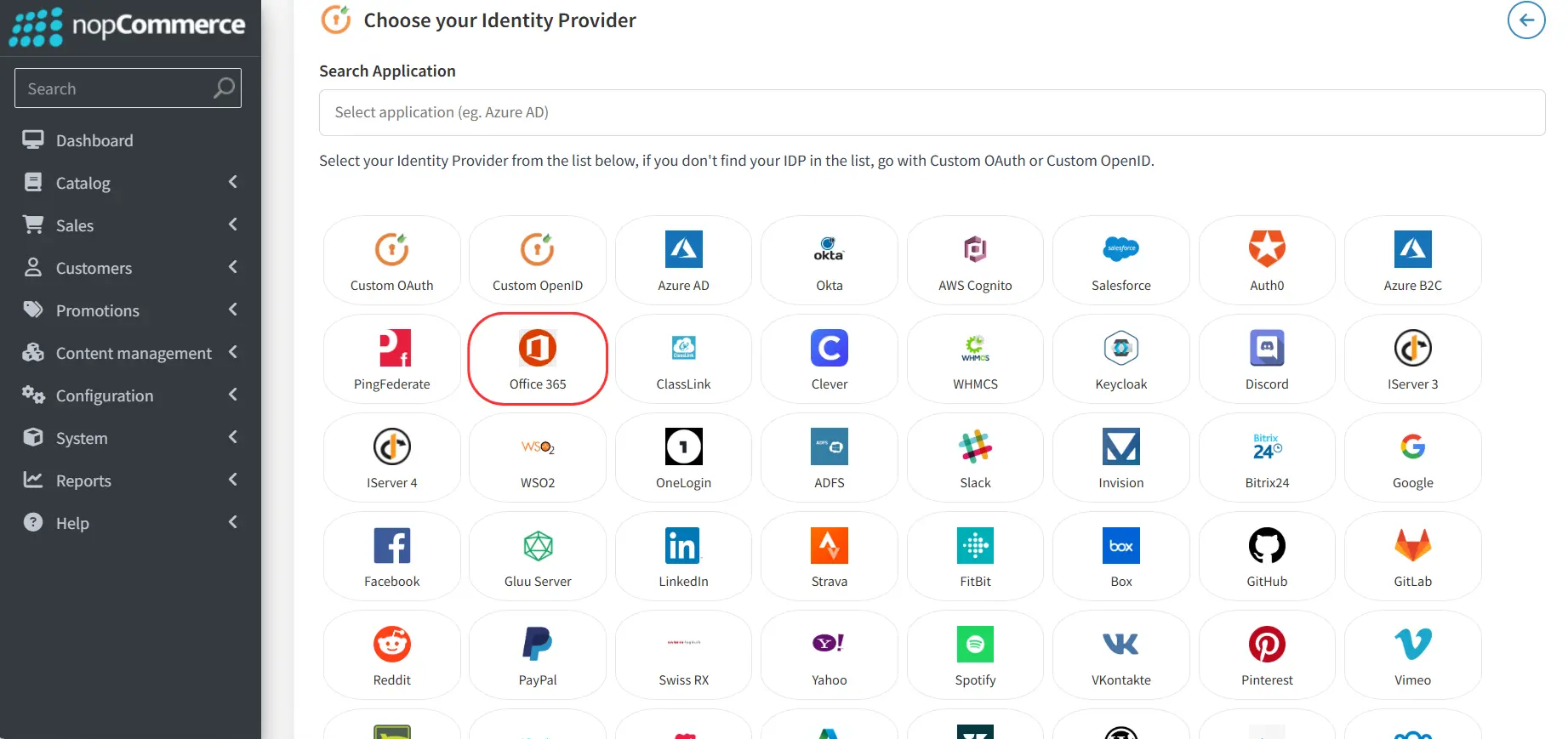

• Under the Configure OAuth/OIDC tab, select Office365 from the list of identity providers shown below

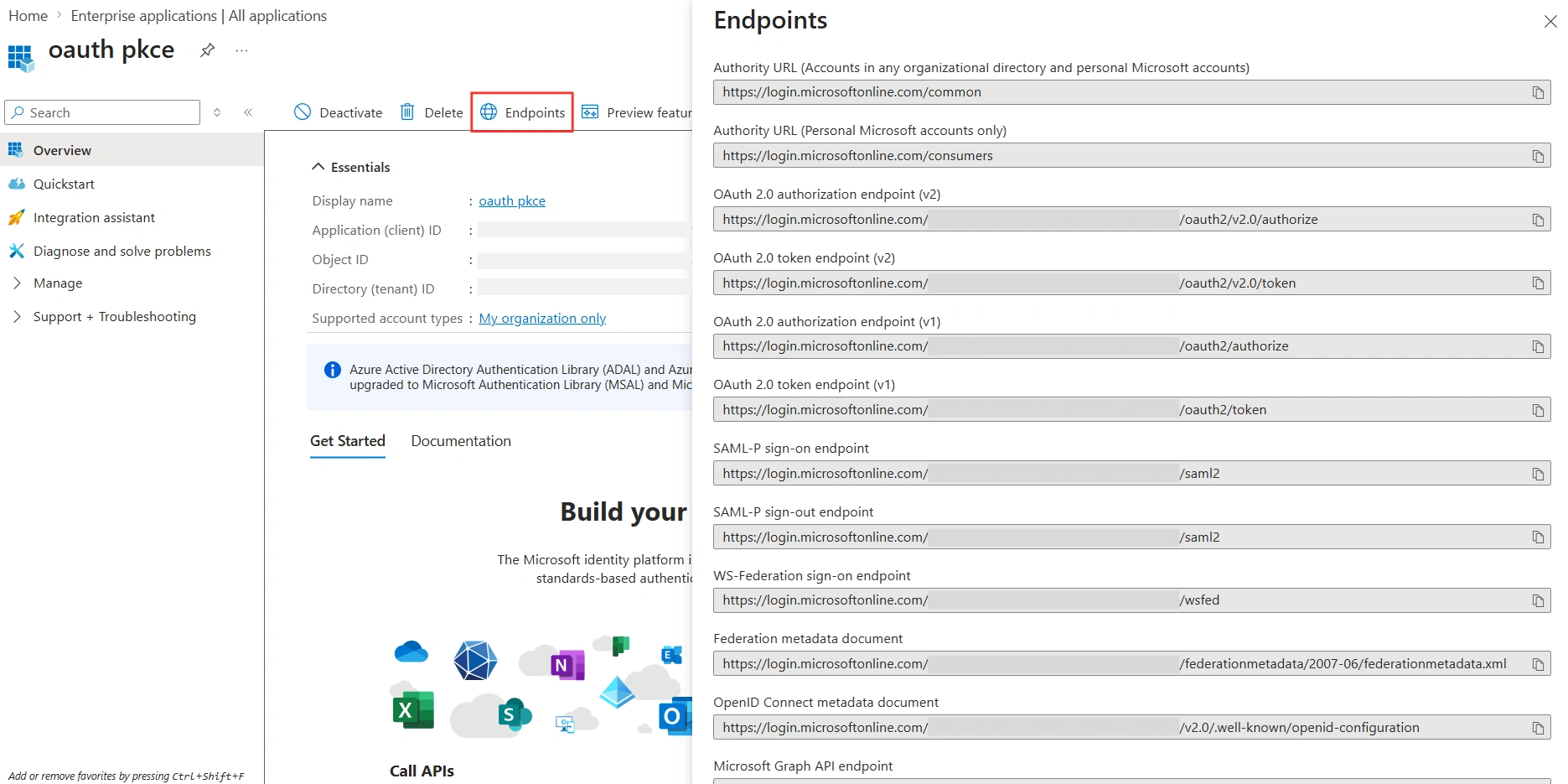

• When you are done configuring your identity provider, you will get client ID, client secret and all required authentication endpoints.

• Copy the Redirect/Callback URL from the plugin and provide it to your identity provider to configure it on their side.

• Fill the rest acquired details into the corresponding fields shown below and click on Save.

• Note: Please make sure the Enable SSO checkbox is ticked.

3. Testing OAuth SSO

• Click on Test Configuration to verify if you have configured the plugin correctly.

• Under the select actions click on the Test Configuration button to verify if you have configured the plugin correctly.

• On successful configuration, you will get attributes name and attribute values in the test configuration window.

4. Attribute Mapping

• Under Attribute/Role Mapping tab, map the attribute names provided by your identity provider with your nopcommerce store attributes.

• Click on Save button.

5. Adding SSO link for your nopCommerce store

• Click on Select Actions, and from the dropdown, select SSO Link to copy the SSO Link.

You can even configure the Umbraco SAML Single Sign-On (SSO) module with any identity provider such as ADFS, Azure AD, Bitium, centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. To check other identity providers, click here.
