nopCommerce OAuth Single Sign-On (SSO) using Google as OAuth Provider


nopCommerce OAuth Single Sign-On (SSO) module gives the ability to enable OAuth Single Sign-On for your nopCommerce store or site. Using Single Sign-On you can use only one password to access your nopCommerce store or site and services. Our module is compatible with all the OAuth-compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between nopCommerce and Google considering Google as OAuth Provider.

Pre-requisites: Download and Installation

  • Contact us for the nopCommerce OAuth Single Sign-On (SSO) module.
  • To install the plugin, login as admin into your nopCommerce site or store. In the admin dashboard, navigate to Configuration Tab >> Local plugins.
  • On the top right corner of the page select the Upload plugin or theme button to upload the downloaded plugin zip. Follow the instructions further to install the plugin.

Steps to configure nopCommerce OAuth Single Sign-On (SSO) using Google as Identity Provider

1. Configure Google as IDP

  • Go to https://console.developers.google.com/ and sign up/login.
  • Click on Select Project to create a new Google Apps Project,you will see a popup with the list of all your projects.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Select Project
  • You can click on the New project button to create new project.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Click on new project
  • Enter your Project name under the Project Name field and click on Create.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Create project
  • Go to Navigation MenuAPIsServicesCredentials.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - go to credentials
  • Click on Create Credentials button and then select OAuth Client ID from the options provided.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - client credentials
  • In case you are facing some warning saying that in order to create an OAuth Client ID, you must set a product name on consent screen (as shown in below image). Click on the Configure consent screen button.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - configure consent screen of google OAuth for nopCommerce
  • Choose how you want to configure and register your app and click on create button.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Configure Google OAuth consent screen
  • Enter the required details such as App Name, User Support Email. and click on Save and Continue button.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Enter App Information nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Enter details and save
  • Now for configuring scopes, click on Add or Remove the Scopes button.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Add or remove google scopes
  • Now, Select the Scopes to allow your project to access specific types of private user data from their Google Account and click on Update button.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Google Scopes
  • Go to the Credentials tab and click on Create Credentials button. Select Web Application from dropdown list to create new application.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Select Web Application
  • Enter the name you want for your Client ID under the name field and enter the Redirect/Callback URI from miniOrange nopCommerce OAuth module under the Authorized redirect URIs field and click on Create button.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - create oauth client id
  • You will see a popup with the Client ID and Client Secret Copy your Client ID and Client Secret and save it on your miniOrange nopCommerce OAuth plugin configuration.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - client id client secret

You have successfully configured Google as OAuth Server (identity provider) for achieving SSO login into your nopCommerce application.

2. Configure nopCommerce as SP

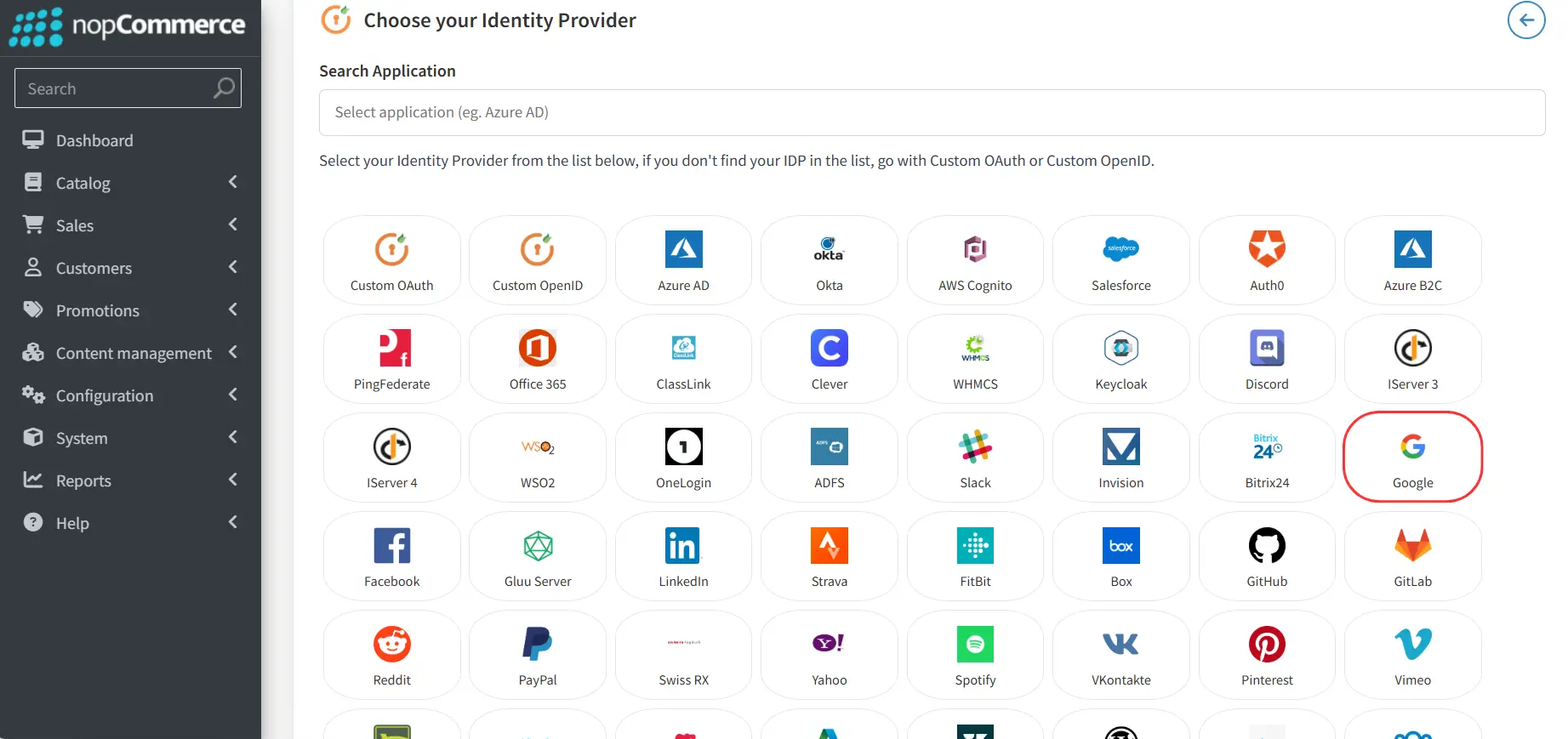

  • Under the Configure OAuth/OIDC tab, select Google from the list of identity providers shown below
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - SAML-compliant identity providers list
  • When you are done configuring your identity provider, you will get client ID, client secret and all required authentication endpoints.
  • Copy the Redirect/Callback URL from the plugin and provide it to your identity provider to configure it on their side.
  • Fill the rest acquired details into the corresponding fields shown below:
  • Click on Save.
  • Note: Please make sure the Enable SSO checkbox is ticked.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Fill in identity provider's endpoints

3. Testing OAuth SSO

  • Click on Test Configuration to verify if you have configured the plugin correctly.
  • On successful configuration, you will get attributes name and attribute values in the test configuration window.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Testing OAuth SSO test configuration

4. Attribute Mapping

  • Under Attribute/Role Mapping tab, map the attribute names provided by your identity provider with your nopcommerce store attributes.
  • Click on Save button.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Attribute Mapping

5. Adding SSO link for your nopCommerce store

  • Under the Redirection & SSO Link tab, use the URL labelled as Your Store SSO Link in your store to initiate the SSO.
  • nopCommerce OAuth Single Sign-On (SSO) using Google as IDP - Attribute Mapping

You can even configure the Umbraco SAML Single Sign-On (SSO) module with any identity provider such as ADFS, Azure AD, Bitium, Centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. To check other identity providers, click here.
