nopCommerce SAML Single Sign-On (SSO) with WordPress as IDP


nopCommerce SAML Single Sign-On (SSO) plugin gives the ability to enable SAML Single Sign-On for your nopCommerce applications. Using Single Sign-On you can use only one password to access your nopCommerce application and services. Our plugin is compatible with all the SAML compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between nopCommerce and WordPress considering WordPress as IdP. To know more about the features we provide for nopCommerce SSO, click here.

Pre-requisites : Download And Installation

    Download from nopCommerce Dashboard
  • To download the plugin zip, login as admin into your nopCommerce store. In the admin dashboard, go to Configuration Tab > All Plugins and Themes or search for All Plugins and Themes in the Admin search bar.
  • Search for the SAML Single Sign-On (SSO) - miniOrange plugin and click the Download button to get the zip.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - install plugin
    From nopCommerce marketplace
  • You can download the plugin zip file from nopCommerce store - nopCommerce SAML Single Sign-On (SSO)
  • To install the plugin, login as admin into your nopCommerce website. In the admin dashboard, go to Configuration Tab >> Local plugins.
  • On the top right corner of the page select the Upload plugin or theme button to upload the downloaded plugin zip. Follow the instructions further to install the plugin.

Steps to configure nopCommerce Single Sign-On (SSO) using WordPress as Identity Provider.

1. Configure WordPress as IDP

  • You need to send your SP metadata to identity provider, WordPress. For SP metadata, use the SP metadata URL or download the SP metadata as a .xml file and upload it at your IdP end. You can find both these options under the Service Provider Metadata tab.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - SP metadata
  • Alternatively, you can manually add the SP Entity ID and ACS URL from Service Provider metadata tab in the plugin to your IdP configurations.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - SP table
  • Navigate to the WordPress site.
  • Install and activate the SAML & WSFED IDP ( SSO using WordPress Users ) plugin on your WordPress site which is acting as Identity Provider.
  • Go to the WordPress IDP plugin, navigate to the Service Provider tab.
  • Enter the values corresponding to the information from the Service Provider. Refer to the table below.
  • Service Provider Name Name of your Service Provider.
    SP Entity ID or Issuer Copy and paste the SP-EntityID from the Service Provider
    ACS URL Copy and paste the ACS URL from the Service Provider.
    NameID Format urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
    Assertion Signed Checked
    nopCommerce Single Sign-On (SSO) using WordPress as IDP - Configure setting
  • Click on the Save button to save your configurations.
  • Go to the IDP Metadata tab. Here you can find information for configuring the Service Provider.
  • You can also download the metadata XML file, by clicking on the download link.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - download metadata

You have successfully configured WordPress as identity provider.

2. Configure nopCommerce as SP (SSO Plugin)

Note: After installation of the plugin, we need to setup the trust between your nopCommerce application and your WordPress account. SAML metadata is shared with WordPress so they can update their inbuilt configuration to support Single Sign-On.

2.1: Share SP SAML metadata with WordPress

  • Click on Add New IDP to configure nopCommerce Single Sign-On (SSO) using WordPress as IDP.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - Add new IDP
  • Under Service Provider Metadata tab, you can either copy-paste the metadata URL on your IDP side or download the SP metadata as an XML file. Additionally, you have the choice to manually copy and paste Base URL, SP Entity ID, and ACS URL.
  • Share SAML metadata with WordPress.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - nopCommerce SP metadata

2.2: Import WordPress SAML metadata

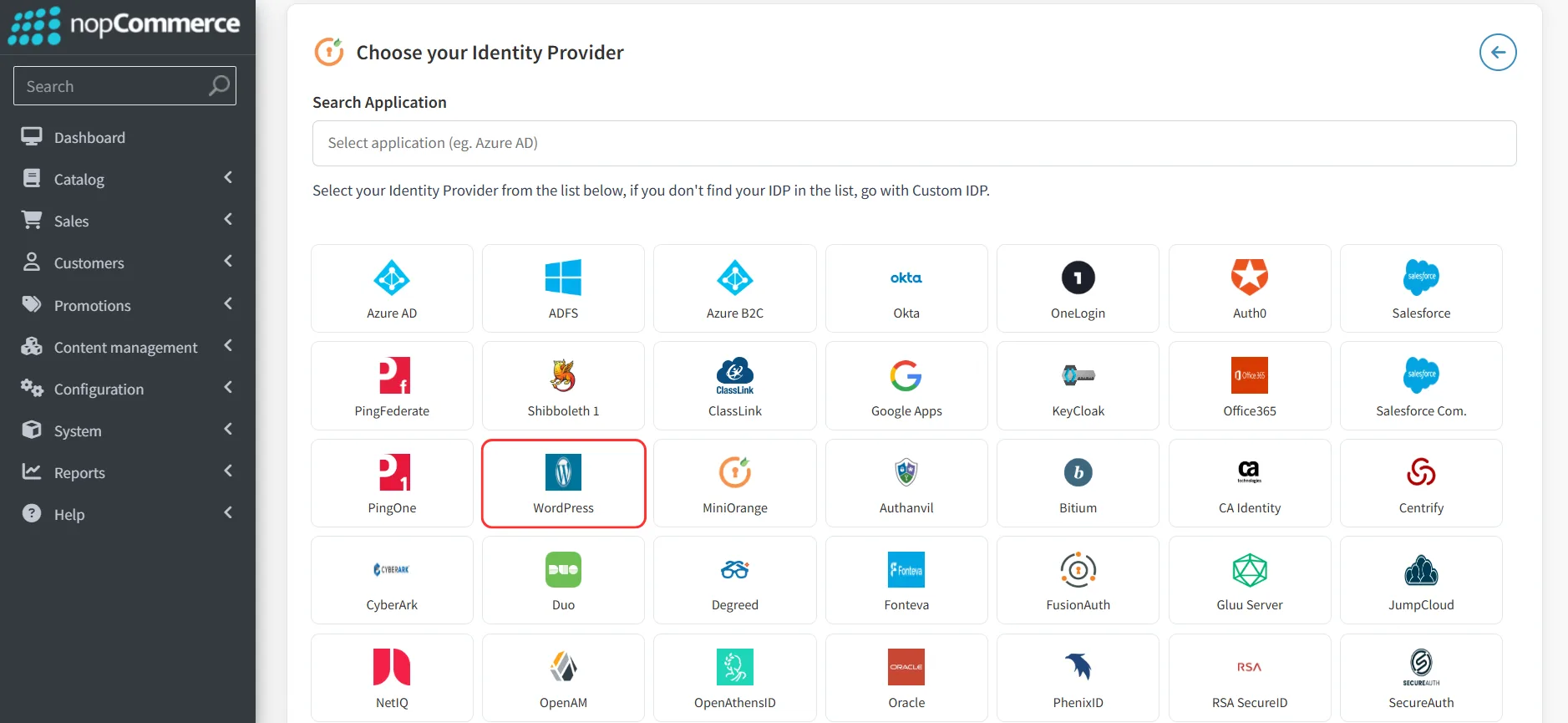

  • Under Identity Provider Settings tab, select WordPress as your preferred identity provider.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - Choose identity provider
  • There are two methods for configuring nopCommerce as service provider:
    • To upload IDP's metadata, you can either provide the metadata URL or upload XML file.
    • nopCommerce Single Sign-On (SSO) using WordPress as IDP -  Upload IDP metadata
    • Alternatively, under the Identity Provider Settings tab, you can manually fill in the mandatory fields like IDP Name, IDP Entity ID and Single Sign-On URL and hit Save.
    • nopCommerce Single Sign-On (SSO) using WordPress as IDP - IDP Configuration

3. Testing SAML SSO

  • Before testing, please ensure the following:
    • The nopCommerce (SP) SAML metadata has been exported to WordPress (IDP).
    • Importing the WordPress (IDP) SAML metadata in nopCommerce (SP).
  • Hover on Select Action and click on the Test Configuration button to verify if you have configured the plugin correctly.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - Click on Test Configuration
  • Click the Test Configuration button to verify if you have configured the plugin correctly.
  • On successful configuration, you will get Attribute Name and Attribute Values in Test Configuration window.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - Test Configuration Result

4. Attribute Mapping

  • After successful test configuration, click on Edit Configuration and navigate to Attribute Mapping section.
  • On the right side, you can see the IDP response table, map attribute names provided by your IDP with your store attributes, under Attribute/Role Mapping tab.
  • Click on Save button.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - Attribute Mapping

5. Enabling SSO in your nopCommerce store

  • Enable SSO for your nopCommerce store by dragging the slider as shown below.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - Enable SSO
  • Under the Redirection & SSO link tab, use the URL labeled as Your Store SSO Link in your store to initiate the SSO.
  • nopCommerce Single Sign-On (SSO) using WordPress as IDP - Store SSO Link

Additional Resources
