WordPress OAuth & OpenID Connect Single Sign-On (SSO) plugin enables secure login into WordPress using ORCID as OAuth and OpenID Connect provider. You can also configure plugin using different custom providers and standard IDPs. It supports advanced Single Sign-On (SSO) features such as user profile Attribute mapping, Role mapping, etc. Here we will go through a guide to configure SSO between WordPress and ORCID. By the end of this guide, users should be able to login to WordPress from ORCID. To know more about other features we provide in WP OAuth Single Sign-On ( OAuth & OpenID Connect Client ) plugin, you can click here.

Pre-requisites: Download And Installation

  • Log into your WordPress instance as an admin.
  • Go to the WordPress Dashboard -> Plugins and click on Add New.
  • Search for a WordPress OAuth Single Sign-On (SSO) plugin and click on Install Now.
  • Once installed click on Activate.



Steps to configure ORCID Single Sign-On (SSO) Login into WordPress

1. Setup ORCID as OAuth Provider

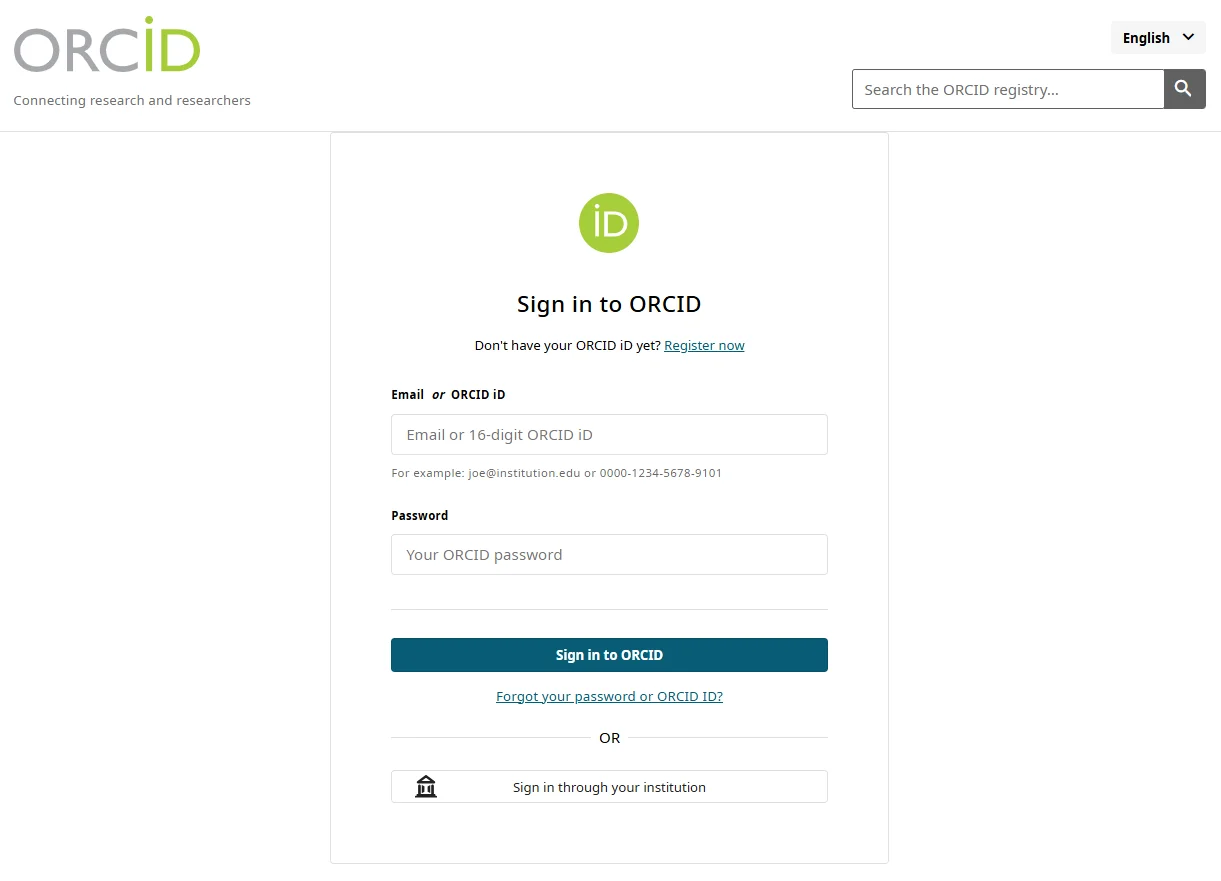

  • Go to https://orcid.org/signin and log into your ORCID account.
  • ORCID as
            Login
  • Click Developer Tools at the top of your record.
  • ORCID as an Oauth tools

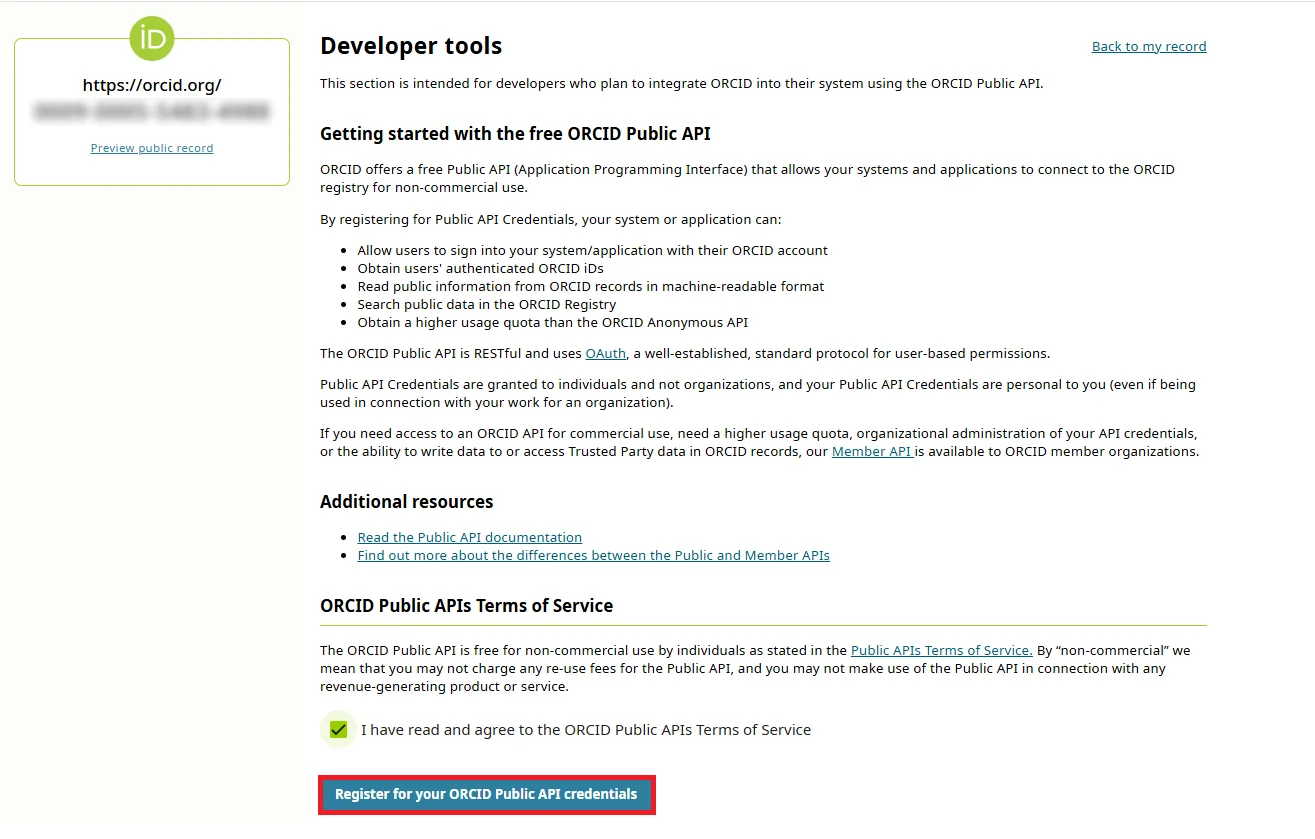

  • Click the "Register for the free ORCID public API" button
  • ORCID as an Oauth Note
  • Review and agree to the terms of service when prompted.
  • ORCID as an Oauth Review

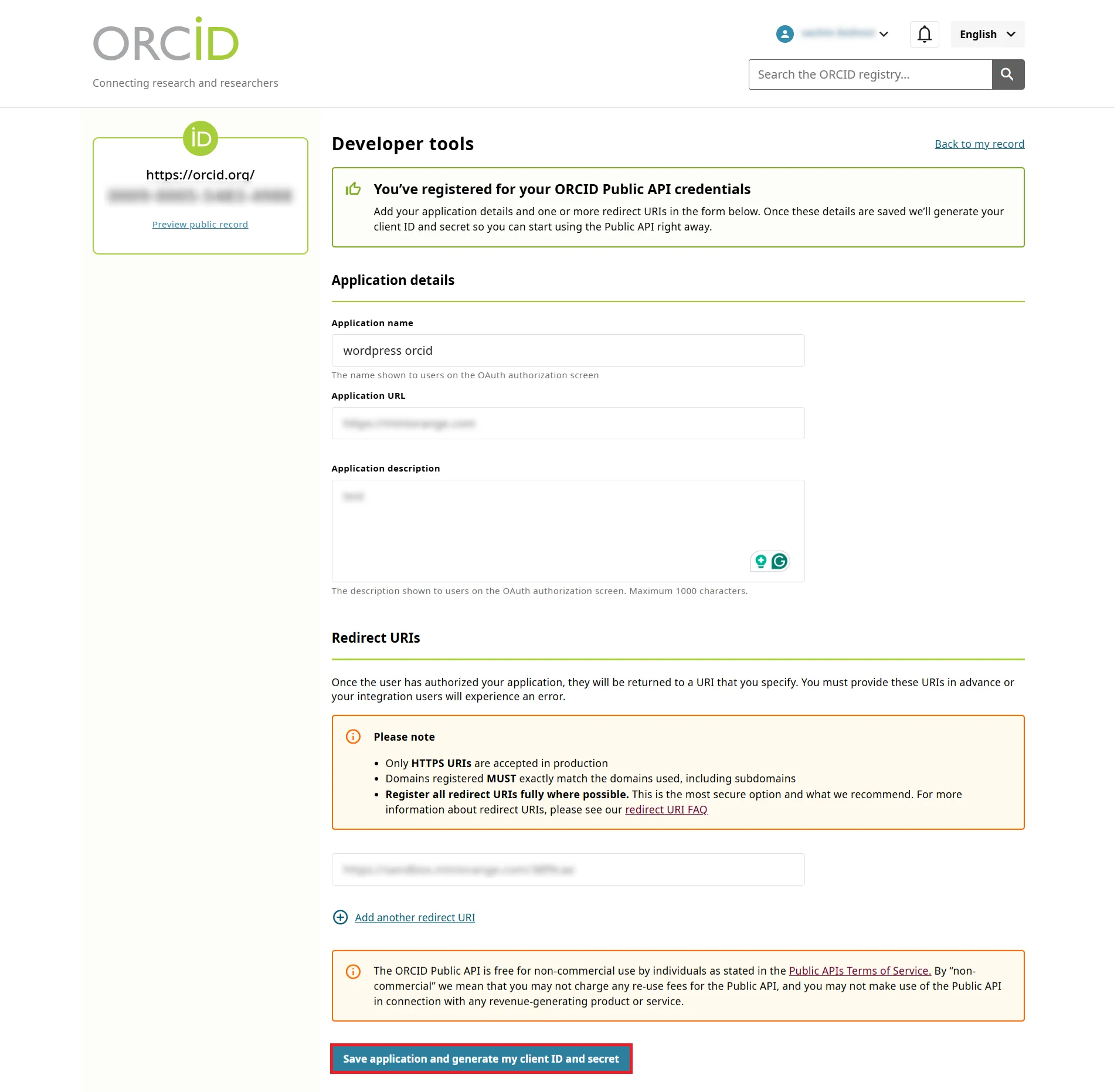

  • After agreeing to the terms of service, you will be directed back to Developer Tools. Complete the form presented to register a new application.
  • ORCID as an Oauth New application
  • Click the Save icon at the bottom of the form to generate your API credentials.
  • ORCID as an Oauth Save
  • To view your API credentials, click Show Details.
  • ORCID as an Oauth Details

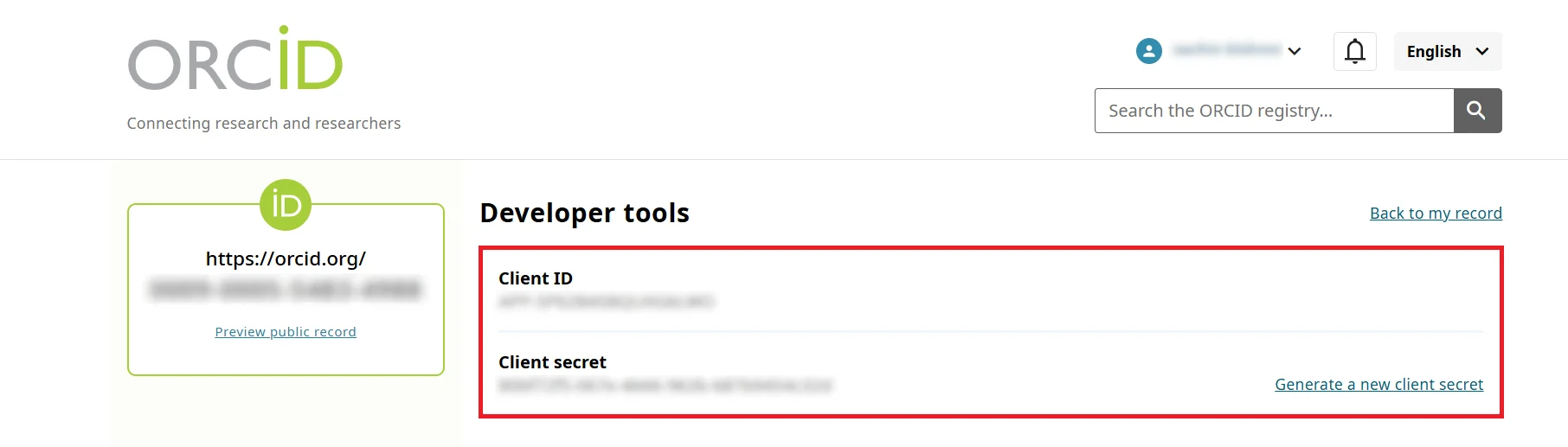

  • Your API credentials - Client ID and Client Secret - are shown just beneath your redirect URIs. Below your credentials are sample URLs and API calls with your credentials pre-filled.
  • ORCID as an Oauth pre-filled
You have successfully configured ORCID as OAuth Provider for achieving ORCID login into your WordPress Site.

2. Setup WordPress as OAuth Client

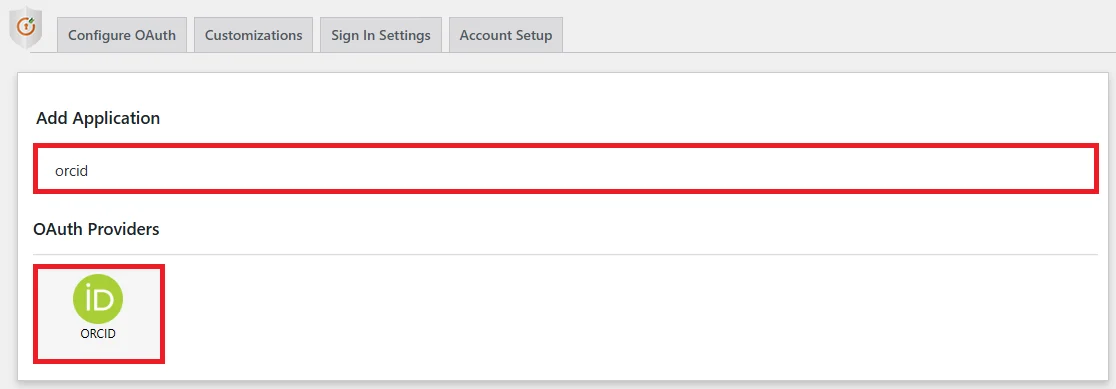

  • Go to the Configure OAuth tab in the Plugin and search for ORCID in the applications list, and select ORCID.
  • ORCID single sign-on(sso) : save settings oauth client plugin

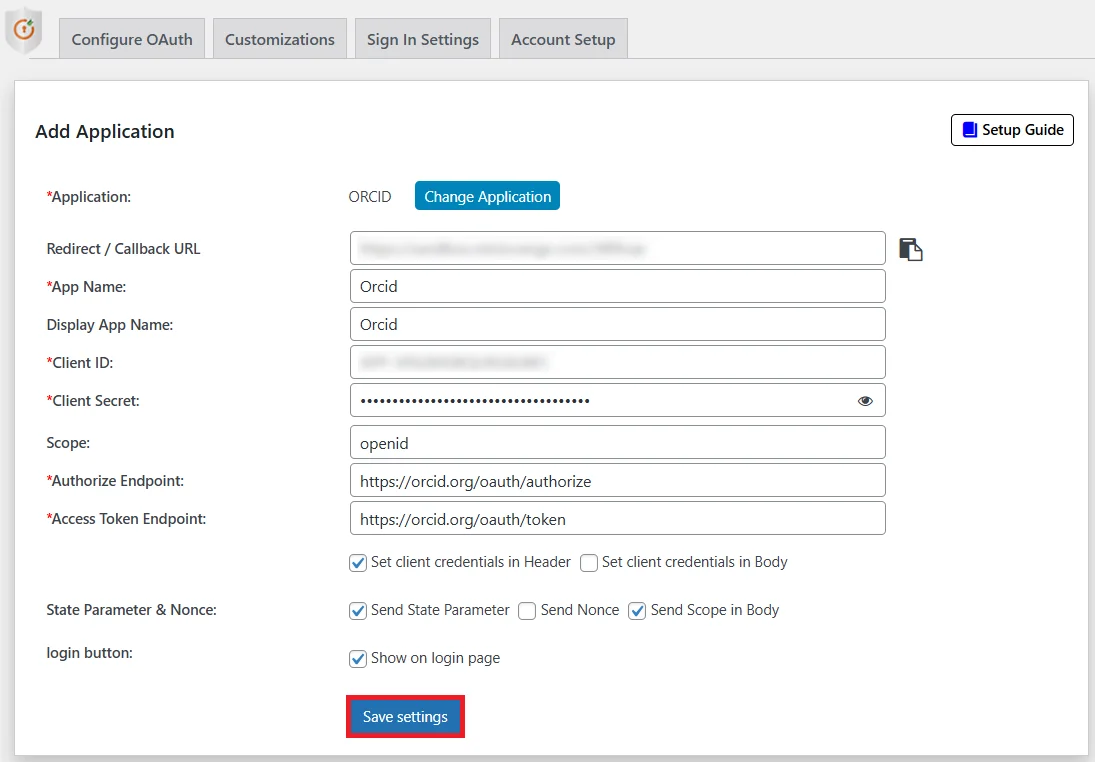

  • Then, configure App Name, Client ID, Client Secret and Domain.
  • Enter Scope value as openid.
  • Click on Save Settings to save the configuration.
  • ORCID single sign-on(sso) : save settings oauth client

You have successfully configured WordPress as OAuth Client for achieving ORCID login into your WordPress Site.

3. User Attribute Mapping

  • User Attribute Mapping is mandatory for enabling users to successfully login into WordPress. We will be setting up user profile attributes for WordPress using below settings.
  • Finding user attributes

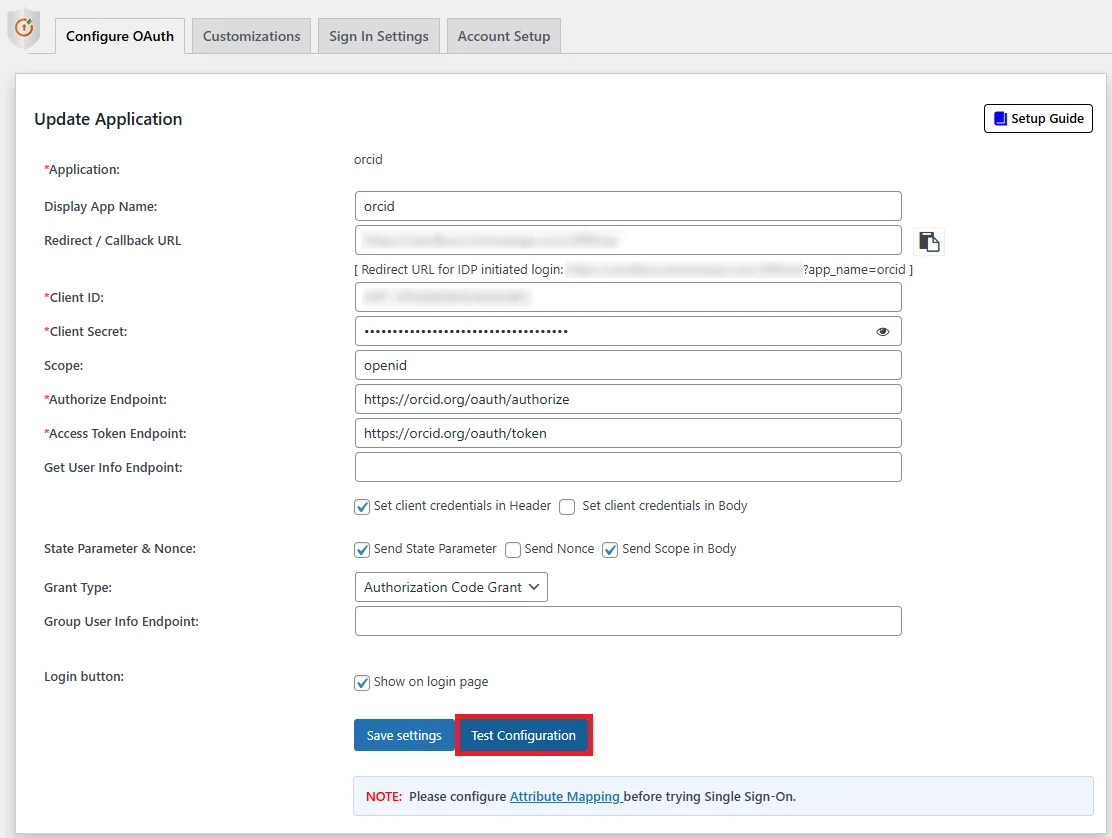

    • Go to Configure OAuth tab. Scroll down and click on Test Configuration.
    • test congifuration

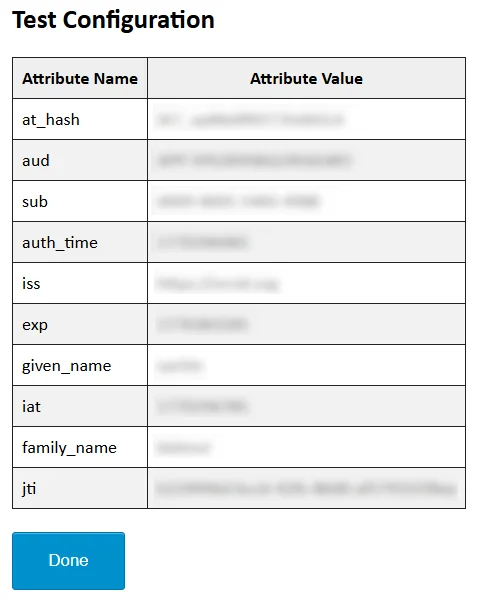

    • You will see all the values returned by your OAuth Provider to WordPress in a table. If you don't see value for First Name, Last Name, Email or Username, make the required settings in your OAuth Provider to return this information.
    • OAuth/OpenID Ping Identity Single Sign On SSO WordPress create-newclient configuration-test-result

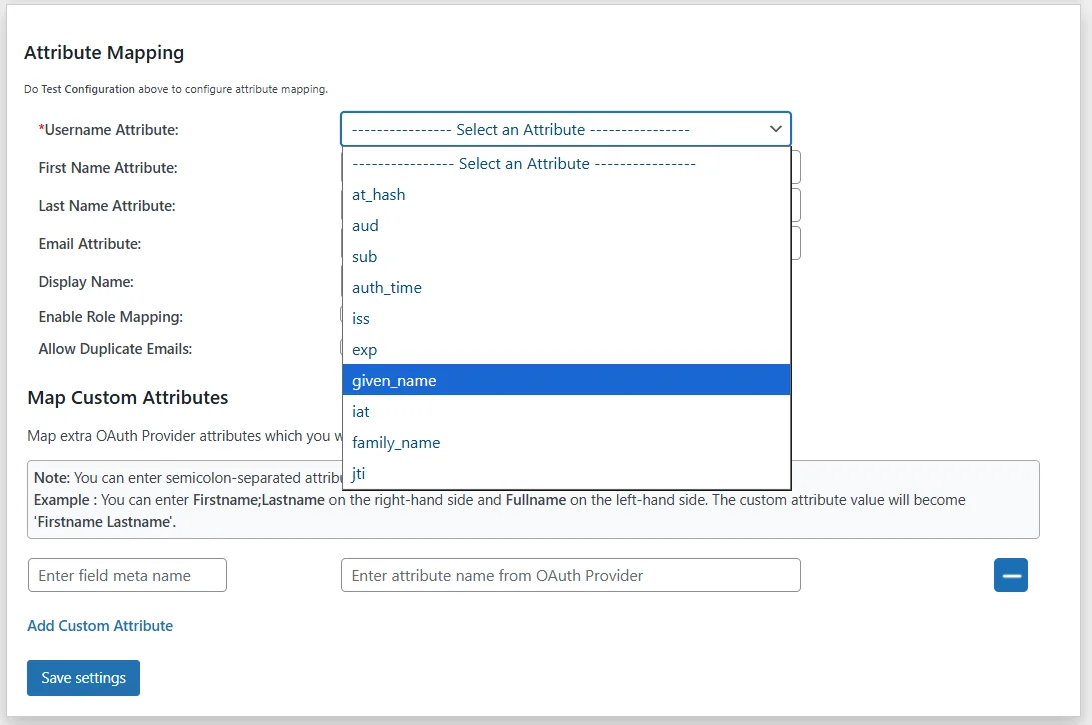

    • Once you see all the values in Test Configuration, go to Attribute / Role Mapping tab, you will get the list of attributes in a Username dropdown.
    • OAuth/OpenID Ping Identity Single Sign On SSO WordPress create-newclient attribute/role mapping

    4. Role Mapping [Premium]

    • Click on “Test Configuration” and you will get the list of Attribute Names and Attribute Values that are sent by your OAuth provider.
    • From the Test Configuration window, map the Attribute Names in the Attribute Mapping section of the plugin. Refer to the screenshot for more details.
    • Okta Single Sign-On (SSO) - attribute mapping
    • Enable Role Mapping: To enable Role Mapping, you need to map Group Name Attribute. Select the attribute name from the list of attributes which returns the roles from your provider application.
      Eg: Role

    • Okta Single Sign-On (SSO) - test configuration - role mapping
    • Assign WordPress role to the Provider role: Based on your provider application, you can allocate the WordPress role to your provider roles. It can be a student, teacher, administrator or any other depending on your application. Add the provider roles under Group Attribute Value and assign the required WordPress role in front of it under WordPress Role.

      For example, in the below image. Teacher has been assigned the role of Administrator & Student is assigned the role of Subscriber.
    • Okta Single Sign-On (SSO) - test configuration - role mapping
    • Once you save the mapping, the provider role will be assigned the WordPress administrator role after SSO.
      Example: As per the given example, Users with role ‘teacher’ will be added as Administrator in WordPress and ‘student’ will be added as Subscriber.

    5. Login Settings / Sign In Settings.

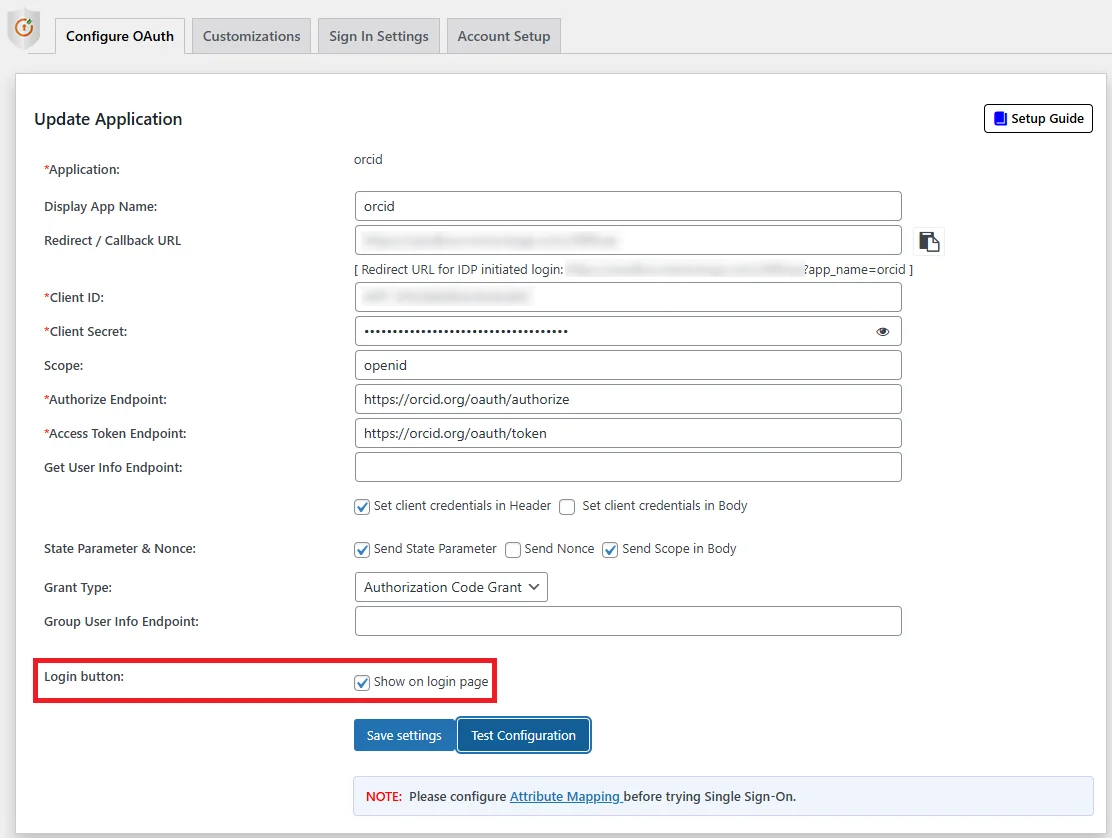

    • The settings in Single Sign-On (SSO) Settings tab define the user experience for Single Sign-On (SSO). To add a ORCID login widget on your WordPress page, you need to follow the below steps.
    • 1. Sign in settings for wordpress 5.7 and before :

      • Go to WordPress Left Panel > Appearances > Widgets.
      • Select miniOrange OAuth. Drag and drop to your favourite location and save.
      • OAuth/OpenID Box Single Sign On SSO WordPress create-newclient login button setting

      2. Sign in settings for wordpress 5.8 :

      • Go to WordPress Left Panel > Appearances > Widgets.
      • Select miniOrange OAuth. Drag and drop to your favourite location and save.
      • OAuth/OpenID Box Single Sign On SSO WordPress create-newclient login button setting
      • Open your WordPress page and you can see the ORCID SSO login button there. You can test the ORCID Single Sign-On (SSO) now.

    6. Scope & Endpoints

    Please refer the following table for configuring the scope & endpoints in the plugin.

    Scope: openid
    Authorize endpoint: https://orcid.org/oauth/authorize
    Access Token endpoint: https://orcid.org/oauth/token
    Custom redirect URL after logout:[optional] https://orcid.org/userStatus.json?logUserOut=true

    In this Guide, you have successfully configured ORCID Single Sign-On (SSO) by configuring ORCID as OAuth Provider and WordPress as OAuth Client using our WP OAuth Single Sign-On ( OAuth & OpenID Connect Client ) plugin. This solution ensures that you are ready to roll out secure access to your WordPress site using ORCID login credentials within minutes.
