ASP.NET SAML Single Sign-On (SSO) with Salesforce As IDP


ASP.NET SAML Single Sign-On (SSO) module gives the ability to enable SAML Single Sign-On for your ASP.NET applications. Using Single Sign-On you can use only one password to access your ASP.NET application and services. Our module is compatible with all the SAML compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between ASP.NET and Salesforce considering Salesforce as IdP. To know more about the other features we provide, click here.

Platform Support: The ASP.NET SAML SSO module supports ASP.NET 3.5 and above frameworks.

Pre-requisites: Download And Installation


PM> NuGet\Install-Package miniOrange.SAML.SSO
  • After integration, open your browser and browse the connector dashboard with the URL below:
    https://<your-application-base-url>/?ssoaction=config
  • If the registration page or login page pops up, you have successfully added the miniOrange SAML SSO connector to your application.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - saml dll register
  • Register or log in with your account by clicking the Register button to configure the module.

Steps to configure ASP.NET Single Sign-On (SSO) using Salesforce as IDP

1. Configure Salesforce as identity provider

  • You need to send your SP metadata to your identity provider. For SP metadata, use the SP metadata URL or download the SP metadata as a .xml file and upload it at your IdP end. You can find both these options under the Service Provider Settings tab.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Copy SP Metadata
  • Alternatively, you can manually add the SP Entity ID and ACS URL from Service Provider Settings tab in the plugin to your IdP configurations.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Copy SP Metadata manually
  • Log into your Salesforce account as admin.
  • Switch to Salesforce Lightning mode from profile menu and then go to the Setup page by clicking on setup button.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Create SP via connected apps
  • From the left pane, select Settings Tab and click on Identity Provider.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Create SP via connected apps
  • Click on Enable Identity Provider.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Create SP via connected apps
  • In the Service Provider section, click on the link to create the Service Provider using Connected Apps.
  • Create SP via connected apps - ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP -
  • Enter Connected App Name, API Name and Contact Email.
  • Connected App Name Provide a name for Connected App
    API Name Provide a API name
    Contact Email Provide a Contact Email
    ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Fill connected apps details
  • Under the Web App Settings, check the Enable SAML checkbox and enter the following values:
  • Enable SAML Checked
    Entity ID SP-EntityID / Issuer from Service Provider Metadata tab of the Plugin
    ACS URL ACS (AssertionConsumerService) URL from Service Provider Metadata tab of the Plugin
    Subject Type Username
    Name ID Format urn:oasis:names:tc:SAML:2.0:nameid-format:unspecified
    ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Fill connected apps details
  • Click on Save to save the configuration.
  • Now from the left pane, under Platform Tools section select Connected Apps.
  • Then select Manage Connected Apps and click on the app you just created.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Fill connected apps details
  • In the Profiles section click Manage Profiles button.
  • Assign the Profiles you want to give access to log in through this app.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Fill connected apps details
  • Under SAML Login Information, click on Download Metadata.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Download Identity Providers metadata
  • Keep this metadata handy for configuring the Service Provider.

2. Configure ASP.NET application as service provider (SSO Module)

Note: After installation of the plugin, we need to setup the trust between your ASP.NET application and Salesforce. SAML metadata is shared with Salesforce so they can update their inbuilt configuration to support Single Sign-On.

2.1: Share SAML Metadata with Salesforce
  • Click on Add New IDP to configure ASP.NET Single Sign-On (SSO) with Salesforce.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Click on Add new IDP
  • Under Service Provider Settings tab, you can either copy-paste the metadata URL on your IDP side or download the SP metadata as an XML file. Additionally, you have the choice to manually copy and paste Base URL, SP Entity ID, and ACS URL.
  • Share SAML metadata with your identity provider.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - SP Settings Metadata
2.2: Import Salesforce SAML metadata

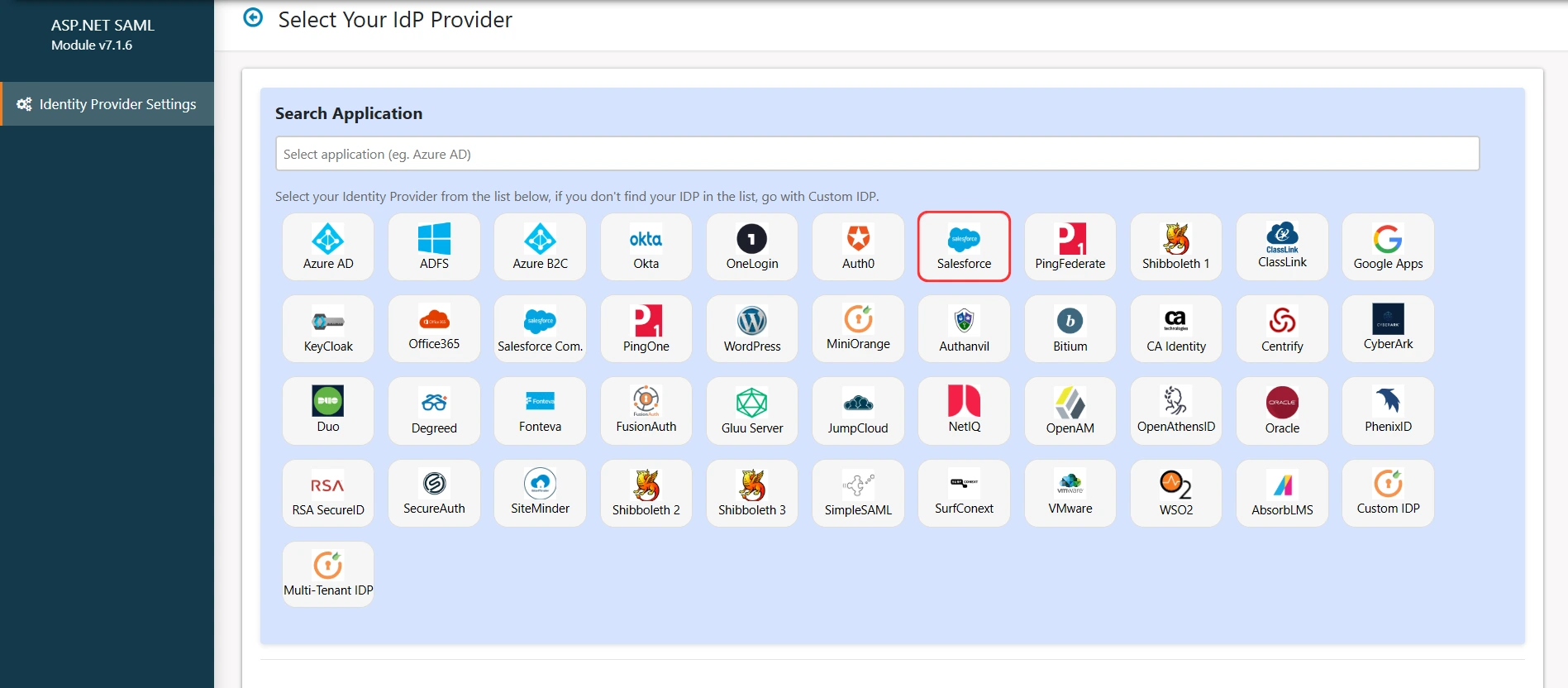

  • Select Salesforce from the list of identity providers shown below.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Select identity provider

There are two ways detailed below with which you can configure your SAML identity provider metadata in the module.

A] Upload metadata using the Upload IDP Metadata button:
  • If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the module using the Upload IDP Metadata option.
  • You may refer to the screenshot below:
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Upload Metadata
  • You can choose any one of the options according to the metadata format you have available.
B] Configure the identity provider metadata manually:
  • After configuring your identity provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.
  • Click Save to save your IDP details.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - SAML dll config

You have successfully configured your ASP.NET application as a service provider.

3. Testing SAML SSO

  • Before testing, please ensure the following:
    • The ASP.NET (SP) SAML metadata has been exported to Salesforce (IDP).
    • Importing the Salesforce (IDP) SAML metadata in ASP.NET (SP).
  • To test whether the SAML configuration you’ve done is correct, hover on Select Actions and click on Test Configuration.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Click on Test Configuration
  • Note: In the trial version of the plugin, you can only configure and test one identity provider (IDP).
  • The screenshot below shows a successful result. Click on Done to further continue with the SSO Integration.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Test Configuration
  • If you are experiencing any error on the module end you’ll be shown with the window similar to below.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Error Window
  • To troubleshoot the error you can follow the below steps:
    • Under Troubleshooting tab, enable the toggle to receive the plugin logs.
    • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Enable debug logs
    • Once enabled, you will be able to retrieve plugin logs by navigating to Identity Provider Settings tab and clicking on Test Configuration.
    • Download the log file from the Troubleshoot tab to see what went wrong.
    • You can share the log file with us at aspnetsupport@xecurify.com and our team will reach out to you to resolve your issue.

4. Integration Code

  • This step allows you to specify the sso prefix of the session or claims parameter that will be used to access user attributes in your application.
  • If you're still confused about how the integration steps work, take a look at the Setup Tour.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - Prefix SSO Attributes
  • Select the mode for storing SSO attributes, and you will now see the integration code based on the authentication method you selected and the language your application uses.
  • Just copy-paste that code snippet wherever you want to access the user attributes.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - ASP.NET Integration Codes Based on language
  • Note: This trial module only supports session-based authentication and User Claims is available in the premium plugin.
  • Note: All the mapped attributes will be stored in the session so that you can access them in your application.
  • If you want some assistance regarding the integration code, get in touch with us at aspnetsupport@xecurify.com

5. Login Settings

  • Hover on Select Actions and click on Copy SSO Link.
  • ASP.NET SAML Single Sign-On (SSO) using Salesforce as IDP - ASP.NET Integration Codes Based on language
  • Use the copied link in the application from where you want to perform SSO:
    https://base-url/?ssoaction=login
  • For example, you can use it as:
    <a href=”https://base-url/?ssoaction=login”>Log in</a>

6. Logout Settings

  • Use the following URL as a link in your application from where you want to perform SLO: https://<your-application-base-url>/?ssoaction=logout
  • For example you can use it as: <a href="https://<your-application-base-url>/?ssoaction=logout">Logout</a>

You can even configure the DNN SAML Single Sign-On (SSO) module with any identity provider such as ADFS, Azure AD, Bitium, Centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. To check other identity providers, click here.
