Setup Guide for Azure AD OAuth / OpenID Connect App

Steps to configure Azure AD Single Sign-On (SSO) Login into WordPress

Step 1: Setup Azure Active Directory as OAuth Provider

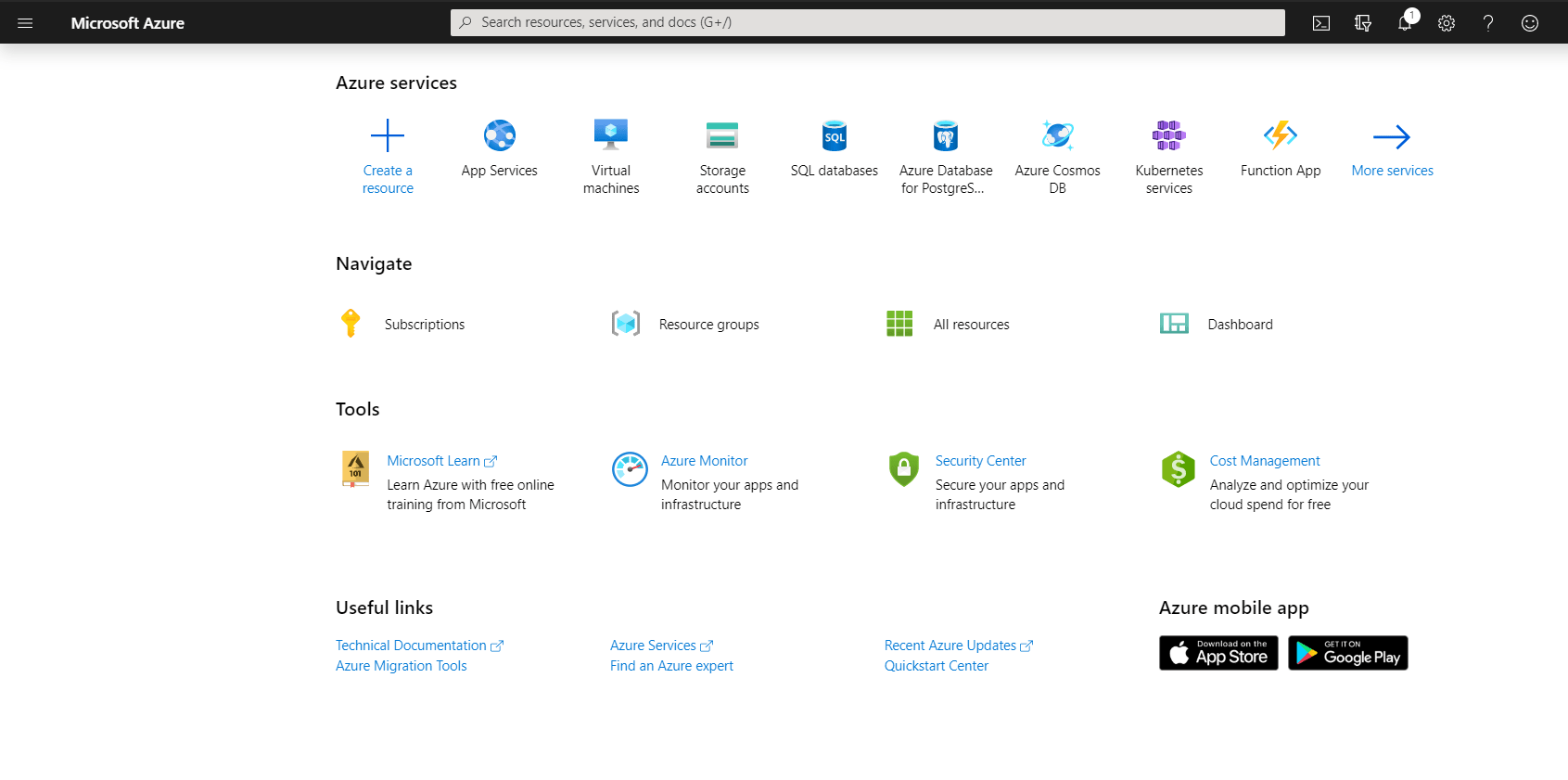

  • Sign in to Azure portal.
  • Click on App Services and go to Manage Azure Active Directory.
  • OAuth/OpenID/OIDC Single Sign-On (SSO), AzureAD SSO Login
  • In the left-hand navigation pane, click the App registrations service, and click New registration.
  • OAuth/OpenID/OIDC Single Sign-On (SSO), AzureAD SSO App-Registration

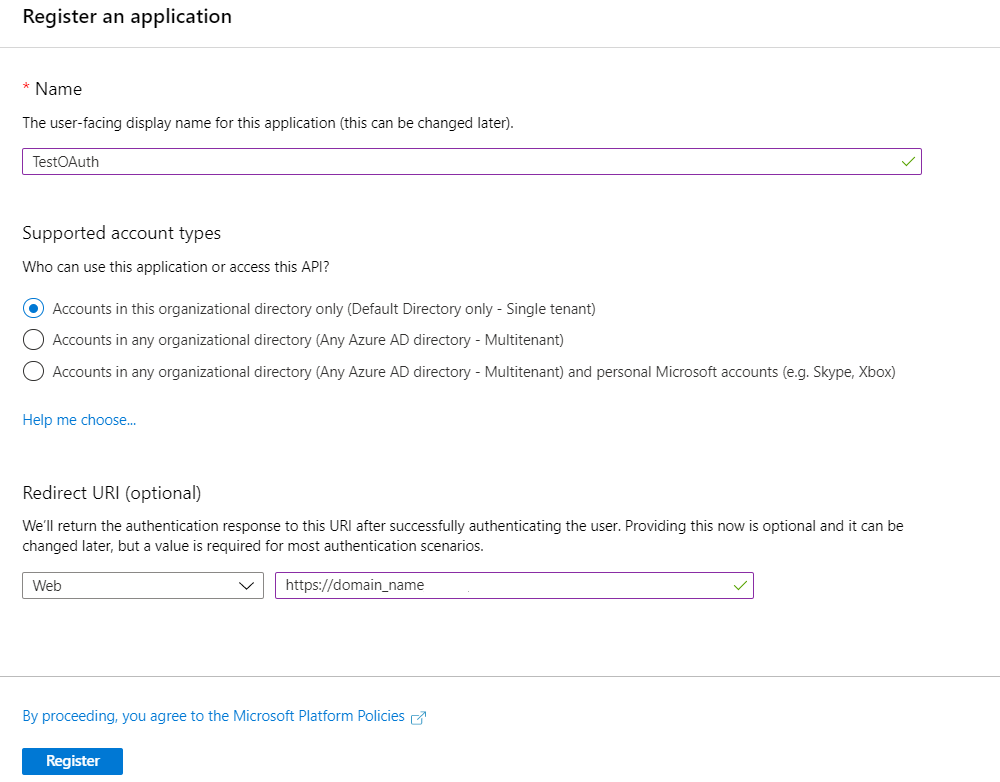

  • When the Create page appears, enter your application's registration information:
  • Name : Name of your application.
    Application type :
    1. Select "Web app / API" for client applications and resource/API applications that are installed on a secure server. This setting is used for OAuth confidential web clients and public user-agent-based clients. The same application can also expose both a client and resource/API.
    Sign-on URL :
    1. For "Web app / API" applications, provide the base URL of your app. eg, https://<domain-name> might be the URL for a web app running on your local machine. Users would use this URL to sign in to a web client application.
  • When finished, click Register. Azure AD assigns a unique Application ID to your application. Copy Application ID and the Directory ID , this will be your Client ID and Tenent ID.

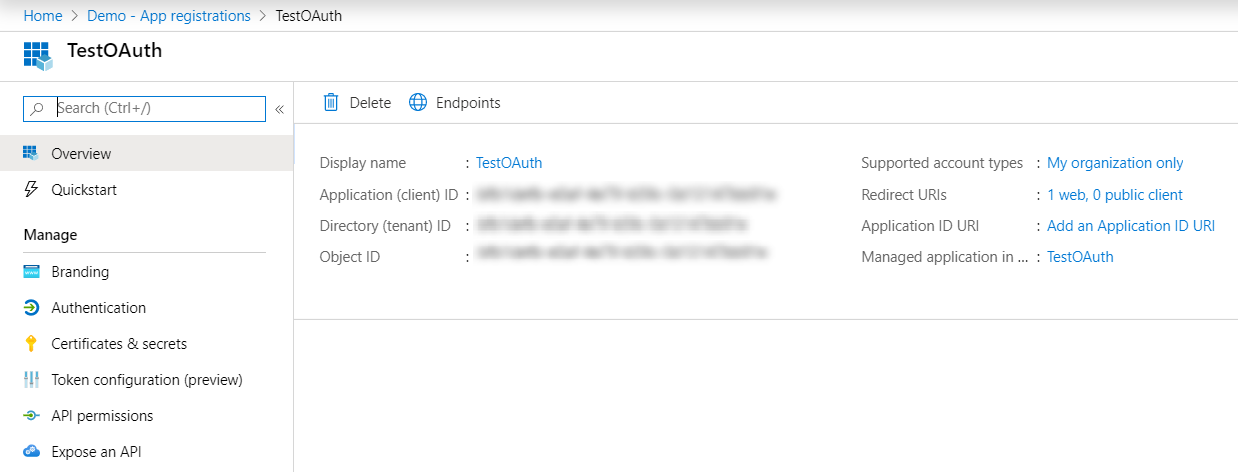

  • WordPress OAuth/OpenID/OIDC Single Sign-On (SSO), Azure AD SSO Overview

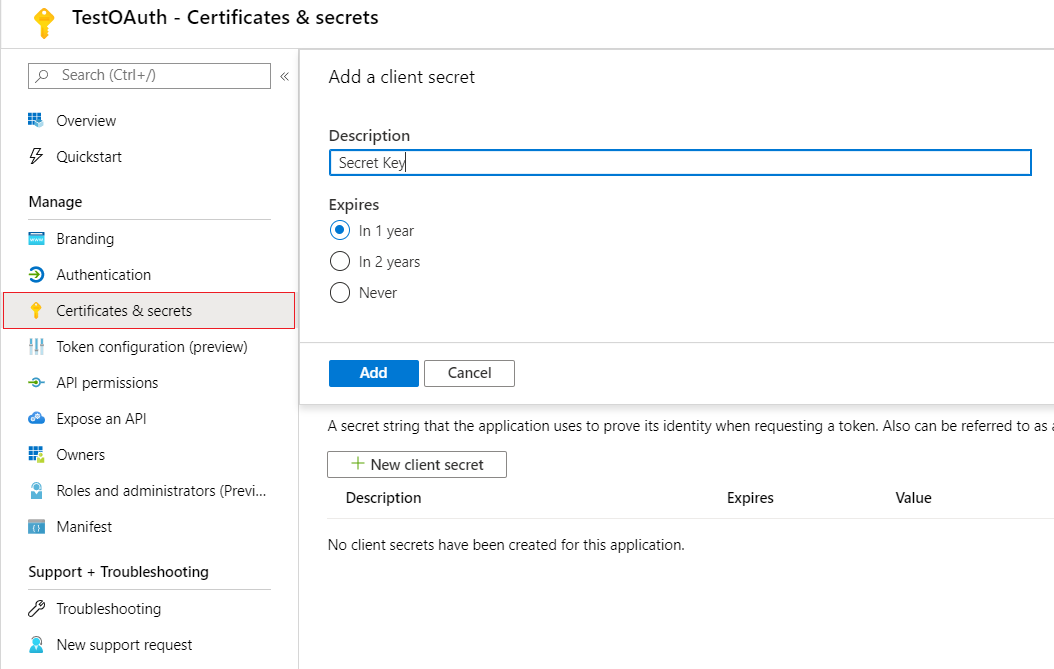

  • Go to Certificates and Secrets from the left navigaton pane and click on New Client Secret. Enter description and expiration time and click on ADD option.
  • WordPress OAuth/OpenID/OIDC Single Sign-On (SSO), Azure AD SSO secret-Key

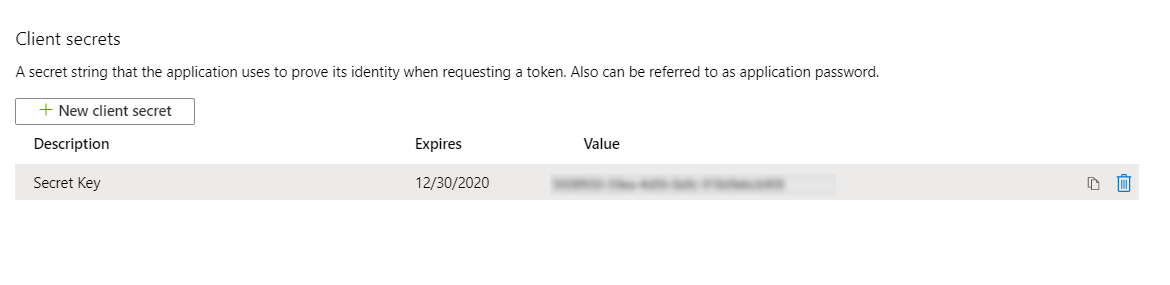

  • Copy value. This will be your Secret key.
  • WordPress OAuth/OpenID/OIDC Single Sign-On (SSO), Azure AD SSO Secret-Key-2

    Azure AD Endpoints and Scope:

    Scope: openid
    Authorize Endpoint: https://login.microsoftonline.com/tenant-id/oauth2/authorize
    Access Token Endpoint: https://login.microsoftonline.com/tenant-id/oauth2/token
    Get User Info Endpoint: https://login.windows.net/common/openid/userinfo
    Custom redirect URL after logout:[optional] https://login.microsoftonline.com/common/oauth2/logout?post_logout_rediret-uri=<your URL>

You have successfully configured Azure AD as OAuth Provider for achieving Azure AD login into your WordPress Site.
