AWS Cognito SSO Login into Drupal using OAuth / OpenID connect

• Using Composer
• Using Drush
• Manual Installation

• Download the module:

  composer require 'drupal/miniorange_oauth_client'

• Navigate to Extend menu on your Drupal admin console and search for miniOrange OAuth Client Configuration using the search box.
• Enable the module by checking the checkbox and click on the Install button.
• You can configure the module at:

  {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc

• Install the module:

  drush en drupal/miniorange_oauth_client

• Clear the cache:

   drush cr

• You can configure the module at:

  {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc

Note: Manual Installation only compatible with Drupal 7, Drupal 8, and Drupal 9.

• Navigate to Extend menu on your Drupal admin console and click on Install new module.
• Install the Drupal OAuth & OpenID Connect Login - OAuth2 Client SSO Login module either by downloading the zip or from the URL of the package (tar/zip).
• Click on Enable newly added modules.
• Enable this module by checking the checkbox and click on install button.
• You can configure the module at:

  {BaseURL}/admin/config/people/miniorange_oauth_client/config_clc

• Using Composer
• Using Drush
• Manual Installation

• Download the module:

  composer require 'drupal/miniorange_oauth_client'

• Navigate to Extend menu on your Drupal admin console and search for miniOrange OAuth Client Configuration using the search box.
• Enable the module by checking the checkbox and click on the Install button.
• You can configure the module at:

  {BaseURL}/admin/config/people/mo-oauth-client/mo-client-config

• Install the module:

  drush en drupal/miniorange_oauth_client

• Clear the cache:

   drush cr

• You can configure the module at:

  {BaseURL}/admin/config/people/mo-oauth-client/mo-client-config

Note: Manual Installation only compatible with Drupal 7, Drupal 8, and Drupal 9.

• Navigate to Extend menu on your Drupal admin console and click on Install new module.
• Install the Drupal OAuth & OpenID Connect Login - OAuth2 Client SSO Login module either by downloading the zip or from the URL of the package (tar/zip).
• Click on Enable newly added modules.
• Enable this module by checking the checkbox and click on install button.
• You can configure the module at:

  {BaseURL}/admin/config/people/mo-oauth-client/mo-client-config

Configuration Steps

Configure Drupal as an OAuth Client

• Go to Configuration → People → miniOrange OAuth Client Configuration in the Administration menu. (/admin/config/people/miniorange_oauth_client)

• Under the Configure OAuth tab select desired OAuth Provider from the dropdown.


Note: If the desired OAuth Provider is not listed in the dropdown, please select Custom OAuth Provider / Custom OpenID Provider and continue.

• Copy the Callback/Redirect URL and keep it handy. This will be required while configuring the OAuth Provider.


Note: If your provider only supports HTTPS Callback/Redirect URLs and you have an HTTP site, please make sure to enable the 'Enforce HTTPS Callback URL' checkbox at the bottom of the tab.



• Enter the OAuth provider name in the Display Name text field.

Configure Drupal as an OAuth Client

• Go to Configuration → People → miniOrange OAuth Client in the Administration menu. (admin/config/people/mo-oauth-client/mo-client-config)

• In the Manage section, under the Client Configuration tab, click on the + Add New button to configure desired OAuth Client.

• Under the Add tab select desired OAuth Application from the dropdown.


Note: If the desired OAuth Provider is not listed in the dropdown, please select Custom OAuth Provider / Custom OpenID Provider and continue.

• Enter the OAuth Provider name in the Custom App Name text field. Copy the Callback/Redirect URL and keep it handy. This will be required while configuring the OAuth Provider.

• If your provider only supports HTTPS Callback/Redirect URLs and you have an HTTP site, please make sure to check the Enforce HTTPS Callback URL checkbox in the Settings tab.

Setup AWS Cognito as an OAuth Provider:

• Login to AWS console.
• Search for Cognito and click on it.

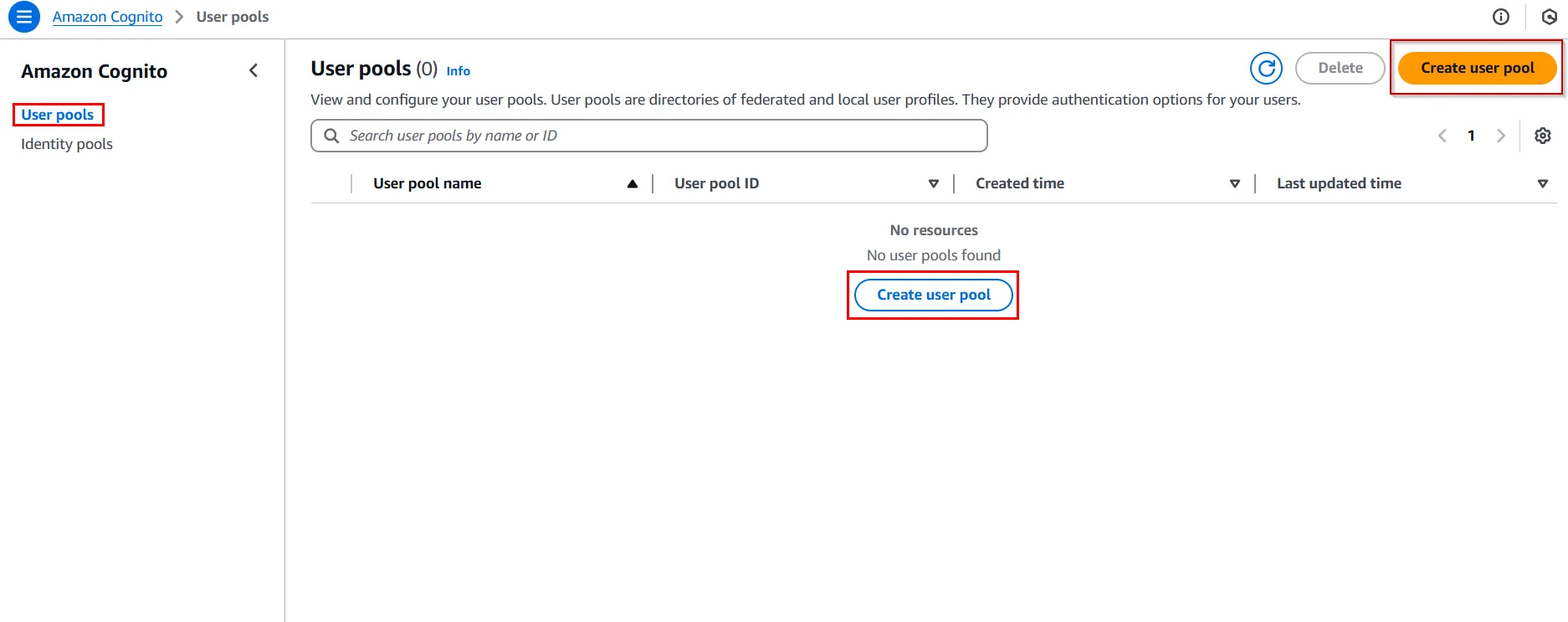

• Click on Create user pool button to create new user pools. (User Pool is a user directory. Users in User Pool can access the app using AWS Cognito credentials.)

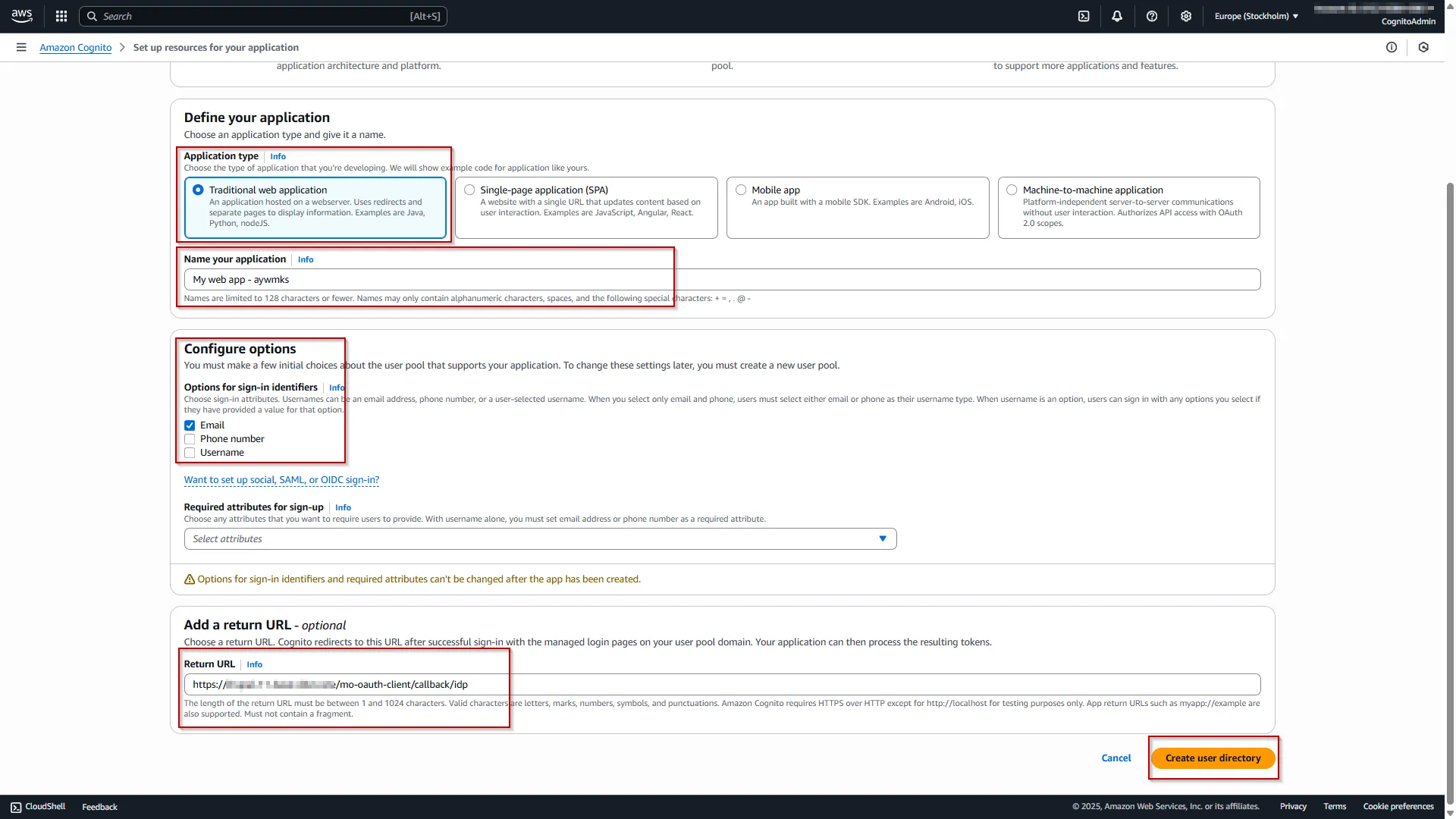

• Now, in Set up resources for your application window, select application type and enter the application name in Define your application section.
• Select Sign-in attributes in Configure options section.
• Paste the previously copied Callback URL from the Drupal in the Return URL text field under the Add a return URL section.
• Click on Create user directory button.

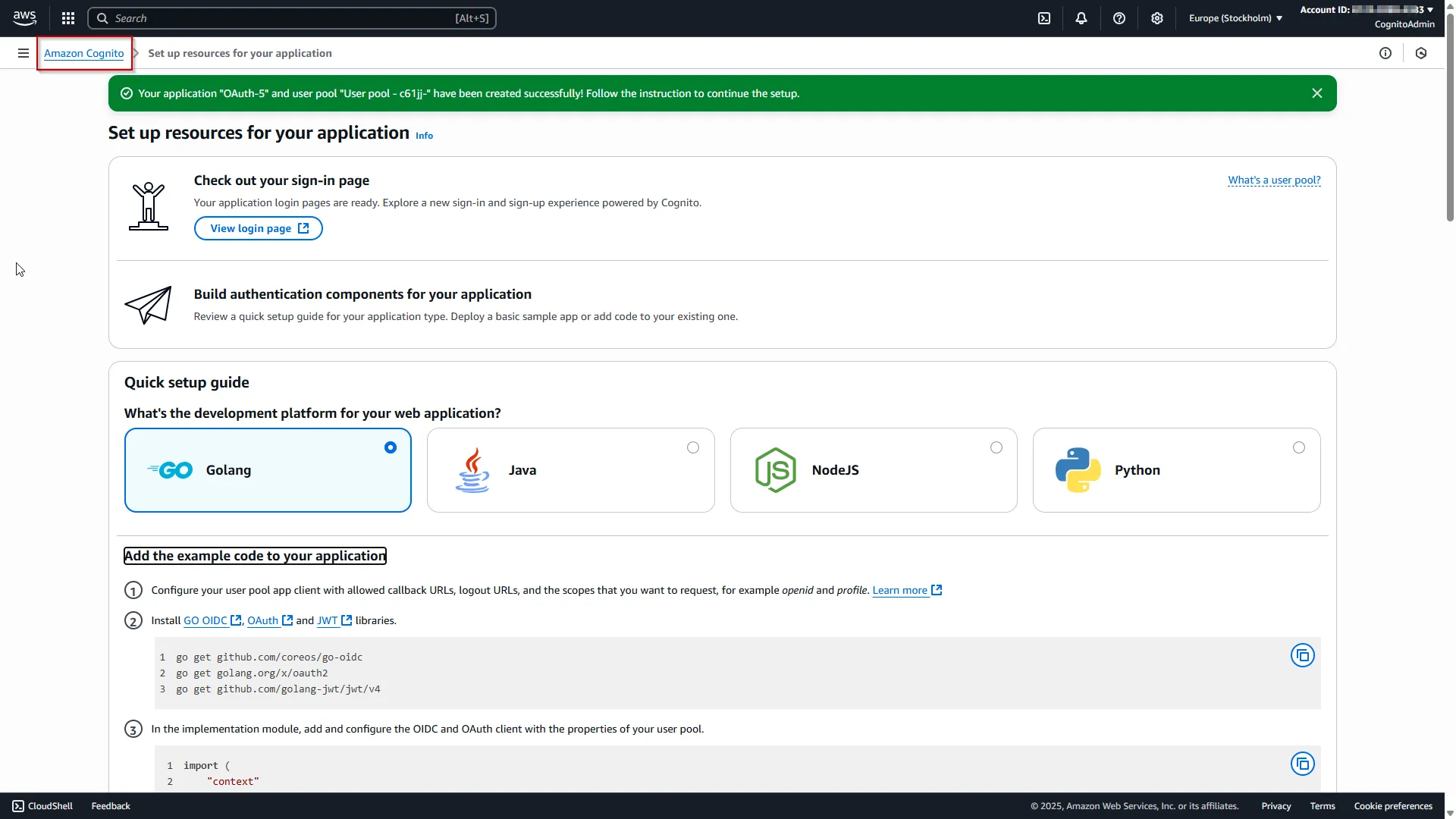

• Click on the Amazon Cognito link in the top left corner.

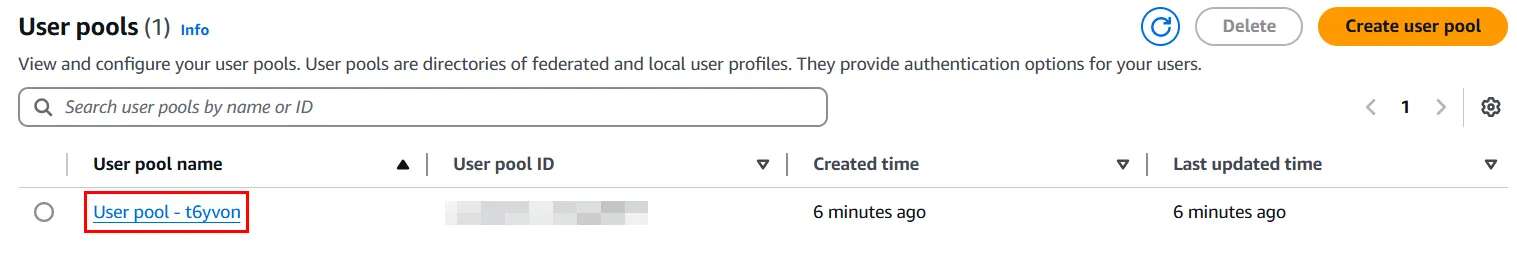

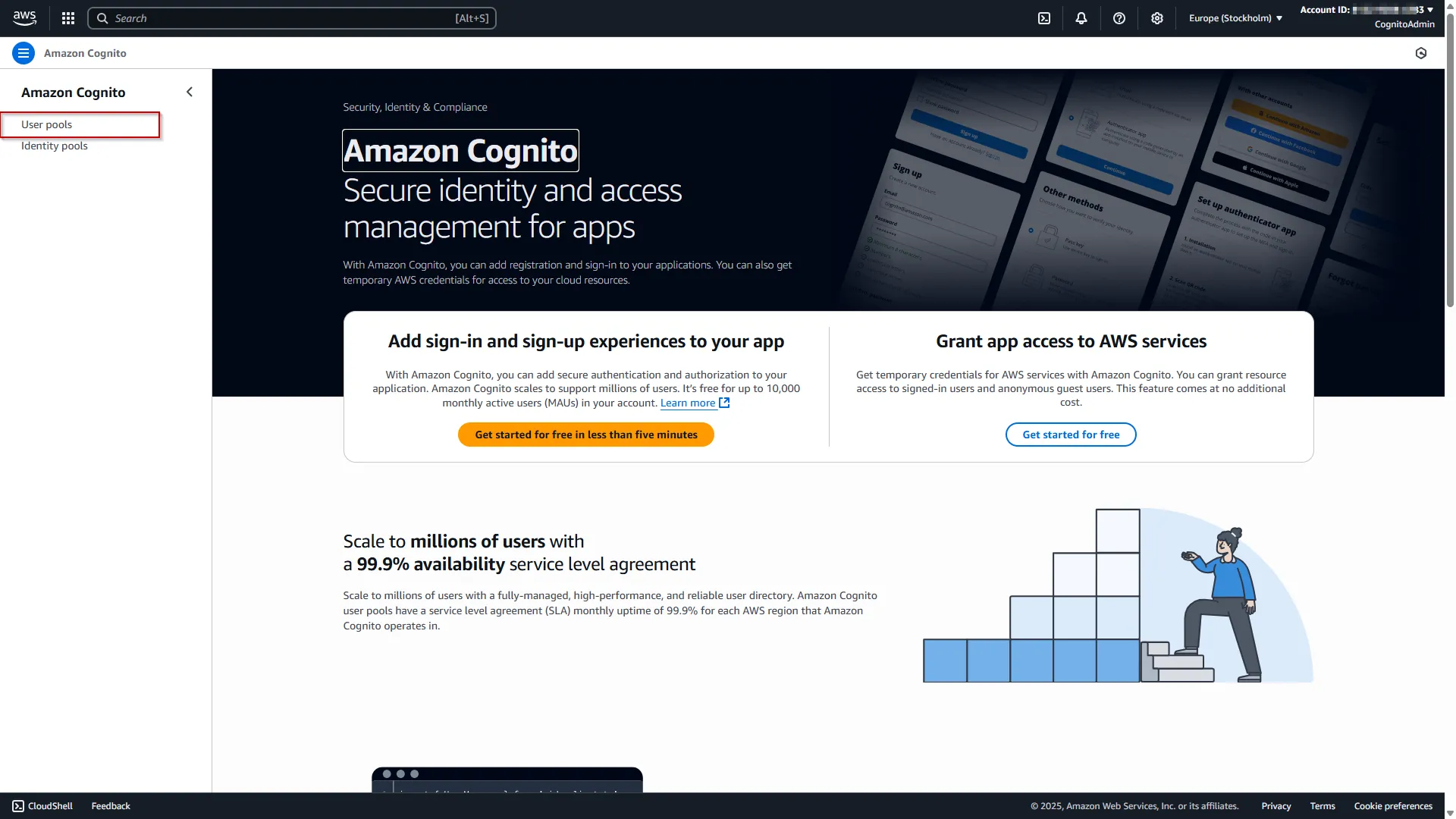

• After that, click on the User pools from the left sidebar.

• Now, on the link of newly created user pool.

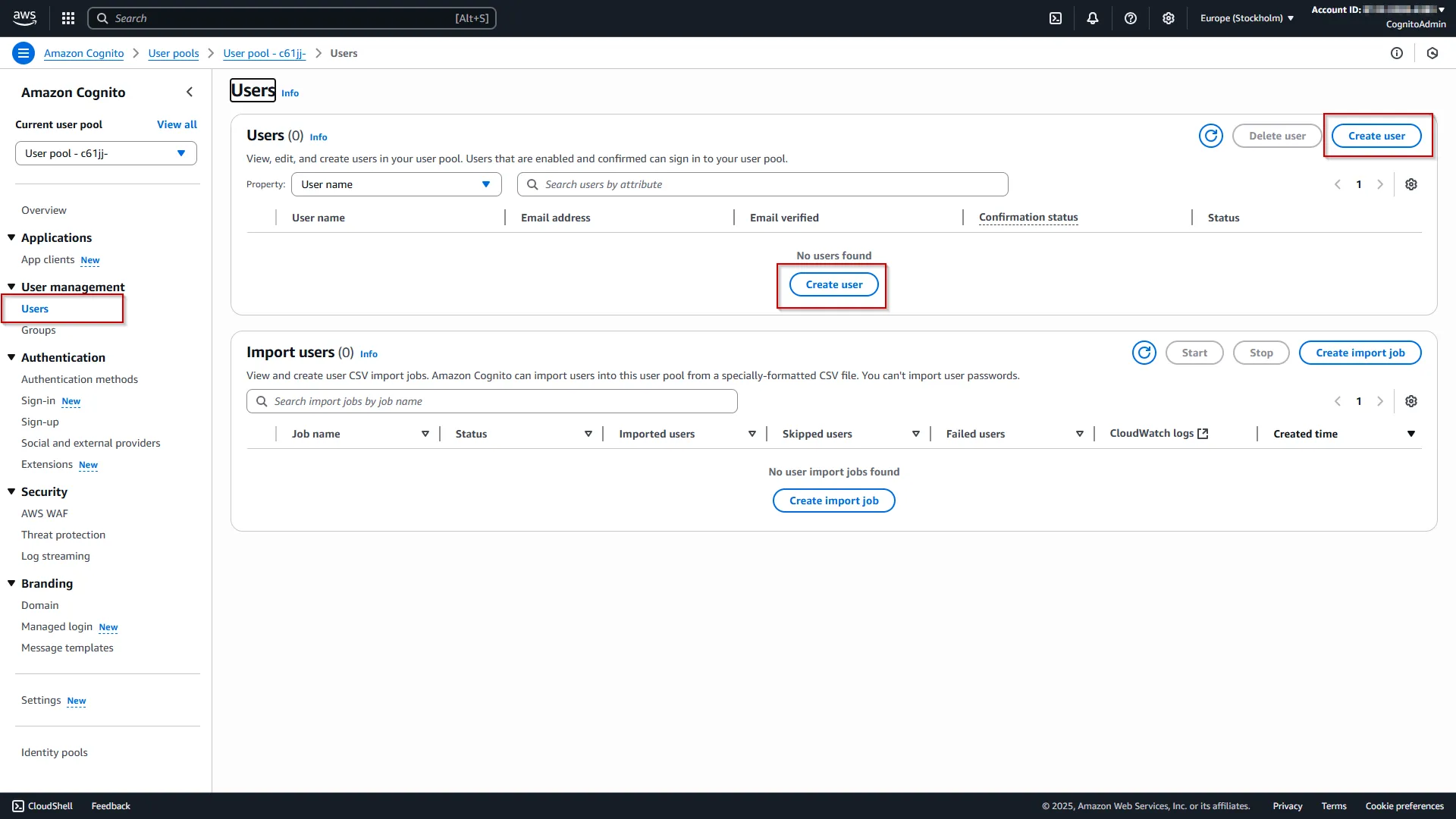

• Click on the Users from the left sidebar, and then click Create User to add new user.

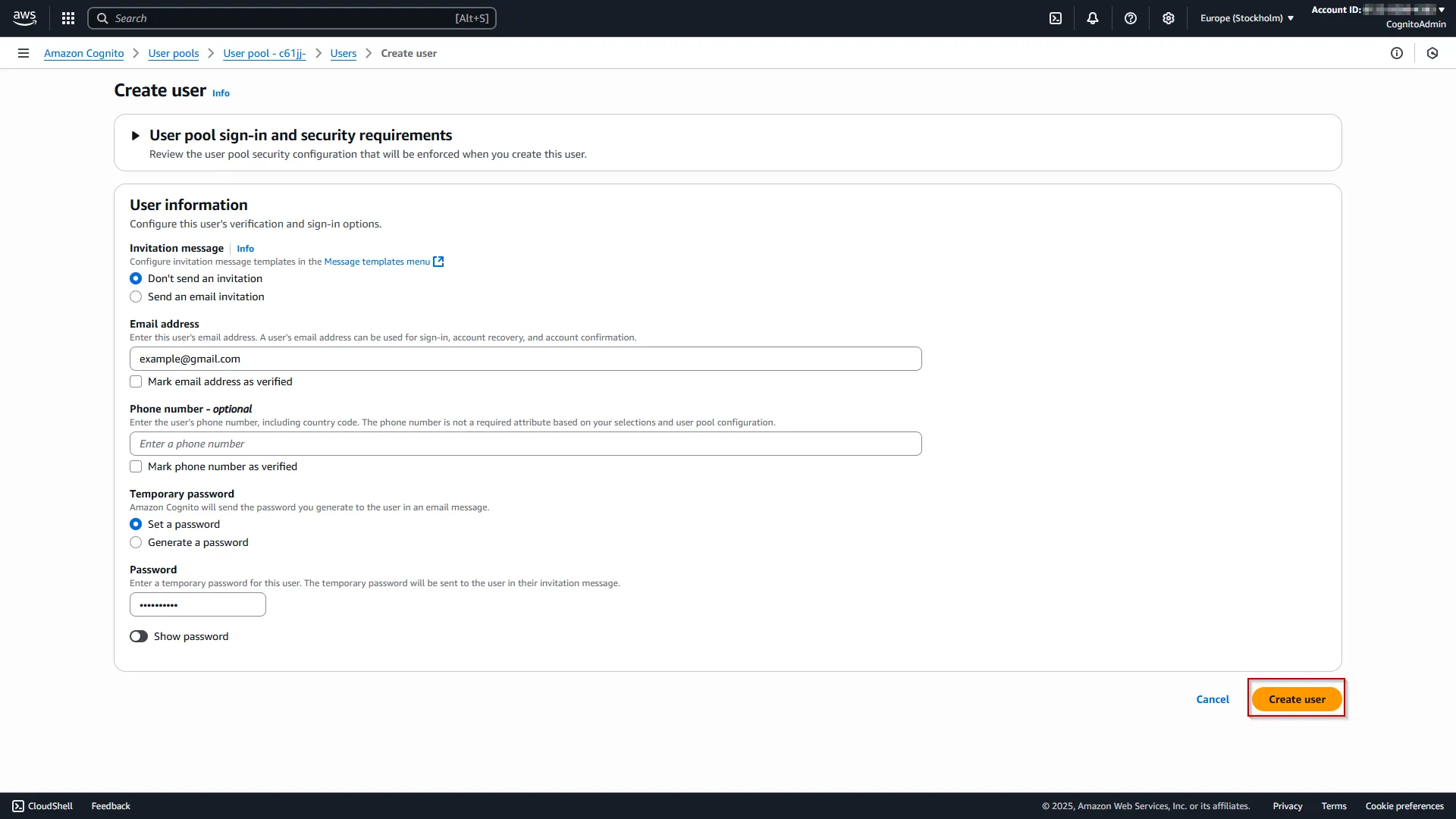

• Enter the user information like email and password and click on Create User button.

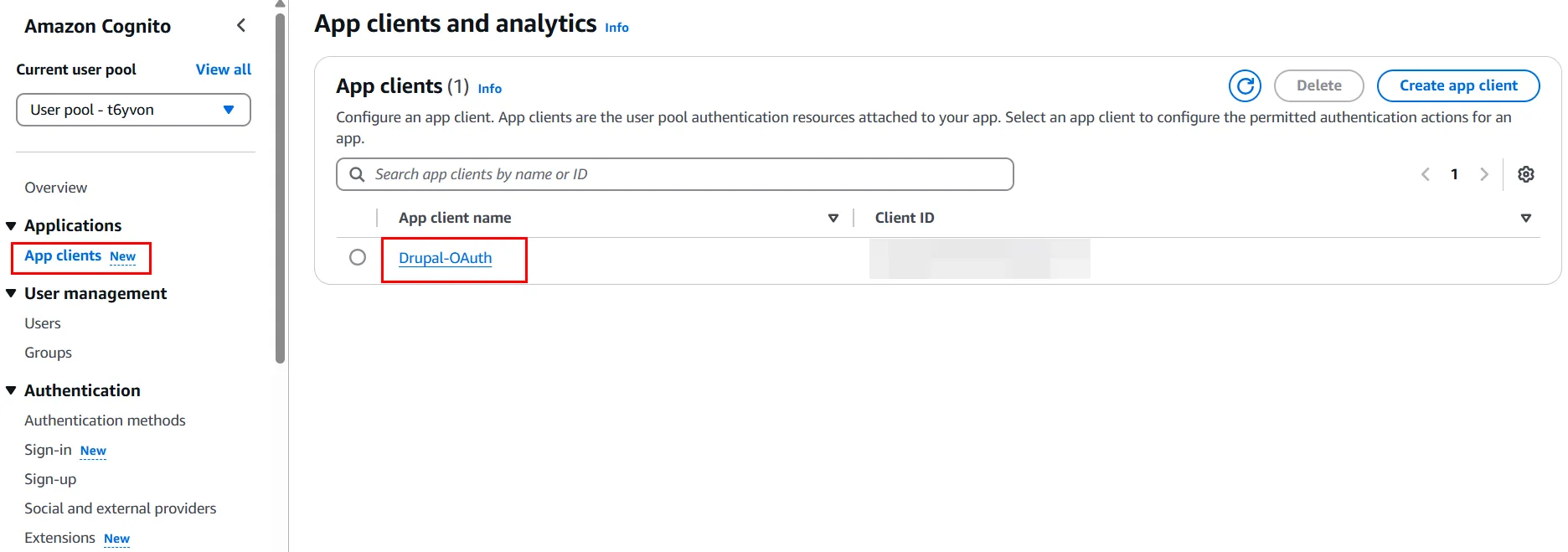

• Click on App clients from the left sidebar and click the link of your created application.

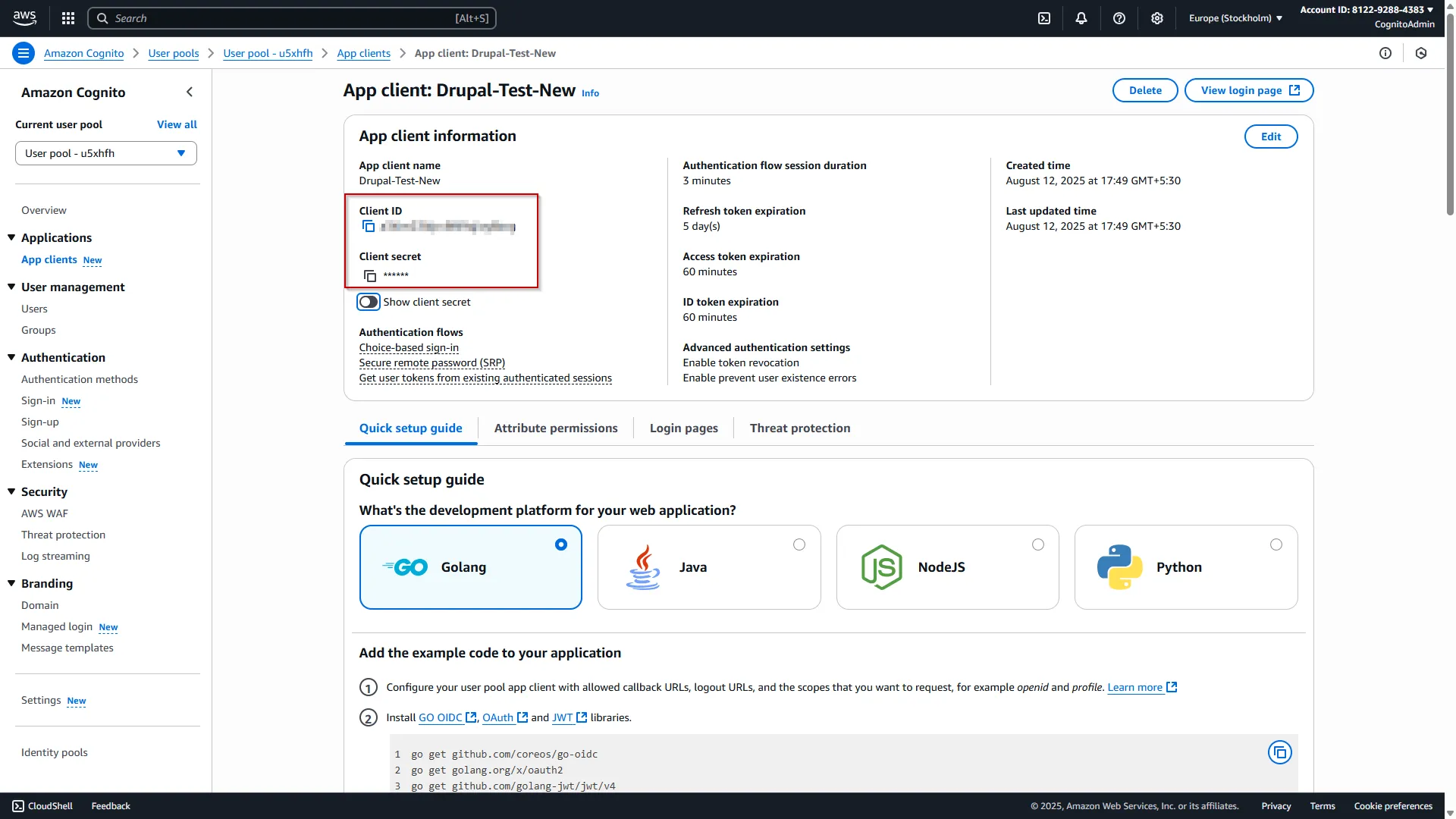

• From the App client information section copy the Client ID and Client secret. Keep it handy as they will be required later.

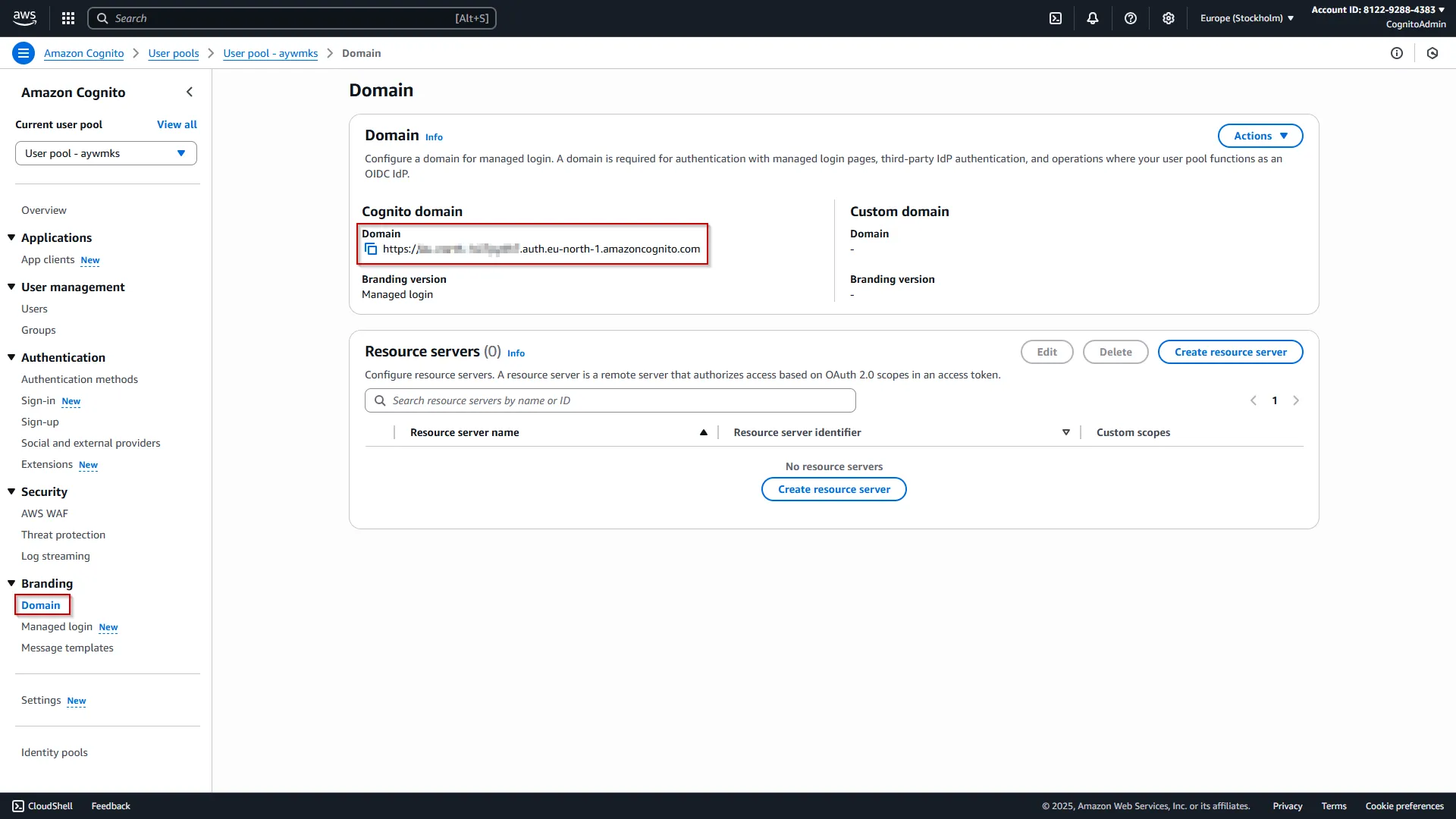

• Now, click the Domain from the left sidebar under the Branding. Copy the Cognito domain it will be required later for Authorization and Access Token endpoints.

Integrating Drupal with AWS Cognito:

• Go to miniOrange OAuth Client module.
• In Configure OAuth tab, paste the copied Client ID and Client Secret from AWS Cognito in the Client ID and Client Secret text-field.

• Replace the inital URL with the Cognito domain into the Authorize Endpoint and Access Token Endpoint textfields.

• The Send Client ID and Secret in Header or Body checkbox allows you to specify whether the Client ID and Secret should be included in the header or the body of the Token Endpoint Request. If you're unsure which option to select, you can stick with the default settings.

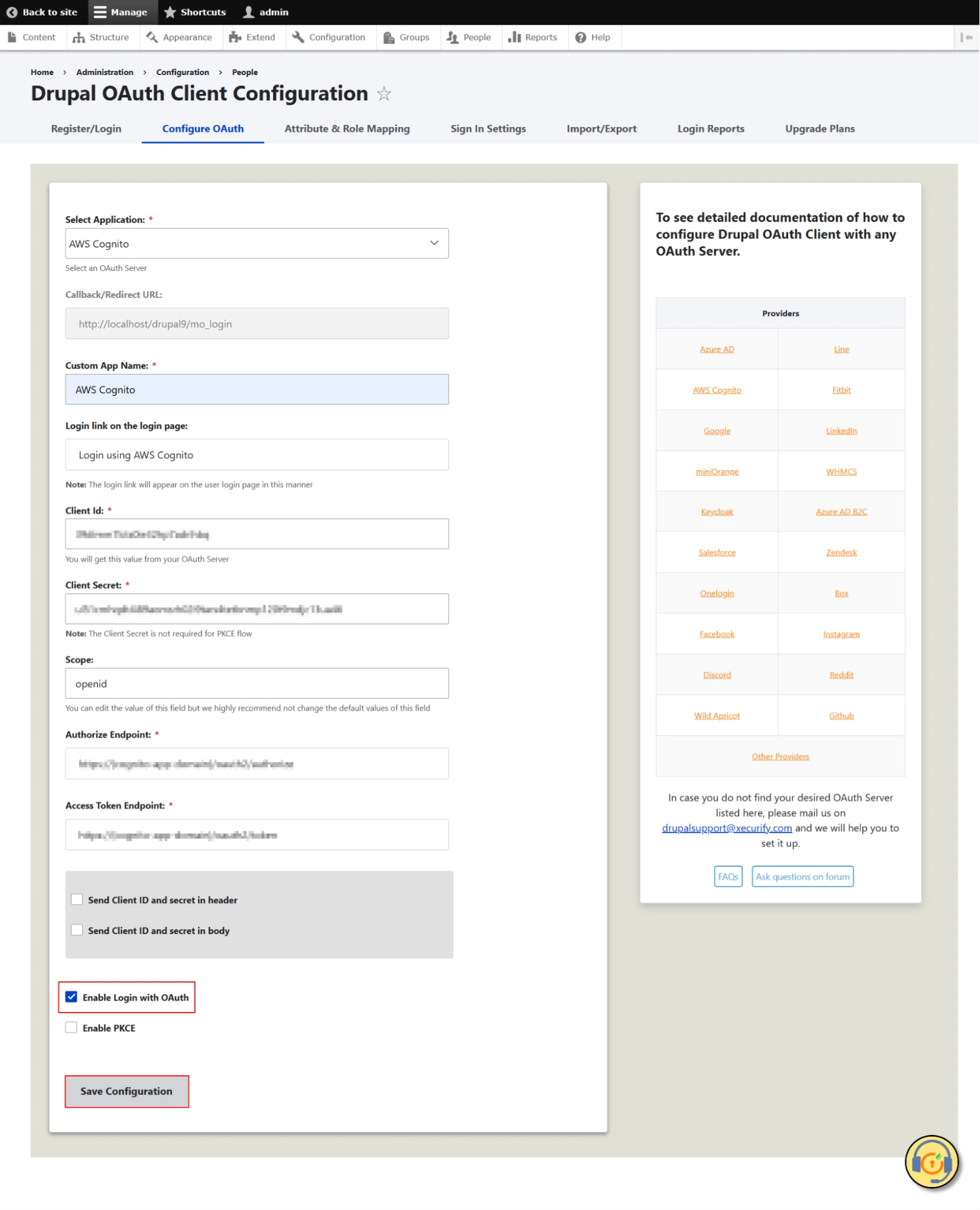

• Click on the checkbox to Enable Login with OAuth, scroll down, and click the Save Configuration button.

Integrating Drupal with AWS Cognito:

• Go to miniOrange OAuth Client module.

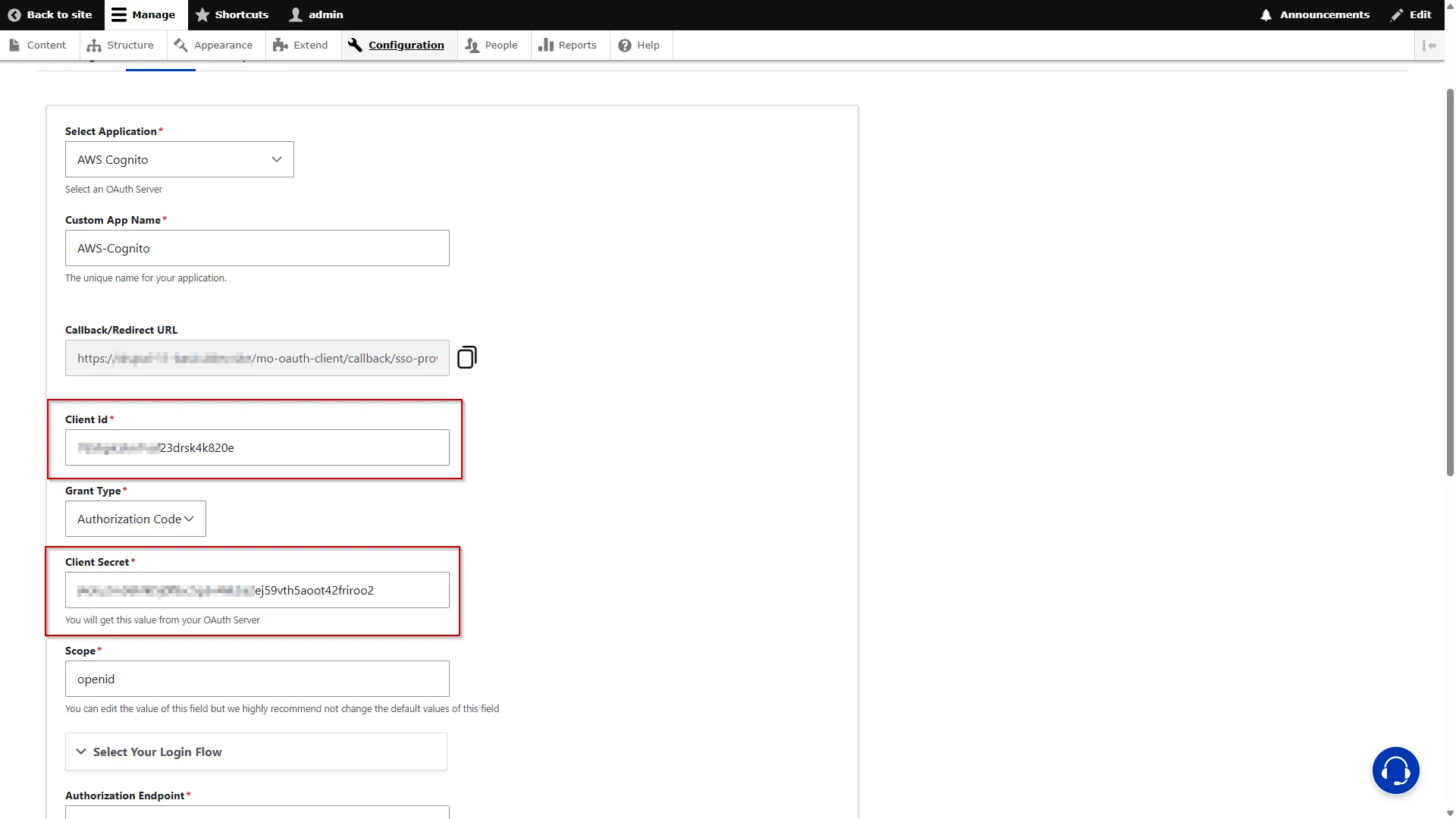

• In Add tab, paste the copied Client ID and Client Secret from AWS Cognito in the Client ID and Client Secret text-field.

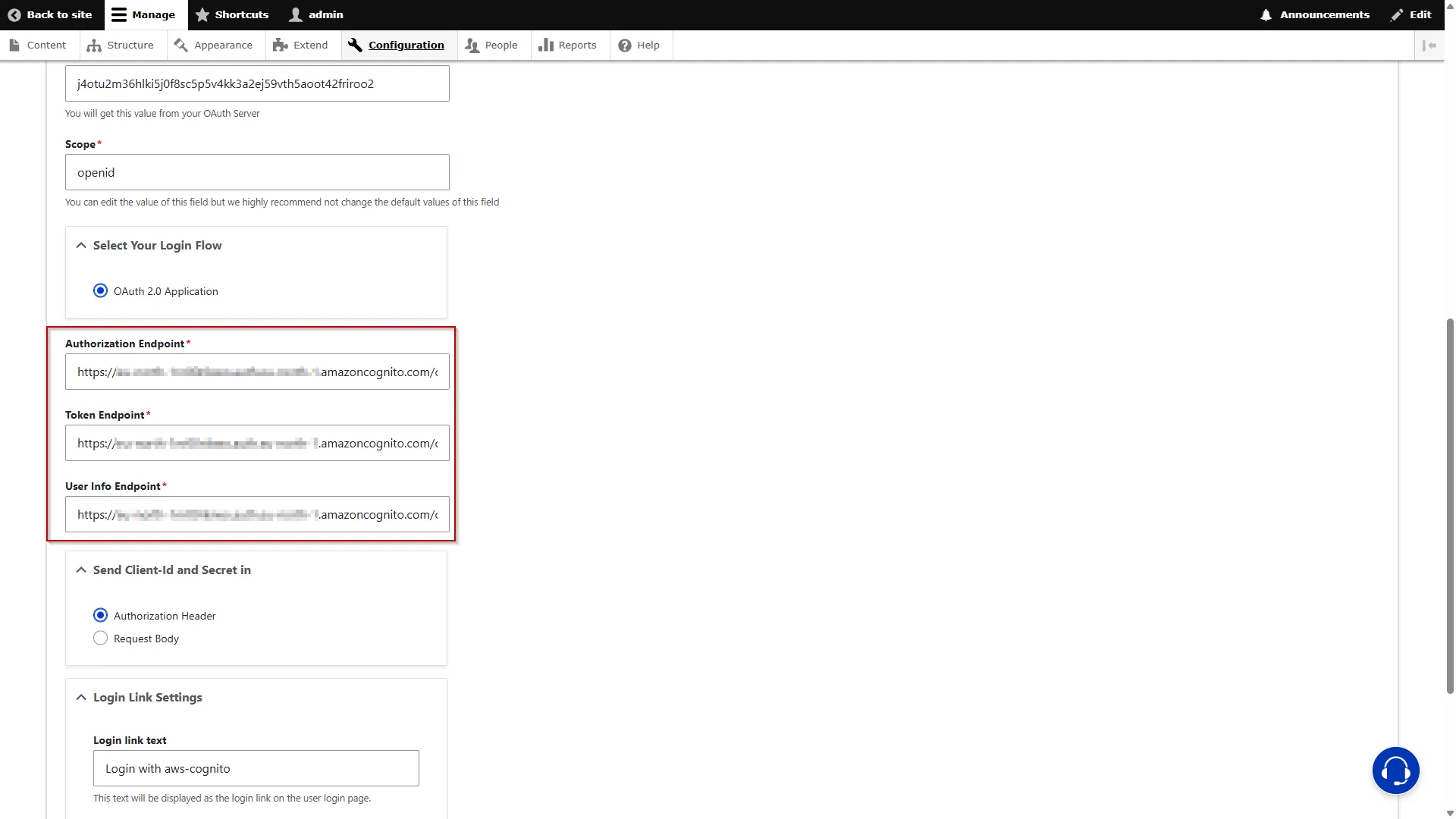

• Replace the inital URL with the Cognito domain into the Authorize Endpoint, Access Token Endpoint, and User Info Endpoint textfields.

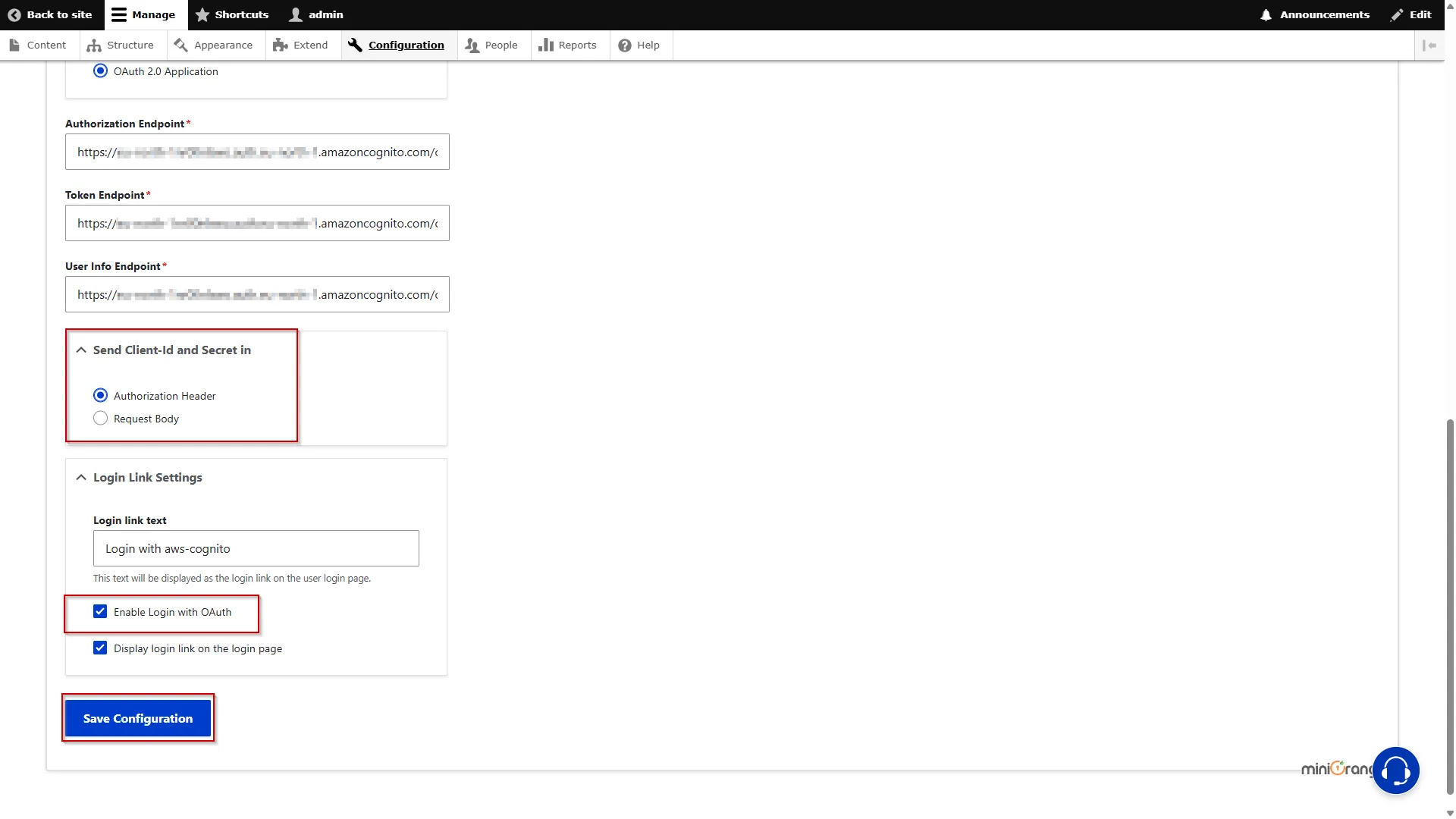

• The Send Client ID and Secret in Header or Body checkbox allows you to specify whether the Client ID and Secret should be included in the header or the body of the Token Endpoint Request. If you're unsure which option to select, you can stick with the default settings.
• Click on the checkbox to Enable Login with OAuth, scroll down, and click the Save Configuration button.

Test Connection between Drupal and OAuth Provider

• After successfully saving the configurations, please click on the Perform Test Configuration button to test the connection between Drupal and OAuth Provider.

• On a Test Configuration popup, if you don't have any active sessions on the same browser, you will be requested to login to the OAuth Provider. After successfully logging, you will be provided a list of attributes received from the OAuth Provider.
• Select the Email Attribute from the dropdown menu in which the user's email ID is obtained and click on the Done button.


Note: Mapping the Email Attribute is mandatory to perform SSO i.e. login to the Drupal site with OAuth Provider credentials.

• On the Attribute & Role Mapping tab, please select the Username Attribute from the dropdown list and click on the Save Configuration button.

• Now log out and go to your Drupal site’s login page. You will automatically find a Login with OAuth Provider link there. If you want to add the SSO link to other pages as well, please follow the steps given in the image below:

Test Connection between Drupal and OAuth Provider

• After successfully saving the configurations, click on the Perform Test Configuration button to test the connection between Drupal and OAuth Provider.

• On a Test Configuration popup, if you don't have any active sessions on the same browser, you will be requested to login to the OAuth Provider. After successfully logging, you will be provided a list of attributes received from the OAuth Provider.
• Click on the Configure Mappings button.

• On the Attribute Mapping tab, please select the Email Attribute and Username Attribute from the dropdown list and click on the Save Configuration button.

Note: Mapping the Email Attribute is mandatory to perform SSO i.e. login to the Drupal site with OAuth Provider credentials.

• Now log out and go to your Drupal site’s login page. You will automatically find a Login with OAuth Provider link there. If you want to add the SSO link to other pages as well, please follow the steps given in the image below:
