Swiss-RX-Login Single Sign-On SSO | WordPress Login using Swiss-RX-Login

Swiss-RX-Login Single Sign-On SSO | WordPress Login using Swiss-RX-Login


Configure Swiss-RX-Login Single Sign-On (SSO) with WordPress OAuth & OpenID Connect Single Sign-On (SSO) plugin. Enable secure login into WordPress using Swiss-RX-Login as OAuth and OpenID Connect provider. Swiss-RX-Login Single Sign-On (SSO) with WordPress allows your users to login to your WordPress and access the site by authenticating with their Swiss-RX-Login identity provider. You can also configure plugin using different IDPs such as Azure AD, Office 365, and other custom providers. It supports advanced Single Sign-On (SSO) features such as user profile Attribute mapping, Role mapping, multi-tenant login etc. Here we will go through a guide to configure Swiss-RX-Login Single Sign-On (SSO) with WordPress for user authentication. By the end of this guide, users should be able to perform secure login to WordPress and access the site with Swiss-RX-Login SSO. To know more about other features we provide in WP OAuth Single Sign-On ( OAuth & OpenID Connect Client ) plugin, you can click here.

Pre-requisites : Download And Installation


  • Log into your WordPress instance as an admin.
  • Go to the WordPress Dashboard -> Plugins and click on Add New.
  • Search for a WordPress OAuth Single Sign-On (SSO) plugin and click on Install Now.
  • Once installed click on Activate.

Steps to configure Swiss-RX-Login Single Sign-On (SSO) Login into WordPress

1. Setup Swiss-RX-Login as OAuth Provider

  • Go to https://swiss-rx-login.ch/Account/LogOn and sign up/login.
  • Eve Online 1
  • From Configure OAuth tab in Oauth Client plugin, collect Redirect/Callback URL and enter it into your Swiss-RX-Login Application.
  • Copy the Client ID and Client Secret and save it under the Client ID and Client Secret in your WordPress OAuth Single Sign-On (SSO) Plugin Configuration.

You have successfully configured Swiss-RX-Login as OAuth Provider for achieving Swiss-RX-Login Single Sign-On (SSO) with WordPress for user authentication.


2. Setup WordPress as OAuth Client

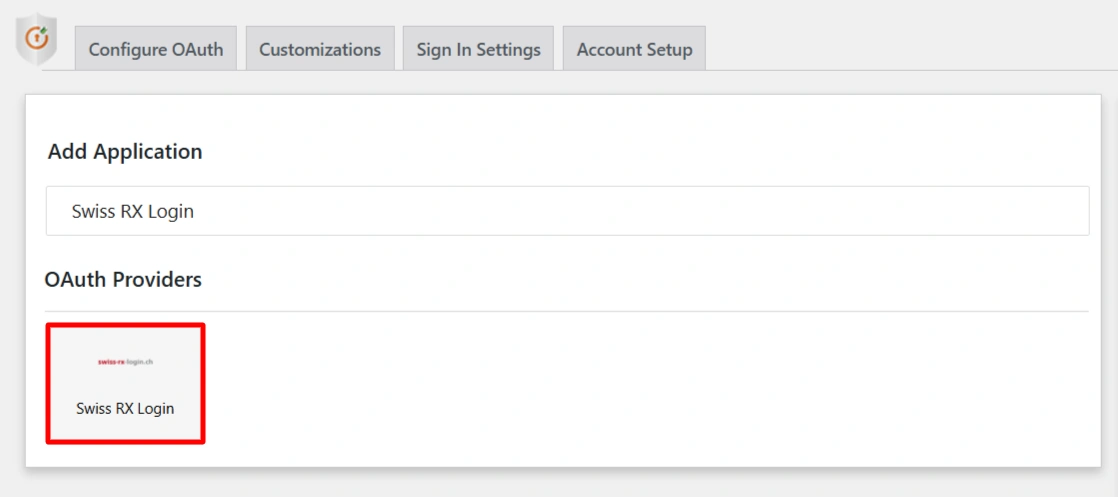

  • Go to the Configure OAuth tab in the Plugin and search for Swiss RX Login app in the applications list, and select the Swiss RX Login app.
  • OAuth/OpenID Swiss Single Sign On SSO WordPress select-swissapp

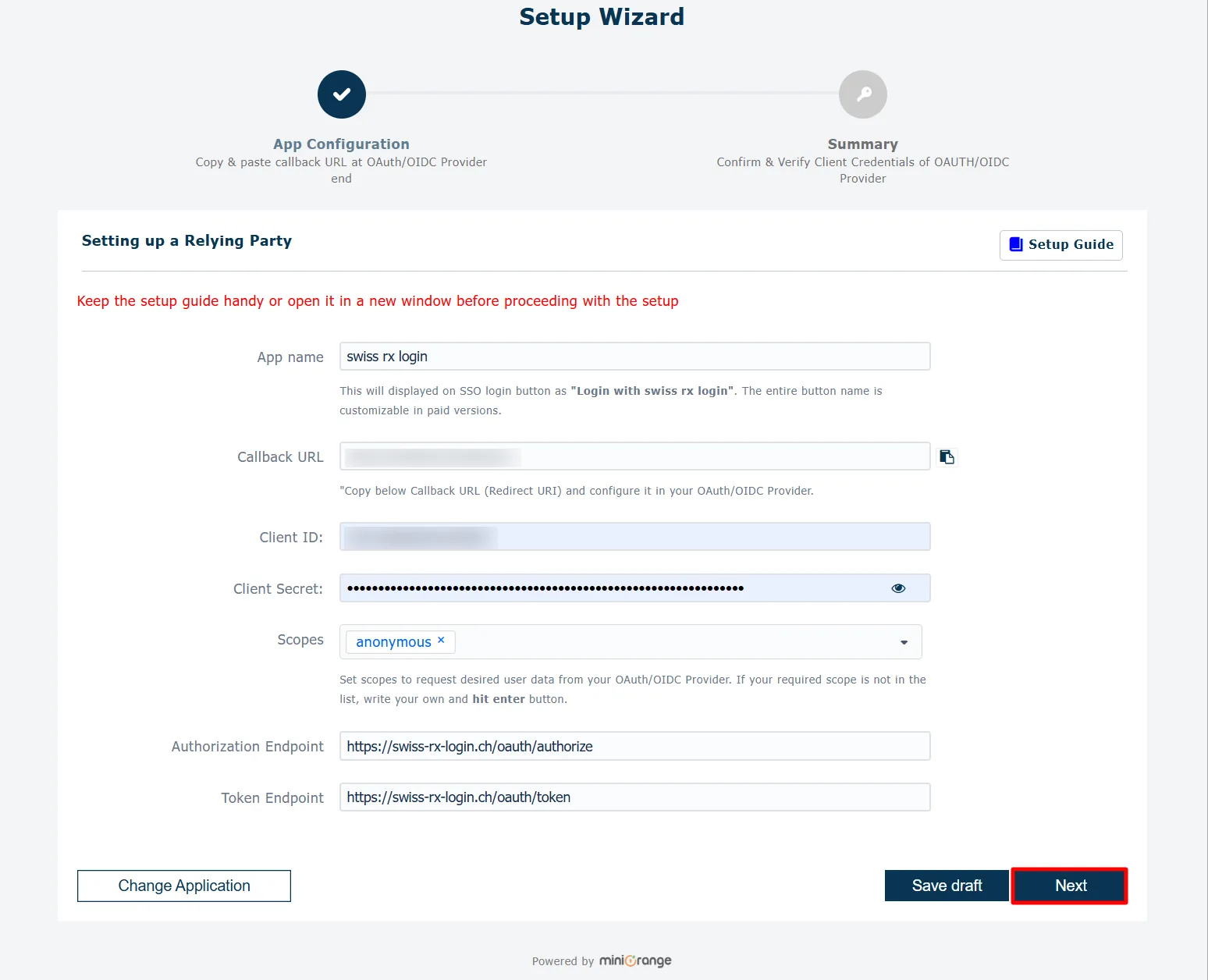

  • Then, configure App Name, Client ID, Client Secret and Endpoints.
  • Enter Scope value as anonymous personal.
  • Enable both the options for 'Send client credentials in'.
  • Please refer the below table for configuring the scope & endpoints for Swiss-RX-Login in the plugin.


    Client ID : Click Here
    Client Secret : Click Here
    Scope : anonymous personal
    Authorize Endpoint: https://swiss-rx-login.ch/oauth/authorize
    Access Token Endpoint: https://swiss-rx-login.ch/oauth/token

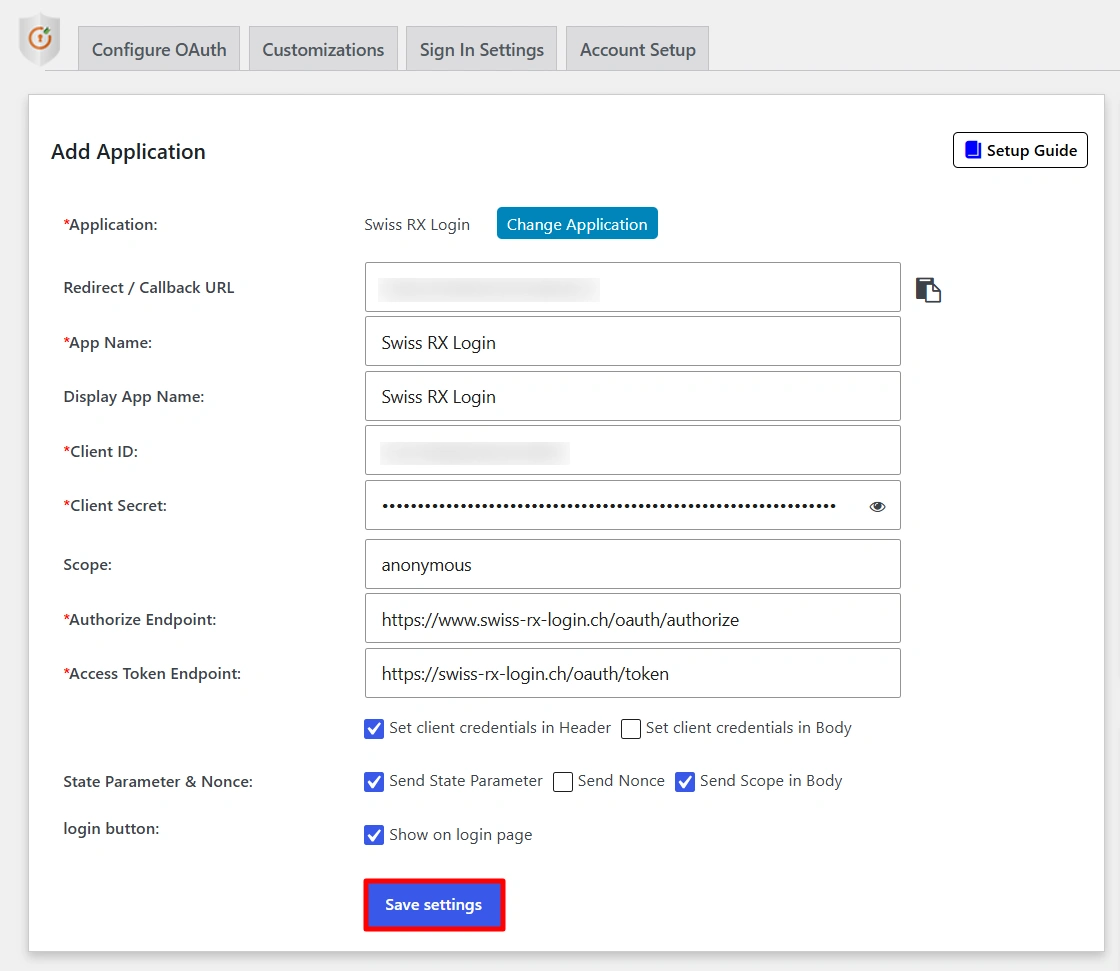

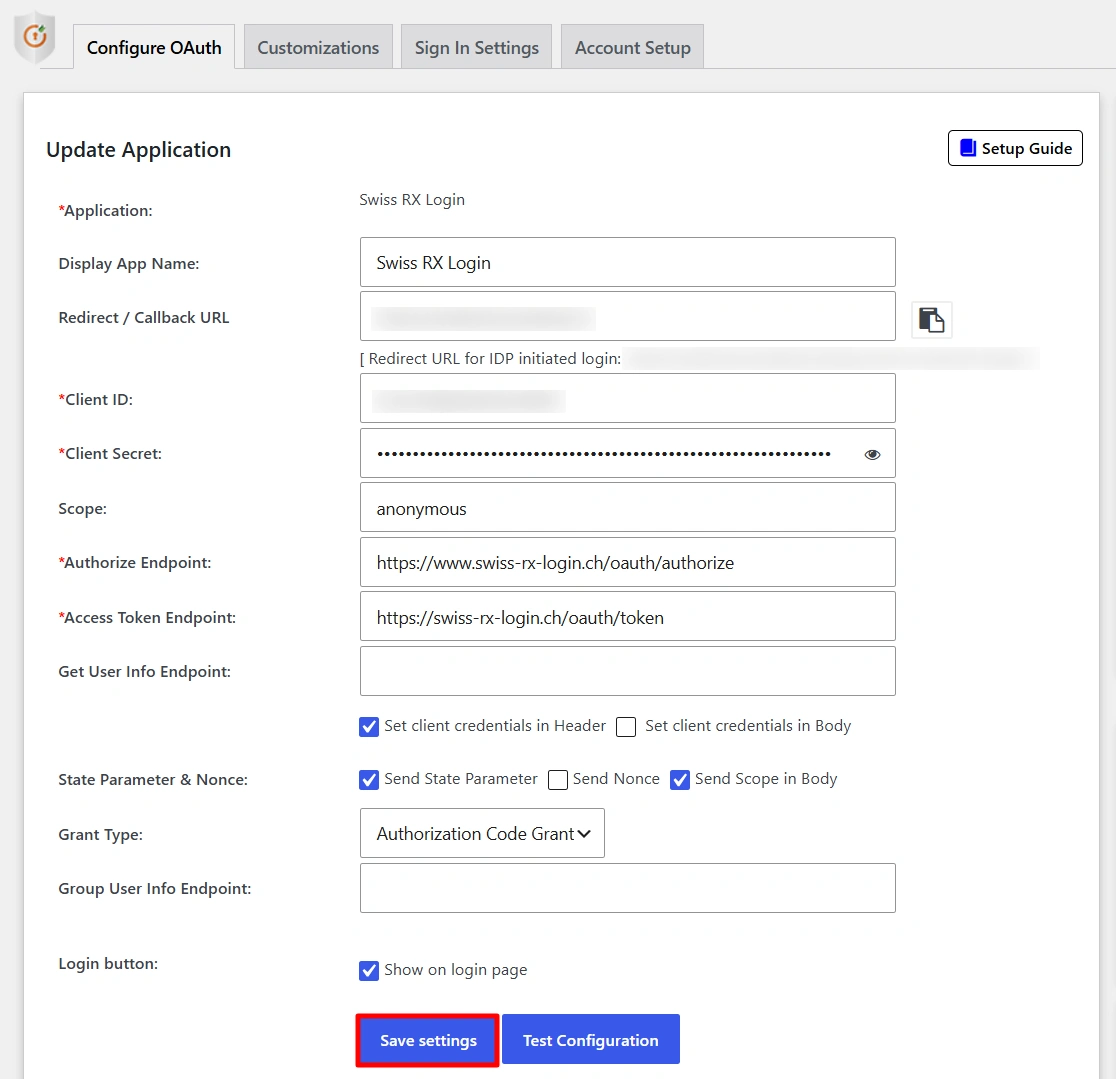

  • Click on Save Settings to save the configuration.
  • Amazon Single Sign-On (SSO) - save settings

You have successfully configured WordPress as OAuth Client for achieving Swiss-RX-Login SSO login into your WordPress Site.


3. User Attribute Mapping

  • User Attribute Mapping is mandatory for enabling users to successfully login into WordPress. We will be setting up user profile attributes for WordPress using below settings.
  • Finding user attributes

    • Go to Configure OAuth tab. Scroll down and click on Test Configuration.
    •  Amazon Single Sign-On (SSO) - test congifuration
    • You will see all the values returned by your OAuth Provider to WordPress in a table. If you don't see value for First Name, Last Name, Email or Username, make the required settings in your OAuth Provider to return this information.
    • Amazon Single Sign-On (SSO) - test-result
    • Once you see all the values in Test Configuration, go to Attribute / Role Mapping tab, you will get the list of attributes in a Username dropdown.
    • Amazon Single Sign-On (SSO) - attribute/role mapping

    4: Role Mapping [Premium]

    • Click on Test Configuration and you will get the list of Attribute Names and Attribute Values that are sent by your OAuth provider.
    • From the Test Configuration window, map the Attribute Names in the Attribute Mapping section of the plugin. Refer to the screenshot for more details.
    • Amazon Single Sign-On (SSO) -  - attribute mapping
    • Enable Role Mapping: To enable Role Mapping, you need to map Group Name Attribute. Select the attribute name from the list of attributes which returns the roles from your provider application.
      Eg: Role

    • Amazon Single Sign-On (SSO) - group-attribute mapping
    • Assign WordPress role to the Provider role: Based on your provider application, you can allocate the WordPress role to your provider roles. It can be a student, teacher, administrator or any other depending on your application. Add the provider roles under Group Attribute Value and assign the required WordPress role in front of it under WordPress Role.

      For example, in the below image. Teacher has been assigned the role of Administrator & Student is assigned the role of Subscriber.
    • Amazon Single Sign-On (SSO) - role mapping
    • Once you save the mapping, the provider role will be assigned the WordPress administrator role after SSO.
      Example: As per the given example, Users with role ‘teacher’ will be added as Administrator in WordPress and ‘student’ will be added as Subscriber.

    5: Login Settings / Sign In Settings

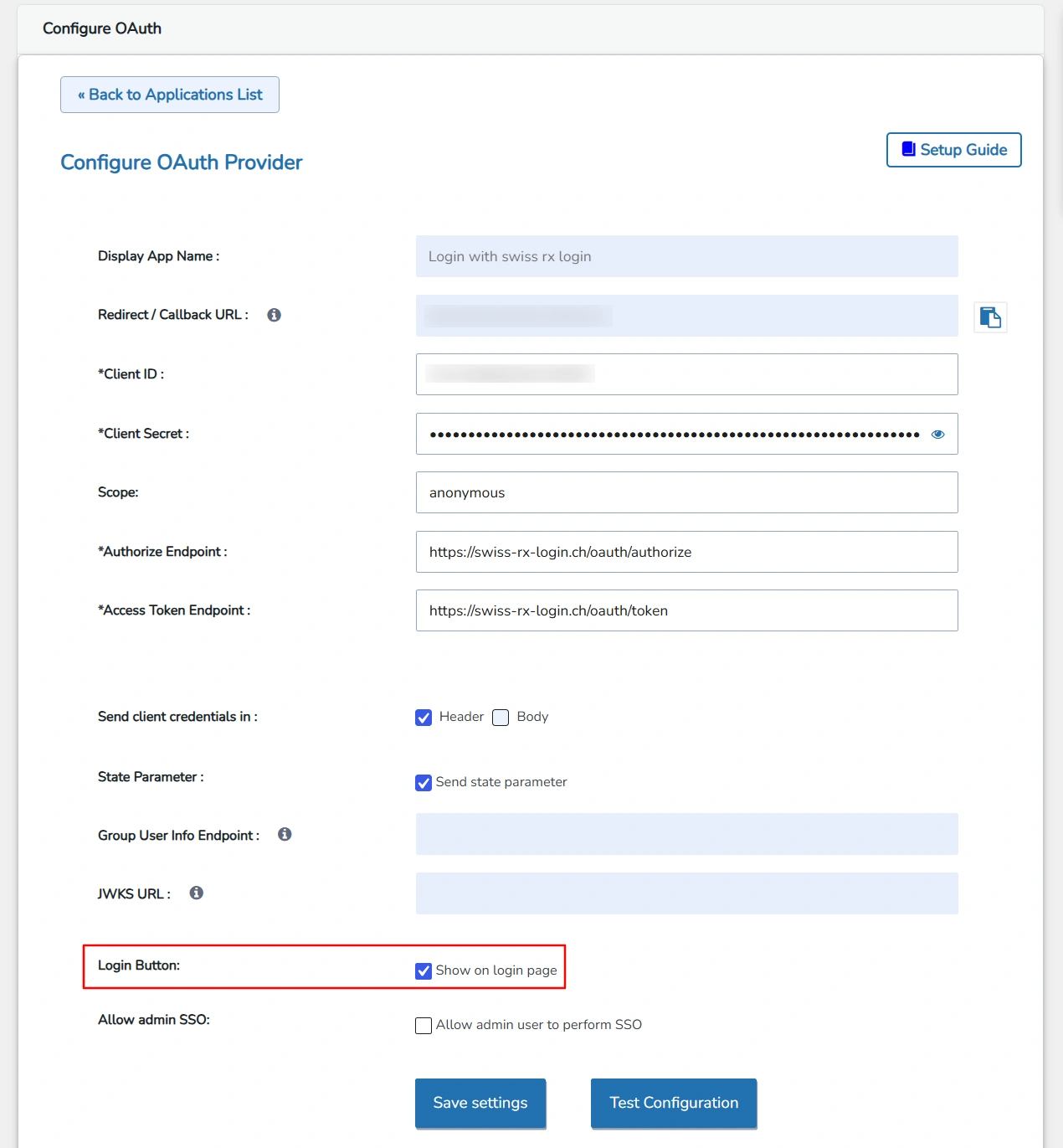

    • The settings in Single Sign-On (SSO) Settings tab define the user experience for Single Sign-On (SSO). To add a Swiss-RX-Login login widget on your WordPress page, you need to follow the below steps.
    • 1. Sign in settings for wordpress 5.7 and before :

      • Go to WordPress Left Panel > Appearances > Widgets.
      • Select miniOrange OAuth. Drag and drop to your favourite location and save.
      • Amazon Single Sign-On (SSO) - login button setting

      2. Sign in settings for wordpress 5.8 :

      • Go to WordPress Left Panel > Appearances > Widgets.
      • Select miniOrange OAuth. Drag and drop to your favourite location and save.
      • OAuth/OpenID Amazon Single Sign On SSO WordPress create-newclient login button setting

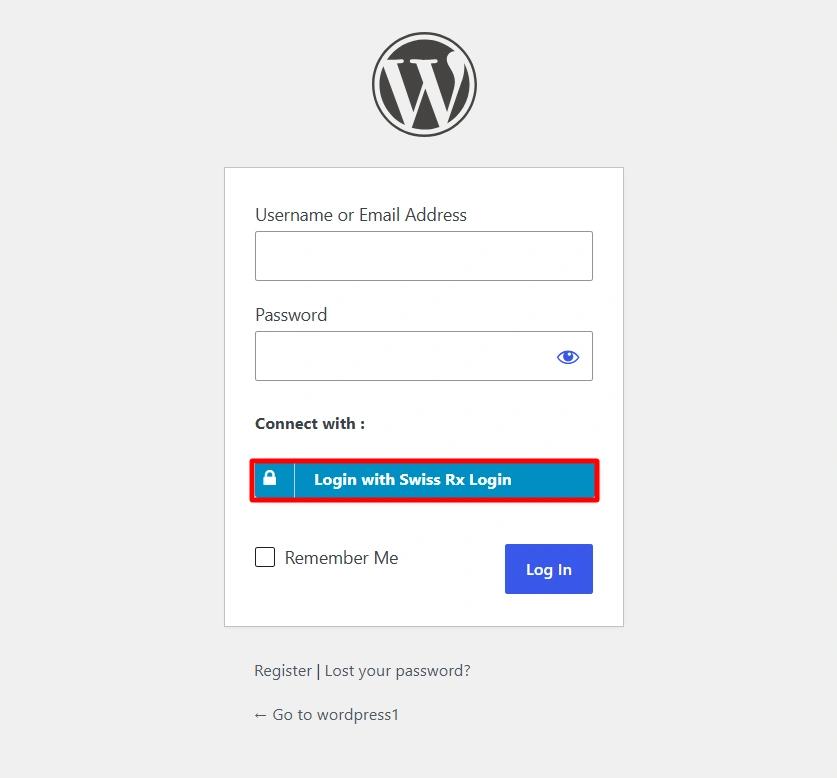

      • Open your WordPress page and you can see the Swiss-RX-Login SSO login button there. You can test the Swiss-RX-Login Single Sign-On (SSO) now.

      In this Guide, you have successfully configured Swiss-RX-Login Single Sign-On (SSO) by configuring Swiss-RX-Login as OAuth Provider and WordPress as OAuth Client using our WP OAuth Single Sign-On ( OAuth / OpenID Connect Client ) plugin. This solution ensures that you are ready to roll out secure access to your WordPress site using Swiss-RX-Login login credentials within minutes.


      Additional Resources


      Mail us on oauthsupport@xecurify.com for quick guidance(via email/meeting) on your requirement and our team will help you to select the best suitable solution/plan as per your requirement.
