Umbraco SAML Single Sign-On (SSO) with Keycloak as IDP

Umbraco SAML Single Sign-On (SSO) plugin gives the ability to enable SAML Single Sign-On for your Umbraco applications. Using Single Sign-On you can use only one password to access your Umbraco application and services. Our plugin is compatible with all the SAML compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between Umbraco and Keyclock considering Keyclock as IdP. To know more about the features we provide for Umbraco SSO, click here.

Pre-requisites: Download And Installation

• Install from NuGet store
• Manual Installation

• NuGet Package
• .NET CLI

PM> NuGet\Install-Package miniOrange.Umbraco8.SAML.SSO -Version 5.4.2

> dotnet add package miniOrange.Umbraco8.SAML.SSO --version 5.4.2

• Download Umbraco SAML Single Sign-On (SSO) module.
• For Setting up the module, extract the umbraco-saml-sso-connector.zip, you will find a DLL file miniorange-saml-sso.dll, a configuration file saml.config and a integration.md file which contain the steps for adding the module into your application.

• Add miniorange-saml-sso.dll in the bin folder (where your other DLL files exist) for your Umbraco site.
• Register miniorangesamlsso module for your umbraco SSO according to the provided steps in the integration.md file.
• Add the provided configuration file saml.config in the root directory for your umbraco site.

• Download Umbraco SAML Single Sign-On (SSO) middleware.
• For Setting up the middleware, you will be required to add the below namespaces, services and middleware in your startup.cs file (marked in green), below here is a sample example





                using miniorange.saml;
                using System.Reflection;

                namespace Application
                {
                    public class Startup
                    {

                // Add services to the container.

                public void ConfigureServices(IServiceCollection services)
                {
                  services.AddUmbraco(_env, _config)
                   .AddBackOffice()
                   .AddWebsite()
                   .AddComposers()
                   .Build();

                   services.AddminiOrangeServices(Assembly.GetExecutingAssembly());
               }

                public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
                {

                 if (env.IsDevelopment())
                  {
                   app.UseDeveloperExceptionPage();
                   }
                   app.UseUmbraco()
                 .WithMiddleware(u =>
                {
                  u.UseBackOffice();
                  u.UseWebsite();
                  u.AppBuilder.UseminiOrangeSAMLSSOMiddleware();
                })

                .WithEndpoints(u =>
                {
                  u.UseInstallerEndpoints();
                  u.UseBackOfficeEndpoints();
                  u.UseWebsiteEndpoints();
                });
              }
            }
           }




• Run the application when the configuration is done.
• After integration, open your browser and browse the plugin dashboard with the URL below: https://<umbraco-middleware-base-url>/?ssoaction=config
• If the registration page or login page pops up, you have successfully added the miniOrange Umbraco SAML middleware in your Umbraco application.

• Register or log in with your account by clicking the Register button to configure the plugin

• Download Umbraco SAML Single Sign-On (SSO) middleware.
• For Setting up the middleware, you will be required to add the below namespaces, services and middleware in your program.cs file (marked in green), below here is a sample example





                using miniorange.saml;
                using System.Reflection;
                WebApplicationBuilder builder = WebApplication.CreateBuilder(args);

                builder.CreateUmbracoBuilder()
                    .AddBackOffice()
                    .AddWebsite()
                    .AddDeliveryApi()
                    .AddComposers()
                    .Build();

                // Add services to the container.

                builder.Services.AddminiOrangeServices(Assembly.GetExecutingAssembly());

                WebApplication app = builder.Build();

                await app.BootUmbracoAsync();

                app.UseUmbraco()
                   .WithMiddleware(u =>
                    {
                     u.UseBackOffice();
                     u.UseWebsite();
                     u.AppBuilder.UseminiOrangeSAMLSSOMiddleware();
                     })

                     .WithEndpoints(u =>
                     {
                    u.UseBackOfficeEndpoints();
                    u.UseWebsiteEndpoints();
                   });
               await app.RunAsync();




• Run the application when the configuration is done.
• After integration, open your browser and browse the plugin dashboard with the URL below: https://<umbraco-middleware-base-url>/?ssoaction=config
• If the registration page or login page pops up, you have successfully added the miniOrange Umbraco SAML middleware in your Umbraco application.

• Register or log in with your account by clicking the Register button to configure the plugin
• After Registration the license key activation page will get displayed. Here enter the license key received on your registed email
• If you didn't received the license key then click here

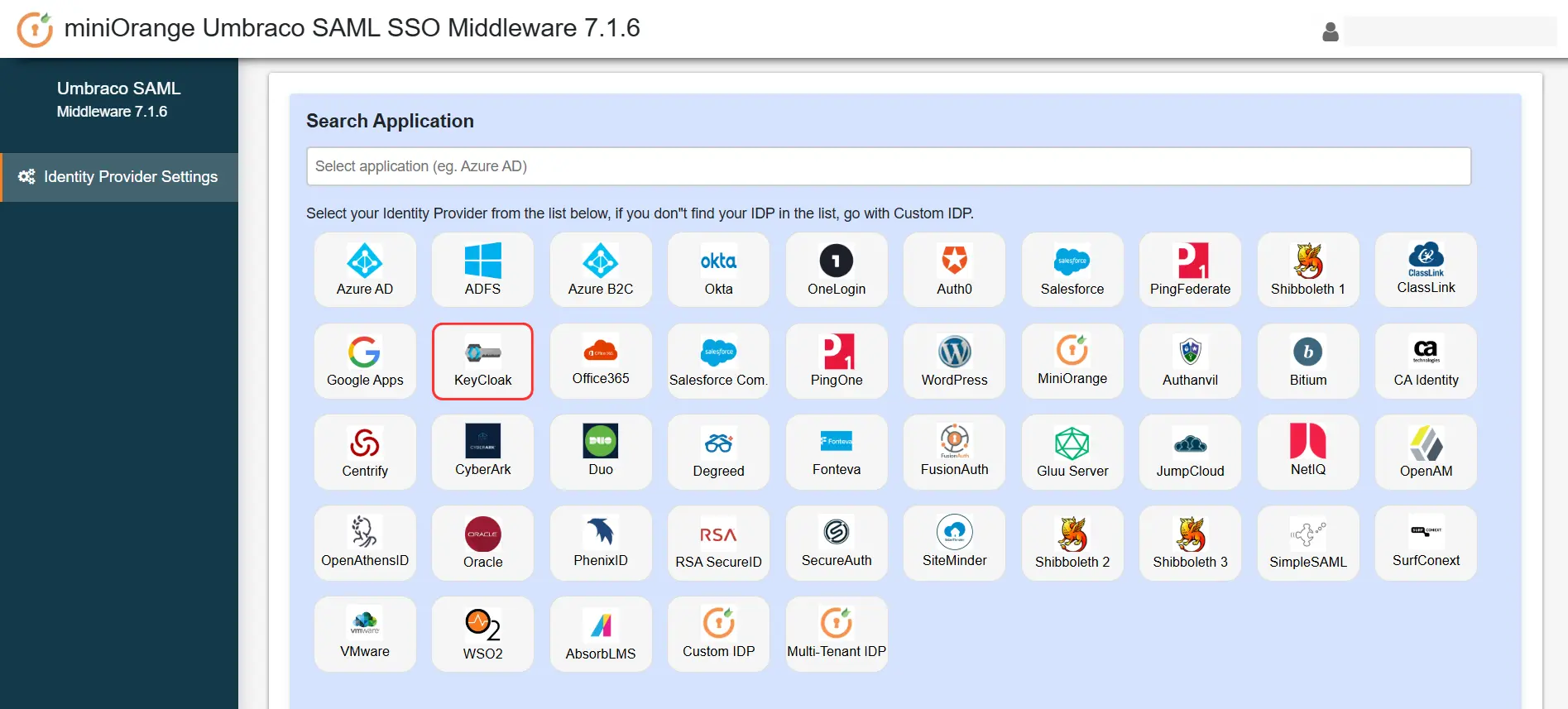

1. Configure Keycloak as IDP

There are below two ways with which you can get the SAML SP metadata to configure on your identity provider end.

A] Using SAML metadata URL or metadata file:

• Under the Service Provider Settings section, you can find the metadata URL as well as the option to download the SAML metadata
• Copy metadata URL or download metadata file to configure the same on your identity provider end.
• You can refer to the below screenshot:



B] Uploading metadata manually:

• From the Service Provider Settings section, you can copy the service provider metadata manually like SP Entity ID, ACS Url, Single Logout Url, and provide it to your identity provider for configuration.
• You can refer to the below screenshot:



• Version 18 and below
• Version 19 and above

In your Keycloak Admin console, select the realm that you want to use.
Click on Clients from the left menu and then click on Create button to create a new client/application.

Enter SP-EntityID / Issuer as the Client ID from the "Service Provider Settings" Tab and select SAML as the Client Protocol.

Now click on Save.
Configure Keycloak by providing the required details:
Client ID	The SP-EntityID / Issuer from the plugin's Service Provider Metadata tab
Name	Provide a name for this client
Description	Provide a description
Client Signature Required	OFF
Force POST Binding	OFF
Force Name ID Format	OFF
Name ID Format	Email
Root URL	Leave empty or Provide Base URL from Service Provider Settings tab
Valid Redirect URIs	The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Settings tab

Under Fine Grain SAML Endpoint Configuration, Enter the following details:
Assertion Consumer Service POST Binding URL	The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Settings tab
Logout Service Redirect Binding URL (Optional)	The Single Logout URL from the plugin's Service Provider Metadata tab

Click on Save.
In your Keycloak Admin console, select the realm that you want to use.
Click on Clients from the left menu and then click on Create Client button to create a new client/application.

Select SAML as Client type, Enter SP-EntityID / Issuer as the Client ID from the "Service Provider Metadata" Tab,Enter Name of your application and enter Description.

Now click on Save.
Configure Keycloak by providing the required details:
Client ID	The SP-EntityID / Issuer from the plugin's Service Provider Metadata tab
Name	Provide a name for this client
Description	Provide a description
Client Signature Required	OFF
Force POST Binding	OFF
Force Name ID Format	OFF
Name ID Format	Email
Root URL	Leave empty or Provide Base URL from Service Provider Settings tab
Valid Redirect URIs	The ACS (Assertion Consumer Service) URLfrom the plugin's Service Provider Settings tab

Now click on Save.
In Advanced tab,under Fine Grain SAML Endpoint Configuration, Enter the following details:
Assertion Consumer Service POST Binding URL	The ACS (Assertion Consumer Service) URL from the plugin's Service Provider Settings tab
Logout Service Redirect Binding URL (Optional)	The Single Logout URL from the plugin's Service Provider Metadata tab

Click on Save.

You have successfully configured Keycloak as SAML IdP ( Identity Provider) for achieving Keycloak login / Keycloak SSO / Keycloak Single Sign-On (SSO), ensuring secure Login into Umbraco application.

2. Configure Umbraco as SP

There are below two ways with which you can configure your SAML identity provider metadata in the module.

A] Upload metadata using the Upload IDP Metadata button:

• If your identity provider has provided you with the metadata URL or metadata file (.xml format only) then you simply configure the identity provider metadata in the module using the Upload IdP Metadata option.
• You can refer to the below screenshot


• You can choose any one of the options according to the metadata format you are available with.

B] Configure the identity provider metadata manually:

• After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and x.509 Certificate. Configure these values under IDP Entity ID, Single Sign-On Url and SAML X509 Certificate fields respectively.
• Click Save to save your IDP details.

3. Test Configuration

• Click on Test Configuration button to test whether the SAML configuration you’ve done is correct or not.
• The below screenshot shows a successful result.

4. Attribute Mapping

• Map your umbraco attributes with the Identity Provider (IdP) attributes.

• Click on Save Attribute Mapping button to save the settings.

5. Login Type

The Umbraco platform supports two different ways of login:

• Member Login
• BackOffice Login

• Under the Login Setup tab, select Member login as your preferred form of login and then click Save.

• Under the Login Setup tab, select BackOffice login as your preferred form of login and then click Save.

6. Login Settings

• Use the following URL as a link in your Umbraco site from where you want to initiate SSO:
  https://umbraco-base-url/?ssoaction=login
• For example you can use it as:
  <a href="https://umbraco-base-url/?ssoaction=login”>Login</a>"

7. Logout Settings

• Use the following URL as a link in your Umbraco from where you want to perform SLO:
  https://umbraco-base-url/?ssoaction=logout
• For example you can use it as:
  <a href="https://umbraco-base-url/?ssoaction=logout”>Logout</a>"

You can configure the Umbraco SAML 2.0 Single Sign-On (SSO) module with any Identity Providers such as ADFS, Azure AD, Bitium, Centrify, G Suite, WordPress, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. Check the list of identity providers here.
