Umbraco SAML Single Sign-On (SSO) with Onelogin as IDP

Umbraco SAML Single Sign-On (SSO) plugin gives the ability to enable SAML Single Sign-On for your Umbraco applications. Using Single Sign-On you can use only one password to access your Umbraco application and services. Our plugin is compatible with all the SAML compliant identity providers. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between Umbraco and Onelogin considering Onelogin as IdP. To know more about the features we provide for Umbraco SSO, click here.

Select your umbraco version to configure SSO with:

Pre-requisites: Download And Installation

Install from NuGet store
Manual Installation

NuGet Package
.NET CLI

PM> NuGet\Install-Package miniOrange.Umbraco8.SAML.SSO -Version 5.4.2

Add miniorange-saml-sso.dll in the bin folder (where your other DLL files exist) for your Umbraco site.
Register miniorangesamlsso module for your umbraco SSO according to the provided steps in the integration.md file.
Add the provided configuration file saml.config in the root directory for your umbraco site.

Download Umbraco SAML Single Sign-On (SSO) middleware.
For Setting up the middleware, you will be required to add the below namespaces, services and middleware in your startup.cs file (marked in green), below here is a sample example




                using miniorange.saml;
                using System.Reflection;

                namespace Application
                {
                    public class Startup
                    {

                // Add services to the container.

                public void ConfigureServices(IServiceCollection services)
                {
                  services.AddUmbraco(_env, _config)
                   .AddBackOffice()
                   .AddWebsite()
                   .AddComposers()
                   .Build();

                   services.AddminiOrangeServices(Assembly.GetExecutingAssembly());
               }

                public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
                {

                 if (env.IsDevelopment())
                  {
                   app.UseDeveloperExceptionPage();
                   }
                   app.UseUmbraco()
                 .WithMiddleware(u =>
                {
                  u.UseBackOffice();
                  u.UseWebsite();
                  u.AppBuilder.UseminiOrangeSAMLSSOMiddleware();
                })

                .WithEndpoints(u =>
                {
                  u.UseInstallerEndpoints();
                  u.UseBackOfficeEndpoints();
                  u.UseWebsiteEndpoints();
                });
              }
            }
           }

Run the application when the configuration is done.

After integration, open your browser and browse the plugin dashboard with the URL below: https://<umbraco-middleware-base-url>/?ssoaction=config
If the registration page or login page pops up, you have successfully added the miniOrange Umbraco SAML middleware in your Umbraco application.

Umbraco SAML Single Sign-On (SSO) using ADFS as IDP - Umbraco login page

Download Umbraco SAML Single Sign-On (SSO) middleware.
For Setting up the middleware, you will be required to add the below namespaces, services and middleware in your program.cs file (marked in green), below here is a sample example




                using miniorange.saml;
                using System.Reflection;
                WebApplicationBuilder builder = WebApplication.CreateBuilder(args);

                builder.CreateUmbracoBuilder()
                    .AddBackOffice()
                    .AddWebsite()
                    .AddDeliveryApi()
                    .AddComposers()
                    .Build();

                // Add services to the container.

                builder.Services.AddminiOrangeServices(Assembly.GetExecutingAssembly());

                WebApplication app = builder.Build();

                await app.BootUmbracoAsync();

                app.UseUmbraco()
                   .WithMiddleware(u =>
                    {
                     u.UseBackOffice();
                     u.UseWebsite();
                     u.AppBuilder.UseminiOrangeSAMLSSOMiddleware();
                     })

                     .WithEndpoints(u =>
                     {
                    u.UseBackOfficeEndpoints();
                    u.UseWebsiteEndpoints();
                   });
               await app.RunAsync();

Run the application when the configuration is done.

After integration, open your browser and browse the plugin dashboard with the URL below: https://<umbraco-middleware-base-url>/?ssoaction=config
If the registration page or login page pops up, you have successfully added the miniOrange Umbraco SAML middleware in your Umbraco application.

After integration, open your browser and browse the connector dashboard with the URL below:
https://<your-application-base-url>/?ssoaction=config
If the registration page or login page pops up, you have successfully added the miniOrange Umbraco SAML SSO connector to your application.

Umbraco SAML Single Sign-On (SSO) using ADFS as IDP - Umbraco SAML Registration

Configure Umbraco Single Sign-On (SSO) using OneLogin as IDP

1. Configure Onelogin as IDP

There are below two ways with which you can get the SAML SP metadata to configure on your OneLogin end.

A] Using SAML metadata URL or metadata file:

Under the Service Provider Settings section, you can find the metadata URL as well as the option to download the SAML metadata
Copy metadata URL or download metadata file to configure the same on your OneLogin end.
You can refer to the below screenshot

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Service provider metadata

B] Uploading metadata manually:

From the Service Provider Settings section, you can copy the service provider metadata manually like SP Entity ID, ACS URL, Single Logout URL, and provide it to your identity provider for configuration.
You can refer to the below screenshot

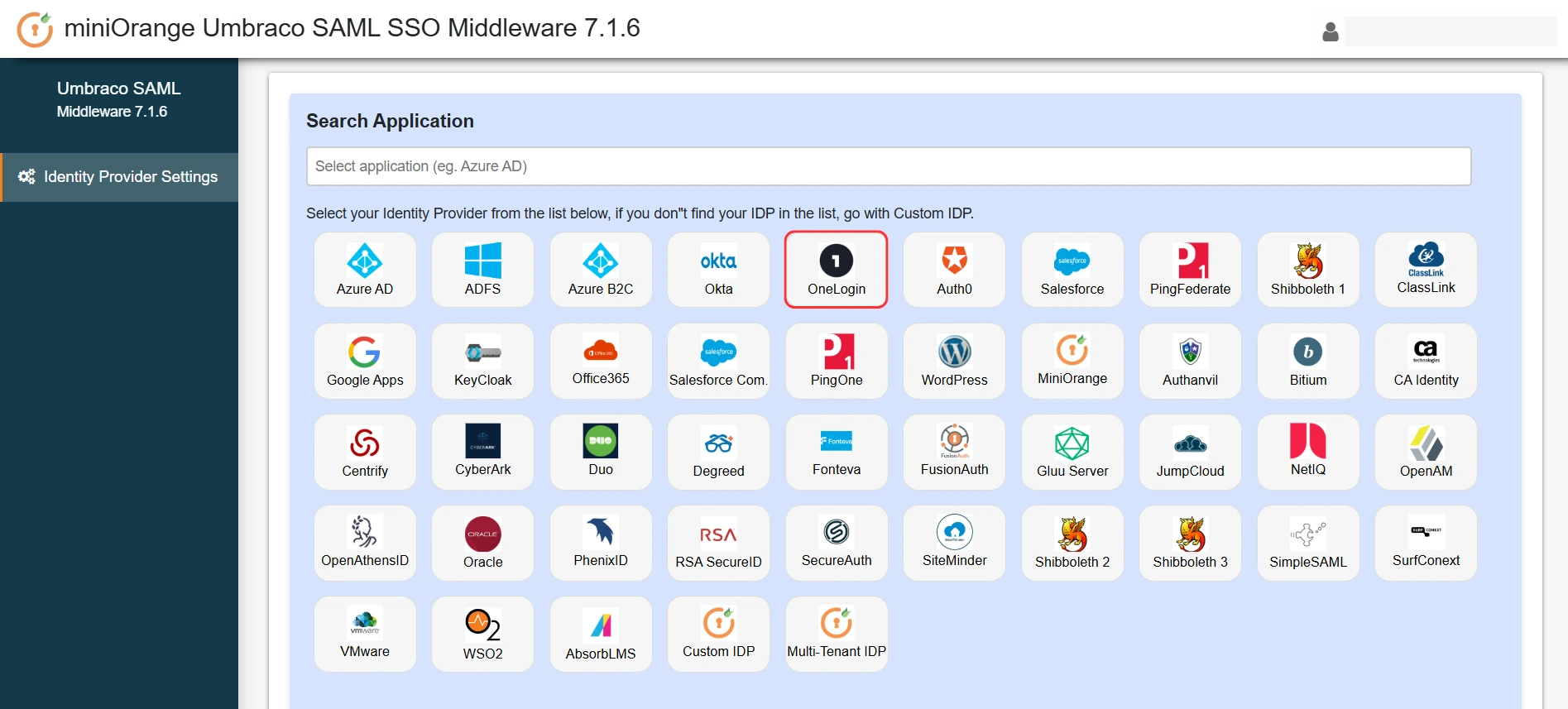

Under the Plugin Settings tab, select OneLogin as your identity provider from the list shown below:

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Select your IDP

There are two ways detailed below with which you can get the SAML SP metadata to configure onto your identity provider end.

A] Using SAML metadata URL or metadata file:

In the Plugin Settings menu, look for Service Provider settings. Under that, you can find the metadata URL as well as the option to download the SAML metadata.
Copy metadata URL or download the metadata file to configure the same on your identity provider end. You may refer to the screenshot below:

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Download SP Metadata

B] Uploading metadata manually:

From the Service Provider settings section, you can manually copy the service provider metadata like SP Entity ID, ACS URL, Single Logout URL and share it with your identity provider for configuration. You may refer to the screenshot below:

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Copy SP Metadata

Go to onelogin.com, enter your domain and Login into OneLogin.
Log into OneLogin as an Administrator and go to Apps Company Apps Add Apps from the Navbar.

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Add application

In the search box, type SAML Test Connector (SP) and click on the App to add it.

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Search App

Enter the display name and click Save.
In General Settings, enter App Name and click on Next.
After saving, go to Configuration Tab and enter the following:

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - App Configuration

Audience	Provide Audience URL from the Service Provider Metadata tab of the Plugin
Recipient	Provide Recipient URL from the Service Provider Metadata tab of the Plugin
ACS (Consumer) URL Validator	Provide ACS (Assertion Consumer Service) URL from the Service Provider Metadata tab of the Plugin
ACS (Consumer) URL	Provide ACS (Assertion Consumer Service) URLfrom the Service Provider Metadata tab of the Plugin
Single Logout URL	Provide Single Logout URL from the Service Provider Metadata tab of the Plugin

Click on Save.

miniorange img Assigning Groups/People

Go to SSO tab. Note down the URL/Endpoints. These will be required while configuring the plugin.

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Enable SAML SSO

Umbraco SAML Single Sign-On (SSO) using OneLogin as IDP - Add Certificate_X.509

You have successfully configured OneLogin as SAML IdP (Identity Provider) for achieving Umbraco Single Sign-On (SSO).

2. Configure Umbraco as Service Provider

There are below two ways with which you can configure your SAML identity provider metadata in the module.

A] Upload metadata using the Upload IDP Metadata button:

If your identity provider has provided you with the metadata URL or metadata file (.xml format only) then you simply configure the identity provider metadata in the module using the Upload IdP Metadata option.
You can refer to the below screenshot

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Upload Metadata

You can choose any one of the options according to the metadata format you are available with.

B] Configure the identity provider metadata manually:

After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and x.509 Certificate. Configure these values under IDP Entity ID, Single Sign-On URL and SAML X509 Certificate fields respectively.
Click Save to save your IDP details.

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Enter IDP Metadata

You have successfully configured your Umbraco application as a service provider.

There are two ways detailed below with which you can get the SAML SP metadata to configure onto your identity provider end.

A] Upload metadata using the Upload IDP Metadata button:

If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the plugin using the Upload IDP Metadata option. You may refer to the screenshot below:

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Upload IDP Metadata

You can choose any one of the options according to the metadata format you have available.

B] Configure the identity provider metadata manually:

After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Enter IDP metadata manually

Click Save to save your IDP details

There are two ways detailed below with which you can configure your SAML identity provider metadata in the plugin.

A] Upload metadata using the Upload IDP Metadata button:

If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the plugin using the Upload IDP Metadata option. You may refer to the screenshot below:

You can choose any one of the options according to the metadata format you have available.

B] Configure the identity provider metadata manually:

After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.

Click Save to save your IDP details

3. Testing SAML SSO

Click on the Test Configuration button to test whether the SAML Configuration you’ve done is correct.
The screenshot below shows a successful result. Click on SSO Integration to further continue with the SSO Integration.

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Do test SAML SSO

If you are experiencing any error on the module end you’ll be shown with the window similar to below.

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Error Window

To troubleshoot the error you can follow the below steps:

Under Troubleshooting tab, enable the toggle to receive the plugin logs.

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Enable debug logs

Once enabled, you will be able to retrieve plugin logs by navigating to Identity Provider Settings tab and clicking on Test Configuration.
Download the log file from the Troubleshoot tab to see what went wrong.
You can share the log file with us at umbracosupport@xecurify.com and our team will reach out to you to resolve your issue.

Click on the Test Configuration button to test whether the SAML Configuration you’ve done is correct.
The screenshot below shows a successful result. Click on SSO Integration to further continue with the SSO Integration.

If you are experiencing any error on the module end you’ll be shown with the window similar to below.

To troubleshoot the error you can follow the below steps:

Under Troubleshooting tab, enable the toggle to receive the plugin logs.

Once enabled, you will be able to retrieve plugin logs by navigating to Identity Provider Settings tab and clicking on Test Configuration.
Download the log file from the Troubleshoot tab to see what went wrong.
You can share the log file with us at umbracosupport@xecurify.com and our team will reach out to you to resolve your issue.

Click on the Test Configuration button to test whether the SAML Configuration you’ve done is correct.
The screenshot below shows a successful result. Click on SSO Integration to further continue with the SSO Integration.

If you are experiencing any error on the module end you’ll be shown with the window similar to below.

To troubleshoot the error you can follow the below steps:

Under Troubleshooting tab, enable the toggle to receive the plugin logs.

Once enabled, you will be able to retrieve plugin logs by navigating to Identity Provider Settings tab and clicking on Test Configuration.
Download the log file from the Troubleshoot tab to see what went wrong.
You can share the log file with us at umbracosupport@xecurify.com and our team will reach out to you to resolve your issue.

4. Login Settings

Go to Select Actions and click on Copy SSO Link.

Umbraco SAML Single Sign-On (SSO) using Azure AD as IDP - Copy SSO Link

Use the copied link in the application from where you want to perform SSO
For example you can use it as:
<a href="copied-sso-link”>Login</a>"

Use the following URL as a link in the application from where you want to perform SSO: https://<umbraco-middleware-base-url>/?ssoaction=login

Use the following URL as a link in the application from where you want to perform SSO: https://<umbraco-middleware-base-url>/?ssoaction=login

5. Logout Settings

Use the following URL as a link in your Umbraco from where you want to perform SLO:
https://umbraco-middleware-base-url/?ssoaction=logout
For example you can use it as:
<a href="https://umbraco-middleware-base-url/?ssoaction=logout”>Logout</a>"

You can even configure the nopCommerce SAML Single Sign-On (SSO) module with any identity providers such as ADFS, Azure AD, Bitium, Centrify, G Suite, JBoss Keycloak, Okta, OneLogin, Salesforce, AWS Cognito, OpenAM, Oracle, PingFederate, PingOne, RSA SecureID, Shibboleth-2, Shibboleth-3, SimpleSAML, WSO2 or even with your own custom identity provider. Check the list of identity providers here.
