WooCommerce Product Image Sync with Salesforce for Automated Visual Content Integration

Overview

Every e-commerce journey starts with product images, and they often decide whether a customer completes the purchase. Product images build trust, highlight quality, and strongly influence buying behavior.

For businesses using WooCommerce and Salesforce, keeping product images consistent across both platforms is often a struggle. Manual uploads take time and lead to mismatched galleries that confuse teams and customers alike.

Through real-time WooCommerce Salesforce Image Sync, our WordPress Salesforce Integration plugin automates the process. Featured product images and gallery assets move seamlessly between WooCommerce and Salesforce without manual effort.

Prerequisites

To sync product images between WooCommerce and Salesforce with our plugin, you will need the following:

• An active Salesforce account with API access enabled.
• A WordPress site with WooCommerce installed and configured.
• miniOrange Object Data Sync for Salesforce plugin is installed on WordPress.
• Administrator privileges for both WordPress and Salesforce.

Scenario

Let’s say we run an e-commerce business that sells consumer electronics like Bluetooth speakers, headphones, and smartwatches. Our sales team works in Salesforce to manage B2B deals, while WooCommerce powers our direct consumer store.

Case 1: Disconnected Visual Assets

Before the holiday season, our team uploads new lifestyle shots of Bluetooth speakers to WooCommerce. Meanwhile, Salesforce still holds six-month-old product photos. When a client receives a proposal with outdated images that don’t match our website, it creates doubt about whether the products shown are current.

Case 2: Manual Upload Fatigue

Launching a new headphone line means uploading the same images twice, once in WooCommerce and again in Salesforce. With 50 new products and multiple photos per item, this adds up to hundreds of uploads every quarter. The work is repetitive, takes days to finish, and often leads to missing or mismatched images.

To keep product images up to date, we need WooCommerce Salesforce Integration so updates made in one platform show up right away in the other.

Solution

We implement the Object Data Sync for Salesforce Plugin to establish automated Image Sync from WooCommerce to Salesforce. This solution captures product image changes in real-time and maintains perfect visual alignment between both platforms.

The plugin monitors all product updates in WooCommerce, detecting when featured images or gallery images are added, modified, or removed. Upon detection, it automatically pushes these changes to Salesforce using secure API connections. Images are stored as Content Documents in Salesforce and linked to their respective product records through proper field mapping.

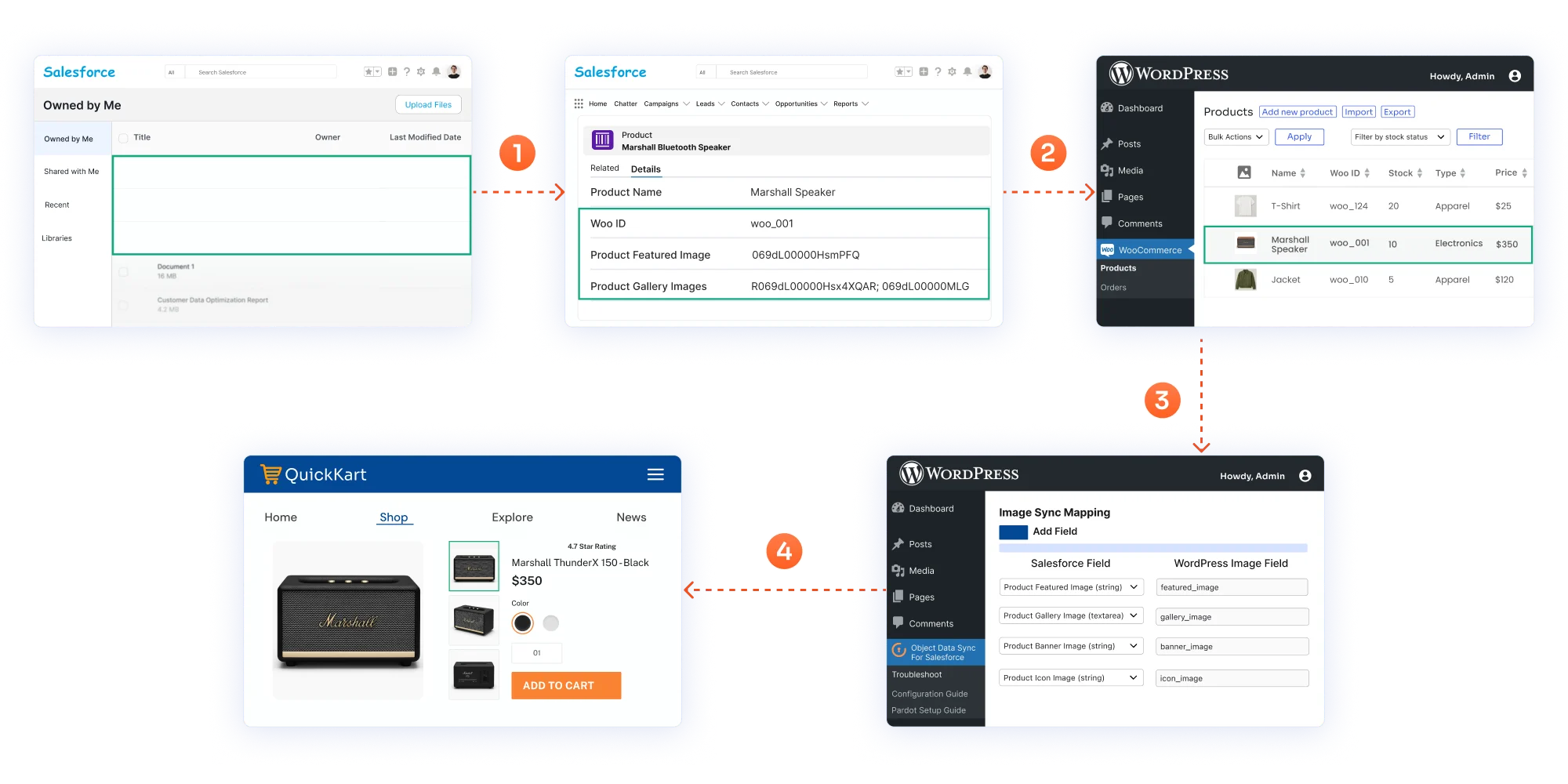

Workflow

The image synchronization process works as follows:

• The Salesforce administrator uploads or updates one or more product images linked to a product record in Salesforce.
• A Salesforce Flow or Workflow Rule detects the record change and triggers an outbound message.
• This outbound message contains the product details along with the Salesforce IDs of the associated images and is sent to the WordPress endpoint managed by the plugin.
• The plugin processes the request, retrieves the image files from Salesforce using the provided IDs, and stores them in the WordPress Media Library.
• Once imported, the plugin automatically assigns the images to the correct WooCommerce product, ensuring that both featured and gallery images remain synchronized.

Configuration Steps

To enable Image Sync between Salesforce and WooCommerce, we set up the plugin using the following steps:

• Go to the Image Sync Mapping tab in the plugin settings in WordPress to start configuration.
• Enable the required Image Pull options to fetch images from Salesforce. You can choose one or more methods depending on how images are stored:
• Attachment Pull for images saved as Salesforce attachments.
• Content Document Pull for images stored as Salesforce Files.
• Public Image URL Pull for images linked through public URLs.
• Select the supported file formats for syncing. Common formats include PNG and JPG, though others can be enabled if necessary.
• Move to the WordPress Field Mapping section to define where the images should be stored in WooCommerce:
• Featured Image Field → _thumbnail_id
• Gallery Image Field → gallery_images
• Map the corresponding Salesforce fields to link with WordPress attributes:
• Product Featured Image → featured_image
• Product Gallery Images → gallery_image
• Set the naming convention by choosing a Salesforce field such as Product Name. This ensures synced files follow a consistent and easy-to-recognize naming pattern.
• Click Save to complete the mapping.

Once saved, product images updated in Salesforce automatically sync into WooCommerce. Featured images and galleries are refreshed based on the rules defined in the mapping.

Image Sync in Action

Once the configuration is completed, the plugin begins syncing product images automatically. For our Marshall Bluetooth Speaker, this is how the process looks across Salesforce and WooCommerce:

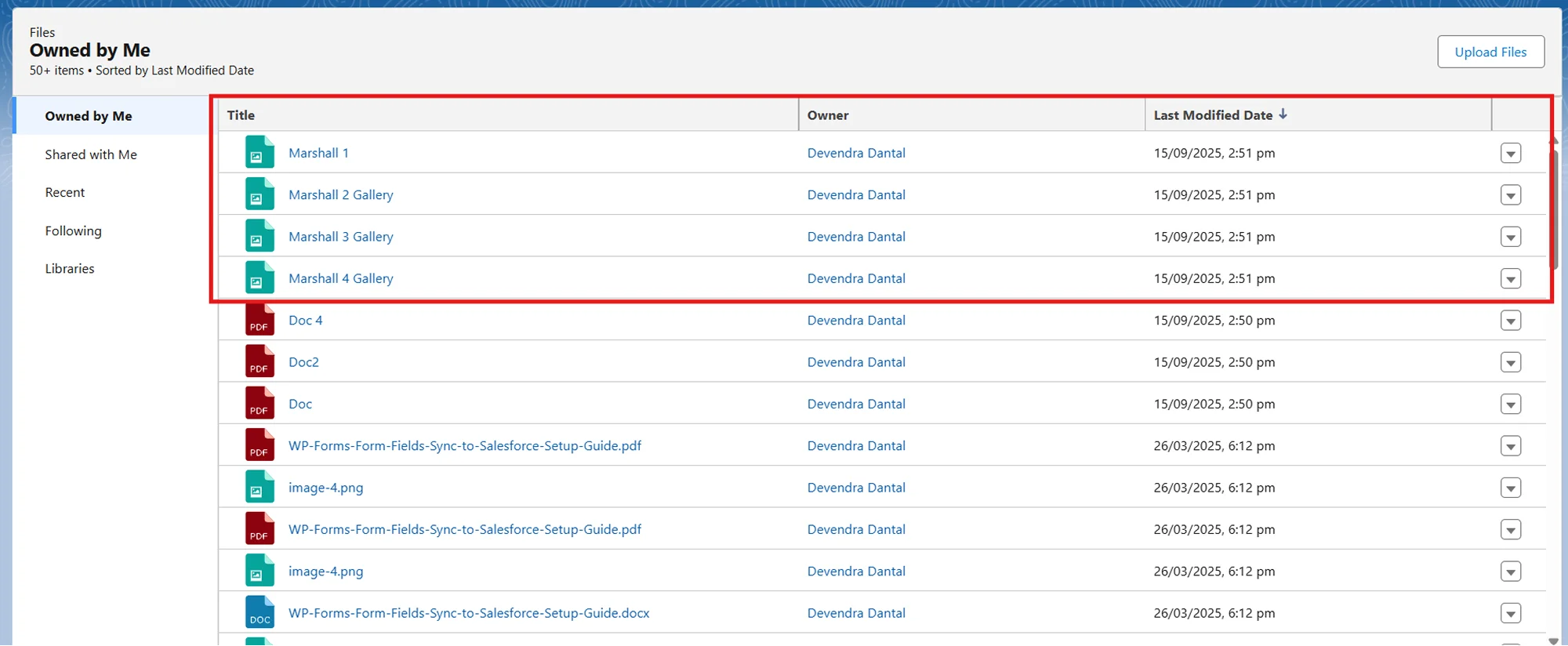

Files in Salesforce

We upload the Marshall Bluetooth Speaker images into Salesforce Files. The set includes one featured image (Marshall 1) and multiple gallery images (Marshall 2 Gallery, Marshall 3 Gallery, Marshall 4 Gallery). These files act as the central source of truth for the product visuals.

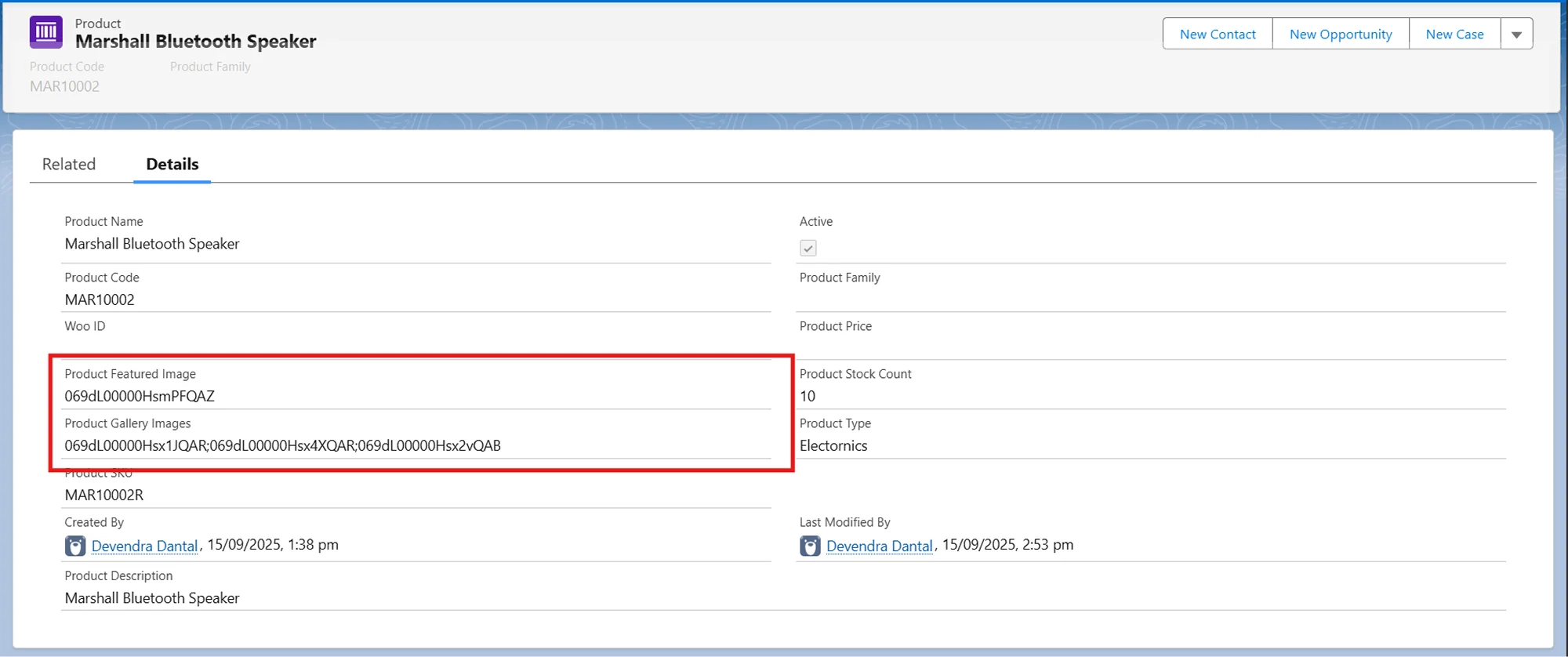

Product Record in Salesforce

Within the Salesforce Product record, each image is linked using its unique File ID. The featured image ID is mapped to the Product Featured Image field, while the gallery image IDs are grouped under Product Gallery Images. This ensures the record carries both the main product photo and additional supporting images.

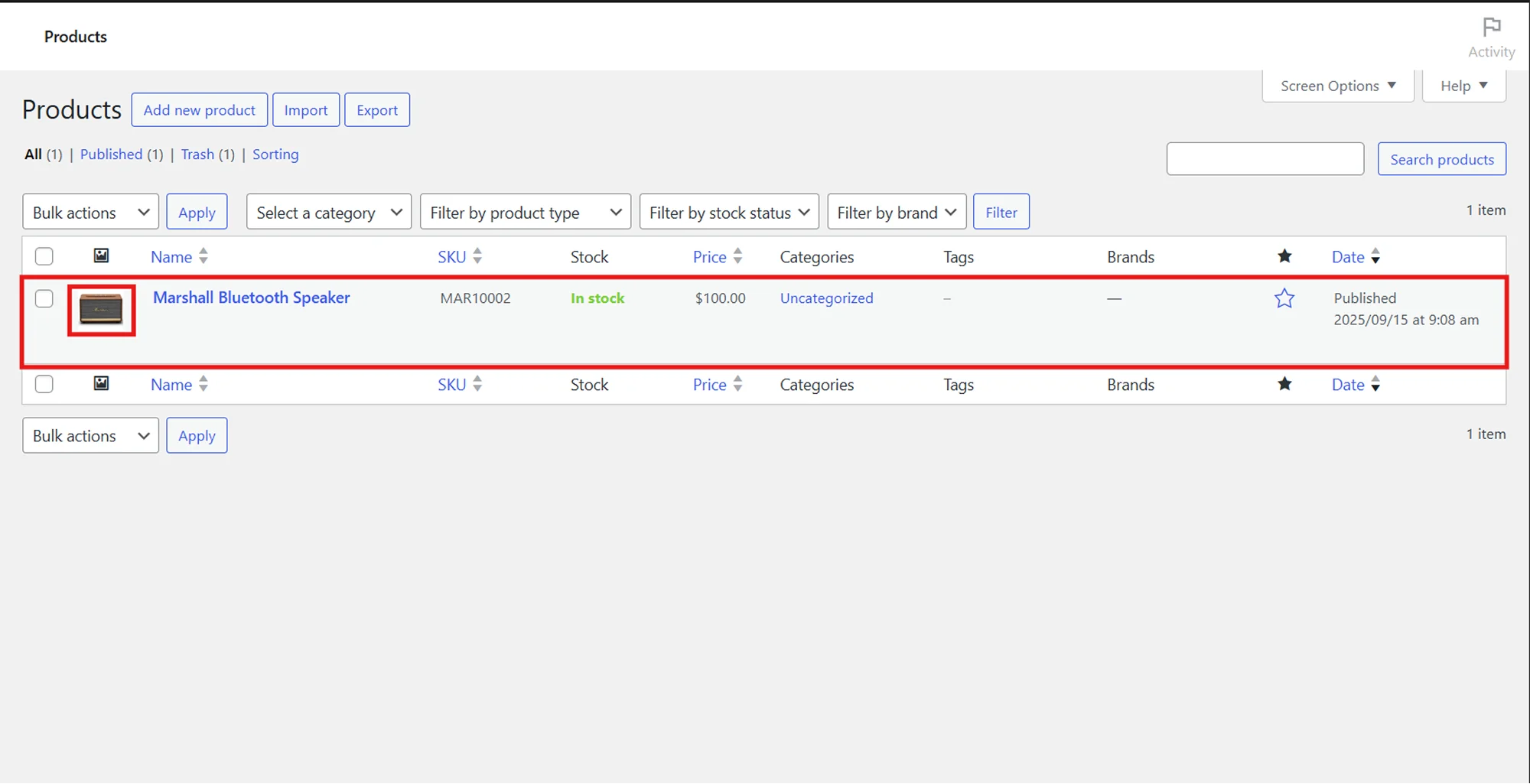

WooCommerce Product Listing

After the sync, the Marshall Bluetooth Speaker appears in the WooCommerce Products list with its featured image displayed alongside the SKU, price, and stock status. This confirms the Salesforce images are successfully connected to the WooCommerce catalog.

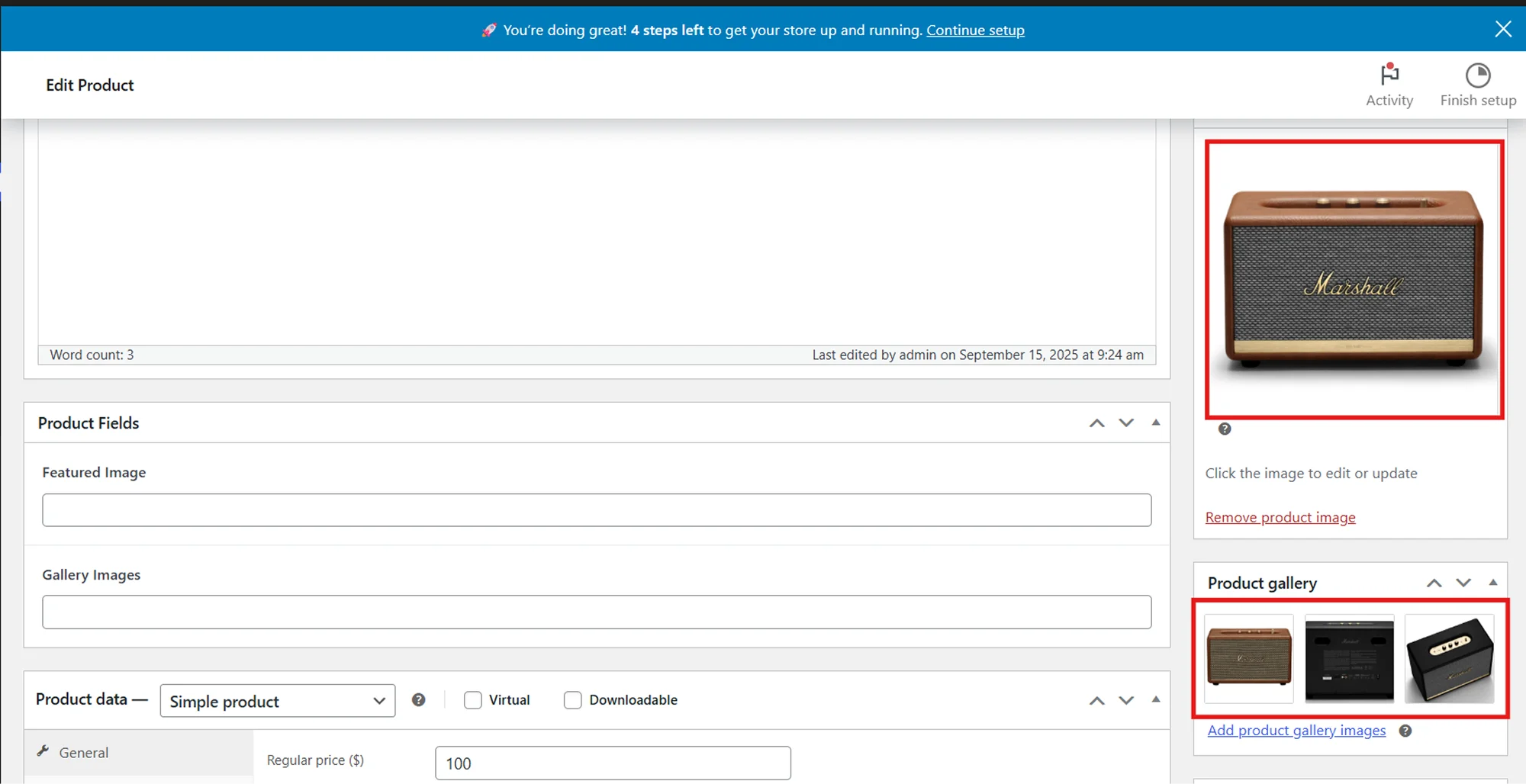

WooCommerce Product Detail Page

Opening the Marshall Bluetooth Speaker product in WooCommerce shows that the sync is completed successfully.

• The Featured Image Panel displays the main speaker's photo that was originally uploaded in Salesforce.
• The Product Gallery section contains the additional synced images, offering multiple views of the speaker.
• On the product detail page and storefront, customers now see the same visuals that are maintained in Salesforce, ensuring consistency across both platforms.

This seamless alignment means that any image updates in Salesforce are instantly visible in WooCommerce, giving shoppers accurate and high-quality product visuals.

Benefits

With automated WooCommerce Salesforce Image Sync, organizations can achieve several advantages:

• Consistent Branding: Ensures that sales and marketing channels use the same, up-to-date product visuals, strengthening brand identity.
• Time Savings: Eliminates the need for manual, repetitive image uploads, freeing up valuable time for your team to focus on strategic tasks.
• Improved Sales Enablement: Equips the sales team with immediate access to the latest product visuals directly within Salesforce, enhancing their ability to engage prospects.
• Scalability: Efficiently handles large and growing product catalogs without compromising performance, supporting business growth.

Conclusion

Our Object Data Sync for Salesforce Plugin provides an accurate and automated solution for synchronizing product visuals from WordPress to Salesforce. By ensuring featured and gallery images are always in sync, businesses can improve operational efficiency, maintain brand consistency, and empower sales teams with the resources they need. This integration eliminates data silos and establishes Salesforce as the single source of truth for both product data and visuals.
