SAML Single Sign-On (SSO) in Zoom | Magento – Zoom SSO Login

Login into Zoom using Magento user credentials. This guide will help you integrate Magento as a SAML 2.0 Identity Provider (IdP) and Zoom as a Service Provider (SP) using the miniOrange Magento SAML IDP (Identity Provider) Extension. Magento SAML IDP extenstion gives you the ability to use your Magento credentials to login into Zoom (SP). Here we will go through a step-by-step guide to configure SSO between Zoom as SP (Service Provider) and Magento as IDP (Identity Provider).

  • Purchase the miniOrange SAML IDP Single Sign-On extension from magento marketplace.
  • Go to My profile -> My Purchases
  • Please ensure you are using correct access keys (My Profile - Access Keys)
  • Paste the access keys in your auth.json file inside your project
  • Use the below command to add the extension to your project.
    "composer require {module_name}:{version}"
  • You can see the module name and list of versions in the selector below the extension module name.
  • Run the following commands on command prompt to enable the extension.
  • php bin/magento setup:upgrade
  • Download the miniOrange SAML IDP Single Sign-On extension.
  • Unzip all contents of the zip inside the MiniOrange/IDPSaml directory.
  • {Root Directory of Magento} app code MiniOrange IDPSaml
  • Run the following commands on command prompt to enable the extension
  • php bin/magento setup:upgrade

Note and Contact Us

Note: Premium Version of Zoom is required to set up SSO.

  • In a new browser Window, Log in to your Zoom account as Admin.
  • Navigate to Advanced tab, select Single Sign-On and then click on Enable Single Sign-On.
Magento Zoom SSO | Enable SSO For Zoom | SSO Login

  • Enter the required endpoints
Sign-in page URL Copy and paste the SAML Login URL
Sign-out page URL Copy and paste the SAML Logout URL
Identity Provider Certificate Download the certificate. Open it in Notepad, copy and paste the content here
Service Provider (SP) Entity ID https://<vanity URL>
Issuer (IDP-EntityID) Copy and paste the IDP-EntityID / Issuer
Binding HTTP-Redirect
Signature Hash Algorithm SHA-256
Magento Zoom SSO | Configure SSO For Zoom | SSO Login

  • Click Save Changes to save your configuration.
  • In the miniOrange IDP (Identity Provider) extension, go to Applications tab.
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO

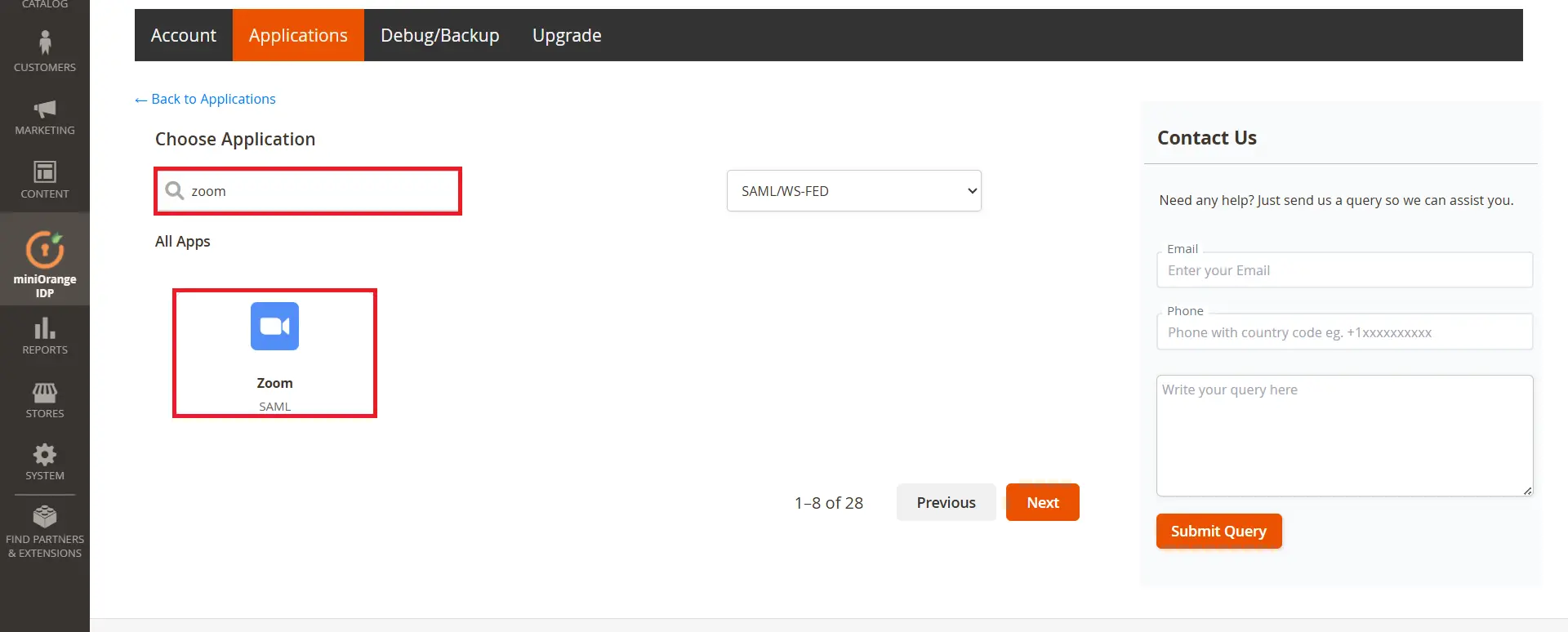

  • Search for Zoom in the choose application searchbox and select the application.
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • Enter the Application name under SP Name.
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • Now, enter the SP Entity ID or Issuer and ACS URL copied earlier and save the details.
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • Navigate to the Applications tab and click on Metadata settings for the Zoom application
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • Here, you can find the Identity Provider Metadata URL /XML Metadata or endpoints like IDP Entity ID, SAML Login URL, SAML Logout URL (Premium Feature), Certificate. You can also download the IdP Metadata XML file which will be used for Zoom configuration.
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • You will now have 3 options to provide the IDP Metadata to Zoom by downloading the XML Metadata, Metadata URL or providing the detials manually.
  • Option 1 - Download the XML Metadata.
  • Download the XML Metadata by clicking it on Download XML Metadata button.
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • Navigate to your Zoom and upload the XML metadata file downloaded and click on the Fetch Metadata button.
  • Option 2 - Metadata URL.
  • You can also copy the Metadata URL and provide it to your service provider to fetch the metadata.
  • Magento SAML IDP  | Login with Magento Users - Zoom SSO into Magento
  • Option 3 - Provide the details manually to the Zoom.
  • Copy the metadata details according to the table below.
  • Magento SAML IDP  | Login with Magento Users - Magento Zoom SSO
    IDP-EntityID / Issuer IDP-EntityID / Issuer
    Single Sign On URL SAML Login URL / Passive Login URL
    SAML X509 Certificate Certificate
  • Navigate to your Zoom and paste the metadata details.
  • In the miniOrange Magento IDP extension, navigate to the Applications tab and click on Edit settings for the Zoom application.
  • Magento 2 SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • Click on Add Attribute button.
  • Magento 2 SAML IDP  | Login with Magento Users - Magento Zoom SSO
  • Add the attribute name you want to send to your service provider and select the attribute from the dropdown menu and click on Save Button to save changes.
  • Magento 2 SAML IDP | Login with Magento Users - Magento Zoom SSO

    You have successfully configured the SAML SSO between Zoom as SAML SP and Magento as SAML IDP.
