Setup Guide to configure User Provisioning ( SCIM ) into Drupal with miniOrange

Setup Guide to configure User Provisioning ( SCIM ) into Drupal with miniOrange


The System for Cross-domain Identity Management (SCIM) is an open standard HTTP based protocol for automating the exchange of user identity information between identity domains, or IT systems. SCIM aims to simplify user provisioning and management in the cloud. For example, as an Identity Provider add, update and delete the user, they are added, updated and removed from the Drupal User Profile. To achieve this functionality miniOrange provides the User Provisioner with SCIM standard.

If your users are using both miniOrange and Drupal website, it is preferred to have all users updated in Drupal site without login each time to update user list. miniOrange provides a solution which allows user provisioning into Drupal website using SCIM standard.

miniOrange provides a solution by introducing a Drupal module to support miniOrange User Provisioning and allows user to access your website by using their miniOrange account credential to login into Drupal. SCIM User Provisioner module also allows provisioning with custom Providers. SCIM User Provisioner module works with any IDP that conforms to the SCIM standard.



Pre-requisite: Download and Installation


  • Download the module:
    composer require 'drupal/user_provisioning'
  • Navigate to Extend menu on your Drupal admin console and search for miniOrange User Provisioning using the search box.
  • Enable the module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Install the module:
    drush en user_provisioning
  • Clear the cache:
     drush cr
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview
  • Navigate to Extend menu on your Drupal admin console and click on Install new module button.
  • Install the Drupal User Provisioning and Sync module either by downloading the zip or from the URL of the package (tar/zip).
  • Click on Enable newly added modules.
  • Enable this module by checking the checkbox and click on Install button.
  • Configure the module at
    {BaseURL}/admin/config/people/user_provisioning/overview

Steps to configure Automatic User Provisioning with miniOrange as SCIM Client and Drupal as SCIM Server

1. Configure Drupal as SCIM Server

  • Navigate to the SCIM Configuration tab to find the SCIM Base URL and SCIM Bearer Token, which you will keep handy.
  • Drupal User Provisioning and Sync - Copy the SCIM Base URL and SCIM Bearer Token

Note: These information are required to configure your application miniOrange as IDP.

2. Automatic Provisioning with miniOrange

Case 1: Only Provisioning (Just want to enable provisioning through miniOrange)
  • Login into your miniOrange Admin console.
  • Navigate to the Apps section in the left side.
  • Drupal miniOrange IDP SCIM User Provisioning - Select Apps
  • Click on + Add Application button.
  • Drupal miniOrange IDP SCIM User Provisioning - Click on Add Application
  • Then select PROVISIONING.

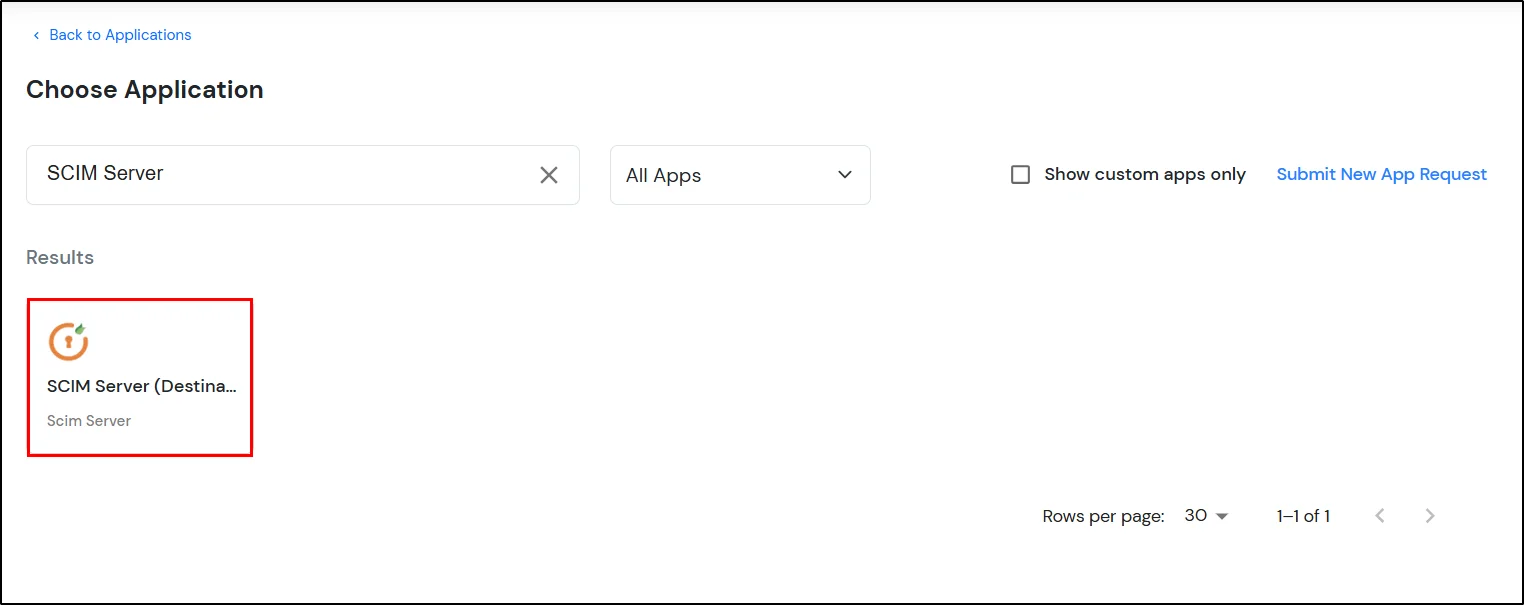

  • Drupal miniOrange IDP SCIM User Provisioning - Select Provisioning and click on Create App
  • Enter your Custom Application Name, SCIM Base URL and Bearer token copied from the SCIM Configuration tab of the Durpal SCIM user provisioning module.

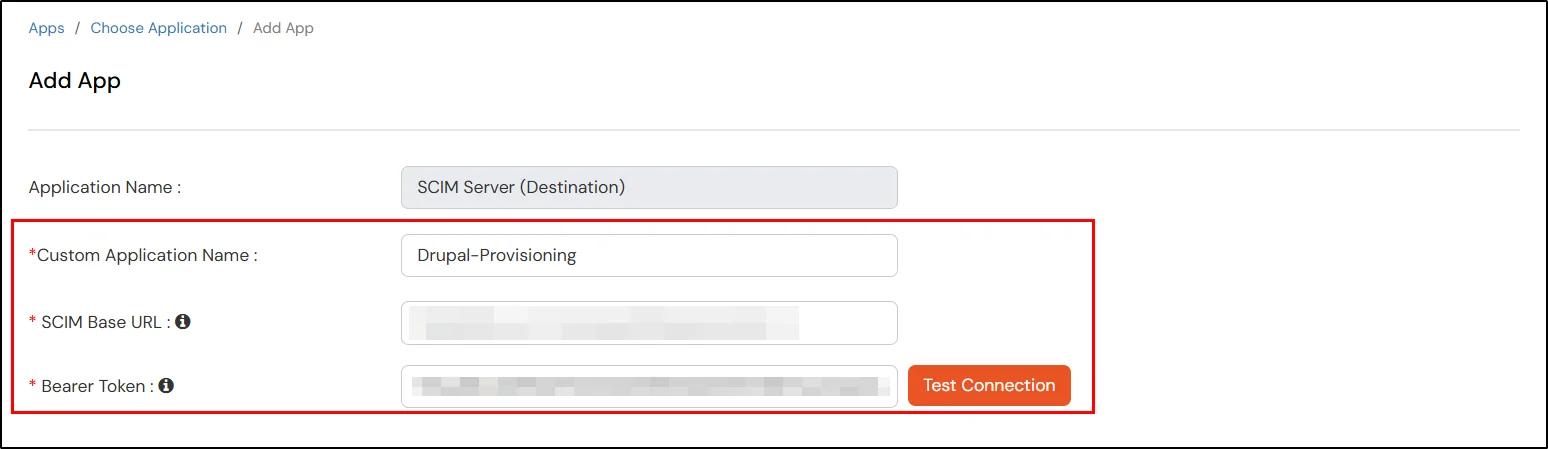

  • Drupal miniOrange IDP SCIM User Provisioning - Enable API Integration
  • You can also send your desired attributes from your IDP to Drupal by simply adding the Target Attributes and selecting the value of those attributes in miniOrange Attributes.
  • Note: The following attributes are required for SCIM User Provisioning in Drupal.

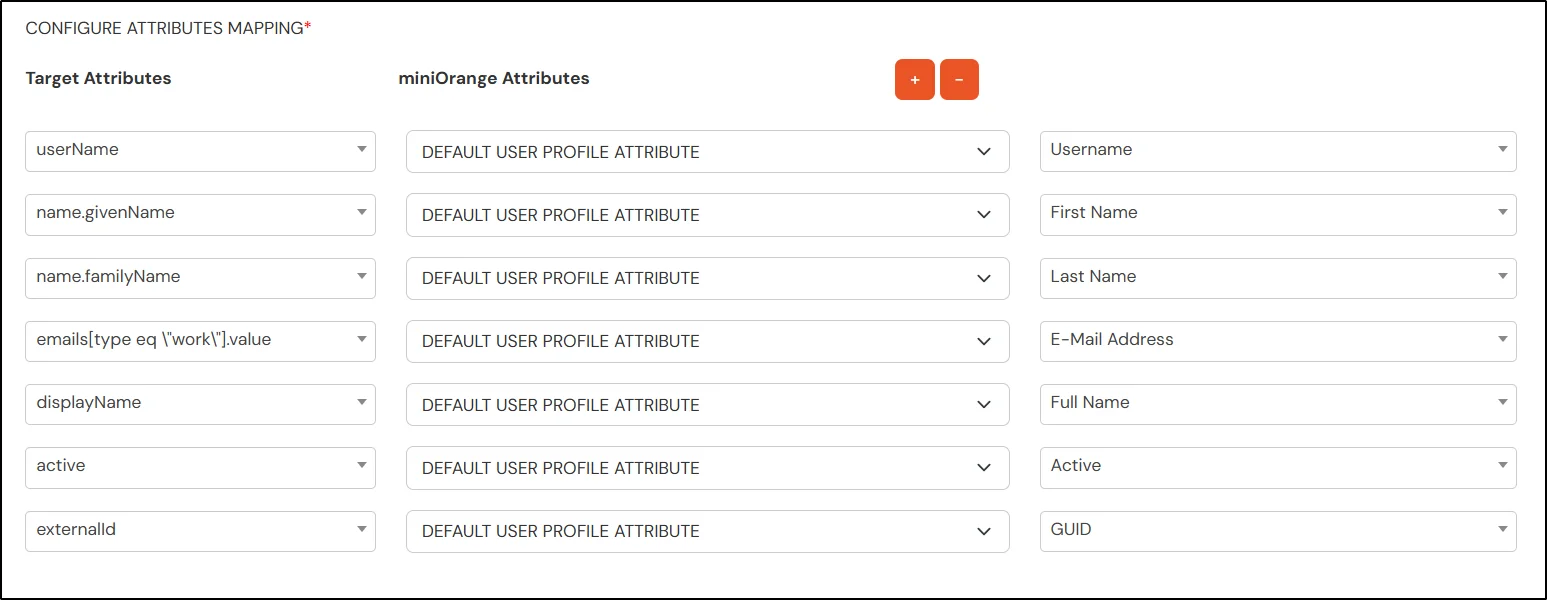

    Drupal miniOrange IDP SCIM User Provisioning - Add Attribute
  • Click on Save.
Case 2: If you want user provisioning (SCIM) using SAML SSO
  • Navigate to the Apps -> + Add Application -> SAML/WS-FED.
  • Drupal miniOrange IDP SCIM User Provisioning - Select SAML/WS-FED and click on Create App
  • Here you can search for Drupal, then select Drupal (SAML).

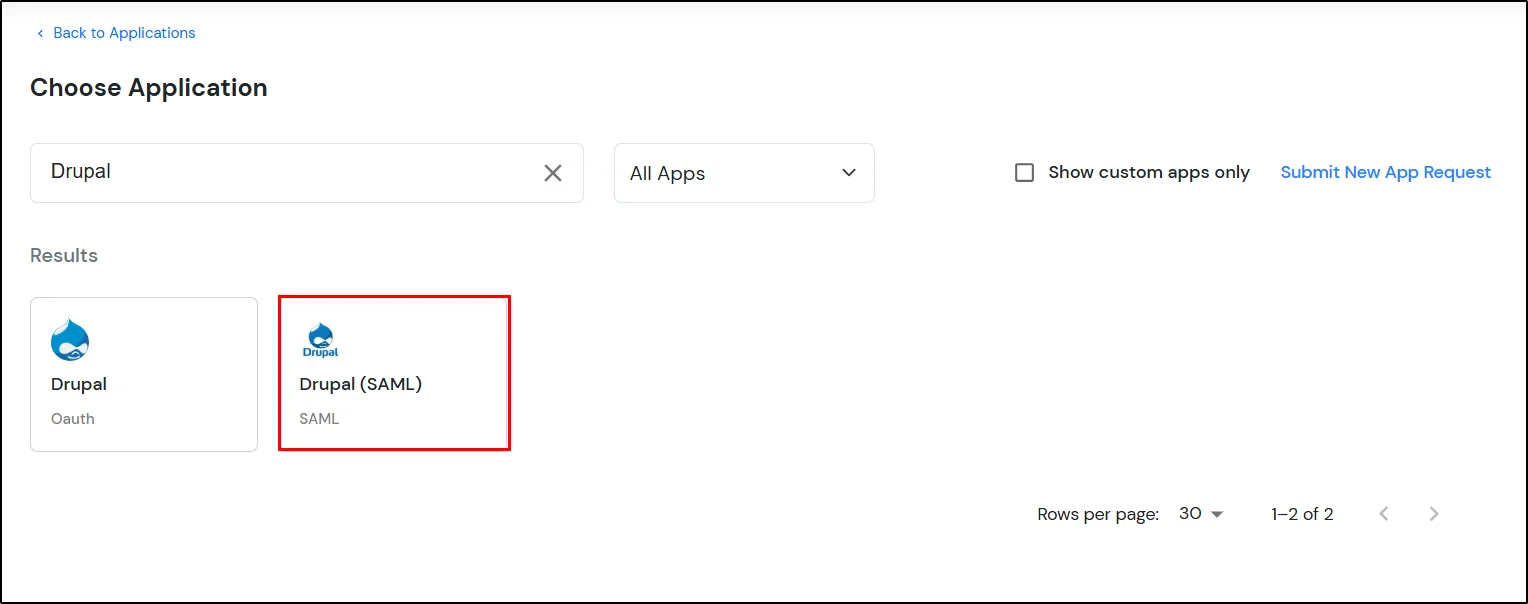

  • Drupal miniOrange IDP SCIM User Provisioning - Search Drupal
  • Enter Custom Application Name as per your choice.
  • Note: Click here if you have configured miniOrange as IDP and Drupal as Service Provider.

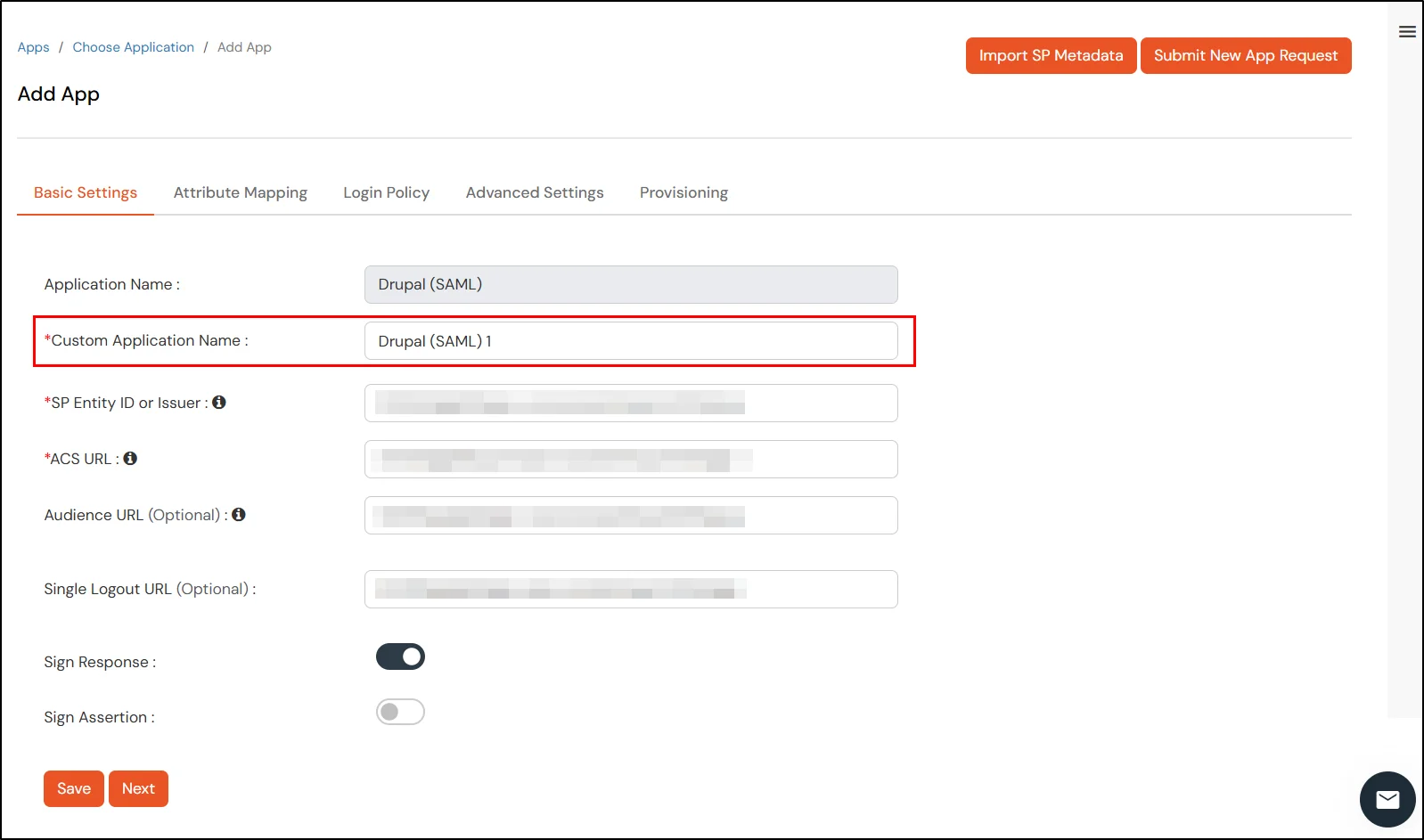

    Drupal miniOrange IDP SCIM User Provisioning - Enter Custom App Name
  • Go to the Provisioning tab and Enter SCIM Base URL, Bearer token copied from the SCIM Configuration tab of the Drupal SCIM User Provisioning module.

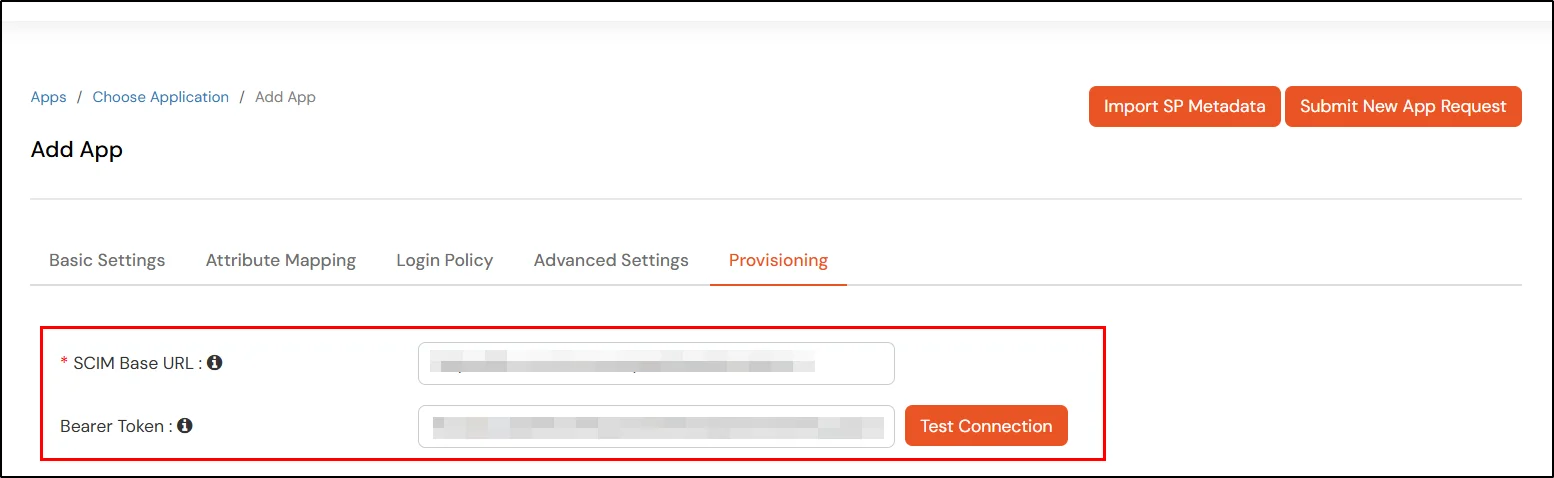

  • Drupal miniOrange IDP SCIM User Provisioning - Enter SCIM Base URL & Bearer Token
  • You can also send your desired attributes from your IDP to Drupal by simply adding the Target Attributes and selecting the value of those attributes in miniOrange Attributes.
  • Note: The following attributes are required for SCIM User Provisioning in Drupal.

    Drupal miniOrange IDP SCIM User Provisioning - Add Attribute
  • Click on Save.

3. Enable Provisioning Features

  • This feature allows you to enable automatic provisioning / de-provisioning of users in the app when a user gets created, updated or deleted in miniOrange.
  • Click on the toggle switch of the feature you want to provide with automatic provisioning or de-provisioning.

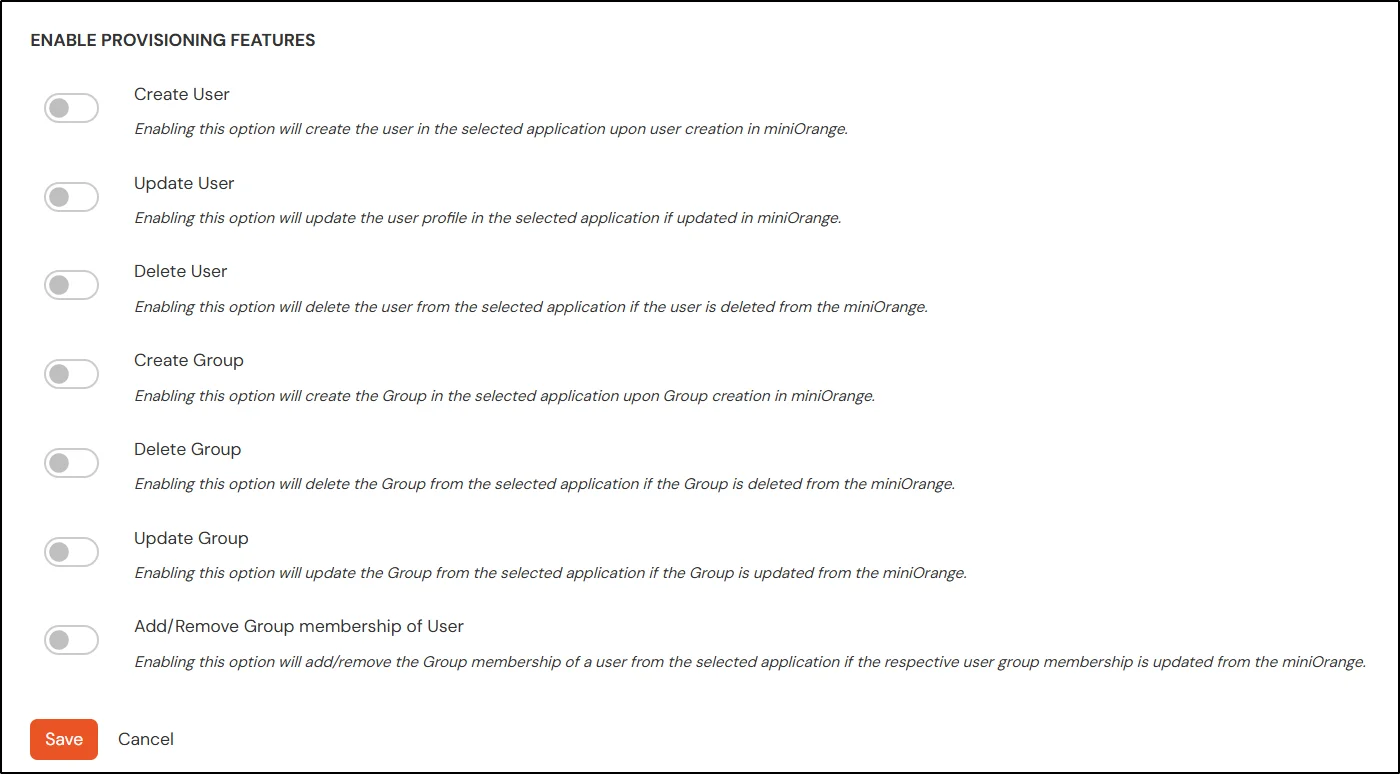

  • Drupal miniOrange IDP SCIM User Provisioning - Enable Provisioning Features Create, Delete, Update

24*7 Active Support

If you face any issues or if you have any questions, please feel free to reach out to us at drupalsupport@xecurify.com. In case you want some additional features to be included in the module, please get in touch with us, and we can get that custom-made for you. Also, If you want, we can also schedule an online meeting to help you configure the Drupal User Provisioning and Sync module.
