Two Factor Authentication (2FA) for nopCommerce using Microsoft Authenticator

Overview

nopCommerce Two-Factor Authentication (2FA) plugin adds an extra layer of authentication, making your nopCommerce stores more secure. Two-factor authentication, or 2FA, is another name for this sort of MFA, which improves the security of your nopCommerce websites. To protect sensitive data, you must verify that the users attempting to access it are who they say they are. With 2FA, it is possible to protect user passwords and accounts against security threats such as phishing, brute-force attacks, credential exploitation, and others. Role-based 2FA, Domain-based 2FA, IP whitelisting, Customizable KBA questions, Reset 2FA method, Customizable Email and SMS template, Configure Your Own SMS and Email Gateway, and other features are available through the nopCommerce Two Factor Authentication (TFA) plugin.

Pre-requisites : Download And Installation

• Download the nopCommerce Two-Factor Authentication (2FA) plugin.
• To install the plugin, login as admin into your nopCommerce store. In the admin dashboard, navigate to Configuration Tab >> Local plugins.

• Click on the Upload plugin or theme button at the top right corner, then in the popup window, click Choose File, select the downloaded plugin ZIP file, and click Upload plugin or theme to proceed.

• After uploading the plugin, click on Restart Application to apply the changes. Once the application restarts, you will see the plugin listed below. Click on the Install button to install it, and then click Restart Application again to apply the changes.

Configuration Steps

Step-by-step guide for implementing Two-Factor Authentication (2FA) in nopCommerce using Microsoft Authenticator.

• After successful installation, locate the plugin in the list and click on the Configure button to proceed with the setup.

1. Activate the 2FA Plugin using the License Key

• On clicking Configure, you will be redirected to the license activation page, and you will receive a trial license key on your nopCommerce registered email.
• If you have not received the license key on your provided email, use the Download License Key button in the plugin to download the license file.

• To activate the plugin, you can either:
  • Enter the license key received via email in the provided input field.

  OR

  • Upload the license file that you downloaded using the button mentioned above.

• Then, check the box "I have read the above conditions and I want to activate the plugin", and click Activate License button.

• After successful license activation, the plugin dashboard will open as shown below.

2. Configure Microsoft Authenticator

• Navigate to the Authenticator tab. Select Microsoft Authenticator as a two-factor authentication (2FA) method and click the Configure button.

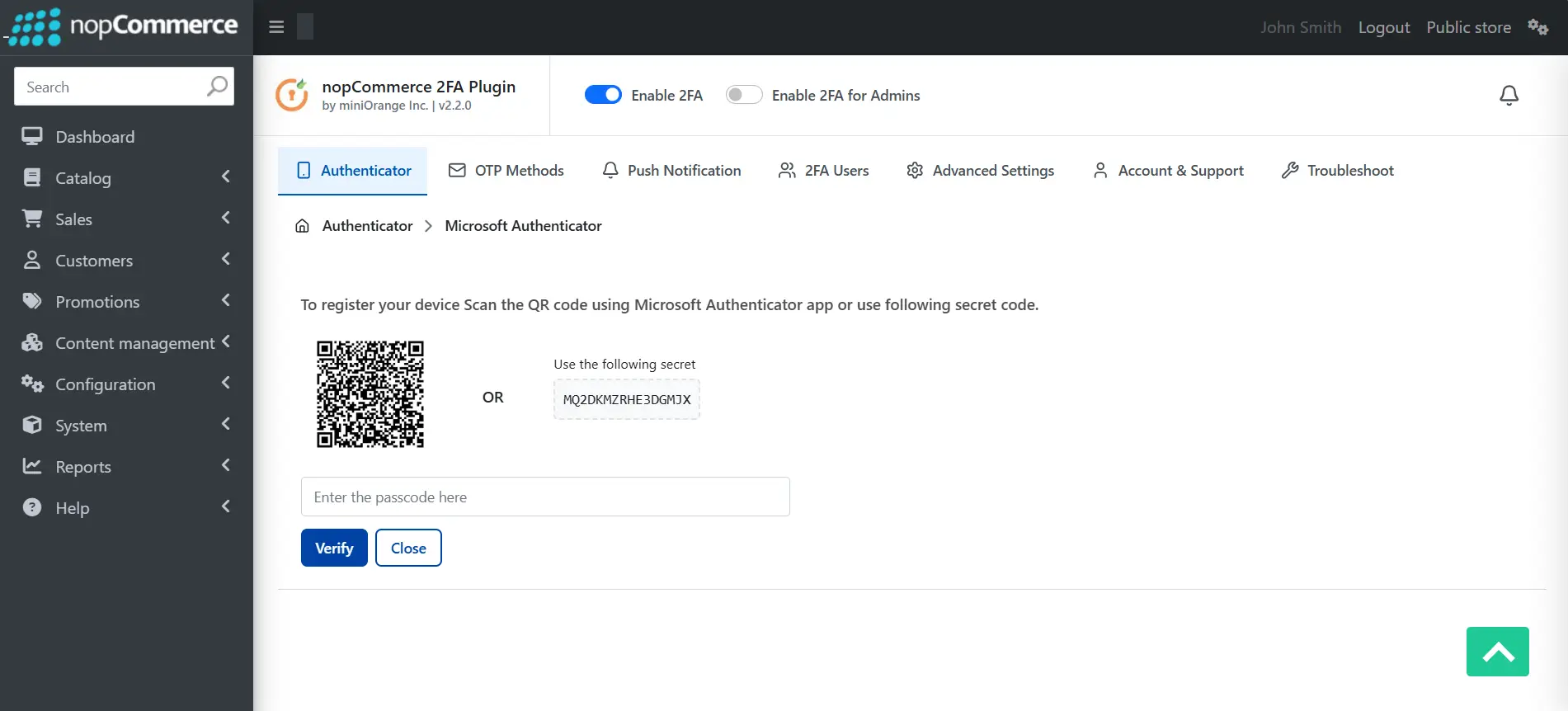

• After clicking on Configure, the Microsoft Authenticator dashboard will open.

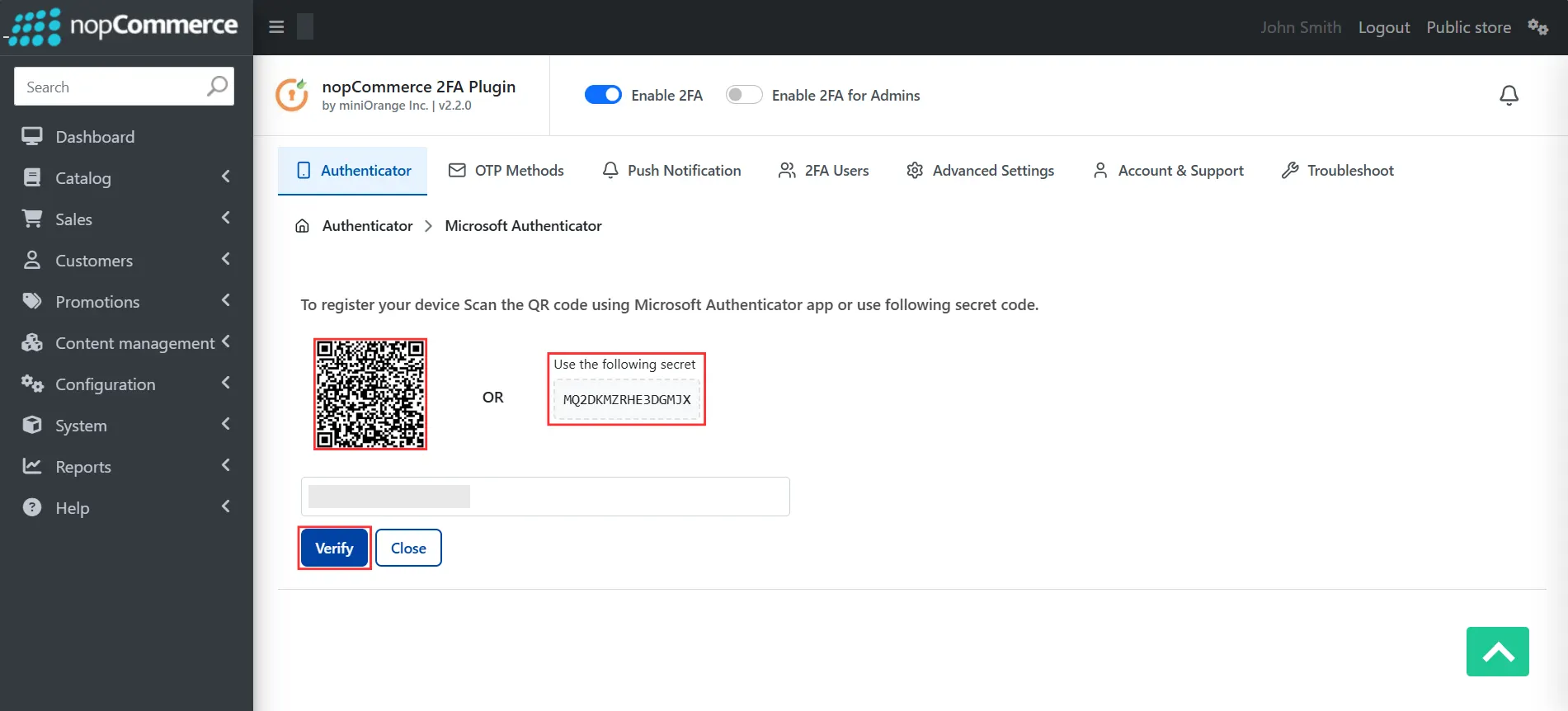

• To register your device, scan the QR Code below using the Microsoft Authenticator App or use the client secret code.

• After scanning the QR, a six-digit token will be generated in the Microsoft Authenticator App. Please enter the code below and click on the Verify button to validate.

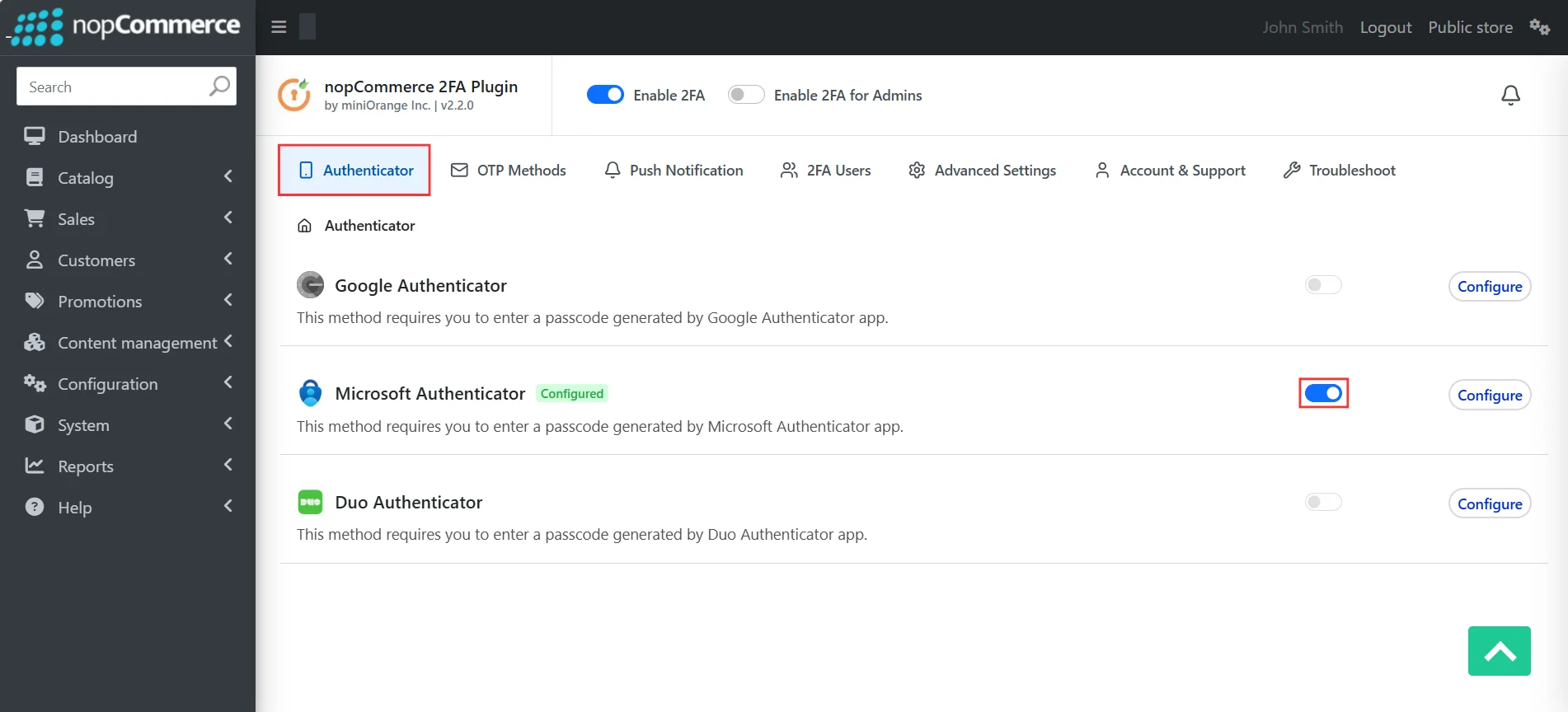

• Once the Microsoft Authenticator method is configured, it can be enabled for the end user by clicking the toggle button.

• Enable the 2FA for End Users toggle button.

• To enable 2FA for admins, turn on the Enable 2FA for Admins toggle.

3. Test Microsoft Authenticator on nopCommerce Login Page

• Login into your nopCommerce store.

• Click on Next to proceed.

• Click on Configure to configure Microsoft Authenticator for nopCommerce.

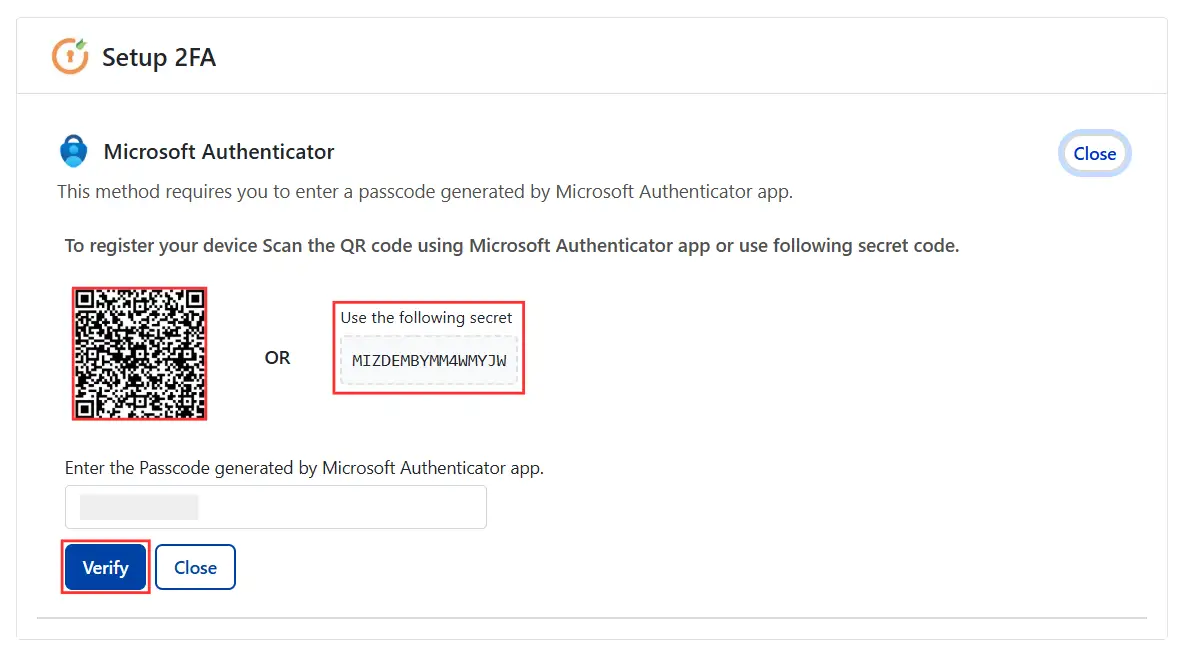

• Scan the QR code or use the secret key to setup the Microsoft Authenticator.
• Enter the code from Microsoft Authenticator and click on Verify.

• Enter the passcode from your Microsoft Authenticator to confirm your identity and click on Validate.

• You have successfully used two-factor authentication (2FA) to log into your nopCommerce store.
