SAML Single Sign-On (SSO) for WordPress using miniOrange as IDP | miniOrange SSO Login


miniOrange Single Sign-On (SSO) login for WordPress [SAML] can be achieved by using our WordPress SAML Single Sign-On (SSO) plugin. Our plugin is compatible with all the SAML compliant Identity Providers. Here we will go through a step-by-step guide to configure SAML SSO login between WordPress site and miniOrange by considering miniOrange as IdP (Identity Provider) and WordPress as SP (Service Provider).

You can visit our WordPress SSO plugin to know more about the other features we provide.

Pre-requisites : Download And Installation

To configure miniOrange as SAML IdP with WordPress, you will need to install the miniOrange WP SAML SP SSO plugin:

WordPress Single Sign On SSO login with Azure, Azure B2C, Okta, ADFS, Keycloak, Salesforce, Ping, Onelogin, Gsuite, Shibboleth & many SAML IdPs [24/7 SUPPORT]

Step-by-step Video to Setup SSO between WordPress and miniOrange

Steps to configure miniOrange Single Sign-On(SSO) Login into WordPress(WP):

1. Setup miniOrange as IdP (Identity Provider)

Follow the steps below to configure miniOrange as IdP

miniorange img Configure miniOrange as IdP
  • In the miniOrange SAML SP SSO plugin, navigate to Service Provider Metadata tab. Here, you can find the SP metadata such as SP Entity ID and ACS (AssertionConsumerService) URL which are required to configure the Identity Provider.
  • miniOrange as IDP - Single Sign-On(SSO) for WordPress - miniOrange SSO Login with SAML / OAuth - WordPress SAML upload metadata
  • Go to miniOrange Admin console https://login.xecurify.com/moas/login and login with your miniOrange credentials.

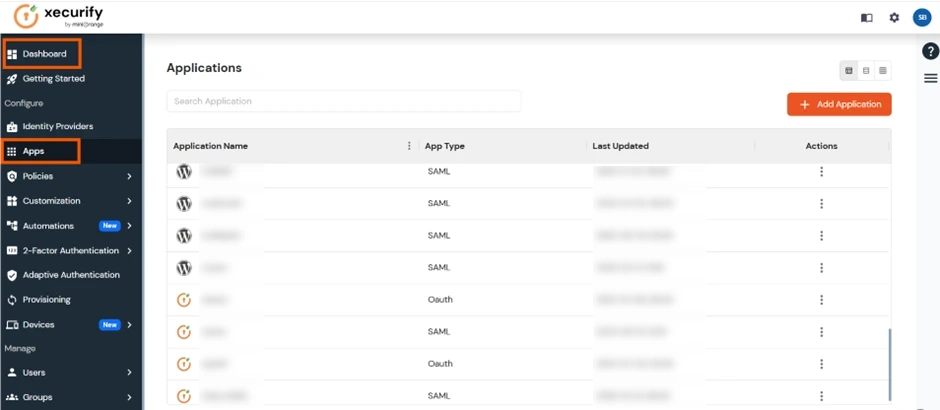

  • From the left menu, under the Configure section click on the Apps tab.
  • In the right upper corner, select Add Application.
  • Configure miniOrange as IDP - SAML Single Sign-On(SSO) for WordPress - miniOrange SSO Login miniorange sso-1
  • Choose the Application type as SAML/WS-FED.
  • Configure miniOrange as IDP - SAML Single Sign-On(SSO) for WordPress - miniOrange SSO Login miniorange sso-2

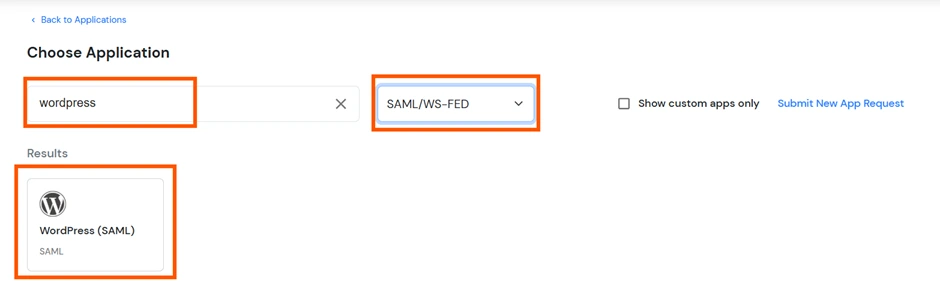

  • In the search apps textbox, type WordPress.
  • Click on the WordPress application.
  • Configure miniOrange as IDP - SAML Single Sign-On(SSO) for WordPress - miniOrange SSO Login miniorange sso-3

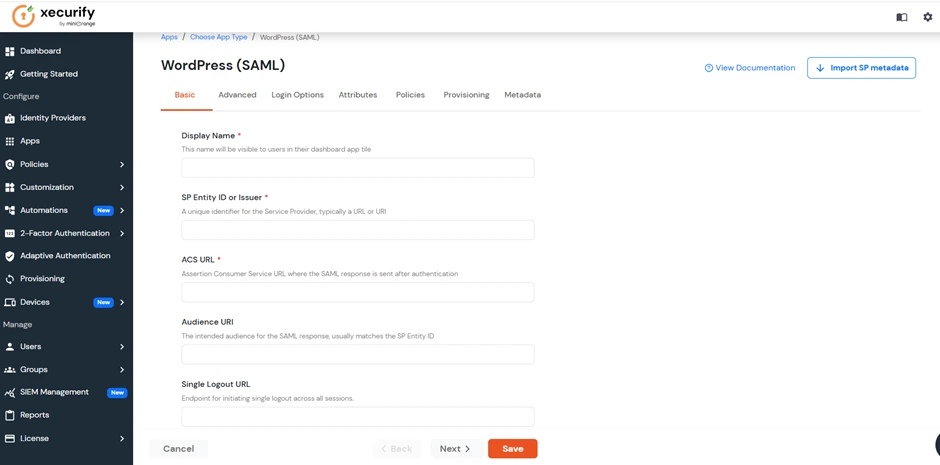

  • Fill in the metadata details in the textboxes below manually or you can Import SP Metadata.
  • Custom Application Name App name you like to provide.
    SP Entity ID or Issuer Enter SP Entity ID / Issuer from Service Provider Info tab of the plugin
    ACS URL Enter ACS (Assertion Consumer Service) URL from Service Provider Info tab of the plugin
    Single Logout URL Enter Single Logout URL from Service Provider Info tab of the plugin
  • Click on Save to add the App.
  • Configure miniOrange as IDP - SAML Single Sign-On(SSO) for WordPress - miniOrange SSO Login miniorange sso-4

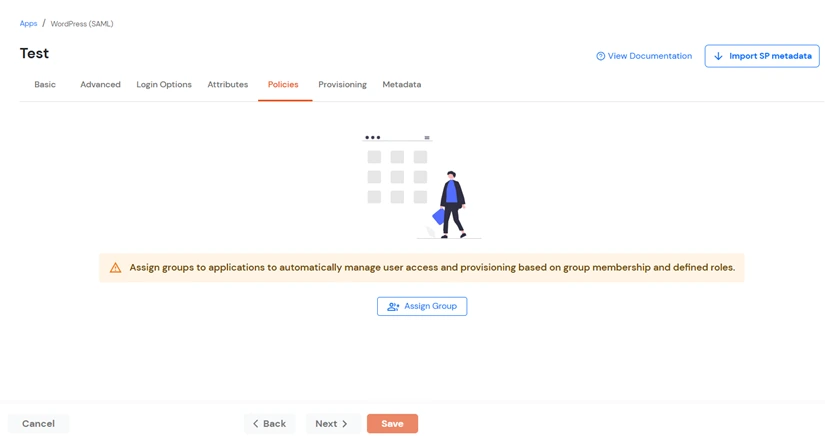

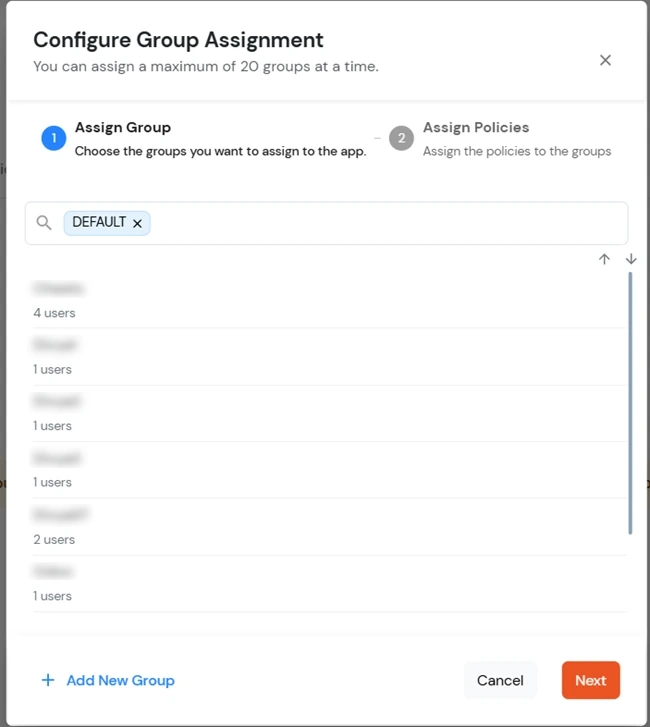

  • Under the Login Policy, select the Default from the Group Name dropdown.
  • Enter Policy Name you would like to provide.

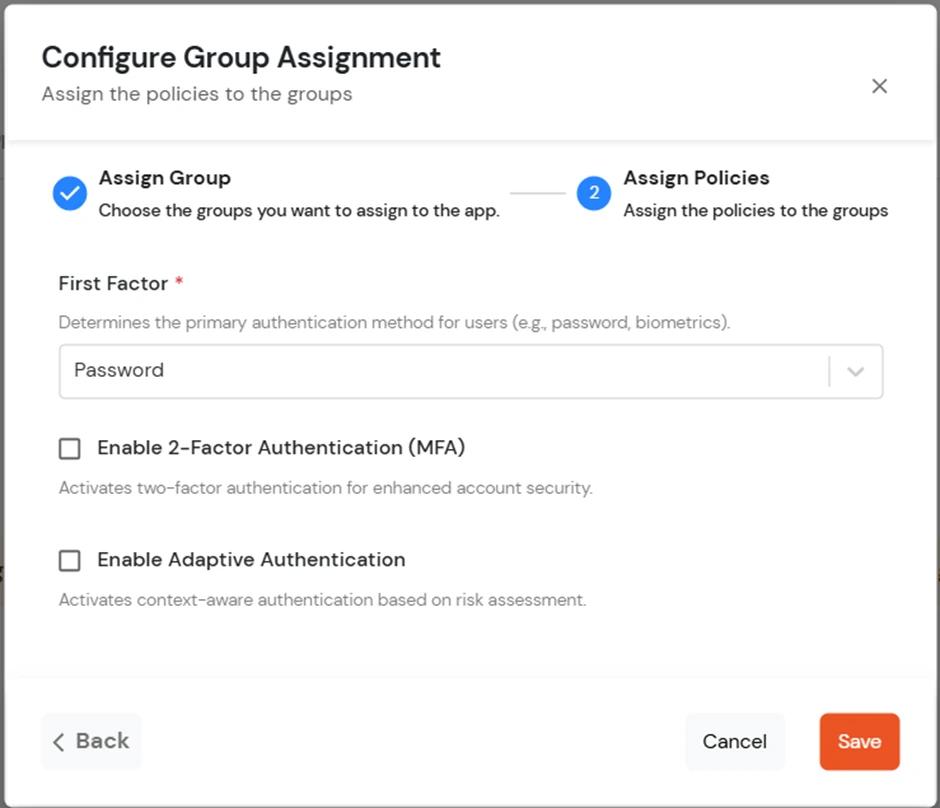

  • Select Password from the Login Method dropdown.
  • Click on Save.
  • Configure miniOrange as IDP - SAML Single Sign-On(SSO) for WordPress - miniOrange SSO Login miniorange sso-5
  • Navigate to the Apps in the left menu.

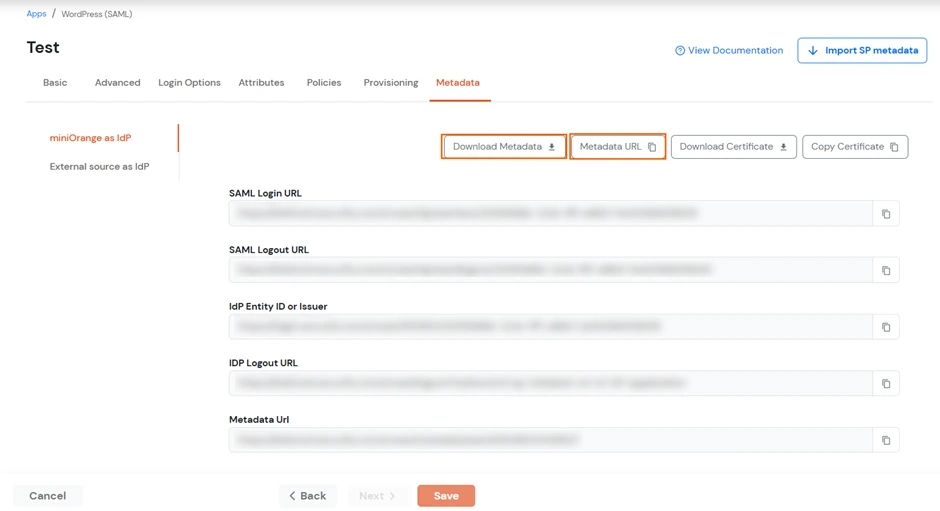

  • Click on the metadata link against your app.
  • Configure miniOrange as IDP - SAML Single Sign-On(SSO) for WordPress - miniOrange SSO Login miniorange sso-5
  • Download the Metadata XML File or note down the given information and keep it handy to configure the Service Provider
  • Configure miniOrange as IDP - SAML Single Sign-On(SSO) for WordPress - miniOrange SSO Login miniorange sso-5

    You have successfully configured miniOrange as SAML IdP (Identity Provider) for achieving miniOrange SSO login into your WordPress Site.


2. Configuring WordPress as SP (Service Provider)


In the WordPress SAML SSO plugin, go to the Service Provider Setup tab of the plugin. There are two ways to configure the WordPress SSO plugin:

A. By uploading IDP metadata:

  • Click on Upload IDP metadata button.
  • Enter the Identity Provider Name
  • You can either upload a metadata file and click on Upload button or use a metadata URL and click on Fetch Metadata.
  • WordPress SAML Single Sign-On (SSO) Login-upload metadata

B.Manual Configuration:

  • Provide the required settings (i.e. Identity Provider Name, IdP Entity ID or Issuer, SAML Login URL, X.509 Certificate) as provided by your Identity Provider and click on the Save button.
  • Click on Test configuration to check the attributes and values sent by IDP.
  • WordPress SAML Single Sign-On (SSO) Test configuration

Step 3: Attribute Mapping

  • In the free plugin, only NameID is supported for Email and Username attributes of the WordPress user.
  • When a user performs SSO, the NameID value sent by the IDP will get mapped to the email and username of the WordPress user.
  • WordPress SAML Single Sign-On (SSO) Login-attribute mapping

Step 4: Role Mapping

  • In the free plugin, you can choose a Default Role which will be assigned to all the non-admin users when they perform SSO.
  • Go to Attribute/Role mapping tab and navigate to Role Mapping section.
  • Select the Default Role and click on the Update button.
  • wWordPress SAML Single Sign-On (SSO) Login-role mapping

Step 5: SSO settings

  • In the free plugin you can add a Single Sign-On button by enabling Add a Single Sign-On button on the WordPress Login Page toggle in Option 1.
  • WordPress SAML Single Sign-On (SSO) Login-SSO button
  • If your WordPress theme supports login widget, you can add a login widget to enable SP-Initiated SSO on your site.
  • Navigate to Redirection and SSO links tab and follow the given steps given under Option 2: Use a Widget to add a login widget on your site.
  • WordPress SAML Single Sign-On (SSO) Login-sso setting

In the WordPress SAML SSO plugin, go to the Service Provider Setup tab of the plugin. There are two ways to configure the WordPress SSO plugin:

A. By uploading IDP metadata:

  • Click on Upload IDP metadata button.
  • Enter the Identity Provider Name
  • You can either upload a metadata file and click on Upload button or use a metadata URL and click on Fetch Metadata.

B.Manual Configuration:

  • Provide the required settings (i.e. Identity Provider Name, IdP Entity ID or Issuer, SAML Login URL, X.509 Certificate) as provided by your Identity Provider and click on the Save button.
  • Click on Test configuration to check the attributes and values sent by IDP.
  • WordPress SAML Single Sign-On (SSO) Test configuration

Step 3: Attribute Mapping

  • Attribute Mapping feature allows you to map the user attributes sent by the IDP during SSO to the user attributes at WordPress.
  • In WordPress SAML plugin, go to Attribute/Role Mapping tab and fill up the following fields in Attribute Mapping section.
  • WordPress SAML Single Sign-On (SSO) Login-attribute mapping

    NOTE: If you click on Test Configuration button in Service Provider Setup tab and authenticate with your IDP, you can see a list of attributes sent by the IDP in the Attribute/Role mapping tab. This information can be used to provide the above mapping.

Step 4: Role Mapping

    In the standard plugin, you can choose a default role which will be assigned to all the non-admin users when they perform SSO.

  • Go to Attribute/Role mapping tab and navigate to Role Mapping section.
  • Select the Default Role and click on the Save button.
  • WordPress SAML Single Sign-On (SSO) Login-role mapping

Step 5: SSO settings

    In the Standard plugin you can enable SP-initiated SSO using the following options.

  • Auto-Redirection from site: If this option is enabled, any unauthenticated user trying to access your site will get redirected to the IDP login page and after successful authentication, they will be redirected back to the same page on your site which they were trying to access.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 1: Auto - Redirection from site.
    • Enable Redirect to IdP if user not logged in [PROTECT COMPLETE SITE]option.
    • WordPress SAML Single Sign-On (SSO) Login-optin 1

  • Auto-Redirection from WordPress Login: If this option is enabled, any unauthenticated user trying to access the default WordPress login page will get redirected to the IDP login page for authentication. After successful authentication, they will be redirected back to the WordPress site.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 2: Auto- Redirection from WordPress Login.
    • Enable Redirect to IdP from WordPress Login Page option.
    • WordPress SAML Single Sign-On (SSO) Login-optin 2

      NOTE: Please enable the Backdoor login and note down the backdoor URL. This will allow you to access the WordPress login page in case you get locked out of the IDP.



  • SSO Links: You can add SSO links anywhere on your site using the Shortcode and Widget provided in Redirection and SSO Links tab > Option 3: SSO Links section of the plugin
  • WordPress SAML Single Sign-On (SSO) Login-optin 3

In the WordPress SAML SSO plugin, go to the Service Provider Setup tab of the plugin. There are two ways to configure the WordPress SSO plugin:

A. By uploading IDP metadata:

  • Click on Upload IDP metadata button.
  • Enter the Identity Provider Name
  • You can either upload a metadata file and click on Upload button or use a metadata URL and click on Fetch Metadata.
  • In the Premium plugin, you can enable auto-sync for the metadata URL which will auto-update the plugin configuration as per the IDP metadata after a set interval of time
  • WordPress SAML Single Sign-On (SSO) Login-enableauto scan

B.Manual Configuration:

  • Provide the required settings (i.e. Identity Provider Name, IdP Entity ID or Issuer, SAML Login URL, X.509 Certificate) as provided by your Identity Provider and click on the Save button.
  • Click on Test configuration to check the attributes and values sent by IDP.
  • WordPress SAML Single Sign-On (SSO) Test configuration
  • In the Premium Plugin, you can provide the SAML Logout URL to achieve Single Logout on your WordPress site.

Step 3: Attribute Mapping

  • Attribute Mapping feature allows you to map the user attributes sent by the IDP during SSO to the user attributes at WordPress.
  • In WordPress SAML plugin, go to Attribute/Role Mapping tab and fill up the following fields in Attribute Mapping section.
  • WordPress SAML Single Sign-On (SSO) Login-attribute mapping
  • Custom Attribute Mapping: This feature allows you to map any attribute sent by the IDP to the usermeta table of WordPress.
  • WordPress SAML Single Sign-On (SSO) Login-attribute mapping

Step 4: Role Mapping

    This feature allows you to assign and manage roles of the users when they perform SSO. Along with the default WordPress roles, this is compatible with any custom roles as well.

  • From the Attribute Mapping section of the plugin, provide a mapping for the field named Group/Role. This attribute will contain the role related information sent by the IDP and will be used for Role Mapping.
  • Navigate to role mapping section and provide the mappings for the highlighted roles.
  • WordPress SAML Single Sign-On (SSO) Login-role mapping
  • For example, If you want a user whose Group/Role attribute value is wp-editor to be assigned as an Editor in WordPress, just provide the mapping as wp-editor in the Editor field of Role Mapping section.

Step 5: SSO Settings

    In the Premium plugin you can enable SP-initiated SSO using the following options.

  • Auto-Redirection from site: If this option is enabled, any unauthenticated user trying to access your site will get redirected to the IDP login page and after successful authentication they will be redirected back to the same page on your site which they were trying to access.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 1 : Auto-Redirection from site.
    • Enable Redirect to IdP if user not logged in option.
    • WordPress SAML Single Sign-On (SSO) Login-optin 1

  • Auto-Redirection from WordPress Login: If this option is enabled, any unauthenticated user trying to access the default WordPress login page will get redirected to the IDP login page for authentication. After successful authentication, they will be redirected back to the WordPress site.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 2: Auto- Redirection from WordPress Login.
    • Enable Redirect to IdP from WordPress Login Page option.
    • WordPress SAML Single Sign-On (SSO) Login-optin 2

      NOTE: Please enable the Backdoor login and note down the backdoor URL. This will allow you to access the WordPress login page in case you get locked out of the IDP login.

  • Login Button: You can add a customized login button anywhere on your site or WordPress login page by navigating to Option 3: Login Button section of Redirection and SSO Links tab.
  • WordPress SAML Single Sign-On (SSO) Login-optin 3
  • SSO Links: You can add SSO links anywhere on your site using the Shortcode and Widget provided in Option 4: SSO Links section of Redirection and SSO Links tab.
  • WordPress SAML Single Sign-On (SSO) Login-optin 4

You have successfully configured WordPress (WP) as SAML SP for achieving miniOrange SSO login into your WordPress (WP) Site.

In this Guide, you have successfully configured miniOrange SAML Single Sign-On (miniOrange Login - SSO) choosing miniOrange as IdP and WordPress as SP using miniOrange plugin-SAML Single Sign On – SSO Login.This solution ensures that you are ready to roll out secure access to your WordPress (WP) site using miniOrange login credentials within minutes.
