SAML Single Sign-On (SSO) For Shopify Using Shibboleth as Identity Provider

Overview

miniOrange allows Shibboleth to act as an IDP (Identity Provider), which allows users to Single Sign-On (SSO) into Shopify using Shibboleth Credentials. Our application is compatible with all the SAML / OAuth-compliant Identity Providers. We will go through a step-by-step guide to configure Single Sign-On (SSO) into Shopify using Shibboleth as IdP (Identity Provider) and Shopify store as SP (Service Provider).

Download Plugin Pricing Plans

Pre-requisites: Single Sign On - SSO Login Application

To configure SSO into Shopify with Shibboleth as IDP (SAML), you will need to install the miniOrange Shopify Single Sign On - SSO Login Application on your store.

Configuration Steps

Step by Step guide for Configuring Shibboleth as IDP for SSO into Shopify

Step 1: Configure Shopify as SP in Shibboleth

• In conf/idpproperties, uncomment and set 'idp.encryption.optionaI' to true.

eg. idp.encryption.optional = true

• In conf/metadata-providers.xml, configure Service Provider like this

   <MetadataProvider xmlns:samlmd="urn:oasis:names:tc:SAML:2.0:metadata"

     id="miniOrangeInLineEntity" xsi:type="InlineMetadataProvider" sortKey="1">

       <samlmd:EntityDescriptor ID="entity" entityID="<SP-EntityID/Issuer from SP info tab in plugin.>"

       validUntil="2020-09-06T04:13:32Z">

       <samlmd:SPSSODescriptor AuthnRequestsSigned="false" WantAssertionsSigned="true"

       protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">

         <samlmd:NameIDFormat>

           urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress

         </samlmd:NameIDFormat>

       <samlmd:AssertionConsumerService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"

       Location="<ACS (AssertionConsumerService) URL from Step1 of the plugin under IDP Tab.>"

         index="1" />

       </samlmd:SPSSODescriptor>

       </samlmd:EntityDescriptor>

   </MetadataProvider>

• In conf/saml-nameid.properties, uncomment and set default NameID as Email Address like this

 idp.nameid.saml2.default=urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress

• In conf/saml-nameid-xml, search for shibboleth.SAML2NameIDGenerators. Uncomment the shibboleth.SAML2AttributeSourcedGenerator bean and comment all other ref beans

 <!-- SAML 2 NameID Generation -->

 <util:list id="shibboleth.SAML2NameIDGenerators">

   <!--<ref bean="shibboleth.SAML2TransientGenerator" /> -->

   <!-->ref bean="shibboleth.SAML2PersistentGenerator" /> -->

   <bean parent="shibboleth.SAML2AttributeSourcedGenerator"

   p:format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress"

   p:attributeSourceIds="#{ {'email'} }" />

 </util:list>

• Make sure you have defined AttributeDefinition in conf/attribute-resolver.xml.

 <!-- Note: AttributeDefinitionid must be same as what you provided in attributeSourceIds in conf/saml-nameid.xml -->

 <resolver:AttributeDefinitionxsi:type="ad:Simple" id="email" sourceAttributeID="mail">

   <resolver:Dependency ref="ldapConnector" />

   <resolver:AttributeEncoderxsi:type="enc:SAML2String" name="email"  friendlyName="email" />

 </resolver:AttributeDefinition >



 <resolver:DataConnector id="ldapConnector" xsi:type="dc:LDAPDirectory" ldapURL="%{idp.authn.LDAP.ldapURL}"

   baseDN="%{idp.authn.LDAP.baseDN}" principal="%{idp.authn.LDAP.bindDN}"

   principalCredential="%{idp.authn.LDAP.bindDNCredential}">


   <dc:FilterTemplate>

     <!-- Define you User Search Filter here -->

     <![CDATA[   (&(objectclass=*)(cn=$requestContext.principalName))   ]]>

   </dc:FilterTemplate>



   <dc:ReturnAttributes>*</dc:ReturnAttributes>

 </resolver:DataConnector>

• Make sure you have AttributeFilterPolicy defined in conf/attribute-filter.xml.

 <afp:AttributeFilterPolicy id="ldapAttributes">

 <afp:PolicyRequirementRulexsi:type="basic:ANY"/>

   <afp:AttributeRuleattributeID="email">

     <afp:PermitValueRulexsi:type="basic:ANY"/>

   </afp:AttributeRule>

 </afp:AttributeFilterPolicy>

• Restart the Shibboleth Server.

You have completed the Shibboleth side configuration.

Step 2: Configure Shibboleth as IDP in Shopify

• Navigate back to the miniOrange Single Sign On-SSO application and click on the Add Identity Provider button.

• Select SAML protocol.

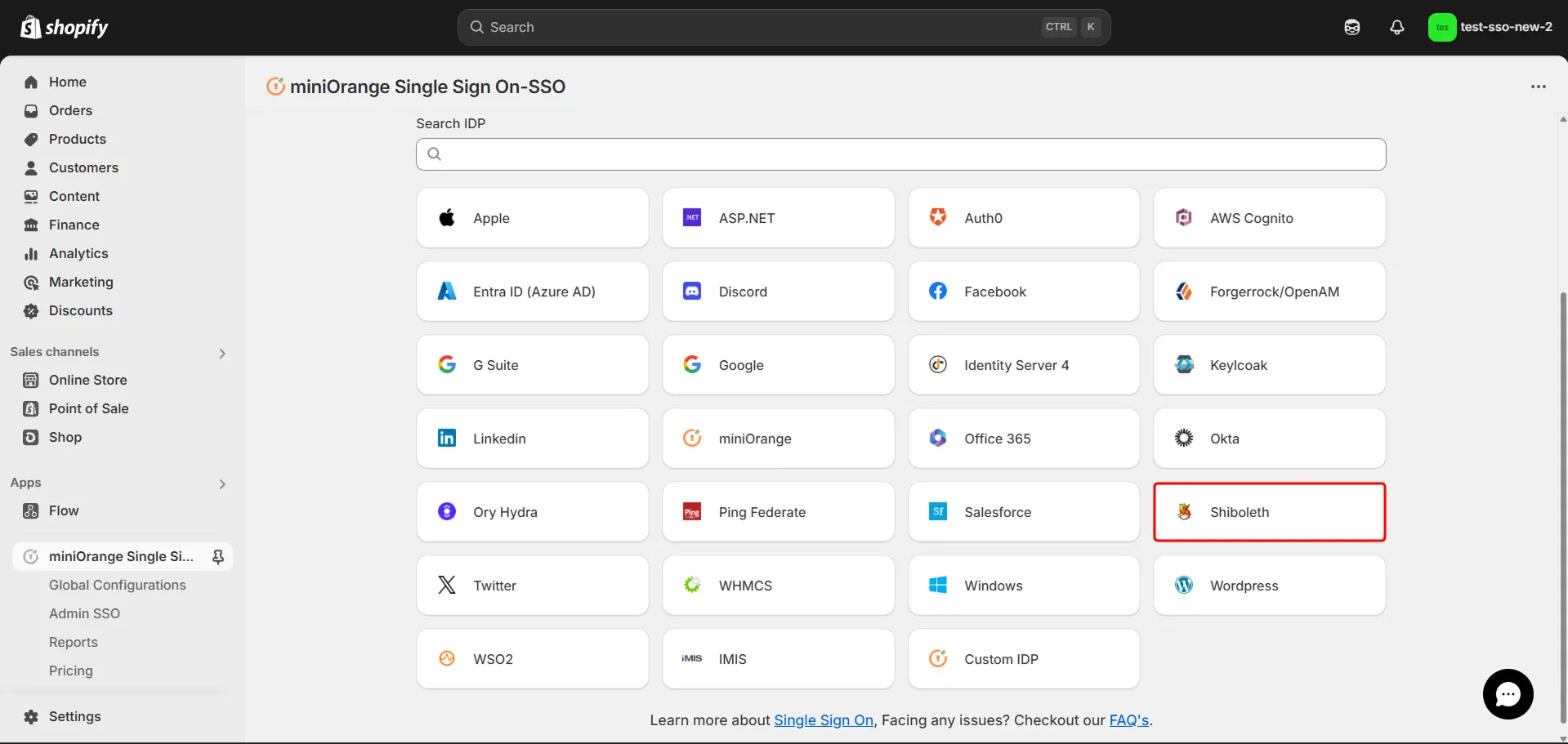

• From the list of IDPs, select Shibboleth.

• Click on the Import IDP Metadata button.

• Select the upload method as Metadata Link. Paste the copied XML file link from Step 1 and Click on Import.

• You can also provide the details manually. You need to configure following endpoints:

• Add the appropriate IDP Name and click on Save.

You have completed Shopify side configuration.

Step 3: Test Connections

• After saving the IDP configuration, you will be redirected to the Test Connection step.
  Please perform Test Connection before mapping or fetching attributes, test connection ensures that your IDP configuration is correct.
• Click on the Test Connection button.

• On entering valid Shibboleth credentials you will see a pop-up window which is shown in the below screen.

• Click on the Fetch Attributes button to fetch the IDP attribute.

Step 4: Attribute Mapping

• Click on the + Attribute Mapping button to map attributes between Shopify and Okta.

• Map the attributes by referring to the table below:

• Click on Save.

Step 5: Enable & Test SSO Configurations

Select Shopify Store Type:

• Non-Plus Store
• Plus Store

SSO Configuration in Non-Plus Shopify Stores

Choose the type of account you have enabled on your Shopify Store:

• Customer Accounts
• Legacy Customer Accounts

• Go to the application dashboard, enable the customer accounts extension as shown in the below image.

• Enable the New Customer Accounts extension and click on Save.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store.(https://<your-shopify-storedomain>)
• Click on the User login icon.

• You’ll be redirected to the login page of the identity provider (IDP) you configured in the previous step. Log in with your IDP account credentials.
• Next, enter the six-digit OTP that will be sent to your registered email address. (This is a one-time process)

• You’ll be successfully logged in to your Shopify store.

• Go to the application dashboard, you will see a warning box to add the login button extension on the Account page, click on the login widget extension link as shown in the below image to enable it.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

• If you want to configure SSO into Shopify using multiple IDPs, then select your IDP from the list provided here, and setup SSO using that IDP.
• Enable the IDP login toggle option for enabling SSO into Shopify using multiple IDPs.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store login page.(https://<your-shopify-storedomain>/account/login)
• Click on the login button you customized earlier.

• You'll be redirected to the identity provider (IDP) login page. Now log in with your existing account credentials.

• After login, if you encounter an "invalid or missing reCAPTCHA token" error, accompanied by a "Something went wrong" message, refer to this FAQ to resolve the error.

SSO Configuration in Plus Shopify Stores

Choose the type of account you have enabled on your Shopify Store:

• Customer Accounts
• Legacy Customer Accounts

• Go back to the SSO application, and navigate to Connect Store tab. Copy the Client ID, Client Secret, Post-Logout Redirect URL and Discovery Endpoint URL and keep them handy.

• Click on the Customer Accounts link as shown in the below image.

• Select the Customer accounts option recommended by Shopify & look for the Identity Provider option, if not present please reach out to shopifysupport@xecurify.com.

• If the identity provider is present, click on Manage.

• Click on Connect to Provider button.

• Add the Identity Provider name and fill in the details such as Discovery endpoint URL, Client ID, Client secret, Additional Scopes, Post-logout redirect URI parameter that you copied from above step. Click on Save.

• Once the Identity Provider has been added, do the Test Connection.

• After verifying the flow make the identity provider as Active.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store.(https://<your-shopify-storedomain>)
• Click on the User login icon.

• You’ll be redirected to the login page of the identity provider (IDP) you configured in the previous step. Log in with your IDP account credentials.

• You’ll be successfully logged in to your Shopify store.

• Now, click on the Setup Guide button and follow the steps mentioned to get multipass token.

• Enable the Multipass Token option. Refer to this Faq to get the Multipass token value and paste it in the below field.

• Click on Save.

• Go to the application dashboard, you will see a warning box to add the login button extension on the Account page, click on the login widget extension link as shown in the below image to enable it.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

• If you want to configure SSO into Shopify using multiple IDPs, then select your IDP from the list provided here, and setup SSO using that IDP.
• Enable the IDP login toggle option for enabling SSO into Shopify using multiple IDPs.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store login page.(https://<your-shopify-storedomain>/account/login)
• Click on the login button you customized earlier.

• You'll be redirected to the identity provider (IDP) login page. Now log in with your existing account credentials.

• If you encounter an "invalid or missing reCAPTCHA token" error, accompanied by a "Something went wrong" message, refer to this FAQ to resolve the error.

• You’ll be successfully logged in to your Shopify store.

Hence your configuration of Shibboleth as IDP in Shopify is successfully completed.
