SAML Single Sign-On (SSO) For Shopify Using Okta as Identity Provider

Overview

miniOrange allows Okta to act as an IDP (Identity Provider), which allows users to Single Sign-On (SSO) into Shopify using Okta Credentials. Our application is compatible with all the SAML / OAuth-compliant Identity Providers. We will go through a step-by-step guide to configure Single Sign-On (SSO) into Shopify using Okta as IdP (Identity Provider) and Shopify store as SP (Service Provider).

Download Plugin Pricing Plans

Pre-requisites: Single Sign On - SSO Login Application

To configure SSO into Shopify with Okta as IDP (SAML), you will need to install the miniOrange Shopify Single Sign On - SSO Login Application on your store.

Configuration Steps

Step by Step guide for Configuring Okta as IDP for SSO into Shopify

Step 1: Configure Shopify as SP in Okta

• Login into your Okta Admin Dashboard.
• In the Okta Developer site, navigate to the Applications tab and select Applications.

• Click on the Create App Integration button to create a new app.

• Select SAML 2.0 as the Sign-On method and Click on the Next button.

• In the General Settings tab, enter the App Name and click on the Next button.

• For the above SAML configuration, you need to get the Entity ID and ACS URL from Shopify.
• Now go to your Shopify store, navigate to the App section and click on Single Sign On - SSO login application.

• Click on the Add Identity Provider button to add your IDP.

• Select SAML protocol.

• Now choose Okta from the list of IDPs.

• Click on the Get metadata button, as shown on the screen below, to get the service provider metadata.

• SP - INITIATED SSO
• IDP - INITIATED SSO

• Navigate to the SP Initiated Metadata section and copy down the ACS URL and Entity ID or Issuer.

• Navigate to IDP Initiated Metadata section and copy down the ACS URL and Entity ID or Issuer.

• Navigate to the Okta Application and enter the values in the Configure SAML section as shown in the below screen.

Single Sign-On URL	ACS URL (For SP-Initiated SSO)
Audience URI (SP Entity ID)	Entity ID or Issuer

• (IDP Attribute Mapping): Configure Attribute Statements (Optional) and click on the Next button.

• Select Okta Configuration type & click on finish.
• Now navigate to the application you created and click on the Assignments Tab in Okta.

• Click on the Assign button to Assign People and Assign Groups.

• Once you Assign the user, click on the Done button.

Get IDP Metadata:

• Navigate to the Sign On tab and go to the SAML Signing Certificate section.
• Click on the Action dropdown for the Active certificate and then click on the View IdP Metadata option to get the IdP Metadata which will be required for configuring your Service Provider.

• Copy the XML file URL and navigate back to the Shopify Single Sign-On - SSO Login application dashboard.

You have completed the Okta side configuration.

Step 2: Configure Okta as IDP in Shopify

• Navigate back to the miniOrange Single Sign On-SSO application and click on the Add Identity Provider button.

• Select SAML protocol.

• From the list of IDPs, select Okta.

• Click on the Import IDP Metadata button.

• Select the upload method as Metadata Link. Paste the copied XML file link from Step 1 and Click on Import.

• Add the appropriate IDP Name and click on Save.

Step 3: Test Connections

• After saving the IDP configuration, you will be redirected to the Test Connection step.
  Please perform Test Connection before mapping or fetching attributes, test connection ensures that your IDP configuration is correct.
• Click on the Test Connection button.

• On entering valid Okta credentials you will see a pop-up window which is shown in the below screen.

• Click on the Fetch Attributes button to fetch the IDP attribute.

Step 4: Attribute Mapping

• To send an attribute from Okta IDP follow the steps given in Step 1.
• Click on the + Attribute Mapping button to map attributes between Shopify and Okta.

• Map the attributes by referring to the table below:

• Click on Next.

Step 5: Enable & Test SSO Configurations

Select Shopify Store Type:

• Non-Plus Store
• Plus Store

SSO Configuration in Non-Plus Shopify Stores

Choose the type of account you have enabled on your Shopify Store:

• Customer Accounts
• Legacy Customer Accounts

• Go to the application dashboard, enable the customer accounts extension as shown in the below image.

• Enable the New Customer Accounts extension and click on Save.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

IDP Initiated SSO for Shopify using Okta as IDP

Note: If you’re setting up an IdP-initiated flow (where users initiate SSO from Okta), refer to this guide to configure SSO for your Shopify store.

Testing Single Sign-On (SSO) for your Shopify store (Only in SP Initiated flow)

• Go to your Shopify Store.(https://<your-shopify-storedomain>)
• Click on the User login icon.

• You’ll be redirected to the login page of the identity provider (IDP) you configured in the previous step. Log in with your IDP account credentials.

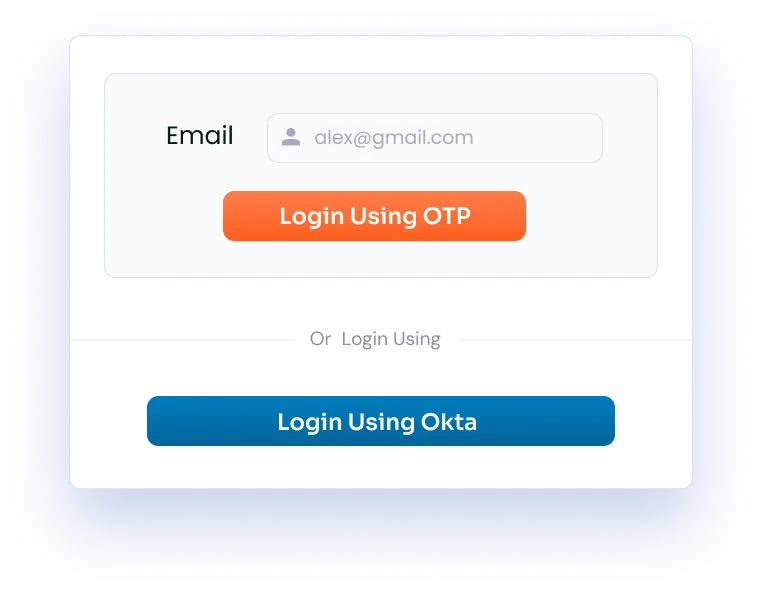

• Next, enter the six-digit OTP that will be sent to your registered email address. (This is a one-time process)

• You’ll be successfully logged in to your Shopify store.

• Go to the application dashboard, you will see a warning box to add the login button extension on the Account page, click on the login widget extension link as shown in the below image to enable it.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

• If you want to configure SSO into Shopify using multiple IDPs, then select your IDP from the list provided here, and setup SSO using that IDP.
• Enable the IDP login toggle option for enabling SSO into Shopify using multiple IDPs.

IDP Initiated SSO for Shopify using Okta as IDP

Note: If you’re setting up an IdP-initiated flow (where users initiate SSO from Okta), refer to this guide to configure SSO for your Shopify store.

Testing Single Sign-On (SSO) for your Shopify store (Only in SP Initiated flow)

• Go to your Shopify Store login page.(https://<your-shopify-storedomain>/account/login)
• Click on the login button you customized earlier.

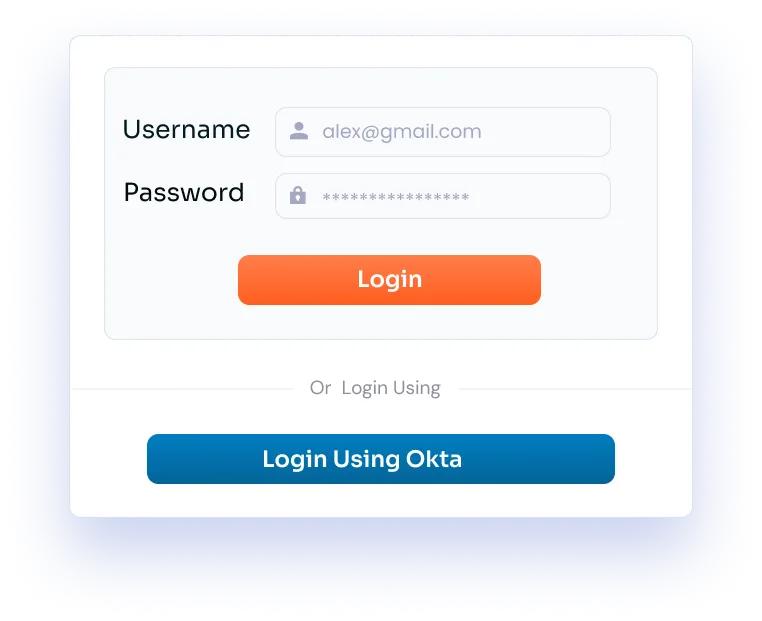

• You'll be redirected to the identity provider (IDP) login page. Now log in with your existing account credentials.

• After login, if you encounter an "invalid or missing reCAPTCHA token" error, accompanied by a "Something went wrong" message, refer to this FAQ to resolve the error.

SSO Configuration in Plus Shopify Stores

Choose the type of account you have enabled on your Shopify Store:

• Customer Accounts
• Legacy Customer Accounts

• Go back to the SSO application, and navigate to Connect Store tab. Copy the Client ID, Client Secret, Post-Logout Redirect URL and Discovery Endpoint URL and keep them handy.

• Click on the Customer Accounts link as shown in the below image.

• Select the Customer accounts option recommended by Shopify & look for the Identity Provider option, if not present please reach out to shopifysupport@xecurify.com.

• If the identity provider is present, click on Manage.

• Click on Connect to Provider button.

• Add the Identity Provider name and fill in the details such as Discovery endpoint URL, Client ID, Client secret, Additional Scopes, Post-logout redirect URI parameter that you copied from above step. Click on Save.

• Once the Identity Provider has been added, do the Test Connection.

• After verifying the flow make the identity provider as Active.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

IDP Initiated SSO for Shopify using Okta as IDP

Note: If you’re setting up an IdP-initiated flow (where users initiate SSO from Okta), refer to this guide to configure SSO for your Shopify store.

Testing Single Sign-On (SSO) for your Shopify store (Only in SP Initiated flow)

• Go to your Shopify Store.(https://<your-shopify-storedomain>)
• Click on the User login icon.

• You’ll be redirected to the login page of the identity provider (IDP) you configured in the previous step. Log in with your IDP account credentials.

• You’ll be successfully logged in to your Shopify store.

• Now, click on the Setup Guide button and follow the steps mentioned to get multipass token.

• Enable the Multipass Token option. Refer to this Faq to get the Multipass token value and paste it in the below field.

• Click on Save.

• Go to the application dashboard, you will see a warning box to add the login button extension on the Account page, click on the login widget extension link as shown in the below image to enable it.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

• If you want to configure SSO into Shopify using multiple IDPs, then select your IDP from the list provided here, and setup SSO using that IDP.
• Enable the IDP login toggle option for enabling SSO into Shopify using multiple IDPs.

IDP Initiated SSO for Shopify using Okta as IDP

Note: If you’re setting up an IdP-initiated flow (where users initiate SSO from Okta), refer to this guide to configure SSO for your Shopify store.

Testing Single Sign-On (SSO) for your Shopify store (Only in SP Initiated flow)

• Go to your Shopify Store login page.(https://<your-shopify-storedomain>/account/login)
• Click on the login button you customized earlier.

• You'll be redirected to the identity provider (IDP) login page. Now log in with your existing account credentials.

• If you encounter an "invalid or missing reCAPTCHA token" error, accompanied by a "Something went wrong" message, refer to this FAQ to resolve the error.

• You’ll be successfully logged in to your Shopify store.

Hence your configuration of Okta as IDP in Shopify is successfully completed.
