ASP.NET SAML Single Sign-On (SSO) using miniOrange As IDP


ASP.NET SAML Single Sign-On (SSO) module gives the ability to enable SAML Single Sign-On for your ASP.NET applications. Using Single Sign-On you need only one password to access your ASP.NET application and services. Our module is compatible with all SAML compliant identity providers. Here, we will go through a step-by-step guide to configure Single Sign-On (SSO) between ASP.NET and miniOrange, considering miniOrange as IdP. To know more about the other features we provide, click here.

Platform Support: The ASP.NET SAML module supports ASP.NET 4.0 and above.

Pre-requisites: Download and Installation


PM> Install-Package miniOrange.SAML.SSO -Version 5.3.3
  • Download miniOrange ASP.NET SAML 2.0 Module.
  • To set up the module, extract the file asp.net-saml-sso-module-xxx.zip. You will find a DLL named miniorange-saml-sso.dll, a configuration file named saml.config and an integration.md file which contains steps for adding the module into your application.
  • Add miniorange-saml-sso.dll into your bin folder (where other DLL files for your application exist).
  • Register minorangesamlsso module in your application according to the steps provided in the file named integration.md.
  • Add the provided configuration file saml.config in the root directory of your application.
  • After integration, open your browser and browse the connector dashboard with the URL below:
    https://<your-application-base-url>/?ssoaction=config
  • If the registration page or login page pops up, you have successfully added the miniOrange SAML SSO connector to your application.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - saml dll register
  • Register or log in with your account by clicking the Register button to configure the module.

Steps to configure miniOrange Single Sign-On (SSO) Login into ASP.NET

1. Configure miniOrange as identity provider

  • You need to send your SP metadata to identity provider, miniOrange. For SP metadata, use the SP metadata URL or download the SP metadata as a .xml file and upload it at your IdP end. You can find both these options under the Service Provider Settings tab.
  • There are two ways detailed below with which you can get the SAML SP metadata to configure onto your identity provider end.
  • A] Using SAML metadata URL or metadata file:
    • Under Service Provider Settings you can find the metadata URL as well as the option to download the SAML metadata.
    • Copy metadata URL or download the metadata file to configure the same on your identity provider end.
    • You may refer to the screenshot below:
    • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Copy Downloaded Metadata
    B] Uploading metadata manually:
    • From the Service Provider Settings section, you can manually copy the service provider metadata like SP Entity ID, ACS URL, Single Logout URL and share it with your identity provider for configuration.
    • You may refer to the screenshot below:
    • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Manual Metadata
  • Go to miniOrange Admin console https://login.xecurify.com/moas/login and login with your miniOrange credentials.
  • From the left menu, click on the Apps tab.
  • In the right upper corner, select Add Application.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Add application
  • Choose the Application type as SAML/WS-FED.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Choose application type
  • In the search apps textbox, type Custom SAML App.
  • Click on the Custom SAML App application.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - search application
  • Fill in the metadata details in the textboxes below manually or you can Import SP Metadata.
  • Custom Application Name App name you like to provide.
    SP Entity ID or Issuer Enter SP Entity ID / Issuer from Service Provider Info tab of the plugin
    ACS URL Enter ACS (Assertion Consumer Service) URL from Service Provider Info tab of the plugin
    Single Logout URL Enter Single Logout URL from Service Provider Info tab of the plugin
  • Click on Save to add the App.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Import SP Metadata
  • Under the Login Policy, select the Default from the Group Name dropdown.
  • Enter Policy Name you would like to provide.
  • Select Password from the Login Method dropdown.
  • Click on Save.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Login Policy
  • Navigate to the Apps in the left menu.
  • Click on the metadata link against your app.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - miniOrange IDP Metadata
  • Download the Metadata XML File or note down the given information and keep it handy to configure the Service Provider
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - miniOrange SSO Login miniorange sso-5

2. Configure ASP.NET application as service provider

Note: After installation of the plugin, we need to setup the trust between your ASP.NET application and your miniOrange account. SAML metadata is shared with miniOrange so they can update their inbuilt configuration to support Single Sign-On.

Import miniOrange SAML metadata

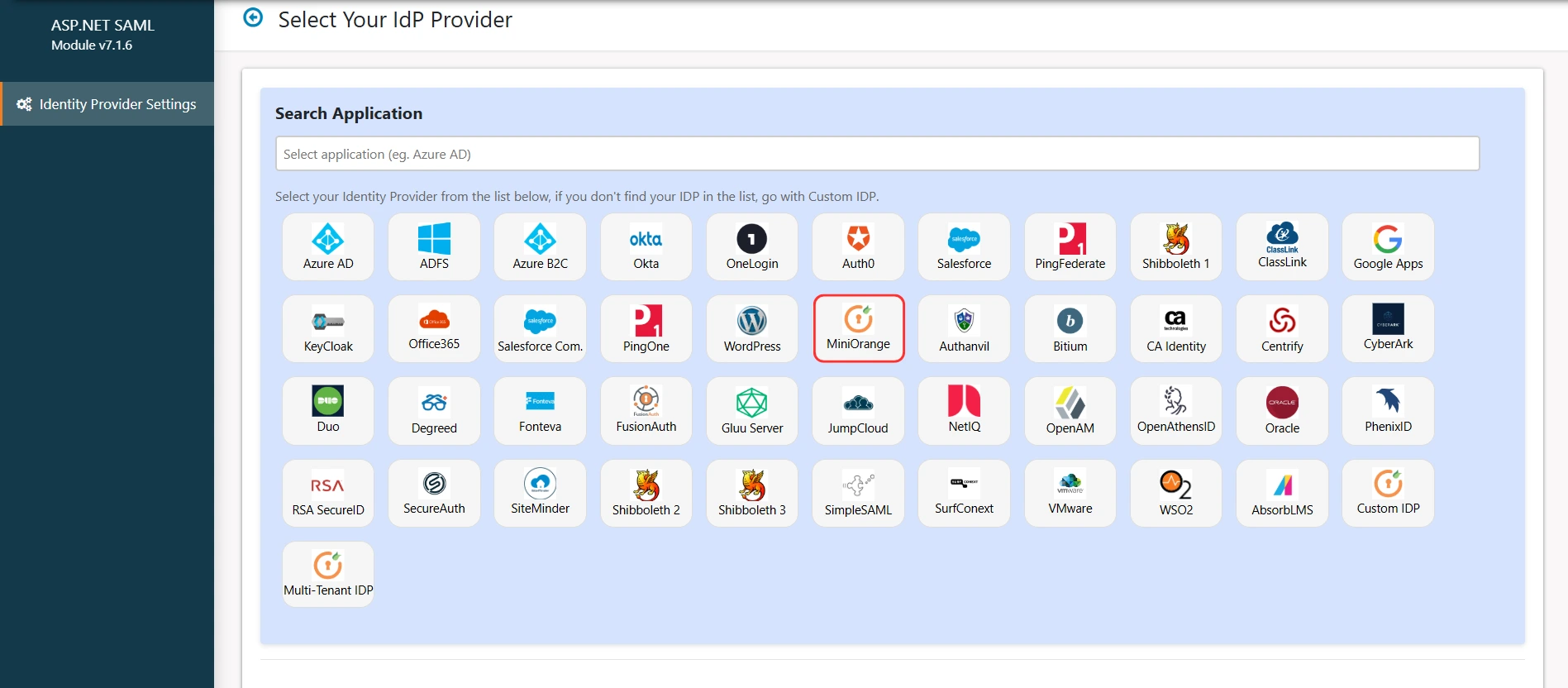

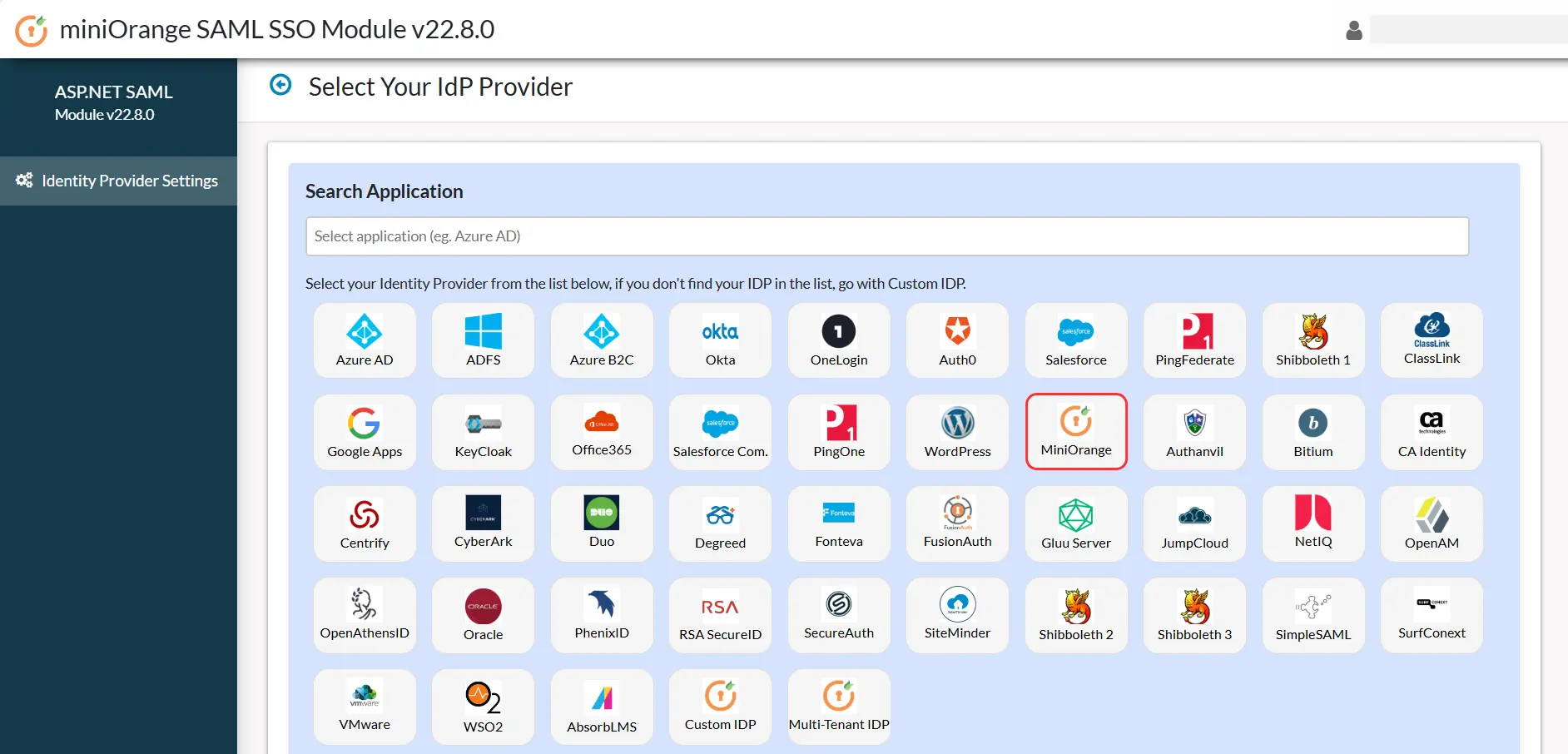

  • Select miniOrange from the list of identity providers shown below.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - search idp
  • There are two methods for configuring ASP.NET as service provider:
  • A] Upload metadata using the Upload IDP Metadata button:
    • If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the module using the Upload IDP Metadata option.
    • You may refer to the screenshot below:
    • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Upload Metadata
    • You can choose any one of the options according to the metadata format you have available.
    B] Configure the identity provider metadata manually:
    • After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.
    • Click Save to save your IDP details.
    • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - SAML dll config

3. Testing SAML SSO

  • Click on the Test Configuration button to test whether the SAML Configuration you’ve done is correct.
  • The screenshot below shows a successful result. Click on SSO Integration where you will be redirected to Attribute Mapping section.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - SAML dll Test configuration
  • If you are experiencing any error on the module end you’ll be shown with the window similar to below.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Enable debug logs
  • To troubleshoot the error you can follow the below steps:
    • Under Troubleshoot tab, enable the toggle to receive the plugin logs.
    • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - Enable debug logs
    • Once enabled, you will be able to retrieve plugin logs by navigating to Identity Provider Settings tab and clicking on Test Configuration.
    • Download the log file from the Troubleshoot tab to see what went wrong.
    • You can share the log file with us at aspnetsupport@xecurify.com and our team will reach out to you to resolve your issue.

4. Integration Code

  • You can find the Integration code in the Login Settings tab in the module. Just copy-paste that code snippet wherever you want to access the user attributes.
  • Note: All the mapped attributes will be stored in the session so that you can access them in your application.
  • ASP.NET SAML Single Sign-On (SSO) using miniOrange as IDP - integration code
  • If you want some assistance regarding the integration code, get in touch with us aspnetsupport@xecurify.com

5. Login Settings

  • Use the following URL as a link in your application from where you want to perform SSO:
  • https://<your-application-base-url>/?ssoaction=login
  • For example you can use it as:
  • <a href="https://<your-application-base-url>/?ssoaction=login">Login</a>

6. Logout Settings

  • Use the following URL as a link in your application from where you want to perform SLO:
  • https://<your-application-base-url>/?ssoaction=logout
  • For example you can use it as:
  • <a href="https://<your-application-base-url>/?ssoaction=logout">Logout</a>
