Configure SAML Single Sign-On (SSO) in ASP.NET Core Decoupled Application

Overview

This guide provides detailed steps to set up SAML Single Sign-On (SSO) in ASP.NET Core decoupled architecture application using any SAML-compliant Identity Provider (IdP).The backend (ASP.NET Core) handles SSO authentication, generates a JWT Token, and exposes it securely to any frontend (React, Angular, Vue, etc.).

Pre-requisites : Download And Installation

• Version .NET 5 & Above
• Version .NET Core 2.1 & .NET Core 3.1

NuGet Package

.NET CLI

PM> NuGet\Install-Package miniOrange.SAML.SSO

> dotnet add package miniOrange.SAML.SSO

Note: To integrate the miniOrange ASP.NET SAML SSO middleware in your application, you will be required to add the below namespaces, services and middleware in your project, below is a sample implementation for reference.

  using miniOrange.saml;
  using System.Reflection;
  var builder=WebApplication.CreateBuilder(args);
  // Add services to the container.
  builder.Services.AddRazorPages();
  builder.Services.AddAuthentication(options =>
  {
    options.DefaultAuthenticationScheme ="SS0_OR_Admin";
    options.DefaultScheme = "SSO_OR_Admin";
    options.DefaultChallengeScheme = "SSO_OR_Admin";
  })
  .AddCookie("moAdmin", options =>
  {

  })
  .AddCookie(CookieAuthenticationDefaults.AuthenticationScheme, options =>
  {

  })
  .AddJwtBearer(JwtBearerDefaults.AuthenticationScheme, options =>
  {
    options.TokenValidationParameters = new TokenValidationParameters
    {
      ValidateIssuer = true,
      ValidateAudience = true,
      ValidateLifetime = true,
      ValidateIssuerSigningKey = true,
      ValidIssuer = "your-issuer",
      ValidAudience = "your-audience",
      IssuerSigningKey = new
  SymmetricSecurityKey(Encoding.UTF8.GetBytes("your-secret-key"))
    };
  })
  .AddPolicyScheme("SSO_OR_Admin", "SSO_OR_Admin", options =>
  {
    options.ForwardDefaultSelector = context =>
    {
      // Check if Bearer token exists
      string authHeader = context.Request.Headers["Authorization"].FirstOrDefault() ?? "";
      if (!string.IsNullOrEmpty(authHeader) && authHeader.StartsWith("Bearer"))
      {
        return JwtBearerDefaults.AuthenticationScheme;
      }
      foreach (var cookie in context.Request.Cookies)
      {
         if (cookie.Key.Contains(".AspNetCore.Cookies") &&
        context.Request.Query["ssoaction"] != "config")
        {
          return CookieAuthenticationDefaults.AuthenticationScheme;
        }
    }
    return "moAdmin";
    };
  });
  var app = builder.Build();
  if(!app.Environment.IsDevelopment())
  {
    app.UseExceptionHandler("/Error");
    app.UseHsts();
  }
  app.UseHttpsRedirection();
  app.UseRouting();
  app.UseAuthorization();
  app.MapRazorPages();
  app.UseCookiePolicy();
  app.UseAuthentication();
  app.UseStaticFiles();
  app.UseminiOrangeSAMLSSOMiddleware();
  app.Run();


NuGet Package

.NET CLI

PM> NuGet\Install-Package miniOrange.SAML.SSO

> dotnet add package miniOrange.SAML.SSO

Note: To integrate the miniOrange ASP.NET SAML SSO middleware in your application, you will be required to add the below namespaces, services and middleware in your project, below here is a sample .

  using miniOrange.saml;
  using System.Reflection;
  public class Startup
  {
   public Startup(IConfiguration configuration)
   {
    Configuration = configuration;
   }
   public IConfiguration Configuration {get;}
   // This method gets called by the runtime. Use this method to add services to the container.
   public void ConfigureServices(IServiceCollection services)
   {
    services.AddRazorPages();
  services.AddAuthentication(options =>
  {
    options.DefaultAuthenticationScheme ="SS0_OR_Admin";
    options.DefaultScheme = "SSO_OR_Admin";
    options.DefaultChallengeScheme = "SSO_OR_Admin";
  })
  .AddCookie("moAdmin", options =>
  {

  })
  .AddCookie(CookieAuthenticationDefaults.AuthenticationScheme, options =>
  {

  })
  .AddJwtBearer(JwtBearerDefaults.AuthenticationScheme, options =>
  {
    options.TokenValidationParameters = new TokenValidationParameters
    {
      ValidateIssuer = true,
      ValidateAudience = true,
      ValidateLifetime = true,
      ValidateIssuerSigningKey = true,
      ValidIssuer = "your-issuer",
      ValidAudience = "your-audience",
      IssuerSigningKey = new
  SymmetricSecurityKey(Encoding.UTF8.GetBytes("your-secret-key"))
    };
  })
  .AddPolicyScheme("SSO_OR_Admin", "SSO_OR_Admin", options =>
  {
    options.ForwardDefaultSelector = context =>
    {
      // Check if Bearer token exists
      string authHeader = context.Request.Headers["Authorization"].FirstOrDefault() ?? "";
      if (!string.IsNullOrEmpty(authHeader) && authHeader.StartsWith("Bearer"))
      {
        return JwtBearerDefaults.AuthenticationScheme;
      }
      foreach (var cookie in context.Request.Cookies)
      {
         if (cookie.Key.Contains(".AspNetCore.Cookies") &&
        context.Request.Query["ssoaction"] != "config")
        {
          return CookieAuthenticationDefaults.AuthenticationScheme;
        }
    }
    return "moAdmin";
    };
  });
   }
   // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
   public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
   {
    if (env.IsDevelopment())
    {
     app.UseDeveloperExceptionPage();
    }
   else
    {
     app.UseExceptionHandler("/Error");
    app.UseHsts();
    }
   app.UseHttpsRedirection();
   app.UseCookiePolicy();
   app.UseAuthentication();
   app.UseStaticFiles();
   app.UseminiOrangeSAMLSSOMiddleware();
   app.UseRouting();
   app.UseAuthorization();
   app.UseEndpoints(endpoints =>
   {
    endpoints.MapRazorPages();
   });
  }
 }


If you get the CORS issues while making API calls, add the below service and policy.

Configuration Steps

Step by Step guide for ASP.NET Core SAML SSO using your Identity Provider.

2. Configure your Identity Provider

• Under the Plugin Settings tab, select your identity provider from the list shown.

3. Configure ASP.NET Core SAML Middleware as Service Provider

There are two ways detailed below with which you can configure your SAML Identity Provider metadata in the middleware.

A] Upload metadata using the Upload IDP Metadata button:

• If your identity provider has provided you with the metadata URL or metadata file (.xml format only), then you can simply configure the identity provider metadata in the middleware using the Upload IDP Metadata option.

• Copy metadata URL or download the metadata file to configure the same on your identity provider end.

• You may refer to the screenshot below:

• You can choose any one of the options according to the metadata format you have available.

B] Configure the identity provider metadata manually:

• After configuring your Identity Provider, it will provide you with IDP Entity ID, IDP Single Sign On URL and SAML X509 Certificate fields respectively.

• Click Save to save your IDP details.

4. Testing SAML SSO

• Click on the Test Configuration button to test whether the SAML Configuration you’ve done is correct.

• The screenshot below shows a successful result. Click on SSO Integration to further continue with the SSO Integration.

• If you are experiencing any error on the middleware end you’ll be shown with the window similar to below.

• To troubleshoot the error you can follow the below steps:

• Under Troubleshoot tab, enable the toggle to receive the plugin logs.

• Once enabled, you will be able to retrieve plugin logs by navigating to Plugin Settings tab and clicking on Test Configuration.

• Download the log file from the Troubleshoot tab to see what went wrong.

• You can share the log file with us at aspnetsupport@xecurify.com and our team will reach out to you to resolve your issue.

5. Attribute Mapping

• After testing the configuration, Map your application attributes with the Identity Provider (IdP) attributes.

• Note: All the mapped attributes will be stored in the session so that you can access them in your application.

6. Integration Code

• This steps allow you to retrieve the SSO user information in your application in the form of user claims.

• Note: This trial middleware only supports user information in claims, retrieving user information in session and headers is available in the premium plugin

• Create a GET Endpoint in the .NET side to return the JWT token after login.
  Note: If you have a method to create a JWT, you just need to pick the claims from the .NET cookie.
  Below is the code for your reference:
[HttpGet("gettoken")]
public string GetToken()
{
  if(User.Identity!=null && User.Identity.IsAuthenticated)
  {
    var key = new SymmetricSecurityKey(Encoding.UTF8.GetBytes
    ("Your-JWT-secret-key"));
    var creds = new SigningCredentials(key, SecurityAlgorithms.HmacSha256);
    var identity = (ClaimsIdentity)User.Identity;
    var claims = identity.Claims;

    var token = new JwtSecurityToken(
      issuer:"<issuer-name>",
      audience:"<audience>",
      claims:claims,
      expires: DateTime.UtcNow.AddHours(1),
      signingCredentials: creds
      );
      return new JwtSecurityTokenHandler().WriteToken(token);
  }
  return null;
  }


7. Add Login button

• Hover on Select Actions and click on Copy SSO Link.

• Use the following URL as a link in the application from where you want to perform SSO:
https://<application-url>?ssoaction=login&appid=<app-id>

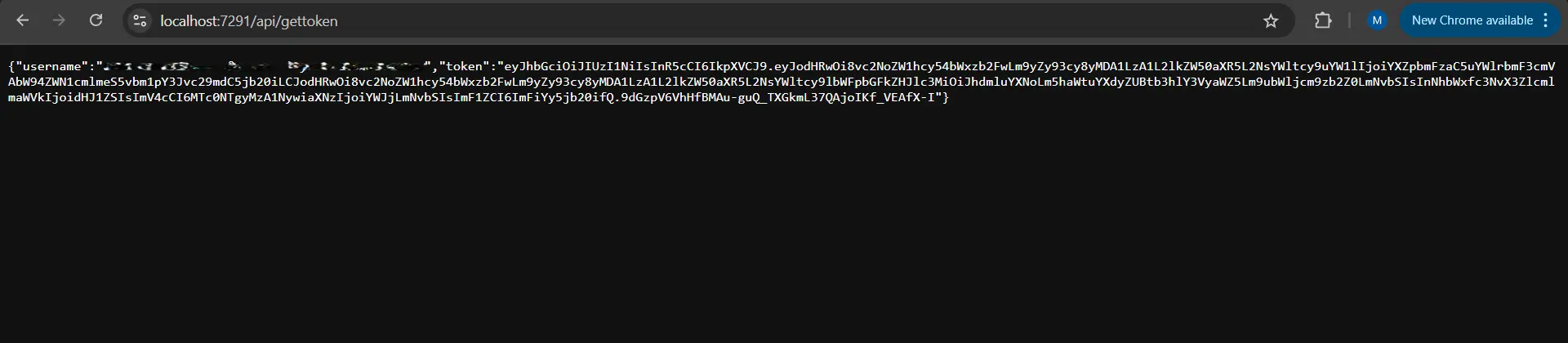

• After login, you will be redirected back to your frontend application, then you will be required to make an api call to get the token and user information.

• Below is the sample code you can use to make the api call to the token endpoint to get the token from the frontend side.
fetch("https://<backend-api-baseurl>/api/gettoken", {
  method: "GET",
})
.then((response) => {
  //here you will receive the jwt token and the user details
  console.log(response);
});


8. Test Integration

• Start your ASP.NET Core Web API application

• Start your frontend application

• From the frontend application, click the SSO Login button you have added

• After SAML login, you will be redirected back to your frontend application. At this point, your frontend application calls the /api/gettoken endpoint, which returns the token and user details. You can use the JWT token to make your further api calls.

Note: If you are using the Authorize attribute on the API for token validation, you will be required to specify the authentication policy as we have now multiple policies registered.

For JWT use: [Authorize(AuthenticationSchemes = JwtBearerDefaults.AuthenticationScheme)]
