WordPress Okta Login using SAML Single Sign On | SSO with Okta as SAML IDP

Okta Single Sign-On (SSO) login for WordPress can be achieved by using our WordPress SAML Single Sign-On (SSO) plugin. Our plugin is compatible with all the SAML compliant Identity Providers. Here we will go through a step-by-step guide to configure SSO login between WordPress site and Okta by considering Okta as IDP (Identity Provider) and WordPress as SP (Service Provider).
You can visit our WordPress SSO plugin to know more about the other features we provide.

WordPress Okta login using SAML SSO can be achieved by using our WordPress Single Sign On using SAML SSO. Our plugin is compatible with all the SAML compliant Identity Providers. Here we will go through a step-by-step guide to configure WordPress Okta Login using Single Sign-On (SSO) by considering Okta / Okta as IdP (Identity Provider) and WordPress as SP (Service Provider).

To configure Okta as SAML IdP with WordPress, you will need to install the miniOrange WP SAML SP SSO plugin.

Youtube-colorCreated with Sketch.

To setup WordPress Okta SSO / Okta login for WordPress (WP), you can also follow this step by step Setup Video.

Follow the following steps to Configure Okta as IdP:

  • In the miniOrange WordPress SAML SP SSO plugin, navigate to SP (Service Provider) Metadata tab. Here, you can find the SP metadata such as SP Entity ID and ACS (AssertionConsumerService) URL which are required to configure Okta as the IdP (Identity Provider).
Okta as IDP - Single Sign-On(SSO) for WordPress - Okta SSO Login with SAML / OAuth - WordPress SAML upload metadata

WordPress Okta Single Sign On | Okta WordPress login | add_application

  • Click on the Create App Integration button to create new app.
WordPress Okta Single Sign On | Okta WordPress login | SAML 2.0 Configure

  • Select SAML 2.0 as Sign-On method and Click on Next button.
WordPress Okta Single Sign On | Okta WordPress login | SAML 2.0 Configure

  • In General Settings tab, enter App Name and click on Next button.
WordPress Okta Single Sign On | Okta WordPress login | SAML 2.0 Configure

  • In Configure SAML tab, enter the required details:
Single Sign On
URL
ACS (AssertionConsumerService) URL from the Service Provider Metadata tab of the
Plugin
Audience URL
(SP Entity ID)
SP Entity ID / Issuer from the Service Provider Metadata tab of the Plugin
Default
Relay State
Relay State from the Service Provider Metadata tab of the Plugin
Name ID
Format
Select E-Mail Address as a Name Id from dropdown list
Application
Username
Okta username
WordPress Okta SSO | Okta WordPress login | SAML_SETTINGS

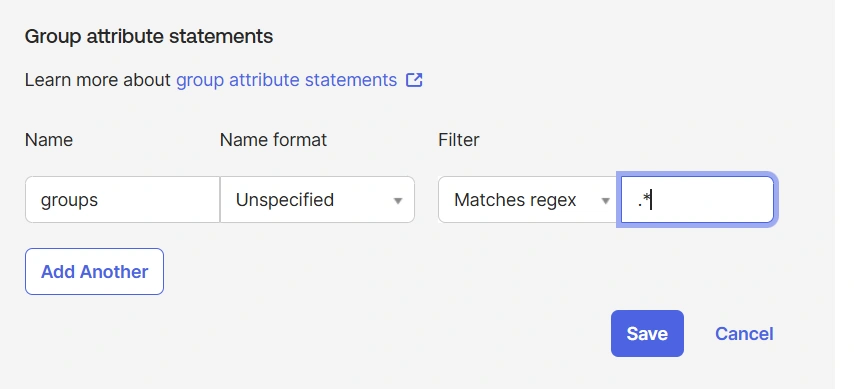

  • Configure Group Attribute Statements (Optional) and click on Next button.
WordPress Okta SSO | Okta WordPress login | Add_Attributes

  • Select type of configured application and click on Finish button.
WordPress Okta SSO | Okta WordPress login | Finish Application Creation

Assigning Groups/People:

  • Navigate to the application you created and click on the Assignments Tab in Okta.
WordPress Okta SSO | Okta WordPress login | Assign_groups

  • Click on Assign button to Assign People and Assign Groups.
WordPress Okta SSO | Okta WordPress login | Assign_people

  • Once you Assign the user, click on Done button.
WordPress SAML Okta | Okta WordPress login | Assign_button

  • Click on Sign On tab and scroll down to the SAML Signing Certificates section.
  • Under Settings section in the Sign On tab, click on Copy button to copy the Metadata URL.
WordPress SAML Okta | Okta WordPress login | metadata url

  • Or you can also get IDP Metadata URL by following the further steps, click on Action dropdown for the Active certificate and then click on the View IdP Metadata option to get IdP Metadata which will be required for configuring your Service Provider.
WordPress SAML Okta | Okta WordPress login | saml signing certificates

  • Copy the Metadata URL.
WordPress SAML Okta | Okta WordPress login | Copy Metadata URL

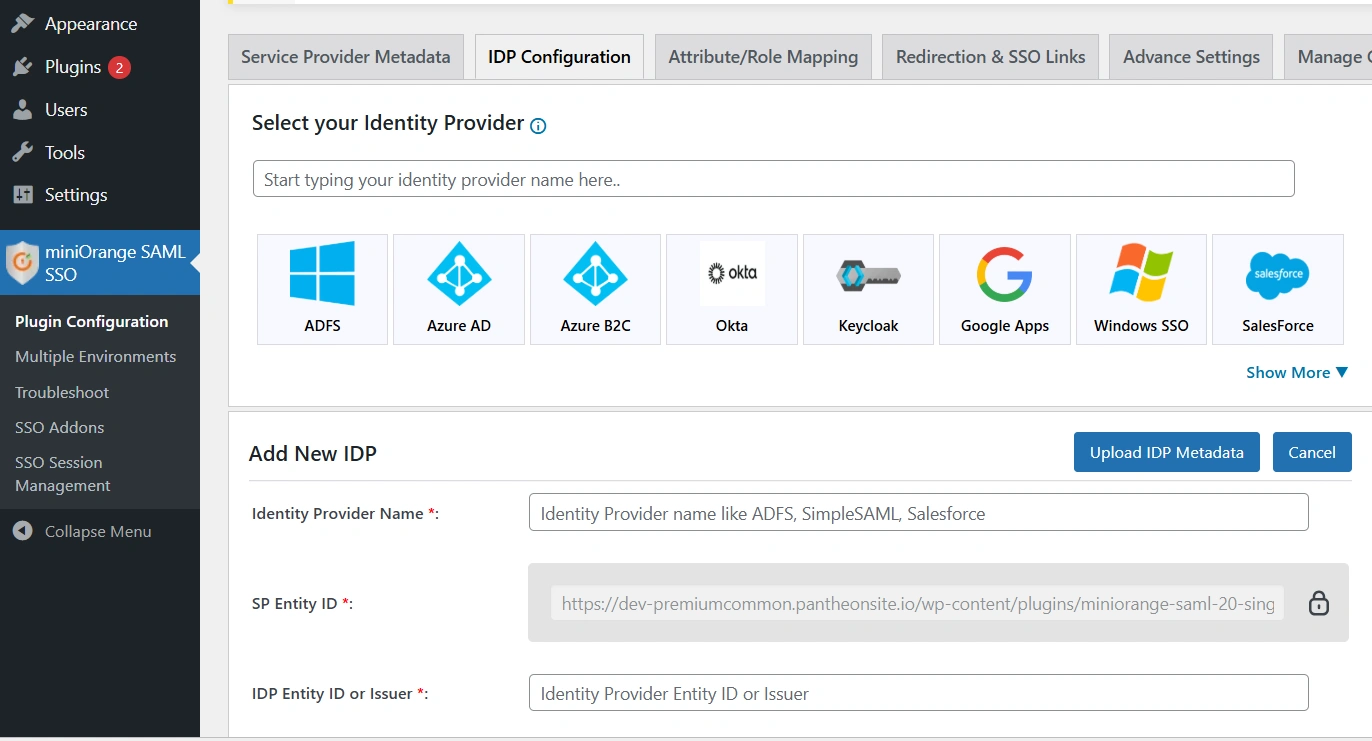

  • In miniOrange SAML 2.0 SP SSO plugin, click on Service Provider Setup tab and click on Upload IDP Metadata button.
WordPress SAML Okta | Okta WordPress login | Upload IDP Metadata

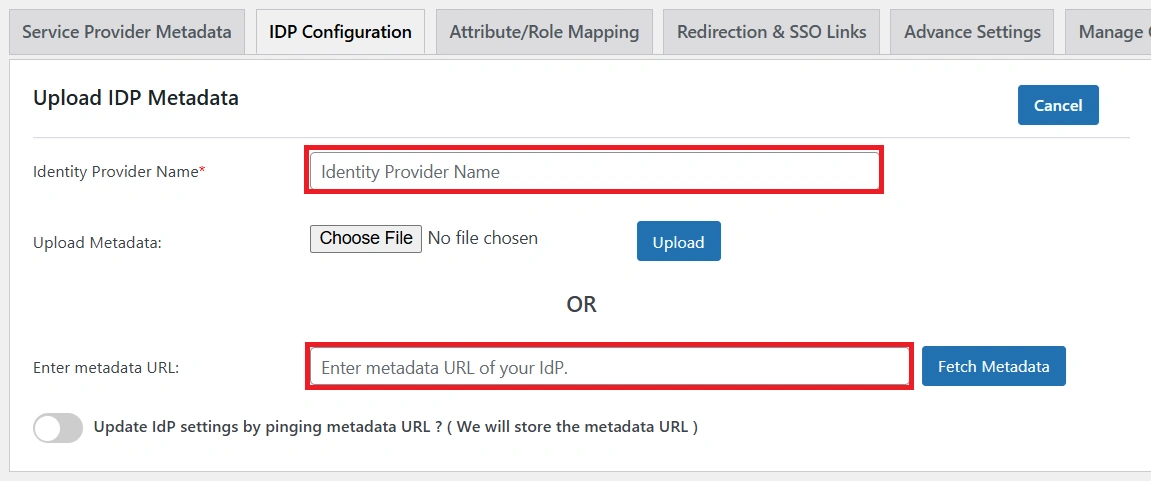

  • Enter Identity Provider Name and paste the Metadata URL in the field.
  • Click on the Fetch Metadata button.
WordPress SAML Okta | Okta WordPress login | Fetch Metadata

  • You have successfully configured Okta as SAML IdP (Identity Provider) for achieving Okta WordPress Login via Single Sign On, ensuring secure Okta Login into WordPress (WP) Site.
Note and Contact Us - SSO between two WordPress sites

Note: If you intend to set up Attribute Mapping, Role Mapping, and other configurations on the Identity Provider's end, you can find detailed instructions in the provided setup guide, which is linked here.


You have successfully configured Okta as SAML IdP (Identity Provider) for achieving Okta SSO login into your WordPress (WP) Site.

In the WordPress SAML SSO plugin, go to the Service Provider Setup tab of the plugin. There are two ways to configure the WordPress SSO plugin:

A. By uploading IDP metadata:

  • Click on Upload IDP metadata button.
  • Enter the Identity Provider Name
  • You can either upload a metadata file and click on Upload button or use a metadata URL and click on Fetch Metadata.
WordPress SAML SSO | Login-upload metadata

B.Manual Configuration:

  • Provide the required settings (i.e. Identity Provider Name, IDP Entity ID or Issuer, SAML Login URL, X.509 Certificate) as provided by your Identity Provider and click on the Save button.

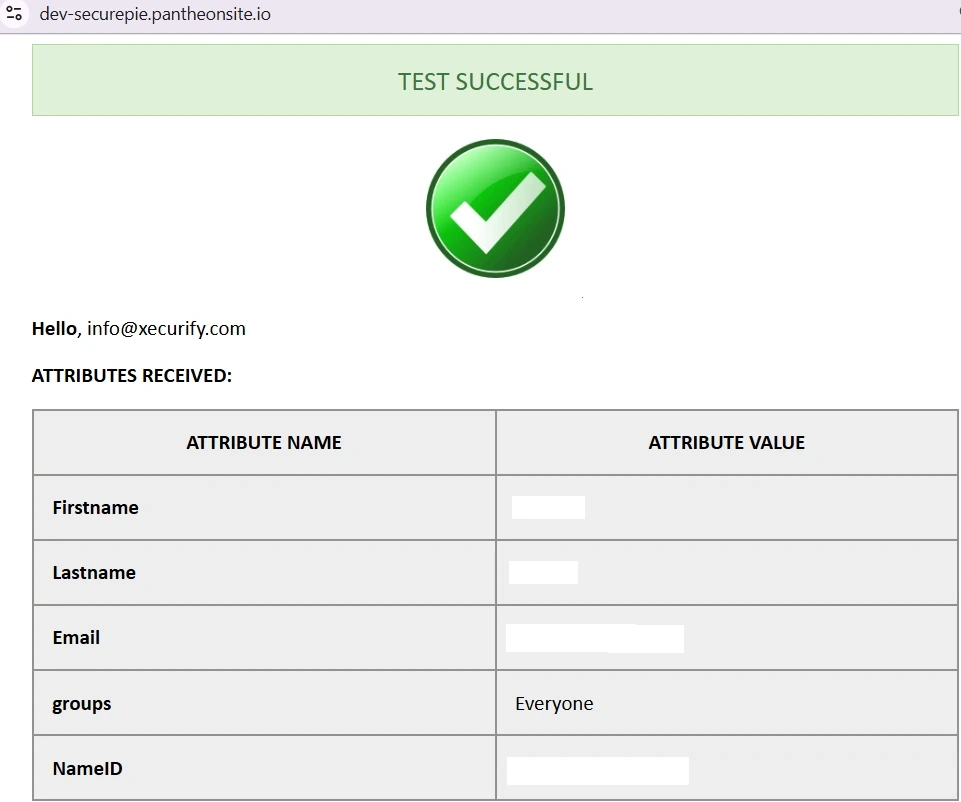

  • Click on Test configuration to check the attributes and values sent by IDP.
WordPress SAML SSO | Test configuration

Step 3: Attribute Mapping

  • In the free plugin, only NameID is supported for Email and Username attributes of the WordPress user.
  • When a user performs SSO, the NameID value sent by the IDP will get mapped to the email and username of the WordPress user.
WordPress SAML SSO | Login-attribute mapping

In the WordPress SAML SSO plugin, go to the Service Provider Setup tab of the plugin. There are two ways to configure the WordPress SSO plugin:

A. By uploading IDP metadata:

  • Click on Upload IDP metadata button.
  • Enter the Identity Provider Name
  • You can either upload a metadata file and click on Upload button or use a metadata URL and click on Fetch Metadata.

B.Manual Configuration:

  • Provide the required settings (i.e. Identity Provider Name, IDP Entity ID or Issuer, SAML Login URL, X.509 Certificate) as provided by your Identity Provider and click on the Save button.
  • Click on Test configuration to check the attributes and values sent by IDP.
WordPress SAML SSO | Test configuration

Step 3: Attribute Mapping

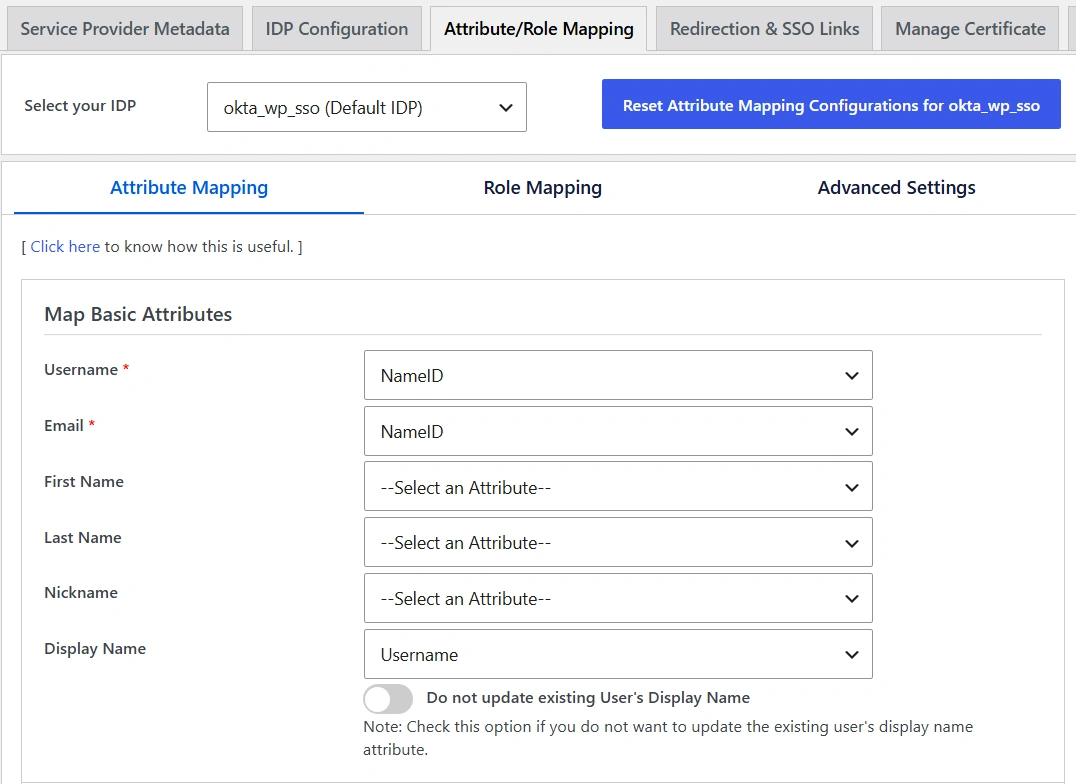

  • Attribute Mapping feature allows you to map the user attributes sent by the IDP during SSO to the user attributes at WordPress.
  • In WordPress SAML plugin, go to Attribute/Role Mapping tab and fill up the following fields in Attribute Mapping section.

NOTE: If you click on Test Configuration button in Service Provider Setup tab and authenticate with your IDP, you can see a list of attributes sent by the IDP in the Attribute/Role mapping tab. This information can be used to provide the above mapping.


In the WordPress SAML SSO plugin, go to the Service Provider Setup tab of the plugin. There are two ways to configure the WordPress SSO plugin:

A. By uploading IDP metadata:

  • Click on Upload IDP metadata button.
  • Enter the Identity Provider Name
  • You can either upload a metadata file and click on Upload button or use a metadata URL and click on Fetch Metadata.
  • In the Premium plugin, you can enable auto-sync for the metadata URL which will auto-update the plugin configuration as per the IDP metadata after a set interval of time
WordPress SAML SSO | Login-enableauto scan

B.Manual Configuration:

  • Provide the required settings (i.e. Identity Provider Name, IDP Entity ID or Issuer, SAML Login URL, X.509 Certificate) as provided by your Identity Provider and click on the Save button.
  • Click on Test configuration to check the attributes and values sent by IDP.
Test configuration - WordPress SAML SSO

  • In the Premium Plugin, you can provide the SAML Logout URL to achieve Single Logout on your WordPress site.

  • Attribute Mapping feature allows you to map the user attributes sent by the IDP during SSO to the user attributes at WordPress.
  • In WordPress SAML plugin, go to Attribute/Role Mapping tab and fill up the following fields in Attribute Mapping section.
Login-attribute mapping - WordPress SAML SSO

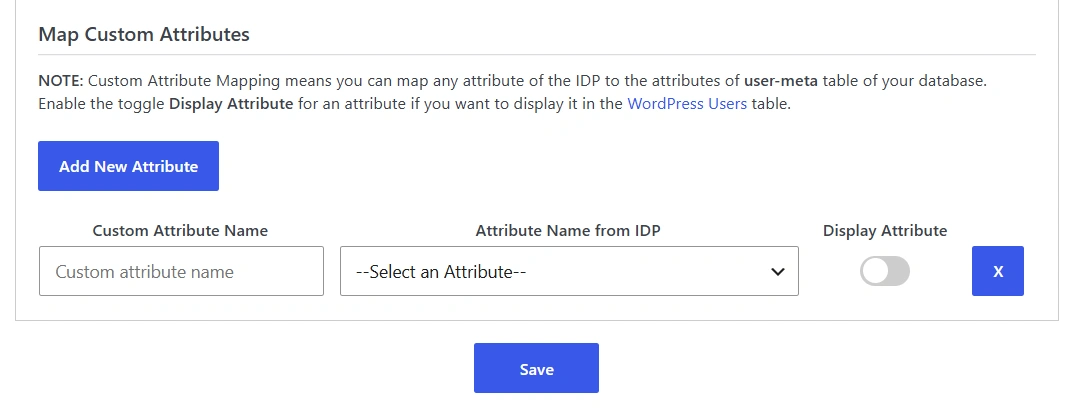

  • Custom Attribute Mapping: This feature allows you to map any attribute sent by the IDP to the usermeta table of WordPress.
Login-attribute mapping - WordPress SAML SSO

Step 4: Role Mapping

  • In the free plugin, you can choose a Default Role which will be assigned to all the non-admin users when they perform SSO.
  • Go to Attribute/Role mapping tab and navigate to Role Mapping section.
  • Select the Default Role and click on the Update button.
WordPress SAML SSO | Login-role mapping

Step 4: Role Mapping

    In the standard plugin, you can choose a default role which will be assigned to all the non-admin users when they perform SSO.

  • Go to Attribute/Role mapping tab and navigate to Role Mapping section.
  • Select the Default Role and click on the Save button.
WordPress SAML SSO | Login-role mapping

This feature allows you to assign and manage roles of the users when they perform SSO. Along with the default WordPress roles, this is compatible with any custom roles as well.

  • From the Attribute Mapping section of the plugin, provide a mapping for the field named Group/Role. This attribute will contain the role related information sent by the IDP and will be used for Role Mapping.
  • Navigate to role mapping section and provide the mappings for the highlighted roles.
Login-role mapping - WordPress SAML SSO

  • For example, If you want a user whose Group/Role attribute value is wp-editor to be assigned as an Editor in WordPress, just provide the mapping as wp-editor in the Editor field of Role Mapping section.

Step 5: SSO settings

  • In the free plugin you can add a Single Sign-On button by enabling Add a Single Sign-On button on the WordPress Login Page toggle in Option 1.
WordPress SAML SSO | Login-SSO button

  • If your WordPress theme supports login widget, you can add a login widget to enable SP-Initiated SSO on your site.
  • Navigate to Redirection and SSO links tab and follow the given steps given under Option 2: Use a Widget to add a login widget on your site.
WordPress SAML SSO | Login-sso setting

Step 5: SSO settings

In the Standard plugin you can enable SP-initiated SSO using the following options.

  • Auto-Redirection from site: If this option is enabled, any unauthenticated user trying to access your site will get redirected to the IDP login page and after successful authentication, they will be redirected back to the same page on your site which they were trying to access.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 1: Auto - Redirection from site.
    • Enable Redirect to IDP if user not logged in [PROTECT COMPLETE SITE]option.

    WordPress SAML SSO | Login-optin 1

  • Auto-Redirection from WordPress Login: If this option is enabled, any unauthenticated user trying to access the default WordPress login page will get redirected to the IDP login page for authentication. After successful authentication, they will be redirected back to the WordPress site.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 2: Auto- Redirection from WordPress Login.
    • Enable Redirect to IDP from WordPress Login Page option.
    WordPress SAML SSO | Login-optin 2

    NOTE: Please enable the Backdoor login and note down the backdoor URL. This will allow you to access the WordPress login page in case you get locked out of the IDP.


  • SSO Links: You can add SSO links anywhere on your site using the Shortcode and Widget provided in Redirection and SSO Links tab > Option 3: SSO Links section of the plugin
  • WordPress SAML SSO | Login-optin 3

In the Premium plugin you can enable SP-initiated SSO using the following options.

  • Auto-Redirection from site: If this option is enabled, any unauthenticated user trying to access your site will get redirected to the IDP login page and after successful authentication they will be redirected back to the same page on your site which they were trying to access.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 1 : Auto-Redirection from site.
    • Enable Redirect to IDP if user not logged in [PROTECT COMPLETE SITE] option.
    Login-optin 1 - WordPress SAML SSO

  • Auto-Redirection from WordPress Login: If this option is enabled, any unauthenticated user trying to access the default WordPress login page will get redirected to the IDP login page for authentication. After successful authentication, they will be redirected back to the WordPress site.
  • Steps:

    • Go to Redirection and SSO Links tab of the plugin and navigate to Option 2: Auto-Redirection from WordPress Login.
    • Enable Redirect to IDP from WordPress Login Page option.
    Login-optin 2 - WordPress SAML SSO

    NOTE: Please enable the Backdoor login and note down the backdoor URL. This will allow you to access the WordPress login page in case you get locked out of the IDP login.


  • Login Button: You can add a customized login button anywhere on your site or WordPress login page by navigating to Option 3: Login Button section of Redirection and SSO Links tab.
Login-optin 3 - WordPress SAML SSO

  • SSO Links: You can add SSO links anywhere on your site using the Shortcode and Widget provided in Option 4: SSO Links section of Redirection and SSO Links tab.
Login-optin 4 - WordPress SAML SSO

In this Guide, you have successfully configured Okta SAML Single Sign-On (Okta SSO Login) choosing Okta as IdP and WordPress as SP using miniOrange plugin-SAML Single Sign On – SSO Login.This solution ensures that you are ready to roll out secure access to your WordPress (WP) site using Okta login credentials within minutes.
