OAuth Single Sign-On (SSO) For Shopify Using PingFederate as Identity Provider

Overview

miniOrange allows Pingfederate to act as an Identity Provider (IDP), which allows users to Single Sign-On (SSO) into Shopify using Pingfederate credentials. Our application is compatible with all the SAML / OAuth compliant Identity Providers. We will go through a step-by-step guide to configure Single Sign-On (SSO) into Shopify using Pingfederate as IdP (Identity Provider) and Shopify store as SP (Service Provider).

Download Application Pricing Plans

Pre-requisites: Single Sign On - SSO Login Application

To configure SSO into Shopify using PingFederate as an identity provider (IDP), you will need to install the miniOrange Shopify Single Sign-On - SSO Login Application on your store.

Configuration Steps

Follow the step-by-step guide for Single Sign-On in Shopify store Using PingFederate as an identity provider

Step 1: Retrieve Redirect URI from Shopify SSO Application

• Go to your Shopify store and navigate to the App section and click on Single Sign On - SSO login application.



• Click on the Add identity Provider button to add your IDP.



• Select OAuth 2.0 protocol.

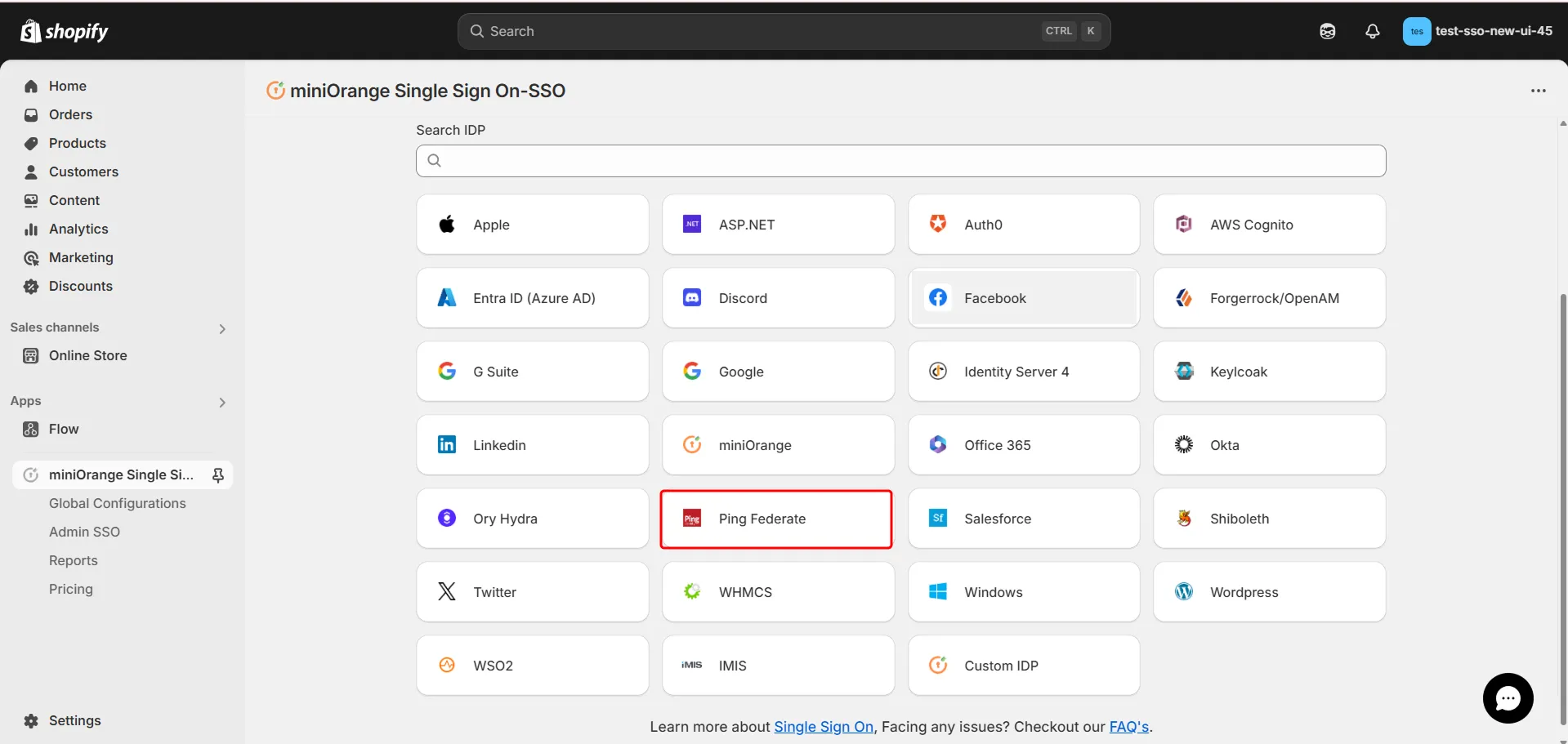

• Now choose Pingfederate from the list of identity providers (IDPs).



• Copy the OAuth Callback URL and keep it handy as it will be used in further step.

Step 2: Configure Shopify as Service Provider (SP) in Pingfederate

• Login to your Ping Federate User Admin dashboard.
• Click on the OAuth Server in the left navigation menu.
• Under Clients, click on Create New.



• Enter the Client ID, Name and Description. Select Client Secret in Client Authentication and click on Generate Secret. Take a note of your Client ID & Client Secret.



• Paste the Callback URL copied from Step 1 in the Redirect URIs field and click on Add. Select the Authorization Code grant type and click on Save.

You have successfully completed your PingFederate OAuth configurations.

Step 3: Configure PingFederate as OAuth 2.0 Provider in Shopify

• Navigate back to the miniOrange Single Sign On-SSO application and click on Add identity Provider button.



• Select OAuth 2.0 protocol.



• From the list of identity providers (IDPs), select PingFederate.



• Fill out the following fields by referring the below table.

Step 4: Test Connection

• After saving the IDP configuration, you will be redirected to Test Connection step.
• Please perform Test Connection before mapping or fetching attributes, test connection ensures that your IDP configuration is correct.
• Click on the Test Connection button.



• On entering valid Pingfederate account credentials you will see a pop-up window which is shown in the below screen.



• Click on the Fetch Attributes button to fetch IDP attribute.

Step 5: Attribute Mapping

• Click on the + Attribute Mapping button to map attributes between Shopify and Pingfederate.



• Map the attributes by refering the table below:




Attribute Name in Shopify	Choose the attribute from the list of predefined attributes
Attribute Type	IDP Attribute
Attribute Value	Select the attribute value you have fetched from your IDP

• Click on Save.

Step 6: Enable SSO Login Button (In case of Shopify legacy accounts only)

Note: This step applies only to Shopify legacy accounts and not Shopify customer accounts.

• Navigate to the Enable SSO Button section.
• The following button attributes can be customized: button text, text below SSO button, background color, text color, width, and height.

• By default, the “Enable SSO Button” option is in enabled state.
• If it is not, enable it first, then click the Enable Extension button, as shown in the image below.

• Enable the SSO Login Widget IDP extension.
• You will see the Login with miniOrange button added to your Shopify store.
• Click on Save

Step 7: Enable & Test SSO Configurations

Select Shopify Store Type:

• Non-Plus Store
• Plus Store

SSO Configuration in Non-Plus Shopify Stores

Choose the type of account you have enabled on your Shopify Store:

• Customer Accounts
• Legacy Customer Accounts

• Go to the application dashboard, enable the customer accounts extension as shown in the below image.

• Enable the New Customer Accounts extension and click on Save.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store.(https://<your-shopify-storedomain>)
• Click on the User login icon.

• You’ll be redirected to the login page of the identity provider (IDP) you configured in the previous step. Log in with your IDP account credentials.
• Next, enter the six-digit OTP that will be sent to your registered email address. (This is a one-time process)

• You’ll be successfully logged in to your Shopify store.

• Go to the application dashboard, you will see a warning box to add the login button extension on the Account page, click on the login widget extension link as shown in the below image to enable it.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

• If you want to configure SSO into Shopify using multiple IDPs, then select your IDP from the list provided here, and setup SSO using that IDP.
• Enable the IDP login toggle option for enabling SSO into Shopify using multiple IDPs.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store login page.(https://<your-shopify-storedomain>/account/login)
• Click on the login button you customized earlier.

• You'll be redirected to the identity provider (IDP) login page. Now log in with your existing account credentials.

• After login, if you encounter an "invalid or missing reCAPTCHA token" error, accompanied by a "Something went wrong" message, refer to this FAQ to resolve the error.

SSO Configuration in Plus Shopify Stores

Choose the type of account you have enabled on your Shopify Store:

• Customer Accounts
• Legacy Customer Accounts

• Go back to the SSO application, and navigate to Connect Store tab. Copy the Client ID, Client Secret, Post-Logout Redirect URL and Discovery Endpoint URL and keep them handy.

• Click on the Customer Accounts link as shown in the below image.

• Select the Customer accounts option recommended by Shopify & look for the Identity Provider option, if not present please reach out to shopifysupport@xecurify.com.

• If the identity provider is present, click on Manage.

• Click on Connect to Provider button.

• Add the Identity Provider name and fill in the details such as Discovery endpoint URL, Client ID, Client secret, Additional Scopes, Post-logout redirect URI parameter that you copied from above step. Click on Save.

• Once the Identity Provider has been added, do the Test Connection.

• After verifying the flow make the identity provider as Active.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store.(https://<your-shopify-storedomain>)
• Click on the User login icon.

• You’ll be redirected to the login page of the identity provider (IDP) you configured in the previous step. Log in with your IDP account credentials.

• You’ll be successfully logged in to your Shopify store.

• Now, click on the Setup Guide button and follow the steps mentioned to get multipass token.

• Enable the Multipass Token option. Refer to this Faq to get the Multipass token value and paste it in the below field.

• Click on Save.

• Go to the application dashboard, you will see a warning box to add the login button extension on the Account page, click on the login widget extension link as shown in the below image to enable it.

• Navigate to the application home page and enable the IDP Login toggle option against the IDP you have configured.

• If you want to configure SSO into Shopify using multiple IDPs, then select your IDP from the list provided here, and setup SSO using that IDP.
• Enable the IDP login toggle option for enabling SSO into Shopify using multiple IDPs.

Testing Single Sign-On (SSO) for your Shopify store

• Go to your Shopify Store login page.(https://<your-shopify-storedomain>/account/login)
• Click on the login button you customized earlier.

• You'll be redirected to the identity provider (IDP) login page. Now log in with your existing account credentials.

• If you encounter an "invalid or missing reCAPTCHA token" error, accompanied by a "Something went wrong" message, refer to this FAQ to resolve the error.

• You’ll be successfully logged in to your Shopify store.
