SAML Single Sign-On into Joomla using Bitium | Bitium SSO | Login using Bitium

Bitium SAML Single sign-on (SSO) is an authentication method that enables Bitium users to access multiple Joomla applications with one login and one set of credentials.

Our plugin is compatible with Joomla 4 as well as with all the SAML 2.0 compliant Identity Providers. Here we will go through a step-by-step guide to configure SAML SSO login between Joomla site and Bitium by considering Bitium as IdP (Identity Provider & Joomla as SP (Service Provider).

Download of Plugin

Configuration Support and Free Trial

If you want support in configuring the plugin, or to integrate Bitium with Joomla, click on Free Configuration Setup button.

We provide a 7 day full feature trial wherein you can fully test out all the features of the plugin, click on Free Business Trial button.

Steps to Integrate Bitium Single Sign-On (SSO) with Joomla SAML SP

1. Configure Bitium as IdP

• Log into Bitium Admin Portal.
• Once you have logged into your Bitium Admin portal, click on the Manage button in the top navigation bar for your organization, and then click on Manage Apps.

• In the top right corner, click on Add More Apps. You will see a search box, then search for Joomla, and add the app to your Bitium account.
• Here we will start configuring SSO. First, select a name for your page, then select SAML Authentication from the dropdown menu. Once you are done, click on Install App.

• On the next screen, click on Configure Single Sign-On.(Copy the values below into the appropriate place in the SAML configuration section of Joomla - Custom URL)

• Here, we will exchange a few values between Bitium-idp and Joomla.

SAML URL	Copy/Paste ACS URL from Service Provider Metadata tab of the plugin
Entity ID	Copy/Paste SP-EntityID / Issuer from Service Provider Metadata tab of the plugin

• Click on Save.
• Copy the following URL/Endpoints. These will be required while configuring the plugin. Copy the X.509 Certificate text area value and keep it handy.

• Now, assign the Joomla app to your users in the Apps Overview section.

2. Configure Joomla as Service Provider

• Joomla 4 Configuration
• Joomla 3 Configuration

• In Joomla SAML plugin, go to Service Provider Setup Tab. There are three ways to configure the plugin:

   By Metadata URL :

  • Click on Upload IDP Metadata.

  • Enter Metadata URL (Copy from IDP app) and click on Fetch Metadata.


   By Uploading Metadata File:

  • Click on Upload IDP Metadata.
  • Choose metadata file and click on Upload.


   Manual Configuration :

  • Copy SAML Entity ID, SAML Single-Sign-On Endpoint URL and x.509 certificate from Federation Metadata document and paste it in IdP Entity ID or Issuer, Single Sign-on Service URL, x.509 Certificate fields respectively in the plugin.


  IdP Entity ID or Issuer	SAML Entity ID in the Federation Metadata document
  Single Sign-On Service URL	SAML Single-Sign-On Endpoint URL in the Federation Metadata document
  X.509 Certificate	x.509 Certificate in the Federation Metadata document

   Add a button on your site login page with the following URL:



• In Joomla SAML plugin, go to Service Provider Setup Tab. There are three ways to configure the plugin:

   By Metadata URL :

  • Click on Upload IDP Metadata.

  • Enter Metadata URL (Copy from IDP app) and click on Fetch Metadata.


   By Uploading Metadata File:

  • Click on Upload IDP Metadata.
  • Choose metadata file and click on Upload.


   Manual Configuration :

  • Copy SAML Entity ID, SAML Single-Sign-On Endpoint URL and x.509 certificate from Federation Metadata document and paste it in IdP Entity ID or Issuer, Single Sign-on Service URL, x.509 Certificate fields respectively in the plugin.


  IdP Entity ID or Issuer	SAML Entity ID in the Federation Metadata document
  Single Sign-On Service URL	SAML Single-Sign-On Endpoint URL in the Federation Metadata document
  X.509 Certificate	x.509 Certificate in the Federation Metadata document

   Add a button on your site login page with the following URL:

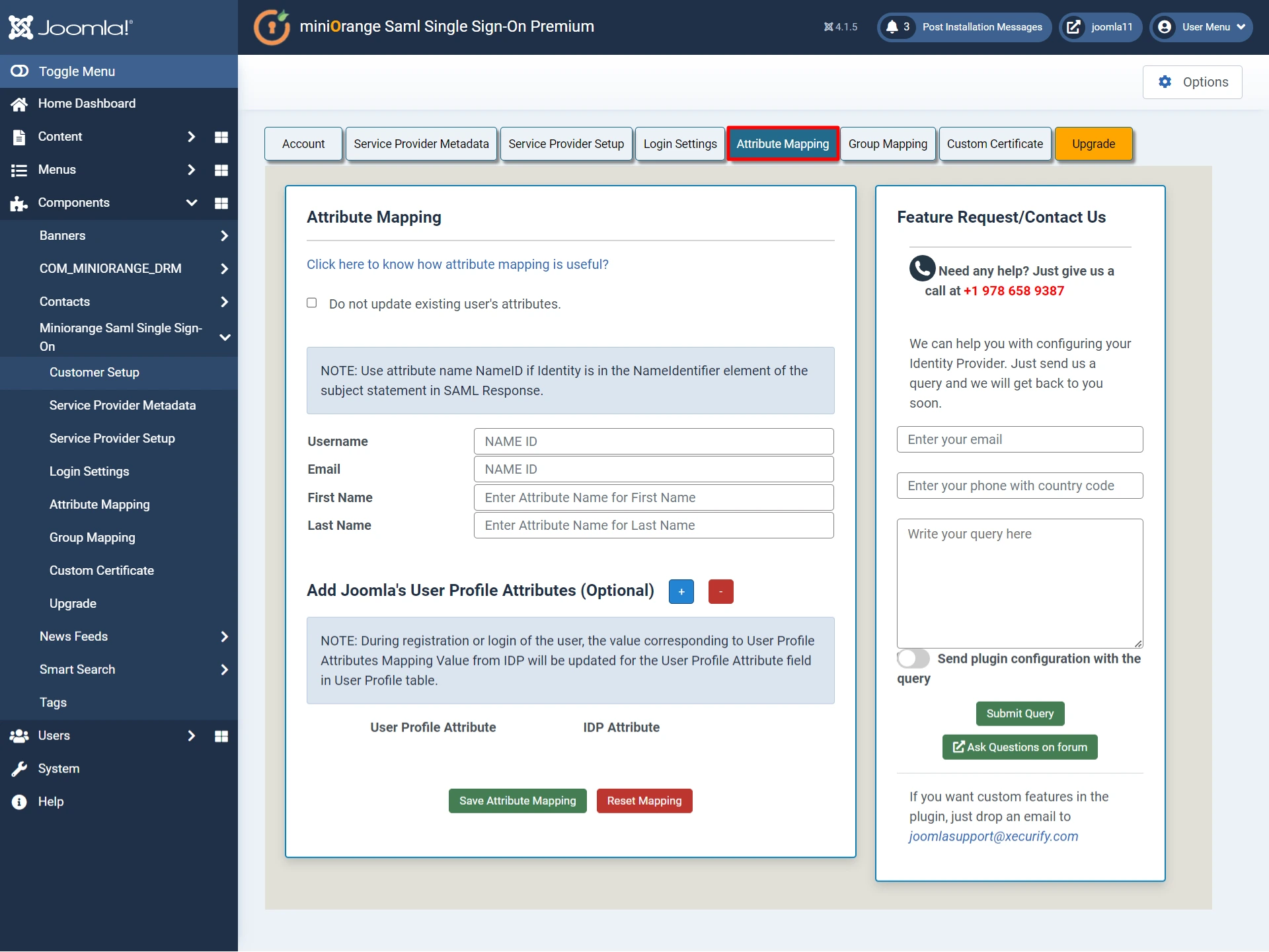

3. Attribute Mapping (It is Optional to fill this). This is Premium feature.

• Attributes are user details that are stored in your Identity Provider.
• Attribute Mapping helps you to get user attributes from your Identity Provider (IdP) and map them to Joomla user attributes like firstname, lastname etc.
• While auto registering the users in your Joomla site these attributes will automatically get mapped to your Joomla user details.
• In Joomla SAML plugin, go to Attribute Mapping tab and fill in all the fields.


  Username:	Name of the username attribute from IdP (Keep NameID by default)
  Email:	Name of the email attribute from IdP (Keep NameID by default)
  Group/Role:	Name of the Role attribute from Identity Provider(IdP)

• You can check the Test Configuration Results under Service Provider Setup tab to get a better idea of which values to map here.

4. Group Mapping (It is Optional to fill this). This is Premium feature.

• Role mapping helps you to assign specific roles to users of a certain group in your Identity Provider (IdP).
• While auto registering, the users are assigned roles based on the group they are mapped to.

5. Redirection & SSO Links

• Go to Login Settings tab. There are multiple features availabe in this tab like Auto redirect the user to Identity Provider and Enable Backed Login for Super Users. To use these features, click on the respective checkboxes.


You have successfully completed your miniOrange SAML 2.0 SP configurations. Still, if you are facing any difficulty please mail us on joomlasupport@xecurify.com .
