SAML Single Sign-On into Joomla using Salesforce
Overview
miniOrange Joomla SAML SP SSO plugin helps you to integrate your Joomla site to Salesforce using SAML 2.0 protocol.
Our user-friendly plugin simplifies the process of setting up Single Sign-on (SSO) with Salesforce in Joomla,
ensuring a secure login experience. This enables users to access various Joomla sites effortlessly using their
Salesforce IDP credentials.
Our plugin is designed to be compatible with Joomla 3, 4 as well as 5 and works seamlessly with all SAML 2.0
compliant Identity Providers. For a detailed overview of the comprehensive features offered by the Joomla SAML SP
plugin, please visit our page here. Below, we provide a step-by-step guide on configuring SAML SSO
login between
your Joomla site and Salesforce, with Salesforce serving as the Identity Provider (IDP) and Joomla as the Service
Provider (SP).
To setup Single Sign-On between Salesforce and Joomla, you can also follow this step by step Setup Video.
Configuration Steps
In this setup, Salesforce serves as the repository for storing users i.e. it will act as the IDP while Joomla is where users will log in using their credentials from Salesforce where Joomla SAML SP SSO Plugin will be installed.
Step 1: Install Joomla SAML SP Plugin
- Login into your Joomla site’s Administrator console.
- From left toggle menu, click on System, then under Install section click on Extensions.
- Now click on Or Browse for file button to locate and install the plugin file downloaded earlier.
- Installation of plugin is successful. Now click on Get Started!
- Go to the Service Provider Metadata tab and scroll down to copy the SP-EntityID and the ACS URL.
Step 2: Configure Salesforce as IDP (Identity Provider)

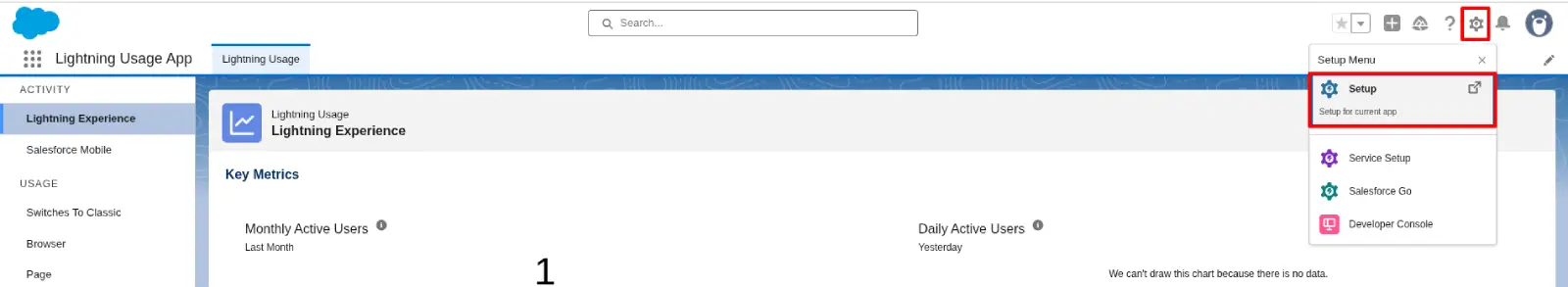

- Log into Salesforce and go to Setup.

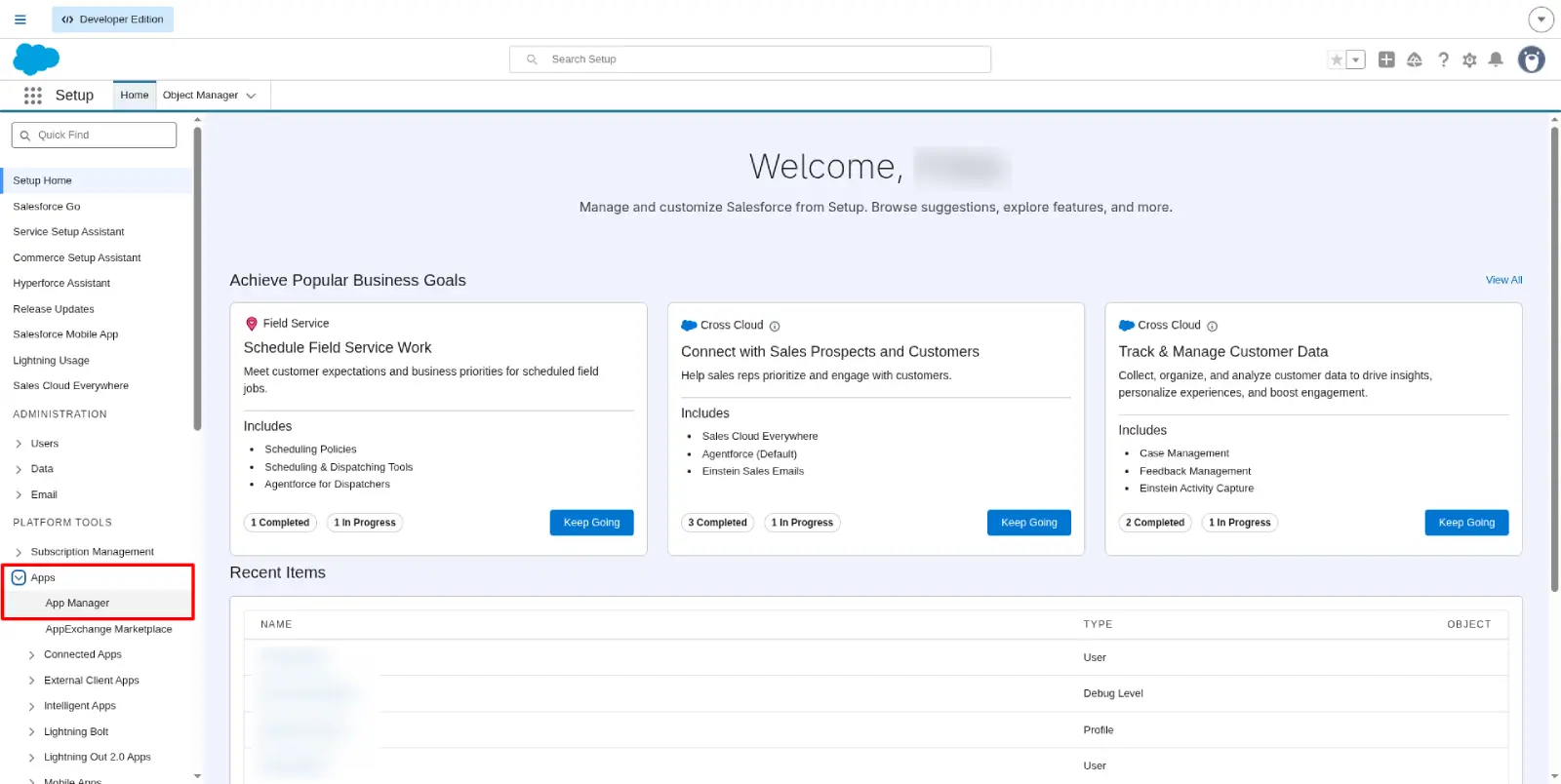

- From the left pane, select Build -> Create -> Apps.

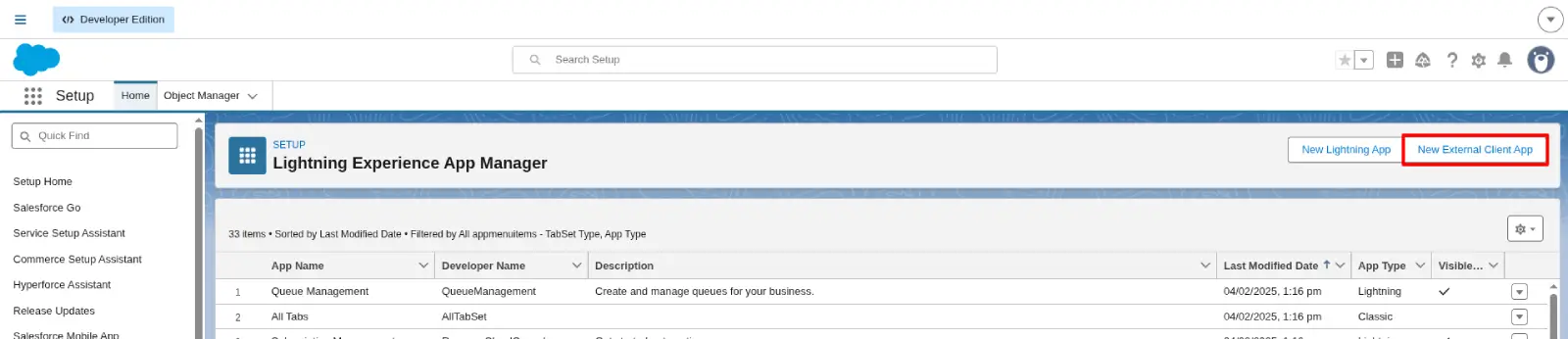

- Scroll down, under Connected Apps, click on New button.

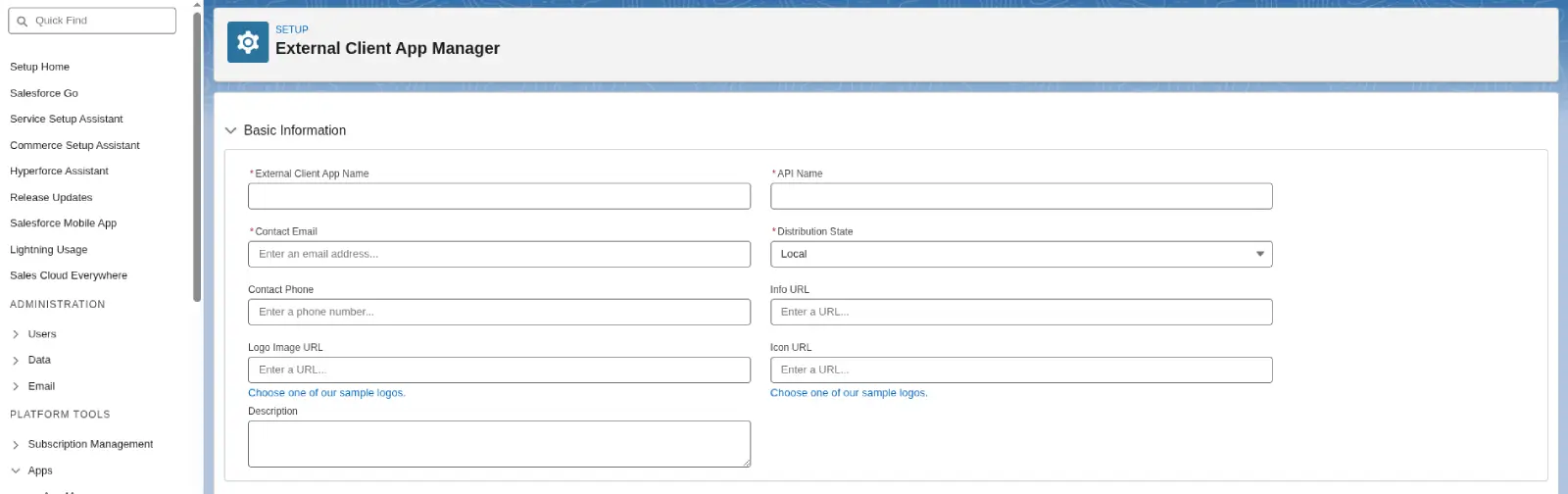

- Enter Connected App Name, API Name and Contact Email.

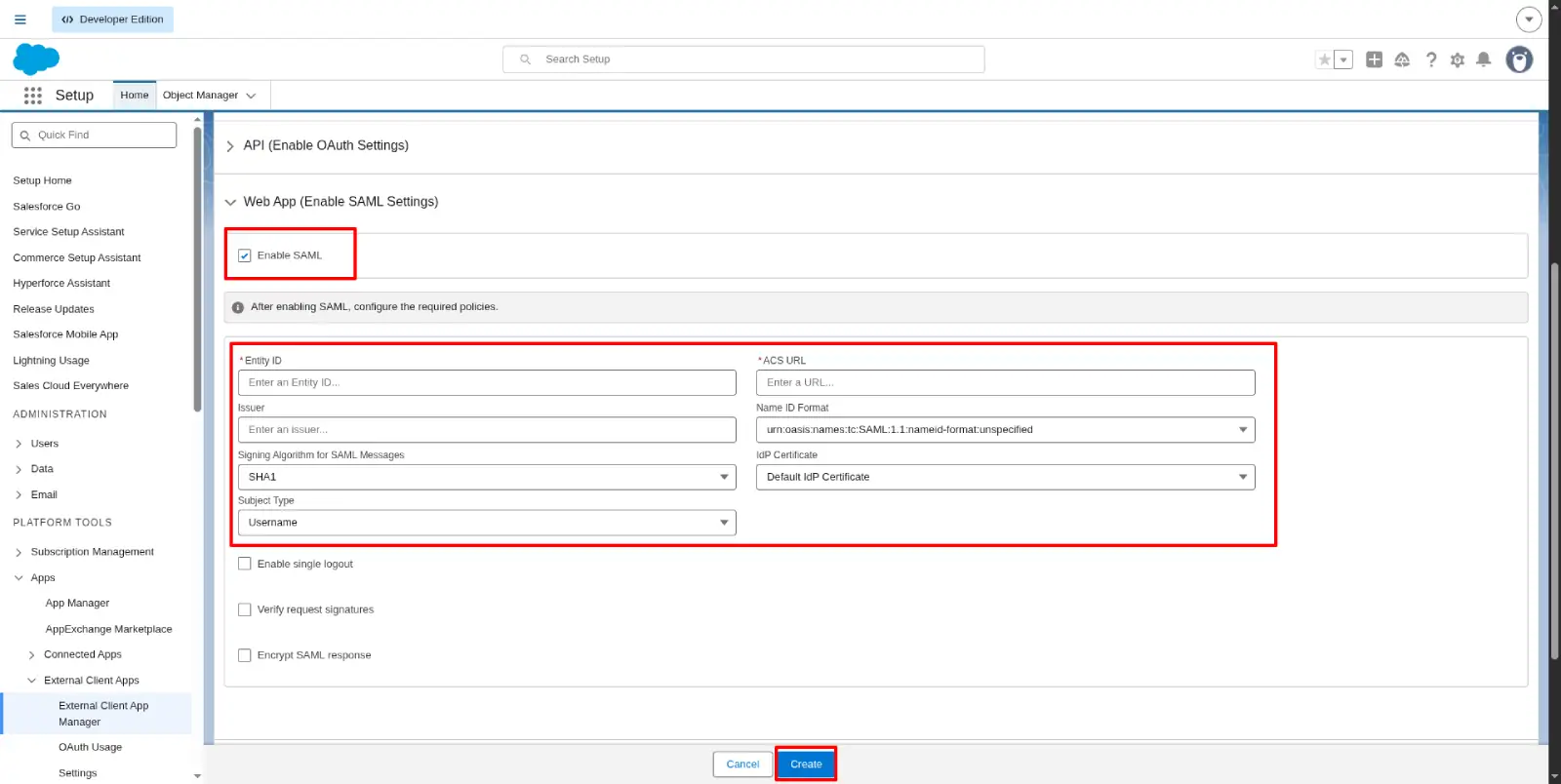

- Under Web App Settings, check the Enable SAML checkbox and enter the following values here:
- Now from left pane, under Administration Setup, select Manage Apps -> Connected Apps.
- Click on the App you just created.

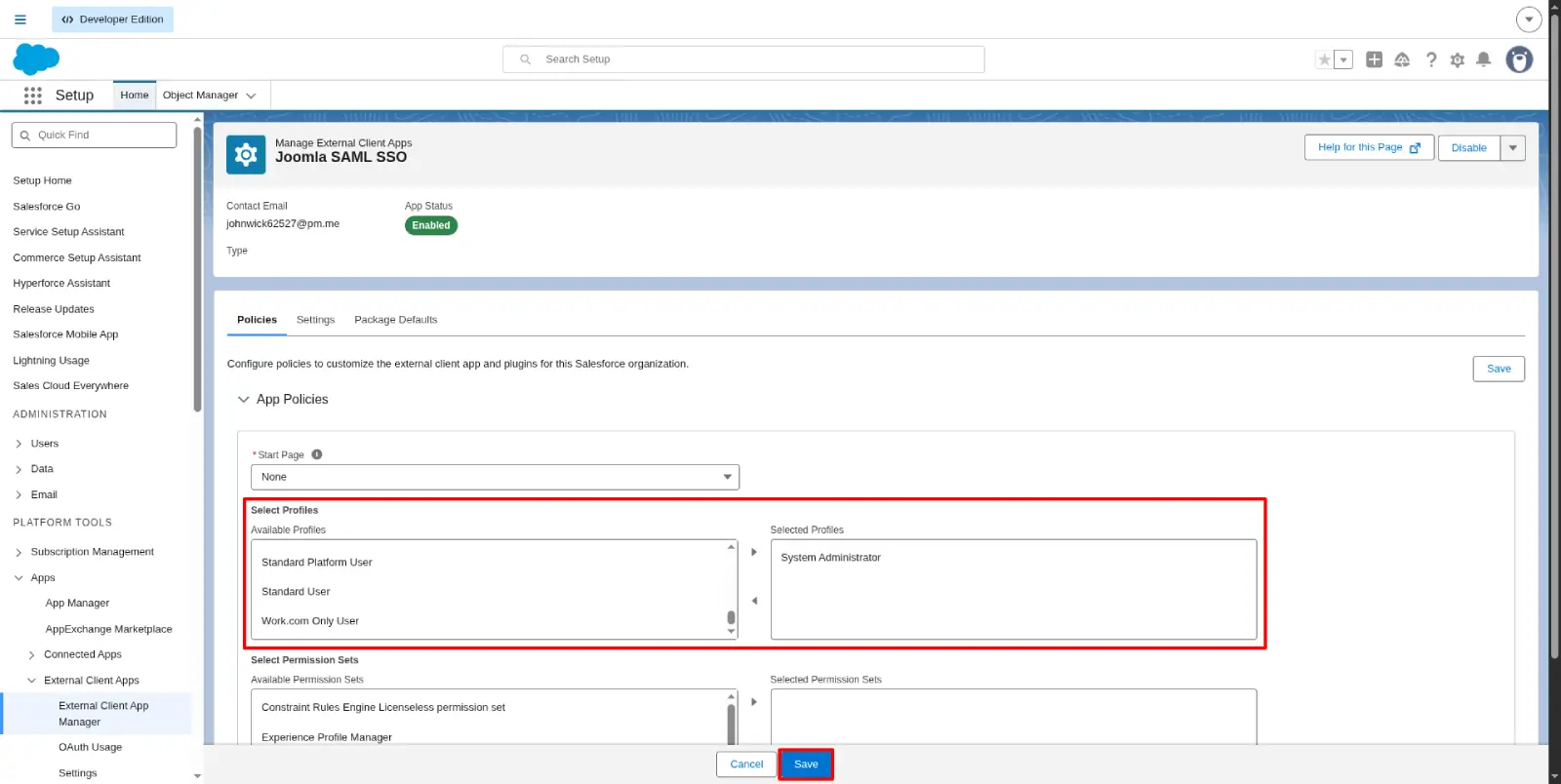

- Scroll down, under Profiles click on Manage Profiles, Select the profiles you want to give access to login through this app.

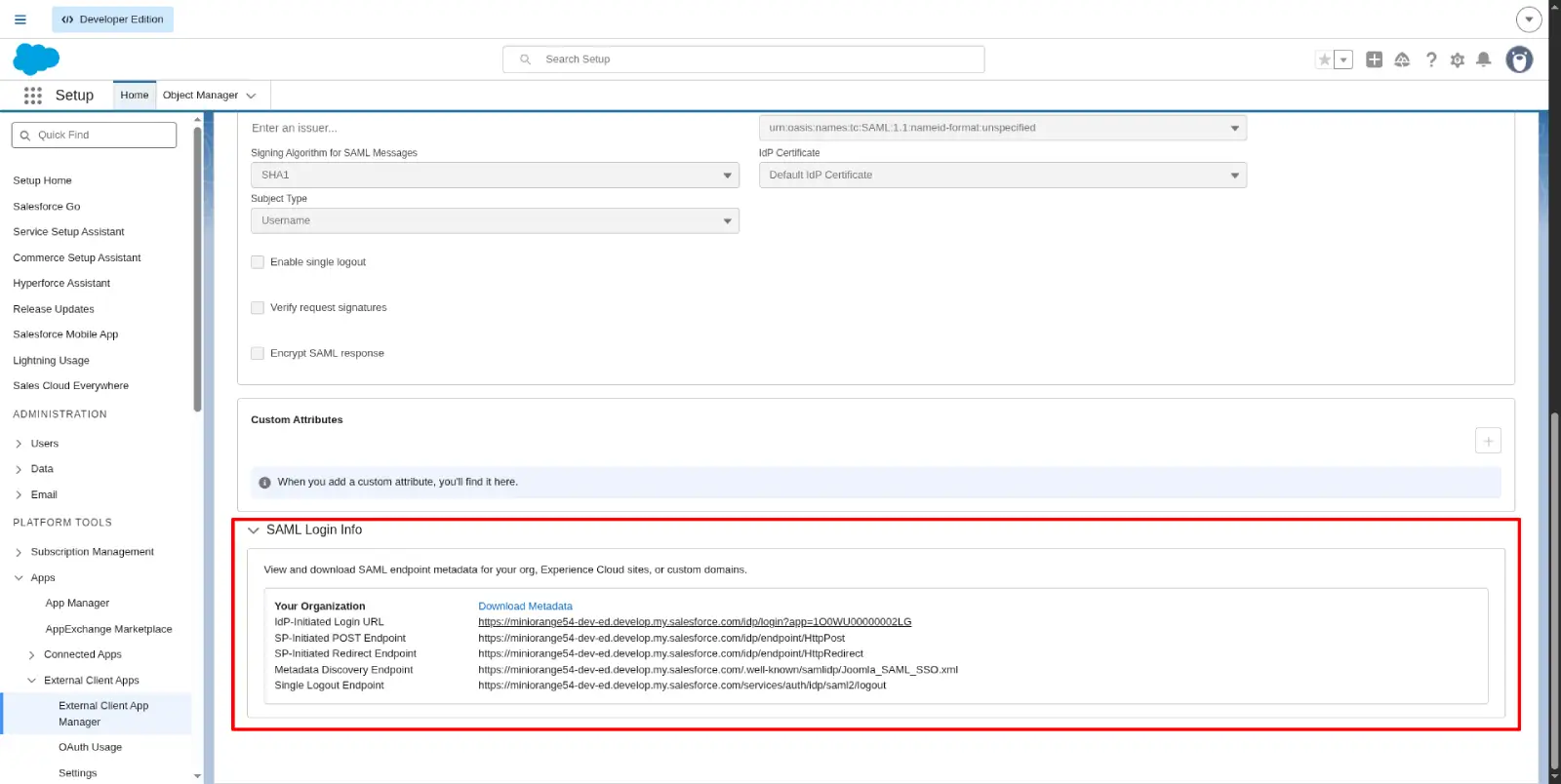

- Under SAML Login Information, click on Download Metadata.
- Open the downloaded file in some browser like Chrome, Firefox, IE, Microsoft Edge, etc.
- Search for "ds:X509Certificate" tab and copy the entire string under this tag. String would be like this: "MII....".
- Keep this certificate value handy for next steps.
| Entity ID | Enter SP Entity ID / Issuer from the Service Provider Metadata tab of the module. |
| ACS URL | Enter ACS (Assertion Consumer Service) URL from the Service Provider Metadata tab of the module. |
| Subject Type | Username |
| Name ID Format | urn:oasis:names:tc:SAML:2.0:nameid-format:persistent |
Assign Profiles:
Download metadata for communities:
Step 3: Configure Joomla as SP (Service Provider)
In Joomla SAML plugin, go to Service Provider Setup tab. There are three ways to configure the plugin:
A. By uploading IDP metadata:
- In Joomla SAML plugin, go to Service Provider Setup tab, then click on Upload IdP Metadata.
B. By Metadata URL:
- Enter Metadata URL (Copy from IDP app) and click on Fetch button.
C. Manual Configuration:
- Copy SAML Entity ID, SAML Single-Sign-On Endpoint URL and X.509 certificate from Federation Metadata document and paste it in Idp Entity ID or Issuer, Single Sign-on URL, X.509 Certificate fields respectively in the plugin.
| IdP Entity ID or Issuer | SAML Entity ID in the Federation Metadata document |
| Single Sign-On URL | SAML Single-Sign-On Endpoint URL in the Federation Metadata document |
| X.509 Certificate Value | X.509 Certificate in the Federation Metadata document |
Step 4: Attribute Mapping - Premium Feature
- Attributes are user details that are stored in your Identity Provider.
- Attribute Mapping helps you to get user attributes from your Identity Provider (IDP) and map them to Joomla user attributes like firstname, lastname, address, phone etc.
- While auto registering the users in your Joomla site these attributes will automatically get mapped to your Joomla user details.
- Go to Attribute Mapping tab and fill in all the fields.
| Username: | Name of the username attribute from IdP (Keep NameID by default) |
| Email: | Name of the email attribute from IdP (Keep NameID by default) |
| Name: | Name of the name attribute from IdP |
- You can check the Test Configuration Results under Service Provider Setup tab to get a better idea of which values to map here.
Note: You can see how Attribute Mapping works here.
Step 5: Group Mapping - Premium Feature
- Group/Role mapping helps you to assign specific roles to users of a certain group in your Identity Provider (IdP).
- While auto registering, the users are assigned roles based on the group they are mapped to.
- Group/Role mapping helps you to assign specific roles to users of a certain group in your Identity Provider (IdP).
- While auto registering, the users are assigned roles based on the group they are mapped to.
Note: You can see how Group/Role Mapping works here.
Step 6: Redirection & SSO Links
- Go to Login Settings tab. You can add login Url to Perform SAML SSO in your Joomla site by following the steps below.
- There are multiple features available in this tab like Auto redirect the user to Identity Provider and Enable Backend Login for Super Users. To use these features, click on the respective checkboxes.
- Click on the Upgrade tab to check out our complete list of features and various licensing plans. OR you can click here to check features and licensing plans.
- In case, you are facing some issue or have any question in mind, you can reach out to us by sending us your query through the Support button in the plugin or by sending us a mail at joomlasupport@xecurify.com.
