Single Sign-On for HubSpot using WordPress as Identity Provider

Single Sign-On for HubSpot application enables secure login into HubSpot CMS landing pages, blogs and other pages using Wordpress as OAuth provider. It supports advanced Single Sign-On (SSO) features such as user profile Attribute mapping, etc.

Here we will go through a guide to configure SSO between HubSpot and WordPress. By the end of this guide, users should be able to login to HubSpot from WordPress. To know more about Single Sign-On for HubSpot and other HubSpot Integrations, you can click here.

Feel free to contact us at hubapps@xecurify.com to know more about how to install the Single Sign-On for HubSpot.

download plugin button Download Plugin plugin pricing button plugin pricing button Pricing Plans

1. Installation Steps for HubSpot App

2. Installation Steps for WordPress OAuth Server Single Sign-On (SSO) plugin

  • Log into your WordPress instance as an admin.
  • Go to the WordPress Dashboard >> Plugins and click on Add New.
  • Search for a WordPress OAuth Server Single Sign-On (SSO) plugin and click on Install Now.
  • Once installed click on Activate.
  • Go to OAuth Server Plugin on WordPress and fill the Client Name as you desire. Also fill the Redirect URI. To know how to setup OAuth server on WordPress, click here.
Enable HubSpot Single Sign-On(SSO) Login using WordPress as Identity Provider

  • Click on Save Client button and you will see the following screen. Note down the Client ID, Client Secret, Endpoints and Scope to configure the HubSpot.
Enable HubSpot Single Sign-On(SSO) Login using WordPress as Identity Provider

  • Go to the Single Sign-On from HubSpot by miniOrange and login with your credentials.
  • Choose your account by clicking on Choose Account button.
Enable HubSpot Single Sign-On(SSO) Login using AWS Cognito as Identity Provider

  • After that Click on the right icon for accessing the application.
Enable HubSpot Single Sign-On(SSO) Login using AWS Cognito as Identity Provider

  • Go to the miniOrange’s Single Sign On app dashboard and click on App Configurations tab.
Enable Hubspot Single Sign-On(SSO)

  • Here, select your application and click on it. If your app is not present here you can create a custom OAUTH 2.0 or OIDC (Open ID Connect protocol) app as per your provider's implementation.
Enable Hubspot Single Sign-On(SSO)

  • Enter the Login Button Text and copy the Callback URL to set up the WordPress Identity Provider (Third Party App).
Enable Hubspot Single Sign-On(SSO)

  • Now, to set up Single Sign-On (OAuth SSO), you will need to enter the Client ID, Client secret,and Scope, and enable Send in Header and Body and Endpoints from WordPress (Refer the below table).
Client ID : from the step 1 above
Client Secret : from the step 1 above
Scope: email profile
Header / Body Setting Enable both the Header and Body
Authorize Endpoint: https://<your-site-url>/wp-json/moserver/authorize
Access Token Endpoint: https://<your-site-url>/wp-json/moserver/token
Get User Info Endpoint: https://<your-site-url>/wp-json/moserver/resource
Enable HubSpot Single Sign-On(SSO) Login using WordPress as Identity Provider

  • When you have filled out all the details, click the Save & Test Configuration button.
Enable HubSpot Single Sign-On(SSO) Login using WordPress as Identity Provider

  • Now, a popup will appear. Click Allow button.
Enable HubSpot Single Sign-On(SSO) Login using WordPress as Identity Provider

  • You will be redirected to wordpress login page. Enter your WordPress user credentials to login.
Enable HubSpot Single Sign-On(SSO) Login using WordPress as Identity Provider

  • On successful authentication, you will see the list of User Profile details.
Enable HubSpot Single Sign-On(SSO) Login using WordPress as Identity Provider

Our Page Restriction feature allows you to protect your HubSpot website from unauthorized access. It is useful for securing sensitive information. Using this method, you can restrict access to HubSpot pages/content. Visitors will need to sign in before accessing HubSpot pages.

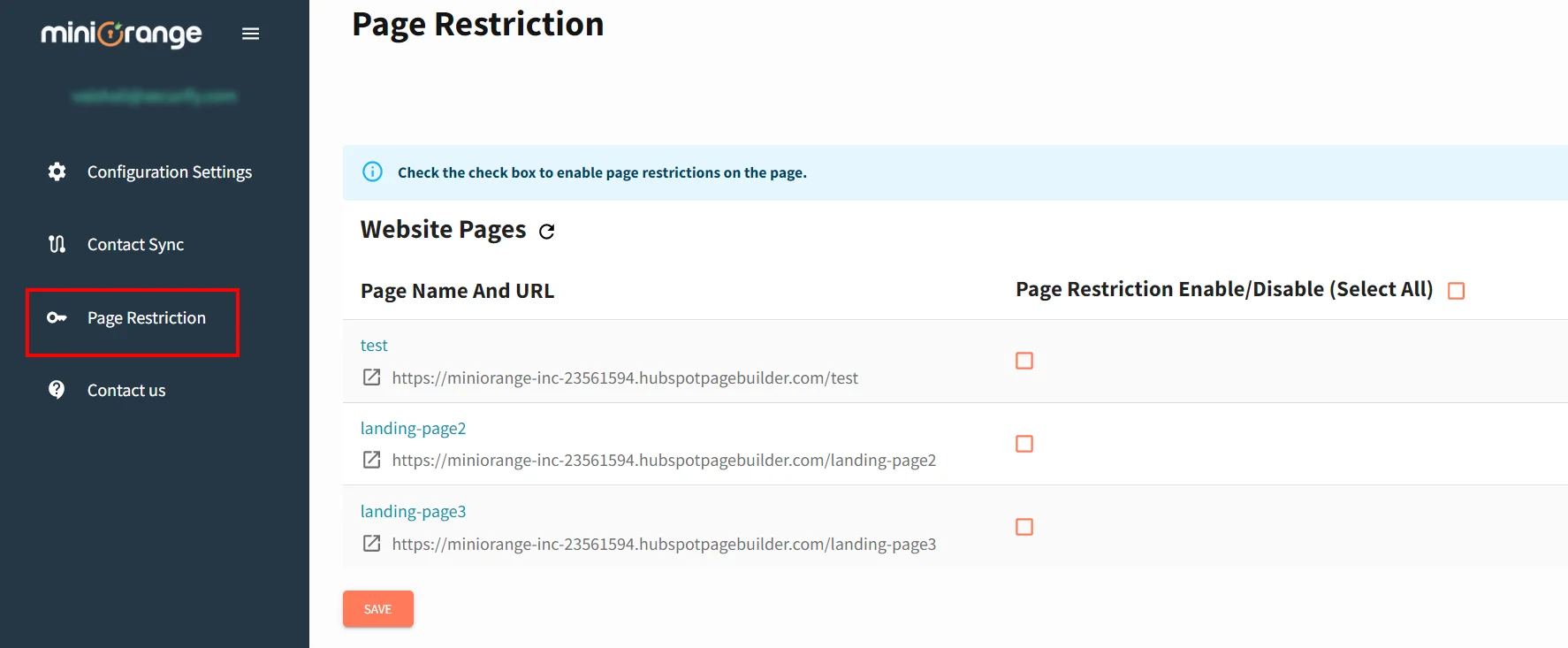

  • After you have received the test configuration result, click on the Page Restriction tab.
Enable Hubspot Single Sign-On(SSO)

  • Select the checkbox next to the page you wish to protect from unauthorized users and click Save to save the information.
Enable Hubspot Single Sign-On(SSO)

  • Once you go to the page URL that you restricted, you will see the login window of your identity provider where you'll enter your credentials.
Enable Hubspot Single Sign-On(SSO) Login using Google as Identity Provider

  • After logged in, you will be redirected successfully to the website page.
Enable Hubspot Single Sign-On(SSO) Login using Identity Provider

Contact synchronization is a powerful feature that enables seamless integration and synchronization of contact information between HubSpot and external platforms or applications. With Contact Sync, you can ensure that your customer data is up to date, accurate, and consistent across multiple systems, saving you time and eliminating manual data entry.

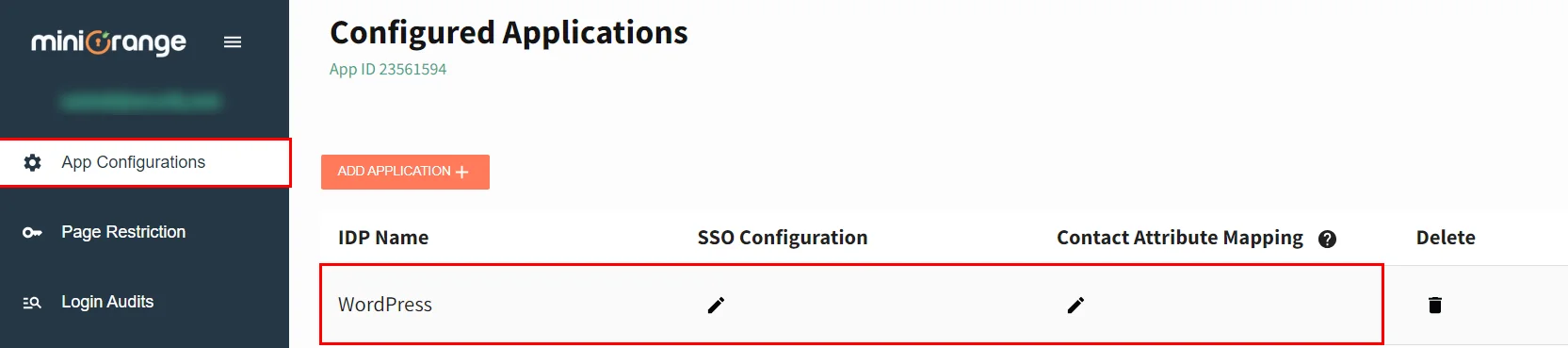

  • To sync the contact details, go to the APP Configurations tab and choose the provider you created.
  • Click on the Edit icon below the Contact Attribute Mapping option.
Enable Hubspot Single Sign-On(SSO) Login using Identity Provider

  • You will see the HubSpot Contact Attributes and IDP Attributes option, Map your HubSpot contact attribute with a third-party application / IDP attribute received in the test configuration result. Additionally, if multiple attributes are required, you can add them using the Custom Attribute Mapping option.
Enable Hubspot Single Sign-On(SSO) Login using Identity Provider

Enable Hubspot Single Sign-On(SSO) Login using Identity Provider

  • After adding all the attributes, make sure you have enabled the Contact sync option. Click on the Save button.
Enable Hubspot Single Sign-On(SSO) Login using Identity Provider

  • You can now find the contact in HubSpot Contacts. This is a great way to generate leads, as it allows you to quickly and easily add new contacts to your HubSpot sales and marketing pipelines. Contact sync allows you to ensure that your HubSpot account is always updated with the latest information about your leads and customers (site visitors), which can help you generate more qualified leads.
Enable Hubspot Single Sign-On(SSO) Login using Identity Provider

  • To uninstall our app, go to your HubSpot account and click on Settings icon.
Enable Hubspot Single Sign-On(SSO)

  • Go to Integrations and click on Connected Apps.
Enable Hubspot Single Sign-On(SSO)

  • You will see the list of app, select our app and click on Actions button. And then click on Unistall option.
Enable Hubspot Single Sign-On(SSO)

  • Type uninstall below to continue and click uninstall button.
Enable Hubspot Single Sign-On(SSO)

  • Go to the Page Restriction tab.
Enable Hubspot Single Sign-On(SSO)

  • Deselect your HubSpot pages as shown in the screenshot below and click on the Save button. This will disconnect our app for SSO from your HubSpot portal.
Enable Hubspot Single Sign-On(SSO)

Congratulations! You have successfully disconnected HubSpot Single Sign-On by miniOrange application.


Uninstalling removes the app and its configurations, preventing users from Single Sign-On (SSO) access to HubSpot pages. Disconnecting only detaches pages from SSO, leaving the app settings intact, and allowing for pages to be reconfigured for SSO access again.

  • Make sure you have checked one or both of the following checkboxes in the HubSpot App configuration setting.
  • If your IdP needs the credentials in the header, you will need to check the Header checkbox.
  • Save the configuration and then click test configuration.
  • If this does not solve your problem, you can try selecting both the Header and Body checkboxes.
  • Likewise, if your IdP needs the credentials in the body, you have to select the Body checkbox.
  • Once you have checked the appropriate checkboxes, you will get the attributes table in the test configuration window.

There are a couple of reasons why this can happen:

1. Caching is enabled on the website:
When auto-redirect is enabled, the user is redirected to IDP login page and after logging in back to the main site but as caching is enables it redirects to the IDP login page hence a loop.

2. HTTP/HTTPS discrepancy:
This happens when HTTPS is not enforced on the site but is configured on IDP side with HTTPS URL.This can be solved by enforcing HTTPS on the site by defining a redirect rule in the .htaccess file or at the Apache level.

3. Cookie adulteration:
The cookie created by the plugin after logging in the user is altered by another plugin which causes the user to not log in WordPress site but the session is created on IDP.

There can be 2 possibilities:

1. Either your App supports OAuth 2.0 protocol and you’ve configured with OpenID Connect protocol and vice-versa. In this case, if you’ve configured the App using Custom OAuth2.0 App, reconfigure it with Custom OpenID Connect App and if you’ve configured the App using Custom OpenID Connect App, reconfigure it with Custom OAuth 2.0 App. It should fix this issue for you.

2. If the above solution doesn’t work then the other possibility is your app/provider doesn’t follow the standard OAuth 2.0/ OpenID Connect protocol. In this case, get in touch with hubapps@xecurify.com with your app/provider request/response format documentation and technician will get back to you with a solution.

To fix this issue, please configure the correct Token and User info endpoint in the HubSpot SSO application endpoint table. You can confirm the correct format of the endponit from HERE.
