Joomla OAuth Client Integration with Amazon Single Sign-On (SSO)


Facilitate a seamless integration of Amazon Single Sign-on (Amazon SSO) with Joomla, leveraging the robust OAuth 2.0 Protocol to enhance the overall user experience. The miniOrange Joomla OAuth / OpenID Connect Single Sign-on (SSO) plugin offers an intuitive solution for effortlessly setting up Amazon SSO into Joomla, thereby ensuring a highly secure login process. As a result, users gain convenient access to the Joomla site, authenticating themselves with their Amazon OAuth Provider credentials, bolstering both convenience and security.

Visit our Joomla OAuth Client Plugin webpage to learn more about the features and plans we offer for the Joomla OAuth Single Sign-on (OAuth & OpenID connect) plugin.

Pre-requisites : Download And Installation

Setup Amazon as OAuth Provider with Joomla OAuth Client

1. Download and Setup Joomla OAuth Client

  • Download the zip file for the miniOrange OAuth Client plugin for Joomla from the link here .
  • Login into your Joomla site’s administrator console.
  • From Menu, click on System, then under Install section click on Extension.
  • Upload the downloaded zip file to install the Joomla OAuth Client plugin.
  • After successful installation of plugin, click on Start Using miniOrange OAuth Client plugin button.
  • Under Configure OAuth tab. Select Amazon as an OAuth Provider.
  • Amazon Single Sign-On (SSO) OAuth/OpenID
  • Copy the Callback/Redirect URL from Configure OAuth tab of Joomla OAuth Client plugin. We will require it later.
  • Amazon Single Sign-On (SSO) OAuth/OpenID

2. Configure Amazon as OAuth Provider

  • Go to Amazon Dashboard and sign up/login in your account.
  • Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC), Login amazon
  • Click on Login with Amazon.
  •  Amazon OAuth SSO,Dashboard
  • Click on Create a New Security Profile, under Login with Amazon.
  • Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC), Profile create
  • Enter App Details and click on Save. Then you will see Successfull enable profile message on screen.
  • Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC), Amazon details App Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC), Successfull
  • Click on Setting Icon below Manage and then select Security Profile.
  • Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC),App Settings
  • Go to the Web Settings and click on the Edit button.
  • Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC),Edit button
  • Enter the Callback URL/Redirect URL that we copied from Joomla OAuth Client and then click on Save.
  • Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC), URLs of Apps
  • Click on Show Details, then copy Client ID and Client Secret which will needed for configuring Joomla OAuth Client plugin.
  • Amazon Single Sign-On (SSO) OAuth OpenID Connect (OIDC), Client ID and Secret
  • Click on Save Settings

3. Integrating Joomla with Amazon

  • Go back to your Joomla Dashboard. Then go to Components.
  • Now go to Configure OAuth tab of Joomla OAuth Client Plugin. Then paste the Client ID and Client Secret and Domain. then click on Save Settings. Then click on Test Configuration.
  • Onelogin Single Sign-On (SSO), Application Details

3.1. Scope & Endpoints

    Amazon Endpoints and Scope:


    Scope: profile
    Authorize Endpoint: https://www.amazon.com/ap/oa
    Access Token Endpoint: https://api.amazon.com/auth/o2/token
    Get User Info Endpoint: https://api.amazon.com/user/profile
    Set Client Credentials: In Both (In Header and In Body)

3.2. Grant Types

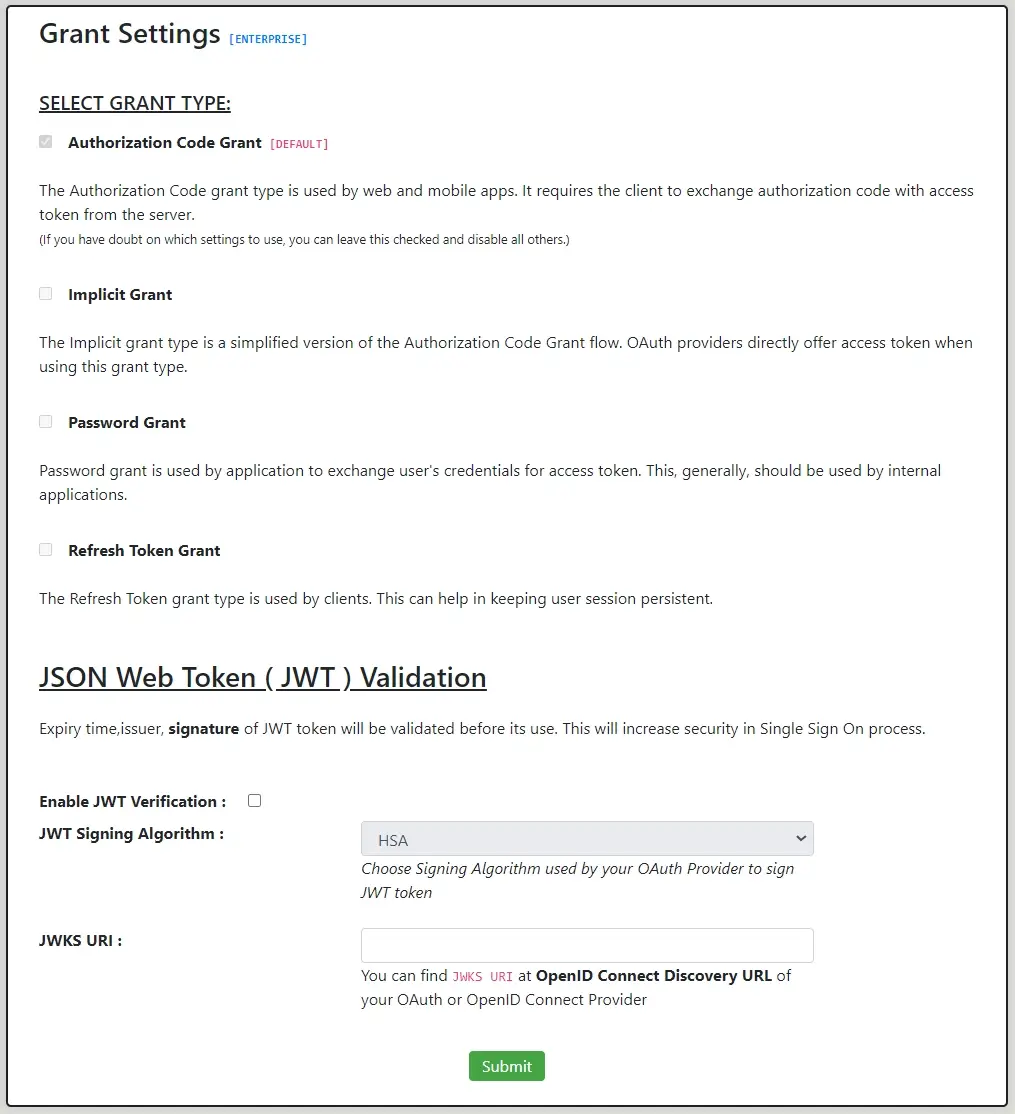

  • Go to the Grant Settings and JWT tab. Here you can select the preffered grant type supported by your OAuth provider.
  •  Okta Single Sign-On (SSO) OAuth/OpenID
  • The following grant types are supported: Authorization Token, Implicit Token, Client Credential and Refresh Token.

4. User Attribute Mapping [Premium Feature]

  • User Attribute Mapping is mandatory for enabling users to successfully login into Joomla. We will be setting up user profile attributes for Joomla using below settings.
  • Click on Test Configuration button, you will see all the values returned by your OAuth Provider to Joomla in a table.
  •  Okta Single Sign-On (SSO) OAuth/OpenID
  • Now go to do Attribute Mapping tab. Here you can map all the Attribute Mapping details in the given fields below.
  •  Okta Single Sign-On (SSO) OAuth/OpenID  Okta Single Sign-On (SSO) OAuth/OpenID

5. Role/Group Mapping [Premium Feature]

  • Go to the Role Mapping tab. Here you can Enable Role Mapping and select default groups for new users.
  • Based on your provider application, you can allocate the Joomla role to your provider roles.
  •  Okta Single Sign-On (SSO) OAuth/OpenID

6. Login Settings [Premium Feature]

  • Now you can use Login / SSO URL to perform SSO.
  •  Okta Single Sign-On (SSO) OAuth/OpenID
  • Now logout and go to your Joomla site's pages where you have added this link. You will see a login link where you placed that button. Click on this button to perform SSO.
  • Go to the Login/Logout Settings tab. Here, you can configure user login/logout behavior for your Joomla application.
  •  Okta Single Sign-On (SSO) OAuth/OpenID
  • Congratulations, you have successfully configured the miniOrange OAuth Client plugin with your Amazon OAuth Provider.
  • Click on the Upgrade Plans tab to check out our complete list of features and various licensing plans. OR you can click here to check features and licensing plans.
  • If you want to purchase any of the paid version of the plugin, you have to register/login with us in Account Setup tab. OR you can register/login Here .
  • In case, you are facing some issue or have any question in mind, you can reach out to us by sending us your query through the Support button in the plugin or by sending us a mail at joomlasupport@xecurify.com.

You have successfully configured Joomla as OAuth Client for achieving Joomla Amazon Single Sign-On (SSO) with Joomla for user authentication.


In this guide, you have successfully configured Joomla Amazon Single Sign-On (SSO) by configuring Amazon as OAuth Provider and Joomla as OAuth Client using our Joomla OAuth Client plugin.This solution ensures that you are ready to roll out secure access to your Joomla site using Amazon login credentials within minutes.
