Canvas Single Sign On (SSO) using your Shopify store. miniOrange provides a ready to use solution for your Shopify store. This solution ensures that you are ready to roll out secure access to your Canvas LMS using Shopify Store credentials within minutes.

The Canvas LMS is the world's fastest growing learning management system. It is an open-sourced cloud-based application designed to empower both teachers and students by making an engaging learning environment available to them. Login using Shopify ( Shopify Store as SAML IDP ) application gives you the ability to use your Shopify store credentials to log into Canvas LMS. Here we will go through a step-by-step guide to configure Single Sign-On (SSO) between the Canvas LMS as Service Provider and Shopify store as an Identity Provider.

Pre-requisite : Store as IDP - SSO Login Application

To configure SSO into Canvas LMS with Shopify as IDP, you will need to install the miniOrange Store as IDP- SSO Login Application on your store

miniOrange Provides Secure Single Sign-On (SSO) access to your web services/application using Shopify Store as IDP.


Follow the Step-by-Step Guide given below for configuring SSO into Canvas LMS using Shopify Store as IDP

1. Configure Shopify store as IdP (Identity Provider)

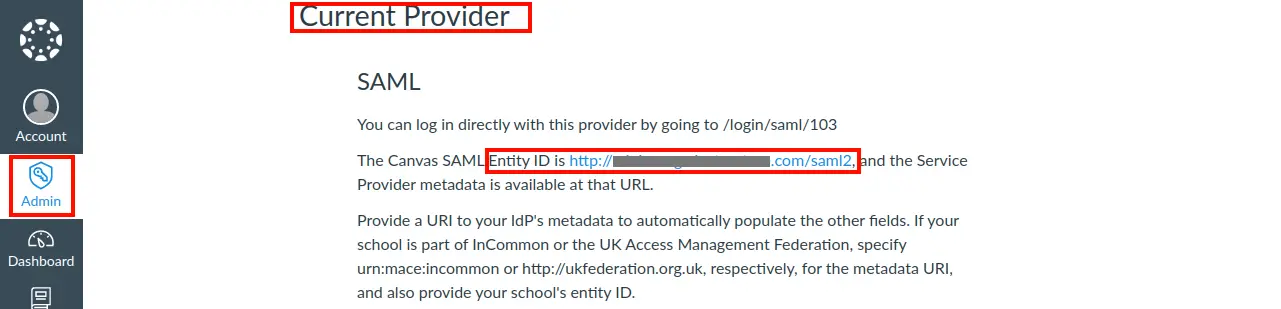

  • You would need Entity ID , ACS URL from Canvas LMS .
  • You can find this information under Current Provider in Authentication section under Admin tab.
  • Click on the Link to find Metadata file containing all the information of your Service Provider
    (Canvas LMS).
  • entity id canvas as sp

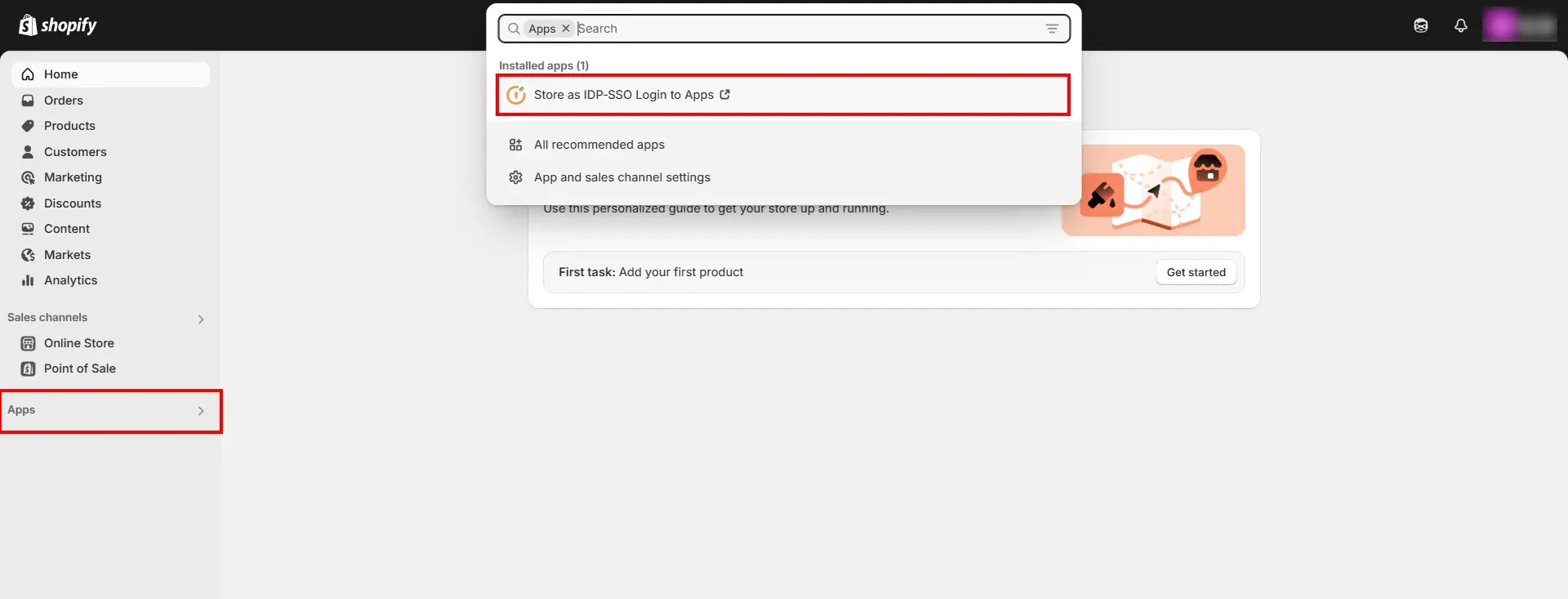

  • Now go to your shopify store, click on Apps tab and select Store as IDP-SSO login application.
  • Shopify Single Sign-On (SSO) in wordpress oauth provider
  • Click on the Setup Application button in the left navigation bar.
  • Shopify Single Sign-On (SSO) in wordpress oauth provider

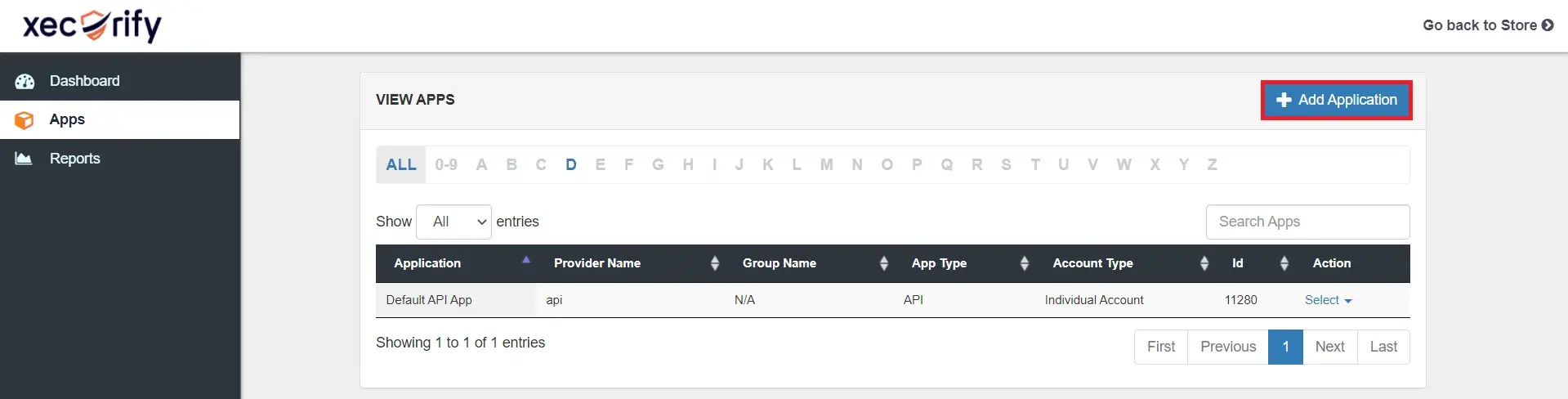

  • From the left navigation bar select Apps and click on Add Application button.
  • Shopify Single Sign-On (SSO) in wordpress oauth provider

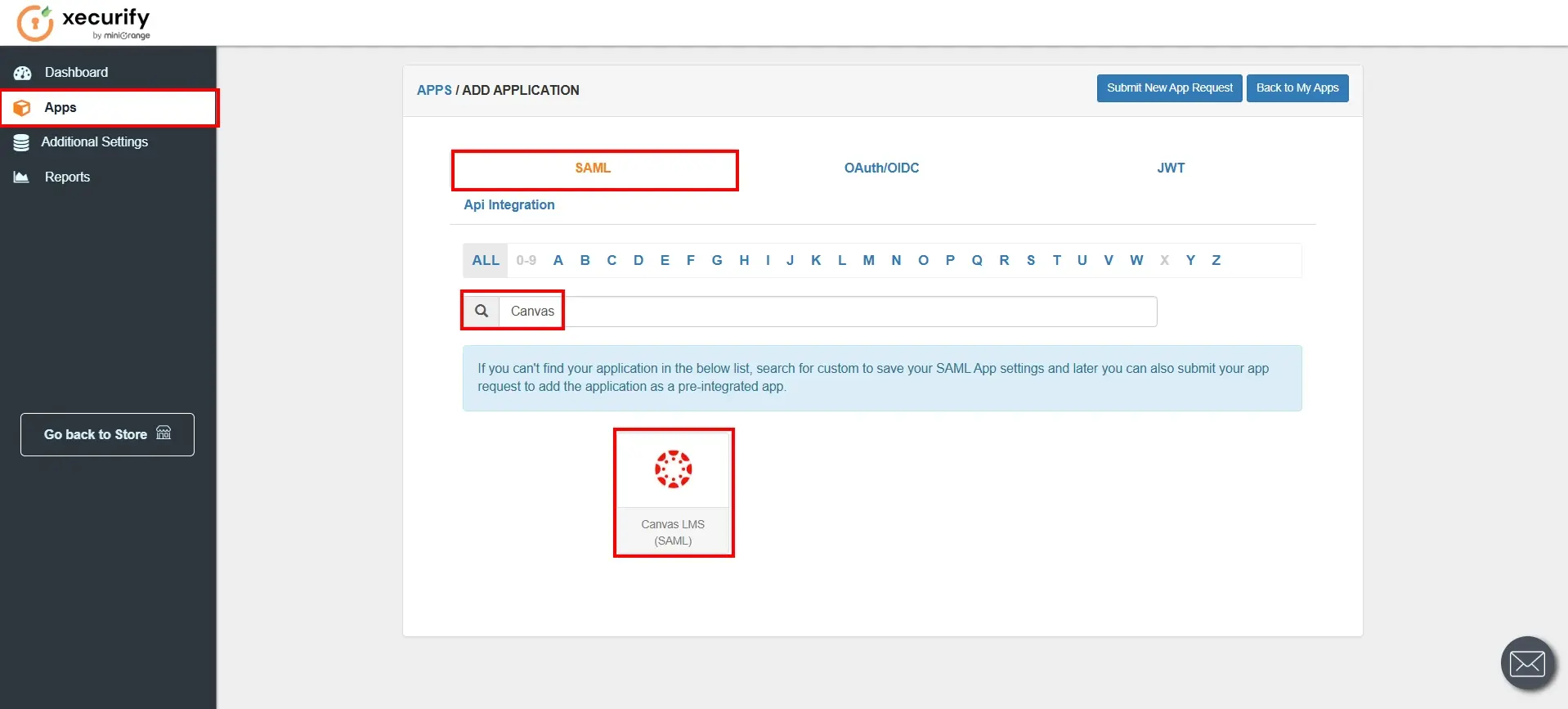

  • Go to SAML tab and search for canvas and select Canvas LMS (SAML).
  • search and select for canvas lms - shopify as idp
  • Enter the values corresponding to the information from Canvas LMS. Refer to the table below.
  • Service Provider Name Name of your Service Provider.
    SP Entity ID or Issuer Copy and paste the SP-Entity ID from Canvas LMS.
    ACS URL Copy and paste the ACS URL from Canvas LMS.
    NameID Format urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
    Assertion Signed Checked
  • Click on the Save button to save your configuration.

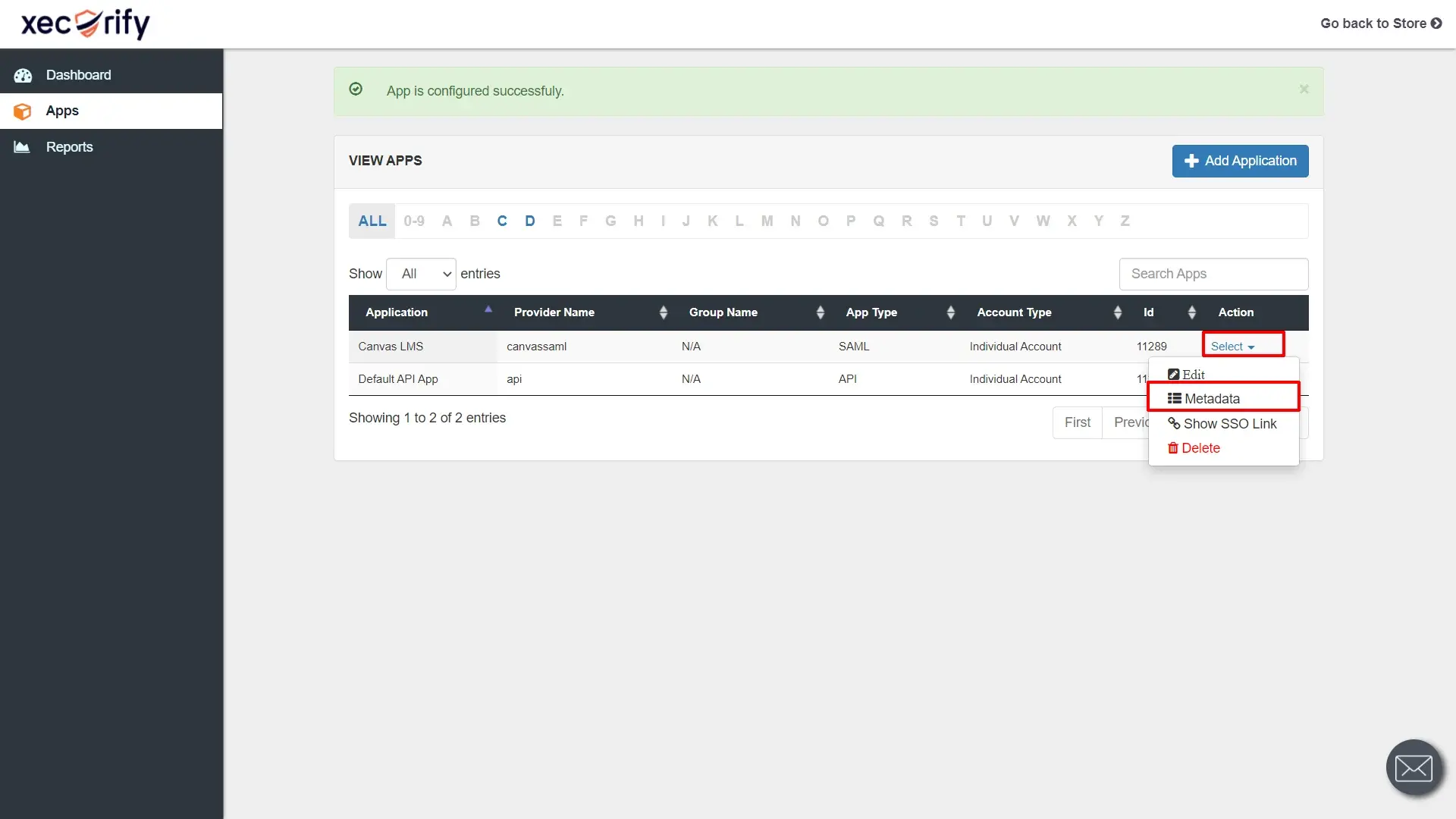

  • Now navigate to Select option and choose Metadata tab.
  • idp metadata under select option - shopify as idp

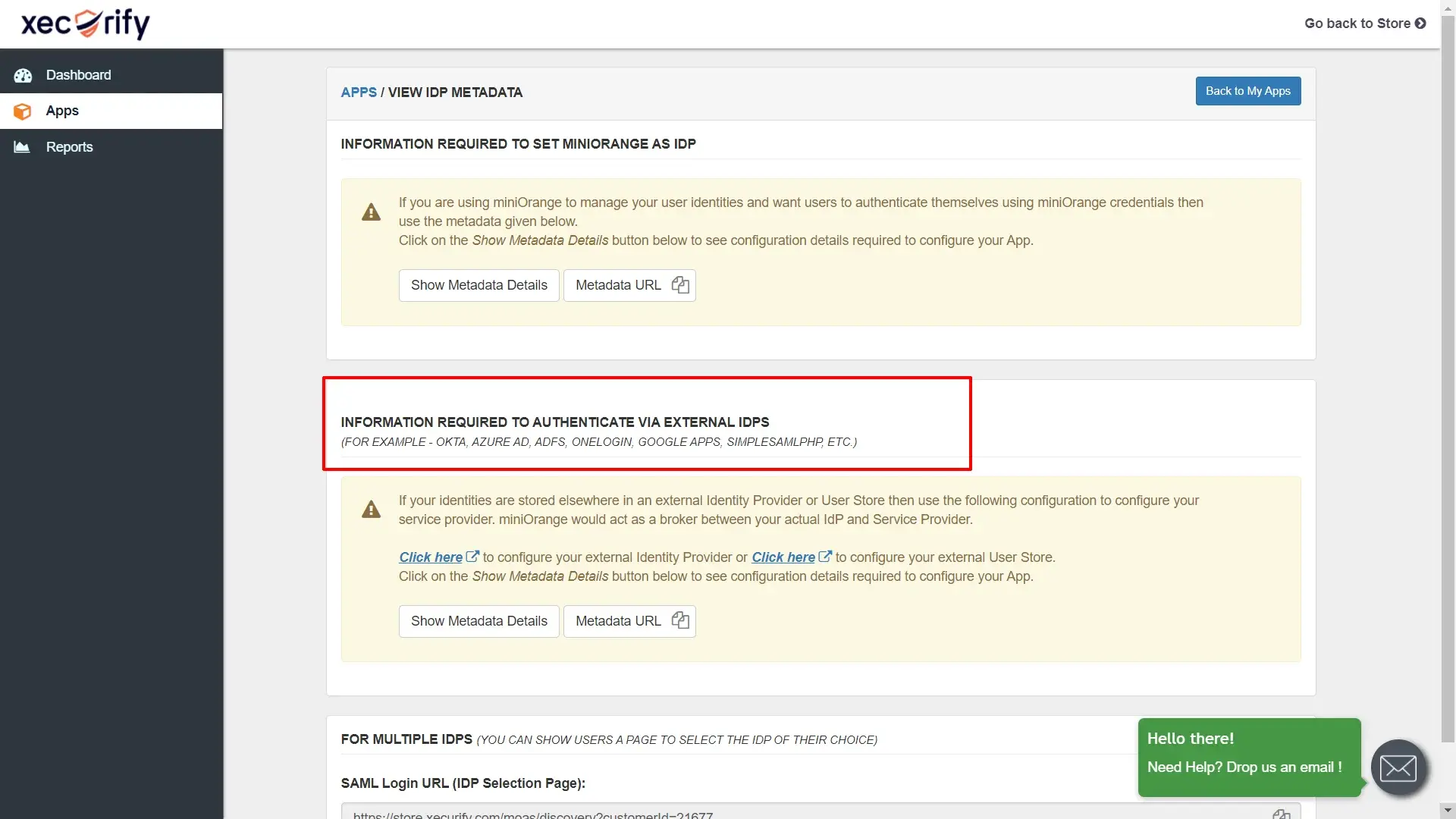

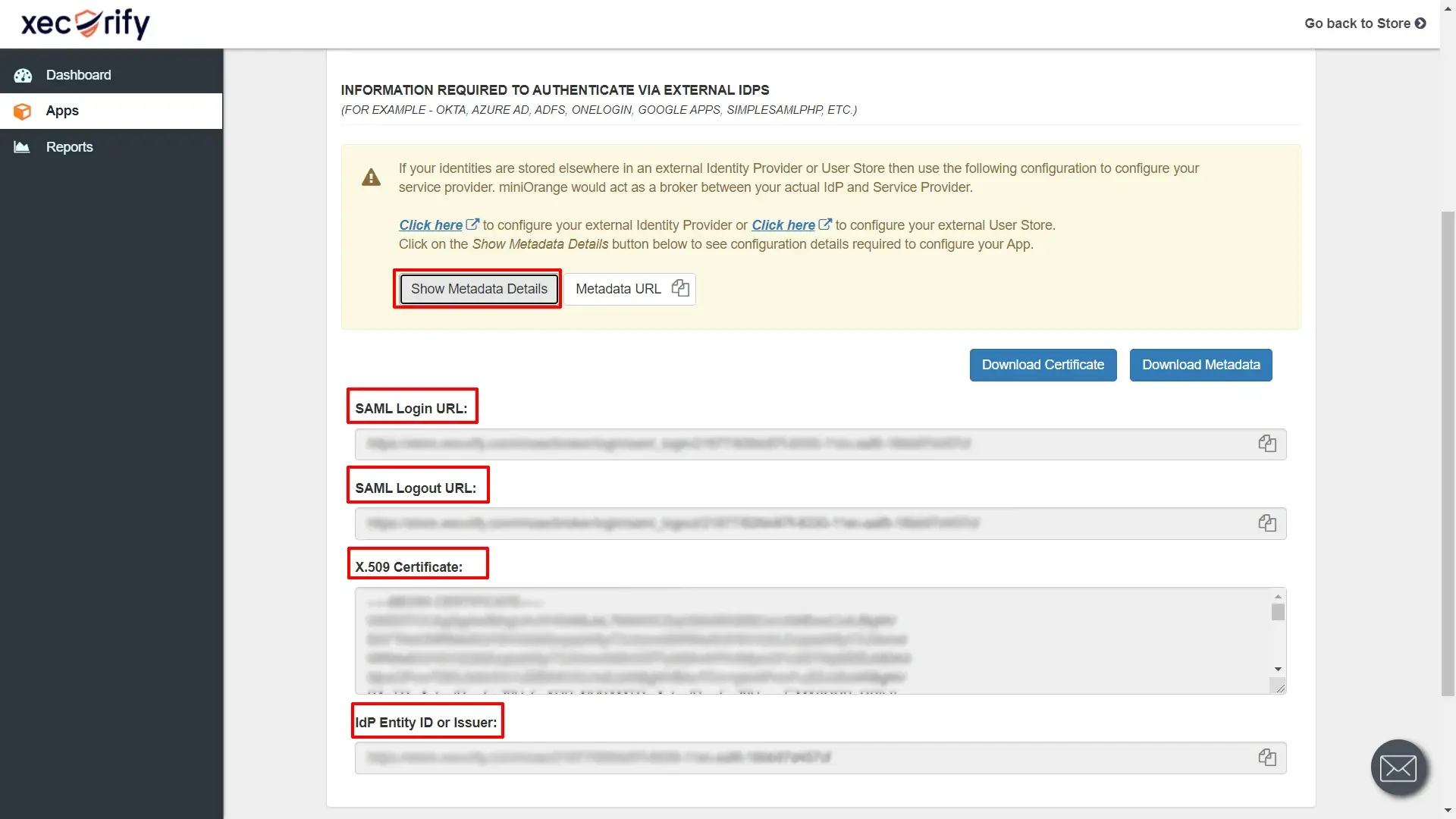

  • Now click on Show Metadata Details under INFORMATION REQUIRED TO AUTHENTICATE VIA EXTERNAL IDPS section. Copy down these data as they will be used in furthur steps.
  • idp metadata - shopify as idp for canvas lms
    shopify as idp for sso into canvas - identity provider metadata
You have successfully completed Shopify side configurations.

2. Configure Canvas LMS as Service Provider

  • Login to your Canvas LMS domain as an Account Administrator.
  • Switch to Admin view by clicking on the corresponding link from the bottom of the screen.
  • Select Admin from the left pane and select the domain for which you wish to enable Single sign-on.
  • enable sso canvas as sp

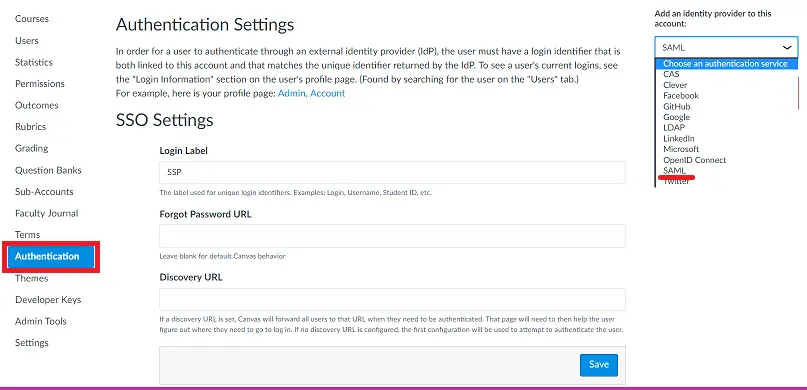

  • Click on Authentication in the left pane and navigate to SAML
  • saml authentication canvas as sp

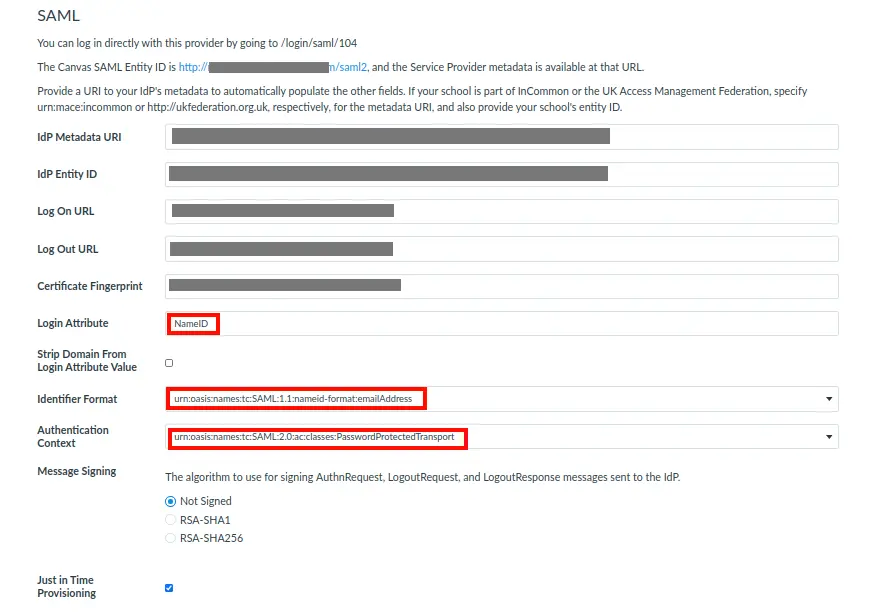

  • Enter the values by referring to the table below.
  • IDP Metadata URI Enter the Metadata URL that points to the metadata document.
    IDP Entity ID Enter the IdP Entity ID or Issuer value that you got from Step 1.
    Log On URL Enter the SAML Login URL that you got from Step 1.
    Log Out URL Enter the SAML Logout URL(Premium feature) that you got from Step 1.
    Certificate Fingerprint Paste the X.509 Certificate copied from Step 1.
    Login Attribute NameID
    Identifier Format Select urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
    from the dropdown list.
    Authentication Context Select urn:oasis:names:tc:SAML:2.0:ac:classes:
    PasswordProtectedTransport
    from the dropdown list.
    Message Signing Select the algorithm to use for signing Request messages sent to the IdP.
    For now select Not Signed.
    Just In Time Provisioning If checked then it automatically create a user account in your Canvas LMS
    if its the first time a user logs in with single sign-on (SSO).
    enter saml info canvas as sp
  • Click on Save.
You have successfully completed Canvas LMS side configurations.

3. Testing SSO for Canvas LMS

  • Go to your Canvas LMS login page.

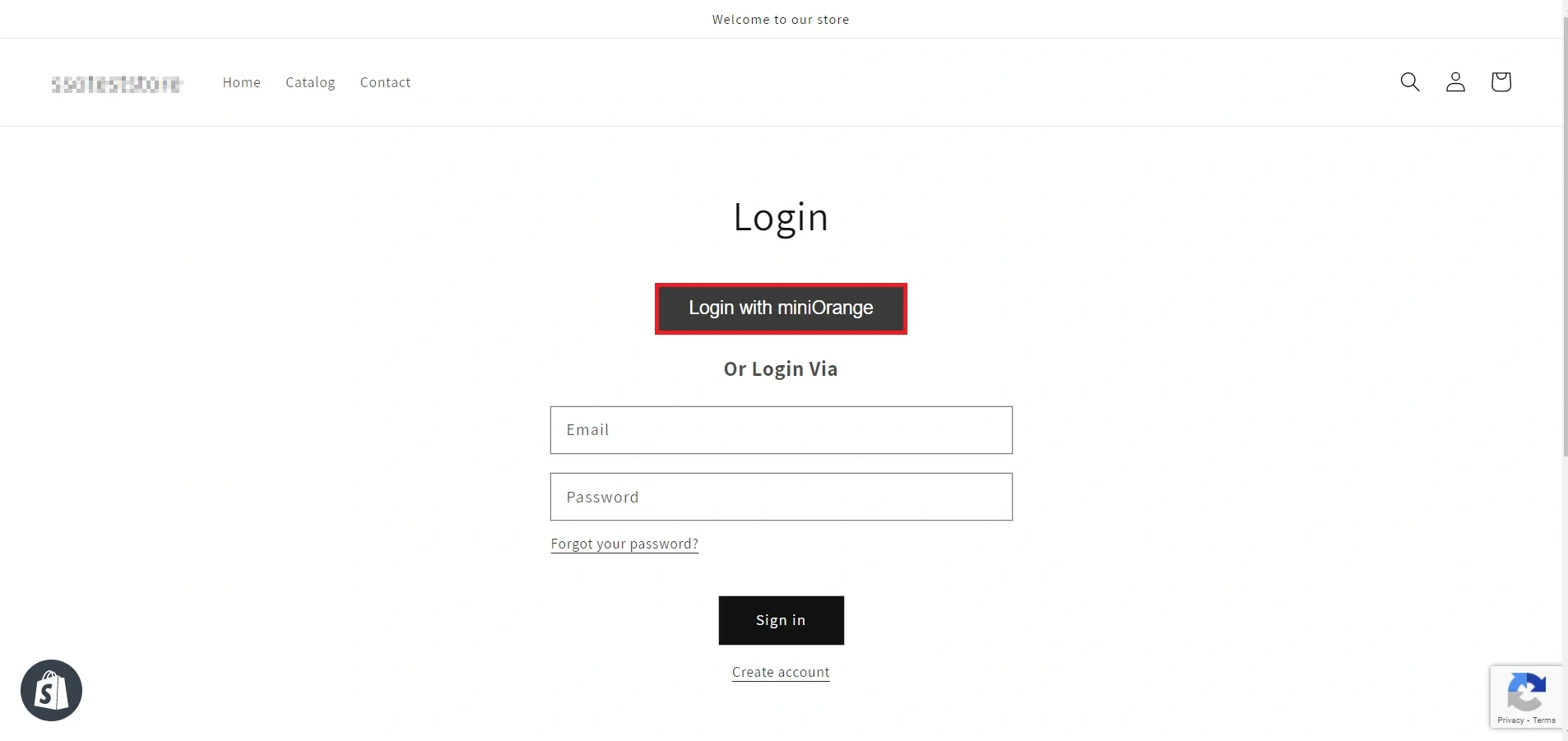

  • Click on the login button you customized earlier. You’ll be redirected to the login page of the Shopify store.
  • select project google oauth provider
  • Enter your Shopify Store login credential and click on Login. You will be automatically logged in to your Canvas LMS account.

You have successfully configured Shopify as Identity Provider for your Canvas LMS application.
